Extron electronics XTP PI 400 User manual

User Guide
XTP PI 400
XTP Power Injector
Four Port XTP Power Injector
68-2291-01 Rev. F
0119

Safety Instructions
Safety Instructions • English
WARNING: This symbol, , when used on the product, is intended to
alert the user of the presence of uninsulated dangerous voltage within the
product’s enclosure that may present a risk of electric shock.
ATTENTION: This symbol, , when used on the product, is intended
to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron website,
www.extron.com.
Instructions de sécurité • Français
AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le
produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit
d’une tension électrique dangereuse susceptible de provoquer un choc
électrique.
ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit,
signale à l’utilisateur des instructions d’utilisation ou de maintenance
importantes qui se trouvent dans la documentation fournie avec le
matériel.
Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation,
la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les
informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site
Extron, www.extron.com.
Sicherheitsanweisungen • Deutsch
WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer
darauf aufmerksam machen, dass im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen herrschen, die nicht isoliert sind
und die einen elektrischen Schlag verursachen können.
VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in der
im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise
zur Bedienung und Wartung (Instandhaltung) geben.
Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in
den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website, www.extron.com.
Instrucciones de seguridad • Español
ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,
avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del
producto, lo que puede representar un riesgo de descarga eléctrica.
ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa
al usuario de la presencia de importantes instrucciones de uso y
mantenimiento recogidas en la documentación proporcionada con el
equipo.
Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y temas
relacionados, consulte la Guía de cumplimiento de normativas y seguridad de
Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.com.
Инструкция по технике безопасности •Русский
ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан
на продукте, предупреждает пользователя о наличии
неизолированного опасного напряжения внутри корпуса
продукта, которое может привести к поражению
электрическим током.
ВНИМАНИЕ: Данный символ, , если указан на продукте,
предупреждает пользователя о наличии важных инструкций
по эксплуатации и обслуживанию в руководстве,
прилагаемом к данному оборудованию.
Для получения информации о правилах техники безопасности,
соблюдении нормативных требований, электромагнитной
совместимости (ЭМП/ЭДС), возможности доступа и других
вопросах см. руководство по безопасности и соблюдению
нормативных требований Extron на сайте Extron: , www.extron.com,
номер по каталогу - 68-290-01.
安全说明 •简体中文
警告：产品上的这个标志意在警告用户该产品机壳内有暴露的危险 电压，
有触电危险。
注意：产品上的这个标志意在提示用户设备随附的用户手册中有
重要的操作和维护(维修）说明。
关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍
使用的特性等相关内容，敬请访问 Extron 网站 , www.extron.com，参见
Extron 安全规范指南，产品编号 68-290-01。
安全記事 •繁體中文
警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著
可能會導致觸電之風險的未絕緣危險電壓。
注意 若產品上使用此符號，是為了提醒使用者，設備隨附的用戶手冊中有重
要的操作和維護（維修）説明。
有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資
訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《Extron 安全性與法規
遵守手冊》，準則編號 68-290-01。
安全上のご注意 • 日本語
警告: この記号 が製品上に表示されている場合は、筐体内に絶縁されて
いない高電圧が流れ、感電の危険があることを示しています。
注意: この記号 が製品上に表示されている場合は、本機の取扱説明書
に 記 載されてい る重 要な 操作と保 守( 整 備 )の指 示についてユーザー の 注
意を喚起するものです。
安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ い て は 、エ ク スト ロ ン の ウ ェブ サ イト www.extron.com よ り 『 Extron Safety
and Regulatory Compliance Guide』 ( P/N 68-290-01) をご覧ください。
안전 지침 • 한국어
경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는
접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.
주의: 이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와
있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.
안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에
대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및
규제 준수 안내서, 68-290-01 조항을 참조하십시오.

FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause interference. This interference must be corrected at the
expense of the user.
ATTENTION: The Twisted Pair Extension technology works with unshielded twisted
pair (UTP) or shielded twisted pair (STP) cables; but to ensure FCC Class A and
CE compliance, STP cables and STP Connectors are required.
For more information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the “Extron Safety and
Regulatory Compliance Guide” on the Extron website.
Copyright
© 2016-2019 Extron Electronics. All rights reserved.
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks®, registered service marks(SM), and trademarks(TM) are the property of
RGBSystems, Inc. or Extron Electronics:
Registered Trademarks (®)
Extron, AVTrac, Cable Cubby, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Global Configurator, GlobalViewer,
Hideaway, Inline, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage,
PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix,
VoiceLift, WallVault, WindoWall, XTP, and XTPSystems
Registered Service Mark(SM) : S3 Service Support Solutions
Trademarks (™)
AAP, AFL (Accu-RateFrameLock), ADSP(Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS(ClassD Ripple
Suppression), DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator,
DSVP(Digital Sync Validation Processing), eLink, EQIP, FastBite, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP,
QS-FPC(QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, ShareLink, SIS, SimpleInstructionSet, Skew-Free,
SpeedNav, Triple-Action Switching, True4K, Vector™ 4K , WebShare, XTRA, ZipCaddy, ZipClip

Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
WARNING: Potential risk of severe injury or death.
AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.
ATTENTION:
• Risk of property damage.
• Risque de dommages matériels.
NOTE: A note draws attention to important information.
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.

Contents
Introduction ................................................... 1
About the XTP PI 400......................................... 1
Features ............................................................. 3
Installation and Operation ........................... 4
Installation .......................................................... 4
Important Safety Instructions .......................... 4
Installation Overview ....................................... 6
Rear Panel Connectors................................... 6
Twisted Pair Cable Recommendations............ 7
LED Indicators.................................................... 8
Mounting ........................................................ 9
Tabletop Mounting.......................................... 9
Under-the-table Mounting............................... 9
Rack Mounting ............................................. 10
vXTP PI 400 Power Injector • Contents

XTP PI 400 Power Injector • Contents vi

XTP PI 400 Power Injector • Introduction 1
Introduction
This guide contains information about the Extron XTP PI 400 power injector with instructions
for experienced installers on how to install, configure, and operate the equipment.
In this guide, the term “XTP PI 400” is used to refer to the XTP PI 400 Power Injector.
This section provides basic information about this guide, the XTP PI 400, and key features
of the XTP PI 400. Topics in this section include:
• About the XTP PI 400
• Features
About the XTP PI 400
The Extron XTP PI 400 power injector provides power for up to four PoE compatible devices
such as XTP extenders, IP Link Pro control processors, MediaLink Plus controllers, or
TouchLink Pro touchpanels. It eliminates the need for local power supplies.
Designed specifically for the high data rates of XTP systems, signal quality is unaffected
when using the power injector. It can be installed anywhere within the XTP signal path,
providing design flexibility for remote devices with limited space. The XTP PI 400 also
provides integration flexibility in XTP systems with fully populated matrix switchers.
To ensure quick and dependable installation, the 1U, half rack width enclosure can be
securely mounted using Extron rack shelves.
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
Rx GTx
RS-232 IR RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
ACT LINK
OVER XTP OUTPUTS RELAYS
HDMI
OFF
S/PDIF
RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
OUTPUTS RELAYS
XTP IN HDMI
OFF
S/PDIF
ACT LINK
POWER
12V
HDMI
--A MAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
XTP
IN
POWER
12V
HDMI
--A MAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
Tx Rx
RS-232
12V
1.0A MAX.
POWER
SIG LINK
XTP OUT
RESET
XTP Signal XTP Signal XTP Signal
XTP R HDMI
Receiver
XTP T HDMI
Transmitter
XTP T UWP 202
Transmitter
XTP R HDMI
Receiver
XTP PI 400
XTP Power Injector
PS
1210
Desk
top Power
Supply
PS 1210
Desktop Power
Supply
PS 1210
Desktop Power
Supply
XTP R HDMI
Receiver
XTP T HDMI
Transmitter
Remote Power
Remote Power
Remote Power
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
Tx Rx
RS-232
12V
1.0A MAX.
POWER
SIG LINK
XTP OUT
RESET
I
N
P
U
T
S
O
U
T
P
U
T
S
LAN
ACT
LINK
RESET
100-240V
50-60Hz
--A MAX
REMOTE
RS232/RS422
DISCONNECTPOWER
CORDBEFORE
SERVICING
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
POWER
12V
INPUTS
2
--A MAX
RxTx
RS-232 IR
RxTx
1LAN
SIG LINK
ACT LINK
XTP OUT
OVER XTP
AUDIO
CONTACTRS-232
Tx Rx
XTP T USW 103
31 2 3
RESET
LAN
ACT LINK
SIG LINK
XTP IN
POWER
12V
OUTPUTS
HDMI
--A MAX
RxTx
RS-232 IR
RxTx −+−+
LR 12
OVER XTP AUDIO
OFF
HDMI AUDIO
ON
S/PDIF
RELAYS
XTP SR HDMI
RESET
REMOTE
RS-232
Tx Rx
XTP
XTP
PWR
LAN
ACT LINK
SIG LINK
XTP IN
POWER
12V
OUTPUTS
HDMI
--A MAX
RxTx
RS-232 IR
RxTx −+−+
LR 12
OVER XTP AUDIO
OFF
HDMI AUDIO
ON
S/PDIF
RELAYS
XTP SR HDMI
RESET
REMOTE
RS-232
Tx Rx
Extron
XTP CrossPoint 3200
XTP Signal
XTP T USW 103
XTP TransmitterXTP SR HDMI
XTP Scaling Receiver
XTP SR HDMI
XTP Scaling Receiver
XTP T UWP 202
Transmitter
XTP PI 400
XTP Power Injector
XTP Signal
Remote Power Remote Power
Remote Power
Remote Power
Figure 1. Typical XTP PI 400 Point-to-point Application

XTP PI 400 Power Injector • Introduction 2
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
Rx GTx
RS-232 IR RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
ACT LINK
OVER XTP OUTPUTS RELAYS
HDMI
OFF
S/PDIF
RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
OUTPUTS RELAYS
XTP IN HDMI
OFF
S/PDIF
ACT LINK
POWER
12V
HDMI
--A MAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
XTP
IN
POWER
12V
HDMI
--A MAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
Tx Rx
RS-232
12V
1.0A MAX.
POWER
SIG LINK
XTP OUT
RESET
XTP Signal XTP Signal XTP Signal
XTP R HDMI
Receiver
XTP T HDMI
Transmitter
XTP T UWP 202
Transmitter
XTP R HDMI
Receiver
XTP PI 400
XTP Power Injector
PS 1210
Desktop Power
Supply
PS 1210
Desktop Power
Supply
PS 1210
Desktop Power
Supply
XTP R HDMI
Receiver
XTP T HDMI
Transmitter
Remote Power
Remote Power
Remote Power
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
Tx Rx
RS-232
12V
1.0A MAX.
POWER
SIG LINK
XTP OUT
RESET
I
N
P
U
T
S
O
U
T
P
U
T
S
LAN
ACT
LINK
RESET
100-240V
50-60Hz
--AMAX
REMOTE
RS232/RS422
DISCONNECTPOWER
CORDBEFORE
SERVICING
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
IN
IN
XTPCP 4i
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
OUT
OUT
XTPCP 4o
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
SIG LINK SIG LINK
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
XTP
PWR
ACT LINK
LAN
IR/RS-232OVER XTP
POWER
12V
INPUTS
2
--A MAX
RxTx
RS-232 IR
RxTx
1LAN
SIG LINK
ACT LINK
XTP OUT
OVER XTP
AUDIO
CONTACTRS-232
Tx Rx
XTP T USW 103
31 2 3
RESET
LAN
ACT LINK
SIG LINK
XTP IN
POWER
12V
OUTPUTS
HDMI
--A MAX
RxTx
RS-232 IR
RxTx −+−+
LR 12
OVER XTP AUDIO
OFF
HDMI AUDIO
ON
S/PDIF
RELAYS
XTP SR HDMI
RESET
REMOTE
RS-232
Tx Rx
XTP
XTP
PWR
LAN
ACT LINK
SIG LINK
XTP IN
POWER
12V
OUTPUTS
HDMI
--A MAX
RxTx
RS-232 IR
RxTx −+−+
LR 12
OVER XTP AUDIO
OFF
HDMI AUDIO
ON
S/PDIF
RELAYS
XTP SR HDMI
RESET
REMOTE
RS-232
Tx Rx
Extron
XTP CrossPoint 3200
XTP Signal
XTP T USW 103
XTP TransmitterXTP SR HDMI
XTP Scaling Receiver
XTP SR HDMI
XTP Scaling Receiver
XTP T UWP 202
Transmitter
XTP PI 400
XTP Power Injector
XTP Signal
Remote Power Remote Power
Remote Power
Remote Power

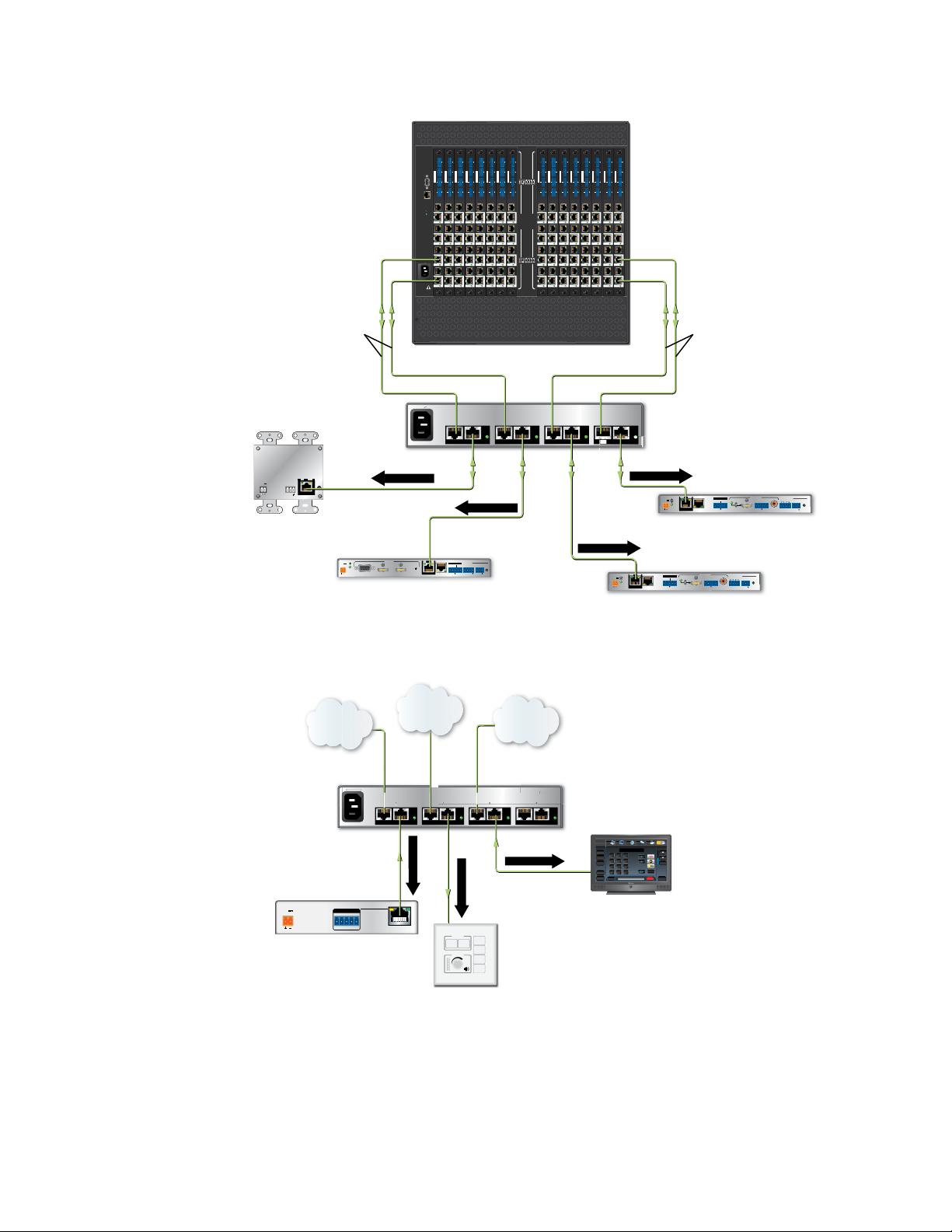

Figure 2. Typical XTP PI 400 Matrix Application
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
IPL Pro S1
TLP Pro 1020T
MLC Plus 100
XTP PI 400
XTP Power Injector
Remote Power
Remote Power
Remote Power
Help System
Off
Display
Room
Control
Off
Mute
Screen
Lighting
December15, 2013 - 7:58 AM
Audio
Control
Volume
Mute
Tuner
123
VCRLaptop PC DVD Doc
Cam
Tuner
On
Channel
Last
Presets
More
Presets
321
654
987
Enter
0
DISPLAY
VOLUME
Extron
ON OFF
PC
LAPTOP
VIDEO
MUTE
POWER
12V
0.2A MAX
G
Tx Rx
RTSCTS
COM
IPL PRO S1
LAN / PoE
1
Network
100-240V x.x
A
w
o
r
r
k
Network
3
4
X
TP PI 4
00
2
or
r
k
Network
Figure 3. XTP PI 400 Remote Power to IPL Pro, MLC Plus, and TLP Pro Devices

XTP PI 400 Power Injector • Introduction 3
Features
• Supplies power for up to four PoE compatible devices such as XTP extenders,
IP Link Pro control processors, MediaLink Plus controllers, or TouchLink Pro
touchpanels, eliminating the need for local power supplies.
• Designed specifically for the high data rates of XTP systems
• No impact on signal quality — Utilization of the power injector does not affect video,
audio, bidirectional RS-232 and IR, and Ethernet signal quality.
• Real-time status LEDs for troubleshooting and monitoring — Front and rear
indicators provide status for each port that is supplying power to an XTP extender.
• UL/c-UL Listed and CE compliant
• 1U, half rack width enclosure
• Internal universal power supply — The 100-240 VAC, 50-60 Hz, international power
supply provides worldwide power compatibility.

XTP PI 400 Power Injector • Installation and Operation 4
Installation and
Operation
This section contains installation procedures and operation features. Topics in this section
include:
• Installation
• LED Indicators
Installation
Important Safety Instructions
This symbol, when used on the product, is intended to alert the user of important
operating and maintenance (servicing) instructions in the literature provided with the
equipment.
This symbol, when used on the product, is intended to alert the user of the presence
of uninsulated dangerous voltage within the product enclosure that may present a
risk of electric shock.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
• Only use attachments and accessories specified by the manufacturer.
• Unplug this device apparatus during lightning storms or when unused for long periods
of time.

XTP PI 400 Power Injector • Installation and Operation 5
WARNING: Risk of electrical shock. To reduce the risk of fire or electric shock, do
not expose this apparatus to rain, moisture, dripping, splashing, or objects filled with
liquids.
AVERTISSEMENT : Risque de choc électrique: Afin de réduire les risques d’incendie
ou de choc électrique, protégez cet appareil de la pluie ou de l’humidité. Cet appareil
doit être conservé à l’abri des éclaboussures et des projections, et aucun objet
contenant un liquide, tel qu’un vase, ne doit être posé sur l’appareil.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when the power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
ATTENTION:
• This apparatus is a Class I product. This product must be connected to a mains
socket outlet with a protective earthing connection.
• Cet appareil est un produit de Classe1. Ce produit doit être connecté à une prise
femelle secteur équipée d’une connexion de mise à la terre.
The mains plug is used as the disconnect device and must remain readily operable.
WARNING: To prevent the risk of shock, do not attempt to service this equipment
yourself because opening or removing covers may expose you to dangerous voltage
or other hazards.
AVERTISSEMENT : Afin d’éviter tout risque de choc électrique, n’essayez pas de
réparer vous-même l’appareil car l’ouverture ou le retrait des couvercles présente un
risque d’exposition à des tensions électriques dangereuses ou à d’autres risques.
ATTENTION:
• Power sources —This equipment should be operated only from the power
source indicated on the product. This equipment is intended to be used with a
main power system with a grounded (neutral) conductor. The third (grounding) pin
is a safety feature. Do not attempt to bypass or disable it.
• [Source d’alimentation] —Ce matériel ne devrait être alimenté qu’à partir de la
source d’alimentation stipulée sur le produit. Ce matériel est prévu pour être relié
à un circuit d’alimentation général doté d’un conducteur (neutre) mis à la terre.
La troisième broche (de terre) est un composant de sécurité. N’essayez pas de
l’éviter ou de la désactiver.
• Power disconnection — To remove power from the equipment safely, remove
all power cords from the rear of the equipment, or the desktop power module (if
detachable), or from the power source receptacle (wall plug).
• Déconnection de l’alimentation — Pour déconnecter le matériel de sa source
d’alimentation en toute sécurité, débranchez tous les cordons d’alimentation de
l’arrière du matériel ou débranchez l’adaptateur secteur (si débranchable) ou de la
prise secteur (prise murale).

XTP PI 400 Power Injector • Installation and Operation 6
Installation Overview
1. Mount the device in a rack, under a table, or on a tabletop (see Mounting on page 9).
2. Connect a locally powered XTP device, IPL Pro,
or MLC Plus to the XTP connector on one of
the port pairs (see “Rear Panel Connectors”
below).
3. On the same port pair, connect a PoE
compatible XTP device, IPL Pro, MLC Plus,
or TLP Pro to the XTP PWR connector.
4. Repeat steps 2 and 3 for each XTP port pair as necessary.
5. Connect AC power to the XTP PI 400.
Rear Panel Connectors
100-240V 1.6 A
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
ABCBCBCBC

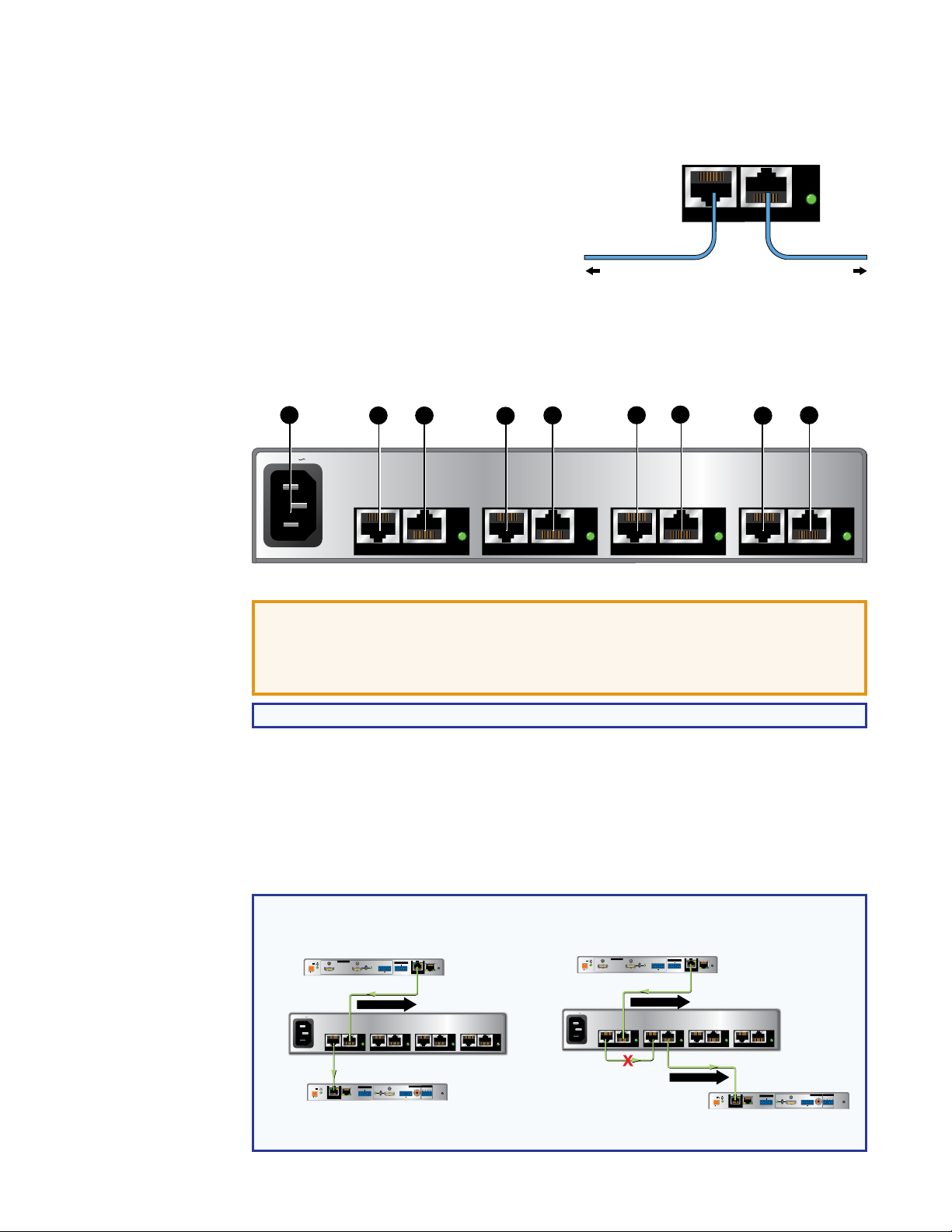

Figure 4. Rear Panel Connectors
ATTENTION:
• Do not connect these devices to a computer data or telecommunications network.
• Ne connectez pas ces appareils à des données informatiques ou à un réseau de
télécommunications.
NOTE: The XTP PI 400 does not switch XTP signals.
AAC power connector — Connect the IEC power cord to this AC power connector.
BXTP connector — Connect an Extron XTP device, IPL Pro, or MLC Plus to this XTP
connector on any of the four port pairs. The device on this connector must be powered
by a local power source.
C XTP PWR connector — Connect a PoE compatible XTP device, IPL Pro, MLC Plus,
or TLP Pro to this XTP PWR connector. Make sure there is a locally powered device
plugged into the XTP connector (B) on the same port pair.
NOTE: Do not loop XTP port pairs on a single cable run to remotely power the
transmitter and receiver. Figure 6, below, shows this type of application, which is not
recommended by Extron.
• Figure 6. Incorrect application
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
--AMAX
Rx GTx
RS-232 IR RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP OUTPUTS RELAYS
SIG LINK
XTP IN HDMI
OFF
S/PDIF
POWER
12V
HDMI
--AMAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
CATx
CATx
XTP T HDMI
Transmitter
XTP R HDMI
Receiver CORRECT
INCORRECT
XTP PI 400
XTP Power Injector
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
--AMAX
Rx GTx
RS-232 IR RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP OUTPUTS RELAYS
SIG LINK
XTP IN HDMI
OFF
S/PDIF
CATx
XTP R HDMI
Receiver
XTP PI 400
XTP Power Injector
CATx
Remote Power
POWER
12V
HDMI
--AMAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
CATx
XTP T HDMI
Transmitter
Remote Power
Remote Power
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
--AMAX
Rx GTx
RS-232 IR RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP OUTPUTS RELAYS
SIG LINK
XTP IN HDMI
OFF
S/PDIF
POWER
12V
HDMI
--AMAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
CATx
CATx
XTP T HDMI
Transmitter
XTP R HDMI
Receiver CORRECT
INCORRECT
XTP PI 400
XTP Power Injector
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
--AMAX
Rx GTx
RS-232 IR RL
RxTx -+-+
12
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP OUTPUTS RELAYS
SIG LINK
XTP IN HDMI
OFF
S/PDIF
CATx
XTP R HDMI
Receiver
XTP PI 400
XTP Power Injector
CATx
Remote Power
POWER
12V
HDMI
--AMAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS OVER XTP
CATx
XTP T HDMI
Transmitter
Remote Power
Remote Power

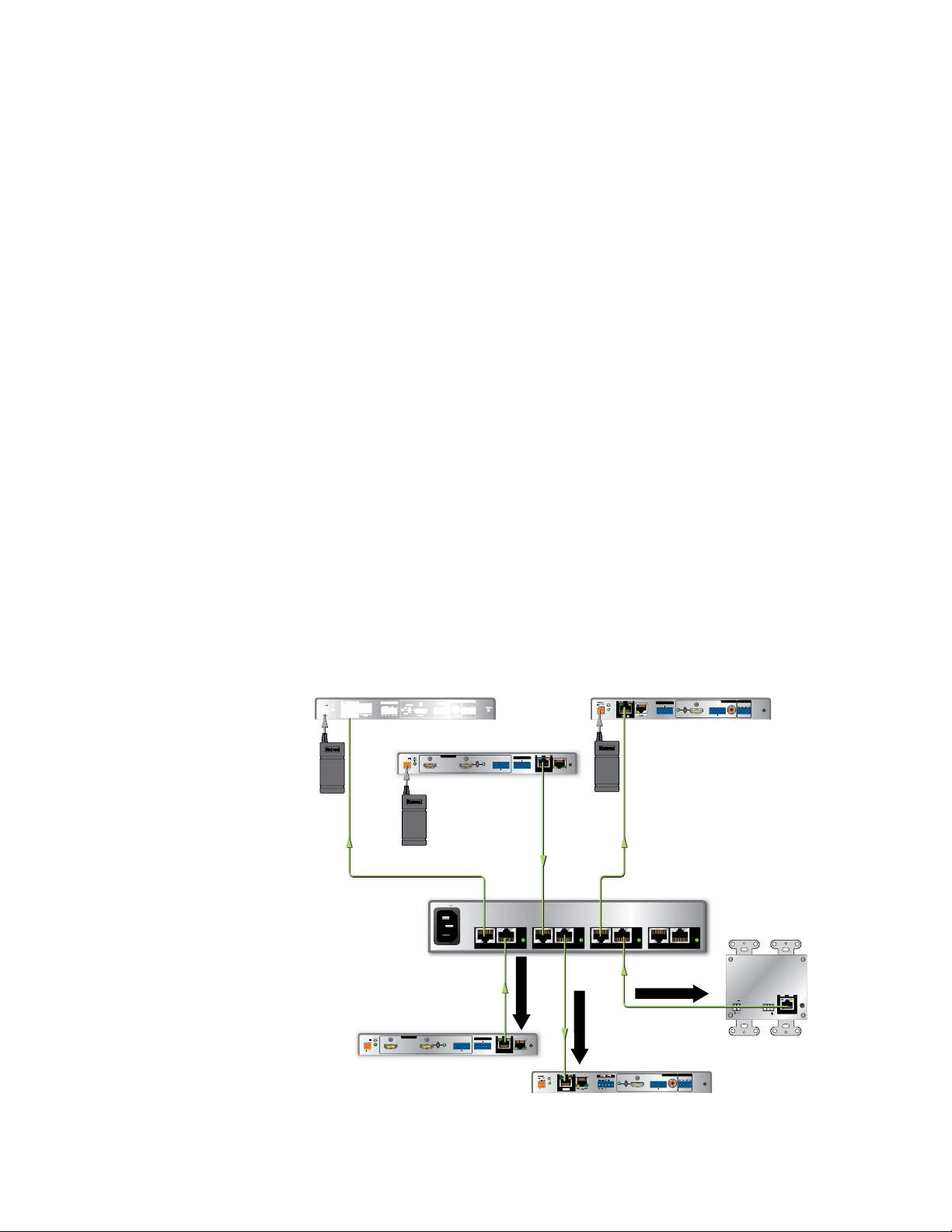

Figure 5. Correct application
XTP
PWR
XTP PWR
To network or
XTP Device
To XTP, IPL Pro,
MLC Plus, or TLP Pro
device that can be
powered via PoE

XTP PI 400 Power Injector • Installation and Operation 7
Twisted Pair Cable Recommendations
Use the following pin configuration for twisted pair cables.
TIA/EIA-T568B
Pin Wire Color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Figure 7. Twisted Pair Cable Configuration
Supported cables
The XTP PI 400 is compatible with CAT 5e, 6, 6a, and 7 shielded twisted pair
(F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cable.
ATTENTION:
• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201
cable.
• N’utilisez pas le câble AV Skew-FreeUTP version améliorée UTP23SF d’Extron ou
le câble STP201.
• To ensure FCC Class A and CE compliance, STP cables and STP connectors are
required.
• Afin de s’assurer de la compatibilité entre FCC Classe A et CE, les câbles STP et
les connecteurs STP sont nécessaires.
Cable recommendations
Extron recommends using the following practices to achieve full transmission distances up
to 330 feet (100 meters) and reduce transmission errors:
• Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best
performance:
• XTP DTP 24/1000 Non-plenum 1000 feet (305 m) spool 22-236-03
• XTP DTP 24P/1000 Plenum 1000 feet (305 m) spool 22-235-03
• XTP DTP 24 Plug Package of 10 101-005-02
• If you are not using XTP DTP 24 cable, at a minimum Extron recommends 24 AWG,
solid conductor, STP cable with a minimum bandwidth of 400 MHz.
• Terminate cables with shielded connectors to the TIA/EIA-T568B standard.
• Limit the use of more than two pass-through points, which may include patch points,
punch down connectors, couplers, and power injectors. If these pass-through points
are required, use CAT 6 or 6a shielded couplers and punch down connectors.
NOTE: Using more than three patches with the XTP PI 400 yields varying maximum
cable lengths (see the table on the next page).
12345678
RJ-45
Connector
Insert Twisted
Pair Wires
Pins:
Pin
1
2
3
4
5
6
7
8
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
T568A T568B
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown

XTP PI 400 Power Injector • Installation and Operation 8
Number of Patches Maximum Transmission Distance
1 or 2 330 feet (100 meters)
3 280 feet (85 meters)
NOTE: When using CAT 5e or CAT 6 cable in bundles or conduits:
• Do not exceed 40% fill capacity in conduits.
• Do not comb the cable for the first 20 meters where cables are straightened,
aligned, and secured in tight bundles.
• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
• Separate twisted pair cables from AC power cables.

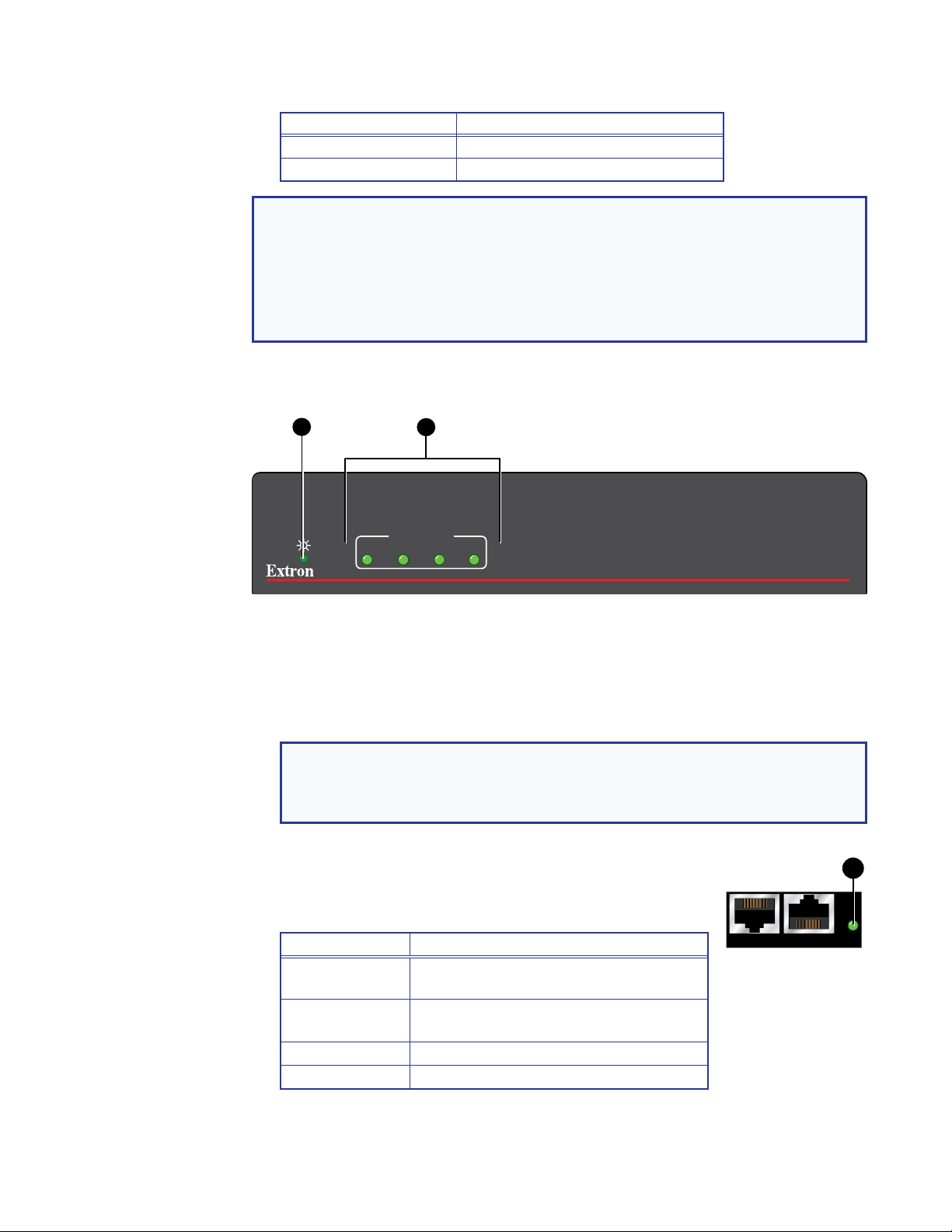

LED Indicators
1
XTP POWER OUT
XTP PI 400
XTP POWER INJECTOR
2 3 4
AB
Figure 8. Front Panel Features
AFront panel power LED indicator — Lights to indicate the XTP PI 400 is receiving
power.
BFront panel XTP Power Out LED indicators — Light when the XTP PI 400 is
providing power to XTP devices connected to the XTP PWR connectors.
NOTE: If the last connected XTP device that requires power draws more power
than the XTP PI 400 can provide, the corresponding XTP Power Out LED
indicator blinks, indicating the output cannot be powered due to the over power
draw. Disconnect the XTP device to correct the issue.
CRear panel Pwr LED indicators — Light or blink to indicate
the various power states of the XTP device connected to the
corresponding XTP PWR connector (see the table below for LED
states).
LED State Port Status
Unlit The endpoint is not connected or cannot
be powered.
Lit The endpoint is receiving power from the
XTP PI 400.
Blinks five times There is a power overload fault.
Blinks nine times The power allocation is exceeded.
XTP
PWR
XTP PWR
X
TP Port
C

XTP PI 400 Power Injector • Mounting 9
Mounting
The XTP PI 400 is 1U high and one half rack wide. To mount the device:
1. Turn off or disconnect all equipment power sources.
2. Mount the XTP PI 400 on a table, under a desk using an optional mounting kit, or on a
rack shelf (see the sections below for each mounting option).
ATTENTION:
• These power supplies are not suitable for use in air handling spaces or in wall
cavities. The power supply is to be located within the vicinity of the Extron AV
equipment in an ordinary location with IEC 1010 pollution degree 2, and secured
to an equipment rack within a dedicated closet, podium, or desk.
• Ces sources d’alimentation ne sont pas appropriées pour une utilisation dans
les espaces d’aération ou dans les cavités murales. Cette source d’alimentation
doit être située à proximité de l’équipement audiovisuel d’Extron, dans un endroit
ordinaire avec une pollution IEC 1010 degré 2, et fixé à un équipement de rack au
sein d’un placard, d’une estrade ou d’un bureau qui lui est dédié.
• The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical
Code part 1, section 16. The power supply shall not be permanently fixed to
building structure or similar structure.
• Cette installation doit toujours être en accord avec les mesures qui s’applique
au National Electrical Code ANSI/NFPA 70, article 725, et au Canadian Electrical
Code, partie 1, section 16. La source d’alimentation ne devra pas être fixée de
façon permanente à une structure de bâtiment ou à une structure similaire.
• This device is for intra-building use only.
• Cet appareil est exclusivement réservé à un usage intérieur.
WARNING: Risk of electrical shock. To reduce the risk of fire or electric shock, do
not expose this apparatus to rain, moisture, dripping, splashing, or objects filled with
liquids.
AVERTISSEMENT: Risque de choc électrique: Afin de réduire les risques d’incendie
ou de choc électrique, protégez cet appareil de la pluie ou de l’humidité. Cet appareil
doit être conservé à l’abri des éclaboussures et des projections, et aucun objet
contenant un liquide, tel qu’un vase, ne doit être posé sur l’appareil.
Tabletop Mounting
Attach the provided rubber feet to the bottom four corners of the enclosure.
Under-the-table Mounting
Use an optional Extron mounting kit to mount the XTP PI 400 under a desk or table. Follow
the instructions included with the kit.

XTP PI 400 Power Injector • Mounting 10
Rack Mounting
Mount the XTP PI 400 to an optional Extron rack shelf. To mount the unit on a rack shelf,
follow the instructions provided with the shelf accessories.
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
NOTE: Using screws longe
r
than 3/16" will damage the
unit and void the warranty.
1U Universal Rack Shelf
Front false
faceplate uses
2 screws.
Half Rack 9.5 inch Box Standard Shelf
1/2 Rack Width Front False
Faceplate
Figure 9. Half Rack Mounting
UL Guidelines for Rack Mounted Devices
The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the
XTP PI 400 in a rack.
1. Elevated operating ambient temperature — If the equipment is installed in a closed
or multi-unit rack assembly, the operating ambient temperature of the rack environment
may be greater than room ambient temperature. Therefore, install the XTP PI 400 in an
environment compatible with the maximum ambient temperature
(Tma = +122 ˚F, +50 ˚C) specified by Extron.
2. Reduced air flow — Install the equipment in a rack so that the amount of air flow
required for safe operation of the equipment is not compromised.
3. Mechanical loading — Mount the equipment in the rack so that uneven mechanical
loading does not cause a hazardous condition.
4. Circuit overloading — Connect the equipment to the supply circuit and consider the
effect that circuit overloading might have an overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted
equipment. Pay particular attention to supply connections other than direct connections
to the branch circuit (for example, use of power strips).

Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX [phone] FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Australia
+61.8.8351.2188
+61.8.8351.2511 FAX
Extron India
1800.3070.3777
(Inside India Only)
+91.80.3055.3777
+91.80.3055.3737 FAX
©2016 Extron Electronics All rights reserved. www.extron.com
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
Europe and Africa:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
China:
Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China
Asia:
Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Singapore
Middle East:
Extron Middle East
Dubai Airport Free Zone
F13, PO Box 293666
United Arab Emirates, Dubai
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical
or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not
authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return
Authorization) number. This will begin the repair process.
USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage
during shipment. Returned units must include the serial number and a description of the problem, as well as the
name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality,
performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct,
indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may
not apply to you.
