Eycos USER GUIDE User manual

1 | S 30.12CI H User Manual

2 | S 30.12CI H User Manual
Notice
This manual can help you to become familiar with how-to-use and the many great features of the
digital satellite receiver S 30.12CI H. All the safety and operating instructions should be read before
the digital satellite receiver S 30.12CI H is operated. Please keep the manual in a fixed place so
that it can be easily referred to later.
The following symbols will serve as follows:
Indicates any other additional important or helpful information.
Indicates warning information.
“MENU”
(Double quotation marks) Indicates a button on the remote control or the product.
To reduce the risk of electric shock, do not remove cover (or back).
No user serviceable parts inside. Refer servicing to qualified service
personnel.
Indicates dangerous voltage inside the product that presents a risk
of electric shock or personal injury.
Indicates important-operating and maintenance instructions
accompanying the product.

Contents | 3
#
Safety and Precautions
<Attention when installing the receiver>
Install on an even plane. Don
˅ t install in the cold or under direct sunlight.
Leave a minimum 10cm gap all around the product. Don
˅ t disassemble, repair, or reorganize the product.
<Use and care of the receiver >
Place the product in a well-ventilated area. Place the product where dust and other materials do not build up.
Don ˅ t plug in with several other power plugs. Don ˅ t place the product where there are extreme vibrations or near magnetic forces.
Don ˅ t place objects on top of the product. Don ˅ t place cups that hold water or other liquids on top of the product.

4 | S 30.12CI H User Manual
Table of Contents
Chapter 1. Before You Begin ············· 5
1.1 Features ········································· 6
1.2 Package Contents ·························· 7
1.3 Names of Each Parts ····················· 8
1.3.1 Front Panel ·································· 8
1.3.2 Rear Panel ·································· 9
1.4 Names of Remote Control ·············· 10
Chapter 2. Connections ··················· 13
2.1 Connecting to TV & VCR ·············· 14
2.2 Connecting to Dish ······················· 16
2.3 Connect to the Optical S/PDIF ····· 17
2.4 Connecting to CI module ················· 17
2.5 Starting Up ······································· 18
Chapter 3. Basic Settings ················ 19
3.1 Language ····································· 20
3.2 Time Setting ································· 20
3.3 Antenna Setting ···························· 21
Chapter 4. Operations ······················ 23
[ Basic Functions ] ······························ 24
4.1 Changing Channel ······················· 24
4.2 Adjusting Volume ·························· 24
4.3 Viewing Program Information ······· 25
4.4 Switching TV and Radio ··············· 26
4.5 Freezing Screen/Zooming Screen · 26
4.6 Changing Subtitle Language ········ 27
4.7 Changing Audio Language ··········· 28
4.8 Selecting Audio Output Direction ·· 28
[ Advanced Functions ] ······················· 29
4.9 Managing Channel List ················ 29
4.9.1 Displaying Channel List ············· 29
4.9.2 Searching Channel ···················· 30
4.9.3 Viewing Multi-Channels Window · 31
4.9.4 HDMI Color Adjust ························ 32
4.9.5 Changing Satellite Group ··········· 32
4.9.6 Editing Channels ·························· 33
4.10 Managing Favorite Channel Lists ·· 35
4.11 Changing Channel Mode ············ 37
4.12 Viewing Program Guide ·············· 37
4.13 Viewing Teletext ·························· 38
4.14 Changing STB/TV ······················· 38
Chapter 5. Settings ··························· 39
5.1 Search Channel ···························· 41
5.1.1 Antenna Setting ··························· 41
5.1.2 Automatic Search ······················· 42
5.1.3 Manual Search ··························· 43
5.1.4 Advanced Search ······················· 44
5.1.5 Blind Scan ·································· 44
5.1.6 USALS ······································· 45
5.2 Edit Channel ································· 46
5.2.1 Edit Channel ································· 46
5.2.2 Edit Favorite ································· 46
5.2.3 Edit Transponder ·························· 46
5.2.4 Remove Satellite ·························· 47
5.3 Setup ··············································· 48
5.3.1 Language Setting ························· 48
5.3.2 OSD Setting ······························· 49
5.3.3 Output SettingG···························· 49
5.3.4 HDMI Setting ····························· 50
5.3.5 Time Setting ······························· 50
5.3.6 Timer Setting ······························ 51
5.3.7 Lock Control ······························· 51
5.4 Tools ············································· 52
5.5 Common Interface ··························· 55
Chapter 6. Appendix ························· 57
6.1 Trouble Shooting ····························· 58
6.2 Specification ·································· 59

5 | S 30.12CI H User Manual
==>
Chapter 1
Before You Begin

6 | S 30.12CI H User Manual
1.1 Features
Enjoy a full of thrills and excitement with Arion’s new product!
The S 30.12CI H is a set-top box perfectly suited for receiving digital satellite broadcasts. You can
enjoy the various TV and radio programs. The simple connection and easy-of- use operation,
user-friendly three-dimensional OSD, highest quality audio output with Dolby AC-3 Digital Audio,
and Multi-channel screen are all designed to enrich the user experience.
Furthermore, S 30.12CI H provides the enhanced Electronic Program Guide (EPG), various
utilities, and channel change effect modes.
<Main Features>
z MPEG-2 / DVB(Digital Video Broadcasting ) compliant
z MPEG Layer I and II, CD quality audio sound
z Supports RS-232 port for S/W upgrade (115,200 bps)
z Separated TV/Radio/All List & Favorite Group List
z Offering 8,000 TV and radio channels
z DiSEqC 1.0/1.1/1.2 and USALS
z Supports multi-channel screen (Mosaic)
z Variable kind of utilities (Calendar, Calculator, Zoom In)
z Channel change effect mode (Blank, Fade-in/Out, Freeze)
z Supports 2 Slot Common Interface (CAM)
z 1 Port HDMI Output
<Other Features>
z Capable of receiving both SCPC and MCPC channels
z Powerful and easy functions for editing (Lock, Delete, Move, Rename Channel & Favorite group)
z Games Included: Tetris, Block Out, etc.
z Electronic Program Guide (EPG) for On Screen Channel Information
z 12 OSD languages and 256 color OSD menu
z Auto searching & manual searching function
z Parental lock function (Install Lock/Menu Lock/ IRD Lock)
z Ergonomic full functions remote control & VFD and 8 buttons on the front panel
z Teletext and subtitle supported by VBI and OSD
z Channel editor & channel loader in PC environment
z Software transfer from receiver to receiver
z Total 8 configurable timer control
z S/PDIF for digital audio(Optional)
z Free voltage

Ch1. Before You Begin | 7
#
1.2 Package Contents
Please check to make sure the following contents are in the product’s package.
z Product contents may be subject to change.
z Cables not specified above must be purchased separately.

8 | S 30.12CI H User Manual
1.3 Names of Each Parts

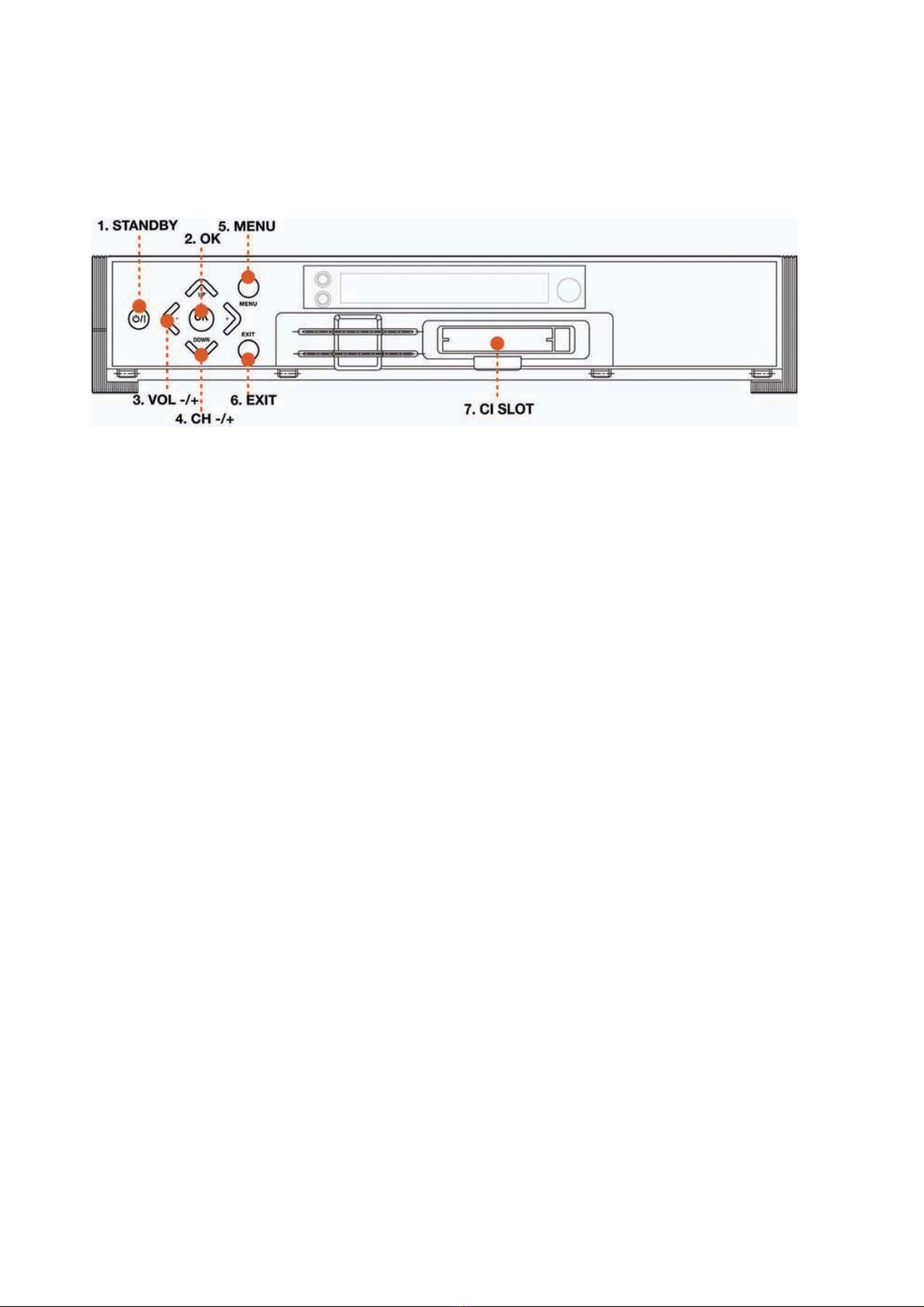

1.3.1GFront Panel
1. STANDBY
To switch the receiver on/off.
2. OK
To select a menu or confirm the user’s action and display the channel list during watching a TV.
3. VOL -/+
To increase or decrease TV/Radio volume level or change the value of an item with
preprogrammed values. The “
䯝 ” # button can be used to show the sub-menu corresponding to
the highlighted menu.
4. CH -/+
To change the TV/Radio channel Up/Down.
5. MENU
To display the menu OSD.
6. EXIT/ZOOM
To exit from the current menu or cancel the current operation in menu state. Zoom in/out the
screen during watching a program.
7. CI Slot
Insert CI module into CI slot for conditional access..

Ch1. Before You Begin | 9
#
1.3.2 Rear Panel
1. HDMI
Connect this connector to your TV via a HDMI cable.
2. S/PDIF
Connect S/PDIF to audio input of your amplifier with optical digital port via an optical cable.
3. VCR SCART(*Optional)
Connect this connector to your VCR via a SCART cable.
4. TV SCART(*Optional)
Connect this connector to your TV via a SCART cable.
5. VIDEO
Connect VIDEO to video input of your TV or VCR via a RCA cable.
6. AUDIO L/R
Connect AUDIO L/R to the matching Audio Inputs of your TV/VCR via a RCA cable.
7. RF-IN
Connect RF-IN to your TV antenna or cable TV system.
8. TV-OUT
Connect TV OUT to your TV antenna input.
9. RS-232C
Connect RS-232C to your PC via a serial cable to upgrade S 30.12CI software
10. LNB IN
Connect a coaxial cable of your LNB to this connector.
11. LNB OUT
Connect LNB OUT to another set-top box.
12. POWER
Turn the S 30.12CI H On/Off.

10 | S 30.12CI H User Manual
1.4 Names of Remote Control
MUTE
To mute the sound.
STANDBY
To switch the receiver On/Standby.
CH-/ +
To change the TV/radio channels Up/Down.
VOL -/+
To increase or decrease TV/Radio volume level or change the
value of an item with preprogrammed values. The “
䯝 ” # button can
be used to show the sub-menu corresponding to the highlighted
menu and the “
䯛 ” # button can be used as a backspace to cancel
the numerical input.
OK
To select a menu or confirm the user’s action and display the
channel list during watching a program.
MENU
To display the menu OSD.
EXIT/ZOOM
To exit from the current menu or cancel the current operation in
menu state. Zoom in/out the screen during watching a program.
Red(LANG, hereafter “Red”)
To display the provided audio language lists of the current channel.
Green(SOUND, hereafter “Green”)
To select the sound mode (stereo, left, or right.)
Yellow(PAUSE, hereafter “Yellow”)
To pause the TV screen.
Blue(RECALL, hereafter “Blue”)
To return to the previous chosen channel.

Ch1. Before You Begin | 11
#
NUMERICAL (0~9) BUTTONS
To enter a TV/Radio channel number or characters.
Guide
To display the Electronic Program Guide. Press again to return to the normal mode.
FAV
You can register the favorite channels by pressing the “MENU” button, and then change the channel modes by
pressing the “FAV” button.
Lower VOL/CH
To change the TV/Radio volume/channel without displaying the OSD.
PAGE
To change the TV/Radio channel lists by the page.
INFO
To display the information about the channel.
TV/RADIO
To switch the receiver TV/Radio
TEXT
To display the teletext information about the channel if applicable.
SUBT
To display the provided subtitle language lists of the current channel.
SAT
To select the specific satellite.

12 | S 30.12CI H User Manual
: Angle of remote control use
The remote control can be used at a distance of up to 7 to 10 meters, and at an angle of 30
degrees from the remote control led.

13 | S 30.12CI H User Manual
Chapter 2
Connections

14 | S 30.12CI H User Manual
This chapter describes how to connect the receiver. Choose the most appropriate procedure
depending on your environments.
: If you encounter with any problem during connecting the receiver, please contact
your local product distributor.
2.1 Connecting to TV & VCR
1. Connecting to TV with RF
1) Connect the TV antenna to the RF-IN of the receiver.
2) Connect the RF-IN of TV to the TV-OUT of the receiver.
3) Connect the Video and Audio of TV to the VIDEO and AUDIO L/R of the receiver.
4) Go to

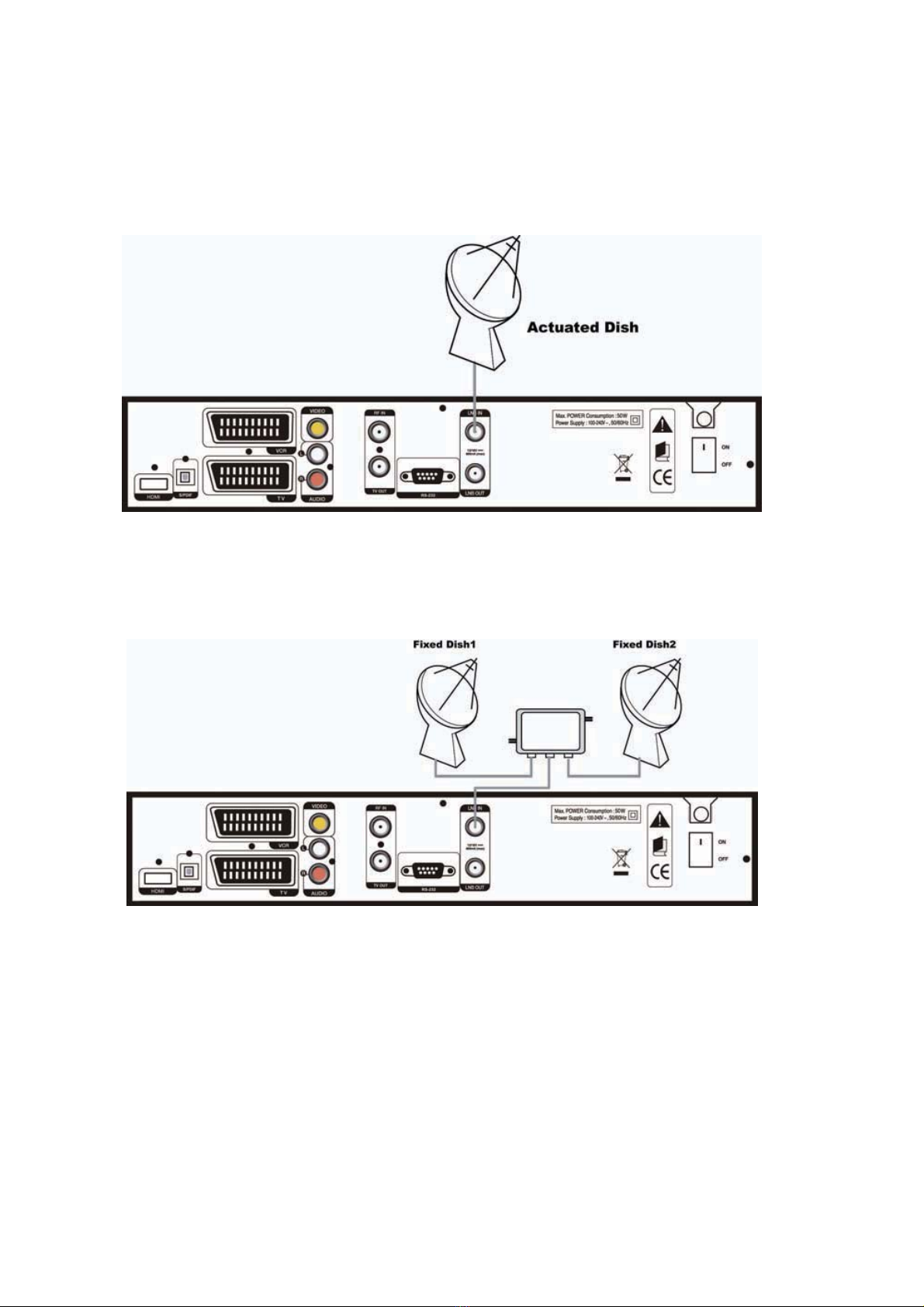

2.2 Connecting to Dish, and then connect your dish.
2. Connecting a TV with HDMI
1) Connect the TV HDMI port to the HDMI port of the product.

Ch2. Connections | 15
#

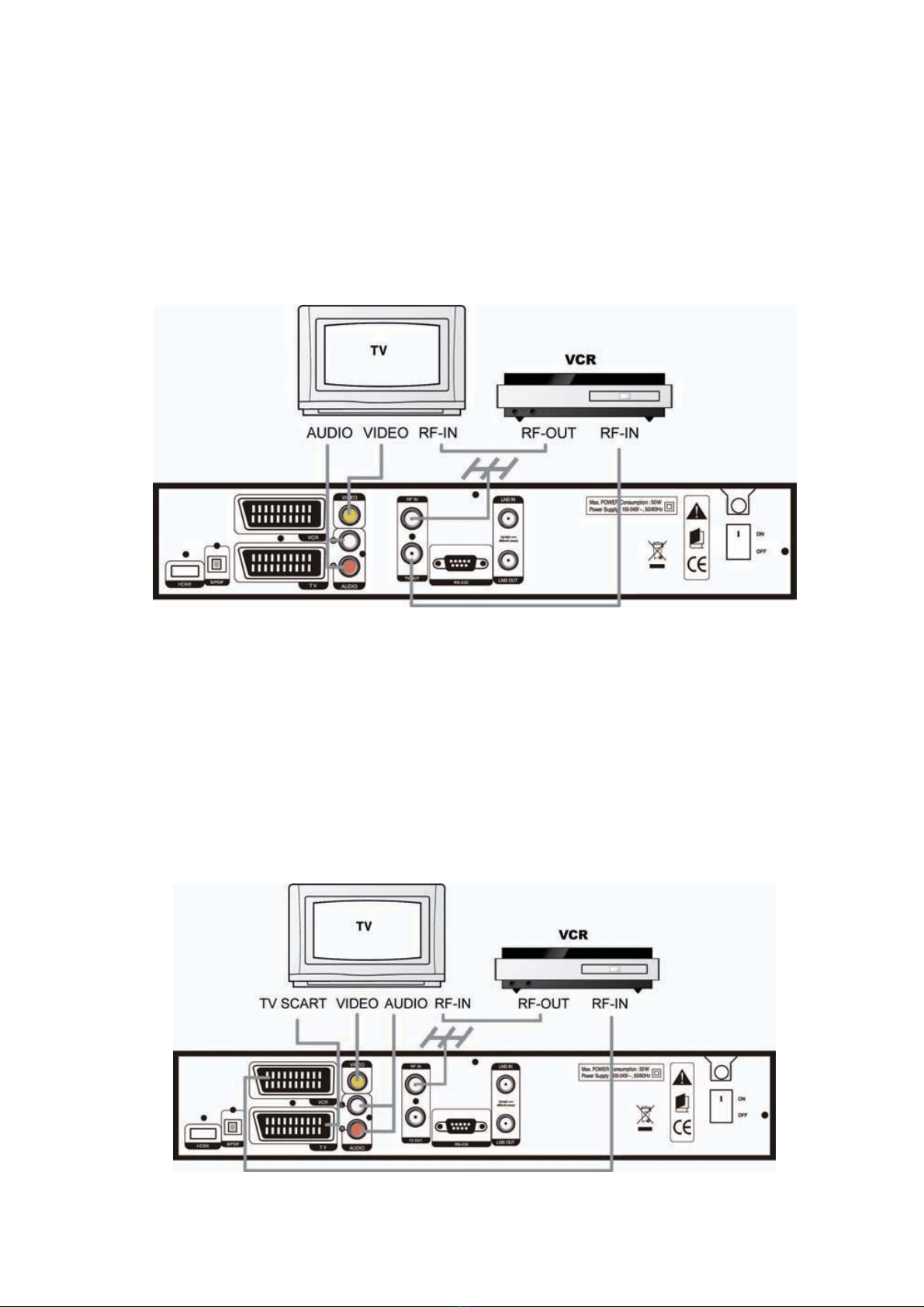

3. Connecting to TV and VCR with RF
1) Connect the TV antenna to the RF-IN of the receiver.
2) Connect the RF-IN of VCR to the RF-OUT of the receiver.
3) Connect the
{} -OUT of VCR to the RF-IN of TV.
4) Connect the Video and Audio of TV to the VIDEO and AUDIO L/R of the receiver.
5) Go to section
2.2 Connecting to Dish, and then connect your dish.
4. Connecting TV and VCR with Scart Cable
1) Connect the TV antenna to RF-IN of the receiver.
2) Connect the RF-IN of VCR to the RF-OUT of the receiver.
3) Connect the RF-OUT of VCR to the RF-IN of TV.
4) Connect the Video and Audio of TV to the VIDEO and AUDIO L/R of the receiver.
5) Connect the TV Scart of TV to TV SCART with fully featured Scart cable.
6) Go to section
2.2 Connecting to Dish, and then connect your dish.

16 | S 30.12CI H User Manual
2.2 Connecting to Dish
1. Dish
Connect the satellite antenna cable to the LNB IN.
2
UG
Fixed Dishes Using DiSEqC
Connect the output of DiSEqC to the LNB IN of the receiver.

Ch2. Connections | 17
#
2.3 Connect to the Optical S/PDIF(Optional)
If you watch a program encoded by a Dolby Digital, you can enjoy the higher quality sound of the
Dolby Digital audio
U
Connect the optical S/PDIF to Dolby digital decoder or Digital television.
S/PDIF is an optional port.
2.4 Connecting to CI Module
Insert CI module fully into CI slot for watching TV programs from Service Provider.

18 | S 30.12CI H User Manual
2.5 Starting Up
1. Connect the power cord of the receiver to a power outlet G and press the “Power” button at the
rear panel to turn the receiver on.
2. The first time you power up the receiver, it will display the initial screen, then some parameters
for system configuration should be set. Refer to the following chapter for detailed information
about the basic settings.

19 | S 30.12CI H User Manual
Chapter 3
Basic Settings

20 | S 30.12CI H User Manual
If you use the receiver for the first time after connecting, you have to perform basic settings. Once
the setup procedure is finished correctly, you can start watching TV or listening to radio.
Turn on your TV and the receiver. Follow the instruction on the screen.
3.1 Language
You can select Menu Language, Audio, and the Subtitled Language.
1. Select the appropriate language from the list using the “
ൖ൘ ” button.
2. Press the “
 ” buttons to move cursor into other language items.
3. Press the “Red” button to move to the next setting.
3.2 Time Setting
You can set the current time.
1. Select Time Mode between GMT Offset and Local time using the “
ൖ൘ ” button.
