NetworkVideoRecorder









QuickOperationGuide


Quick Operation Guide
TABLEOFCONTENTS
NVR Pre-Installation.......................................................................................................................................2
NVR Installation ..............................................................................................................................................2
Hard Disk Installation.....................................................................................................................................2
Front Panel.......................................................................................................................................................4
Rear Panel ........................................................................................................................................................5
Specification .....................................................................................................................................................6
Specifications of HNR30P Series............................................................................................................. 6
HDD Storage Calculation Chart.....................................................................................................................8
Accessing by Web Browser..............................................................................................................................9
Logging In................................................................................................................................................. 9
Live View .................................................................................................................................................. 9
Recording................................................................................................................................................ 10
Playback.................................................................................................................................................. 12
Log 13
Menu Operation.............................................................................................................................................14
Menu Structure......................................................................................................................................... 14
Startup and Shutdown .............................................................................................................................. 14
Live View................................................................................................................................................. 15
Adding IP Cameras................................................................................................................................ 15
Record Settings....................................................................................................................................... 17
Instant Record................................................................................................................................ 17
All-day Record................................................................................................................................ 17
Playback.................................................................................................................................................. 18
Backup ..................................................................................................................................................... 19
1

Quick Operation Guide
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
This manual is applicable to the models listed in the following table.
Series Model Type
HNR30P HNR30P4-4
HNR30P8-8
HNR30P8-16
Network Video Recorder
NVR Pre-Installation
The HNR30P series NVR are highly advanced surveillance equipment that should be installed with care. Please
take into consideration the following precautionary steps before installation of the NVR.
1. Keep all liquids away from the NVR.
2. Install the NVR in a well-ventilated and dust-free area.
3. Ensure environmental conditions meet factory specifications.
4. Install a manufacturer recommended HDD.
NVR Installation
During the installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure there is ample room for audio and video cables.
3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect both the alarm and RS-485 cable.
5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC, 14ºF ~ 131ºF.
8. Environmental humidity should be within the range of 10% ~ 90%.
Hard Disk Installation
Before you start:
Before installing a hard disk drive (HDD), please make sure the power is disconnected from the NVR. A factory
recommended HDD should be used for this installation.
Up to 2 SATA hard disks can be installed on your NVR.
Tools Required: Screwdriver.

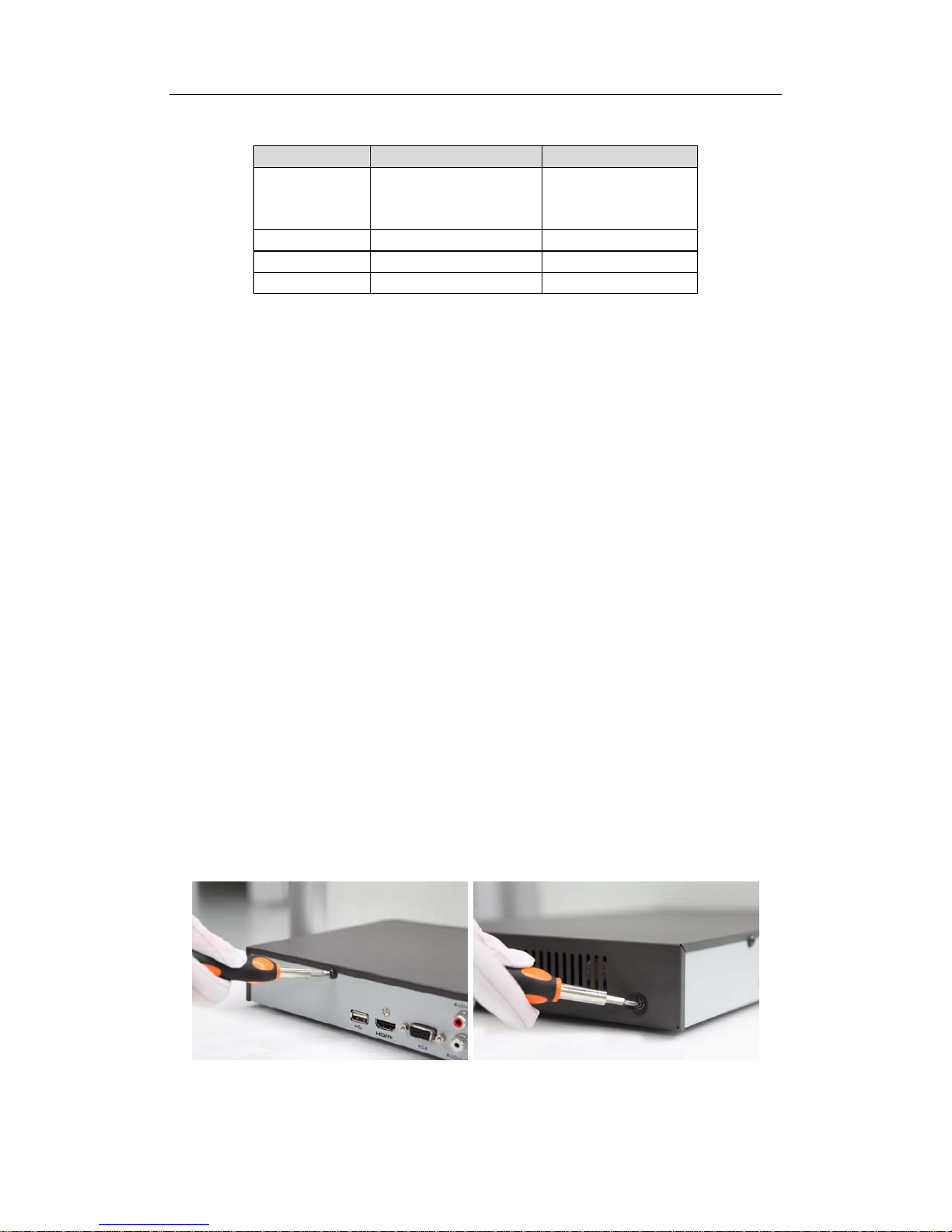

Steps (for HNR30P):
1. Remove the cover from the NVR by unfastening the screws on the back and side.
2. Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.
2

Quick Operation Guide
3. Connect the power cable to the HDD.
4. Place the HDD on the bottom of the device and then fasten the screws on the bottom
to fix the HDD.
5. Re-install the cover of the NVR and fasten screws.
3

Quick Operation Guide
Front Panel
HNR30P Series
①Status Indicator(Power, Status, Tx/Rx)
②USB Interface
4

Quick Operation Guide

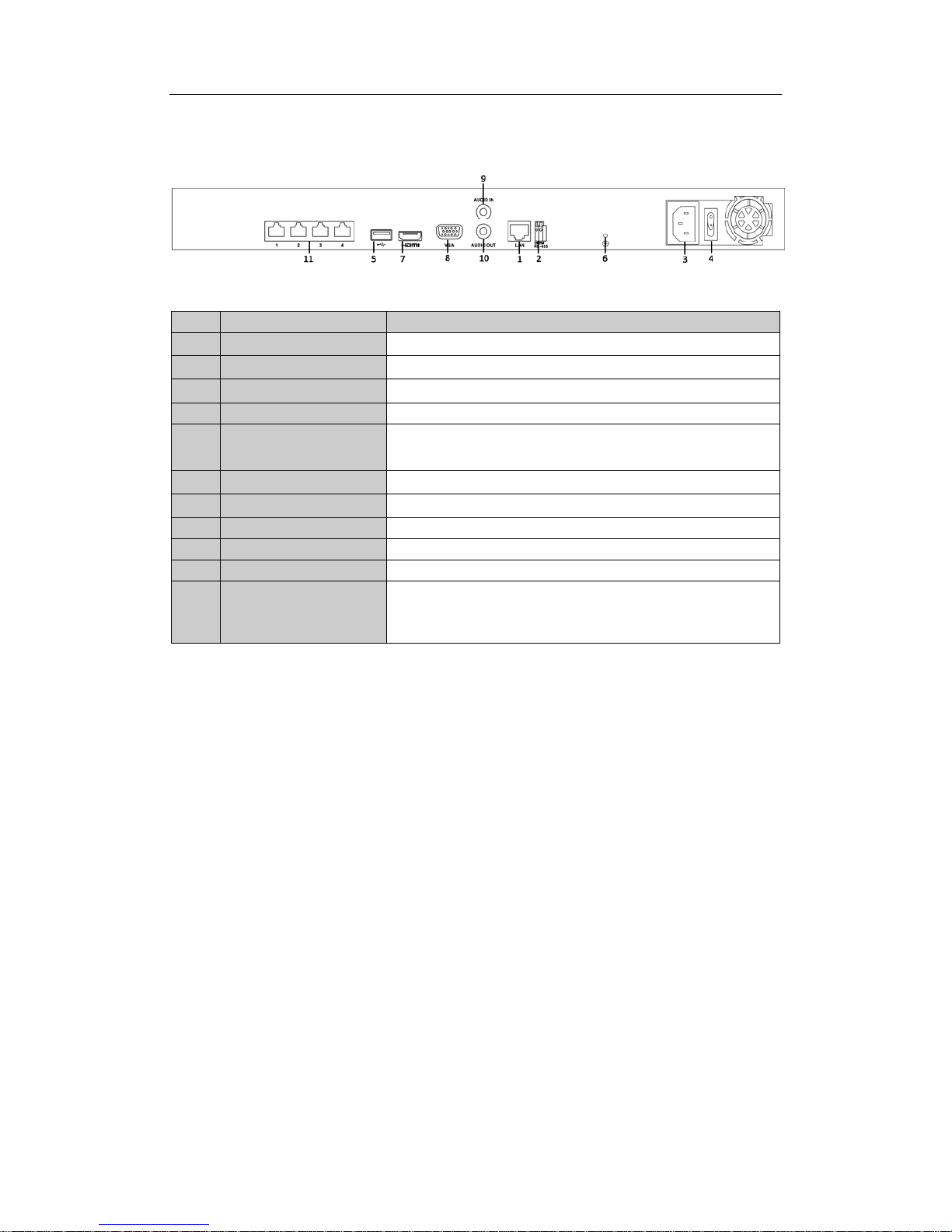

Rear Panel
HNR30P
No. Item Description
1 LAN Network Interface Connector for LAN (Local Area Network).
2 RS-485 Interface Connects to RS-485 devices.
3 Power Supply 100~240VAC power supply
4 Power Switch Switch for turning on/off the device.
5 USB Interface Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6 GND Ground (needs to be connected when NVR starts up).
7 HDMI Interface HDMI video output connector.
8 VGA Output DB9 connector for VGA output. Display local video output and menu.
9 Audio In RCA connector for voice talk input
10 Audio Out RCA connector for audio output
11
Network Interfaces with
PoE function
(for HNR30P)
Network interface for the cameras and to provide power over Ethernet.
5

Quick Operation Guide
Specification
Specifications of HNR30P Series
Model HNR30P4-4 HNR30P8-8 HNR30P8-16
Video/Audio
input
IP video input 4-ch 8-ch 16-ch
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming
bandwidth 20Mbps 40Mbps 80Mbps
Output bandwidth 40Mbps
Remote
connection 128
Video/Audio
output
Recording
resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA
output
1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 ×
720 /60Hz, 1024 × 768 /60Hz
CVBS
(optional) 1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
Audio output 1-ch, RCA (Linear, 1kΩ)
Playback
resolution 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous
playback 4-ch, 720P / 2-ch, 1080P / 1-ch, 5MP
8-ch 4CIF /4-ch, 720P / 2-ch, 1080P / 1-ch,
5MP
Hard disk SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 4TB for each disk
External
interface
Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Serial interface 1 RS-485 half-duplex interface
USB interface 2 × USB 2.0
Alarm in/out
(optional) 4/1
PoE
Interface 4 independent 10 /100 Mbps PoE Ethernet
interfaces
8 independent 10 /100
Mbps PoE Ethernet
interfaces
Output
Consumption 52W 120W
Supported
Standard AF
Others
Power supply 100~240VAC, 47~63Hz, 3A
Consumption ≤15 W (without hard disk)
Working
temperature -10 ºC ~ +55 ºC (14 ºF ~ 131 ºF)
Working humidity 10 % ~ 90 %
Chassis 19-inch rack-mounted 1U chassis
Dimensions
(W × D × H) 445 × 290 × 45mm (17.5 × 11.4 × 1.8 inch)
6

Quick Operation Guide
Weight ≤2 Kg ( without hard disk)
7

Quick Operation Guide
HDD Storage Calculation Chart
The following chart shows an estimation of storage space used based on recording at one channel for an hour at a
fixed bit rate.
Bit Rate Storage Used
96K 42M
128K 56M
160K 70M
192K 84M
224K 98M
256K 112M
320K 140M
384K 168M
448K 196M
512K 225M
640K 281M
768K 337M
896K 393M
1024K 450M
1280K 562M
1536K 675M
1792K 787M
2048K 900M
4096K 1800M
8192K 3600M
16384K 7200M
Note: Please note that supplied values for storage space used is just for reference. Storage space used is estimated
by formulas and may have some deviation from actual value.
8

Quick Operation Guide
Accessing by Web Browser
Logging In
You can get access to the device via web browser. Open web browser, input the IP address of the device and then
press Enter. The login interface appears.
Input the user name and password, and click the Login button.
Notes:
1. The default IP address is 192.0.0.64.
2. The default user name is admin, and password is 12345.
3. You may use one of the following listed web browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet
Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Apple Safari, Mozilla Firefox, and Google Chrome.
4. The supported resolutions include 1024*768 and above.
When you log in for the first time, the system will remind you to install the Plug-in control. After the installation,
you can configure and manage the device remotely.
Live View
The live view interface appears by default when you log in the device.
Interface Introduction
Channel List: Displays the list of channels and the playing and recording status of each channel.
Live View Window: Displays the image of channel, and multi-window division is supported.
Play Control Bar: Play control operations are supported.
9

Quick Operation Guide
PTZ Control: Pan, tilt, zoom operations are supported, as well as preset editing and calling.
Note: PTZ function can only be realized if the connected camera supports PTZ control.
Video Parameters Configuration: Brightness, contrast, saturation and hue of the image can be modified.
Start Live View
Steps:
1. In the live view window, select a playing window by clicking the mouse.
2. Double click a camera from the device list to start the live view.
3. You can click the button on the toolbar to start the live view of all cameras on the device list.

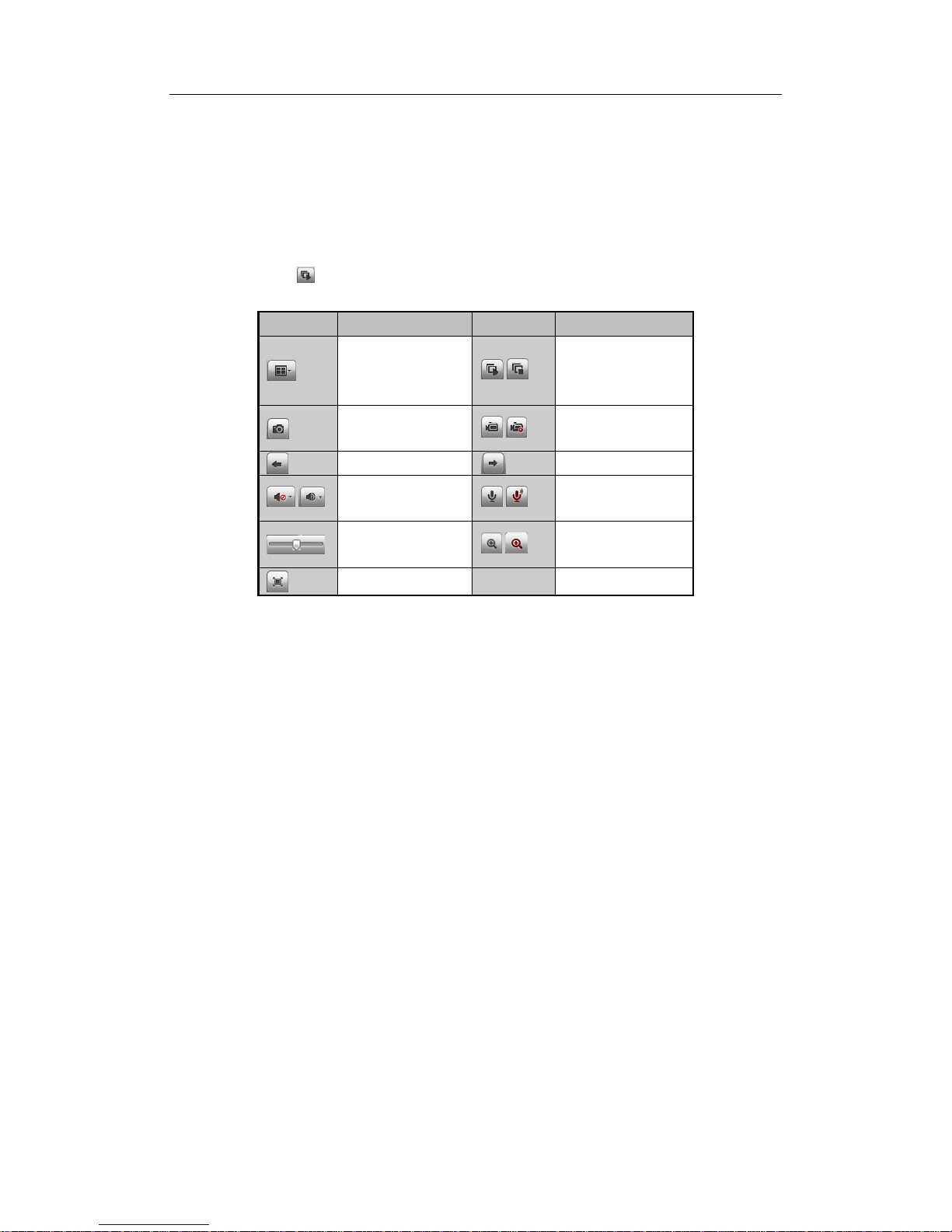

Refer to the following table for the description of buttons on the live view window:
Icon Description Icon Description
Select the
window-division
mode
/ Start/Stop all live view
Capture pictures in
the live view mode /
Start/Stop all
recording
Previous page Next page
/ Open/Close audio /
Start/Stop two-way
audio
Adjust volume /
Enable/Disable digital
zoom
Full-screen
Recording
Before you start
Make sure the device is connected with HDD or network disk, and the HDD or network disk has been initialized
for the first time to use.
Two recording types can be configured: Manual and Scheduled. The following section introduces the
configuration of scheduled recording.
Steps:

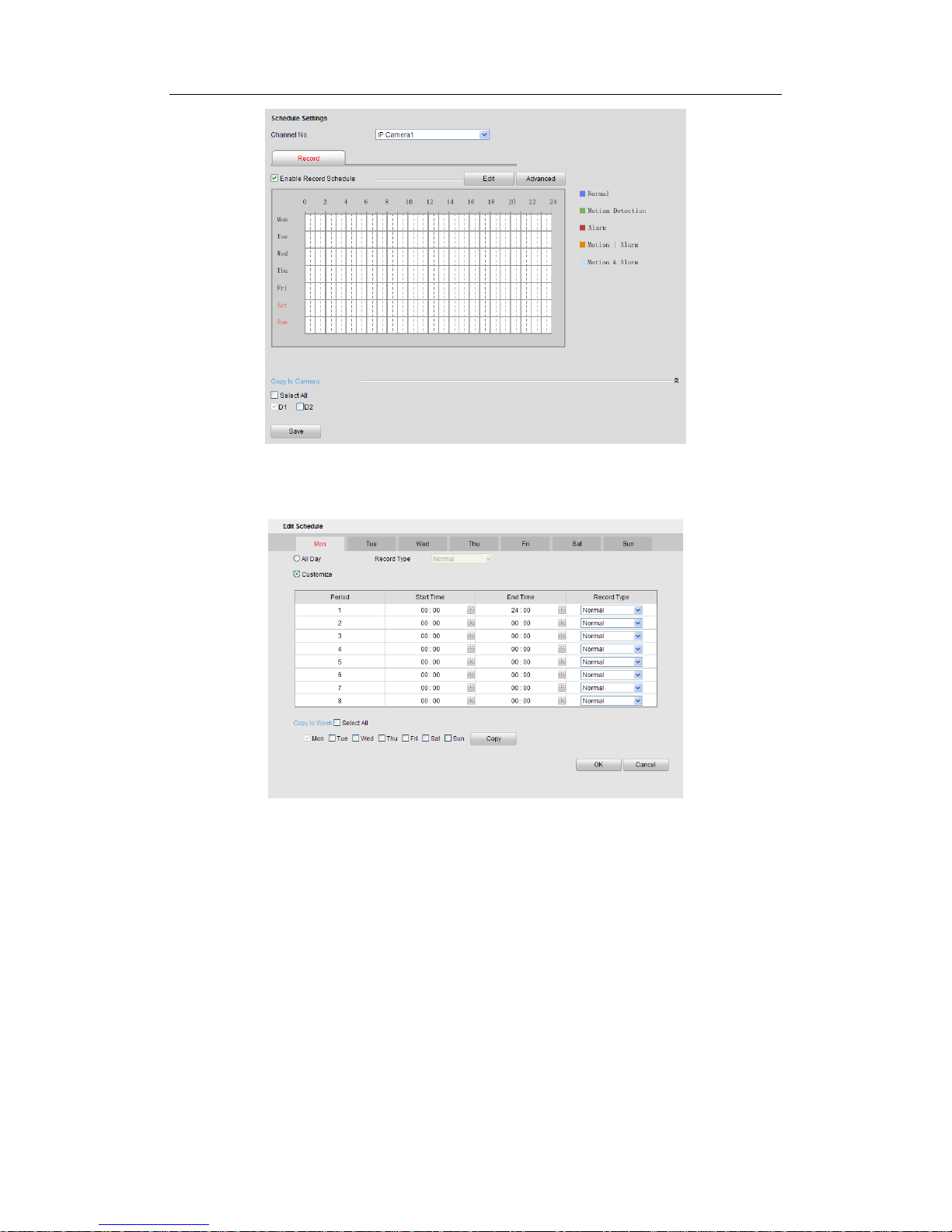

1. Click Remote Configuration> Camera Settings> Record Schedule to enter Record Schedule settings interface.
2. Select the camera to configure the record schedule.
3. Check the checkbox of Enable Schedule to enable recording schedule.
10

Quick Operation Guide
4. Choose the day in a week to configure scheduled recording.
5. Click Edit to edit record schedule.
1) Configure All Day or Customize record:
zIf you want to configure the all-day recording, please check the All Day checkbox.
zIf you want to record in different time sections, check the Customize checkbox. Set the Start Time and
End Time.
Note: The time of each segment can’t be overlapped. Up to 8 segments can be configured.
2) Select a Record Type. The record type can be Normal, Motion, Alarm, Motion & Alarm, and Motion |
Alarm.
3) Check the checkbox of Select All and click Copy to copy settings of this day to the whole week. You
can also check any of the checkboxes before the date and click Copy.
4) Click OK to save the settings and exit the Edit Schedule interface.
6. Click Advanced to configure advanced record parameters.
11

Quick Operation Guide
7. Click Save to validate the above settings.
Playback

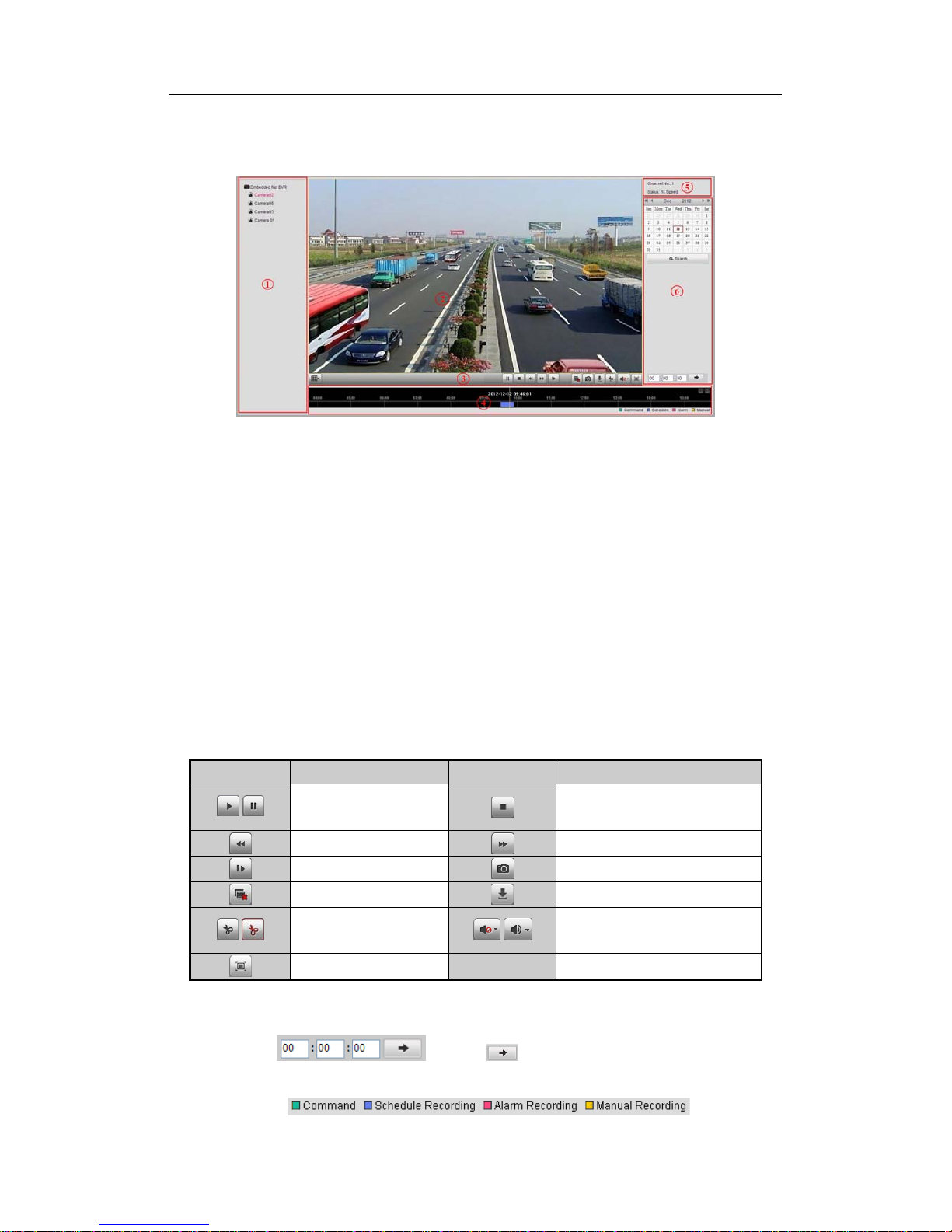

Interface Introduction
Channel List: Displays the list of channels and the playing status of each channel.
Playback Window: Displays the image of channel.
Play Control Bar: Play control operations are supported.
Time Line: Displays the time bar and the records marked with different colors.
Playback Status: Displays the playback status, including channel number and playback speed.
Calendar: You can select the date to play.
Start Playback
Steps:
1. Click Playback on the menu bar to enter playback interface.
2. Click the camera from the device list for playback.
3. Select the date from the calendar and click Search.
4. Click the Play button to play the video file searched on the current date.
5. Use the buttons on the toolbar to operate in playback mode.
Button Description Button Description
/ Play/Pause Stop
Slow down Speed up
Play by single frame Capture
Stop All Playback Download
/ Video Clip / Open/Close audio
Full-screen
6. You can drag the progress bar with the mouse to locate the exact playback point. You can also input the time
in the textbox and click button to locate the playback point.
The color of the video on the progress bar stands for the different video types.
12

Quick Operation Guide
Log
You can view and export the log files at any time, including operation, alarm, exception and information of device.
Before you start
The Log function can be realized only when the device is connected with HDD or network disk. And make sure
the HDD or network disk has been initialized for the first time to use.
Steps:
1. Click Log on the menu bar to enter the Log interface.
2. Set the log search conditions to refine your search, including the Major Type, Minor Type, Start Time and
End Time.
3. Click the Search button to start searching log files.
4. The matched log files will be displayed on the list shown below.
Note: Up to 100 log files can be displayed each time.
You can click the button to save the searched log files to local directory.
13

Quick Operation Guide
Menu Operation
Menu Structure
Startup and Shutdown
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
To start your NVR:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power indicator LED on
the front panel should be red, indicating the device gets the power supply.
2. Turn on the power switch on the rear panel to start the NVR immediately.
To shut down the NVR:
1. Enter the Shutdown menu.
Menu > Shutdown
2. Select the Shutdown button.
3. Click the Yes button.
4. Shut the power switch down when the shutdown attention pops up.
14

Quick Operation Guide
After the device starting up, the wizard will guide you through the initial settings, including modifying password,
date and time settings, network settings, HDD initializing, and recording.
Live View

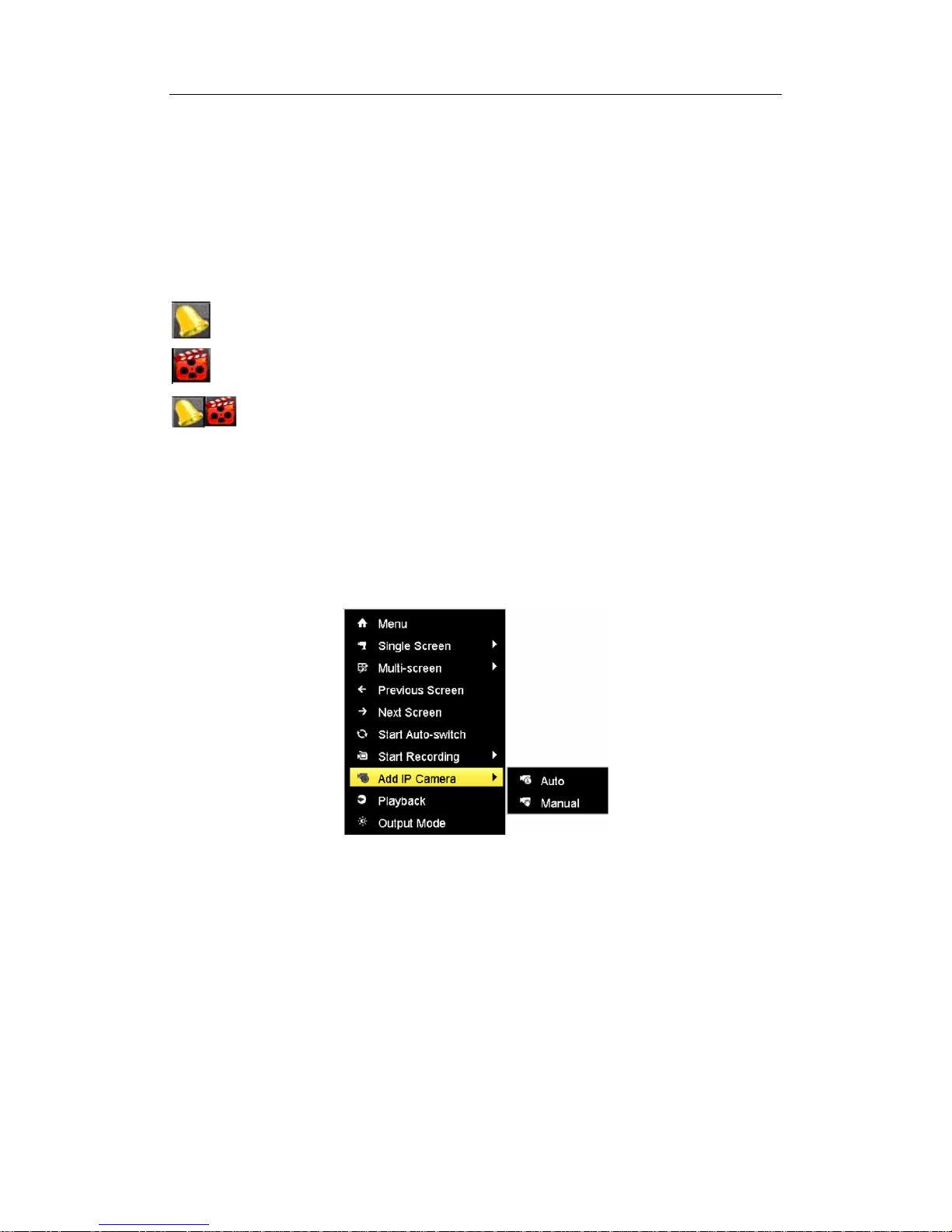

Some icons are provided on screen in Live View mode to indicate different camera status. These icons include:
Live View Icons
In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the
record and alarm in the channel, so that you can find problems as soon as possible.
Alarm (video loss, tampering, motion detection or sensor alarm).
Record (manual record, schedule record, motion detection or alarm triggered record)
Alarm & Record
Adding IP Cameras
You should add the online IP cameras to enable the live view and recording function.
You can search and add the online IP cameras by following the startup wizard, or according to the following steps.
Steps:
1. Right-click the mouse when you in the live view mode to show the right-click menu.
2. Select Add IP Camera in the pop-up menu and select Auto or Manual on your demand.
•Auto
The device will add the detected IP cameras or encoders automatically by the default user name and password
of administrator.
15

Quick Operation Guide
Note: If the user name and password is changed, the auto adding of IP camera will be failed, you may add it
manually.
•Manual
Steps:
1. To add the online cameras with same network segment:
1) The detected online camera will be listed in the camera list, as shown in the figure below.
2) Click the button to add the camera.
Explanation of the icons:
Icon Explanation Icon Explanation
Edit basic parameters of the camera Add the detected IP camera.
The camera is connected; you can
click the icon to get the live view of
the camera.
The camera is disconnected; you can
click the icon to get the exception
information of camera.
The camera is connected. Advanced settings of the camera.
Delete the IP camera
2. To custom add the online cameras:
(1) Click the Custom Adding button in the manual add interface to pop up the Add IP Camera
16

Quick Operation Guide
(Custom) interface.
(2) You can edit the IP address, protocol, management port, and other information of the IP camera to
be added.
(3) Click Add to add the camera.
Record Settings
Before you start:
Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. You may refer to
the user manual for detailed information.
Purpose:
Two kinds of record types are introduced in the following section, including Instant Record and All-day Record.
And for other record types, you may refer to the user manual for detailed information.
Note: After rebooting all the manual records enabled are canceled.
Instant Record
On the live view window of each channel, there is a quick setting toolbar which shows on the bottom of the
window when you click on it.
Click the icon to enable the record, and the icon turns to . And click icon to disable the record,
then the icon turns to .
All-day Record
Perform the following steps to set the all-day recording.
On the live view window, right-click the window and move the cursor to the Start Recording option, and select
Continuous Record or Motion Detection Record on your demand.
17

Quick Operation Guide
And click the Yes button in the popup Attention message box to confirm the settings. Then all the channels will
start to record in the selected mode.
Playback
Play back the record files of a specific channel in the live view menu. Channel switch is supported.
•OPTION 1
Choose a channel under live view using the mouse and click the button in the shortcut operation menu.
Note: Only record files recorded during the past five minutes on this channel will be played back.
•OPTION 2
Steps:
1. Enter the Playback menu.
Right click a channel in live view mode and select Playback from the menu.
18

Quick Operation Guide
Under multi-screen live view, record files of the top left channel (not masked) will be played back.
2. Playback management.
The toolbar in the bottom part of Playback interface can be used to control playing process.
Just check the channel or channels if you want to switch playback to another channel or execute
simultaneous playback of multiple channels.
Backup
Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer.
Steps:
1. Enter Video Export interface.
Choose the channel(s) you want to back up and click on the Search button.
2. Enter Export interface, choose backup device and press Export button to start exporting.
19
