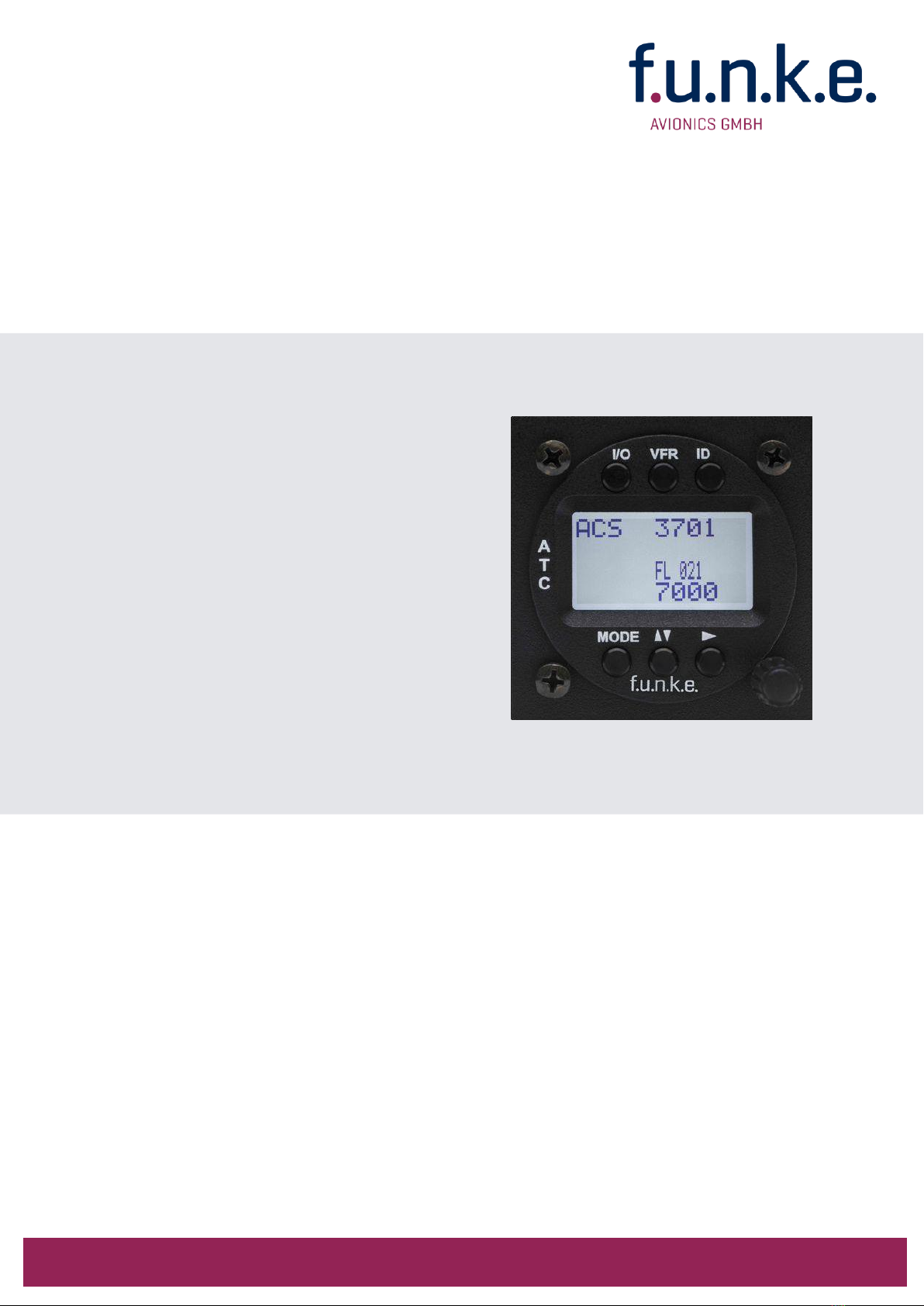

F.u.n.k.e. TRT800H-LCD Instruction Manual

ff.u.n.k.e. f.u.n.k.e. means –fabrication · utilities · network · know-how · engineering
Operation and Installation
(Dokument-Nr. 03.2126.010.71e)
P/N 800ATC-H-(2xx)-(26x)
TRT800H-LCD
Mode-S
Transponder

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
2Document-No: 03.2126.010.71e / Revision: 2.00
Change History
Revision Date Description of Change
1.00 18.03.2016 First Release from SW V6.0
2.00 22.10.2019
Extended configuration options for GPS
Protocol and remote control interface.
Accuracy and integrity value selection added
List of Service-Bulletins (SB)
Service Bulletins have to be inserted into this manual and to be enlisted
in the following table.
SB No Rev. No. Issue Date Insertion Date Name
SB TRT800-A-H-1 1.04 17.10.2008

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
3 Document-No: 03.2126.010.71e / Revision:
2.00
Table of Contents
1 GENERAL.........................................................................................5
1.1 Symbols..................................................................................5
1.2 Abbreviations..........................................................................6
1.3 Customer Support...................................................................6
1.4 Features..................................................................................7
1.5 Deviations and Important Notes..............................................8
2 OPERATION.....................................................................................9
2.1 Controls...................................................................................9
2.2 Switch ON/OFF.....................................................................11
2.3 Display - Indications..............................................................12
2.4 Display-Brightness................................................................13
2.5 Flight-ID (FID).......................................................................13
2.5.1 Display Flight-ID.........................................................13
2.5.2 Configure Flight-ID .....................................................14
2.6 Transponder Mode selection.................................................14
2.7 Squawk-Setting.....................................................................15
2.8 VFR – Squawk......................................................................15
2.9 ID – Special Position Identification (SPI): “Squawk Ident” .....16
2.10 Error-Codes ..........................................................................16
3 INSTALLATION ..............................................................................17
3.1 Notes ....................................................................................17
3.2 Telecommunication data.......................................................17
3.3 Scope of Delivery..................................................................17
3.4 Unpacking and Inspecting of the Equipment.........................18
3.5 Mounting...............................................................................18
3.6 Equipment Connections........................................................19
3.6.1 Electrical Connections................................................19
3.6.2 Static Air Port..............................................................20
3.7 Wiring....................................................................................20
3.7.1 Conductor Cross Section............................................20
3.7.2 Pin Assignment...........................................................21
3.7.3 Cable plan External Memory EM800 ..........................22
3.8 Antenna.................................................................................25

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
4Document-No: 03.2126.010.71e / Revision: 2.00
3.8.1 Antenna Selection ......................................................25
3.8.2 Installation Recommendation......................................25
3.8.3 Antenna Wiring...........................................................26
3.9 Post-Installation Check..........................................................26
3.10 Starting Up............................................................................27
3.11 Accessories...........................................................................27
3.12 Drawings...............................................................................28
3.12.1 Dimensions.................................................................28
3.12.2 Mounting Advices.......................................................28
4 Transponder SETTINGS.................................................................29
4.1 Overview...............................................................................29
4.2 Display Configuration Summary............................................29
4.3 General settings....................................................................31
4.3.1 ICAO 24-Bit Aircraft Address (AA)..............................31
4.3.2 Aircraft Category (AC) ................................................32
4.3.3 Flight-ID (FID).............................................................32
4.3.4 Reply Information - Speed Category (RI)....................33
4.4 Optional settings ...................................................................33
4.4.1 Option Ground-Switch ................................................33
4.4.2 Option Remote Header...............................................34
4.4.3 Serial Interface (RS232).............................................34
4.4.4 Altitude Correction/Offset............................................37
4.5 Setup Procedure...................................................................38
4.5.1 Setup Menu Control....................................................38
4.5.2 Transponder configuration/record structure................39
4.5.3 Transponder configuration/record handling ................39
4.5.4 General Setup ............................................................39
4.5.5 Altitude Correction Setup............................................43
5 APPENDIX......................................................................................45
5.1 Technical Data......................................................................45
5.2 Environmental Conditions .....................................................47
5.3 DO-178B Open Problem Reports..........................................48

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
5 Document-No: 03.2126.010.71e / Revision:
2.00
1 GENERAL
This manual contains information about the physical, mechanical and
electrical characteristics and about installation and operation of the
Mode S Transponder TRT800H.
The conditions and tests required for TSO approval of this article
are minimum performance standards. Those installing this article
either on or within a specific type or class of aircraft must
determine that the aircraft installation conditions are within the TSO
standards which include any accepted integrated non-TSO function
standards. TSO articles and any accepted integrated non-TSO
function(s) must have separate approval for installation in an
aircraft. The article may be installed only according to 14 CFR part
43 or the applicable airworthiness requirements. This is an
incomplete system (antenna is required) intended to provide the
TSO functions specified in this Operation and Installation Manual,
section 5.1.
1.1 Symbols
Advices whose non-observance can cause radiation
damage to the human body or ignition of combustible
materials
Advices whose non-observance can cause damage to the
device or other parts of the equipment.
Supplementary information

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
6Document-No: 03.2126.010.71e / Revision: 2.00
1.2 Abbreviations
Abb. Meaning Explanation
FID Flight ID Flight plan number or if not assigned
registration number of aircraft
SPI Special Position
Identification Activation on request by controllers „Squawk Ident“, transmits SPI Pulse
for 18 seconds, which highlights the
respective traffic item on the
controllers radar screen
AA Aircraft Address assigned ICAO 24-bit address
AC Aircraft Category Defines aircraft type according to
specific categories
RI Reply Information Maximum airspeed
1.3 Customer Support
In order to facilitate a rapid handling of return shipments, please follow
the instructions of the input guide „Reshipment RMA“ provided at the
Service-Area within the f.u.n.k.e. AVIONICS GmbH web portal
www.funkeavionics.de.
Any suggestions for improvement of our manuals are
welcome. Contact: [e-mail].
Information on software updates is available at f.u.n.k.e.
AVIONICS GmbH.

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
7 Document-No: 03.2126.010.71e / Revision:
2.00
1.4 Features
In order to operate the Mode S transponder
it is necessary
to request an ICAO 24-bit Aircraft Address
at the
responsible national aviation authorities. The received
Code
is assigned to the specific transponder/aircraft and must be
configured within the transponder. The 24-bit a
ddress is
stored in an external memory which allows t
he transponder
being exchanged without requiring any further configuration.
(for detailed information refer to sections 4.3.1 and 4.5.4).
•Class 1 Level 2es non-diversity Mode S transponder for ground
based interrogations at 1030 MHz and response at 1090 MHz
•Replies to (Secondary) Radar Interrogations
oMode A replies with a Squawk (one of 4096 possible Codes;
e.g. flight plan number, Squawk assigned by a controller or
the VFR Squawk 7000)
oMode C replies, including encoded flight level
oMode S replies, including aircraft address and flight level
oExtended Squitter, containing additional information on
position and velocity
•IDENT capability for activating the Special Position Identification“-
Pulse (SPI) for 18 seconds, which is requested by the Controller
„Squawk Ident“
•Maximum flight level 35 000 ft; maximum airspeed 250 kt
•Display information contains Squawk code, mode of operation and
pressure altitude.
•Temperature compensated high precision piezo-resistive pressure
sensor
•RS-232 I/O data port enabling connection with certain GPS-
Receivers in order to support ADS-B Out
•8 storable entries for AA-/AC-Code, FID, Ground-Switch, RI-Code
and GPS-/Interface-setting (stored in external memory
TRT800EMxx)
•Remote control unit interface

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
8Document-No: 03.2126.010.71e / Revision: 2.00
1.5 Deviations and Important Notes
The following deviations have been granted by the FAA:
The device is certified to FAA TSO-C112c in lieu of FAA
TSO-C112d.
Environmental Qualification Testing was performed
according to RTCA/DO-160D in lieu of RTCA/DO-160F.
The Software of this device was developed according to
RTCA DO-178B Design Assurance Level "D".
The ADS-B function of this device has not been evaluated
during the FAA TSO certification process other than to
ensure non-interference. Due to the SW assurance of DAL
"D", the ADS-B function cannot be used in the US National
Airspace.
Connecting a GPS source will not comply to FAA
certification requirements with regard to ADS-B.
This device contains an altitude measuring device that has
not been evaluated during the FAA TSO certification
process other than to ensure non-interference.
This feature must be evaluated for intended function
during FAA installation approval.
Compliance to RTCA DO-181D was verified by testing
against EUROCAE ED-73C. The two standards are
technically identical with regard to the TRT800H.

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
9 Document-No: 03.2126.010.71e / Revision:
2.00
2 OPERATION
2.1 Controls
ON / OFF „Squawk Ident“
Activate/
deactivate VFR
Change
Active 

Standby
Squawk
Select Operation
Mode
Cursor
adjustment
Rotary Knob
for adjusting values
at the cursor
position
active
Operation
Mode
standby Standby
Squawk
Active
Squaw
k

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
10
Document-No: 03.2126.010.71e / Revision: 2.00
I/O ON/OFF
►
►
Switch ON press button for approx. 0,5 s
Switch OFFpress button for approx. 3 s
VFR VFR
►
►
activate/deactivate VFR Squawk
(press shortly)
store active Squawk as VFR/VFRW-Squawk
(press button 3 s, →2.8)
▲▼ CHANGE
►
►
change between active and standby-Squawk
works as cursor back button (opposite function
of the cursor button) during entering values and
also for navigating backwards through the
configuration menu (→4.5.4)
ID IDENT
►
►
„Squawk Ident“, sends Ident marking (SPI) for
18 s (→2.9)
Enter Flight-ID (FID) setup (in standby mode,
press button for approx. 5s)
MODE MODE
►
Select transponder operational mode (→2.6)
►CURSOR
►
Set position of Cursor
Rotary
Knob
►
Adjust/Enter values at current cursor position,
select options; set standby Squawk (→2.7)

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
11 Document-No: 03.2126.010.71e / Revision:
2.00
2.2 Switch ON/OFF
Switch ON: press I/O for 0.5 s
Switch OFF: press I/O for 3 s
2.2.1 Display information after power up
After turning-on the display appears as follows (example):
If more than one configuration
record is programmed the record
selection menu appears (example).
Select the desired record (rotary
switch) and confirm with MODE.
If no external memory is connected
or no 24bit address is defined the
message “CRADLE OFF” appears.
In this case the device is working
as “Mode AC only” transponder.
The transponder starts in STBY
mode
2000
FL 030
STBY
7000
Cradle OFF
24D5F2 < 000000
BE2343 000000
D4B3AA 000000
000000 000000
TRT800H.
V6.3
FPGA-Vers: 104
Device Name
Software Version
Firmware Version

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
12
Document-No: 03.2126.010.71e / Revision: 2.00
2.3 Display - Indications
Value Meaning Remarks
7000 active Squawk
2000 Standby Squawk Could be changed with active
Squawk by pressing ▲▼
FL 030
FLerr Flight Level Invalid altitude measuring Flight Level (in 100 ft steps) Beyond -1000 ... 35 000 ft,
C Mode gets inactive
ACS Operational Mode
(STBY, A-S, ACS, AC, A) Modes see section 2.6
IDT transmits Ident-Marking (SPI) ID („Squawk Ident“) has been
pressed – active for 18 s

Transponder replies
on Mode-S, Mode-A or Mode-
C interrogations
No indication on ADSB and
squitter transmission
| Transponder is locked by a
ground station and will be
directly addressed
Lock Information (indicated
below the diamond)
F
G in-flight on-ground Ground-Switch-Info (if installed/available)
ACS



7000
TM
PLL/TRX/ DC
|
BAT/DIM
IDT FL 030
STBY
2000
F
Passive
Squawk
Active Squawk
Test mode
indicatior
GND switch
status
Operational Mode:
Standby
SPI indicator
Error
indications
Reply
ind
ication
Lock out
indication
Flight level
Brightness setup
Low battery ind.
Operational Mode:
Active

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
13 Document-No: 03.2126.010.71e / Revision:
2.00
Value Meaning Remarks
Error indicators
PLL PLL Error Internal Error
TRX Transmit Failure Check antenna and wiring
DC Low internal voltage Internal error
FPG FPGA-Failure Internal error
BAT Battery Power too low maybe battery/generator fault
2.4 Display-Brightness
In active mode (not standby) press ► for 2 s
Display indicates “DIM” Adjust brightness (DIM) with rotary knob
Return to normal operation: press ► or wait 5 s.
2.5 Flight-ID (FID)
The FID is an identifier required for Mode S Operation. During future
application of flight plans a FID could be assigned on a per flight basis. If
no FID is assigned (today’s normal case) the registration marking of the
aircraft should be used as FID. The FID should not contain dashes or
blanks. The FID must not be confused with the 24-bit Aircraft Address.
2.5.1 Display Flight-ID
Press MODE (repeatedly) until „STBY“ appears
Press and hold ID while a counter is shown beside the active squawk.
During a few seconds Flight Identification is displayed
FID 02
A B C D E F G H
-

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
14
Document-No: 03.2126.010.71e / Revision: 2.00
2.5.2 Configure Flight-ID
Press MODE (repeatedly) until „STBY“ appears
Press and hold ID while a counter is shown beside the active squawk.
Release ID when “CHANGE FID” is displayed
Enter Flight-ID with cursor button ►and rotary knob
Press MODE to save and return to STBY
Please refer to section 4.5.4 for configuration of the 24-bit Address (AA)
and Aircraft Category (AC).
2.6 Transponder Mode selection
Press MODE (repeatedly) to select from following Modes:
•STBY „Standby“
Transponder does not respond to any interrogation. Squitter and
ADS-B output is not active.
•A C S „Mode A+C+S“
Standard condition; transponder responds to mode A, C and S
interrogations.
•A – S „Mode A+S, no C“
Altitude is not transmitted (neither on C nor on S requests). All
other Mode-S data as well as Mode-A replies are transmitted.
Enter FID left-aligned, without any blanks or dashes (!), e.g.
12345621DEFAV for the marking D-EFAV. The last
remaining digits shall be filled with blanks
CHANGE FID
_
_
_
_
_
_
_
_
A B C D E F G H
-
exit

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
15 Document-No: 03.2126.010.71e / Revision:
2.00
If no 24-bit address (AA) was defined or entered as “000000“ the
transponder operates as a Mode A/C transponder, in that case the
following Modes are possible apart from Standby:
•A C – „Mode A+C“
Transponder replies only on Mode A and Mode-C interrogations.
•A – – 

„Mode A“
Transponder replies only on Mode A interrogations.
In STBY (Standby) mode, all transponder transmissio
ns
are disabled completely!
Therefore, the transponder is not
visible in this mode to air traffic control or the anti-
collision
systems onboard other aircrafts.
Never use the STBY mode in flight
unless you are requested
to do so by air traffic control. Alw
ays remember to put the
transponder in active mode prior to take off!
2.7 Squawk-Setting
The active Squawk is displayed in the upper line, while the standby
Squawk is presented at the lower line.
Setting the Standby Squawk:
•Press ►to set the cursor („^“), turn rotary knob to set numbers
of the standby Squawk.
•Press ▼▲ to activate the Standby Squawk (this moves the
current active Squawk into Standby)
2.8 VFR – Squawk
The transponder features a user-defined squawk code for VFR-flight
(factory setting: 7000):
•Activate VFR-Squawk:
Press VFR („VFR“ is indicated), now the active Squawk is
moved into Standby but not visible because the indication of the
Standby Squawk is overlapped by „VFR“

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
16
Document-No: 03.2126.010.71e / Revision: 2.00
•Display Standby Squawk:
Press VFR or ▼▲ or use the rotary knob (the VFR-
Squawk remains active!)
Example:
VFR VFR
•Now the Standby Squawk can be adjusted by using the rotary
knob and activated with ▼▲.
•In order to store the current active Squawk as new VFR-Squawk
(replacing the factory setting 7000):
Press and hold VFR until an „S“ is indicated (approx. 3 s); after
releasing the button „VFR“ is shown
2.9 ID – Special Position Identification (SPI): “Squawk
Ident”
Press ID to activate transmission of the special position identification
pulse with every reply within 18 seconds; “IDT” appears on the display
By pressing ID a special position identification pulse (SPI) is
transmitted with every reply within 18 seconds, which causes an
accented marking on the Controller’s screen. The „Special Position
Identification“ has to be activated after the „Squawk Ident“ request of the
Controller.
2.10 Error-Codes
Please refer to 2.3 Display - Indications for possible displayed errors.
7000
FL 030
STBY
47
00
7000
FL 030
STBY
VFR
4700
FL 030
STBY
5600

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
17 Document-No: 03.2126.010.71e / Revision:
2.00
3 INSTALLATION
3.1 Notes
The following suggestions should be considered before installing.
The assigned installation company will supply wiring. For diagrams refer
to 3.7 Wiring.
Transponder, External Memory, all cables and antennas shall be
installed according to „FAA AC-143.13-2A Acceptable Methods,
Techniques and Practices – Aircraft Alterations“ and the appropriate
manufacturer’s instructions.
3.2 Telecommunication data
Manufacturer: f.u.n.k.e. AVIONICS GmbH
Type Designation: TRT800H
EASA Number: EASA.21O.269
Transmitter Power
Output 126 W
Frequency: 1090 MHz
Emission Designator: 12M0M1D
3.3 Scope of Delivery
Item name/number Description
TRT800H Transponder TRT800H
TRT800EMSS External Memory (Aircraft-Address-Adaptor
with wiring)
M4X8ZSW (3 pieces) screw for panels up to 5 mm thickness
56S101A4 TNC antenna connector
03.2126.010.71e Manual „Operation and Installation“
EASA Form 1

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
18
Document-No: 03.2126.010.71e / Revision: 2.00
3.4 Unpacking and Inspecting of the Equipment
Carefully unpack the equipment and inspect for transport damages. If a
damage claim has to be filed, save the shipping container and all
packing materials as evidence to your claim.
3.5 Mounting
•In cooperation with a maintenance shop, location and kind of the
installation are specified. The maintenance shop can supply all
cables. Suitable sets of cables are available from f.u.n.k.e.
AVIONICS GmbH.
•Select a position away from heat sources. Provide space for
adequate convection cooling.
•Leave sufficient space for the installation of cables and connectors.
•Avoid sharp bends and wiring close to control cables.
•Leave sufficient lead length for inspection or repair of the wiring of
the connector (containing the memory), so that when the mounting
hardware for the rear connectors is removed, the assembly may be
pulled forward several inches.
•Bend the harness at the rear connectors to inhibit water droplets
(formed due to condensation) from collecting in the connector.
•For mounting details/drawing refer to chapter 3.12.2 Mounting
Advices.
For storage or reshipment the original packaging should be
used.

TRT800H / P/N 800ATC-H-(2xx)-(26x)
Operation and Installation
19 Document-No: 03.2126.010.71e / Revision:
2.00
3.6 Equipment Connections
3.6.1 Electrical Connections
One 15 pin D-SUB miniature connector includes all electrical
connections, except for the antenna. Use only an External Memory
Adapter TRT800EMxx as this is part of the certification and includes a
memory device in which the ICAO 24-bit Aircraft Address is stored.
3.6.1.1 Mutual Suppression
Other equipment on board (e. g. DME) may transmit in the same
frequency band as the transponder.
If such a device is installed a suppression wiring shall be installed in
order to protect the receiving parts of the different devices from in-band
transmissions.
Mutual suppression is a synchronous pulse that is sent to the other
equipment to suppress transmission of a competing transmitter for the
duration of the pulse train transmission. The transponder transmission
may be suppressed by an external source and vice versa.
To activate mutual suppression connect the SUPP_I/O signal to the
according signals of the other equipment
3.6.1.2 Ground Switch
If an external Ground-Switch is connected to the transponder and
activated in the setup, the transponder can detect if the aircraft is
airborne or on the ground. This allows the transponder to automatically
activate the Ground mode whenever the aircraft is on ground.
In order to activate this feature, the input „FLY-GND“ must be connected
to an external switch which connects the input pin with „GND“ when the
gear is weighted, or remains open in the other case.
This feature must additionally be activated in the Setup. For details on
configuration please refer to section 4.5.4.
The (+UB)-wire has to protected by circuit breaker (2 Amp.)!
