Faber MATRIX EG10 X A90 ACTIVE User manual

Instructions Manual
 
  
Manual de instrucciones
Kullanim Kilavuzu
 


2
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS ..................................................................................................................... 3
CHARACTERISTICS ............................................................................................................................................................. 6
INSTALLATION...................................................................................................................................................................... 7
USE ...................................................................................................................................................................................... 10
MAINTENANCE................................................................................................................................................................... 11

  ............................................................................................................................................ 15
............................................................................................................................................................... 18
.................................................................................................................................................................... 19
 ................................................................................................................................................................................. 22
........................................................................................................................................................................ 23

  .......................................................................................................................................... 27
............................................................................................................................................................ 30
........................................................................................................................................................................ 31
................................................................................................................................................................ 34
.................................................................................................................................................................................... 35
INDICE
CONSEJOS Y SUGERENCIAS........................................................................................................................................... 39
CARACTERÍSTICAS ........................................................................................................................................................... 42
INSTALACIÓN ..................................................................................................................................................................... 43
USO...................................................................................................................................................................................... 46
MANTENIMIENTO............................................................................................................................................................... 47
IÇERIKLER
TAVSIYELER VE ÖNERILER.............................................................................................................................................. 51
ÖZELLIKLER........................................................................................................................................................................ 54
MONTAJ............................................................................................................................................................................... 55
KULLANIM ........................................................................................................................................................................... 58
BAKIM .................................................................................................................................................................................. 59

 ..............................................................................................................................................63
...........................................................................................................................................................66
.............................................................................................................................................................67
.............................................................................................................................................................70
 ....................................................................................................................................................71
EN
GR
RU
ES
TR
SA

EN 3
3
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top
and the extractor hood is 650 mm (some models can
be installed at a lower height, please refer to the
paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that
indicated on the rating plate fixed to the inside of the
hood.
• For Class I appliances, check that the domestic
power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-
electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration must
be guaranteed in the room in order to prevent the
backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open
air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the
manufacturer or by the technical service department, in order to prevent any
risks.
2°

EN 4
4
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.

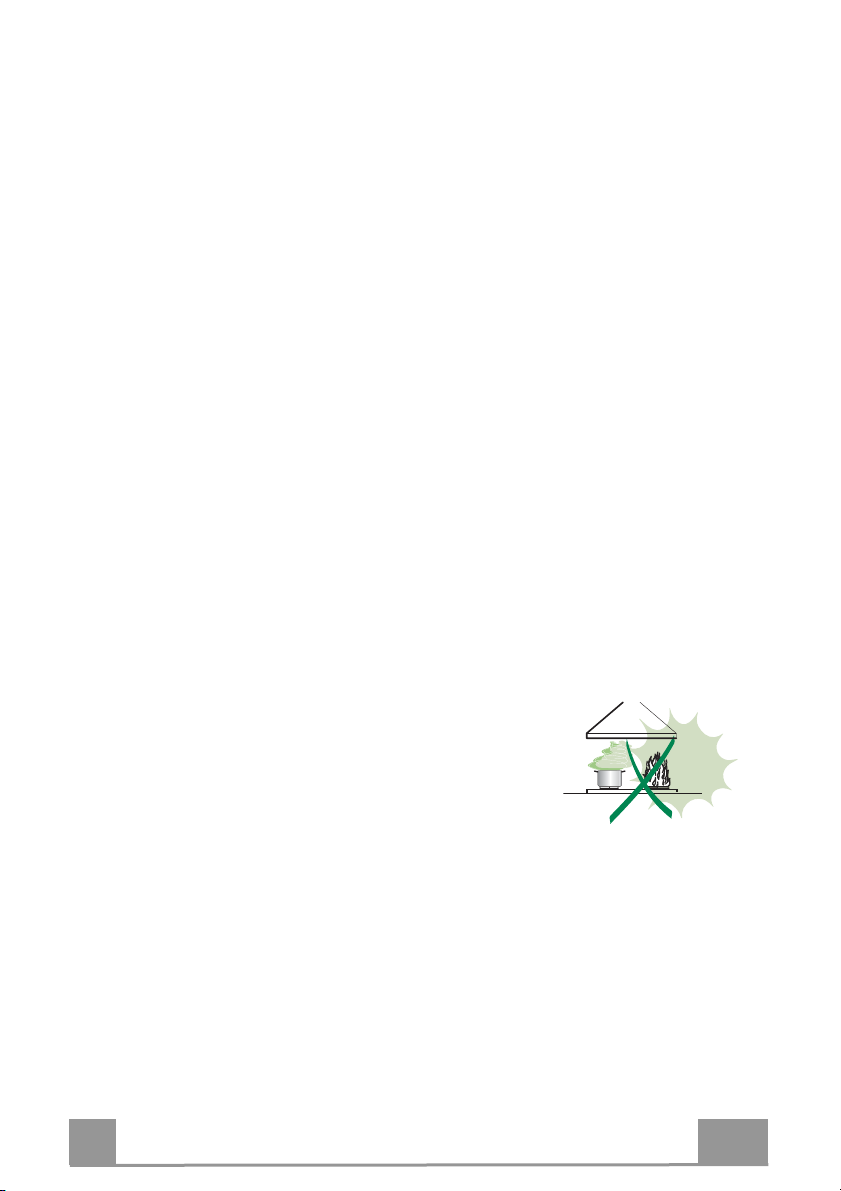

• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

EN 5
5
• “CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN 6
6

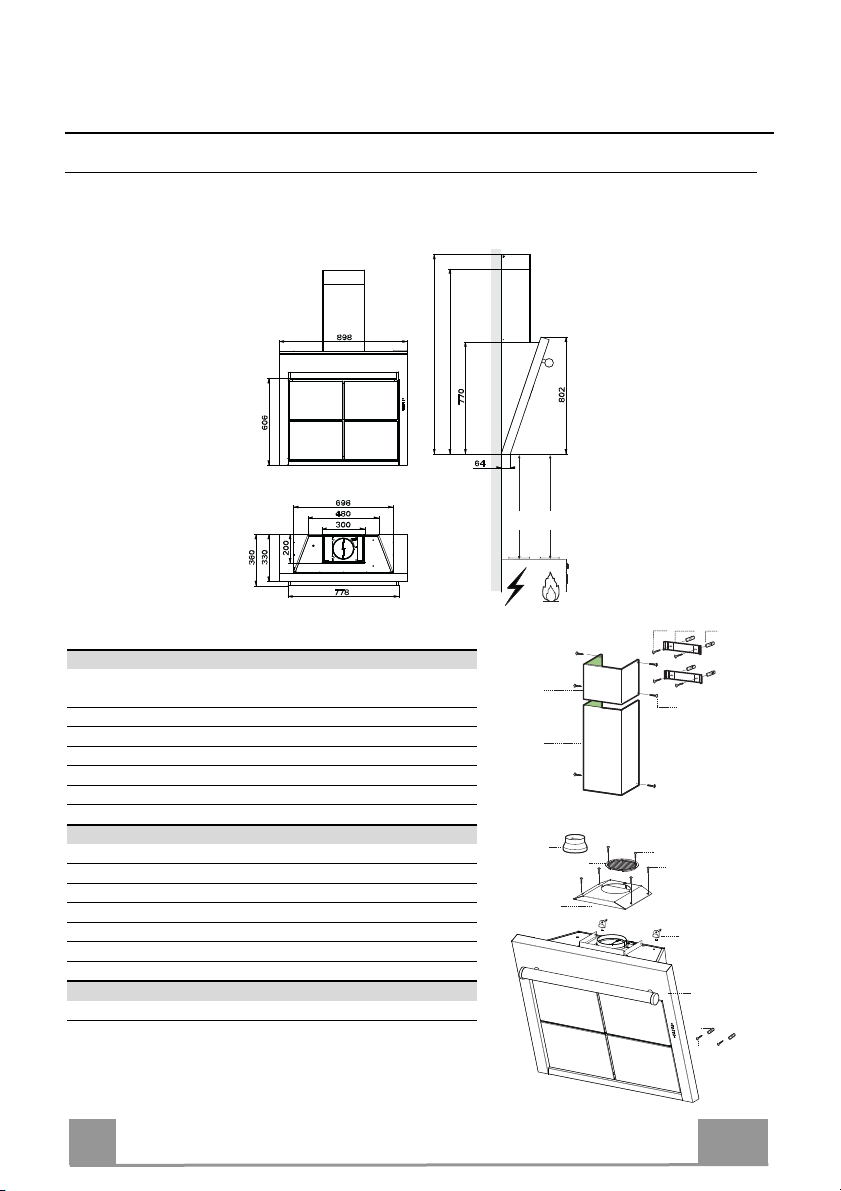

CHARACTERISTICS
Dimensions
Min.
250mm
Min.
250mm
1270
MIN. 1270 - MAX. 1720
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2.1 1 Upper Section
2.2 1 Lower Section
8 1 Directional Air Outlet grille
9 1 Flange
16 1 Filter cover
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
11a 2 Wall Plugs SB 12/10
12a 6 Screws 4,2 x 44,4
12c 10 Screws 2,9 x 6,5
12d 2 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
1
16
12c
11
12a
12d
8
2.1
2.2
12c
9
12a 7.2.1 11
11a

EN 7
7
INSTALLATION

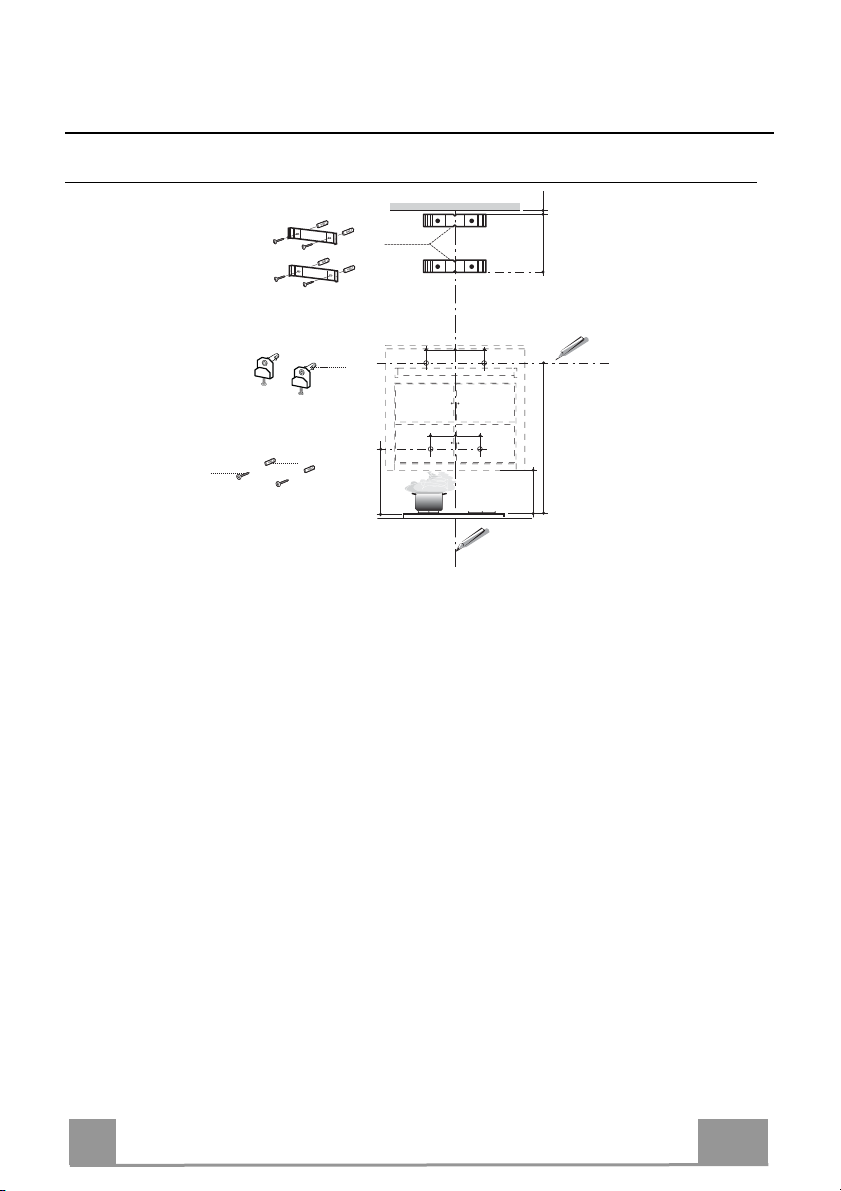

Wall drilling and bracket fixing
7.2.1
X1
÷2
11a
11
12a
112+A
A=Min 25
0
Max 40
0
710+A
1
2
1
2
200 200
180 180
A
On the wall, draw
• a Vertical line up to the ceiling or upper limit, at the centre of the area in which the Hood is
to be fitted;
• a Horizontal line at a minimum of (710 mm + A) above the Cooker Top.
• Mark a point (1) on the horizontal line, 200 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are level.
• Mark a reference point (2) as indicated at 180 mm from the vertical reference line and (112
mm + A) above the Cooker Top.
• Repeat this operation on the other side, checking that the two marks are level.
Drill at the points (1) marked, using a ø 12 mm drill bit.
• Drill at the points (2) marked, using a ø 8 mm drill bit.
• Insert the bracket plugs 11a into the holes 1and screw into place.
• Insert plug 11 into hole 2.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-
ing the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a screws (4,2 x 44,4) supplied.

EN 8
8

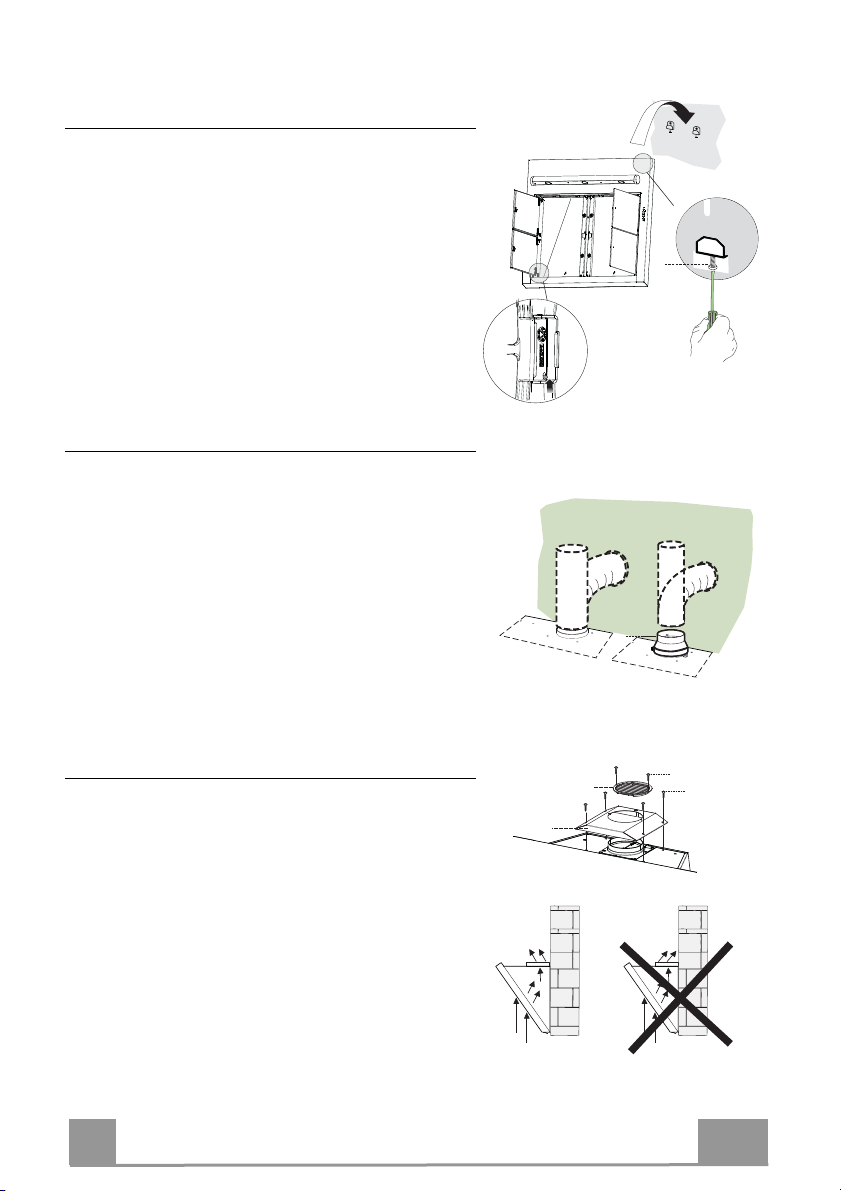

Mounting the hood body
• Open the ducting panels.
• Disconnect the panel from the hood canopy by slid-
ing the fixing pin lever.(A)
• Remove the metal grease filters by turning the han-
dles provided.
• Adjust the two screws Vr, on brackets 11a, to a mini-
mum.(B)
• Hook the hood canopy onto the two brackets 11a.
• From inside the hood canopy, adjust the screws Vr to
set the Hood Canopy level.
• Tighten the safety screw 11.
(A)
(B)
Vr
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid
pipe, the choice of which is left to the installer.
• Insert the flange 9 (optional), on the hood body out-
let.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Remove any activated charcoal filters.
ø 150
9
ø 120
RECYCLING VERSION AIR OUTLET
To install the hood in recycling version, the optional
charcoal filter kit must be purchased.
• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four
screws 12c (2.9 x 12.5).
• Fix the air outlet grid 8on the recirculation air outlet
using the 2 screws 12d (2,9 x 9,5) provided.
16
12c
12d
8

EN 9
9
Chimney assembly
Upper exhaust Chimney
• Slightly widen the two sides of the upper chimney and hook
them behind the brackets 7.2.1, making sure that they are well
seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x
9,5) supplied.
Lower exhaust Chimney
• Slightly widen the two sides of the chimney and hook them
between the upper chimney and the wall, making sure that they
are well seated.
• Fix the lower part laterally to the hood body using the 2 screws
12c (2,9 x 9,5) supplied.
12c
2.1
2.2
2
7.2.1
12c
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.

EN 1
10
USE
Control panel
Button Function Display
ATurns the suction motor on and off at speed
one.
Displays the set speed
BDecreases the working speed. Displays the set speed
CIncreases the working speed. Displays the set speed
DActivate intensive speed from any other speed,
including motor off. This speed is set to
operate for 6 minutes, after which the system
returns to the speed that was set before.
Suitable to deal with maximum levels of
cooking fumes.
Displays HI and the time remaining once very
second.
Press and hold the button for approximately 5
seconds, with all the loads turned off (Motor
and Lights), to turn the Activated Charcoal
Filter alarm On and Off.
FC+Punto (2 flashes)–Alarm On.
FC+Punto (1 flash)–Alarm Off.
E24H function
Turns the suction motor on at speed one and
effects one 10 minute extraction every hour.
Displays 24 and the spot at the bottom right
flashes once every second, while the motor is
running.
It is disabled by pressing the button.
When the filters alarm is triggered, the alarm
can be reset by pressing and holding this button
for approximately 3 seconds.
These indications are only visible when the
motor is turned off.
FF flashes three times.
When the procedure terminates, the indication
shown previously turns off:
FG indicates the need to wash the metal
grease filters. The alarm is triggered after the
Hood has been in operation for 100 working
hours.
FC indicates the need to change the
activated charcoal filters, and also to wash the
metal grease filters. The alarm is triggered
after the Hood has been in operation for 200
working hours.
FDelay function
Activate automatic switch-off with a 30’ delay.
Suitable to complete elimination of residual
odours. Can be activated from any position,
and is disabled by pressing the button or
turning the motor off.
Displays the operating speed and the spot at
the bottom right flashes once a second.
Press and hold the button for approximately 5
seconds, with all the loads turned off (Motor
and Lights), to turn the Remote Control On and
Off.
IR+Punto (2 flashes)– Remote Control On.
IR+Punto (1 flash)– Remote Control Off.
GTurns the lighting system on and off at
maximum intensity.
HTurns the Courtesy Lighting on and off.
A
B
C
D
E
F
G
H

EN 1
11
MAINTENANCE
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type (not included).
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Ducting panels
• Open the ducting panels.
• Disconnect the panel from the hood canopy by sliding the fix-
ing pin lever.
• Clean the outside using a damp cloth and neutral liquid deter-
gent.
• Clean the inside using a damp cloth and neutral detergent; do
not use wet cloths or sponges, or jets of water; do not use abra-
sive substances.

EN 1
12
Metal grease filters
They can be washed in the dishwasher, and need to be cleaned
whenever the FG sign appears on the display or at least once
every 2 months use, or more frequently if use is particularly
intensive.
Resetting the alarm signal
• Turn the Lights and the Suction motor off, then disable the 24h
function, if enabled.
• Press button E(see the paragraph on Use).
Cleaning the Filters
• Open the Comfort panels by pulling on the recess.
• Remove the Filters one at a time, pushing them towards the
back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry
completely before replacing. (If the surface of the filter
changes colour as time goes by, this will have absolutely no
effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• Close the Comfort panels.

EN 1
13
Activated Charcoal Filter (Recirculation Version)
It cannot be washed or regenerated, and must be changed when the FC symbol on the display
appears, or at least once every 4 months. The Alarm signal, if it has been activated, only
appears when the Suction motor is turned on.
Activating the alarm signal
• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on
installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press D and hold for approximately 5 Seconds:
• The message FC+Puntino flashes twice, A.C. Filter saturation alarm ACTIVATED
• The message FC+Puntino flashes once, A.C. Filter saturation alarm DEACTIVATED
CHANGING THE ACTIVATED CHARCOAL FILTER
Resetting the alarm signal
• Turn the Lights and the Suction motor off, then disable the 24h
function, if enabled.
• Press button E(see the paragraph on Use).
Changing the Filter
• Open the Comfort panels by pulling on the recess.
• Remove the Metal grease filters.
• Remove the saturated Activated Charcoal Filters, as indicated
(A).
• Fit the new Filters, as indicated (B).
• Replace the Metal grease filters.
• Close the Comfort panels.
A
B

EN 1
14
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the light cover by unfastening the screws
that hold it.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure
that the two pins are properly inserted in the lamp
holder socket holes.
• Replace the light cover.
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
28 E14 220 – 240 104 x 35 HSGSB/C/UB-28-220/240-E14
20 G4 12 33 x 9 HSG/C/UB-20-12-G4
35 GU10 230 51 x 50,7 HAGS-35-230-GU10-51/40
50 GU10 230 51 x 50,7 HAGS-35-230-GU10-51/20
20 GU4 12 40 x 35 HRGS-20-12-GU4-35/30
20 GU5.3 12 46 x 51 HRGS-20-12-GU5.3-50/10
16 G13 95 720 x 26 FD--16/40/1B-E--G13--26/720
18 G13 57 589,8 x 26 FD--18/40/1B--E--G13--26/600
9 G23
60 (lamp)
220-240 (starter) 167 x 28 FSD-9/27/1B-I-G23
11 G23
91 (lamp)
220-240 (starter) 235,8 x 28 FSD-11/40/1B-I-G23

GR 1
15
  
         .
,       
     .

•          
    .
•      
      650 mm
(     
 .     
   ).
•        
     
  .
•     ,       
 .
         
 120 mm.         
.
•         
   (.. ,  .).
•       
    (..  ),
        
      . 
        
       
 .     
    ,       
  0,04 mbar       
       .
•      ,    
     ,     .
2°

GR 1
16
•          
       
,      .   
        .
•         
. :     
      ,  
 .
•        
      3 mm.

•         
     .
•         
     .
•          
 .
•          
     ,    
   .
•       
:      
.
•       
:    .
•      
    8        
 ,       , 
         
     .     
   .      
  ,   .

GR 1
17
• :       
     .

•         
   .
•  /       
 ( ).
•         2   
        
   .
•            
     4   
    .
•         
   .
•        
  .
         
          
.         
        
 .       
,       
    ,      
 .       
  ,   ,   
        
.

GR 1
18


Min.
250mm
Min.
250mm
1270
MIN. 1270 - MAX. 1720
µ
. . µ  
11 µ µ: , µ, 
µ, 
2.1 1  µ
2.2 1  µ
81 µµ   
91 
16 1  
. . µ   
7.2.1 2 µ   µ .
11 6 
11a 2  SB 12/10
12a 6  4,2 x 44,4
12c 10  2,9 x 6,5
12d 2  2,9 x 9,5
. 
1  
1
16
12c
11
12a
12d
8
2.1
2.2
12c
9
12a 7.2.1 11
11a

GR 1
19

    
7.2.1
X1
÷2
11a
11
12a
112+A
A=Min 25
0
Max 40
0
710+A
1
2
1
2
200 200
180 180
A
  :
•          ,     
     .
•       (710 mm + A)    
 .
•    (1)       200 mm   
  .
•            .
•        (2)   180 mm   -
  ,  (112 mm + A)      .
•            .
•   12 mm   (1).
•   8 mm   (2).
•       11a   1  .
•    11   2.
•      . 7.2.1   1-2 mm    
  ,     ()    
.
•       .
•      . 7.2.1   X mm    
 (X =     ),     (-
)     .
•       .
•   8 mm   .
•    11  .
•       12a (4,2x44,4) .

GR 2
20
  
•    .
•        -
       .
(A)
•        
.
•     Vr   11a, 
  . (B)
•        -
 11a.
•          Vr
    .
•     11.
(A)
(B)
Vr

   
     , 
        
 ,     
.
•    9 (),   
  .
•      . 
      .
•     .
ø 150
9
ø 120
   
       -
      -
.
•     
•       , -
    12c (2,9 x 6,5).
•     8   
   2  12d (2,9 x 9,5)  -
.
16
12c
12d
8
