Faber STRTIS36WHV User manual

STRTIS36WHV
STRTIS48WHV
STRTIS36SSV
STRTIS48SSV
Installation Instructions
Use and Care Information
Instructions d'installation
Utilisez et d'entretien
Instrucciones de instalación
Información de uso y cuidado
STRATUS
E
4x
F
4x
A (6x70)
12x
D
4x
B
12x
C
4x

2
CONTENTS
Section Page
Important safety instructions 3
Range hood dimensions 6
Installation height requirements 7
Parts 8
Tools needed 10
Choose your ducting method 11
Ceiling hood install preparation 14
Installation information 16
Internal blower installation 17
Installation of range hood body 19
Ceiling mounting instructions 20
Connect the ducting - ducted venting installation 22
Connect the ducting - non ducted - recirculation options 23
House wiring box connection 24
Operating the controls 26
Faber Cloud App 32
Remote control 33
Cleaning stainless steel 33
Caring for filters 34
Replacing lighting 35
Wiring diagram 36
Warranty 37

3
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START
INSTALLING THIS RANGE HOOD
WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c)Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c)DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will
result.
d) Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
* Based on "Kitchen Firesafety Tips" published by NFPA
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan with
any solid-state speed control device.
WARNING -TOREDUCE THERISKOF FIRE,ELECTRICALSHOCK,ORINJURYTOPERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have any questions,
contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive
Materials and Vapors.
WARNING -TOREDUCE THERISKOF FIRE,ELECTRICALSHOCK,ORINJURYTOPERSONS,
OBSERVE THE FOLLOWING:
1. InstallationWorkAndElectricalWiringMustBeDoneByQualifiedPerson(s)InAccordance
With All Applicable Codes And Standards, Including Fire-Rated Construction.
2. Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating
equipment manufacturer's guideline and safety standards such as those published by
the National Fire Protection Association (NFPA), and the American Society for Heating,

4
RefrigerationandAirConditioningEngineers (ASHRAE),andthelocal codeauthorities.
3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
4. Ducted fans must always be vented to the outdoors.
ALL WALL AND FLOOR OPENINGS WHERE THE RANGE HOOD IS INSTALLED MUST BE
SEALED.
This Range Hood requires at least 35" of clearance between the bottom of the Range Hood
and the cooking surface or countertop. This hood has been approved by UL at this distance
from the cooktop.
Consult the cooktop or range installation instructions given by the manufacturer before making
any cutouts. MOBILE HOME INSTALLATION The installation of this Range Hood must conform
totheManufacturedHomeConstructionandSafetyStandards,Title24CFR,Part3280 (formerly
Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280).
Attention: This hood has been engineered to minimize electromagnetic interference (EMI)
originating from the consumer's home power source. However, in some home application,
ambient EMI and excessive EMI from other electronic sources can compromise the reliability
of the remote control.
Please speak with your Faber Distributor about an optional spare part to further reduce EMI
from home sources.
VENTING REQUIREMENTS
Determine which venting method is best for your application. Ductwork can extend either
through the wall or the roof.
The length of the ductwork and the number of elbows should be kept to a minimum to provide
efficient performance. The size of the ductwork should be uniform. Do not install two elbows
together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior
walls and ceiling space opening around the cap.
Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air
turbulence that greatly reduces performance.
Make sure there is proper clearance within the walls and ceiling space for exhaust duct before
making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must
be cut, then a supporting frame must be constructed.
WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do
notventexhaustairintospaceswithinwallsorceilingsorintoattics,crawlspaces,orgarages.
WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use
Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts
Made At Home Using A 3D Printer).
Cold Weather installations
An additional back draft damper should be installed to minimize backward cold air flow and a
nonmetallic thermal break should be installed to minimize conduction of outside temperatures
as part of the vent system. The damper should be on the cold air side of the thermal break.
The break should be as close as possible to where the vent system enters the heated portion
of the house.

5
• Electrical ground is required on this Range Hood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other
materials, DO NOT use for grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or
grounding circuit could result in electrical shock.
• Check with a qualified electrician if you are in doubt as to whether the Range
Hood is properly grounded.
• Failure to follow electrical requirements may result in a fire.
WARNING
!
• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
• DO NOT use 4" laundry-type wall caps.
• Flexible-type ductwork is not recommended.
• DO NOT obstruct the flow of combustion and ventilation air.
• Failure to follow venting requirements may result in a fire.
WARNING
!
ELECTRICAL REQUIREMENTS
A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A
time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in
accordance with the electrical rating of this unit as specified on the serial/rating plate located
inside the unit near the field wiring compartment.
ELECTRICAL INSTALLATION WITH WIRING BOX
THIS UNIT MUST BE CONNECTED WITH COPPER WIRE ONLY. Wire sizes must conform to
the requirements of the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local
codesand ordinances.Wiresizeand connections must conformwith the ratingof theappliance.
Copies of the standard listed above may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Thisapplianceshould be connecteddirectly to the fuseddisconnect(orcircuitbreaker)through
flexible, armored or nonmetallic sheathed copper cable. Allow some slack in the cable so the
appliance can be moved if servicing is ever necessary. A UL Listed, 1/2" conduit connector must
be provided at each end of the power supply cable (at the appliance and at the junction box).
When making the electrical connection, cut a 1 1/4" hole. A hole cut through wood must be
sanded until smooth. A hole through metal must have a grommet.

6
DRAFT 02-DEC-2022 10:10
RANGE HOOD DIMENSIONS
36"
36"
48"
48"

7

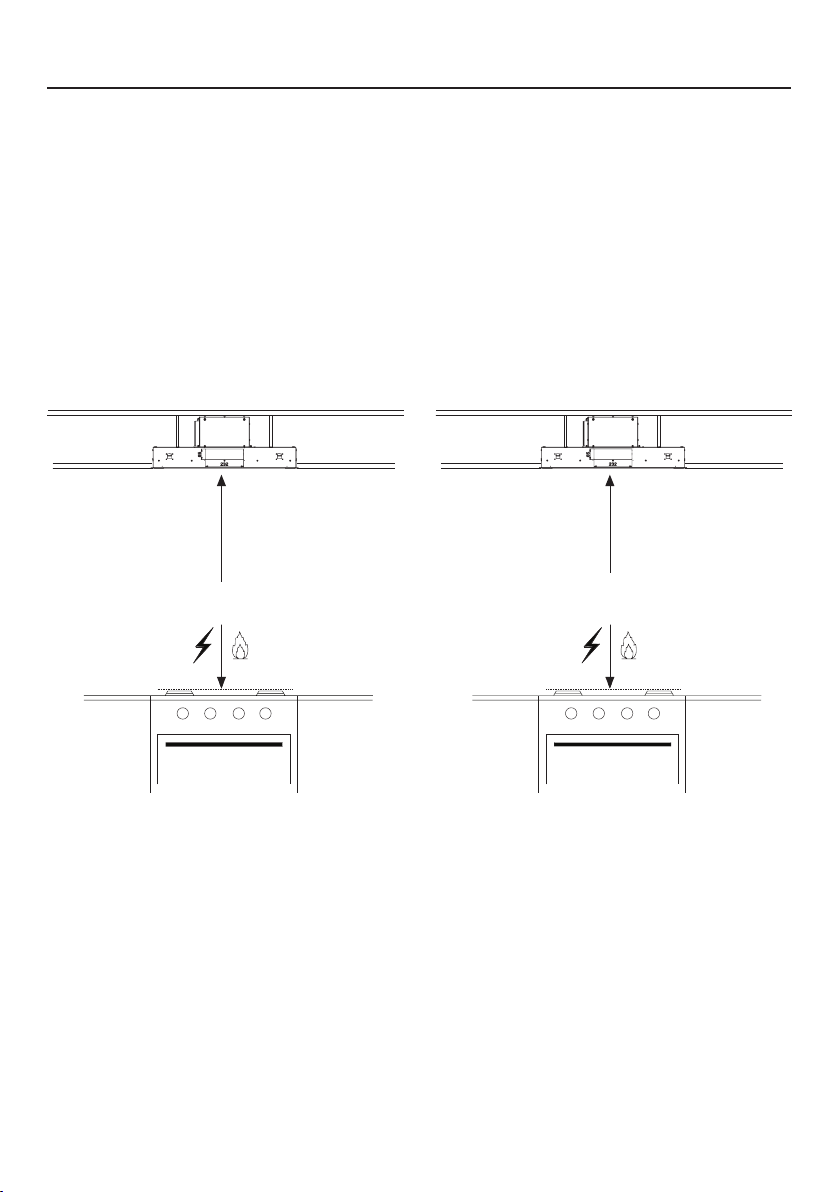

INSTALLATION HEIGHT REQUIREMENTS
Recommended 60" mounting height above the cooking surface for best performance, but can
be mounted up to 72" maximum away the cooking surface.
An access point to the hood from the ceiling or soffit must be made for installation and future
access to the range hood.
MAX. 72" OVER ELECTRIC / GAS
MIN. 35" OVER ELECTRIC / GAS

8
PARTS
PARTS INCLUDED
REF. PART QTY
AHood Body, complete with: Controls, Lights, Filters. 1
DDamper ø 6" 1
ERemote Control 1
HDrilling Template 1
IThreaded bar bolt 4
LCeiling bolt bracket 4
REF PART QTY
MNut 4
NWasher 4

9
D
H
8AA-725973-1
1x
1x
C
1x
B
A
1x 3x 4x
1x
D E
1x
1x
1x
1x
E
A
4x
I
12x
L
12x
(6x70) C
4x
D
4x
E
4x
B
4x
(M4x15)
D1
R2
R1
A
4x
I
12x
L
12x
(6x70) C
4x
D
4x
E
4x
B
4x
(M4x15)
D1
R2
R1
I
L
A
N
M

10
PARTS NEEDED
PARTS (cont.)
PART
6" Round Metal Ductwork
Wire connectors.
Drywall plugs or other suitable wall fasteners based on your installation.
TOOLS NEEDED
TOOL
Tape Measure
Pencil
Electric Drill with 5/16" Drill Bit
Phillips Screwdriver
Work gloves
ACCESSORIES AVAILABLE
ACCESSORY SKU#
Activated Charcoal Filter Accessory Kit #FILTER1
Washable Long-Lasting Activated Charcoal Filter Kit #FILTER1LL

11

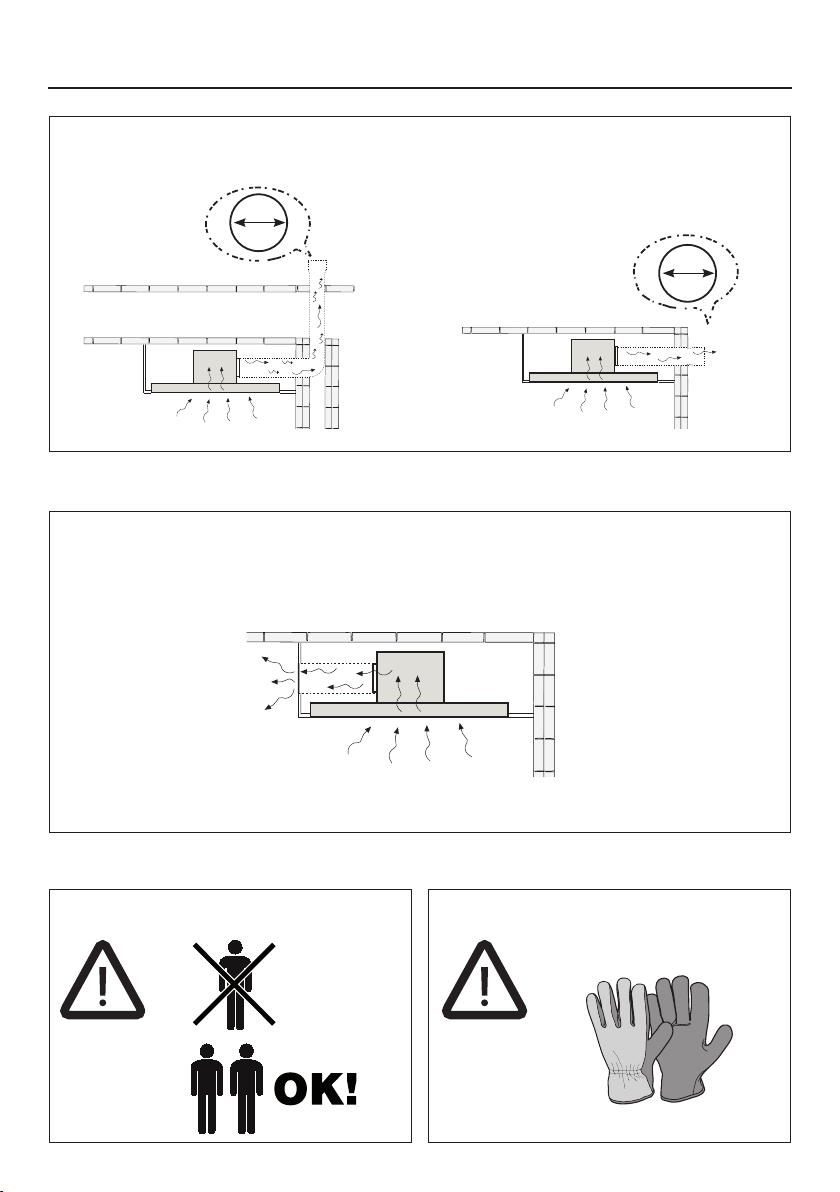

CHOOSE YOUR DUCTING METHOD
Non Ducted - Recirculation Options
Ducted Venting Options
Activated Charcoal Filter Accessory FILTER1 or FILTER1LL required (Purchased separately).
Register cover for air duct exit is shown for design not included.
Attention: When used in recirculation mode, To Reduce the Risk of Fire and Shock use
only conversion kit Model FILTER1 or FILTER1LL.
Register cover
for air duct exit is
suggested.
Two men required for installation Wear work gloves for safety
Caution: If an elbow is required, do it as far away from the hood's exhaust opening as
possible.
A
6 "
Roof
6 "
B
Exterior
Wall

12

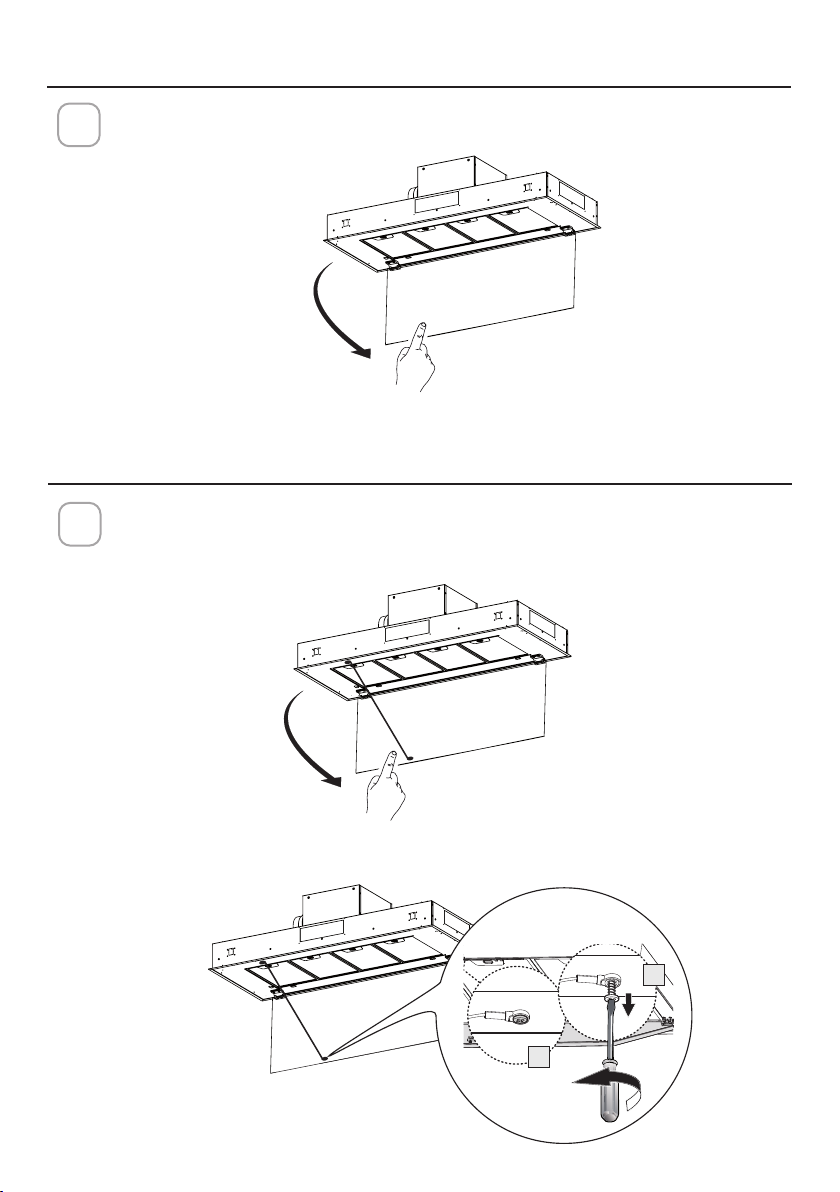

Open the filter cover panel. The filter cover panel is held by a magnet catch,
pull down with enough force to release as shown below.
1
STRTIS36WHV - STRTIS48WHV
Warning! The cover panel is equipped with a safety system.
Open the filter cover panel. The filter cover panel is held by a magnet catch,
pull down with enough force to release as shown below.
1
STRTIS36SSV - STRTIS48SSV
Remove the safety system screw as shown.
Z
8
9
10
1200
500 min 650 min
44
40074,574,5400
Ø 8 mm
4x
I - 4x
L - 4x
B
A

13
Remove the grease filters one at a time, pushing them towards the back of
the unit, and at the same time pulling downward and set aside.
2

14
Use a plumb line to mark the center of the range on the ceiling.
3
CEILING HOOD INSTALL PREPARATION
Mark the centers.
4
Do not make any cutouts until you have decided whether this installation will be:
ducted or non-ducted and wiring has been prepared based on based on blower
type.

15

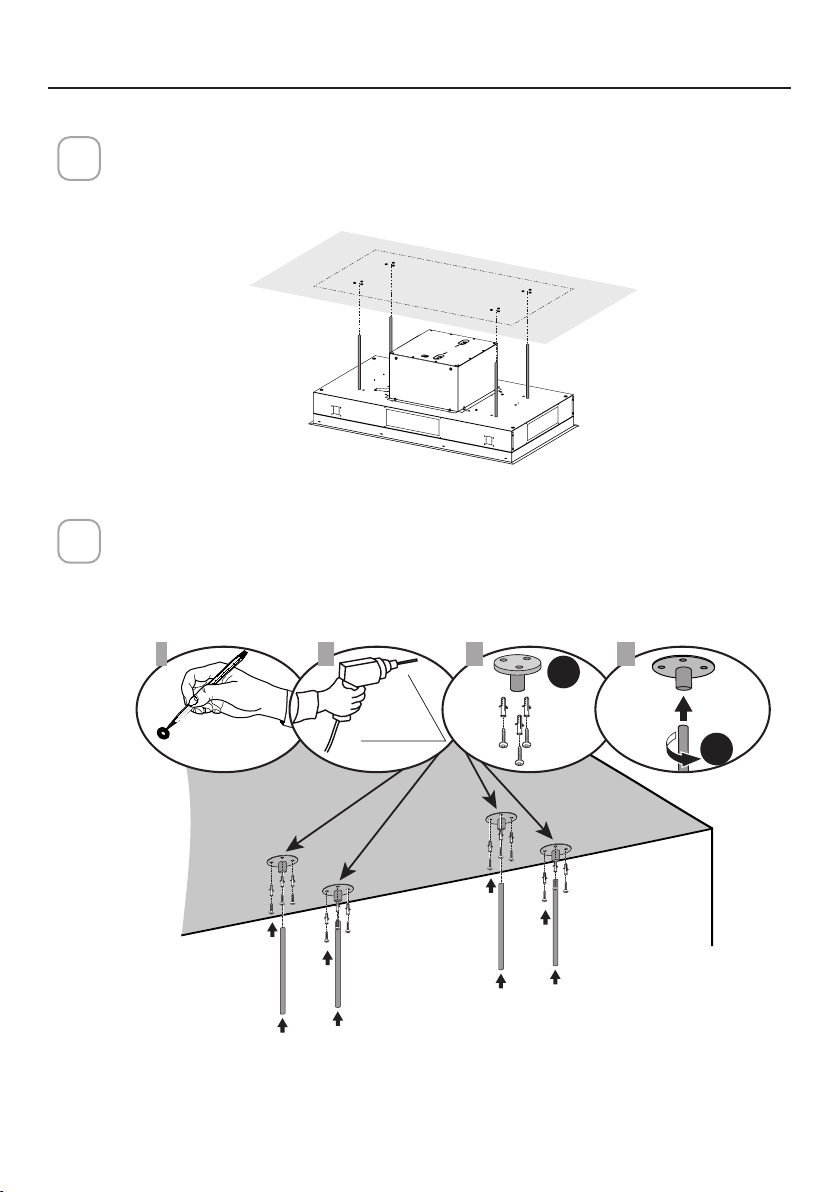

DUE TO THE SIZE AND WEIGHT OF THIS Range Hood, THE SUPPORT
MUST BE FIRMLY ATTACHED TO THE CEILING. For plaster or sheet
rock ceiling, the support must be attached to the joists. If this is not
possible, a support structure must be built behind the plaster or sheet
rock. The manufacturer assumes no responsibility for injury or damage
caused by improper installations.
WARNING
!
1 1/4"
H
• For all installations, an access point to the hood must be created for
installation and future maintenance of the hood.
• Put a thick, protective covering over cooktop to protect from damage or
dirt.
• Use the mounting template on the ceiling to determine placement of
mounting screws on the ceiling.
• Mark the center of the holes in the ceiling template.
• Determine and make necessary cuts for the ductwork.
• Install ductwork before mounting the hood.
• Determine the proper location for the Power Supply Cable as indicated
on the Template.
• Use a 1 1/4" Drill Bit to make this hole.
• Run the Power Supply Cable. Use caulking to seal around the hole.
• A knockout for threading through the Power Supply from the ceiling is
located on the top of the Range Hood.
• Do not connect the Power Cable to the Wiring Box or power up the hood
at this time.
• Run enough power cable from the ceiling to reach the wiring box on the
hood.
5

16
CORRECT
NOT
CORRECT
See image with
dimensions for
ceiling cutout.
Ø 5/16”
x4
x4
475
878
15 3/4”
23
5/8
” - 31
5/8
”
18 11/16” - 26 9/16”
23 5/8” - 31 5/8”
X
Y
Hood X Y
36" 18 11/16" 34 9/16"
48" 26 9/16" 46 3/8"
INSTALLATION INFORMATION
In preparation for installation of the hood, orient the hood with the control panel
on the front of hood as shown below.

17
INTERNAL BLOWER INSTALLATION
Left
Right
Back
Front
Torx
Screwdriver

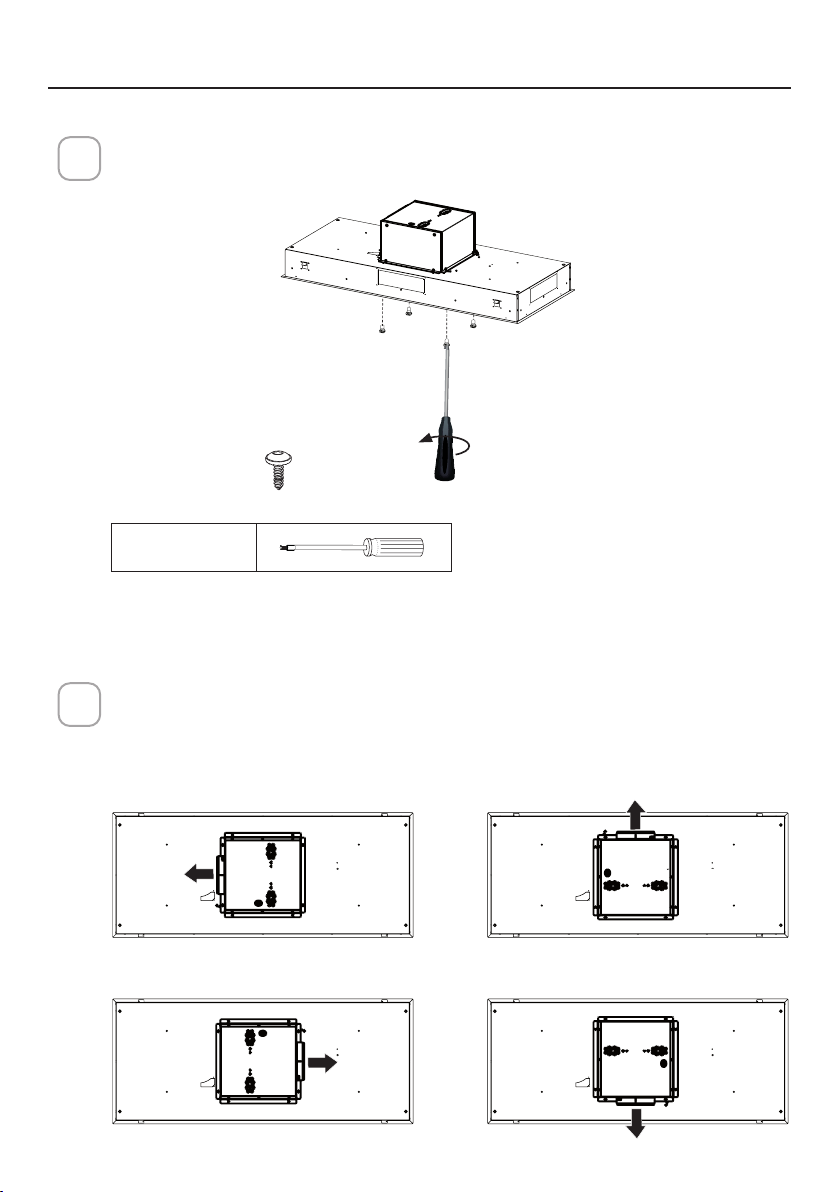

Separate Box and Range Hood
Unfasten the 4 screws to dismount the Box for the blower.
1
Choose the Box position (Left-Right-Back-Front)
The blower can be positioned in four different venting directions as shown.
Rotate the Box with Blower in the correct position.
2

18
Torx
Screwdriver
Attach Motor Box to the Range Hood
Attach the Box with the Blower with the same 4 screws removed previously.
3

19
INSTALLATION OF RANGE HOOD BODY
L = K - 4 1/2"
K
MIN.
12 3/8"
5" 9/16"
L

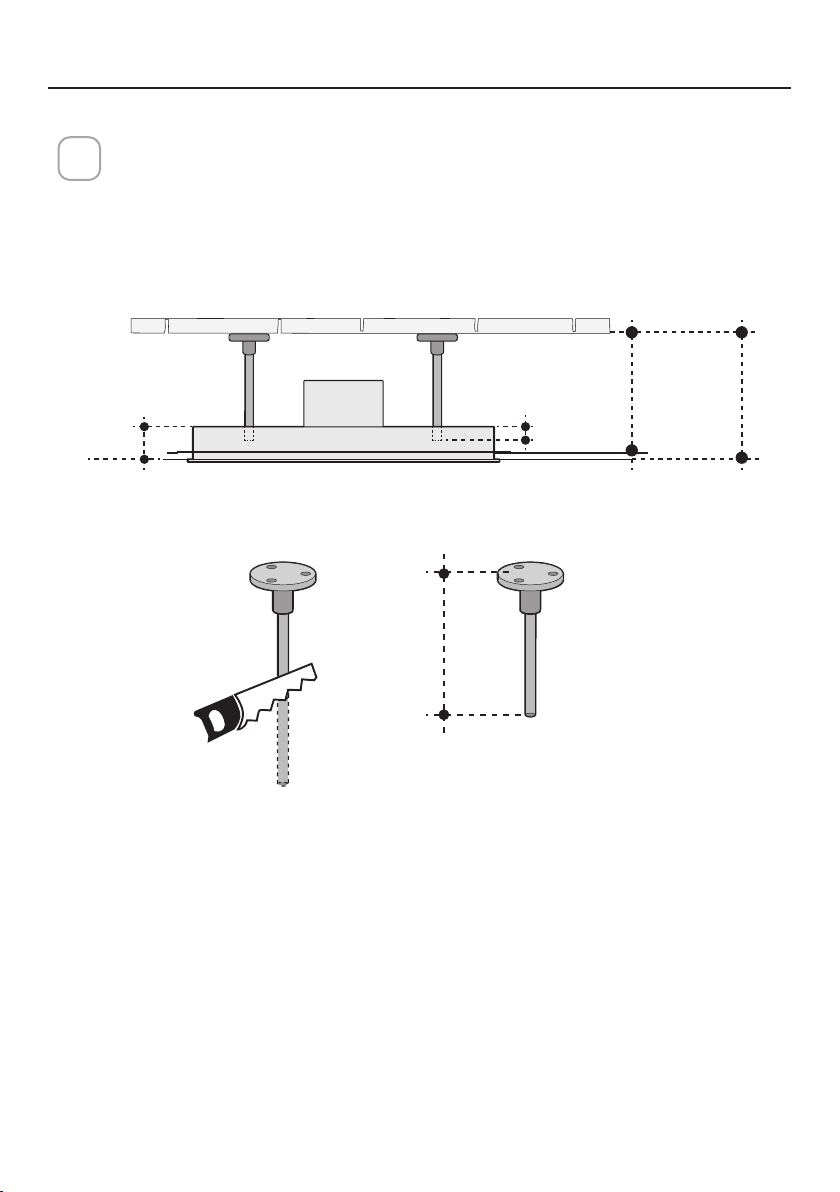

Assemble the Range Hood Mounting Brackets
4
To determine the length of the 4 mounting bolts:
Measure the total distance between the ceiling mounting area and the bottom
of the hood / where the ceiling begins.
Subtract 4 1/2" (5 1/16" - 9/16") from the total distance to determine the
correct length. Trim the excess length of the bolts.
For example if 13" is between the mounting area and the ceiling , 13" - 4 1/2" =
8 1/2" would be the total length needed for the bolts.

20
CEILING MOUNTING INSTRUCTIONS
Ceiling Mark
See below for a detailed image on drilling the holes onto the fastening surface
(inside ceiling or soffit) that will be used to mount the bolts. The fasteners
used must be compatible with the 5/16" holes and are purchased separately.
5
Bolt Installation on the Ceiling
Use holes created with drilling template for location of the ceiling fasteners
(purchased separately).
Use wall plugs or other securing hardware in conjunction with the ceiling
fasteners (purchased separately).
6
1. Use a 5/16" Drill Bit to make these hole.
2. Use wall plugs if appropriate or other securing hardware in conjunction
with the ceiling fasteners (purchased separately).
3. Attach the threaded bolts to the ceiling bolt brackets by screwing the
bolt into the bracket until tight and secure.
´
[
´
´

(
)
 
1 2 3 4
I
L
