FabiaTech FB4070 User manual

FabiaTech Corporation
IPC Solution
Website: http://www.fabiatech.com
Email: [e-mail]
Expansion Card
PCIe 4LAN/PoE Card
FB4070 User’s Manual
MAR 2016
Version: 1.1
Part Number: FB4070

Copyright
Copyright © 2015 FabiaTech Corporation. The content of this publication may not
be reproduced in any part or as a whole, transcribed, stored in a retrieval system,
translated into any language, or transcribed in any form or by any means,
electronic, mechanical, magnetic etc. or otherwise without the prior written
permission of FabiaTech Corporation.
Disclaimer
FabiaTech makes no representation of warranties with respect to the contents of
this publication. In an effort to continuously improve the product and add features,
FabiaTech reserves the right to revise the publication or change specifications
contained in it from time to time without prior notice of any kind from time to time.
FabiaTech shall not be reliable for technical or editorial errors or omissions, which
may occur in this document. FabiaTech shall not be reliable for any indirect,
special, incidental or consequential damages resulting from the furnishing,
performance, or use of this document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are
used for identification purpose only and are the properties of their respective
owners.
Technical Support
If you have problems or difficulties in using the system board, or setting up the
relevant devices, and software that are not explained in this manual, please
contact our service engineer for service, or send email to [email protected].
Returning Your Board For Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your
product by following these guidelines:
A list of your name, address, telephone, facsimile number, or email address
where you may be reached during the day
Description of you peripheral attachments
Description of you software (operating system, version, application software,
etc.) and BIOS configuration
Description of the symptoms (Extract wording any message)
For updated drivers, manuals, or product information, please visit us at
www.fabiatech.com
ii

iii
Table of Contents
FB4070 PCIe 4LAN/PoE CardUser’s Manual..................................................................i
Chapter 1 Introducing the FB4070 PCIe/PoE 4 LAN Card........................................................i
Overview...................................................................................................................................i
Series Comparison Table.......................................................................................................2
Layout.......................................................................................................................................3
Specifications..........................................................................................................................4
Packing List..............................................................................................................................5
Chapter 2 Hardware Installation ............................................................................................... 7
Before Installation...................................................................................................................7
Hardware Features.................................................................................................................8
CN2: 4 LAN Ports RJ45 Connector....................................................................9
CN1 & CN7: DC-In Terminal Block Connector .............................................10
Install FB4070 PCIe PoE/LAN card to System- Host Computer...................11
Chapter 3 Software Installation and Setting........................................................................... 13
LAN Driver (Intel I210AT).......................................................................................................13
WIN7/8/8.1 Server 2008 R2/2012 R2 X86/X64 Driver ..............................................13
LAN Driver Configuration Setting .......................................................................................16
Advanced Setting Driver..........................................................................................16
Chapter 4 Technical Reference .............................................................................................. 19
Technical Reference............................................................................................................19
Physical and Environmental.....................................................................................19
Appendix................................................................................................................................... 20
Dimension..............................................................................................................................20

Chapter1IntroducingtheFB4070PCIe/PoE4LANCard
Overview
The FB4070 is x4 PCIe/PoE Giga LAN card with support for four PoE ports independent
Intel® i210AT Gigabit Ethernet.
The FB4070 supports IEEE802.3af/at Power over Ethernet (PoE) Power Sourcing
Equipment (PSE) and can detect an IEEE802.3af/at compliant Powered Device (PD).
Using external 48V to 55V DC power inputs through Terminal Block, data and power
can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet
cable through LAN port. It provides auto-detection to ensure compatibility with both
PoE and conventional non-PoE devices, the PoE (Power over Ethernet) is a technology
to supply electrical power along with data on a standard Ethernet cable. And the
each port can delivers 15.4 W or 25.5 W of power and 1000 Mb/s bandwidth over a
CAT-5(e)/ CAT-6 cable of up to 100 meters.
The FB4070 features supports 9 KB jumbo frame, link aggregation (LAG), which conduct
exceptional throughout performance for receiver large data.
The FB4070 PoE LAN card is perfect for multi LAN, powering IP telephones, wireless LAN
access points, webcams, Ethernet hubs and switches and many more devices.
1

FabiaTech Corporation
SeriesComparisonTable
Model FB4070
LAN Chipset Intel ® i210
RJ45 LAN port
(100/1000Mbps) Four
Jumbo Frame 9KB
Link Aggregation (LAG) Yes
IEEE 802.3af Compliant
Each port up to 15.4W
PoE Capability *
IEEE 802.3at Compliant
Each Port up to 25.5W
Cable Requirement CAT 5(e) or CAT 6
100 Meters Max.
PCIe BUS Interface x4 PCI Express
Operating Temperature 0~+ 55℃(32~131℉) With Air Flow
Storage Temperature -20~+85℃(-4~185℉)
Dimensions (Unit: mm) 167.7(D) x 107.7(W)
* The PoE DC power supply from external DC Power Unit. (Optional )
2

FabiaTech Corporation
Layout
3

FabiaTech Corporation
Specifications
PCI Express® x4 compliant
Four Intel® i210 Gigabit Ethernet Mac Controller and PHY ports
¾Support 9KB Jumbo Frame and Link Aggregation (Teaming)
¾Supports IEEE 802.1 Audio Video Bridging (AVB)
¾Supports IEEE 802.3u Auto-Negotiation
¾Support IEEE 1588 compliant
Supports PoE (Power over Ethernet) IEEE 802.3 af/at compliant
¾Powered Device (PD) auto detection and classification
¾Supports Inrush current, current limit, and short-circuit protection
LED indicator –RJ45
¾LAN Data access
¾PoE Powered Device (PD) connectivity status
Power requires
¾Base on FB4070:+3.3V/2.4A, +12V/220mA Max.
¾PoE Power Input: 48V/1.6A Max. (Power consumption: 75W Max.)
¾PoE Power Input: 48V/2.5A Max. (Power consumption: 120W Max.)
48VDC Terminal Block power input for 15.4W or 25.5W per PoE port
EMI Considered on every output signals.
Compact size, 167.7 mm x 107.7 mm.
4

FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. Should any of the mentioned
happens, contact us for immediate service.
•Unpack and inspect the FB4070 package for possible damage that may occur
during the delivery process.
•Verify the accessories in the package according to the packing list and see if
there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FB4070 is not supplied from us, please make
sure the specification of the cable(s) is compatible with the FB4070 system
board.
Note: after you install the FB4070, it is recommended that you keep the diskette or
CD that contains drivers and document files, document copies, and
unused cables in the cartoon for future use.
The following lists the accessories that may be included in your FB4070 package.
Some accessories are optional items that are only shipped upon order.
•One FB4070x PCIe/PoE Giga LAN card with anti-Static bag.
•One 2-pin apartable terminal block for DC Power-In.
•One compact disc containing manual file in PDF format and necessary
drivers and utilities
Optional:
•One AC100~240VAC-48VDC/1.6A 75W Power Supply. (P/N: 1601210010R)
•One AC100~240VAC-48VDC/3.3A 150W Power Supply. (P/N: 1601210009R)
5

FabiaTech Corporation
6

FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the board connectors, jumper settings and then guides you to
apply them for field application.
BeforeInstallation
Before you install the system board, make sure you follow the following descriptions.
1. Before removing the board from its anti-static bag, wear an anti-static strap to
prevent the generation of Electricity Static Discharge (ESD). The ESD may be
created from human body that touches the board. It may do damage to the
FB4070 board circuit.
2. Install or unplug the FB4070 card, be sure that the power is disconnected from the
system. If not, this may damage the system board components, module, or the
FB4070 card.
3. The FB4070 can be installed in a PCI Express x4, x8, or x16 slot. And please make
sure that there PCI Express slot available on your system board. Before you install
the board, be careful with the pin orientations.
7

FabiaTech Corporation
HardwareFeatures
The following lists the connectors and jumpers to install the FB4070.
Item Description
CN1 Internal PoE power connector with 2-pin DC-In terminal block
CN2 4 LAN Ports and LED’s status with RJ45 Connector
CN7 External PoE power connector with 2-pin DC-In terminal block
8

FabiaTech Corporation
CN2: 4 LAN Ports RJ45 Connector
The CN2 -RJ45 has 4 PoE LAN ports, each of which has 2 LED’s indicators. The upside
LED (orange) indicates LAN port accessing data. The downside LED (green) indicates
PSE power status on while Power Device (PD) is hooked. The following lists the pin
assignment with RJ45 of CN2.
RJ45
¾CN2: PoE LAN LED Power Status
The FB4070 provides green LED to indicate operating conditions of the PoE LAN
ports. The green LED is on while connect to Powered Device (PD) and it is off when
the Powered Device (PD) is removed. The table below is to illustrate PoE LED status.
RJ45 10/100 Giga PoE
1 TPTX+ MDI0+ DC_48V
2 TPTX - MDI0- DC_48V
3 TPRX+ MDI1+ DC_0V
4 FBG1 MDI2+ DC_48V
5 FBG1 MDI2- DC_48V
6 TPRX - MDI1- DC_0V
7 FBG2
MDI3+ DC_0V
8 FBG2 MDI3- DC_0V
LED Status
Light_On
PoE On
Green Light_Off
PoE Off
(Front View)
8
1
RJ45
(Front View)
8
1
9

FabiaTech Corporation
CN1 & CN7: DC-In Terminal Block Connector
The PoE power source comes from either the CN1 or CN7, DC-in terminal block
connectors, both of which are connected to external power source 48~55 VDC input.
Use external 2-pin apartable terminal block to connect CN1 or CN7. See following
figure and a side pictures.
al block
connectors, both of which are connected to external power source 48~55 VDC input.
Use external 2-pin apartable terminal block to connect CN1 or CN7. See following
figure and a side pictures.
¾CN1: DC-in Terminal Block Connector¾CN1: DC-in Terminal Block Connector
¾CN7: DC-in Terminal Block Connector¾CN7: DC-in Terminal Block Connector
PinPin
Description
+ DC_IN_+48V
- Ground
Pin Description
+ DC_IN_+48V
- Ground
+
-
48V~55V
DC IN
Terminal Block
48V~55V
+
-
DC IN
Terminal Block
Note: 1. Ensure the correct voltage and correct the positive (+) and the GND (-)
before connecting CN1 or CN7 DC-In terminal block.
2. The PoE end device (Like Access point, IP camera, IP Phone, and other
device) need conforming to PoE Specification.
10

FabiaTech Corporation
Install FB4070 PCIe PoE/LAN card to System- Host Computer
If installing the FB4070, can remove the chassis cover of host computer then insert to
x4 PCI Express slot (Or x8, x16 slot). Below example: Install FB4070 PCIe PoE LAN card
to FX5637S1 system. (Please see the spots circled.)
¾a. Unscrew Bottom cover
Use a cross-head screwdriver to remove ten screws that secure the bottom cover.
¾b. Installing FB4070 PCIe PoE LAN card
The following figure will guide you how to install FB4070 card and screw the L-Type
Metal on the PCIE card Bracket and expansion card holder. See following figures.
b1. To installing Expansion Card – PCI/PCIE Card
168mmREF(6.6inch)
PCIExpresshalf_lengthCARD
Note: 1. The FB4070 need the +12V/250mA and +3.3V/1.1A from PCIE Bus.
2. The FX5637S1 PCIE bus supports x1/x2/x4 lanes via PCIE x16 slot.
11

FabiaTech Corporation
b2. Installing FX5637K2 Kit (Optional) - Expansion card holder
FX5637K2 (OPTION)
¾c. Connector External VDC Power Supply to CN7 of FB4070
Note: 1. The PoE of PD needs using the CN1 or CN7 to connect with external
power supply DC-IN +48V ~55V input (+48V/2.4A Max).
2. When inserting LAN cable of the Powered Device (PD) to CN2 (RJ45),
the indicator of the green LED status will be on.
12

FabiaTech Corporation
Chapter3SoftwareInstallationandSettingChapter3SoftwareInstallationandSetting
The enclosed CD diskette includes FB4070 LAN driver. To install driver and configure
setup you FB4070 card, you need to perform the following steps.
The enclosed CD diskette includes FB4070 LAN driver. To install driver and configure
setup you FB4070 card, you need to perform the following steps.
LANDriver(IntelI210AT)LANDriver(IntelI210AT)
WIN7WIN7/8/8.1 Server 2008 R2/2012 R2 X86/X64 Driver/8/8.1 Server 2008 R2/2012 R2 X86/X64 Driver
Step 1:Step 1: To install the LAN driver, insert the DVD ROM into the CD ROM device, and
enter DRIVER>LAN>I210AT.
To install the LAN driver, insert the DVD ROM into the CD ROM device, and
enter DRIVER>LAN>I210AT.
Step 2:Step 2: Execute PROWin32.exe file or PROWinx64.exe.Execute PROWin32.exe file or PROWinx64.exe.
13

FabiaTech Corporation
Step 3: Click “Next “to License Agreement. (Need select “I accept the teams in
the license agreement”.)
Step 4: Click “Next” to continue installation.
Step 4: Click “Finish” to Install wizard completed!
14

FabiaTech Corporation

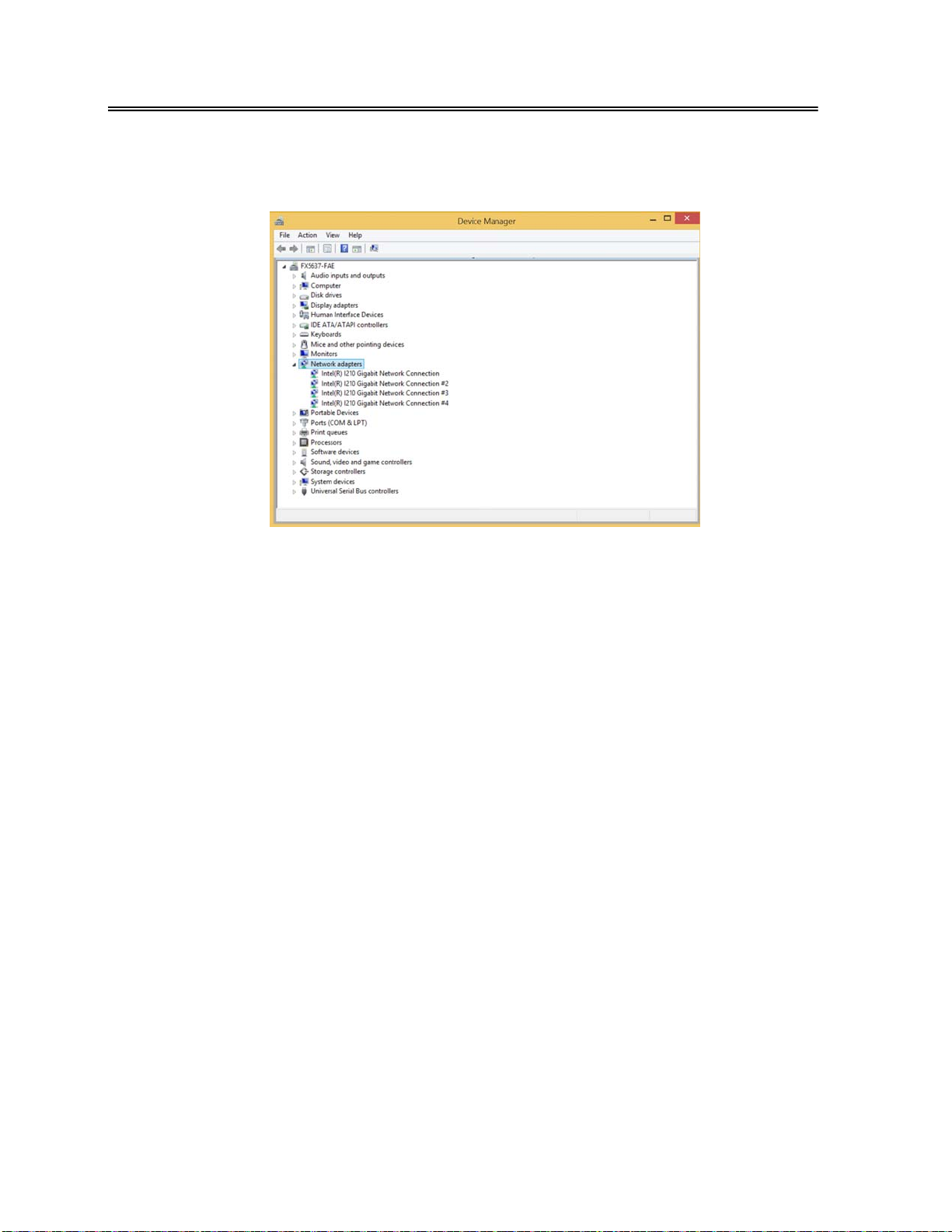

Step 5: You will see the 4 Intel ® i210 Gigabit Network Connection LAN device
completed show the Device Manager!
15

FabiaTech Corporation
LANDriverConfigurationSetting
The LAN configuration setting with scroll down to and double-click the "Network
adapters" header in the Device Manager list. Right-click the Intel ® i210 Gigabit
Network Connection and click "Properties" on the context menu. The context menu
settings listed in the "Advanced" tab enable you to customize how the adapter
handles Receiver Buffers, Transmit Buffers, Jumbo Packet, and other capabilities. When
connecting to a high-speed PoE or Non-PoE device, that’s can settings of drivers can
get the better performance.
Advanced Setting Driver
Click the "Advanced" tab in the Intel ® i210 Gigabit Network Connection Properties
window, in this section, we’ll discuss these settings. You can refer to the information to
fine tune your system.
¾Jumbo Packet
Jumbo Frames can increase throughput and decrease CPU utilization by putting more
data in each frame, thereby sending out fewer frames. The standard ether- net frame
size is 1514 bytes, while Jumbo Frames can contain 4088, or 9014 bytes.
16

FabiaTech Corporation
¾Performance Options
Receive Buffers and Transmit Buffers are sets the number of Buffers used by the
adapter when copying data to memory. Increasing this value can enhance receive
performance, but consumes system memory.
Receive Buffers
You might choose to increase the number of Receive Buffers if you notice a significant
decrease in the performance of received traffic. If receive performance is not an issue,
use the default setting.
17
