Fabtex 5000 Series User manual

REV0816
ASSEMBLY INSTRUCTIONS
5000 SERIES DRAPERY TRACK
Pinch Pleated Draperies Configured as a Panel
Cut track to length and attach end stops (use End Stops in pairs: one with a pull-out, and one without).
Secure track to ceiling or wall (see installation instructions). Once track is securely mounted, remove pull-
out from end stop, insert the required number of carriers (all standard carriers and one master carrier), and
reinsert pull-out into the end stop. To install the drapery, carefully slide the pin hooks, located at the top of
the drapery, through the loops on each of the carriers. To make the drapery a true one-way treatment,
secure the last carrier (the carrier farthest away from the master carrier) in place with a screw.
For smoother operation, lightly spray the inside of the track with an aerosol silicone lubricant. Depending
upon environment, clean and re-lubricate as necessary.
Note! For heavy-duty cord draw drapery configuration, the end stops can be replaced with End Pulleys
(part #5000-21) and heavy-duty nylon cord added. The routing of the cord and subsequent proper
operation is a fairly complex procedure that requires professional assembly.
Pinch Pleated Draperies Configured as a Pair
Cut track to length and attach end stops (use End Stops in pairs: one with a pull-out, and one without).
Secure track to ceiling or wall (see installation instructions). Once track is securely mounted, remove pull-
out from end stop, insert the required number of carriers (half of the standard carriers, both master carriers,
and the remaining standard carriers), and reinsert pull-out into the end stop. To install the drapery, carefully
slide the pin hooks, located at the top of the drapery, through the loops on each of the carriers. Each panel
of the drapery will begin at the outer edge and end at the center with a master carrier. The master carrier
with the offset arm will allow the paired drapery to overlap in the middle, creating a gap-free center closure.
Secure each of the outside end carriers in place with a screw.
For smoother operation, lightly spray the inside of the track with an aerosol silicone lubricant. Depending
upon environment, clean and re-lubricate as necessary.
Note! For heavy-duty cord draw drapery configuration, the end stops can be replaced with End Pulleys
(part #5000-21) and heavy-duty nylon cord added. The routing of the cord and subsequent proper
operation is a fairly complex procedure that requires professional assembly.

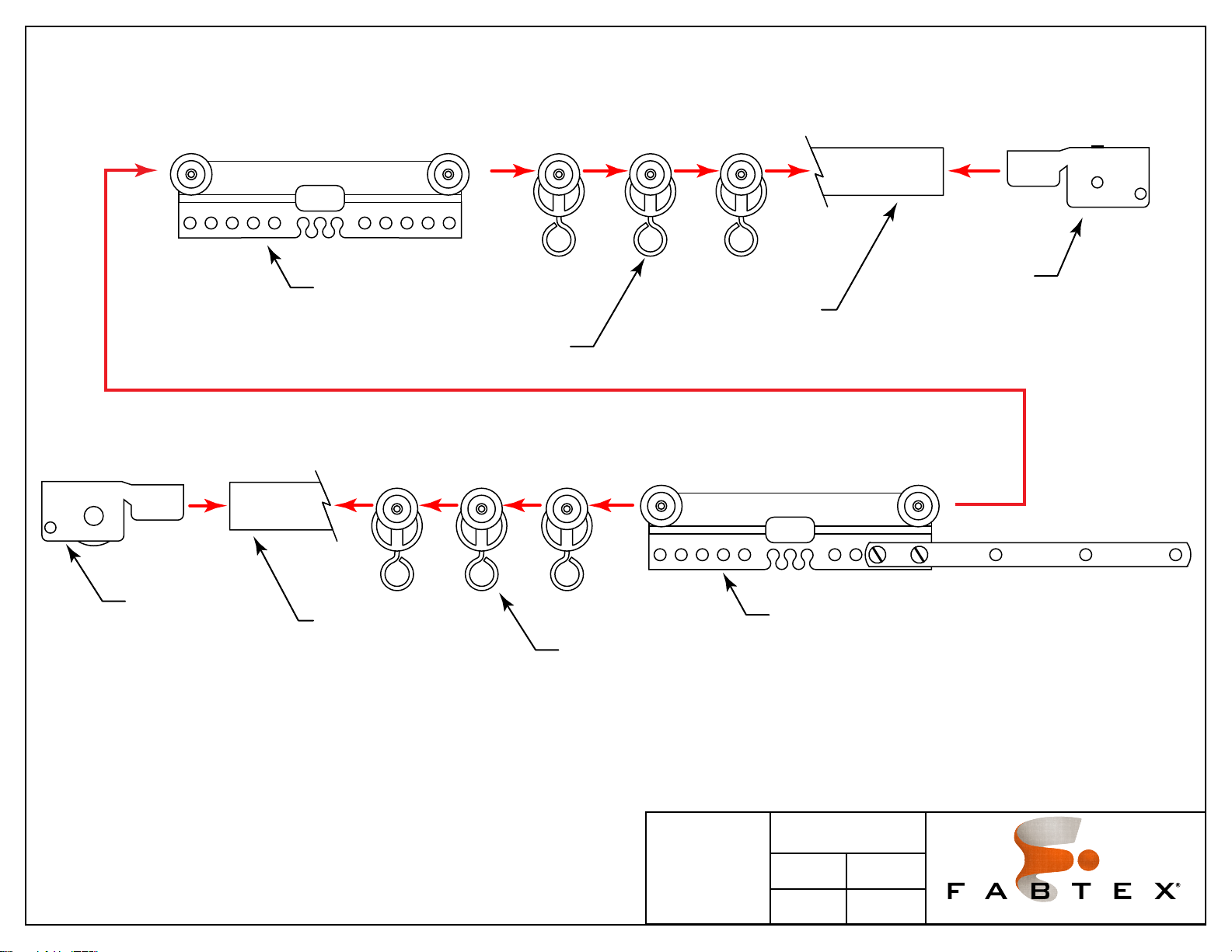

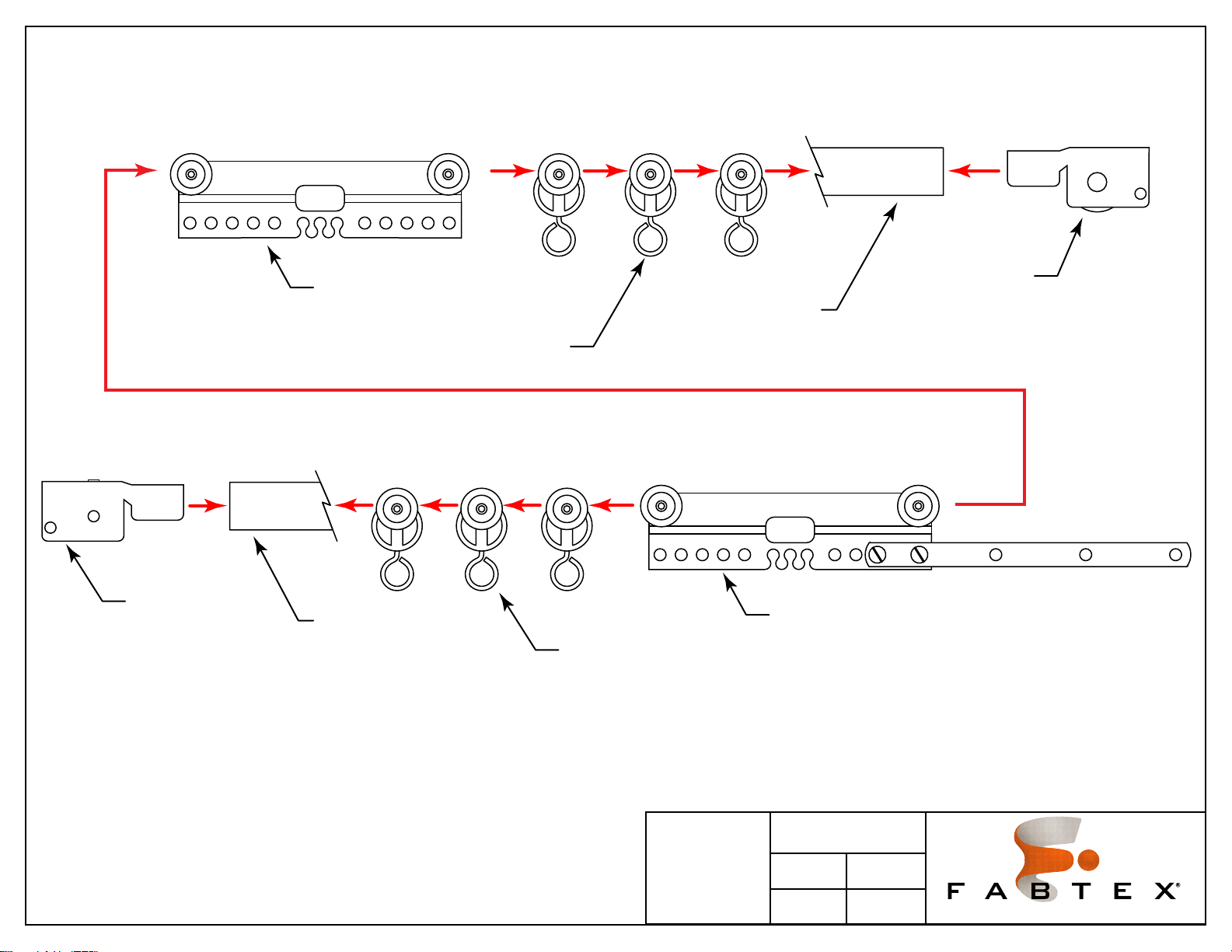

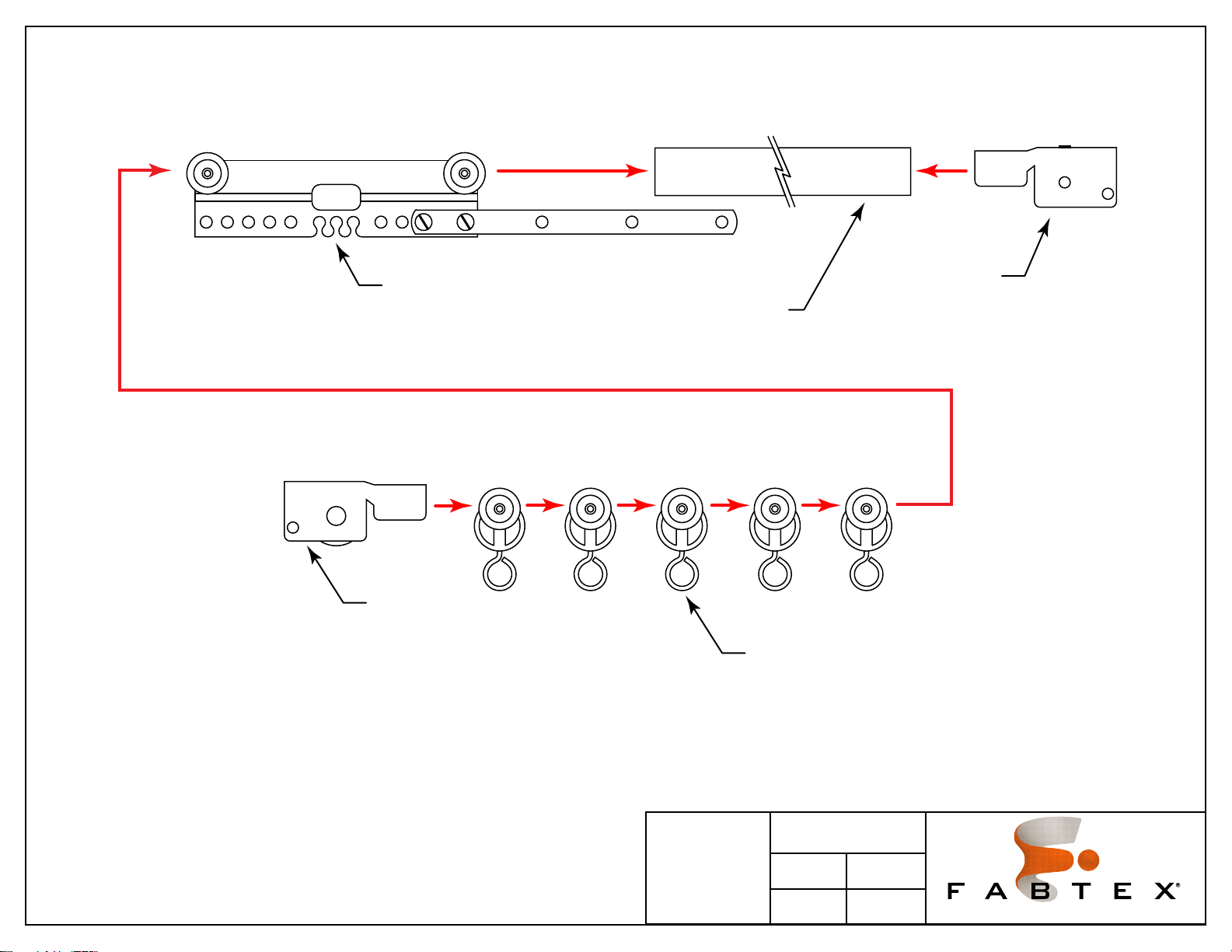

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Pinch Pleat, Panel, Stack Right
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com
END PULLEY
END PULLEY
(CORD SIDE)
RING CARRIERS
MASTER CARRIER
WITH OFFSET ARM
5000 SERIES TRACK

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Cord Assembly,Stack Right Panel
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Pinch Pleat, Panel, Stack Left
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com
END PULLEY
END PULLEY
(CORD SIDE)
RING CARRIERS
MASTER CARRIER
WITH OFFSET ARM 5000 SERIES TRACK

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Cord Assembly,Stack Left Panel
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Pinch Pleat, Pair, Control Right
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com
END PULLEY
(CORD SIDE)
END PULLEY
MASTER CARRIER
RING CARRIERS
RING CARRIERS
5000 SERIES TRACK MASTER CARRIER
WITH OFFSET ARM
5000 SERIES TRACK

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Cord Assembly, Pair, Control Right
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Pinch Pleat, Pair, Control Left
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com
END PULLEY
END PULLEY
(CORD SIDE)
MASTER CARRIER
RING CARRIERS
RING CARRIERS
5000 SERIES TRACK MASTER CARRIER
WITH OFFSET ARM
5000 SERIES TRACK

CONFIDENTIAL Project:
All materials disclosed in this
document are proprietary to
Fabtex, Inc. The Holder agrees
to maintain it in confidence
and must not replicate or
reveal this information in any
manner.
5000 Series Drapery Tracking System
Cord Assembly, Pair, Control Left
Date:
15-AUG-2016
Scale:
DO NOT SCALE
Dimensions:
Inches/Feet
By:
C. Johnson [phone] www.fabtex.com
