Falcon E3901i User guide

1
InductionBoiling Tops (Jan 23 onwards)
E3901i / E3902i E3903i / E3904i
INSTALLATIONand SERVICING INSTRUCTIONS
IMPORTANT
The installer must ensure that the installation of the appliance is in conformity with these
instructions and National Regulations in force at the time of installation. Particular attention MUST
be paid to –
BS7671 IEE Wiring Regulations Electricity at Work Regulations
Health and Safety At Work Act Fire Precautions Act
WARNING
BEFORE ATTEMPTING ANY MAINTENANCE, ISOLATE THE APPLIANCE AT THE MAINS
ISOLATING SWITCH AND TAKE STEPS TO ENSURE THAT IT CANNOT BE
INADVERTENTLY SWITCHED ON.
IT IS MOST IMPORTANT THAT THESE INSTRUCTIONS BE CONSULTED BEFORE
INSTALLING AND COMMISSIONING THIS APPLIANCE. FAILURE TO COMPLY WITH THE
SPECIFIED PROCEDURES MAY RESULT IN DAMAGE & NEED FOR A SERVICE CALL.
On completion of the installation these instructions should be left with the Engineer-in-Charge
for reference during servicing. In addition, the Users Instructions should be handed to the User,
having had a demonstration of the operation and cleaning of the appliance.
PREVENTATIVE MAINTENANCE CONTRACT
To obtain maximum performance from this unit regular servicing of the appliance should be undertaken
to ensure correct operation, it is functioning as intended, and safe to use. We recommend servicing in
accordance with SFG20 Maintenance Schedules and as a minimum, after 2,500 hours of use, or
annually, whichever comes first and that a maintenance contract be arranged with an appointed service
contact. Visits may then be made at agreed intervals to carry out adjustments and repairs.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of unit life, dispose of appliance and any replacement parts in a safe
manner, via a licensed waste handler. Units are designed to be dismantled easily
and recycling of all material is encouraged whenever practicable.
Falcon Foodservice Equipment
Wallace View, Hillfoots Road, Stirling. FK9 5PY.
Scotland.
Phone: [phone]
T101079 Ref. 4

2
IMPORTANTINFORMATION
ELECTRICAL SAFETY AND ADVICE REGARDING SUPPLEMENTARY
ELECTRICAL PROTECTION
Commercial kitchens and foodservice areas are environments where electrical appliances may be
located close to liquids or operate in and around damp conditions or where restricted movement for
installation and service is evident.
The installation and periodic inspection of the appliance should only be undertaken by a qualified, skilled
and competent electrician; and connected to the correct power supply suitable for the load as stipulated
by the appliance data label.
The electrical installation and connections should meet the necessary requirements to the local electrical
wiring regulations and any electrical safety guidelines.
We recommend: -
•Supplementary electrical protection with the use of a residual current device (RCD). If an RCD is
installed, it must be a type B or B+ with minimum 30mA fault current.
•Fixed wiring appliances incorporate a locally situated switch disconnector to connect to, which is
easily accessible for switching off and safe isolation purposes. The switch disconnector must meet
the specification requirements of IEC 60947.
Your attention is drawn to:-
BS 7671:2018–Guidance Note 8 - 8.13 : Other locations of increased risk
It is recognized that there may be locations of increased risk of electric shock other than those
specifically addressed in Part 7 of BS 7671. Examples of such locations could include laundries where
there are washing and drying machines in close proximity and water is present, and commercial kitchens
with stainless steel units, where once again, water is present.
Where because of the perception of additional risks being likely, the installation designer decides that an
installation or location warrants further protective measures, the options available include:
•Automatic Disconnection of Supply (ADS) by means of a residual current device having a residual
operating current not exceeding 30mA;
•Supplementary protective equipotential bonding; and
•Reduction of maximum fault clearance time.
The provision of RCDs and supplementary bonding must be specified by the host organization’s
appointed installation designer or electrical contractor and installed by a suitably qualified and competent
electrician so as to comply with Regulations 419.2 and 544.2

3
SECTION 1 –INSTALLATION
TO PREVENT SHOCKS, ALL APPLIANCES MUST BE EARTHED.
UNLESS OTHERWISE STATED, PARTS WHICH HAVE BEEN PROTECTED BY
THE MANUFACTURER ARE NOT TO BE ADJUSTED BY THE INSTALLER.

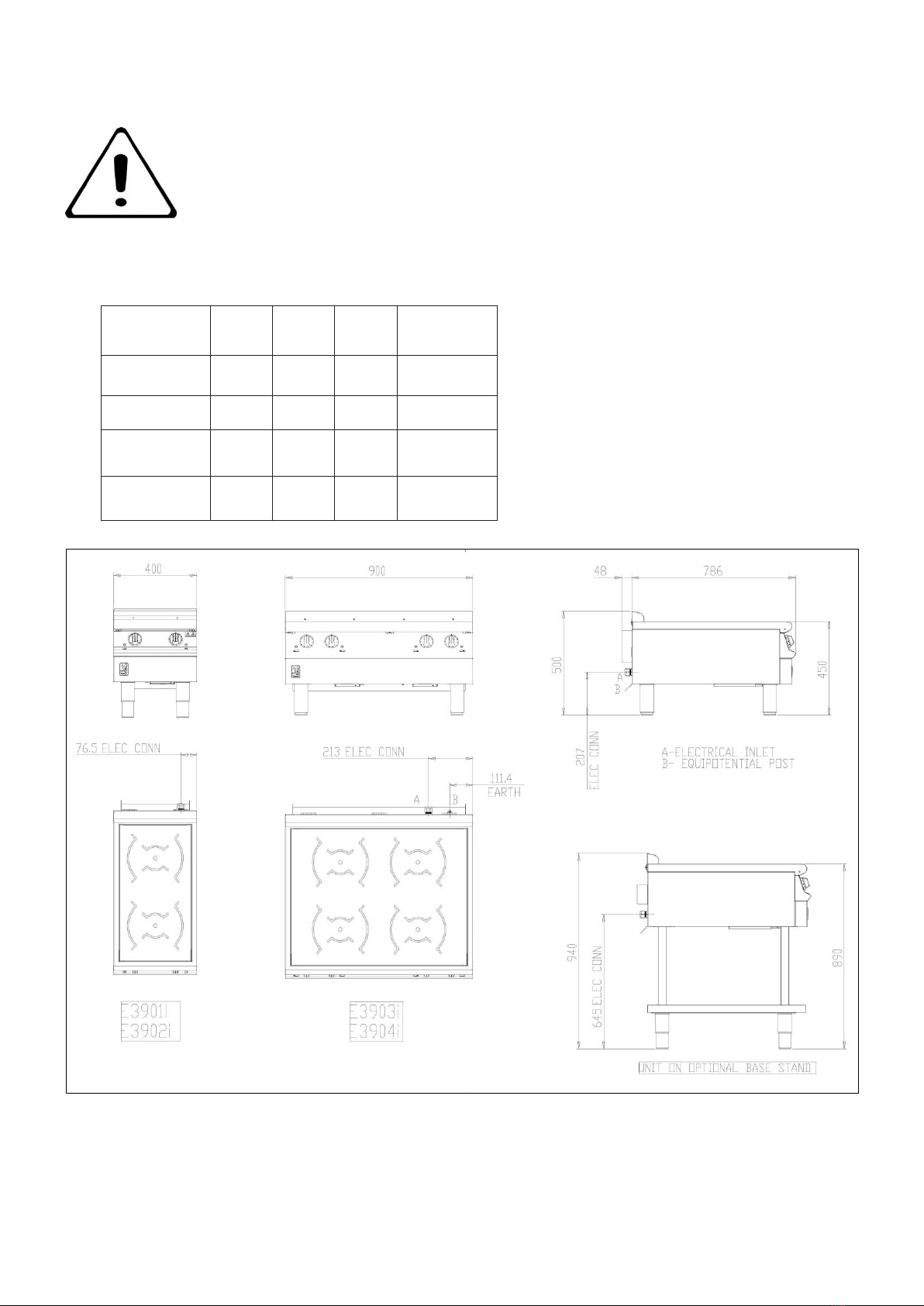

1.1 MODEL NUMBER, NETT WEIGHT and DIMENSIONS
Model
Width
(mm)
Depth
(mm)
Height
(mm)
Weight (kg)
E3901i
400
834
500
37
E3902i
400
834
500
37
E3903i
900
834
500
68
E3904i
900
834
500
68

4
1.2 SITING
The appliance should be installed in a well-lit position on a firm, level, non-combustible floor. The unit is
provided with rear stand-off plates to ensure a minimum 50mm gap between appliance and rear wall.
These must NEVER be bent, twisted or deformed, the 50mm gap must never be covered, blocked or
reduced. Ideally, the gap between appliance and rear wall be 100-150mm to minimise the strain on the
main cable.
CAUTION:
NOTHING SHALL BE PLACED UNDER THE APPLIANCE.
WHERE UNIT IS TO BE POSITIONED IN CLOSE PROXIMITY TO A WALL,
PARTITION, KITCHEN FURNITURE, DECORATIVE FINISHES, ETC., IT IS
RECOMMENDED THAT THESE BE CONSTRUCTED OF A NON-
COMBUSTIBLE MATERIAL.
CLOSE ATTENTION SHOULD BE PAID TO FIRE REGULATIONS.
THE INDUCTION UNIT MUST NOT BE INSTALLED ABOVE AN OVEN OR
OTHER SOURCES OF HEAT.
1.3 ELECTRICAL SUPPLY
The unit is suitable for AC supplies only. The standard terminal arrangement is:
3 phase 3 wire connection (400V 3~)
WARNING - ENSURE THAT CAPACITOR IS PROPERLY DISCHARGE
BEFORE INSTALLATION / MAINTENANCE
WARNING - THIS APPLIANCE MUST BE EARTHED
Phase 1 BROWN
Phase 2 BLACK
Phase 3 GREY
Earth YELLOW/GREEN
Neutral BLUE
Note: This appliance doesn’t have neutral connection, so we recommended
four core cable without neutral wire. However, if five core cable in use then
mains neutral wire need terminated at terminal block.
1.4 SUPPLY CONNECTION
a) Remove control panel to access the inlet terminal (see 3.1)
b) A suitably rated isolating switch with contact separation of at least 3mm in all poles must be
installed and wiring executed in accordance with relevant regulations.
c) Ensure the capacitor is discharged with appropriate discharge equipment.
d) Mains cable entry is at unit rear, and feed through the ferrite ring.
e) Connect the mains wires with terminal as described above.

5
Note:Mains cable must be fed through ferrite ring supplied before connecting to mains terminal
block.
This appliance is also provided with a terminal for connection of an external
equipotential conductor. This terminal is in effective electrical contact with all
fixed exposed metal parts of the appliance and shall allow the connection of
conductor having a nominal cross-section area of up to 10mm². It is located at
the rear of the unit and identified by the following label and must only be used
for bonding purposes.
MAINS INPUT CONNECTION CABLE IS NOT SUPPLIED; SUITABLE CABLE
WILL CONFORM TO CODE DESIGNATION IEC 60245-57.
1.5 ELECTRICAL RATINGS
Electrical loading is also stated on appliance data plate.
MODEL
VOLTAGE
POWER
L1
L2
L3
E3901i
400V 3~
7kW
11.00A
11.00A
11.00A
E3902i
400V 3~
10kW
15.75A
15.75A
15.75A
E3903i
400V 3~
14kW
22.00A
22.00A
22.00A
E3904i
400V 3~
20kW
31.50A
31.50A
31.50A
After installation, the engineer should check satisfactory operation and demonstrate method of use to
kitchen staff. Location of mains isolating switch should be identified for use in the event of an emergency
or during cleaning.

6
SECTION 2 - ASSEMBLY and COMMISSIONING
NOTE:
USERS MUST BE MADE AWARE THAT INDIVIDUALS FITTED WITH A
PACEMAKER SHOULD CONSULT THEIR DOCTOR IF IN CLOSE PROXIMITY
TO THIS UNIT. THIS INDUCTION UNIT EMANATES A 20KHZ OUTPUT THAT
MAY EFFECT OLDER TYPES OF PACEMAKER.
Warning
DO NOT USE THE UNIT IF THE CERAMIC TOP IS CHIPPED, CRACKED
OR BROKEN. THE PANEL NEEDS TO BE REPLACED!
2.1 ASSEMBLY
a) Unpack, position appliance and level using feet adjusters as shown below.
b) Ensure fan intake filter is fitted and secured in position below control panel.
c) Connect to an electrical supply (see 1.3 & 1.4)
2.2 STARTING UP
a) Switch all four cooking zones on to position 10.
b) Ensure all four LEDs light and begin to flash.
c) Place a suitable pan (filled with water) upon a cooking zone. (Pan bases should be constructed of a
ferrous material and cannot be less than 120mm (12cm) in diameter.)
d) Ensure that corresponding LED stops flashing and remains lit.
e) Lift pan from cooking zone: LED should again begin to flash.
f) This indicates that “Pan Detection” feature is working.
g) Repeat on all four cooking zones.
h) Leave pots to heat until water boils and switch controls to maintain simmer.
i) Switch control Off.

7
2.3 INSTRUCTION TO USER
After installation and commissioning is completed, please hand User Instructions to user and ensure
that the person(s) responsible understand the instructions regarding correct operation and cleaning of
the appliance. Particular emphasis should be given to:
●Suitable pan type,
●Cleaning of air filter regularly,
●Keeping cooking zones free from all objects, particularly metal utensils, at all times.
The user must also be made aware of potential to heat jewellery and disrupt electronic equipment
placed over the Induction zones magnetic field.
NOTE:
DO NOT OBSTRUCT AIR VENTS, FAILURE TO PROVIDE ADEQUATE VENTILATION
WILL CAUSE THE APPLIANCE TO OVERHEAT, TO REDUCE POWER, OR TO
SHUTDOWN.

8
SECTION 3 –SERVICING, MAINTENANCE AND CONVERSION
SERVICE INFORMATION
This unit carries an extensive mainland UK warranty. The warranty is in addition to and does not change
your statutory or legal rights.
The warranty policy can be found on our website which details the conditions of the warranty and the
exclusions.
https://www.falconfoodservice.com/info-centre/policy
Service calls to equipment under warranty will be carried out in accordance with the conditions of sale.
Warranty calls can be made between 8:30 am and 5:00 pm weekdays only.
To ensure your warranty enquiry is handled as efficiently as possible, ensure you have the following
appliance information prior to calling us:
1. Model number –found on data plate
2. Serial number –found on data plate
3. Brief description of the issue
To contact Falcon for a warranty issue dial (UK only) 01786 455 200 and select Warranty Issues from
the menu.
WARNING - BEFORE ATTEMPTING ANY MAINTENANCE, ISOLATE THE
APPLIANCE AT THE MAINS ISOLATING SWITCH AND TAKE
STEPS TO ENSURE THAT IT CANNOT BE INADVERTENTLY
SWITCHED ON.
WARNING - ENSURE THAT CAPACITOR IS PROPERLY DISCHARGE
BEFORE INSTALLATION / MAINTENANCE
WARNING - CAPACITOR MUST BE DISCHARGED IMMEDIATELY
AFTER ANY INSULATION RESISTANCE TESTING, AS
CAPACITOR MAY BECOME CHARGED DURING THE
TEST DUE TO HIGH VOLTAGE.
MAINTENANCE CHECK
Regular servicing of the appliance should be undertaken to ensure correct operation, it is
functioning as intended, and safe to use. We recommend servicing after 2,500 hours
of use, or annually, whichever comes first.
Any maintenance schedule should be carried out in accordance with SFG20 Maintenance
Schedule. Should any issues with the integrity of the components be identified these should
be replaced. If the appliance is not considered safe the unit should be removed from
service and the responsible person advised why the unit is not safe to use and what
remedial action is needed. Contents of the maintenance schedule should be agreed with
the maintenance provider.

9
Tools required:
A. 8mm spanner or socket
B. 10mm spanner or socket
C. Pozidriv screwdriver (#2)
D. 5mm slotted screwdriver

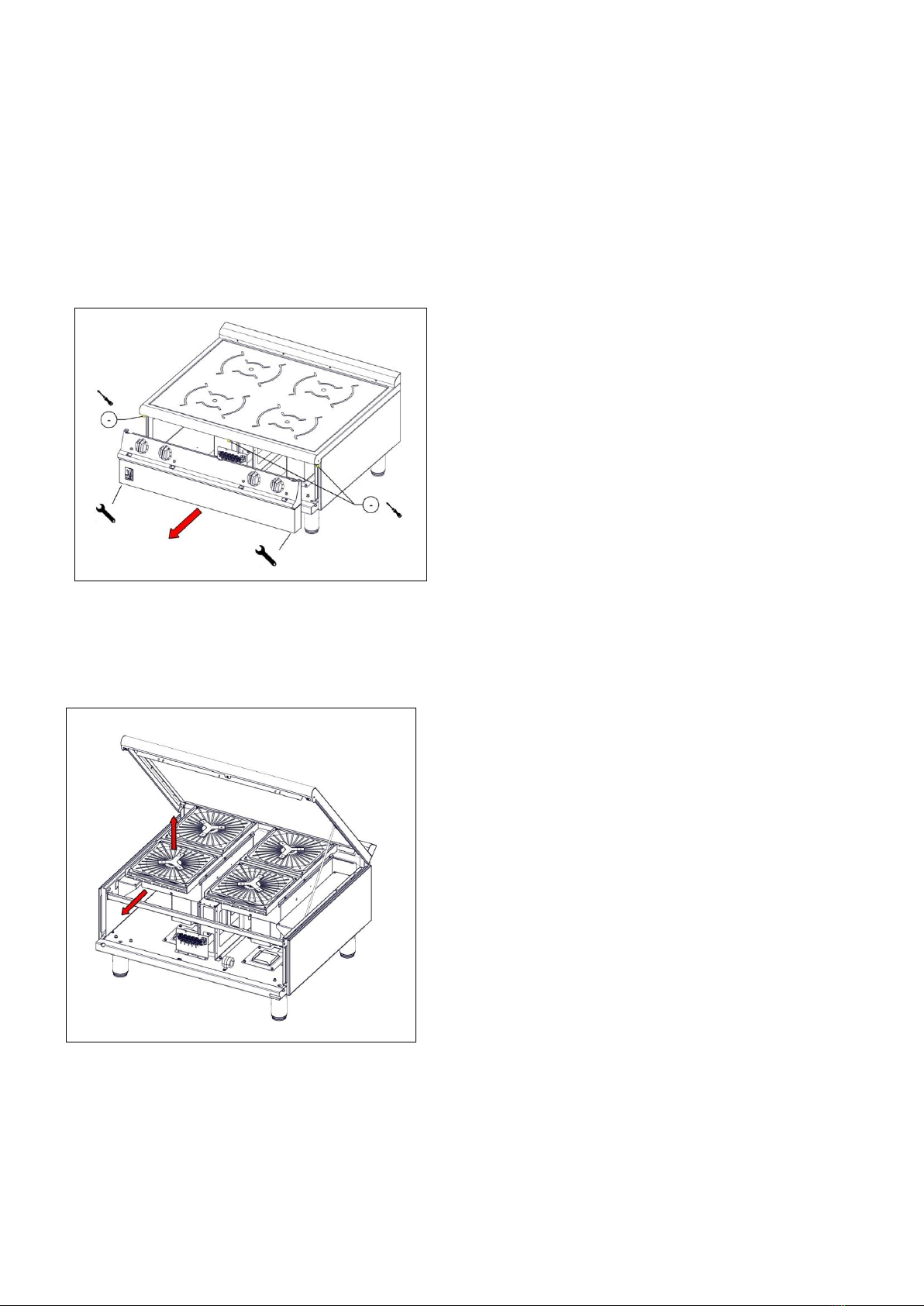

3.1 CONTROL PANEL
a) Remove Control Panel by removing two screws (E3901i& E3902i), three screws (E3903i&
E3904i) from under front of the glass-ceramic top.
b) Release two bolts from under front panel.
c) Replace in reverse order.
3.2 REMOVING THE GENERATOR
E3903i / E3904i (E3901i / E3902i SIMILAR PROCESS)
a) Remove the control panel see 3.1.
b) Remove the hob see 3.4.
c) Disconnect the power and RJ45 cables from the generator.
d) Lift the generator out vertically whilst pulling forward.
e) Air duct tubes need to be removed and refitted to new generators.
f) Replace in reverse order.

10
3.3 REPLACING CONTROL SWITCH/LED INDICATORS
a) Remove control panel, see 3.1
b) Control switch:- Identify wires that relate to switch and L.E.D attached to generator unit and
disconnect.
c) Unscrew and remove as shown above.
d) Re-assemble in reverse order.
3.4 HOB ASSEMBLY
To access generator:
a) Remove two screws (E3901i& E3902i), three screws (E3903i & E3904i) from under front of the
glass-ceramic top.
b) Tilt hob up and lift out hob stay. Fit hob stay cranked end into slot provided on hob as shown
above.
c) Ensure it is secure before work is carried out.

11
To replace the ceramic-glass hob assembly:
a) Remove control panel as detailed in Section 3.1.
b) Remove 2 fixings (E3901i/2i) 4 fixing (E3903i/4i) from the front and two fixings from the back of
hob rear upstand.
c) Lift hob to an angle of approx. 30° then rotate rear upstand to release it from the hob frame.
The hob frame c/w glass can now be removed.
d) Carefully lift the hob frame c/w glass and lay on a flat surface.
If replacing hob in the event of glass damage, ensure any glass debris is cleared away from
induction coils and from inside of unit.
e) Replace in reverse order.
Note: It is recommended that two persons carry out the procedure.
SECTION 4 SPARE PARTS
Description
Spare No.
3.5kW Induction Generator (I9042/I9084)
734070023
5kW Induction Generator (I9043/I9085)
734070024
Control Switch
734070025
Hob control Knob
734060003
LED Indicator
734070028
0.1UF Capacitor
734070026
RJ45 Connection Cable
734070027
Air Filter Twin Zone
734070005
When ordering spare parts please quote the following;
Model Number
Serial Number
This information will be found on the data plate attached to the appliance.

12
SECTION 5: FAULT FINDING
Note: Most faults can be rectified by simply switching unit off for 10 seconds. After this time, turn power
back on at mains supply. If fault continues to occur after such action then please refer to the table. This
will provide a solution to rectify the condition.
If unit fails to operate or show any operational indicators, Follow details in Error Code Table before
calling a service engineer. The symptoms may indicate a failed induction generator.
ERROR CODES
DO NOT remove or attempt to repair or replaceANY part or parts of this appliance other than the air
intake filter.
If an error occurs within the unit, the control panel green LEDs will flash to indicate an error code. An
error code can be detected according to the duration and frequency of the LEDs blinking. LEDs blink
one time long and then short regular flashes, number of short flashes represent the Error code.

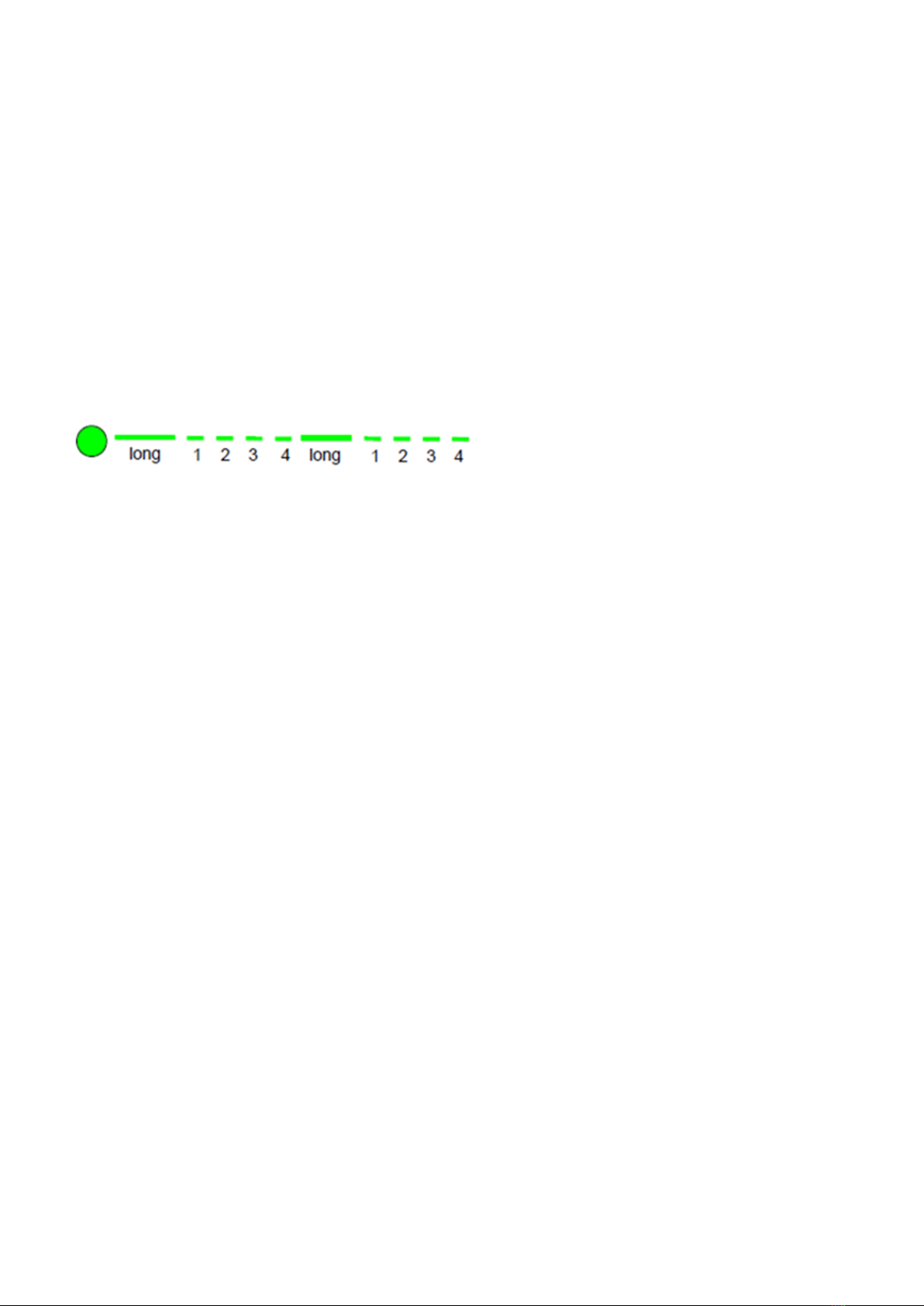

For example (error code 4):
The error code list that follows will help identify the faulty component.
In the “corrective action”list, you should follow the action listed, before contacting a Service
Engineer.

13
Troubleshooting Without Error Code
Symptom
Possible Cause
Corrective Action
Pan does not heat up on glass-top.
LED is not illuminating/flashing
No power supply.
Check incoming power supply (Example, power cable
plugged into the wall socket). Check kitchen main fuse box.
Unit is turned off.
Turn control knob to an ON-position.
Defective unit.
Only if possible and safe, disconnect the appliance from the
power supply. Contact an authorized service engineer. (1)
Pan does not heat up.
Pan is too small.
Use a suitable pan with bottom diameter larger than
12cm[5”].
Pan is not placed in the centre of the hob; pan is
not detected by sensor. (2)
Move the pan to the centre of the hob.
Unsuitable pan.
Select only induction-ready cookware.
Defective unit.
Only if possible and safe, disconnect the appliance from the
power supply. Contact an authorized service engineer. (1)
Poor heating, LED ring is ON
Air-cooling system is obstructed.
Verify that air vents are not obstructed. Ensure the fresh air
filter is clean.
Unsuitable pan.
Select various induction-ready cookware for induction
cooking. Then compare the results.
Ambient temperature is too high. The cooling
system is not able to keep the appliance in normal
operating conditions.
Verify that no hot air is taken in by the fan. Reduce the
ambient temperature. The intake air temperature must be
lower than 40°C [104°F].
One phase is missing.
Check incoming power supply (Example, power cable
plugged into the wall socket). Check kitchen main fuse box.

14
Defective unit.
Only if possible and safe, disconnect the appliance from the
power supply. Contact an authorized service engineer. (1)
Appliance does not react to control
knob positions
Unit is turned off.
Turn control knob to an ON-position.
Defective control knob.
Only if possible and safe, disconnect the appliance from the
power supply. Contact an authorized service engineer. (1)
Overheated unit symbol is ON, fan is
working
Air-cooling system is obstructed.
Internal fan is dirty.
Verify that air vents are not obstructed. Ensure the fresh air
filter is clean.
Contact an authorized service engineer
Overheated unit symbol is ON, fan
does not work
Defective fan or fan control
Only if possible and safe, disconnect the appliance from the
power supply. Contact an authorized service engineer. (1)
Overheated unit symbol is ON
Overheated induction coil; cooking area is too hot.
Overheated pan. Pan is empty.
Switch the appliance off. Safely remove pan. Wait until the
appliance has cooled down before turning it ON.
Small metallic objects (e.g. spoon) are
heated up in the cook zone.
Pan detection function is defective
Only if possible and safe, disconnect the appliance from the
power supply. Contact an authorized service engineer. (1)
(1) If the plug is not safely accessible, the device must be switched off at the main circuit breaker.
(2) The appliance switches off immediately.

15
Troubleshooting —Error Code
Blink Code
Problem
Corrective Action
Normal Operation
Normal Operation
1
Unsuitable induction cooking pan. Internal wiring/coil
connection malfunction. (2)
Check pan material.
Contact an authorized service engineer.
2
Unsuitable induction cooking pan. Coil overcurrent. (2)
Check pan material.
Contact an authorized service engineer.
3
Air-cooling system obstructed.
Fan malfunction.
Heat sink overheated. (2)
Let appliance cool down. Verify that air vents are not obstructed. Check
and clean air filter.
Contact an authorized service engineer.
4
Overheated cook zone. Overheated pan detected. Sensor
failure.
Overheated or defective sensor. (2)
Warning from overheated pan / cooking empty sensor or
coil connection failed. (2)
Let appliance and/or pan cool down. Check pan material. Verify that air
vents are not obstructed. Check and clean air filter.
Check food in the pan or empty pan.
Contact an authorized service engineer.
5
Potentiometer defective.
Contact an authorized service engineer.
6
Ambient temperature too high (the cooling system is not
able to keep the induction appliance in normal operating
conditions). Internal component overheated. (2)
Let appliance cool down. Verify that air vents are not obstructed. Check
and clean air filter. Verified that no hot air is taken in by the fan. Reduce
the ambient temperature. The intake air temperature must be lower than
40°C [104°F].
Contact an authorized service engineer.
7
Generator component failure. (2)
Contact an authorized service engineer.
8
Sensor error from heat sink/CPU. Board overheated.
Ambient temperature beyond normal operating range. (2)
Verify that air vents are not obstructed. Check air filter. Reduce ambient
temperature.
Contact an authorized service engineer.

16
9
N/A
N/A
10
Communication problem of the RJ/Ethernet interface
Contact an authorized service engineer.
(1) If the plug is not safely accessible, the device must be switched off at the main circuit breaker.
(2) The appliance switches off immediately.

17

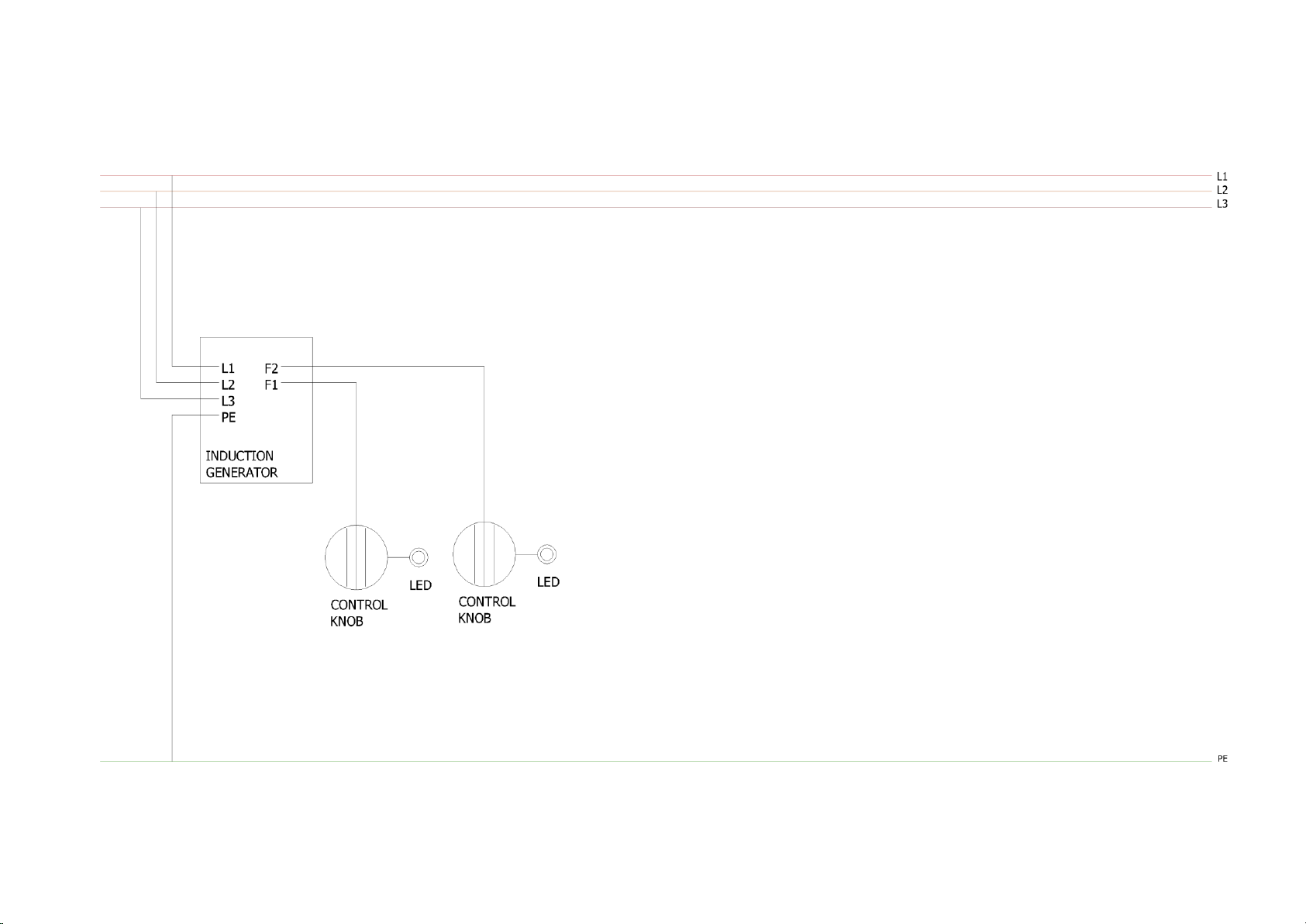

SECTION 6 CIRCUIT/ WIRING DIAGRAM
E3901i / E3902i CIRCUIT DIAGRAM

18

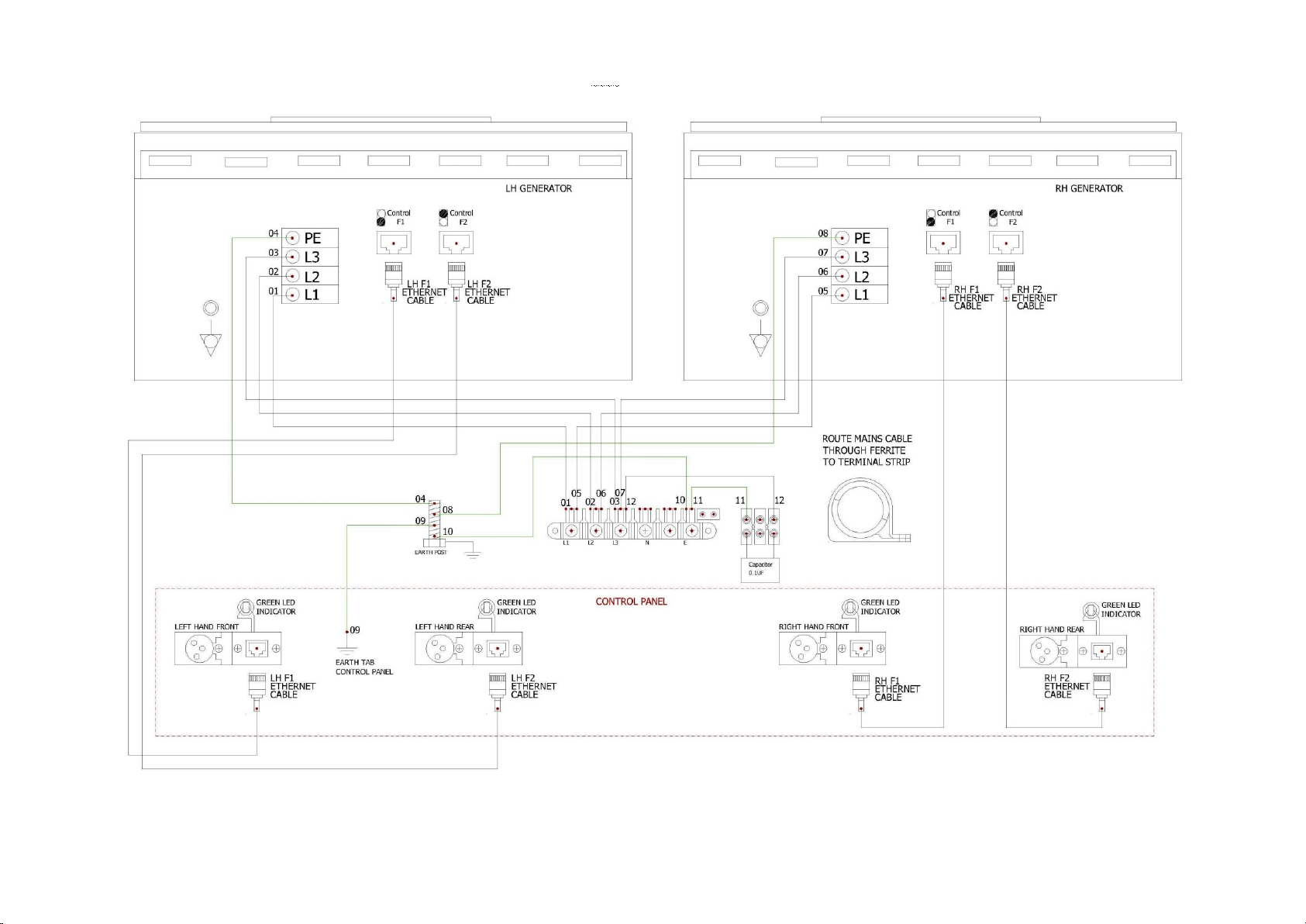

E3901i / E3902i WIRING DIAGRAM

19
E3903i / E3904i CIRCUIT DIAGRAM

20
E3903i / E3904i WIRING DIAGRAM
