Falcon F2+ User manual

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC
19625  nd Ave S Suite B  Kent, WA 98032 U.S.
[e-mail] | digital - control.com
1.800.288.3610 | 1.425.251.0559
FALCON F  +
DCI DigiGuide User Manual
10.31.2022
Important Safety Info
Bootcamp

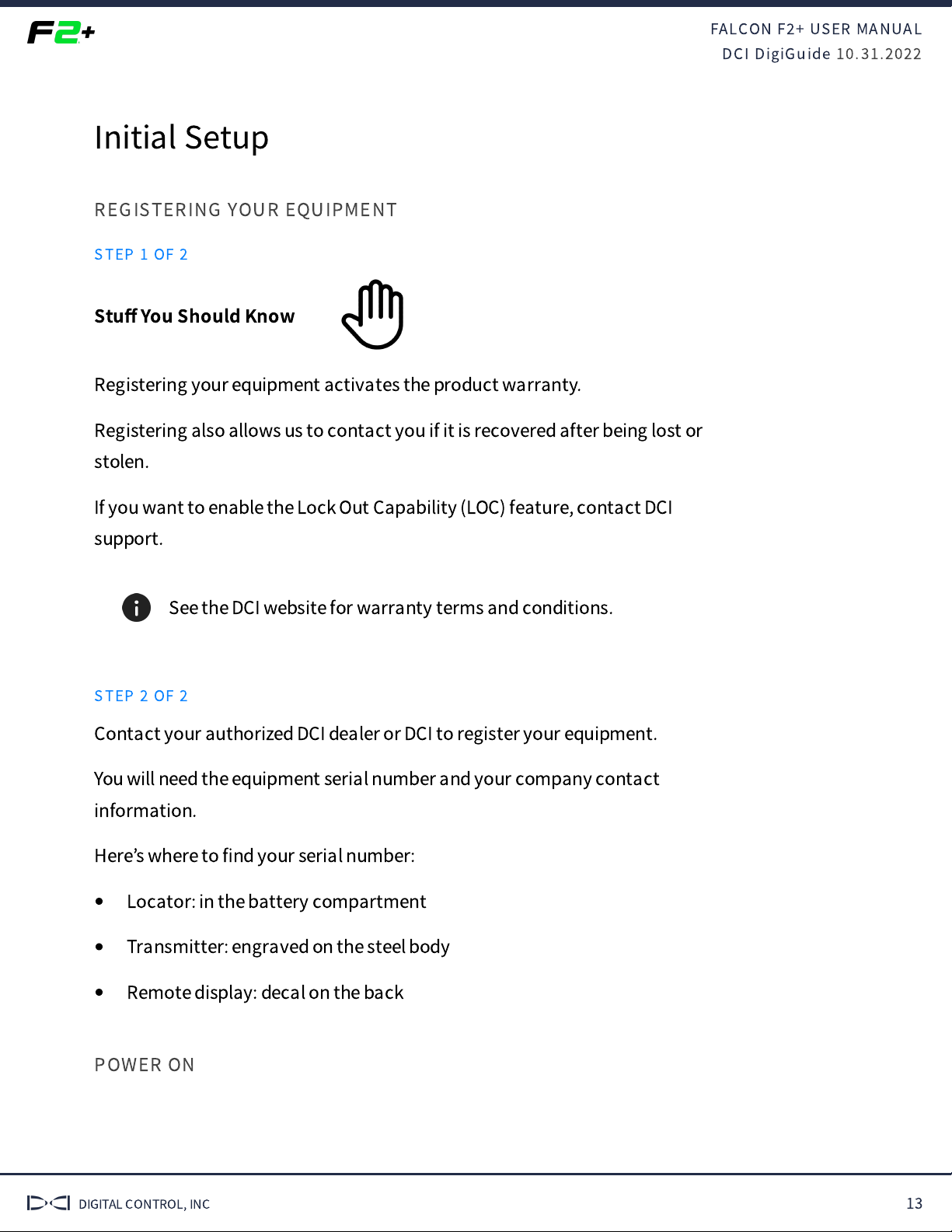

Initial Setup
Jobsite Setup
During Drilling
Post Drilling
Advanced Topics
Troubleshooting
Reference

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 2
Important Safety Info
GENERAL SAFETY WARNINGS
Only operate your DCI guidance system in accordance with the
operating instructions for your system.
Serious injury and death, as well as property damage, can result if
underground drilling equipment strikes a natural gas line, high-voltage
electrical cable, or other utility.
Work slowdowns and cost overruns can occur if you do not use your
system correctly.
You must properly calibrate your DCI guidance system in connection
with each drilling project. If you fail to do so, depth readings will likely be
inaccurate.
Interference can lead to inaccurate depth readings and/or interruption
of data. See "Special Notes About Interference" for more details.
DCI guidance systems are used to locate and guide the transmitter
(housing) underground. They cannot be used to locate underground
utilities.
Failure to fi nd the front and rear locate points can lead to inaccuracies
which may result in drilling o ff -path and striking an underground utility.
The locate line on a DCI locator does not indicate the position of the drill
head. DCI locators track the transmitter in its housing, which sits behind
the drill bit. Also, when drilling steep and/or deep, the locate line may
indicate a position behind or ahead of the transmitter. Please see "Steep
and Deep" under Advanced Topics for important information about
accurately locating the drill head when drilling steep and/or deep.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 3
Ensure that all underground utilities have been located, exposed, and/or
accurately marked prior to drilling. Follow all proper safety precautions,
such as potholing.
DCI equipment is not explosion-proof and should never be used near
fl ammable or explosive substances.
Wear jobsite protective/safety clothing such as dielectric boots, gloves,
hard hat, high-visibility vest, and safety glasses.
Maintain a minimum distance of 20 cm from the front of the locator to
the user ’ s torso to ensure compliance with RF exposure requirements.
Comply with federal, state, and local governmental regulations (such as
OSHA) and all other customary or required safety precautions.
If you have any questions about the operation of your guidance system,
please contact DCI Customer Service for assistance.
SPECIAL NOTES ABOUT INTERFERENCE
While DCI guidance systems provide you with technology to combat active
interference (and passive interference, with the Sub-K Rebar transmitter),
no guidance system is immune to all interference.
Interference can lead to inaccurate depth readings and/or interruption or
loss of data. Never rely on data that does not display quickly and/or remain
stable.
The Falcon frequency optimizer selects frequencies based on measured
interference at a speci fi c time and location.
Interference levels change with time and with even minor changes in
location. The frequency optimizer is not a substitute for prudent operator
judgment. If performance drops while drilling, consider switching to the
other selected band (not available on the Falcon F  ) or use Max Mode.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 4

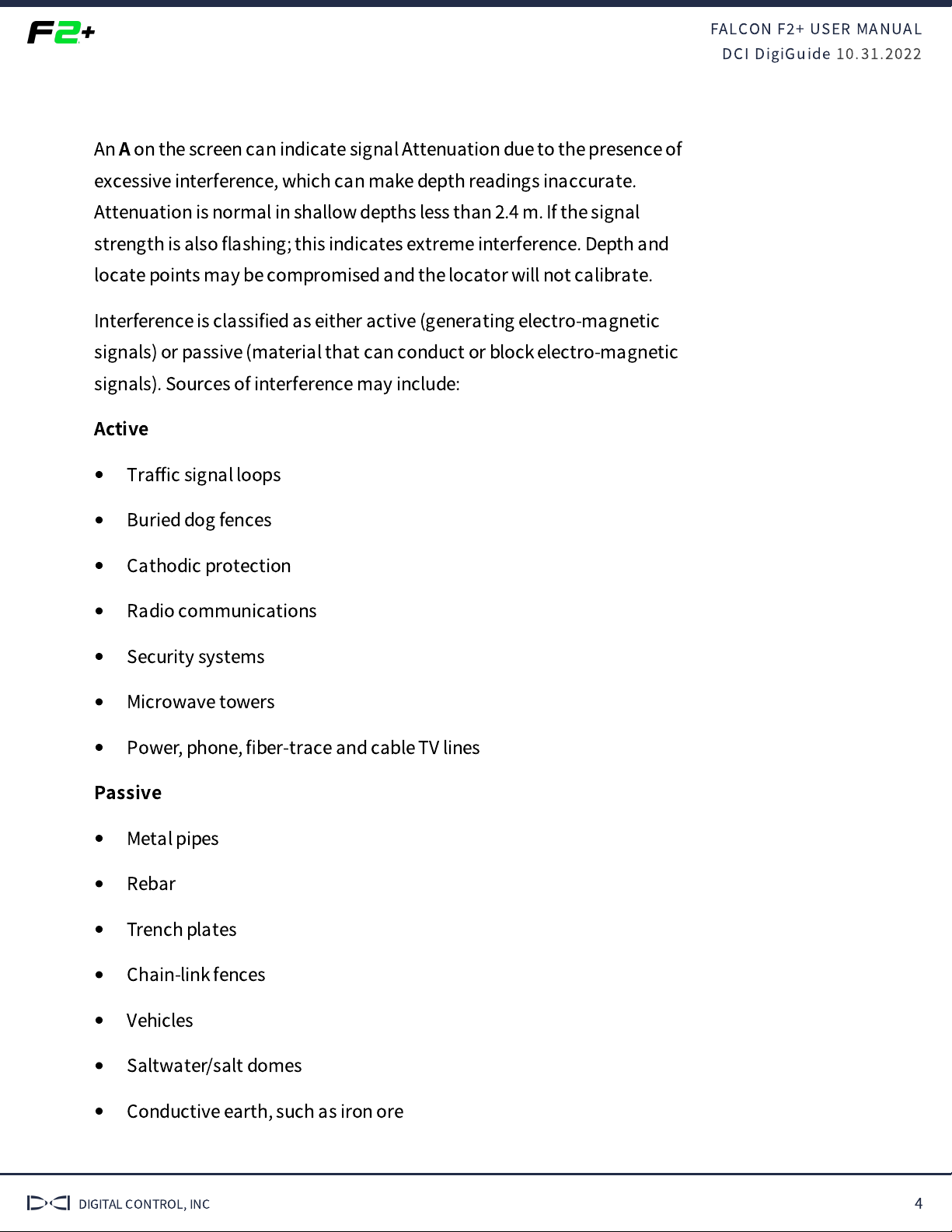

An A on the screen can indicate signal Attenuation due to the presence of
excessive interference, which can make depth readings inaccurate.
Attenuation is normal in shallow depths less than 2.4 m. If the signal
strength is also fl ashing; this indicates extreme interference. Depth and
locate points may be compromised and the locator will not calibrate.
Interference is classi fi ed as either active (generating electro-magnetic
signals) or passive (material that can conduct or block electro-magnetic
signals). Sources of interference may include:
Active
Tra ffi c signal loops
Buried dog fences
Cathodic protection
Radio communications
Security systems
Microwave towers
Power, phone, fi ber-trace and cable TV lines
Passive
Metal pipes
Rebar
Trench plates
Chain-link fences
Vehicles
Saltwater/salt domes
Conductive earth, such as iron ore

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 5
If you have any questions about the operation of your guidance system,
please contact DCI Customer Service for assistance.

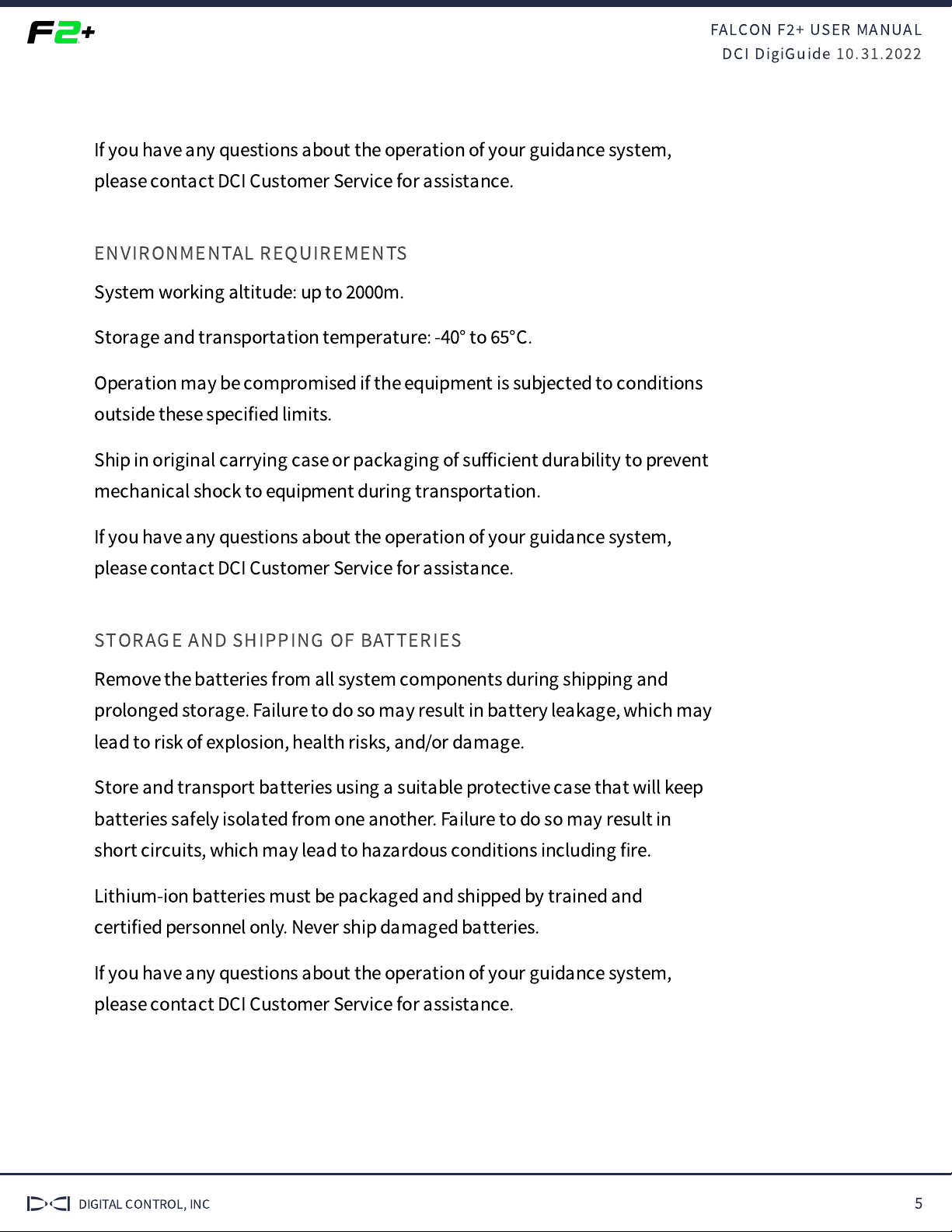

ENVIRONMENTAL REQUIREMENTS
System working altitude: up to  m.
Storage and transportation temperature: -40° to  °C.
Operation may be compromised if the equipment is subjected to conditions
outside these speci fi ed limits.
Ship in original carrying case or packaging of su ffi cient durability to prevent
mechanical shock to equipment during transportation.
If you have any questions about the operation of your guidance system,
please contact DCI Customer Service for assistance.
STORAGE AND SHIPPING OF BATTERIES
Remove the batteries from all system components during shipping and
prolonged storage. Failure to do so may result in battery leakage, which may
lead to risk of explosion, health risks, and/or damage.
Store and transport batteries using a suitable protective case that will keep
batteries safely isolated from one another. Failure to do so may result in
short circuits, which may lead to hazardous conditions including fi re.
Lithium-ion batteries must be packaged and shipped by trained and
certi fi ed personnel only. Never ship damaged batteries.
If you have any questions about the operation of your guidance system,
please contact DCI Customer Service for assistance.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 6
Bootcamp
HDD LOCATING HISTORY
Locating in the horizontal directional drilling (HDD) industry was initially
based on locating a buried cable by sweeping the locator back and forth to
fi nd the highest signal strength (peak signal), indicating that the locator was
over the cable. Unfortunately, this method did not always guarantee an
accurate location of the cable, nor did it provide any depth information.
This “ peak signal ” method was adapted to HDD with the introduction of a
transmitter that provides information on the position and depth of the drill
head. However, this method is unreliable and inaccurate because the peak
signal strength is not always directly above the transmitter housing.
In addition, peak signal locating doesn ’ t show where the drill tool is headed.
Think of drilling like driving a car: it is more e ff ective to look ahead through
the windshield to see where you are going than to look down at the road
through the fl oorboard to keep the car (drill tool) on the road (drill path).
BALL-IN-THE-BOX GUIDANCE
DCI ’ s design uses a “ locate point ” in the transmitter signal. The Front Locate
Point (FLP), which is out ahead of the transmitter, shows where the
transmitter housing is heading.
DCI invented the Ball-in-the-Box user interface to make it quick and intuitive
to fi nd a locate point, speeding up drilling jobs: just move the locator so the
ball moves into the box on the screen.
Finding a locate point also helps you fi nd the drill head itself.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 7
There is a second locate point behind the transmitter called the Rear Locate
Point (RLP). The two locate points, combined with a Locate Line (LL),
pinpoint the precise location of the transmitter housing below ground.
They are arranged like an airplane, where the Front Locate Point is the
plane ’ s cockpit, the Rear Locate Point is the tail, and the Locate Line is the
wings.
If your drill path requires a certain amount of depth or to maintain a
constant pitch, use the predicted depth feature at the Front Locate Point.
This eliminates the need for depth readings over the transmitter, speeding
up the drilling process.
INTERFERENCE AND SIGNAL STABILITY
Interference can cause incorrect locate data that reduces locating
accuracy. There are two di ff erent types of interference that can distort the
transmitter signal: active and passive.
Active interference, or “ noise ” , consists of anything that emits a signal that
interferes with the transmitter signal. Example sources include power lines,
radio towers, cathodic protection, fi ber tracer lines, invisible dog fences,
security systems, and tra ffi c signal loops. Falcon ’ s frequency optimizer fi nds
the best frequencies to avoid noise.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 8
Passive interference consists of anything that blocks or distorts the
transmitter signal resulting in incorrect depths or missing data. Example
sources include rebar, guard rails, bridge abutments, chain link fencing,
salt/saltwater and soil high in metal ore. The Falcon sub-kHz transmitter
(available for Falcon F  and F  + only) helps cut through passive interference
without distorting the signal.
An A on the screen can indicate signal Attenuation due to the presence of
excessive interference, which can make depth readings inaccurate.
Attenuation is normal in shallow depths less than 2.4 m. If the signal
strength is also fl ashing, this indicates extreme interference. Depth and
locate points may be compromised and the locator will not calibrate.
OPTIMIZE EVERY JOB
Noise varies by amount and frequency depending on where you are and
even the time of day. That ’ s why it ’ s important to fi nd the best frequencies
for every bore .
This is called frequency optimization , and only Falcon has it. Using
frequencies with the highest probability of success against noise increases
locating accuracy and reduces the risk of tripping out.
Falcon ’ s frequency optimizer scans through hundreds of frequencies, then
bundles those with the lowest noise into fi nely-tuned bands that work best
for the current job.
Select two bands and switch between them mid-bore if needed (not
available on the Falcon F  with singleband).
The Falcon locators with Quick Scan Pair o ff er features to make the selection
of bands faster and easier. Two clicks select the two preset bands selected
for your region.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 9

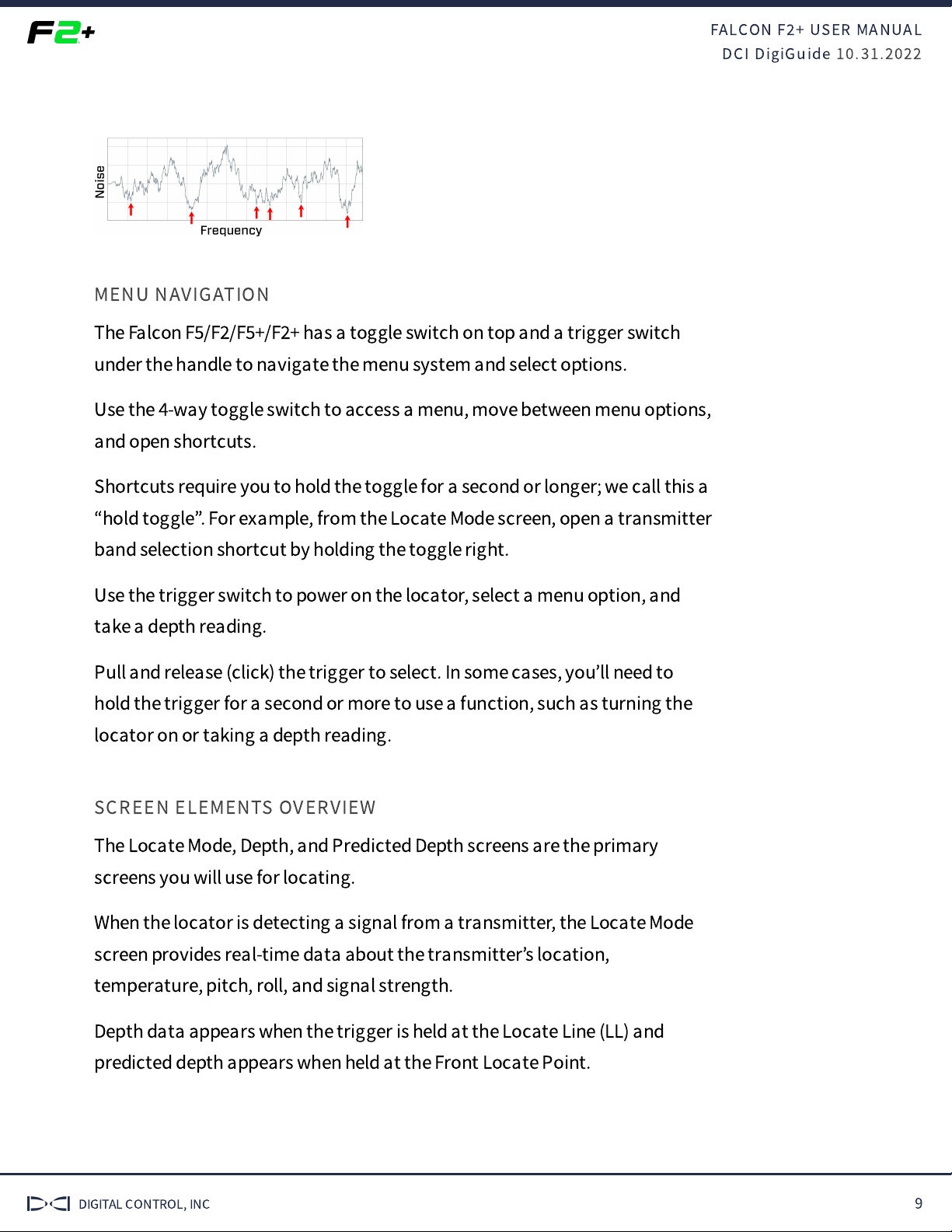

MENU NAVIGATION
The Falcon F  /F  /F  +/F  + has a toggle switch on top and a trigger switch
under the handle to navigate the menu system and select options.
Use the  -way toggle switch to access a menu, move between menu options,
and open shortcuts.
Shortcuts require you to hold the toggle for a second or longer; we call this a
“ hold toggle ” . For example, from the Locate Mode screen, open a transmitter
band selection shortcut by holding the toggle right.
Use the trigger switch to power on the locator, select a menu option, and
take a depth reading.
Pull and release (click) the trigger to select. In some cases, you ’ ll need to
hold the trigger for a second or more to use a function, such as turning the
locator on or taking a depth reading.

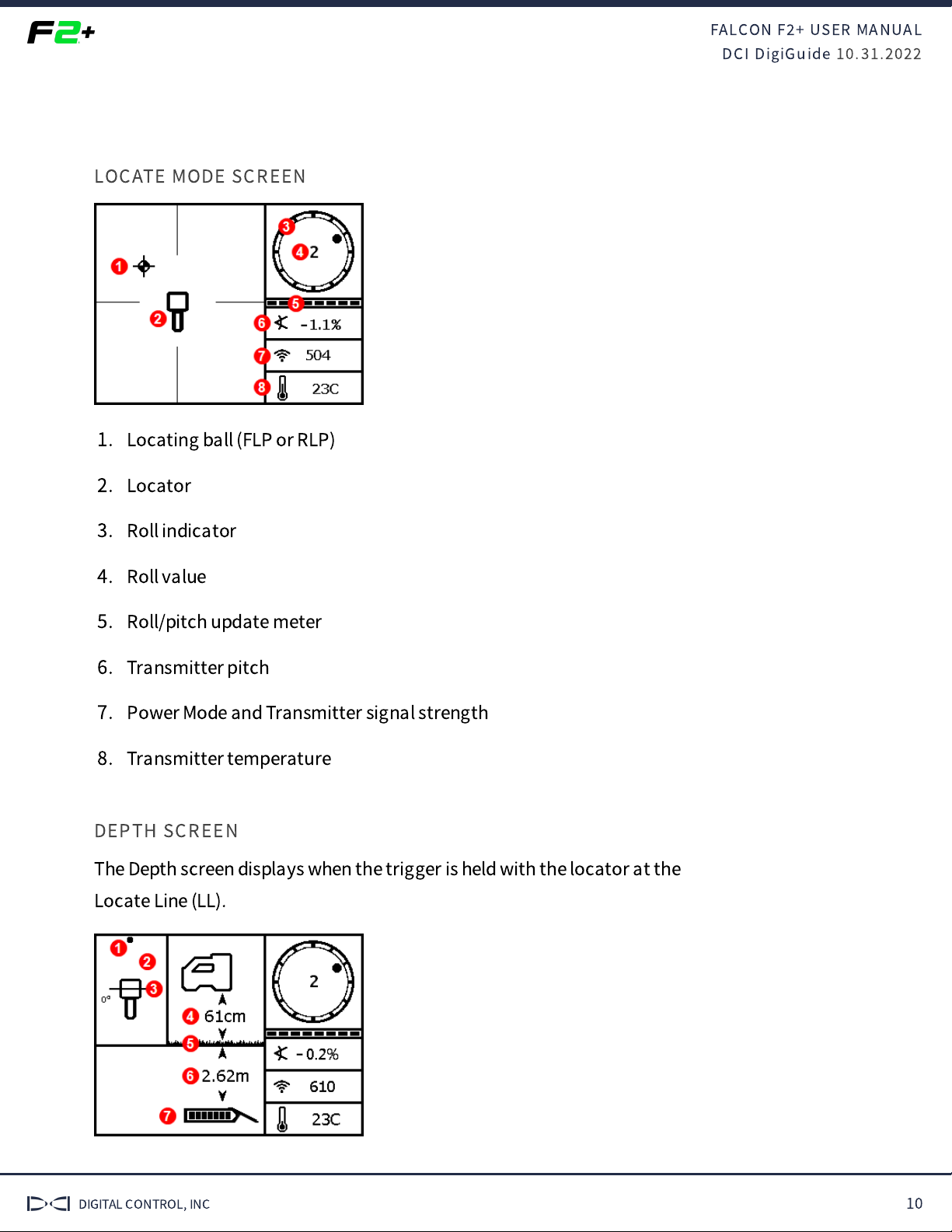

SCREEN ELEMENTS OVERVIEW
The Locate Mode, Depth, and Predicted Depth screens are the primary
screens you will use for locating.
When the locator is detecting a signal from a transmitter, the Locate Mode
screen provides real-time data about the transmitter ’ s location,
temperature, pitch, roll, and signal strength.
Depth data appears when the trigger is held at the Locate Line (LL) and
predicted depth appears when held at the Front Locate Point.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 10
LOCATE MODE SCREEN
1. Locating ball (FLP or RLP)
2. Locator
3. Roll indicator
4. Roll value
5. Roll/pitch update meter
6. Transmitter pitch
7. Power Mode and Transmitter signal strength
8. Transmitter temperature
DEPTH SCREEN
The Depth screen displays when the trigger is held with the locator at the
Locate Line (LL).

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 11
1. Locate point (front or rear)
2. Bird's-eye view
3. Locate Line (LL)
4. Height-Above-Ground (HAG) setting on
5. Ground level
6. Transmitter depth
7. Transmitter battery strength
When the HAG setting is disabled, the locator displays at
ground level and must be placed on the ground during depth
readings.
PREDICTED DEPTH SCREEN
The Predicted Depth screen displays when the trigger is held with the locator
at the Front Locate Point (FLP).
1. Ball-in-the-Box at FLP
2.
3. Transmitter battery strength
4. Horizontal distance between transmitter and FLP
Reference Lock indicator*

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 12
The predicted depth is the depth the transmitter is calculated to be at when
it reaches the FLP if it continues on its current path.
In this example, if the drill head travels an additional 1.82 m at -0.2% pitch, it
will be directly below the locator at 2.62 m.
Do not take a predicted depth reading when the locator is over
the Rear Locate Point (RLP).
GLOSSARY DEFINITIONS
*REFERENCE LOCK INDICATOR
Indicates a reference signal has been obtained for displaying the locate line.
Displays at the top of the Locate Mode screen.
*PREDICTED DEPTH
The Predicted Depth screen displays when the trigger is held with the locator at the
Front Locate Point (FLP). The predicted depth is how deep the transmitter is
calculated to be when it reaches the front locate point if it continues on its current
path.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 13
Initial Setup
REGISTERING YOUR EQUIPMENT
STEP 1 OF 2
Stu ff You Should Know
Registering your equipment activates the product warranty.
Registering also allows us to contact you if it is recovered after being lost or
stolen.
If you want to enable the Lock Out Capability (LOC) feature, contact DCI
support.
See the DCI website for warranty terms and conditions.
STEP 2 OF 2
Contact your authorized DCI dealer or DCI to register your equipment.
You will need the equipment serial number and your company contact
information.
Here ’ s where to fi nd your serial number:
Locator: in the battery compartment
Transmitter: engraved on the steel body
Remote display: decal on the back
POWER ON

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 14

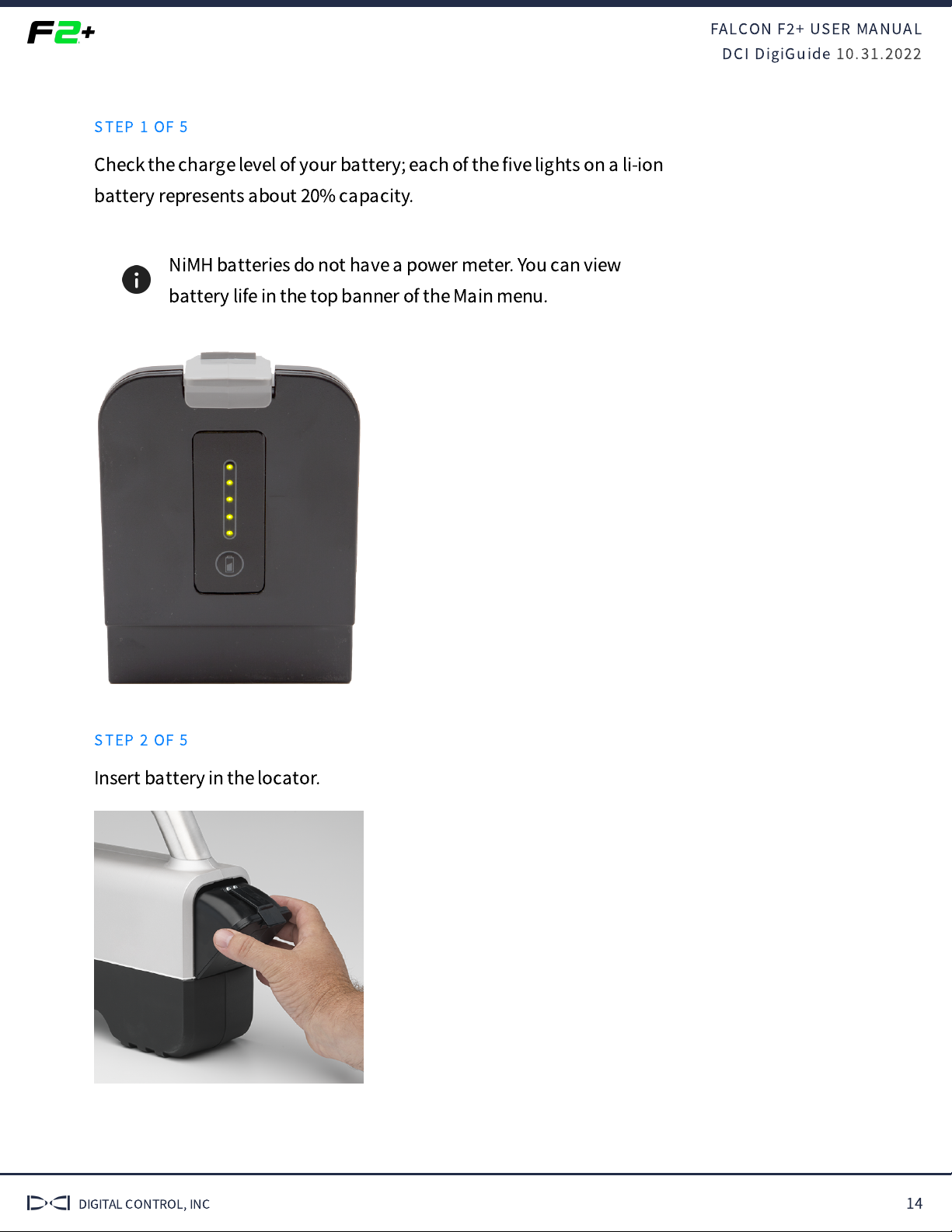

STEP 1 OF 5
Check the charge level of your battery; each of the fi ve lights on a li-ion
battery represents about 20% capacity.
NiMH batteries do not have a power meter. You can view
battery life in the top banner of the Main menu.
STEP 2 OF 5
Insert battery in the locator.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 15
STEP 3 OF 5
Pull the trigger to turn on the locator.
STEP 4 OF 5
Click to con fi rm you ’ ve read the manual.
STEP 5 OF 5
Click again to continue.
TRANSMITTER SETUP
STEP 1 OF 2
Your transmitter comes
with two battery contact
springs and one battery cap
tool.
STEP 2 OF 2
Insert batteries positive terminal fi rst. Install one spring between C-cell
batteries to help prevent chatter.
If you are using the Falcon Transmitter Adapter (FTA) with a battery, install
Lithium Rechargeable (LiR) battery into the adapter positive terminal fi rst.
For more information on the FTA, see "Falcon Transmitter Adapter for V 
MultiPower "Blue" Transmitters" in the Advanced Topics chapter.
Alkaline batteries are not su ffi cient for High Power Mode. The
locator will display a warning.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 16

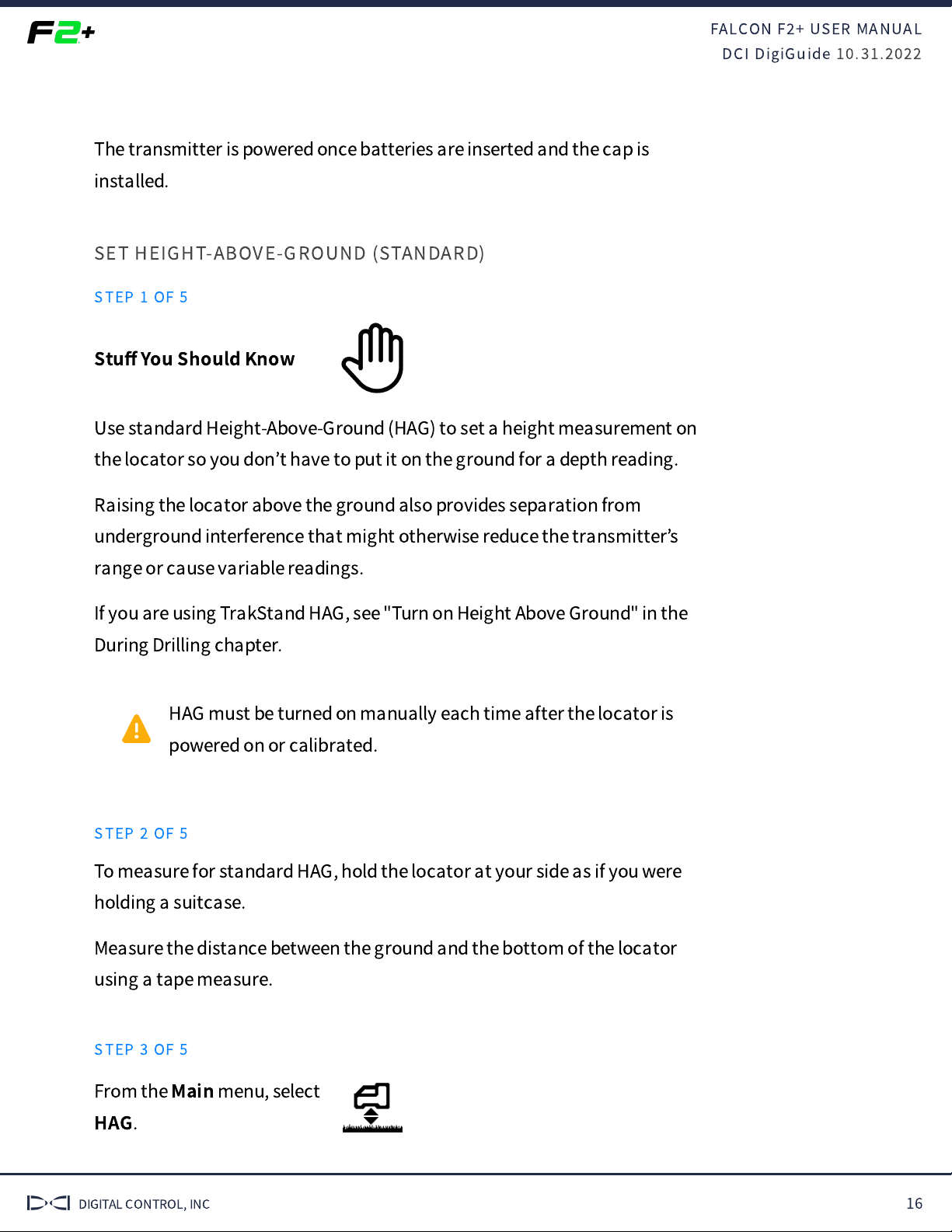

The transmitter is powered once batteries are inserted and the cap is
installed.
SET HEIGHT-ABOVE-GROUND (STANDARD)
STEP 1 OF 5
Stu ff You Should Know
Use standard Height-Above-Ground (HAG) to set a height measurement on
the locator so you don ’ t have to put it on the ground for a depth reading.
Raising the locator above the ground also provides separation from
underground interference that might otherwise reduce the transmitter ’ s
range or cause variable readings.
If you are using TrakStand HAG, see "Turn on Height Above Ground" in the
During Drilling chapter.
HAG must be turned on manually each time after the locator is
powered on or calibrated.
STEP 2 OF 5
To measure for standard HAG, hold the locator at your side as if you were
holding a suitcase.
Measure the distance between the ground and the bottom of the locator
using a tape measure.
STEP 3 OF 5
From the Main menu, select
HAG .

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 17
STEP 4 OF 5
Select Set HAG.
Target Steering assumes that the locator is on the ground, even
if standard HAG is enabled. If TrakStand HAG is enabled, the
height set for the Trakstand is adjusted for Target Steering.
STEP 5 OF 5
Use the keypad to enter the
value you measured and
select Enter . HAG is now on.
When standard HAG is enabled, the locator must be held at the set height for
accurate depth readings.
HAG must be turned on manually each time after the locator is
powered on or calibrated.
Target Steering does not adjust depth for standard HAG and
assumes the locator is on the ground. If TrakStand HAG is
enabled, the locator adjusts for the TrakStand height.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 18
Jobsite Setup
POWER ON
STEP 1 OF 5
Check the charge level of your battery; each of the fi ve lights on a li-ion
battery represents about 20% capacity.
NiMH batteries do not have a power meter. You can view
battery life in the top banner of the Main menu.
STEP 2 OF 5
Insert battery in the locator.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 19
STEP 3 OF 5
Pull the trigger to turn on the locator.
STEP 4 OF 5
Click to con fi rm you ’ ve read the manual.
STEP 5 OF 5
Click again to continue.
FIND BEST FREQUENCIES INTRO
Before scanning with the Frequency Optimizer (FO) you have three options
to select which bands to pair with your transmitter.
Basic - Quick Scan Pair (QSP) ‒ With fewer clicks, bypass the FO to scan
and pair the pre-selected Up and Down bands for your region.
Advanced FO - Quick Pick ‒ After scanning, use the two bands with the
lowest noise indicated by the FO with white arrows.
Advanced FO - Manual Pick ‒ After scanning, select one or both bands and
assign them to up or down.

FALCON F  + USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 20
After using one of the Advanced methods to pick the bands, you will pair
them with the transmitter and then calibrate.
BASIC - QUICK SCAN PAIR
STEP 1 OF 8
Before You Start
Basic - Quick Scan Pair scans noise and selects the best frequencies for the
preset Up and Down bands. These presets may not be the best bands for the
jobsite.
Use Advanced - Scan Pick Pair t o view noise on all bands.
STEP 2 OF 8
Ensure all transmitters are powered o ff or more than 30.5 m away from the
locator.
Inspect the job site and move locator to active noise area of concern or deep
part of bore - keep locator above and parallel to bore path.
STEP 3 OF 8
From the Main menu, select
Quick Scan Pair .
STEP 4 OF 8
Con fi rm the pre-set bands and the power mode.
