FAMOCO FX105F User manual

User Manual
FX105F
Professional Android Device

Table of Contents
1. Copyright............................................................................................................................. 3
2. Trademarks.......................................................................................................................... 3
3. Warnings and safety notices ................................................................................................ 4
4. Limitation of liability............................................................................................................ 4
5. About this manual ............................................................................................................... 4
6. Device layout....................................................................................................................... 5
Overview ............................................................................................................................5
Back view...........................................................................................................................5
Buttons and the related.....................................................................................................6
7. Package contents................................................................................................................. 7
8. Getting started..................................................................................................................... 8
How to switch the device ONor OFF...............................................................................8
Home screenand synchronization ..................................................................................8
LED colors........................................................................................................................10
How to access the dashboard........................................................................................10
How to find your specificFamoco ID.............................................................................11
How to chargethe device................................................................................................11
How to changethe battery..............................................................................................12
How to use the battery ....................................................................................................13
How to read anNFC card................................................................................................13
About the SIM slots.......................................................................................................14
9. Technical specifications .................................................................................................. 14
10. Warranty information ......................................................................................................15
11. Safety and general information........................................................................................ 16
Electromagnetic waves safety information– SAR ...................................................................... 18
12. DOC .....................................................................................................................................................20
13 support band information and powet............................................................................................. 21
14 Restrictions in the 5 GHz band ........................................................................................................21
15 FCC and IC warnings ................................................................................................................... 22

1. Copyright
Copyright ©2020 Famoco. All rights reserved.
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated, or
transmitted in any form or by any means, electronic or mechanical,
including photocopying, recording, or storing in any information
storage and retrieval system, without the prior written permission of
Famoco.
We reserve the right to make modifications on print errors or update
specifications without prior notice.
2. Trademarks
• Famoco and the Famoco logo are registered trademarks of
Famoco.
• The Android logo is a trademark of Google,Inc.
• Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
worldwide.
• Wi-Fi® and the Wi-Fi logo are registered trademarks of theWi-Fi
Alliance.
• All other trademarks and copyrights are the property of their
respective owners.
FAMOCO SAS
59 avenue Victor Hugo, 75116 Paris – FRANCE
[email protected]
www.famoco.com

3. Warnings and safety notices
Please read all the safety notices before using this device. Do not use
the device near fuel or chemicals or in any prescribed area such as
service stations and refineries. Do not transport or store flammable gas,
liquid or explosives in the same compartment of your vehicle as your
device and accessories.
4. Limitation of liability
Famoco shall not be liable for any loss of profits or indirect, special,
incidental or consequential damages resulting from or arising out of or
in connection with using this product, whether or not Famoco had
been advised, knew or should have known the possibility of such
damages. The user should refer to the enclosed warranty card for full
warranty and service information.
5. About this manual
Congratulations on becoming the owner of a Famoco FX105 device.
This user manual is specially designed to detail the device’s functions
and features.
Please read this manual before using the device to ensure safe and
correct use.
• Descriptions are based on the device’s defaultsettings.
• Images and screenshots may differ in appearance from the actual
product.
• Content may differ from the final product, or from software provided
by service providers or carriers, and is subject to change without
prior notice.
• Available features and additional services may vary by device,
software, or serviceprovider.

• Applications and their functions may vary by country, region, or
hardware specifications. Famoco is not liable for performance
issues caused by applications from any provider other thanFamoco.
• Famoco is not liable for performance issues or incompatibilities
caused by edited registry settings or modified operating system
software. Attempting to customize the operating system may cause
the device or applications to workimproperly.
6. Device layout
Overview
Back view
1 Indicatorlight
2 Power button
3 Volumedown
4 Type USB-C port
1 Rear Camera
2 Flash
3 NFC antenna
4 Speaker
1
2
3
4
1
2
3
4

Buttons and the related
Name Function
Power button
Long press: turn the device ON/OFF
Short press: screen ON/OFF (standby mode)
Customizable
button
Action can be defined by the customer
Volume up &
down
Press to turn the volume up or down
USB Type C port Connect the device to a USB type C power source
or computer
Indicator light
Turn red to indicate when the device is charging
and green when full charge level is reached

7. Package contents
Check the product box for the following items:
Terminal
Battery
Charging Dock
Charging cable
User Manual
Note:
• The items supplied with the device and any availableaccessories
may vary depending on the region or serviceprovider.
• The supplied items are designed only for this device and may not
be compatible with other devices.
• Appearances and specifications are subject to change without prior
notice.
• Third-party accessories may not be compatible with yourdevice.

8. Getting started

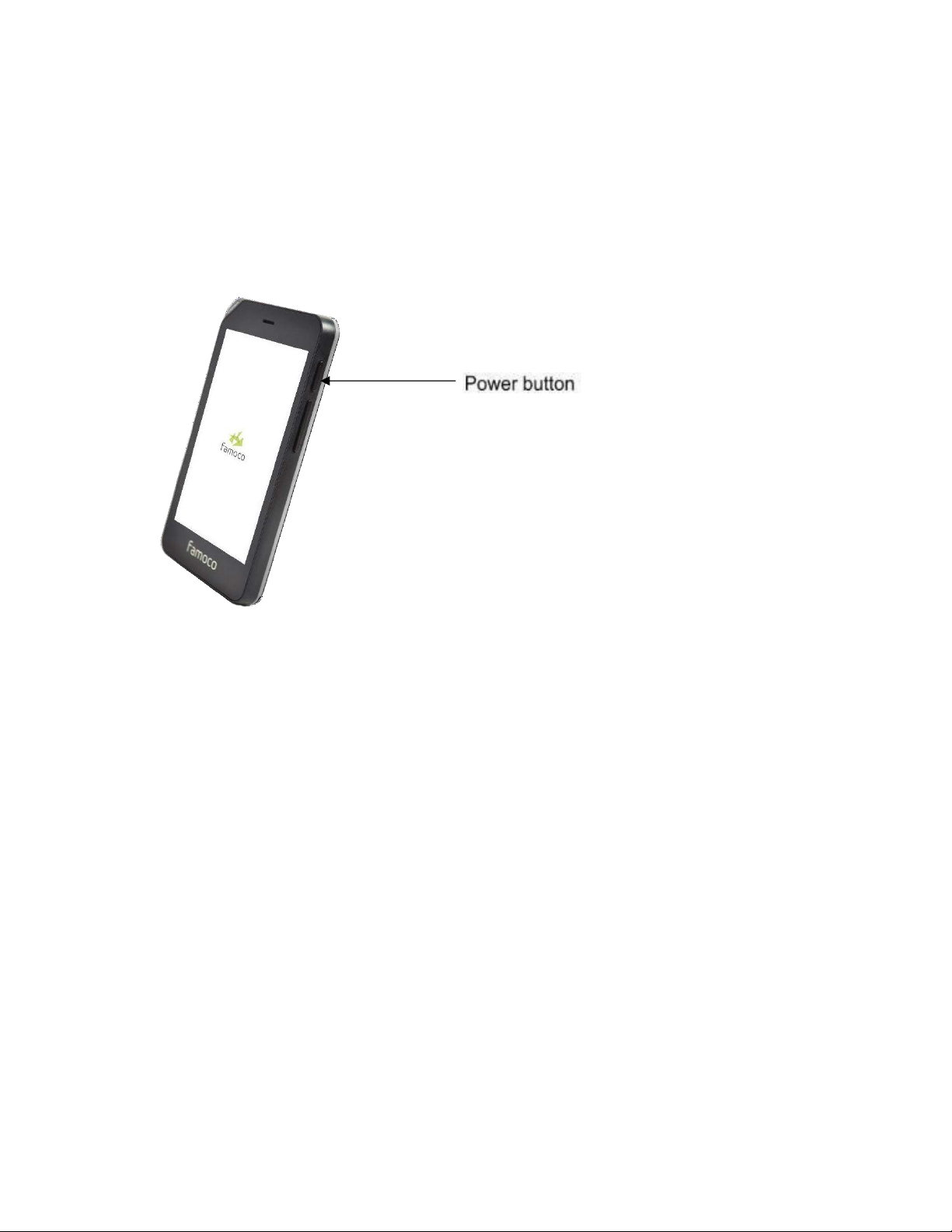

How to switch the device ON or OFF
To power ON:
Press and hold the power button for three seconds then release. The
home screen will be displayed after a few moments.
To power OFF:
Press and hold the power button for two seconds, then select shut
down option on the screen.
Standby mode:
The device enters the standby mode after 30 seconds by default if left
alone.

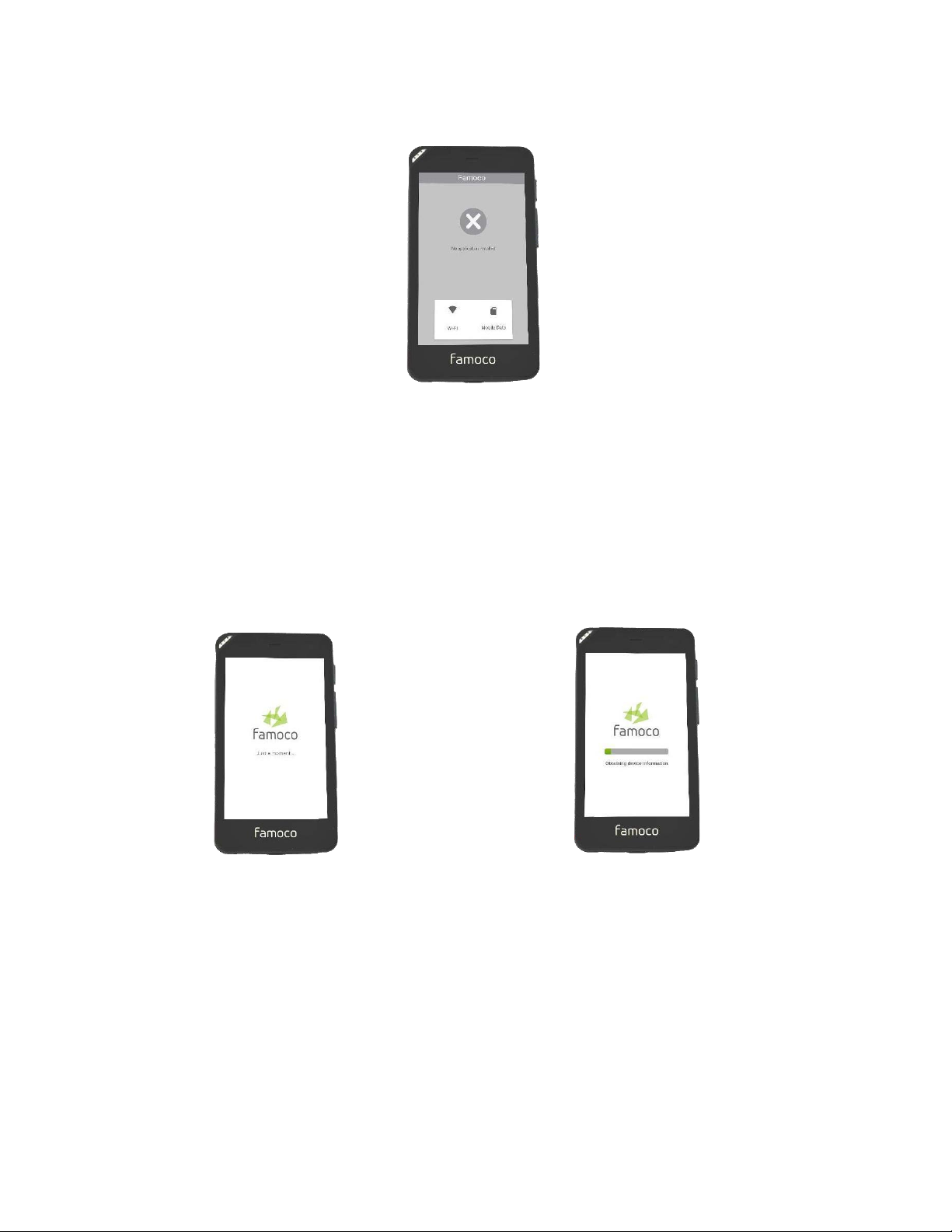

Home screen and synchronization
Once your device is switched on it will start synchronizing.
If there are no applications installed on it yet, the device will be locked
on a screen that shows the following indication to configure the
internet connection:

To set up your device you need connectivity so that it can synchronize.
Please install a SIM card or set up Wi-Fi or contact your customer
support.
If there is a connection, one of the following screens will appear
(depending on the synchronization status):
If the synchronization is in progress, please wait until it is complete.
If the synchronization is complete but no applications have been
installed, or if the synchronization has been aborted, please contact
your customer support.

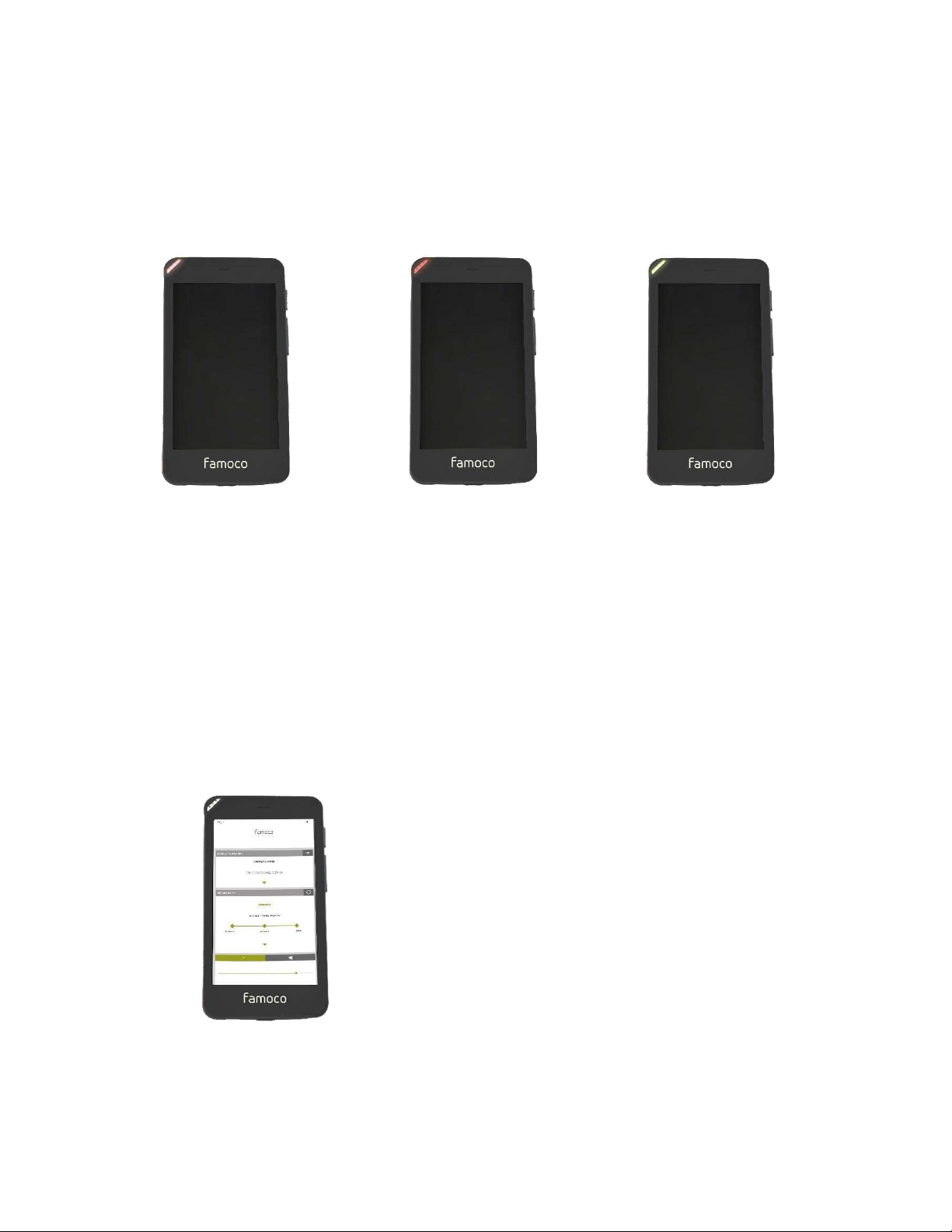

LED colors
The LED on the device can show different colors.
Those colors are defined by the application but there are default
features:
Blinking red Red Green
Low battery Battery charging Battery charged
How to access the dashboard
When your device is switched on you can access the dashboard by
pressing the volume up button for three seconds and then release it.
In the dashboard you will find:
• Famoco serial number
• Connectivity
• Time
• Battery level
• Brightness (that you can
modify)
• Volume (that you canmodify)

1
How to find your specific Famoco ID
There are two ways of finding the unique Famoco ID:
Press the volume up button to access the dashboard and then press
the owner’s name. The Famoco ID is written at the top.
Or:
Open your device and remove the battery (see 8.6 for more
information). The serial number is written on the device which is below
the battery.
How to charge the device
To charge the device, only use Type C port (1) cable supplied:
1. Insert the charger cable carefully. Check that the plug and socket
are aligned.
2. The indicator light will turn red to indicate that the device is
charging and will turn green when the full charge level isreached.
3. The battery will reach a full charge in 5-6hours.

The device can also be charged by connecting it to a computer using
the type C cable supplied.
Connecting the charger improperly may cause serious damage to the
device. Any damage caused by misuse is not covered by the warranty.
Note: The device will power off automatically when the battery
reaches 2%.
How to change the battery
1. Unclip the back-left corner where the little nook is and from this
angle, remove the back cover.
2. Use the small nook on the bottom to remove thebattery.

3. Insert the new battery with the pins located against thegold
springs (with the label up).
4. Press the battery down into the case.
5. To replace the back cover, reverse step 1 and push gentlyto
clos
6 Risk of explosion if battery is replced by an incorrect type dispose
of used batteries according to the instructions.
How to use the battery
Charge the battery promptly when empty. Do not leave the battery in a
discharged state.
Keep your device and battery cool. High temperatures degrade the
battery more quickly. The battery will not charge when over 45°C.
Do not leave on charge for more than 10 hours.
When not using the device for long periods, charge to approximately
40% and remove the battery.
How to read an NFC card
To read an NFC card, flip the device over and bring the card near the
back of the device.
The device can read an NFC card at less than 3cm.
Device is able to read/write read/write NFC forum tags 1,2,3,4, Type
MIFARE Classic Tag (full Mifare-ultralight/1k/4k)

About the SIM/SAM slots
There are 3 slots in the back of the device. The first one is for the SIM
card, the 2nd one for an external Secure Element and the 3rd is
1 SIM1slot
2 SAMslot
3 SD card slot
MicroSD card.
Do not attempt to remove any of the installed cards.
In case of any operational problem, contact your
administrator.
9. Technical specifications
Processor Type MTK6739WW, Quad-core, Cortex A53
Speed 1.5GHz
OS Famoco OS based on Android 8.1
Memory RAM 2GB
Mass Storage 16GB (ext. Micro SD)
Display
Characteristics
4’’ - 960x490 px
Touch Panel 3 Points & Gesture
1
2
3

Secure Elements Embedded SE AT90
Removable SE SAM slot (2FF format)
NFC Operating modes Reader/writer
ISO14443 A/B/C, Felica®, Mifare®
Supported tags NFC Forum 1,2,3,4. MIFARE
Connectivity
2G
GSM850/900/DCS1800/PCS1900 MHz
3G
850/900/1900/2100 MHz
4G
FDD:700a/700bc/700c/850/1700/1800/1900
/2600
MHz
TDD: 2500/2600MHz
Wi-Fi
Dual band (2.4GHz and 5GHz)
802.11 a/b/g/n
Bluetooth
4.2
Camera Rear camera 8 MP with auto-focus, flash
Speaker, Microphone, Accelerometer Yes
Size L x W x H 110*63.5*13.95mm
Weight 150g
Battery 2000mAh
Power supply USB Type C
10. Warranty information
The warranty does not apply to defects or errors in the product caused
by:
1. Normal wear and tear, misuse, mishandling, and physicaldamage.
2. Exposure to water or any other liquids orsolvents.
3. Any unauthorized disassembly, repair or modification.
4. Power surges, lightning, fire, flood or other naturalevents.
5. Use with unauthorized third-party products such as generic
chargers.
6. Any other cause beyond the range of normal usage forproducts.

7. The end-user shall have no right to reject, return, or receive a
refund for any product under the above-mentioned situations, not
excluding your statutory rights under nationallaw.
11. Safety and general information
The device contains delicate electronic circuitry, magnets, and battery
systems. You should treat it with care and pay attention to the
following points:
• Handle the device with care. Do not drop or throw the device. Do
not immerse it in anyliquid.
• Do not place the device near computer disks, credit cards, and
other magnetic media. The information contained on disks or
cards may be erased or damaged.
• Do not leave the device or battery in direct sunlight or near other
heat sources where temperatures could exceed45°C.
• Keep the device and all accessories away fromchildren.
• In the unlikely event of battery leakage, avoid contact with eyes
or skin. In the event of contact, rinse with water and consult a
doctor.
• Observe and obey warning signs at petrol stations, airports, and
hospitals.
• The operation of some medical electronic devices, such as
hearing aids and pacemakers, may be affected by thedevice.
• Take care not to allow metal objects such as coins or keys to
come into contact with the batteryterminals.
• Do not dispose of batteries in afire.

• Do not throw used batteries into household rubbish, return them
to a recycling point.
• When the battery is thrown away cover the terminals with
insulating tape.
• Be careful not to pierce the battery with sharp objects and do not
use damaged batteries.
• Do not disassemble or modify thebattery.
• Stop using the battery if abnormal heat, smell, discoloration,
deformation, or abnormal condition is detected during use, charge,
or storage.
• Do not put the battery in yourmouth.
• Only use original replacementbatteries.
• Do not connect the device to non-genuine or 3rd partychargers.
• Do not attempt to dismantle the device or any of itsaccessories.
• Do not put the device into a microwave oven, dryer, or high-
pressure container.
• Don’t use the device immediately after a sudden temperature
change e.g. from an air-conditioned environment to high
temperature and humidity outside. In such cases, there could be
condensing moisture inside the device, which can cause internal
damage. Switch off and leave for 30 minutes beforeuse.
• Do not use the device where blasting is inprogress.
• Do not leave the device at the bottom of the bag where it may be
damaged by sharp objects.
• Take care when the device is in yourpocket.

• Sitting down or sharp objects may damage thedevice.
• At high volume, ever-lasting listening to audio devices can cause
hearing loss.
• Do not leave the device discharged or disconnected for long
periods of time; your personal data may be lost, and your battery
life will bereduced.
• Under poor network conditions, battery life is considerably
reduced.
• Please recycle the packaging and allparts.
• Emergency service coverage is dependent on network
availability and batterystatus.
• It is always good practice to switch off the deviceregularly.
• Do not expose the device to oils orsolvents.
• It is normal for the device to become warm while the battery is
being charged.
• The information & images in this guide are valid at the time of
publication of the guide. Changes to this information & images
can be made without priornotice.
12. Electromagnetic waves safety
information – SAR
The highest reported SAR level for the head is 0.456 W/kg, for the Hotspot Body
is 1.020W/kg, and for the Body Worn is 0.540W/kg. This device was tested for
typical body-worn operations with the back of the handset kept 15mm from the
body. To maintain compliance with RF exposure requirements, use accessories
that maintain a sufficient separation distance between the user’s body and the
back of the handset .The use of belt clips, holsters and similar accessories
should not contain metallic components in its assembly. The use of accessories
that do not satisfy these requirements may not comply with RF exposure

requirements, and should be avoided.
NOTE:
i. The SAR value may vary, depending on national reporting and
testing requirements and the networkband.
i. Do not use your device in certain locations such as aircraft, hospitals,
service stations and professional garages or while driving a
vehicle. The electromagnetic waves from the device can disrupt
the performance of electronic devices used in these locations.
i. We recommend that you switch off your device or switch it to
flight mode in these locations to avoidinterference.

iv. If you use an electronic implant (pacemakers, insulin pumps,
neurostimulators, etc.), please keep a distance of 15cm between
the device and your electronicimplant.
v. When using a pedestrian kit, headphones or headset, pregnant
women should keep the device away from their abdomen and
teenagers should keep the device away from their lower abdomen.
Advice to reduce the level of exposure to radiation:
oPlease use your device where reception is good to reduce the
quantity of radiation received (avoid using in an underground car
park or when travelling (train orcar)).
oA reception icon indicates the quality of reception on your device.
A 4-full bar display means that reception isgood.
13. DOC:
smplified EU declaration of conformity
The simplified EU declaration of conformity referredto in Article 10(9)shall be provided as follows:
Hereby, FAOCO SAS declares that the radio equipment type FX105 is in compliancewith Directive
2014/53/EU, The full text of the eu declaration of conformity is available at the following internet
address:www.famoco.com
