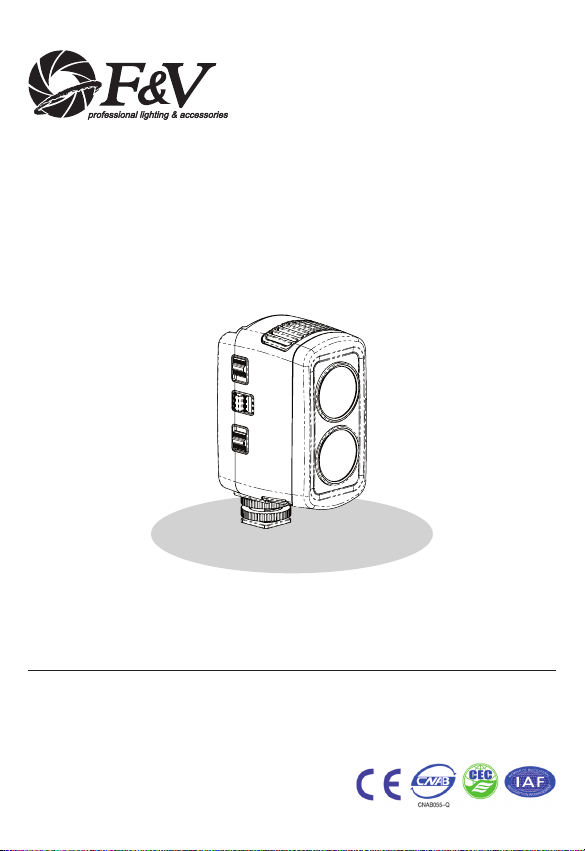

F&V LED-60 User manual

Video Light
LED-60 Video Light User Guide
Safety tips
To prevent damage to your F&V product or injury to yourself or to others.
Read the following safety precautions in their entirety before using this
equipment. Keep these safety instructions where all those who use the product
will read them.

Warning
To prevent fire or electric shock, Please do not let the rain hit the device or humid
1. Use of non-original match or without of the provisions power supply voltage will
damage.
2. Should you notice smoke or an unusual smell coming from the equipment cut off
the power. Taking care to avoid burns. Continued operation could result in injury.
After cut off the power,take the equipment to a F&V service center to inspection.
3. Do not disassemble. Touching the product’s internal parts could result in injury.
In the event of Malfunction, the product should be repaired only by a qualified
technician.Should the product break open as the result of a fall or other accident,
Cut off the power and/or AC adapter and then take the product to a F&V service
center to inspection.
4. Storage and transportation process, please keep out the power separation from
equipment, To prevent contact switch, causing no long-term use of temporary
nursing equipment, caused a fire.
5. Keep out of reach of children. Failure to observe this precaution could result in injury.
6. Observe(Option) proper precautions when handling batteries. Batteries may leak
or explode if improperly handled.Observe the following precautions when handling
batteries for use in this product.
Use only batteries approved for use in this equipment..
Do not short or disassemble the battery.
Be sure the product power is off before replacing the battery.
Do not expose the battery to flame or to excessive heat.
Do not immerse in or expose to water.
Observe proper precautions when handling the battery charger.
Keep dry. Failure to observe this precaution could result in fire or electric shock.
Dust on or near the metal parts of the plug should be removed with a dry cloth.
Continued use could result in fire.
Do not handle the power cable or go near the charger during thunderstorms.
Failure to observe this precaution could result in electric shock.
Do not damage, modify,or forcibly tug or bend the power cable. Do not place it
under heavy objects or expose it to heat or flame. Should the insulation be
damaged and the wires become exposed. Take the power cable to a F&V service
representative for inspection. Failure to observe this precaution could result in fire
or electric shock..
Do not handle the plug or charger with wet hands, Failuer to observe this
precaution could result in electric shock.
-1-

Use dry soft cloth to clean photographic lights. You can wash with a cloth slightly
some neutral detergent to remove difficult to remove the dirt, and then with a soft
cloth to dry.
Do not use strong cleaning agents, such as thinner, gasoline or alcohol, as these
solvents may damage the surface of the protective layer
The device can be installed in the camera lights for photography.
Can only be used for general-purpose interface of the camera.
Photography lights ON / OFF can be controlled in the standby mode.
Features
1. Please do not directly face the light bulb when the
Photography lights ON.
2. Never block the ventilation grille by covering it with paper
or clothes . could result in injury.
3. Do not expose the equipment to moisture. or it could Short
circuit result in injury.
4. Do not placed the photographic lights in nearby such as alcohol
or gasoline and other flammable or volatile solvents
5. When the camera light on or against the other items above, pleaseturn
off the camera light, or else they may cause fire or damage to photographic light.
6. Do not seize the photographic light head to take up photography cameras.
Working Voltage
Average Life time
Illuminance (LX)
Color rendering
Volume(mm)
Box volume
Notes
Specifications
Notes on the clean
7.4V
30000 h
350
≥85%
43 x 106 x 65mm
230 x 150 x 98mm
Watt loss
Cooling mode
Color temperature (K)
Illumination angle
Net weight(g)
Packing Piece
7W
5600K
75
180
24 PCS
Heat sinks, natural
ventilation
-2-
1. LED-60 lamp holder one Piece
2. NP-F550 battery one piece.
Standard Package contains:
3. NP-F550 battery charger one piece.
4 Instruction manual.
Design and specifications subject to change without notice.

-3-
A Photography lights will be installed in the camera or
photographic camera lights before removed, is required to set
the power switch in OFF.
Parts diagram
Photography lights installed
Photographic lights removed
The use for photographic light
1. The opposite direction along the arrow anti-clockwise rotating locking to Release it
2. The opposite direction along pull out the photographic light, removed it
Note
B
1. Optical lens
2. Single/Double light switch
3. Battery lock
4. Mains switch on/off
5. Hot shoes fastening intortum
2
3
4
5
1
1. Rotating photographic lights, make it with the consistent direction of the camera lens
2. Photography lights interface will be inserted into the interface of the camera
concave-shaped
3. Clockwise rotating locking until locked in place
1. To following the picture to install the battery, when heard a weak "pyridaben
carbazole" sound the installation is completed.
2. When need to replace the battery push the battery lock "BATT" in accordance with
the arrow direction to promote the battery can be unloaded.
3. When you turn on the photographic light please set the power switch to "POWER"
4. When you turn off the photographic light please set the photographic light to "OFF
5. When open a single light switch to single-and double-set light to the L1;When
open a double light switch to single-and double-set light to the L2.
1. When the electric will run out of time, power will be cut off, after few seconds it
will re-open, it can still light up a few seconds,then will be cut off again. Please
replace the batteries at this time, to prevent influence on use.
2. After use Please set the power switch to "OFF"
3. When not in use, please remove the battery and then bring photographic lights
stored in boxes.
4.In storage before, make sure photography lights are cool.

Lighting for photography objects
Charging for battery
When using this device in indoor
photography, you get beautiful clear
color image.
For ultra-wide angle photography,
photography light images may not be able
to complete the line shine. Please effective
use of photography has been light on the
main photography objects on camera.
In photography under fluorescent screen
may make some shine. Light may improve
the use of photographic color film of the
ambiguity in order to better screen quality.
C
1. Install the battery to charger.
2. Connected to power about seven hours, the
green light light-up, it has completed charging. 1
3
2
1
2
5
3
4
L1
L2
BATT
OFF
POWER
BATT
L1 L2
OFF POWER
A
B
C
