F&V PRO150 User manual

Video Light
Safety tips
To prevent damage to your F&V product or injury to yourself or to others.
Read the following safety precautions in their entirety before using this
equipment. Keep these safety instructions where all those who use the product
will read them.
PRO150\150D Video Light User Guide

Warning
To prevent fire or electric shock, Please do not let the rain hit the device or humid
1. Please use the voltage carefully, use of non-original match or without of the
provisions power supply voltage will damage the equipment or the light source
equipment can not start, Can not use too big of the fuses or use a metal wire fuse
replacement.
2. Should you notice smoke or an unusual smell coming from the equipment cut off
the power. Taking care to avoid burns. Continued operation could result in injury.
After cut off the power,take the equipment to a F&V service center to inspection.
3. Do not disassemble. Touching the product’s internal parts could result in injury.
In the event of Malfunction, the product should be repaired only by a qualified
technician.Should the product break open as the result of a fall or other accident,
Cut off the power and/or AC adapter and then take the product to a F&V service
center to inspection.
4. Storage and transportation process, please keep out the power separation from
equipment, To prevent contact switch, causing no long-term use of temporary
nursing equipment, caused a fire.
5. Keep out of reach of children. Failure to observe this precaution could result in injury.
6. Observe(Option) proper precautions when handling batteries. Batteries may leak
or explode if improperly handled.Observe the following precautions when handling
batteries for use in this product.
Use only batteries approved for use in this equipment..
Do not short or disassemble the battery.
Be sure the product power is off before replacing the battery.
Do not expose the battery to flame or to excessive heat.
Do not immerse in or expose to water.
Observe proper precautions when handling the battery charger.
Keep dry. Failure to observe this precaution could result in fire or electric shock.
Dust on or near the metal parts of the plug should be removed with a dry cloth.
Continued use could result in fire.
Do not handle the power cable or go near the charger during thunderstorms.
Failure to observe this precaution could result in electric shock.
Do not damage, modify,or forcibly tug or bend the power cable. Do not place it
under heavy objects or expose it to heat or flame. Should the insulation be
damaged and the wires become exposed. Take the power cable to a F&V service
representative for inspection. Failure to observe this precaution could result in fire
or electric shock..
Do not handle the plug or charger with wet hands, Failuer to observe this
precaution could result in electric shock.
-1-

Use dry soft cloth to clean photographic lights. You can wash with a cloth slightly
some neutral detergent to remove difficult to remove the dirt, and then with a soft
cloth to dry.
Do not use strong cleaning agents, such as thinner, gasoline or alcohol, as these
solvents may damage the surface of the protective layer
The device can be installed in the camera lights for photography.
Can only be used for general-purpose interface of the camera.
Photography lights ON / OFF can be controlled in the standby mode.
Features
Working Voltage
Average Life time
Illuminance (LX)
Color rendering
Volume(mm)
Notes
Specifications
Notes on the clean
12V
4000 h
800
≥80%
70 x 105 x 74mm
Watt loss
Color temperature (K)
Illumination angle
Net weight(g)
35W
20-100%
3000K
60
310
-2-
1. Never block the ventilation grille by covering it with
paper or clothes. could result in injury.
2. Do not expose the equipment to moisture. or it could
Short circuit result in injury.
3. After use,keep the plug and the source separation.
4. Please use F&V recommended genuine battery adapter,
We can not guarantee that you use other brands of batteries
and adapters to get the best results
Dimming range
(D type)
Standard Package contains:
Design and specifications subject to change without notice.
Battery requirements: 12V Ni-MH battery, 12 lead-acid batteries or 12V adapter.
1. PRO150D lamp holder one piece
2. 12V5AH lead-acid batteries battery one piece 3. Battery belt-bag one piece
4. 1A battery charger one piece. 5. Instruction manual.

-3-
A Photography lights will be installed in the camera or
photographic camera lights before removed, is required to set
the power switch in OFF.

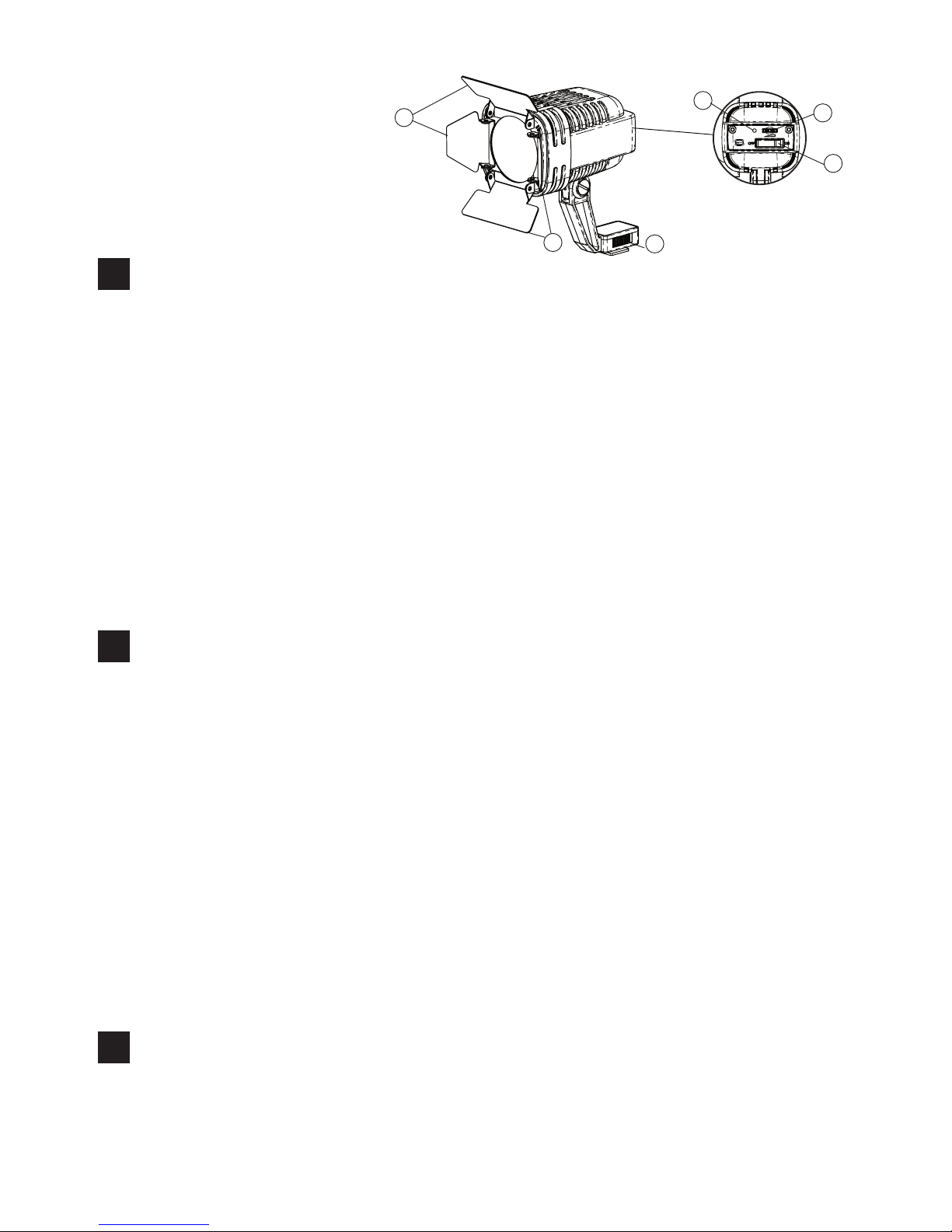

Parts diagram
Photography lights installed
Photographic lights removed
The use for photographic light
1. The opposite direction along the arrow anti-clockwise rotating locking to Release it
2. The opposite direction along pull out the photographic light, removed it
B
1. Rotating photographic lights, make it with the consistent direction of the camera lens
2. Photography lights interface will be inserted into the interface of the camera
concave-shaped
3. Clockwise rotating locking until locked in place
1. Video light insert the camera or the photographic camera appendix plug, then
tighten the knob.
2. Conect the video light cable to the power socket box plug.
3. Turn on the video light power switch.
4. Turn the Dimmer switch dial-twisting, to set the illumination to adjust location.
5. Turn the video light Shading plate angle.
Charge Guide
1. Connects the battery charger to 100V-240V alternating current supply.
2. Conect the charge to the power socket box plug to charge power.
3. When charge the battery charger guiding light is red, the charger guiding light turn
to green after 4-6 hours,the charge finished.
4. Take out the battery charger for next charge.
CReplacement bulbs
Used of OSRAM brand bulbs，If you need to replace the OSRAM brand bulbs,
please contact your F&V dealer and the local F&V authorized repair center，When
buying bulbs please follow the code of accessories to order。
1. Four flaps Barn door filter
2. Hot shoes fastening intortum
3. Mains switch on/off
4. Dimming knob(only 150D)
5.“Ready” Indicator
2
3
4
1
1
5

1. Make sure the light bulb have been
adequately cooled to touch, turn on the
screws at the bottom of the light front cover,
removed the front cover,
2. Replacement bulbs
①To replace old light bulbs, use the new
bulbs casing to masked the old light bulb,
then use the casing and pull it out.
②Straight insert the new bulb into the socket
* Can not be tilted the light bulbs
3. Put on the front cover, install it, and tightened
the screw.
Just bright up, the light bulb will become too
hot. Please wait until the bulb cooling down
to deal it.
In order to avoid leaving fingerprints on the
bulb, use a dry cloth to holding it. If the bulb
is dirty, please clean it completely
Just bright up, the light bulb will become too
hot. Please wait until the bulb cooling down
to replace it.
Note
1
3
2
5
3
4
A
B
C
Reflector
Barn doors bracket
