Fanstel BT600I User manual

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
1
BLE Single Mode Module BT600 Series
Specifications:
Processor: Nordic nRF51822
Bluetooth: V4.0, single mode
Frequency: 2.402～2.480 GHz
Receiver Sensitivity: -91 dBm（typical）
Transmit Power 0dBm +/- 1 dB
Interface UART
Protocol AT Commands
Operation voltage 1.8V-3.6V
Line of Sight Range 20m (60 feet) to 50m (150 feet)
Encryption 128 bit using CCM encryption
Dimensions 20mmX12mmX2mm
Operation -25°C to +75°C
Storage -40°C to +85°C
Applications
Smart appliances
Wearable device
Medical devices
Health management devices
Computer peripherals
Other Bluetooth applications
Model Summaries
 Antennarange,mrange,feetapproval
BT600IInternal3090None
BT600EExternal50150FCC
BT600PPCB2060none
DVB‐BT600Developmentboard none

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
2
Table Of Contents
1Introduction................................................................................................................................................. 3
1.1 Standalone Mode......................................................................................................................................3
2Product Overview .......................................................................................................................................4
2.1 Photos .......................................................................................................................................................4
2.2 Pin Functions ............................................................................................................................................5
3Operation Parameters................................................................................................................................7
4AT Commands............................................................................................................................................8
4.1 Brief description of AT commands............................................................................................................8
4.2 Command mode........................................................................................................................................8
4.3 Data Mode...............................................................................................................................................10
5BT600 Evaluation Board...........................................................................................................................11
5.1 Communicating with a PC ......................................................................................................................11
5.2 Communicating with a Host Processor...................................................................................................11
6Miscellaneous...........................................................................................................................................11
7CONTACT US..............................................................................................................................................12

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
3
1 Introduction
BT600 series Bluetooth single mode module uses Nordic nRF51822 Bluetooth Low Energy (BLE) chip. Three
antenna options are offered:
BT600I with a chip antenna on module, line of sight range is 30 meters or 90 feet.
BT600E, an external antenna is required. Line of sight range is 50 meters or 150 feet when used with
recommended antenna.
BT600P with on board PCB trace antenna, line of sight range is 20 meters or 60 feet. This is the lowest
cost version.
DVB-BT600. Development board for BT600 modules. A PC or a host processor can communicate with
BT600 through an UART port. All IO pins are available at connectors.
A host processor can set BT600 to command and data mode by setting an I/O pin to high and low, respectively.
When using with a PC, a jumper is used to set the BT600 IO pin. When in data mode, the host processor
communicates with a smartphone, a computer, or other electronic equipment through this BT module.
1.1 Standalone Mode
BT600 can operate in standalone mode – without a host processor. A 32 bit ARM Cortex™ M0 processor with
128 KB of flash memories are built-in. Development tools are available from Nordic and other 3rd parties.
BT600 dimensions and pin assignments are the same as some modules from other manufacturers.
Programming tools are commercially available to reprogram module for standalone operation.

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
4
2 Product Overview
2.1 Photos

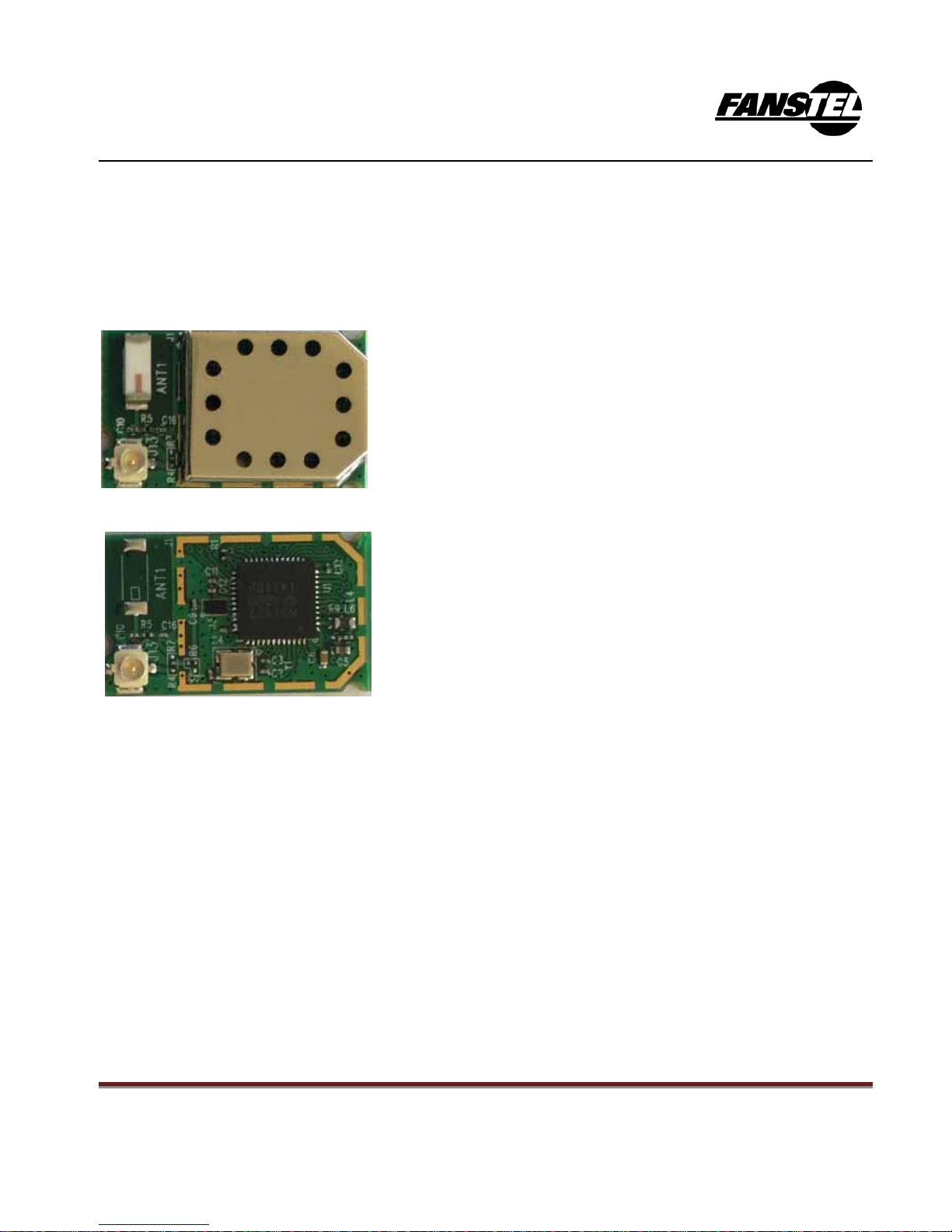

The followings are pictures of BT600 module with an EMI shield on and without EMI shield.
Figure 1 BT600 with an EMI shield
Figure 2 BT600 without shield

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
5
2.2 Pin Functions
Pin Pin name Descriptions Note
1 GND Ground
2 P01, AIN2 General purpose I/O pin, ADC/LPCOMP input 2
3 GND Ground
4 P02, AIN3 General purpose I/O pin, ADC/LPCOMP input 3
5 P03, AIN4 General purpose I/O pin, ADC/LPCOMP input 4
6 P04, AIN5 General purpose I/O pin, ADC/LPCOMP input 5
7 P05, AIN6 General purpose I/O pin, ADC/LPCOMP input 6
8 P06, AIN7, AREF1 General purpose I/O pin, ADC/LPCOMP input 7,
ADC/LPCOMP reference input 1
9 P07 General purpose I/O pin
10 VCC DC power input, 1.8V to 3.6V
11 GND Ground
12 P08, I2C SDA General purpose I/O pin, I2C data pin
13 P09, I2CSCL General purpose I/O pin, I2C clock pin
14 P10, SPI MOSI General purpose I/O pin, SPI MOSI pin
15 P11, SPI MISO General purpose I/O pin, SPI MISO pin
16 P12, SPI CLK General purpose I/O pin, SPI clock pin
17 GND Ground
18 P13 General purpose I/O pin
19 P14 General purpose I/O pin
20 P15 General purpose I/O pin
21 P16 General purpose I/O pin
22 SWDIO System reset (active low). Also hardware debug
and flash programming I/O.
23 SWCLK Hardware debug and flash programming I/O.
24 P17 General purpose I/O pin
25 P18 General purpose I/O pin
26 P19 General purpose I/O pin
27 P20 General purpose I/O pin
28 GND Ground
29 GND Ground
30 RF ANT Connection to external antenna
31 GND Ground
32 P21, UART TX General purpose I/O pin, UART TX pin
33 P22, UART RX General purpose I/O pin, UART RX pin
34 P23, Mode General purpose I/O pin, 1=command; 0=data 1

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
6
Pin Pin name Descriptions Note
35 P24 General purpose I/O pin,
36 P25 General purpose I/O pin
37 GND Ground
38 P26, AIN0, XL2 General purpose I/O pin, ADC/LPCOMP input 0,
Connection for 32.768 kHz crystal
39 P27, AIN1, XL1 General purpose I/O pin, ADC/LPCOMP input 1,
Connection for 32.768 kHz crystal
40 P28 General purpose I/O pin
41 P29 General purpose I/O pin
42 P30 General purpose I/O pin
43 GND Ground
44 P00, AREF0 General purpose I/O pin, ADC/LPCOMP reference
input 0
 
1.ConnectP23tohighforcommandmodeandtolowfordatamode.
  

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
7
3 Operation Parameters
Wireless Features Specifications
Bluetooth V4.0 -Single Mode
Frequency 2.402 - 2.480 GHz
Max. Transmit Power +4dBm
Receiver Sensitivity -91 dBm, typical
Whisper Mode Down to -55 dBm, transmit
Link Budget 95 dB @ 1Mbps
Raw Data Rate 1 Mbps over the air
Host Interfaces Total 28 lines, multi function
UART TX, RX
Default, 9600, N, 8, 1.
Baud rate from1200 to 921600bit
GPIO Up to 28 lines
SPI 3 lines
I2C 2 lines
ADC 6 lines
Control Protocol AT Command Sets
Encription AES Advanced Encryption
Standard 128 bit using CCM encription
Supply voltage 1.8V - 3.6V
Power
Consumption current Idle: 3.5 uA
Dimensions /尺寸 27mmX13mmX2mm
Environmental Operating -25°C to +75°C
Storage -40°C to +85°C
BT600P PCB trace antenna Line-of-sight range, 20 meters or 60 feet.
BT600I Internal antenna Line-of-sight range, 30 meters or 90 feet.
BT600E External antenna Line-of-sight range, 50 meters or 150 feet.

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
8
4 AT Commands
4.1 Brief description of AT commands
Each command line consists of a prefix, a body and a terminator.
All command lines begin with the prefix AT (ASCII 065, 084) or at (ASCII 097, 116).
The body is a string of characters in the ASCII range 032-255. Control characters other than <CR>
(carriage return; ASCII 013) and <BS> (back space; ASCII 008) in a command line are ignored.
The terminator is <CR>.
There is no distinction between upper-case and lower-case characters. A command line can have a
maximum length of 80 characters. It is automatically discarded if the input is longer. Corrections are
made
AT command is case-insensitive, following /r/n for end code.
The default baud rate is 9600 one stop bit and no parity
4.2 Command mode
When P23 (pin 34 of BT600) is pulled high, it is set to AT command mode. In AT command mode, the host
processor communicates with the processor on BT600.
Command Response Parameter example
AT OK or FAIL none AT/r/n
OK/r/n
AT+RESET OK or FAIL none AT+RESET/r/n
OK/r/n
AT+VERSION? +VERSION:<param> Software version
number
AT+VERSION?/r/n
OK +VERSION140804
OK/r/n
AT+NAME? +NAME:<param> OK Device name
AT+NAME?/r/n
+NAME:EZPro OK/r/n
AT+NAME=<param> OK or FAIL Device name
AT+NAME=Fanstel/r/n
Or
AT_Name=”Fanstel”/r/n
OK/r/n
AT+UART? +UART:<param>,<param2>,<param3>
OK
Baud rate, AT+UART?/r/n
Stop bit, +UART:115200,1,0
Parity OK/r/n

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
9
Command Response Parameter example
AT+UART=<parm> +UART:<parm> Baud rate
AT+UART=115200/r/n
+UART:115200,1,0
OK/r/n 1200
2400
4800
9600 default 19200
38400
57600
115200
230400
460800
921600
1000000
AT+ADDR? +ADDR:<param> OK
Device MAC
address
AT+ADDR?/r/n
+ADDR:abb5:cd:604ace
OK/r/n
AT+REGISTER OK or FAIL none AT+REGISTER/r/n
OK/r/n
AT+QUITREGISTER OK or FAIL none AT+QUITREGISTER/r/n
OK/r/n
AT+RX?
+Name:<parm>
none
AT+RX?/r/n
+UART:<parm> +NAME:EZPro/r/n
+ADDR:<parm> +UART:115200,1,1/r/n
+ADDR:
abb5:cd:604ace/r/n
AT+DEFAULT OK or FAIL none AT+DEFAULT/r/n
OK/r/n
AT_RFPW? +RFPW:parm +4~-8
AT+RFPW?/r/n
+RFPW:-4 OK/r/n
0:+4
1:+0 default
2:-4
3:-8

Bluetooth Low Energy(BLE) Module BT600 Series Ver1.0June8,2015
Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: [phone] | Fax: [phone] | E-mail: [e-mail]|
Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: [phone] | Fax: [phone]
Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:[phone]|Fax:[phone]
10
Command Response Parameter example
AT_RFPW=<parm> OK or FAIL +4~-8
AT+RFPW= 1/r/n
OK/r/n
0:+4
1:+0
2:-4
3:-8
AT+PIO=<param><param1> OK or FAIL P00-P05 AT+PIO=05, 0\r\n
1=High ,0=low OK/r/n
AT+PIS=<param><param1> OK or FAIL P00-P05 AT+PIS=05, 1\r\n
1=output,
0=input OK/r/n
4.3 Data Mode
When P23 (pin 34 of BT600) is pulled low, it is set to data mode. In data model, BT600 provides transparent
data transfer between the host processor and a remote device, for example, a smartphone.
