Farmi Forest Corporation 100F Guide

FARMI 100F
Farmi Forest Corporation
Ahmolantie 6
FIN-74510 Iisalmi, Finland
Tel. [phone]
Fax. [phone]
www.farmiforest.
43515380 A-EN-080113-ER
OPERATION, MAINTENANCE AND SPARE PARTS MANUAL
READ THIS OPERATION AND MAINTENANCE MANUAL CAREFULLY
BEFORE USING THE MACHINE
FROM MACHINE: 3620001
CHIPPER AND FEEDER
TRANSLATION OF THE INSTRUCTION MANUAL

FARMI 100F
2
WARNING SYMBOLS IN THIS MANUAL
• imminent danger which could cause serious personal injury or death
• danger which could cause personal injury
• conditions or misuse that could damage equipment or machinery
• reminders, such as for performing checks or carrying out maintenance
or repair procedures
INTRODUCTION
This manual includes the information and maintenance instructions required for operating the machine in the
optimal manner.
Although you have experience in using this kind of machinery, read the operation and maintenance instruc-
tions carefully since they include information enabling ecient and safe operation. Regular maintenance is the
best way to guarantee the ecient and economical performance of the machine.
Each and every operator must read, understand, and follow all safety instructions
and procedures.
CUSTOMER FEEDBACK
We are happy to receive your opinions and suggestions for improvements by mail, fax or e-mail.
All implemented suggestions for improvements will be rewarded.
WARNING!
!
CAUTION!
!
!
DANGER!
CAUTION!
!
PRODUCT WARRANTY
Farmi provides a 12-months warranty on all Farmi products. Register on our home page (www.farmiforest.)
under FeedBack (”Product Registration” form) within 30 days after the receipt of the product to get full pro-
duct warranty and additional information on your product. If it is not possible for you to register via internet,
please register as follows: Complete the registration form on the last pages of this manual and return it to us
within 30 days after the receipt of the product.

FARMI 100F
3
Manufacturer:
Farmi Forest Corporation
Ahmolantie 6, FIN-74510 IISALMI, Finland
Person authorized to compile the technical documentation:
Name: Heikki Sirviö
Address: Ahmolantie 6, FIN-74510 IISALMI, Finland
Commercial name:
Farmi
Machine denomination:
Farmi wood chipper with attachable Farmi feed hopper
Machine type:
Wood chipper: FARMI 100
Available feed hoppers for manual feed: F100
Machine series number:
Herewith, we declare that the machine brought into circulation conforms with
the pertinent requirements of the Machinery Directive 2006/42/EC and
the EMC Directive (directive relating to electromagnetic compatibility) 2004/108/EC.
The following harmonized standards have been applied for the conceptional design
of the machine:
SFS-EN ISO 12100-1/2, SFS-EN ISO 13857, SFS-EN 13525, SFS-EN ISO 4254-1
The following additional standards and specications have been applied for
the conceptional design of the machine:
SFS ISO 730-1, SFS ISO 2332
Iisalmi 8.1.2013
(Place) (date)
Juha Hallivuori
EC DECLARATION OF CONFORMITY

FARMI 100F
4
When ordering spare parts, please indicate machines type from the machine plate, spare parts order number,
description and quantity required. Example. FARMI 100F, knife, 43620080, 2 pc
TABLE OF CONTENTS
GENERAL SAFETY INSTRUCTIONS 5
GENERAL SAFETY INSTRUCTIONS FOR THE CHIPPER 8

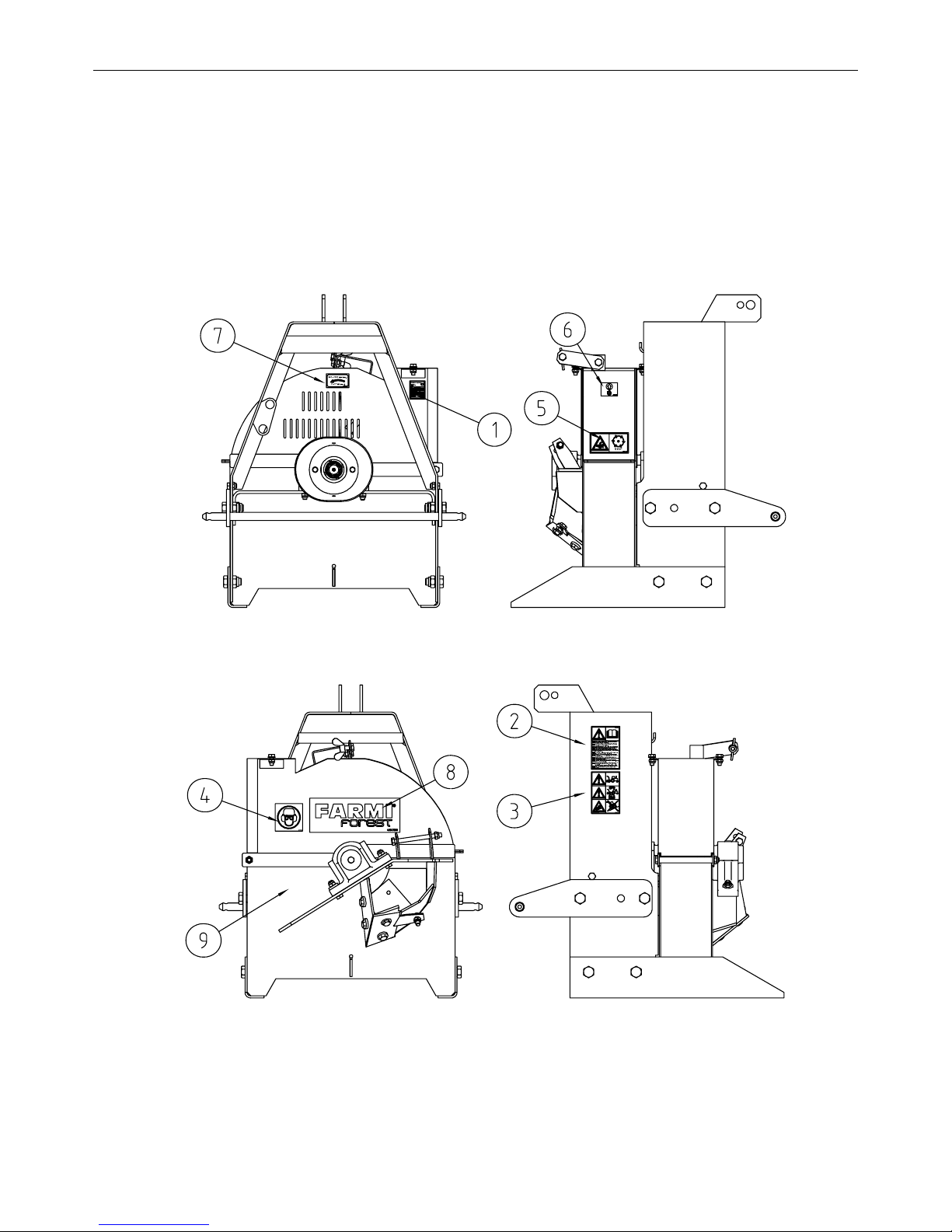

STICKERS AND PLATES 9

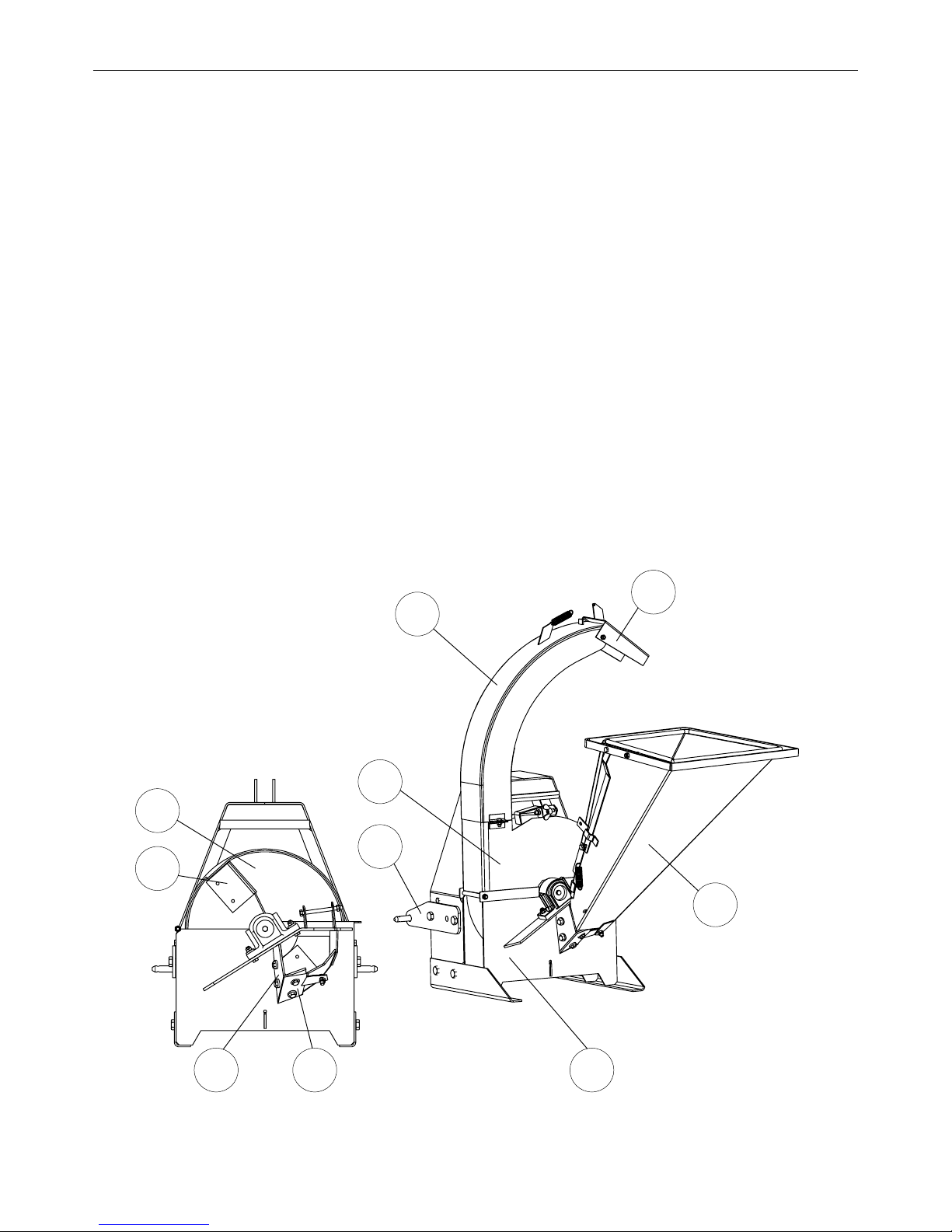

FARMI 100 - GENERAL DESCRIPTION AND INTENDED USE 12
MOUNTING 14
LIFTING 14
SHORTENING THE PTO SHAFT 14
ASSEMBLY INSTRUCTIONS 15
MOUNTING OF THE CHIPPER AND PRE-OPERATION INSPECTIONS 16
STARTING THE CHIPPER 16
STOPPING A TRACTOR-DRIVEN CHIPPER 17
CHIPPING 18
OPERATION OF CHIPPER AND FEED UNIT 18
EMPTYING THE CHIPPER AFTER USE 19
SWIVELING THE FEED HOPPER TO THE TRANSPORT POSITION 19
STORAGE OF THE CHIPPER 19
MAINTENANCE 19
REPLACING THE BEARING 20
ADJUSTING THE BEARING CLEARANCE 21
KNIFE AND ANVIL MAINTENANCE 24
FARMI 100 CHIPPER 28
DISC, COMPLETE 30
DISCHARGE PIPE 31
PRODUCT REGISTRATION FORM 34

FARMI 100F
5
GENERAL SAFETY INSTRUCTIONS
These safety instructions are meant for the owners
of FARMI equipment, as well as those who operate,
service or repair it.
The instructions help with:
• using the machine safely, appropriately and eec-
tively.
• identifying, avoiding and preventing potentially
dangerous situations.
The manufacturer supplies an instruction manual,
which must always be available at the place of ope-
ration of the machine. Each user must read the
safety, maintenance and operating instructions
before operating the machine, and comply with
these instructions at all times.
Ensure that every operator of
the machine is familiar with the
content of the instruction manual
and situation-specic safety
instructions, and has been sui-
tably trained before operating
the machine.
The machine complies with technical requirements
and applicable safety regulations. However, incorrect
use, maintenance or repair of the machine may cause
risks.
In addition to the instruction manual, remember to
comply with regulations of the local occupational
health and safety authorities, and with your country’s
laws and decrees.
The manufacturer is not liable for damages caused
by:
• incorrect, negligent or inappropriate use of the
product.
• non-original spare parts.
• normal wear and tear.
• misuse caused by an untrained person’s
improper actions.
• alterations made without the manufacturer’s
permission.
Written authorization must be
requested from the manufacturer
for any alterations to the machine.
STARTING
• Familiarize yourself thoroughly with the use, ope-
ration and controls of the machine and its equip-
ment before starting.
• Familiarize yourself with the capacities and limita-
tions of the machine and its equipment.
• Do not use the machine unless you are completely
familiar with its operation.
• Be aware of the machine’s danger zones.
• During operation, prevent bystanders from entering
the danger zone.
• Ensure that each operator has the necessary safety
equipment, such as a helmet, safety goggles, work
safety boots and suitable protective clothing.
• Never wear loose clothing around moving parts.
Protect long hair!
• Ensure that work is carried out according to the
stipulations of applicable occupational health and
safety legislation.
• Before starting up or using the machine, ensure
that it cannot cause a risk to other people or pro-
perty.
• Perform a safety check on the machine before
every use. If you observe any faults or deciencies,
repair the machine immediately.
• Before operating the machine, ensure that there
are no foreign articles in it.
• Place the machine on a hard, level surface for ope-
ration. In the winter avoid working in slippery areas.
• Before mounting and using the machine, check
the PTO drive shaft for correct condition and
attachment.
• Never use a faulty or decient machine.
CAUTION!
!
CAUTION!
!

FARMI 100F
6
TRANSPORT
• Before driving with the machine, ensure the safe
mounting of the machine. Make sure that the
journals are seating correctly and that the pins are
tight. Check the tension of the lower link stabili-
zers.
• Before driving with the machine, make sure that
the required lamps and reectors as well as the
slow moving vehicle sign are attached correctly.
Moreover, the lamps should be checked for correct
functioning.
• Before driving with the attached machine, make
sure that the hydraulic unit of the machine is
depressurized (unless otherwise instructed in the
operating instructions).
• When driving on public roads, always observe the
valid trac regulations. The travel speed must be
adapted to the specic conditions.
• When driving, please take into consideration the
additional mass resulting from the machine’s
weight. It may aect the reactions, the steerability
and the braking function of the tractor.
• Please note that the machine rear sways when
turning.
• Pay attention to the machine’s height near bridges
or other height restricting objects.
• When backing o, the machine may obstruct the
rear view. Exercise extreme caution. If necessary,
ask a agman to help you; he can indicate the
required distances.
• It is prohibited for other people to ride on the
machine.
OPERATION
Many occupational accidents
take place in abnormal
circumstances. Therefore it is im-
portant to take into account all
the possible circumstances that
may arise during operation of
the machine.
• Depending on the machine’s type, it will have
diverse safety devices and protectors. These are
meant to protect the machine and its operator,
and they must never be removed or altered. Never
start up or use the machine without all the safe-
ty devices and protectors in place. Also check the
universal joint’s safety equipment and joins.
• Never insert any body part into the machine with
the engine running.
• If any faults arise that may jeopardize occupatio-
nal safety, turn o the machine.
• During operation, the machine’s operator is res-
ponsible for safety in the whole work area. Work
may not be carried out in the presence of any fac-
tors that jeopardize occupational safety.
• Exercise extreme caution when hitching / unhit-
ching the machine from a tractor/trailer.
The machine’s operator must
have constant, unobstructed
visibility of the work area. If this
is not possible, the operator must
work with an assistant.
• Look out for moving parts when the machine is in
operation.
• Secure the machine against unauthorized and
accidental operation (e.g. moving when parked)
whenever it is left unattended.
• Never leave the machine running unattended.
• Avoid causing fast, stroke-like loading.
• Never exceed the given operating values.
• All safety and warning signs on and in the machine
must be legible and intact.
• The machine may not be operated by persons
who are unwell or under the inuence of drugs or
alcohol.
MAINTENANCE
• The machine may only be serviced and repaired
by professionals.
• Electrical and hydraulic faults may only be repaired
by authorized professionals.
• In cases requiring welding, contact the manufac-
turer.
• Turn o the tractor engine and disconnect the
universal joint before beginning service or main-
tenance actions.
• Before any maintenance work, turn the main power
switch of the tractor to OFF.
• Ensure that there is no pressure in the hydraulic
system.
• Take out the key from the tractor’s ignition for the
duration of the servicing or maintenance. Check
that the power is o from the machine you are
working on.
!
DANGER!
CAUTION!
!

FARMI 100F
7
• When servicing the machine, place it on a level
surface and ensure that it cannot be moved.
• Observe the service intervals and annual safety
inspections.
• All spare parts and equipment must fulll the
manufacturer’s requirements. This can be guaran-
teed by using original parts.
• Put all safety devices back into place immediately
once servicing or maintenance is complete.
When lifting the machine, check
that the lifting/hoisting equip-
ment is in perfect working order.
Check the weight of the machine
before lifting it. Choose lifting
trajectories so that they do not
cause any danger.
Many countries have specic legislation on lifting,
hoisting cables and hoists. Always comply with local
safety regulations.
OILS AND LUBRICATION
• Always use the oil types recommended by the
manufacturer. Other types of oil may cause
faults or improper operation of the equipment,
which could lead to serious damage to people or
property.
• Never mix dierent liquids or oils.
• Always follow the manufacturer’s lubrication
instructions.
• Use control equipment carefully until the hydraulic
oil has had time to reach its operating tempera-
ture.
SAFETY INSTRUCTIONS FOR HYDRAULIC CIRCUITS
1. Work on hydraulic equipment may only be carried
out by professional hydraulic engineers.
2. Be cautious when using the equipment in cold
conditions.
3. Check the machine for leaks. Do not use the
machine if there is a leak from any system. Check all
hydraulic hoses – particularly those which are bent
during use – and replace any that are in poor con-
dition or have leaks. Ensure that all joins are tight
and that the lines are not damaged. Check that all
protective caps and ller caps are closed properly.
Check the hose sheathing for damage.
4. Check that all hose connectors, lengths and
qualities comply with applicable requirements.
When replacing or repairing hoses, use original
parts or hoses and connectors recommended
by the manufacturer. Check particularly that the
pressure classes of the hoses and connectors are
suitable to the operating pressure levels.
5. Check that all safety devices such as pressure
relief valves, etc., are in place and work properly.
Familiarize yourself with their use. Safety systems
may never be bypassed.
6. Check the main hydraulic parts daily, and always
after a fault. Replace any damaged parts imme-
diately.
7. If a component is damaged, clean it before
repairing it. Do not use solvents when cleaning
parts.
8. Do not attempt to carry out repairs that you are
not fully familiar with.
9. Never carry out repairs of the hydraulic circuit
when the system is pressurized. When pressurized,
the oil spray can penetrate the skin and cause mor-
tal danger.
10. Never work below a device or component that is
only being held up by hydraulics. Use separate sup-
ports when carrying our maintenance or repairs.
Do not disconnect cylinders or their valves until the
machine is well supported.
11. Most hydraulic oils do not evaporate easily. Risk
factors include hot oil, spills and oil mist (pressuri-
zed).
12. If oil gets into your eyes, rinse with plenty of water
and contact a doctor.
13. Avoid prolonged or repeated contact with your
skin.
14. If sprays or contact with the skin cannot be
avoided, use protective gloves, goggles and
clothing as necessary. Do not use oily clothing.
15. Avoid discharging hydraulic oil into the
environment, as it can pollute waterways and the
groundwater. If biodegradable oil is to be used,
please contact the manufacturer beforehand and
have the suitability of your equipment for the ope-
ration with biodegradable oil conrmed by him be-
fore such oil is used.
16. Store the oil in sealed containers provided by the
manufacturer. Try to transfer the oil directly from its
container into the tank.
17. If the oil must be passed through other
containers, ensure that they are completely clean.
Caps, funnels, sieves and lling holes must also be
clean.
18. Never store oil outdoors, as water could condense
in it.
19. Always dispose of oil in a suitable container, never
into the environment!
CAUTION!
!

FARMI 100F
8
GENERAL SAFETY INSTRUCTIONS FOR
THE CHIPPER
• Please make sure any machine operator has the
required personal protective equipment: safety
helmet, protective goggles, cut resistant safety
boots and required protective clothing.
• The chipper must not be used without being
mounted to a tractor. It is prohibited to mount the
chipper to another power source.
• It is not permitted to operate the chipper without
feed unit or feed hopper.
• Indoor operation of the chipper is prohibited.
• Always keep a safe distance to the discharge
position of the chips.
• Detach the chipper from the tractor before perfor-
ming any maintenance or repair works.
• Do not remove, lock, disable or modify in any
other way the stop lever of the feed unit.
• The feed hopper or the feed unit must not be
mounted at a higher or lower position as this
would impede the stop lever function.
!
DANGER!

FARMI 100F
9
STICKERS AND PLATES
These plates and stickers must be found on the chipper. Replace missing plates or stickers immediately.

FARMI 100F
10
1. Machine plate FARMI 100 (41010100)
2. CAUTION!
Please read the instruction manuals of the machine
meticulously before you operate, maintain or repair the
machine. During machine operation, please observe the
operating and safety instructions.
(40147020)
3. (40147000)
CAUTION!
Before operation, mount the chipper to the 3-point hitch
of the tractor.
CAUTION!
Before maintenance and repair, please turn o the
tractor and disconnect the PTO drive shaft.
CAUTION!
Before detaching the chipper from the tractor, it must be
placed on a level surface.

FARMI 100F
11
4. Wear personal protective equipment. (40142080).
5. Cutting hazard! (40147010)
6. Lifting point sticker (41014270).
7. SPEED sticker (40141160)
Recommended speed range.
The rated speed must not be exceeded.
8. FARMI Forest sticker (40147090)
9. Sticker “100” (40147490)

FARMI 100F
12
1
10
9
8
7
65
4
3
2
Fig. 1. Main components
FARMI 100F - GENERAL DESCRIPTION AND INTEN-
DED USE
Farmi 100 is a single-disk chipper with two knives
used for chipping wood with a diameter of up to 100
mm (chip size 12 mm). In addition, it is used to clear
the embankments of roads and hiking trails as well as
in gardening and landscaping.
A tractor with a performance of 7.5 to 30 kW will su-
ce as power source.
However, the chipper can also be driven by a separate
hydraulic motor.
Optional equipment for the FARMI 100:
• Mechanical feed hopper
• Separate hydraulic motor as power source
• Long discharge pipe
MAIN COMPONENTS OF THE FARMI 100
1. UPPER CHAMBER
2. LOWER CHAMBER
3. CUTTING DISK
4. KNIFE
5. VERTICAL KNIFE
6. HORIZONTAL KNIFE
7. DISCHARGE PIPE
8. DISCHARGE PIPE LID
9. DRAWBAR
10. FEED HOPPER

FARMI 100F
13
472
4
87
1018 100x130
1637
1026
859
1534
DIMENSIONS FARMI 100
TECHNICAL DATA FARMI 100
Type disc chipper
Output 0,5-2 m3/h
Chip length 12 mm
Max. wood diameter 100 mm
Power demand 7,5-30 kW
PTO rpm 540 or 1000 rpm
Number of knives 2 pcs
Power source tractor or hydraulic motor
Mounting 3-point linkage
Chipper weight 193 kg / 210 kg
Disc diameter 550 mm
Disk weight 46 kg
Discharge pipe turning to two sides
Feeder drop spout

FARMI 100F
14
A
A
40
12
MOUNTING
LIFTING
Lifting points for each machine
are marked with hook symbols.
Lift only using the proper type of lifting device and
ensure that it has an appropriate lifting capacity.
Check the lifting slings, cables, and chains regularly.
Ensure that you know the weight of the load to be
lifted and never exceed the lifting capacity stated by
the manufacturer of the lifting device.
Select the transport routes for lifting so that the load
is not transported over people or a location where
people might be.
CAUTION!
!
SHORTENING THE PTO SHAFT
1. Connect the device to the tractor.
2. Measure the distance between the splined shafts
(Distance A)
3. First cut the thicker shaft shield to the correct
length (1). Remember to leave at least a 40 mm
clearance. Then cut a similar length o the prole
tube (2). Shorten the other half of the PTO shaft in
the same way. File o the burr.
4. Interconnect the tubes and check that the shaft
has been shortened enough by moving the machi-
ne gently. Ensure that there is a 40 mm clearance.
Also move the machine sideways to check that
the shaft moves freely.
Fig. 2. Measure A, when the distance between the
splined shafts is at its shortest.
Fig. 3. Shortening the PTO shaft

FARMI 100F
15
M12X120
M12 DIN985
M12X30
M12 DIN985
M12X30
M12 DIN 315

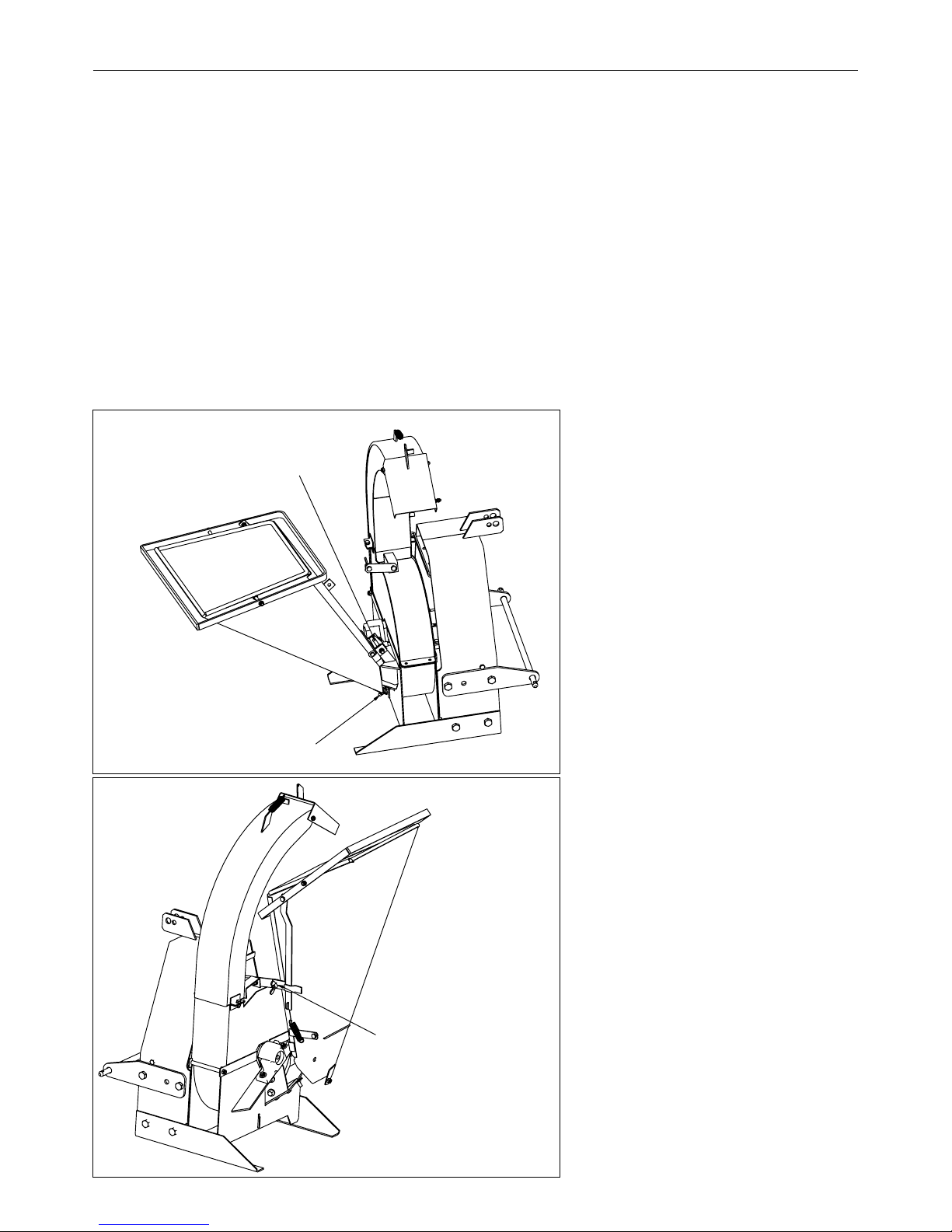

Fig. 4a. Installation of the feed chute /
Transport position
Fig. 4. Installation of the feed chute /
Chipping position
ASSEMBLY INSTRUCTIONS
1. Attach the feed hopper to the chipper using
M12x120 and M12x30 hexagon head bolts and
lock nuts. Lock the feed hopper in its operating
position. See g 4.
2. Mount the discharge pipe to the chipper using
two M10 bolts.
3. Mount the chipper on the tractor’s 3-point hitch.
4. Install the PTO shaft.
5. Check that the length of the PTO shaft is correct
for dierent hitch positions.
Screw
Buttery nut
Screw
Screw
Lock nut
Lock nut

FARMI 100F
16
MOUNTING OF THE CHIPPER AND PRE-OPERATION
INSPECTIONS
1. For mounting or dismounting the chipper, always
turn o the tractor and apply the parking brake
before entering the area between chipper and
tractor.
2. Check the PTO drive shaft for damage and make
sure it has the appropriate length.
3. Make sure the connection shields of the PTO drive
shaft are seating correctly and the holding chain
of the connection shields is fastened.
4. Make sure all protective and safety devices of the
chipper are installed. Never remove any protective
device during operation.
5. Before operation, please make sure there are no
foreign objects in the feed hopper.
6. Before operation, please make sure there are no
foreign objects in the chipper. Rotate the shaft to
make sure that the cutting disk can rotate freely.
7. Make sure that the water drainage holes on the
lower chamber are open and that the disk is not
frozen up.
8. During operation, the chipper must stand on level
and hard ground.
9. As compared to the tractor, the chipper must not
be lowered excessively. Otherwise, the PTO drive
shaft connection may loosen during operation.
10. Direct the discharge pipe so that the thrown out
chips do not pose a risk to the operator of the
chipper or to or anyone else. Always keep a safe
distance to the discharge position of the chips.
STARTING THE CHIPPER
• Start the chipper with caution while operating the
tractor at low speed. Slowly increase the speed
until the required chipping speed has been achie-
ved (540/1000 rpm). CAUTION! Do not exceed the
max. chipper speed of 1000 rpm.
• Now, the chipper is ready for operation.

FARMI 100F
17
!

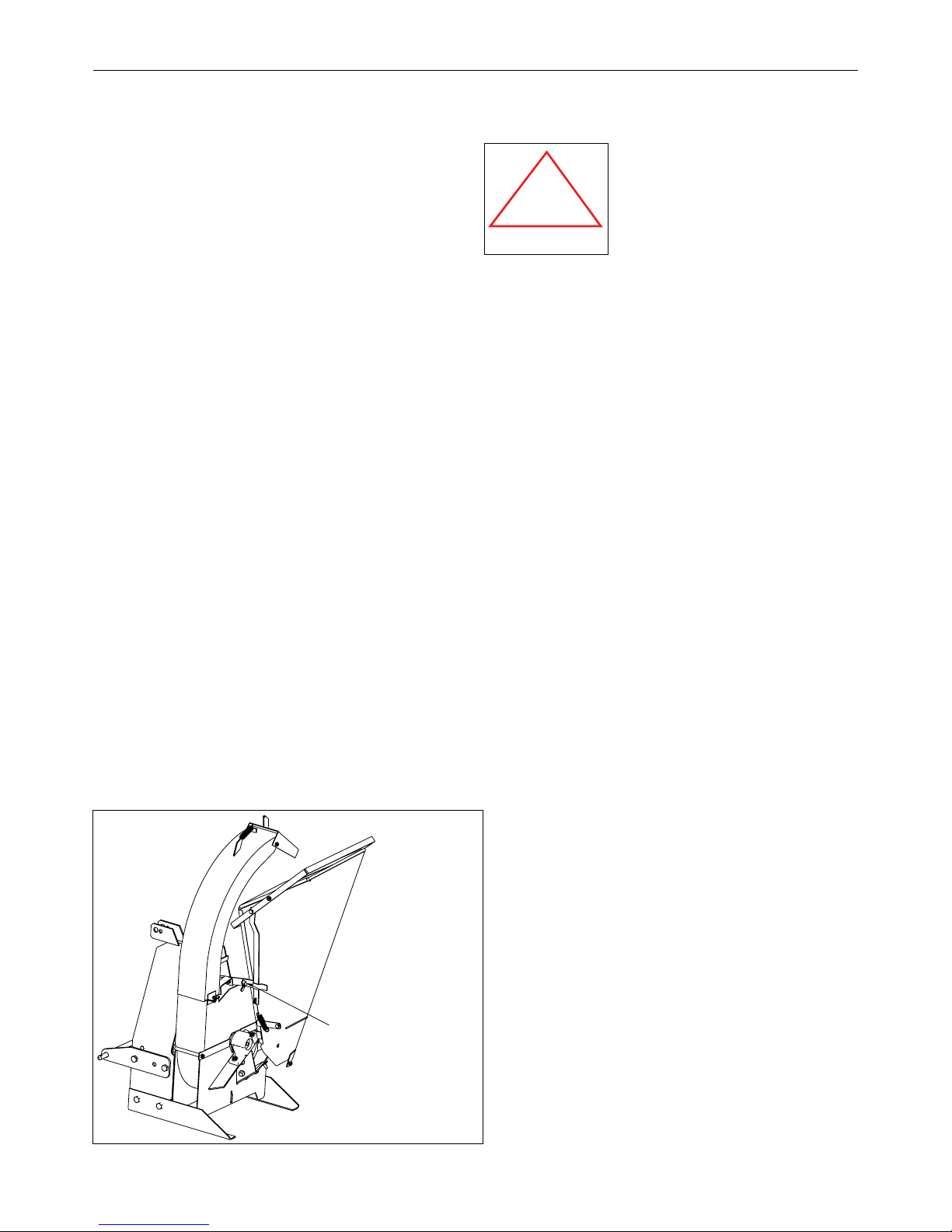

DANGER!
STOPPING A TRACTOR-DRIVEN CHIPPER
Slow the tractor engine speed to idle before disenga-
ging the PTO. This is especially important with tractors
featuring a PTO brake (e.g., Ford). Turn the PTO control
lever slowly to the OFF position.
After stopping the chipper, wait
for all movement to stop. The
disk continues rotating like a y-
wheel after the PTO is disengaged.
Please wait until the disk has
stopped completely before
performing any further actions.
The chipper requires approx. 1 ½ minutes to slow
down from maximum speed to complete stop
(1000 rpm -> 0 rpm).
STOPPING A HYDRAULIC MOTOR DRIVEN CHIPPER
IMPORTANT! When the chipper
is driven by the HD 50, it is extre-
mely important to slow the dri-
ving engine speed to idle before
disconnecting the hydraulics, to
prevent cavitation.
CAUTION!
!

FARMI 100F
18
STOP
F
STOP
CHIPPING
During chipping, please observe
the following safety instructions:
• The danger zone of the chipper is approx. 20 m.
• During operation, the danger zone must be sa-
feguarded to prevent unauthorized people from
entering the danger zone. If necessary, operation
must be interrupted.
• The operator of a chipper with manual feed must
wear the following personal protective equip-
ment: safety helmet, ear protection, protective
goggles, cut resistant safety boots and required
protective clothing.
• Never work in front of the feed hopper. Stand on
the left side of the feed hopper when feeding, sin-
ce the feed rollers may push the wood upwards or
to the right.
• Never hold any part of the body into the feed
hopper or into another part of the chipper with
the machine running.
• Make sure that loose clothing or long hair cannot
be caught by rotating machine parts or by the
material to be fed.
• Before feeding in the material to be chipped, en-
sure that the wood fed into the chipper is free
from metal or soil (such as nails, stones, etc.).
• Never feed ropes or barbed wire to the chipper
since these could get caught on the operator’s
body and draw him into the feed hopper.
• Do not use the chipper at temperatures below
-20 °C. This is to avoid damage due to brittleness –
especially of the knives –caused by the cold.
• Avoid chipping wood that is frozen solid; otherwi-
se, excessive stress will be exerted on the chipper
and self-feeding will be impaired.
• FIRE HAZARD! Always keep adequate re-ghting
equipment on hand when using the chipper. Re-
gularly check the surface temperature of the chip-
per. If the chipper suddenly heats up abnormally,
stop the chipper and determine the cause of over-
heating. Regularly, check the temperature of the
bearings. Pay special attention to careful mainte-
nance, and keep the chipper free from dust. If the
chipper starts smoking, pour water into the feed
hopper.
OPERATION OF CHIPPER AND FEED UNIT
• Start the chipper. Caution! See section ”Starting
the chipper”.
• Set the operating lever to the FEED FORWARD F
position. Caution! See picture ”Operating lever
functions”.
• Push the material to be chipped into the feed hop-
per. Release the material immediately when the
feed rollers start to rotate.
• When chipping large trunks or the like, the rotary
speed of a low-power tractor often drops during
chipping very long wood pieces. Temporarily stop
feeding by setting the operating lever to the STOP
position. After the rotary speed has suciently
increased again, continue feeding by setting the
operating lever to the FEED FORWARD F position.
Oil will heat when travelling
through the hydraulic pump,
hydraulicmotor and the valves.
The heating can be considerable
if the tractor has a small hydraulic
tank.
Check the oil temperatures twice an hour to prevent
the oil from overheating. If the oil overheats, let it
cool down by stopping the chipping.
!
DANGER!
CAUTION!
!
Fig. 5 Operating lever functions

FARMI 100F
19
M12X30
M12 DIN 315
EMPTYING THE CHIPPER AFTER USE
Let the chipper run empty by operating it for a short
time.
SWIVELING THE FEED HOPPER TO THE TRANSPORT
POSITION
1. Attach the feed hopper to the chipper using an
M12x30 hexagon head bolt and an M12 buttery
nut. See the gure showing how the feed hopper
is swiveled to the transport position.
STORAGE OF THE CHIPPER
• Before detaching the chipper from the tractor,
park it on level and hard ground. Take appropriate
measures to prevent the chipper from moving or
falling.
• If the chipper is to be stored for a long period,
lubricate the knives e.g. with petroleum jelly.
• Take appropriate measures to keep the wa-
ter drainage holes on the lower chamber open.
Fig 6. Swiveling the feed hopper to the transport position
Screw
Buttery nut
MAINTENANCE
Before beginning maintenance
and repair
• place the chipper onto level and hard ground and
make sure it cannot tip;
• turn o the tractor and disconnect the PTO drive
shaft;
• disconnect the hydraulic hoses from the tractor;
• familiarize yourself with the machine-specic
maintenance and repair instructions.
In case of doubt, please contact the manufacturer.
• Always lock the rotor before adjusting or chan-
ging the knives.
• Always wear protective gloves when handling
knives.
PERIODIC INSPECTIONS
• With new machines, check the mounting bolts
for tightness after the rst operating hour, tigh-
tening them if necessary. Tightening torques are
shown in table.
• Check the mounting bolts for tightness once a
week.
• The knife-to-anvil clearance is adjusted to the
specied values. For instructions on adjusting
the clearance, see Adjusting the knife-to-anvil
clearance.
WARNING!
!

FARMI 100F
20
1
10
98
54
11
67
h=12,7
32
h=5,4
11 8
53
11
10
67
2
REPLACING THE BEARING
1. Open the upper chamber.
2. Remove the fastening bolts M10 (7) and the upper
bearing housings (6).
3. Mark the location of the tightening cone on the
shaft.
4. Lift the disk.
5. Bend the claw of the securing ring (3) out from the
notch on the axle nut and open the axle nut.
6. Remove the axle nut, securing ring, spacer ring (4),
bearing (5), spacer ring (9), and tightening cone
(10).
7. Install the tightening cone, spacer ring (9), and
bearing on the disk shaft. Note the thickness of
the spacer ring (9) - see Fig. 7a.
8. Install the securing ring with the claws facing out-
wards and the inside claw in the groove of the
tightening cone, and install the axle nut.
9. The inner ring of the bearing should press tightly
against the tightening cone.
10. Tighten the axle nut with a hook spanner until the
bearing is tightly on the cone, or to 80 Nm. Ho-
wever, the outer ring of the bearing should turn
freely. Note the location of the tightening cone on
the shaft.
11. Bend one claw of the securing ring (3) into a
notch on the axle nut.
12. Install the other half of the dust cover and end pla-
te on the bearing housing. Install the spacer ring
(4) on the shaft.
13. Lower the disk to the bearing housing.
14. Attach the other half of the dust cover to the up-
per bearing housing; install the upper bearing
housing fastening bolts and tighten to 50 Nm.
15. Lubricate the bearing housing. An excessive
amount of grease causes overheating and impairs
lubrication.
The bearings at the feeder side and splined shaft
side are dierent from each other. The bearing at the
splined shaft side, Fig. 7b., does not have spacer rings
(4 and 9) and an end plate (1). The bearing at the splin-
ed shaft side has dust covers on both sides (11).
Fig. 7a. Bearing, feeder side
Fig. 7b. Bearing, splined shaft side
