Farmi Forest Corporation VALBY CH 140 Guide

OPERATION, MAINTENANCE AND
SPARE PARTS MANUAL
CH 140 CHIPPER
I -- U S A -- 2 9 1 1 0 2 -- J a K
www.farmiforest.fi 03513950
03514400
FARMI Forest
Ahmolantie 6
FIN--- 74510 PELTOSALMI
FINLAND
Tel. [phone]
F
a
x
+
3
5
8
(
0
)
1
7
8
2
3
6
0
6
It is very important to read this instruction
handbook thoroughly before using the machine!
CHIPPER CH 140
From machine: 351 1200

OPERATION,MAINTENANCE
AND SPARE PARTS
CH 140 CHIPPER
www.farmiforest.fi
--- 3 ---
1. TO THE OWNER---OPERATOR
Thank you for purchasing a Normet Corporation product.
Before we begin this manual, the people at Normet Corporation want you, the owner--
operator , to know this piece of equipment can be very dangerous if safety procedures
and warnings are ignored. Read this manual carefully page by page until you under-
stand it completely. Failure to do so will reslult in personal injury and / or equipment dam-
age.
All personnel including operators, maintenance crew, etc. should read this manual be-
fore start up.
This manual should be considered a permanent part of your machine and should remain
with the machine when you sell it.
IMPORTER:
NORTHEAST IMPLEMENT CO. RP.
P.O. Box 402
Spencer, N.Y. 14883
U.S.A
Tel. +1---607---589 6160
Fax +1---607--- 589 4026
E---mail [e-mail]

SAFETY INSTRUCTIONS
CH 140 CHIPPER
www.farmiforest.fi
--- 4 ---
2. SAFETY INSTRUCTIONS
2.1.TERMS AND SYMBOLS USED IN INSTRUCTIONS
Safety is a combination of operator com-
mon sense and alertness at all times
when the machine is being operated or
serviced.
THINK
SAFETY!
This message is used for general remind-
ersofgoodsafetypracticesortodirect
attention to unsafe practices. The mes-
sage will appear in your operator’s manu-
al and/or the sign will appear on the ma-
chine with the color combination of yel-
low and black.
CAUTION!
This message denotes a specific poten-
tial hazard. The sign will be displayed on
the machine in areas of potential hazard.
The sign will have the color combination
of yellow and black.
WARNING!
Thismessagedenotesthemostserious
specific potential hazard. The sign will be
displayed on the machine in areas of po-
tential hazard.
DANGER!
Messages labeled ”Important” will ap-
pear in your operator’s manual to provide
specific instructions for performing ad-
justments, services, etc. If these
instruc ---tions are not followed it could re-
sult in damage to the machine.
IMPORTANT!

SAFETY INSTRUCTIONS
CH 140 CHIPPER
www.farmiforest.fi
--- 5 ---
3.GENERAL SAFETY
IMPORTANT!
Do not operate this machine until you have read and
understood the manual page by page.
Theownerofthismachineisresponsiblefor
instructing all operators and support personnel in the
operation and safety precautions of this chipper.
Proper training prior to operating the chipper is
obligatory.
D
DD
D Inform everyone who works with the chipper about the risks and how they can
avoid accidents.
D
DD
D Before the chipper is running, ensure that the working place is clear of any by-
stander within a minimum risk zone of 50 ft. (15 meter).
D
DD
D Do not let children or untrained persons operate the chipper.
D
DD
D Always have the chipper mounted on the 3--point hitch of the tractor. Other-
wise the chipper will tip over.
D
DD
D There is a serious crushing hazard between tractor and chipper. Do not go be-
tween the tractor and the chipper in any case, for example when you are
mounting the chipper to the tractor.
D
DD
D Check that the covers of the universal shaft are in their place and the ransmis-
sion chains are fastened.
D
DD
D Safety goggles, earmuffs and a hard hat are obligatory when chipping. Use
respirator mask, if necessary.
D
DD
D Do not wear loose clothing, loose sleeves, scarves or long uncovered hair
around moving parts of machinery. Also avoid gloves of poor condition or
with loose fitting, because they might get caught in the branches.
D
DD
D Stay alert! Do not operate the chipper when fatigued, or under the influence of
alcohol or drugs.
D
DD
D IMPORTANT! Never leave the chipper running and unattended.
D
DD
D IMPORTANT! Failure to obey the warnings on the chipper or in the operator’s
manual will result in personal injury and / or death and / or equipment dam-
age.
D
DD
D Check the material before you feed it. The material must be free from nails,
stones and all other materials that are not wood, paper or plastic. IMPOR-
TANT! Feeding wire and barbed wire into the chipper is very dangerous as it
might pull in the operator.
D
DD
D Make sure that no one is in the path of flying chips. Point the discharge pipe
away from windows, doorways and other areas where people or animals may
be.
D
DD
D Keep the work area clean so there is nothing to trip over.

SAFETY INSTRUCTIONS
CH 140 CHIPPER
www.farmiforest.fi
--- 6 ---
D
DD
D Disengage the PTO, cut the engine and remove the keys before any mainte-
nance.
D
DD
D Use only original parts replacements. IMPORTANT! Do not make any modifica-
tions.
D
DD
DCheck all moving parts. They should be fastened in place, in good working
condition and all shields and guards must be in place.
D
DD
DPoint the discharge downwind to prevent dust or chips from blowing onto
the operator.
D
DD
DIf a wood jams inside the chipper, cut the engine and wait for all movements
to stop before reaching inside the feed chute.
D
DD
D Do not use the chipper indoors when you use it with a the tractor or with the
separate hydraulic motor. It’s possible to use the chipper indoors with the
electric motor use.
D
DD
D You must be very careful when working indoors. Protect yourself against pos-
sible hazards like exhaust gas by sufficient ventilation, for dust that can catch
fire by cleaning your environment regularly.
D
DD
D Always use the lock bolt before and during maintenance on the machine.
D
DD
D Place the PTO shaft in the holding device when disconnected from tractor.
3.1.ROTATING KNIVES
Risk of cutting injury or hits by flying debris.
Do not reach into the feed chute for any reason.
Failure to follow these instructions could result in serious
injury or death.
Danger!
3.2.SAFETY INSTRUCTIONS FOR THE HYDRAULIC FEEDER AND FEED CHUTE
D
DD
DIMPORTANT! Always also read the general safety instructions.
D
DD
DIMPORTANT! Do not ever put any part of your body inside the feed chute!
D
DD
DPrior to operating get familiar with the function and controls of the machine.
All functions must be in blameless condition.
D
DD
DTest the stop function.
D
DD
DBefore starting up, check that there is no debris or foreign objects in the
feed chute.
D
DD
DDo not work in front of the feed chute opening! Stand on the left side of the
chute when feeding, as the feed roller might jerk the wood up or to the right.
D
DD
DWhen checking malfunction, all controls must be in ”off” or in ”stop” posi-
tion.
D
DD
DLet go of the wood when the feed roller or the knives get hold of it. To feed
short pieces, push them in with longer ones.

SAFETY INSTRUCTIONS
CH 140 CHIPPER
www.farmiforest.fi
--- 7 ---
3.3.SAFETY INSTRUCTIONS FOR THE HYDRAULIC UNIT
D
DD
DBefore performing lubrication work on any equipment, consult the manufac-
turer’s instruction manual and follow the recommended procedures.
D
DD
DBefore lubricating the machine, shut down the engine and stop the ma-
chine.
D
DD
DPressurized oil can be hazardous. Pressurized oil jet can penetrate skin and
cause serious injuries or death.
D
DD
DOccasional skin exposure with oil is not dangerous. If though you can not
prevent long ---time exposure use protective gloves and other protective
clothing.
D
DD
DKeep flammable material away from heat, sparks and open fire.
D
DD
DHot oil and oil spray can be hazardous. Small amounts swallowed or inhaled
do not usually cause toxication. Old oil is more dangerous than new.
D
DD
DIf oil has got into eyes flush them with cool water after which go to doctor.
Use safety goggles.
D
DD
DAvoid mixing lubricants of different grade and quality. Use only recom-
mended oils or oils with corresponding characters.
3.4.SAFETY INSTRUCTIONS FOR THE SEPARATE HYDRAULIC MOTOR USE
D
DD
D Check the moving parts. They should be fastened in place, in good working
condition and all shields and guards must be in place.
D
DD
D Inform everyone who works with the chipper about the risks and how they can
avoid accidents.
D
DD
D Do not let children or incapable persons operate the chipper.Do not wear loose
clothing, loose sleeves, neckties or long uncovered hair around moving parts
of machinery.
D
DD
D Disengage the PTO and turn the tractor off before you service the chipper.
D
DD
D Use only original parts replacements. Do not make any modifications.
D
DD
D Failure to obey the warnings printed on the chipper or in the operator’s manual
might result in a serious injury or death.
D
DD
D When checking the malfunction, all devices must be in “off” position.
D
DD
D Place the PTO shaft in the holding device when disconnected from tractor.

TABLE OF CONTENTS
CH 140 CHIPPER
www.farmiforest.fi
--- 8 ---
1. TO THE OWNER---OPERATOR 3................................
2. SAFETY INSTRUCTIONS 4.....................................
2.1.TERMS AND SYMBOLS USED IN INSTRUCTIONS 4.....................
3. GENERAL SAFETY 5...........................................
3.1.ROTATING KNIVES 6..................................................
3.2.SAFETY INSTRUCTIONS FOR THE HYDRAULIC FEEDER
ANDFEEDCHUTE 6..................................................
3.3.SAFETY INSTRUCTIONS FOR THE HYDRAULIC UNIT 7................
3.4.SAFETY INSTRUCTIONS FOR THE SEPARATE
HYDRAULIC MOTOR USE 7...........................................
4. CHIPPER PRESENTATION 11...................................
4.1. FIELD OF APPLICATION 11...........................................
4.2. MAIN COMPONENTS 11...............................................

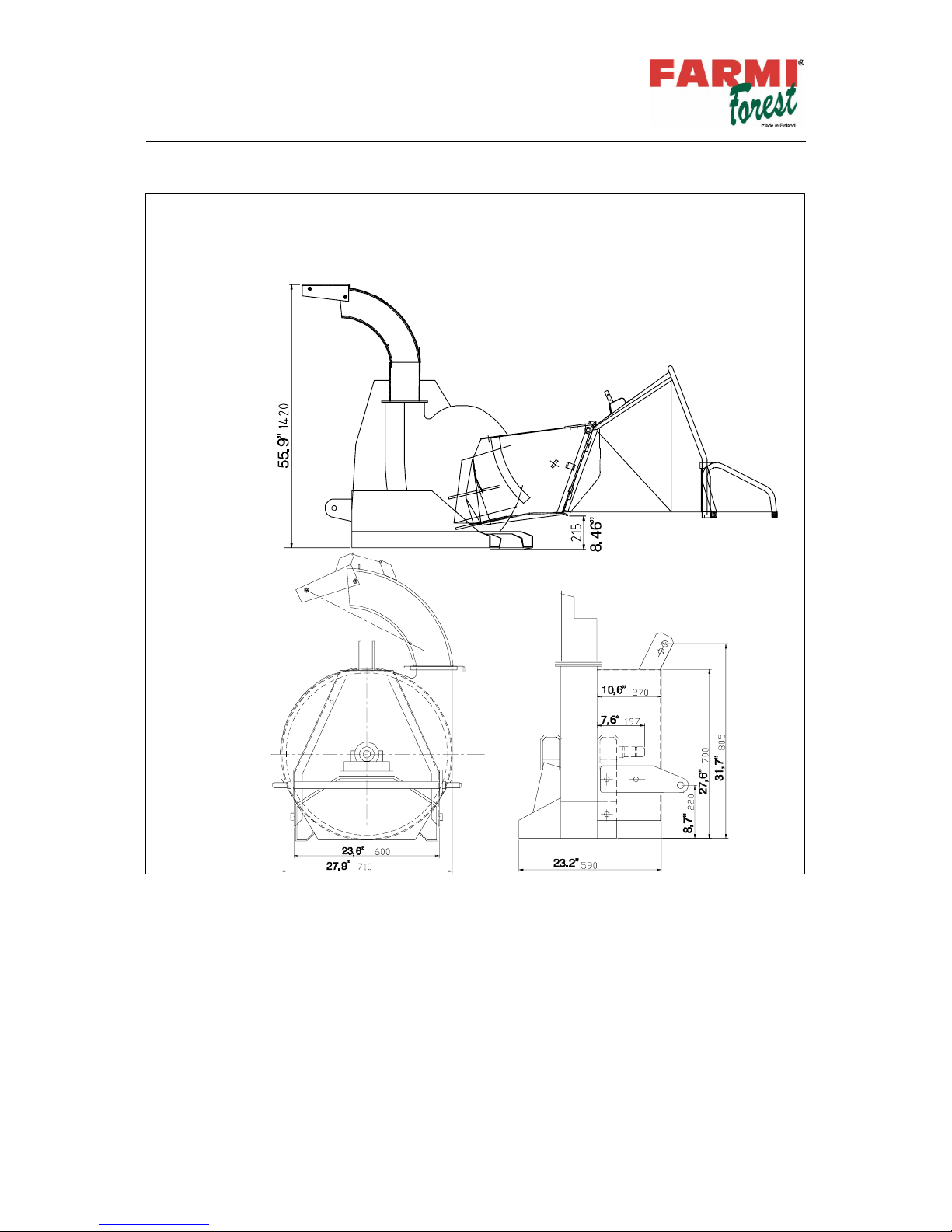

4.3. DIMENSIONS 12......................................................
4.4. CHIPPER ACCESSORIES 12............................................

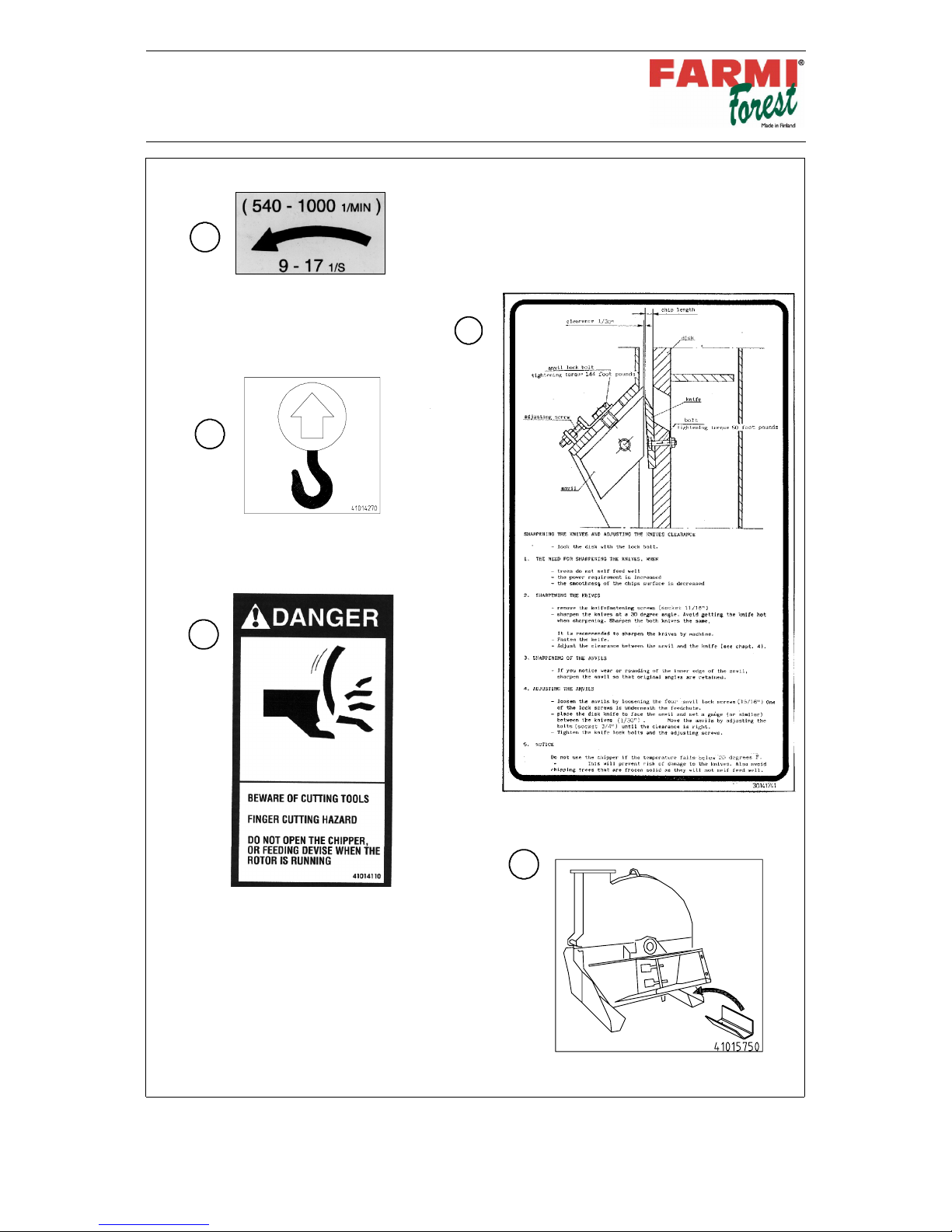

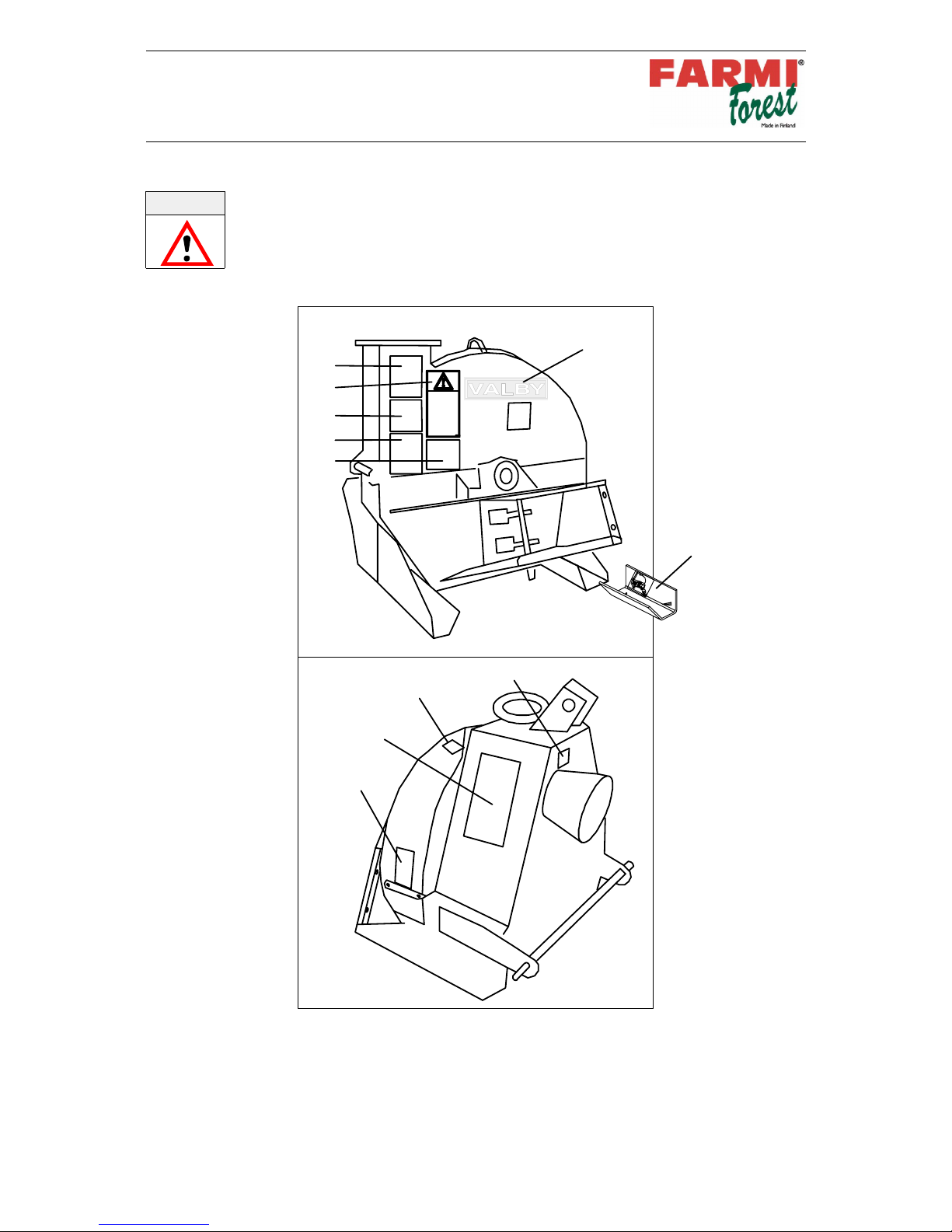

4.5. PLATES AND STICKERS FOR THE CHIPPER 13.........................
43511730 Plates and stickers for chipper CH 140 16..............................
5.TRAFFICONPUBLICROADS 17.................................
5.1.TRANSPORT POSITION 17.............................................
6.PREPARATIONS FOR START UP 17..............................

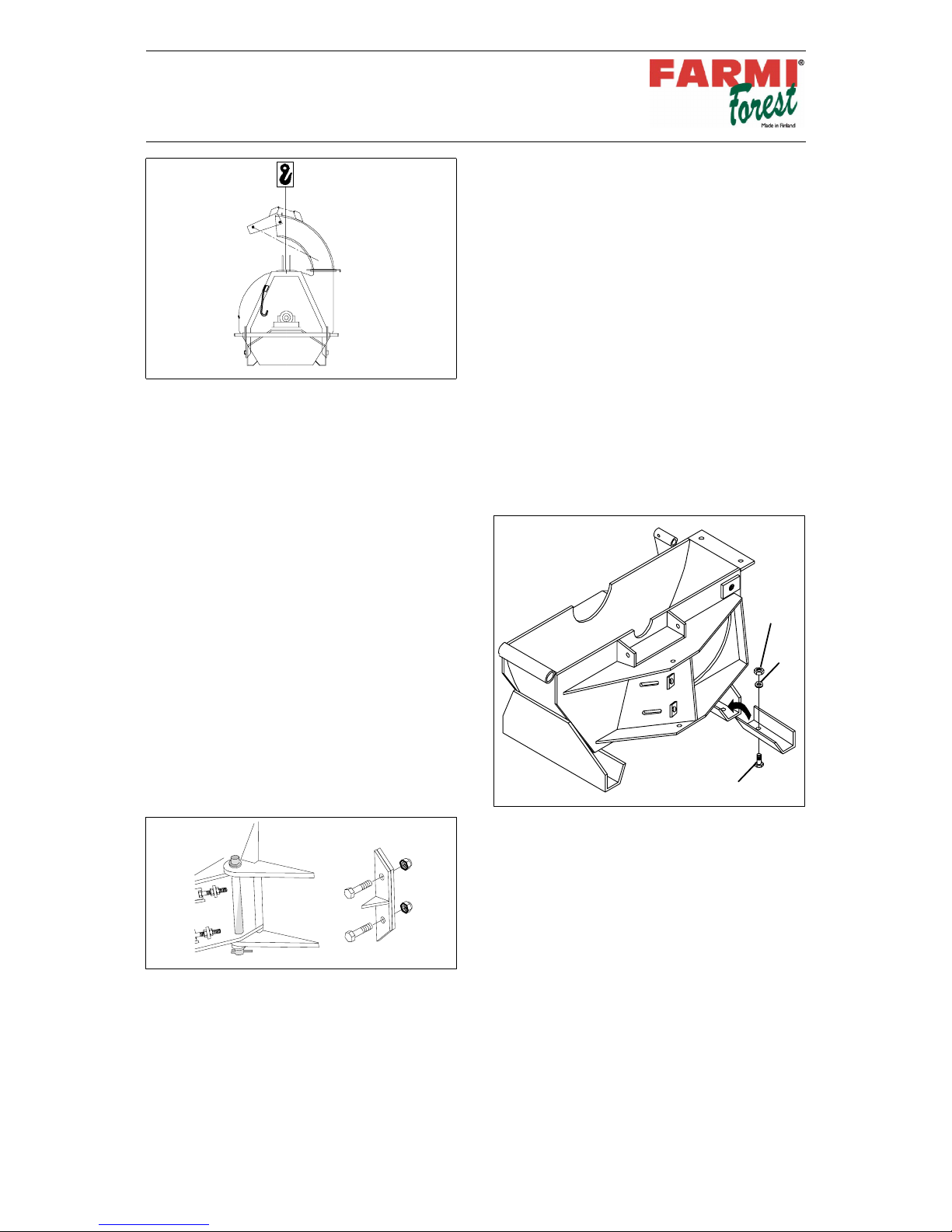

6.1.LIFTING 17...........................................................
6.2.MOUNTING THE CHIPPER UNIT 18....................................
6.3.MOUNTING THE EXTENSION PLATE 18...............................
6.4.PTO---SHAFT 19.......................................................
6.4.1.CUTTING THE PTO SHAFT TO THE CORRECT LENGHT 19............
7.OPERATING THE CHIPPER 20..................................
7.1.SAFETY WHEN OPERATING 20........................................
7.2.PRIOR TO OPERATING 20.............................................
7.3.STARTING THE CHIPPER 21...........................................
7.4.CHIPPING 21..........................................................
7.5.REDUCING THE POWER REQUIRED. 22...............................
7.6.PROCEDURES AFTER OPERATING 22.................................
7.6.1.CLEARING THE CHIPPER 22.........................................
7.6.2.TURNING THE CHIPPER OFF IN TRACTOR USE 22...................
7.6.3.TURNING THE CHIPPER OFF IN HYDRAULIC MOTOR USE 23........
7.7.PARKING THE CHIPPER 23............................................

TABLE OF CONTENTS
CH 140 CHIPPER
www.farmiforest.fi
--- 9 ---
8.SAFETY MAINTENANCE AND SERVICE 24.......................
8.1. BEFORE LUBRICATION AND MAINTENANCE 25......................
8.2. LUBRICATION 25.....................................................
8.2.1.LUBRICATING THE BEARINGS 25....................................
8.2.2.LUBRICATING THE PTO SHAFT 25...................................
8.3. BEARINGS 26.........................................................
8.3.1.REPLACING THE BEARINGS 26......................................
8.3.2.ADJUSTING THE BEARING CLEARANCE 27..........................
8.4. CHANGING THE SPLINED AXLE 28...................................
8.5. KNIVES AND ANVILS 29..............................................
8.5.1.SHARPENING THE KNIVES 29........................................
8.5.2.ADJUSTING THE CLEARANCE BETWEEN THE KNIVES
AND THE HORIZONTAL ANVIL 30....................................
8.5.3.SHARPENING THE ANVIL 31.........................................
8.6. TIGHTENING THE BOLTS 32..........................................
8.6.1.TORQUES AND CLEARANCES 32.....................................
9. MAINTENANCE AND LUBRICATION SCHEME 33.................
10. TROUBLE SHOOTING 34......................................
11. STORING AND DISCARDING 35...............................
11.1. STORING THE CHIPPER 35..........................................
11.2. DISCARDING THE CHIPPER 35......................................
12.CRIME PREVENTION 35.......................................
13.TECHNICAL DATA 36..........................................
13.1. DIRECTIVES AND STANDARDS APPLIED 36..........................
13.1.1.UNIFIED STANDARDS 36...........................................
13.1.2.NATIONAL STANDARDS 36.........................................

TABLE OF CONTENTS
CH 140 CHIPPER
www.farmiforest.fi
--- 1 0 ---
SPARE PARTS
03510120 Discharge pipe 37................................................
03514410 CH 140 Chipper 38...............................................
Bearing, feeder side 42.....................................................
Bearing, splined axle side 43...............................................
Mounting frame assy, Drawbar assy 44......................................
03342144 F150 Mechanical feed chute 45....................................
M4 PTO SHAFT 46.........................................................
WHEN ORDERING SPARE PARTS, PLEASE INDICATE MACHINES TYPE FROM THE MACHINE PLATE,
SPARE---PARTS ORDER NUMBER, DESCRIPTION AND QUANTITY REQUIRED.
EXAMPLE: CH140, 43510220, Knife, 2 pcs.

CHIPPER PRESENTATION
CH 140 CHIPPER
www.farmiforest.fi
--- 1 1 ---
4. CHIPPER PRESENTATION
4.1. FIELD OF APPLICATION
CH140 is a multi purpose chipper for processing small---sized wood up to Ø 6,3” (160 mm). It produces
uniform chips to be used as fuel. CH140 is a mobile, light--- weight machine for handling all kinds of wood
waste from parks, roadsides and other environmental cleaning. The chipper can be fittedwith a separate
hydraulic power feed.
4.2. MAIN COMPONENTS
1. UPPER CHAMBER
2. LOWER CHAMBER
3. DISC
4. KNIVES
5. VERTICAL ANVIL
6. HORIZONTAL ANVIL
7. TWIG BLADE
8. DISCHARGE CHUTE
9. LID
10.HOLDING DEVICE FOR THE PTO SHAFT
13
2
5
7
8
6
4
910
Fig.1. Main parts.

CHIPPER PRESENTATION
CH 140 CHIPPER
www.farmiforest.fi
--- 1 2 ---
4.3. DIMENSIONS
Fig.2. Dimensions of CH 140
4.4. CHIPPER ACCESSORIES
DSingle or dual motor hydraulic feed, manual or gravity hopper
DIndependent hydraulic unit HD11
DSeparate hydraulic motor drive HD 100
DSkid Steer adaptation
DTransmission T160

PLATES AND STICKERS
CH 140 CHIPPER
www.farmiforest.fi
--- 1 3 ---
4.5. PLATES AND STICKERS FOR THE CHIPPER
IMPORTANT!
Do not remove any plate or sticker placed by the
manufacturer on the chipper or the accessories.
Replace missing ones immediately. You can order
them as a spare parts.
1
2
3
4
5
6
8
7
9
10
11

PLATES AND STICKERS
CH 140 CHIPPER
www.farmiforest.fi
--- 1 4 ---
3.
4. 5.
401420803pc
1pc 41011750
1pc 41014140
CH 140
1.
30140602
1pc.
2.
1pc.
6.
41014170 1pc.
41014310

PLATES AND STICKERS
CH 140 CHIPPER
www.farmiforest.fi
--- 1 5 ---
41014270
5pc
30141147
1pc.
41014110
2pc.
10.
9.
8.
7.
40141160
1pc
41015750
1pc.
11.

PLATES AND STICKERS
CH 140 CHIPPER
www.farmiforest.fi
--- 1 6 ---
43513680 Plates and stickers for chipper CH 140.
Part Order no. Description Remarks Qty.
1. 30140602 VALBY---sticker 1.... ..... ...................................................
2. 41014310 Safety precautions 1.... ..... ................................................
3. 41011750 Machine plate 1.... ..... ....................................................
4. 40142080 Safety goggles, earmuff and a hard hat are oblicatory when chipping 3.... ..... ...
5. 41014140 Do not operate this machine until the owner’s manual has been.... .....
completely read and understood 1...................... ...................................
6. 41014120 Safety precautions before maintaining the chipper 1.... ..... ....................
7. 40141160 Rotation speed and rotation direction of the PTO shaft 1.... ..... ................
8. 30141147 Sharpening the knives 1.... ..... .............................................
9. 41014270 Lifting point 1.... ..... ......................................................
10. 41014110 Beware of cutting tools 2... ..... ............................................
11. 41015750 Mounting the extension plate 1... ..... .......................................

ASSEMBLY AND MOUNTING
CH 140 CHIPPER
www.farmiforest.fi
--- 1 7 ---
5.TRAFFICONPUBLICROADS
IMPORTANT!
Prior to every procedure
always recall the general
safety instructions given in
chapter 3.
Follow these special instructions to
avoid risks of accidents. Otherwise the
manufacturerorretailerwillnot
assume any liability for damage.
You shall have full control of the unit in
every situation when driving.
Bumpy driving might damage the
chipper / the feeding device.
Always follow the regulations
established by the law.
5.1.TRANSPORT POSITION
1. Open the pawl lever of the feed chute and
turn the chute aside. Disconnect one end of
the control lever from the valve and lock the
chute into transport position.
2. Turn the discharge chute into transport
position.
3. Before driving off, ensure the machine unit’s
appropriate stability and check that the
chipper is firmly connected to the tractor and
all fasteners are in place.
IMPORTANT!
Make sure that the rear
lights of the tractor are
visible. Use a separate light
panel, if needed.
6.PREPARATIONS FOR START
UP
Do not attempt to operate
this chipper without
proper training. Read and
understand the owner’s
manual before operating
the machine.
WARNING !
Failure to heed the warnings printed on
the chipper or in the operators manual
mightresultinseriousinjuryordeath!
6.1.LIFTING
IMPORTANT!
Prior to every procedure
always recall the general
safety instructions given in
chapter 3.
Make sure that nobody will
enter the lifting zone.
DANGER!
Always check before
lifting that the lifting
equipment is in order and
use the marked lifting
points, whenever
possible. Always use
proper lifting equipment
and check for its sufficient
lifting capacity.
CAUTION!
Know the weight of the load and check
that the performance of the lifting
equipment will not be exceeded.
Check the hoisting cables and chains
regularly. Mark any discarded cable
and remove it immediately.

ASSEMBLY AND MOUNTING
CH 140 CHIPPER
www.farmiforest.fi
--- 1 8 ---
Weight , 530 lbs
240 kg
Fig.3. CH140 lifting point.
6.2.MOUNTING THE CHIPPER UNIT
1. Mount the 3---point hitch lift bar to the
chipper frame.
2. Tighten the nuts with a 1 3/16” or 30 mm
wrench to 190 foot---punds (260 Nm).
3. Mount the feeding device to the chipper with
a hinge pin and, from the other side, with two
M12x40 bolts and M12 nuts. See fig. 4. (If
you use a hydraulic feeder, refer to separate
manual for instructions on mounting and
connecting the hydraulics.)
4. Connect the discharge chute to the chipper
with three M10 bolts and nuts. Adjust the lid
control with the rod.
5. A Power Take---Off shaft (PTO shaft)
transfers the power to the chipper. The
chipper has a 1 3/8” diameter 6 spline PTO
hookup.
6. Check for the correct length of the PTO shaft.
(Refer to 6.4.)
Fig.4.
DTurn off the engine.
DLower the chipper on its legs on a hard, level
surface.
DTurn the chipper’s axle by hand to ensure
that the disk can turn freely and that thereare
no foreign objects in the chipper.
DLook inside feedchute to ensure that it is
empty.
DMake sure that all shields are in place and in-
tact. Removal of the shields is prohibited!
DDirect the discharge chute in desired posi-
tion.
6.3.MOUNTING THE EXTENSION
PLATE
DIf better stability is needed, use the extension
plate. Look also spare parts.
M12
M12
M12x30
Fig.5. Mounting the extension plate.

ASSEMBLY AND MOUNTING
CH 140 CHIPPER
www.farmiforest.fi
--- 1 9 ---
6.4.PTO---SHAFT
IMPORTANT!
If the tractor has a
P T O --- b r a k e ( f o r e x a m p l e
Ford), you have to use an
overrunning clutch. Shaft
recommendations:
M4SLC
6.4.1.CUTTING THE PTO SHAFT TO
THE CORRECT LENGHT
If the PTO shaft is too long
it might bind when the
three point hitch is lifted
up. Damage might be
caused to the bearings of
the chipper or to the PTO
of the tractor. If the PTO
shaft is too long it must be
cut. Both PTO halves must
be shortened by equal
amounts.
CAUTION!
1. Mount the chipper on the three---point hitch
of the tractor.
2. Cut the engine and remove the keys. Lower
the chipper on a firm and level surface.
3. Check that the splined shafts of the tractor
and chipper are on the same level.
4. Connect one shaft half to the chipper PTO
and the other half to the tractor PTO. Put the
PTO halves side by side so that one shaft
end is 1” from the PTO---end of the chipper.
Mark the length required. The tubes must be
so short that they cannot reach the bottom in
any chipper position. Cut the plastic tube.
Refer to fig. 6.---7.
Fig.6.
Fig.7.
5. Cutaprofiletubepieceofsimilarlengthas
the plastic tube piece. Shorten the other PTO
shaft similarly. Finish by filing the sharp
e d g e s . S e e f i g . 8 . --- 9 .
Fig.8.
Fig.9.

OPERATING INSTRUCTIONS
CH 140 CHIPPER
www.farmiforest.fi
--- 2 0 ---
7.OPERATING THE CHIPPER
7.1.SAFETY WHEN OPERATING
Prior to any procedure
also recall the general
safety instructions in
chapter 3.
IMPORTANT!
Inform everyone who
works with the chipper
about the risks and how
they can avoid accidents.
CAUTION!
Never leave the chipper
running and unattended.
Do not ever stand
between the tractor and
the chipper.
DANGER!
Before the chipper is running,
ensure that the working place is
clearofanybystanderwithina
minimum risk zone of 50 ft. (15
meter).
Do not let children or untrained
persons operate the chipper.
Do not use the chipper
disconnected from the power
source.
When using a tractor, always have
the chipper mounted on the 3---point
hitch of the tractor. Otherwise the
chipper will tip over.
Check that the covers of the PTO
shaft are in their place and the
transmission chains are fastened.
Safety goggles, earmuffs and a hard
hat are obligatory when chipping.
Use respirator mask, if necessary.
Do not wear loose clothing, loose
sleeves, scarves or long uncovered
hair around moving parts of
machinery. Also avoid gloves of
poor condition or with loose fitting,
because they might get caught in
the branches.
Stay alert! Do not operate the
chipperwhenfatiguedorunderthe
influence of alcohol / drugs.
7.2.PRIOR TO OPERATING
1. Disengage the PTO, cut the engine and re-
move the keys.
2. Lowerthechipperonitslegsonahard,even
ground as shown in picture below, so that it
will not tip over.
OK!
Fig.10. Choose a level ground.
3. Checkforthefreerotationofthediskbytur-
ning the chipper axle by hand. Also check for
any foreign object in the chipper and the
feed chute.
4. Make sure that all covers are in place and in-
tact. Do not ever remove any cover!
5. Direct the discharge tube into desired positi-
on.
The PTO shaft of a new
chipper needs lubricating
prior to use!
IMPORTANT!
