Introduction
e process of updating virus pattern files on workstations protected by Deep Freeze Enterprise
involves three fundamental steps:
1. Rebooting the workstations into a awed state so the updates are kept upon restart
2. Updating the virus pattern file
3. Shutting down or restarting the workstation into a Frozen state
is white paper provides technical information on how to approach these steps with Trend Micro
OfficeScan.
Deep Freeze is not marketed as an antivirus product. However, Deep Freeze will
protect workstations from any virus. Just restart the Frozen workstation and the virus
is gone. Many viruses require a fundamental change to be made to the core files and
only become active on restart. With Deep Freeze installed and activated, these viruses
will be deleted upon restart and therefore never become active.
Ensure the BIOS is set to boot directly to the C: drive and that the BIOS is protected
with a password; failure to do so can result in boot sector viruses being transferred to
the hard disk drives via infected floppy disks.
Setting the Workstations to a Thawed state
In order to make any permanent changes, the workstations protected by Deep Freeze have to be set
into a awed state. ose permanent changes include antivirus updates; therefore, the workstations
must be rebooted into a awed state before applying these updates.
ere are basically three ways to remotely set workstations into a awed state:
• By manually using the Deep Freeze Enterprise Console
• By setting up an Scheduled Maintenance Period
• By using the Command Line Control


3
Manually Using the Deep Freeze Enterprise Console

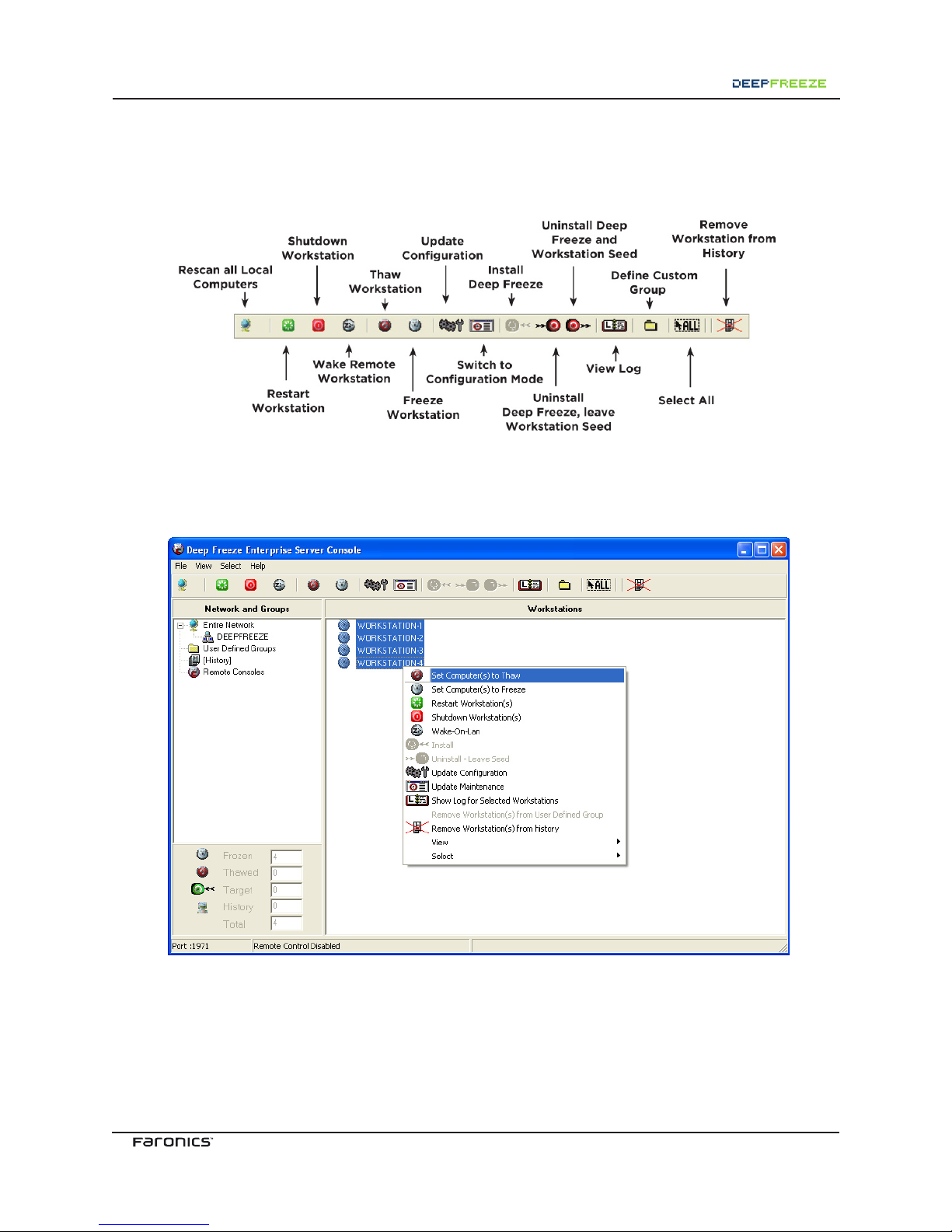

e Enterprise Console contains a toolbar at the top of the screen that allows quick access to the
functions of the Console.
To boot a workstation into the awed state, select the workstation and click the aw Workstation
icon on the toolbar.
Alternatively you can right-click and select the Set Computer(s) to aw option in the context menu.
Click OK in the confirmation window.
e selected workstations restart in the awed state.


4
Setting up a Scheduled Maintenance Period
ere are two ways to set up a Scheduled Maintenance Period. One is to set it up when configuring
the Deep Freeze Enterprise installation files with the Configuration Administrator (best method for
new deployments). e other way is to create or update the Maintenance Period using the Enterprise
Console. Assuming Deep Freeze is already deployed throughout your network, the following
instructions elaborate on how to create/update the Maintenance Period with the Enterprise Console.
1. Open the Enterprise Console, select any workstation, and right-click on it.
2. Select Update Maintenance. A red bar appears at the bottom of the screen.
3. Click New. e Configuration Screen appears. It only contains the Restart/Shutdown,
Maintenance, and Advanced Maintenance options.


5

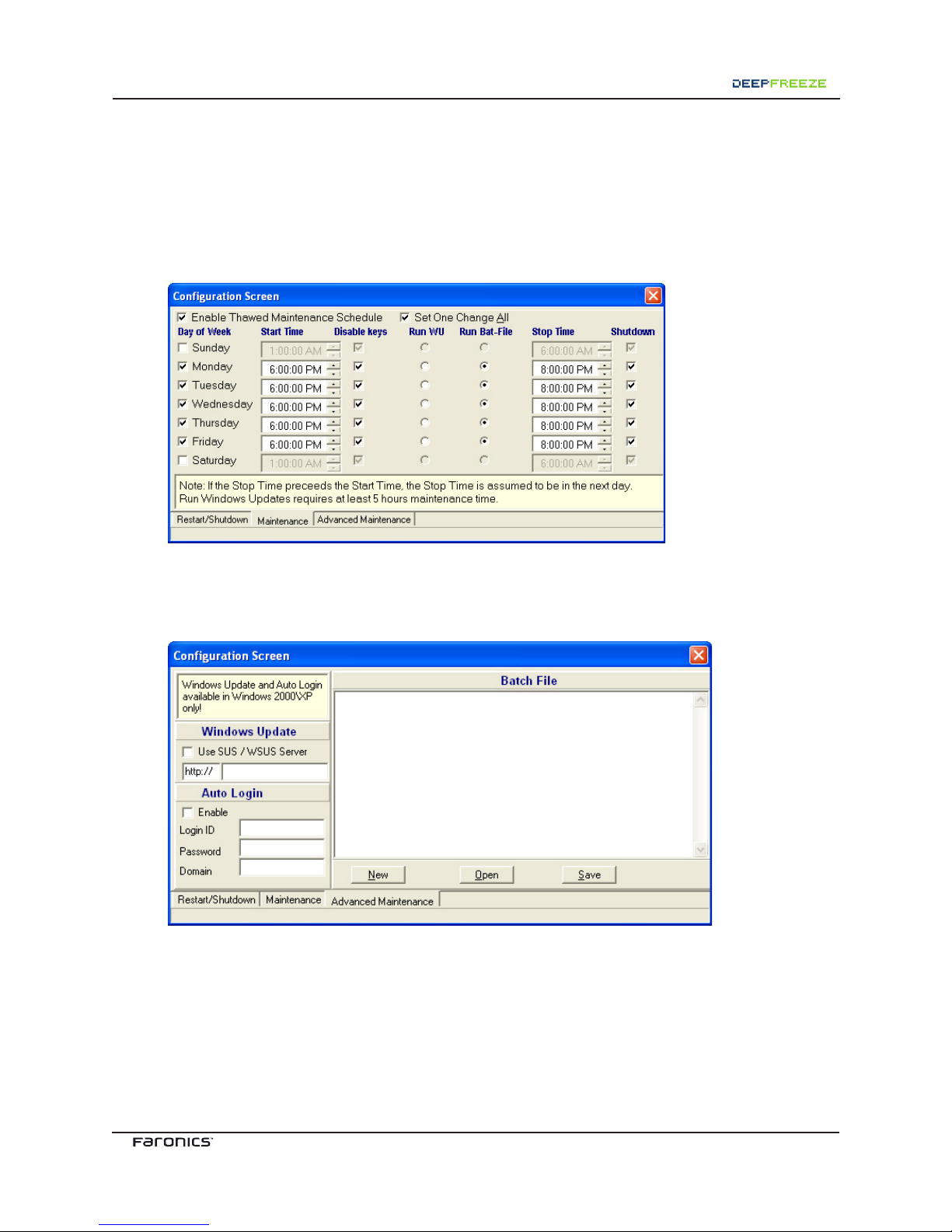

4. Click the Maintenance tab and place a check in the Enable awed Maintenance Schedule
check box. Also, place a check beside each day you want the Maintenance Schedule to run.
5. Once the days are checked, set the Maintenance start time for each day in the Start Time
column, and the end time in the Stop Time column.
6. It is recommended that the Disable keys option is checked so the keyboard and mouse are
disabled while the workstations are in the awed state.
Also, it is important to check the Shutdown box so Deep Freeze shuts the workstations down
at the end of the Maintenance Period. Otherwise, the workstations are restarted aer the
maintenance Period is complete.
7. Close the Configuration Screen. A pop-up message appears requesting the administrator to
select the workstations to send the new configuration to.
8. Select the workstations to be updated and click Send.
is action updates all the selected workstations’ configuration on the fly. is means that the
workstations don’t have to be in the awed state for the configuration updates to take place.
Controlling Deep Freeze through the Command Line Control - DFC
e Deep Freeze Command Line Control (DFC) offers network administrators increased flexibility
in managing Deep Freeze workstations. DFC works in combination with third party enterprise
management tools and/or central management solutions. is combination allows administrators to
update workstations on the fly and on demand.
It is important to note that DFC is not a stand-alone application. DFC integrates seamlessly with any
solution that can run script files, including standard run-once login scripts.
e DFC executable is installed in the same directory as the Configuration Administrator:
C:\Program Files\Faronics\Deep Freeze Enterprise\Dfc.exe
DFC commands require a password with command line rights. One Time Passwords (OTPs) cannot
be used.
DFC Boot Control
Syntax Description
DFC password /BOOTTHAWED Restarts workstation into a awed state. Only works on Frozen
workstations.
DFC password /THAWNEXTBOOT
Sets up workstation to restart awed the next time it restarts.
Only works on Frozen workstations. Does not force workstation
to restart.
DFC password /BOOTFROZEN Restarts workstation into a Frozen state. Only works on awed
workstations.
DFC password /FREEZENEXTBOOT
Sets up workstation to restart Frozen the next time it restarts.
Only works on awed workstations. Does not force workstation
to restart.


6
DFC Status Query
Syntax Description
DFC get /ISFROZEN Queries workstation if it is Frozen. Returns 0 if awed.
Returns 1 if Frozen.
Configuration Update
Syntax Description
DFC password /CFG=[path] depfrz.rdx
Replaces Deep Freeze configuration information.
Works on awed or Frozen workstations.
Password changes are effective immediately.
Other changes require restart.
Example Batch File
Below is a sample batch file that can be modified for use with any antivirus soware that supports
updating through a command line.
@ECHO OFF
\\SERVER\SHARE\FOLDER\DFC.EXE get /isfrozen
IF ERRORLEVEL 1 GOTO FROZEN
IF ERRORLEVEL 0 GOTO THAWED
ECHO Errors where encountered running the command line control on this
workstation.
:FROZEN
\\SERVER\SHARE\FOLDER\DFC.EXE password /bootthawed
GOTO END
:THAWED
REM **********************************************************************
REM * Insert the command to update the antivirus software here. *
REM **********************************************************************
\\SERVER\SHARE\FOLDER\DFC.EXE password /freezenextboot
REM Send commands to reboot the system.
REM For Windows 95/98/ME
RUNDLL32 SHELL32.DLL,SHExitWindowsEx 2
REM For Windows 2000 (may need to be called 2x)
RUNDLL32 USER32.DLL,ExitWindowsEx 2
RUNDLL32 USER32.DLL,ExitWindowsEx 2
REM For Windows XP
SHUTDOWN -s -t 01
GOTO END
:END


7
Updating the Virus Definitions
is document provides six different ways to approach virus patterns updates for the Trend Micro
OfficeScan.
1) Do Nothing
e virus patterns keeps getting updated every time the workstations are restarted, but the changes are
lost upon reboots. On fast-switched networks, this has negligible impact on the boot-up time.
e workstations have the latest pattern at all times; the only down side of this method is that, with
time, the patterns will keep growing bigger. erefore, it is recommended to schedule a awed
Maintenance Period at least twice a year to make the updates permanent.
2) Manually update the New Virus Patterns
Using the Enterprise Console, set the workstations to reboot into the awed state. Once the computers
are back on, access the OfficeScan Management Console.

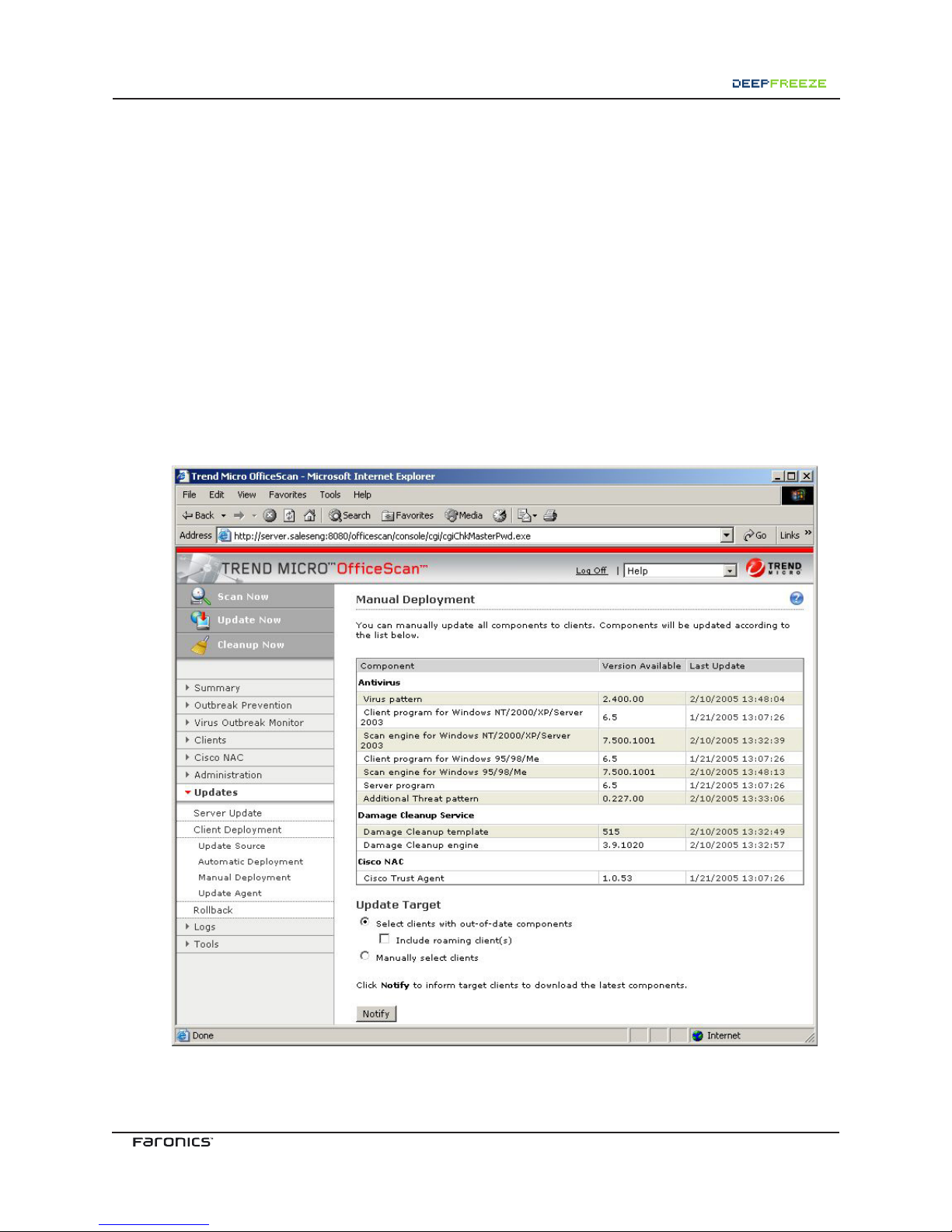

On the le menu, click Updates, select Client Deployment > Manual Deployment. Click Notify.
Follow the steps as prompted. e server and the workstations are updated with the latest virus
pattern.


8
3) Scheduling Virus Pattern Files Updates
1. Using the Deep Freeze Enterprise Console, schedule a Maintenance Period as per instructions
on p. 4-5.
2. Open the OfficeScan Management Console. On the le menu click Updates.
3. Select Client Deployment > Automatic Deployment.
Under the Deployment Schedule section check Enable scheduled deployment.
4. In our example, we set Deep Freeze Enterprise to have a maintenance window Monday
through Friday from 18:00 to 20:00. It is important to give the workstations enough time to
reboot into the awed state. Fieen minutes is sufficient.
5. Click the Daily radio button, set the starting time at 18:15, and leave the deployment period
in one hour. Click Save to update the settings.


9
4) Configure Deep Freeze Enterprise to Run a Batch File that Updates the Virus
Pattern File
1. Open the Deep Freeze Enterprise Console and follow the steps on p. 4 to set up a Scheduled
Maintenance Period.
2. Check the Run Bat radio button to allow the workstations to run a batch file automatically
during the Maintenance period.
3. Click the Advanced Maintenance tab and enter the following line in the Batch File window.
\\SERVER\OFCSCAN\AUTOPCC.EXE
is command triggers the update and the virus pattern file downloads from the server.
\\SERVER\OFCSCAN\AUTOPCC.EXE


10
5) Updating Virus Patterns via a Batch File in a Third-Party Desktop Management
Solution
Virus pattern files can be also updated running a batch file from a Desktop Management soware such
as Novell ZenWorks, Altiris, Microso SMS, BigFix, etc. You can add a task that runs the following
batch file.
@ECHO OFF
\\SERVER\SHARE\FOLDER\DFC.EXE get /isfrozen
IF ERRORLEVEL 1 GOTO FROZEN
IF ERRORLEVEL 0 GOTO THAWED
ECHO Errors where encountered running the command line control on this
workstation.
:FROZEN
\\SERVER\SHARE\FOLDER\DFC.EXE password /bootthawed
GOTO END
:THAWED
REM **********************************************************************
\\SERVER\OFCSCAN\AUTOPCC.EXE
REM **********************************************************************
\\SERVER\SHARE\FOLDER\DFC.EXE password /freezenextboot
REM Send commands to reboot the system.
REM For Windows 95/98/ME
RUNDLL32 SHELL32.DLL,SHExitWindowsEx 2
REM For Windows 2000 (may need to be called 2x)
RUNDLL32 USER32.DLL,ExitWindowsEx 2
RUNDLL32 USER32.DLL,ExitWindowsEx 2
REM For Windows XP
SHUTDOWN -s -t 01
GOTO END
:END


11
6) Mounted Hard Disks
is method does not involve setting the workstations into a awed state before making the updates
but rather mounting awed partitions so the virus definitions updates can take place while the
workstations are in the Frozen state.
Windows 2000 introduced the ability to mount a hard disk drive or partition to an empty folder on
an existing hard disk drive instead of assigning a drive letter to that partition. is allows a drive to be
accessed using a standard Windows path, as opposed to the traditional drive letter. is allows users to
expand the storage available in a specific directory simply by adding another hard disk, without having
to change the directory structure of the hard disk or the location of saved data.
For example, if a user’s workstation contains a large number of documents in the user profiles and
the hard disk drive is filled, an administrator can add a second hard disk and move the user’s data to
that drive. e drive can be mounted with the user’s data in the same location aer the data has been
moved, making the process transparent to the user.
Steps to Ensure a Successful Deployment
Ensure that the Windows 2000/XP system drive is using the NTFS file system. e ability to mount
partitions as paths is not available with the FAT32 file system.
Ensure that adequate free space is available on the workstation’s hard disk drive to accommodate the
newly created partitions. e complete workstation image should be evaluated to determine what
folders need to be recreated as drives on the workstation to allow the applications to function as
required. Any application that is mounted as a drive can be damaged, uninstalled, or changed because
the files located on the secondary partition are not protected by Deep Freeze.
Only directories that require being awed should be opened and only enough space for the applications
to run properly should be freed. Leaving a large amount of free data space open could allow users to
load files into the workstation or install applications that are unauthorized or unwanted. Steps can be
taken to ensure that only administrators or authorized personnel can have access to modify the files
contained in these partitions.
A combination of proper application of the Windows security policy and the use of NTFS file access
rights can effectively protect the awed directory. For more information on Windows 2000/XP system
and security policies, refer to the link below:
How to maintain Windows security: http://www.microso.com/windows/security/
Refer to your imaging solution documentation for information regarding imaging
with mounted drives. Workstations should be imaged either in RAW format or in a
sector by sector mode. (For example: using the -ID switch in Symantec Ghost).
Aer all concerns have been addressed, the folders that need replacement are documented, and the
size requirements of the partitions have been determined, a new master image can be created or an
existing image can be modified.


12
Preparing the Windows 2000 / XP Workstations for OfficeScan Installation on
Mounted Partitions
Some OfficeScan Antivirus scan engine updates make modifications to the Windows
Registry and, since this is protected by Deep Freeze, we strongly recommend that the
following method be used just for virus definitions updates.
e following steps detail the procedure for installing common antivirus soware on the workstations
in a manner that allows automatic updates to proceed correctly.

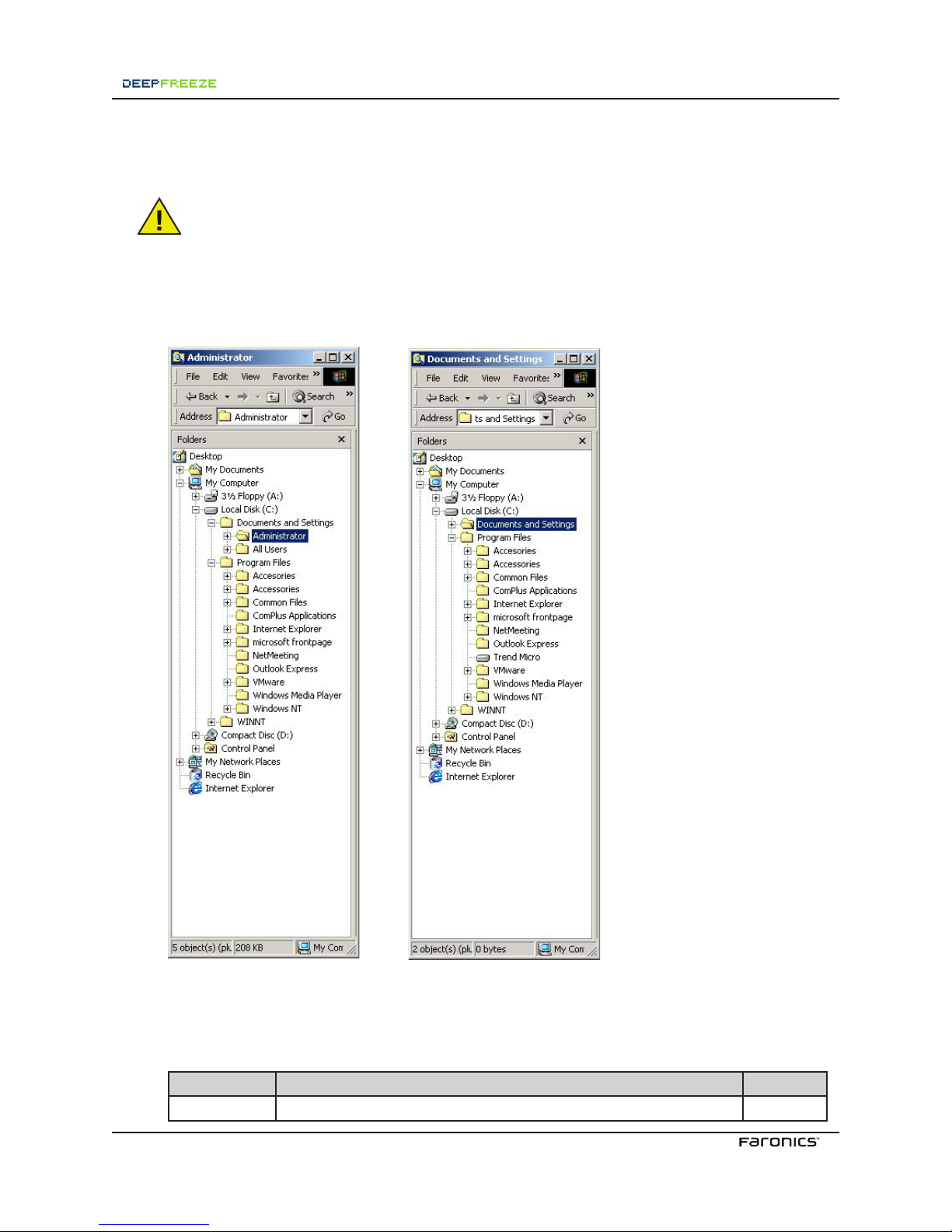

Below are before and aer screen shots of the installation of Trend Micro OfficeScan using the default
options:
e installation of Trend Micro OfficeScan creates one new directory on the workstation:
C:\Program Files\Trend Micro
To ensure that the application has the ability to apply full updates to the virus definitions, the C:\
Program Files\Trend Micro folder must be recreated as a partition.
Partition # Name of Folder the Partition Replaces Drive Size
1 C:\Program Files\Trend Micro 120MB


13
e partition size has been selected to allow Trend Micro OfficeScan enough room to be able to update
the files that it uses. Because these are going to be moved to a new drive, the size limit of 120 MB is
enforced, regardless of how much free space remains on the C:\ drive.
e first step in creating the additional partitions required is to create an extended partition that stores
the additional partitions using the Disk Management feature of the Computer Management console.

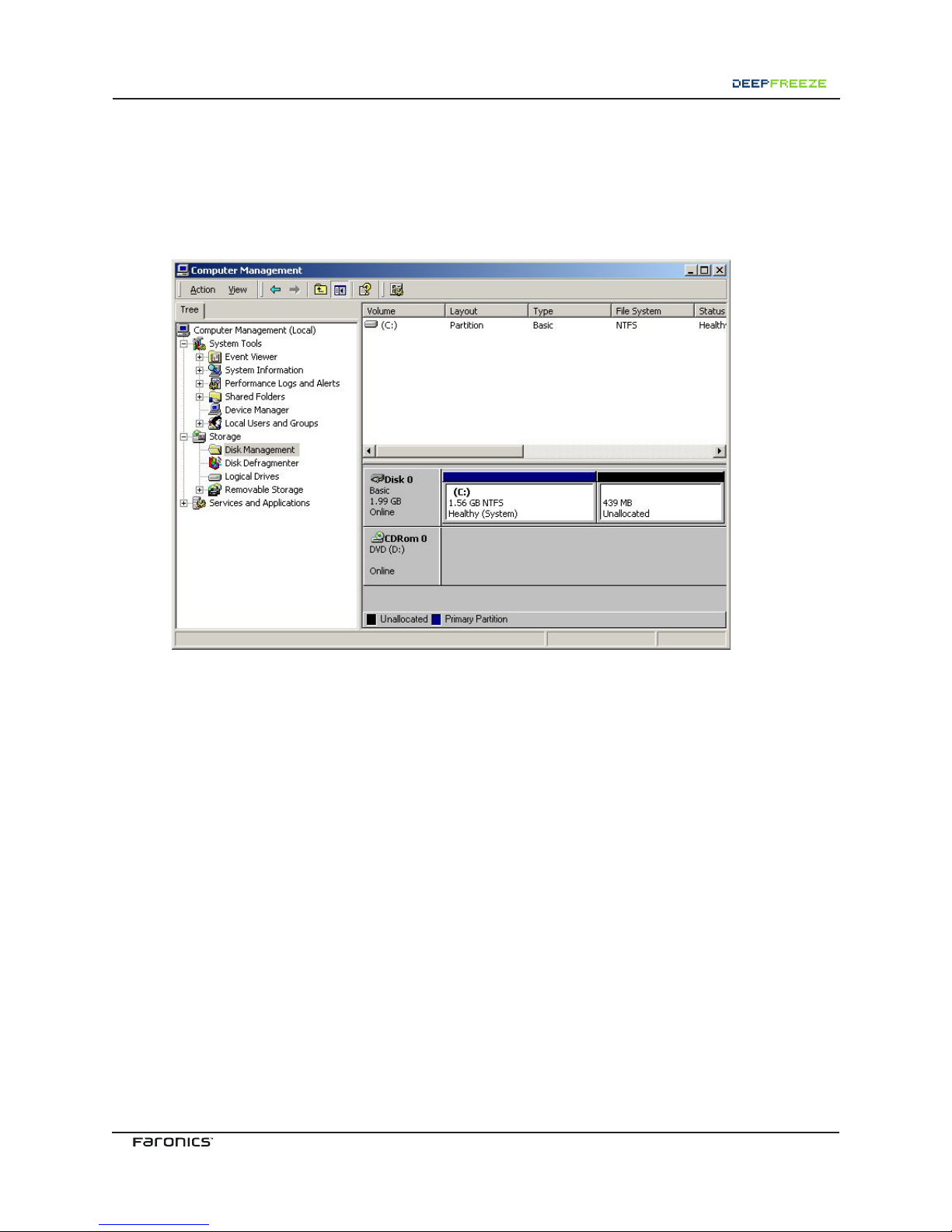

When the console is opened, the following image appears:
To create an extended partition, right-click on the unallocated space shown in the bottom of the screen
and select Create Partition. e following Wizard appears to assist in creating the partition.


14
e first screen of the wizard prompts for the
type of partition required.
Extended partition should be checked because
we are creating multiple small partitions and
do not want to limit the number of partitions
that can be created.
Click Next.
e next screen prompts for the size of
partition to be created.
It is recommended that you configure all
the disk space remaining on the drive at this
time.
Click Next.
e last screen shows confirmation of the
partition size and type once the partition has
been successfully created.
Click Finish.


15
Once the extended partition is created, the logical drives can be created and mounted on the empty
folders that need to be created. is can be done by right-clicking on the free space now present on the
drive (as shown below) and selecting Create Logical Drive.
A wizard appears to set the size and folder name of the new partition.
is is the first introduction screen.
Click Next.
e second screen should have the option to
create a Logical drive selected.
Click Next.


16

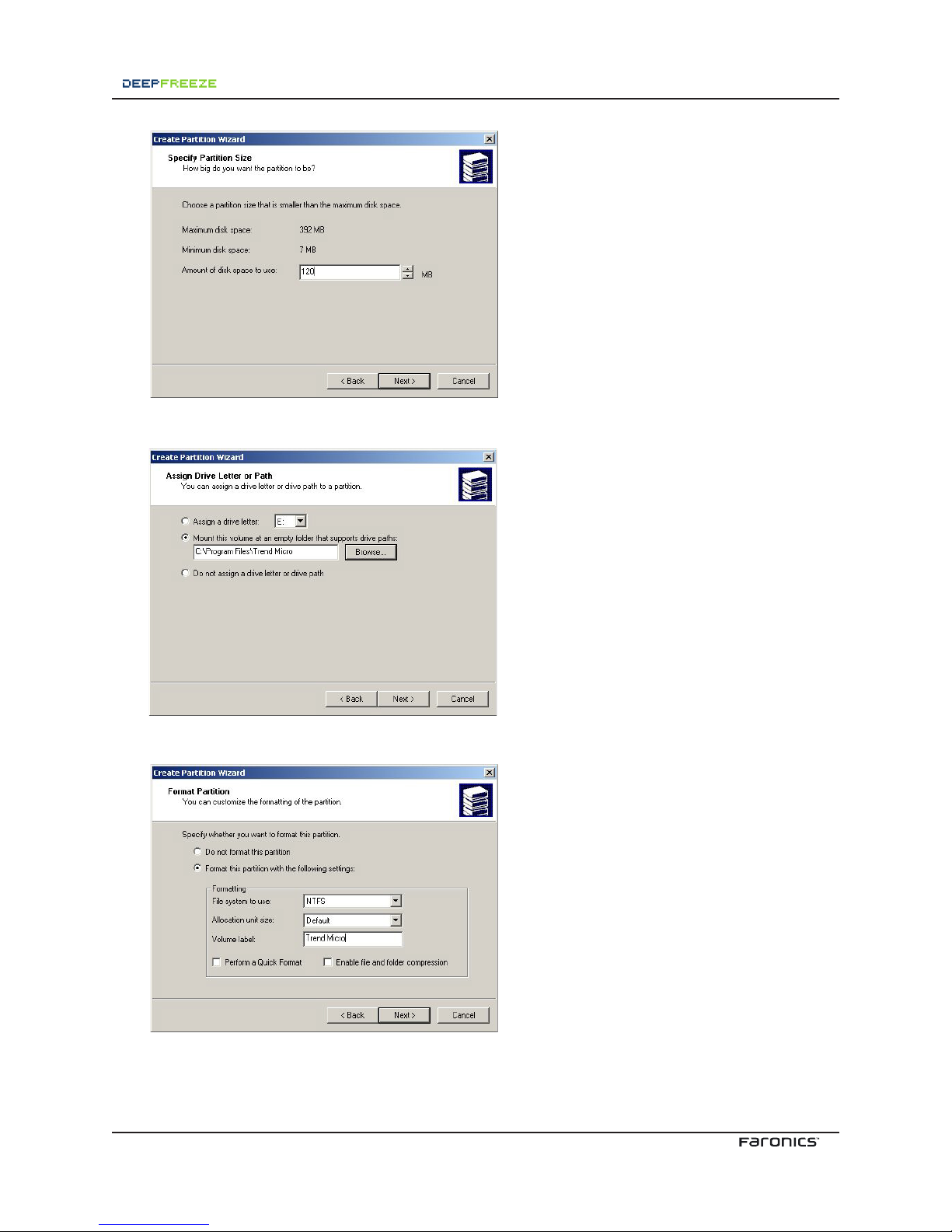

e next screen prompts for the size of
partition to be created.
Specify enough size to allow for updates to
the application to be applied, but not enough
for the space to be used to install additional
applications. In this example, a 120 MB
partition size is selected.
Click Next.
e next screen prompts for the drive letter
or path of the new partition.
e option Mount this volume at an empty
folder that supports drive paths should be
selected.
e path the drive will be mounted to should
be entered in the text field. In this case, the
path is C:\Program Files\Trend Micro.
Click Next to continue.
e next screen is used to specify the
formatting options for the partition.
It is recommended to format the partition
using the NTFS file system and to include a
descriptive volume label to distinguish the
partition from others that may exist.
Click Next to continue.


17
e last screen shows confirmation of the
selected options once the partition has been
successfully created.
Click Finish to exit the wizard and begin
formatting the new drive.

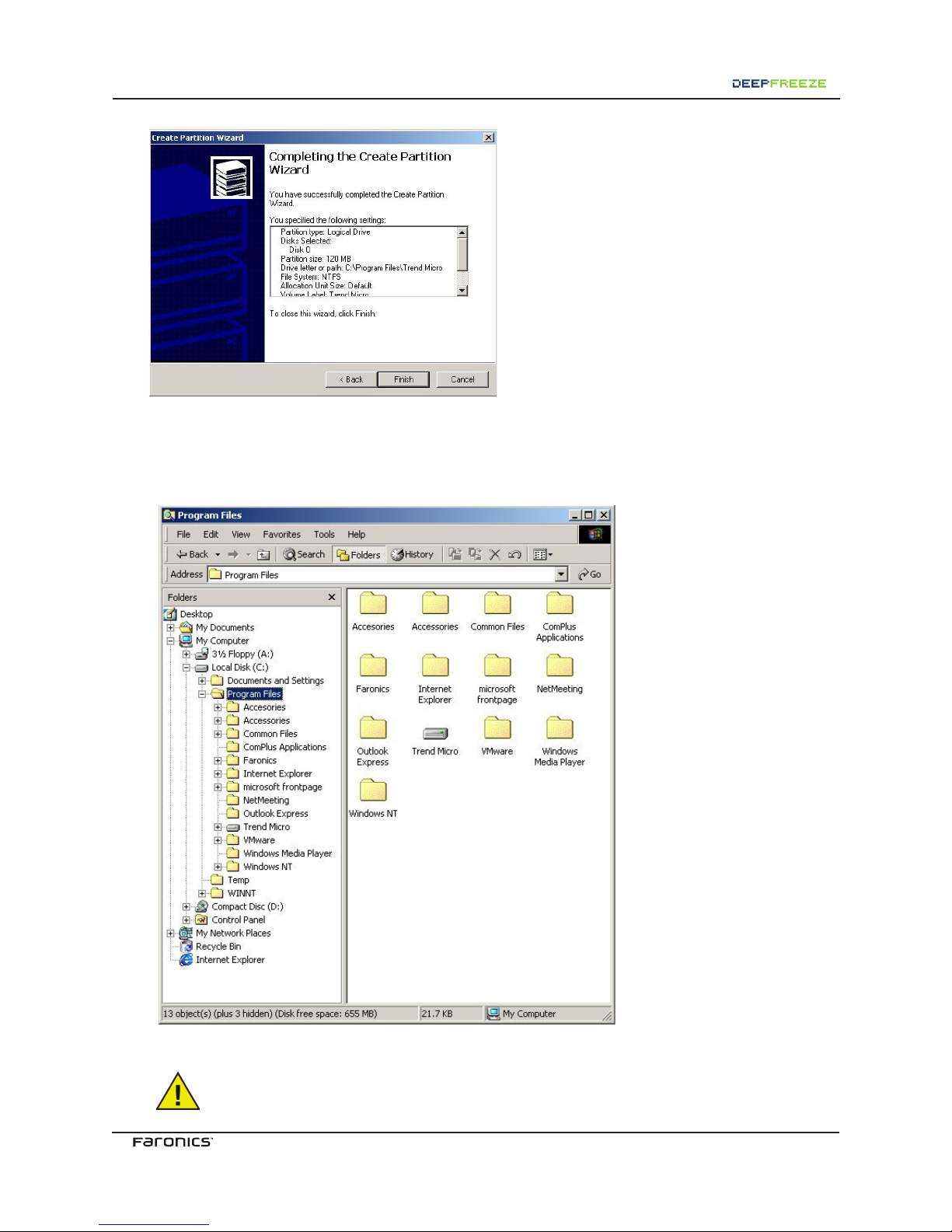

Aer the drive has been successfully mounted as a path, a new icon appears representing the folder as
a hard disk drive.
In the example below, the Trend Micro folder is displayed as a small hard disk drive.
Now you are ready to deploy the OfficeScan clients as per the manufacturer’s installation instructions.
Refer to your imaging solution documentation for information regarding imaging with
mounted drives. Workstations should be imaged either in RAW format or in a sector by
sector mode. (For example: using the -ID switch in Symantec Ghost).
