Fast & Fluid Management Harbil HA180 Instruction Manual

V. 2.0
Fast & Fluid Management B. V.
PO Box 220
2170 AE Sassenheim
The Netherlands
www.fast-fluid.com
Operating and Safety manual
Harbil HA180

2
© Fast & Fluid Management B.V.
This manual or parts thereof may not be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,
electronic, mechanical, photocopying, recording, nor otherwise, without the prior written permission of Fast & Fluid
Management B.V.
This manual could contain technical inaccuracies or typographical errors.
Fast & Fluid Management B.V. reserves the right to revise this manual from time to time in the contents thereof without the
obligation of Fast & Fluid Management B.V. to notify any person of such revision or change.
Details and values given in this manual are average values and have been compiled with care. They are not binding, however,
and Fast & Fluid Management B.V. disclaims any liability for damage or detriments suffered as a result of reliance on the
information given herein or the use of products, processes or equipment to which this manual refers. No warranty is made that
the use of the information or of the products, processes or equipment to which this manual refers will not infringe any third
party’s patents or rights. The information given does not release the user from making their own experiments and tests.

3
Table of Contents HA180 V. 2.0
Table of Contents
1 About this manual......................................................................................................... 5
1.1 How to work with the manual............................................................................................ 5
1.2 Record of changes ...........................................................................................................5
2 Safety ............................................................................................................................. 6
2.1 Intended use..................................................................................................................... 6
2.2 Liability.............................................................................................................................. 6
2.2.1 General liability..................................................................................................... 6
2.2.2 Machine-specific liability....................................................................................... 6
2.3 User qualification for installation....................................................................................... 7
2.4 CE certification ................................................................................................................. 7
2.5 Safety symbols on the machine........................................................................................ 8
2.6 Safety symbols in the manual........................................................................................... 9
2.7 Disposal of the machine ................................................................................................... 9
3 Operator manual ......................................................................................................... 10
3.1 Description...................................................................................................................... 10
3.1.1 Overview of the machine (front) - manual can table version .............................. 10
3.1.2 Overview of the machine (front) - electrical can table version............................ 11

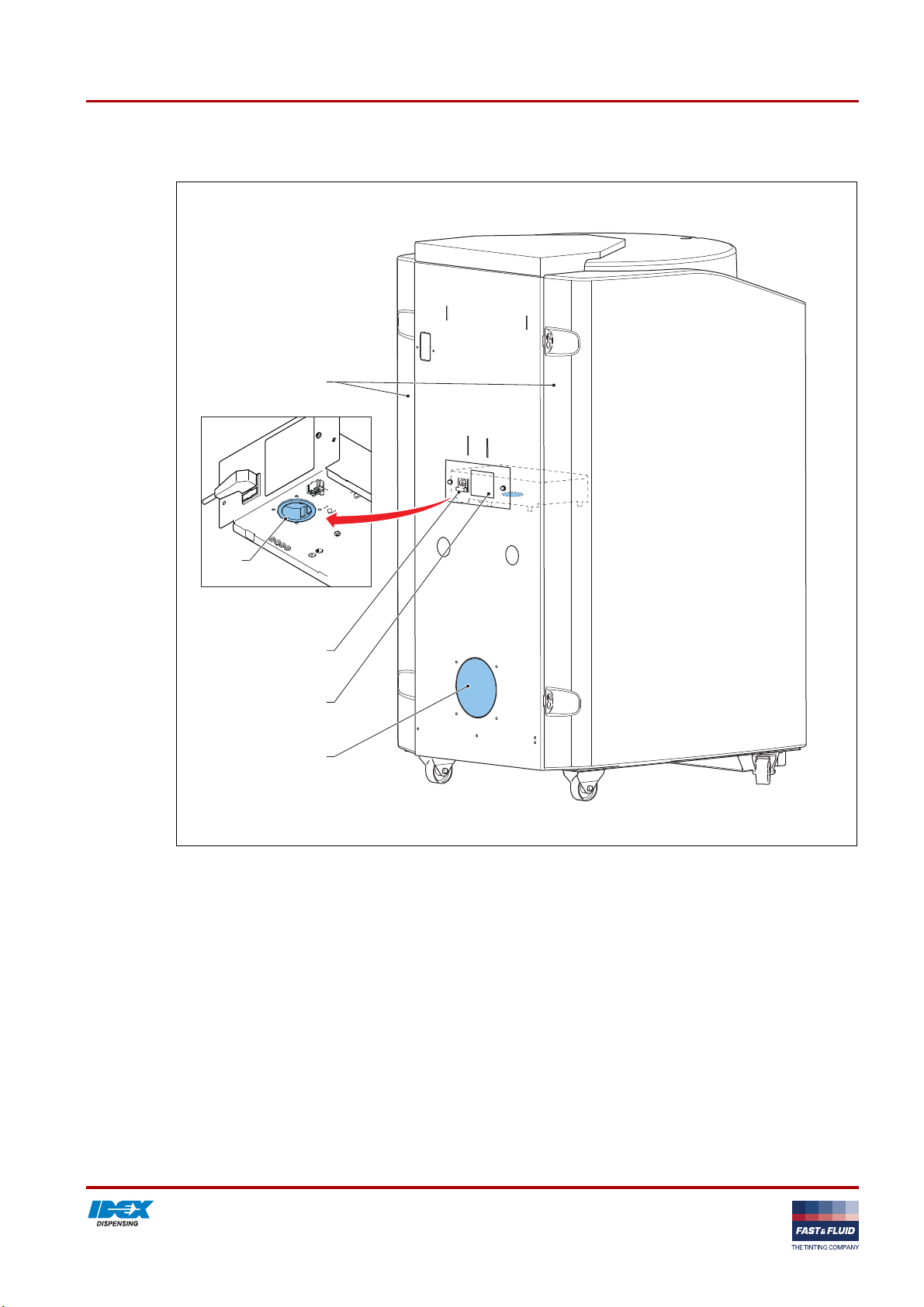

3.1.3 Overview of the machine (back)......................................................................... 12
3.1.4 Overview of the controls (manual can table version) ......................................... 13

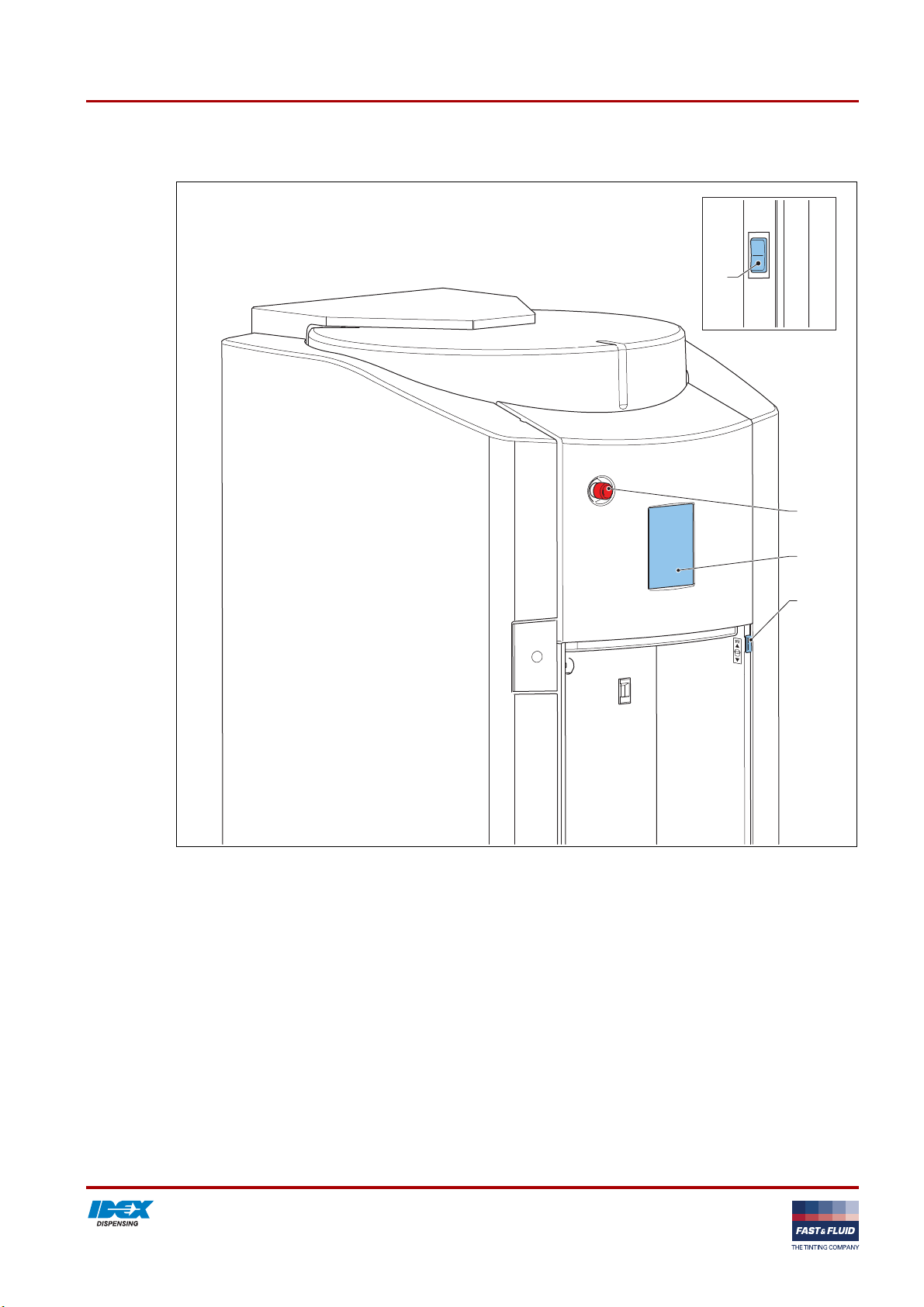

3.1.5 Overview of the controls (electrical can table version) ....................................... 14

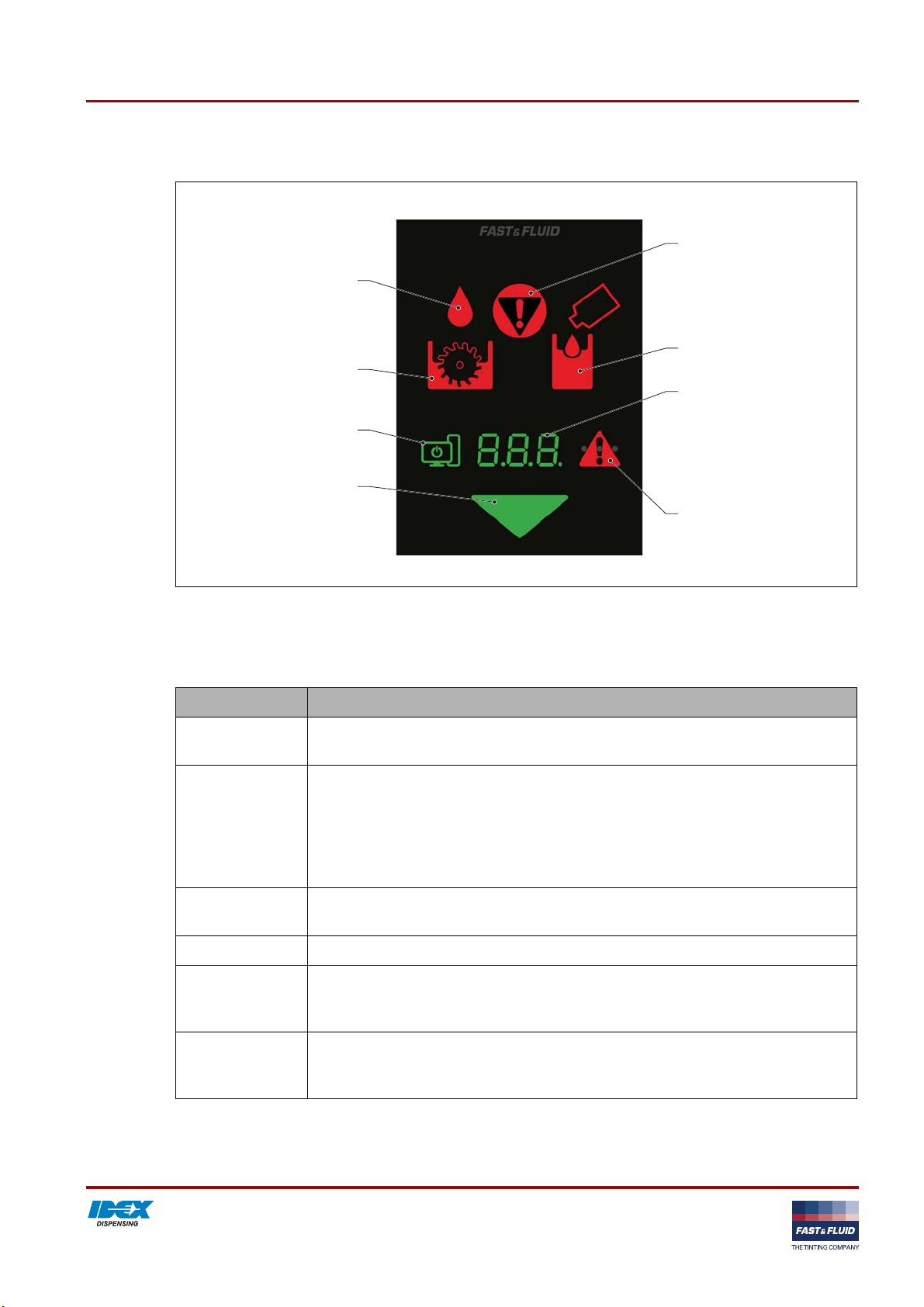

3.1.6 Overview of the display ...................................................................................... 15
3.1.7 Type plate: serial number................................................................................... 16
3.1.8 Type plate: details .............................................................................................. 16

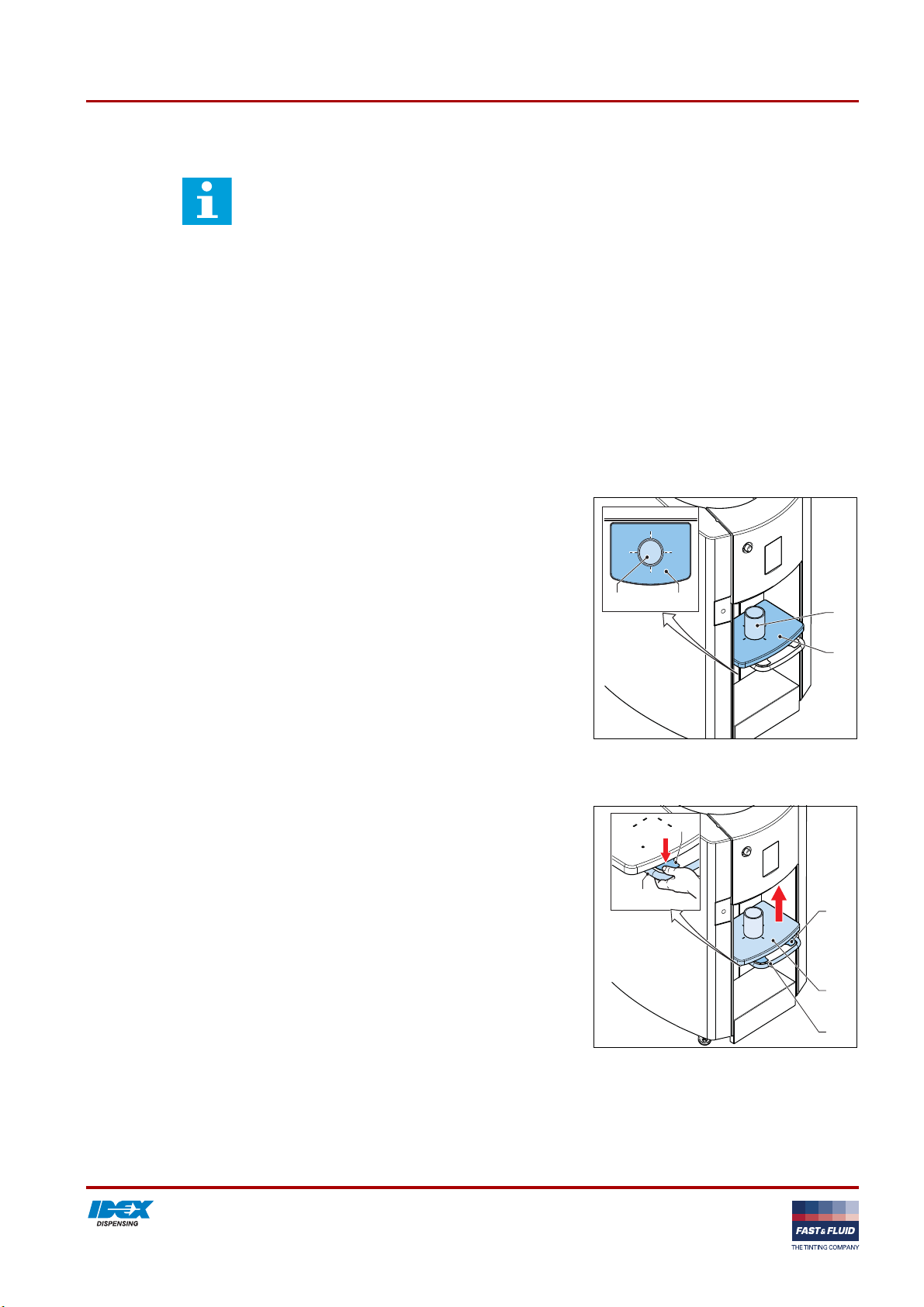

3.2 Operation (manual can table version) ............................................................................ 16
3.2.1 General dispensing procedure ........................................................................... 17
3.2.2 Place the can...................................................................................................... 17
3.2.3 Move up the can table ........................................................................................ 17
3.2.4 Move down the can table ................................................................................... 18
3.3 Operation (electrical can table version).......................................................................... 18
3.3.1 General dispensing procedure ........................................................................... 18
3.3.2 Place the can...................................................................................................... 19
3.3.3 Move up the can table ........................................................................................ 19
3.3.4 Move down the can table ................................................................................... 19
3.4 Maintenance................................................................................................................... 20
3.4.1 General cleaning: after every dispensing operation ........................................... 20
3.4.2 Cleaning of the brush container: daily ................................................................ 20
3.4.3 Cleaning of the switch plate: monthly................................................................. 23
3.4.4 Refilling of a canister .......................................................................................... 23
3.4.5 Using the emergency stop switch....................................................................... 24

4
Table of Contents HA180 V. 2.0
4 Installation ................................................................................................................... 26
4.1 Unpack the machine....................................................................................................... 26
4.1.1 Remove the cardboard....................................................................................... 26
4.1.2 Remove the transport bracket of the turntable at the rear.................................. 26
4.1.3 Remove the wooden beams............................................................................... 26
4.1.4 Remove the transport brackets at the bottom .................................................... 27
4.1.5 Remove the plastic protection on the canisters.................................................. 27
4.1.6 Remove the plastic protection from the switchplate ........................................... 27
4.2 Put the machine in position ............................................................................................ 28
4.2.1 Move the machine to the final location, with a ramp (optional) .......................... 28
4.3 Install the computer ........................................................................................................29
4.3.1 Open the side cover ........................................................................................... 29
4.3.2 Install the computer ............................................................................................ 29
4.4 Turning on the machine.................................................................................................. 30
4.5 First use.......................................................................................................................... 30
5 Troubleshooting.......................................................................................................... 31
5.1 General troubleshooting procedure................................................................................ 31
5.2 Audio signals .................................................................................................................. 31
5.3 Error messages and other faults .................................................................................... 32
5.4 Indicators on the display................................................................................................. 33
5.5 Contact service............................................................................................................... 33
6 Technical data ............................................................................................................. 34
6.1 General specifications .................................................................................................... 34
6.2 Dimensions and mass .................................................................................................... 34
6.3 Ambient conditions ......................................................................................................... 34
6.4 Noise level...................................................................................................................... 35
6.5 Safety classifications ......................................................................................................35
6.6 Electrical specifications .................................................................................................. 35
6.7 Electrical diagram ........................................................................................................... 36

5
About this manual HA180 V. 2.0
1 About this manual
The manual shows the information necessary to:
-install
- operate
- perform basic maintenance
- correct small problems.
The HA180 and all its versions are referred to in the manual as the ’machine’.
This manual contains the original instructions. The original language of the manual is English. All other language
versions are translations of the original instructions.
1.1 How to work with the manual
For the safe use of the machine, it is important:
1 To familiarize yourself with the structure and content.
2 To read the safety chapter in detail and make sure you understand all the instructions. See chapter § 2.
3 To carry out the actions completely and in the given sequence.
1.2 Record of changes
/i
Edition Editor Check Date Description
1.0 EVT TB 08/2019 First edition
2.0 EVT TB 06/2020 General updates and addition of knock-out plate

6
Safety HA180 V. 2.0
2 Safety
2.1 Intended use
The machine is designed to dispense colorants into a can. Any other use of the machine is strictly forbidden.
2.2 Liability
2.2.1 General liability
Our machines and accessories are fully compliant with the CE regulations. Any modification can result in not
fulfilling the CE safety requirements and is therefore not allowed. Fast & Fluid Management B.V. will not accept
any responsibility in case of modifications to machines and/or accessories.
Fast & Fluid Management B.V. is not liable if you do not follow the rules below:
- The machine is for indoors use only.
- This machine may only be used for commercial settings. The machine is not a household appliance.
- Observe all local safety regulations.
- Strictly obey the safety instructions in this manual.
- Mind the minimal requirement of the building structure of the load capacity of the floor.
- Place the machine in a well-lit and well-ventilated room.
- Place the machine on a flat, horizontal floor.
- Install and connect the machine according to the instructions in this manual.
- Connect the machine to a grounded wall socket.
- Do not use extension cords or inadequately rated power cables.
- Make sure that the power cable is freely accessible.
- Do not place objects on top of the machine.
- Keep lids, panels, and covers closed and in place whenever possible.
- Do not use a damaged machine. When you have doubts, contact your supplier.
- Keep the machine in good condition.
- Clean the machine at the intervals and when dirty.
- Make sure that defective parts are immediately replaced.
- Remove spilled liquids immediately, and unplug the machine in case of large spillages (> 500mL).
- Replace parts only with original Fast & Fluid Management B.V. spare parts.
All maintenance beyond the scope of this manual must be carried out by a qualified service technician that Fast
& Fluid Management B.V. has trained and certified.
2.2.2 Machine-specific liability
This machine is designed to dispense colorants into a can in non-hazardous conditions.
In addition to following the instructions below, please consult with your paint supplier and/or colorant supplier,
and review all applicable product information and safety data sheets to fully understand the risks associated with
the use of their products, including how risks of fire and explosion may arise during use.
WARNING
Read the manual before you install or use the machine. Failure to do so can result in personal
injury, death or property damage.

7
Safety HA180 V. 2.0
- Read and strictly comply with the safety data sheets for all colorants, (base) paint and brush liquids.
- You are responsible for ensuring that Operating Temperature never exceeds the flashpoint of the colorant in
use, or, in the alternative, ensuring that there is no build-up of explosive vapors inside or around the
dispenser.
- The Operating Temperature consists of the Ambient Temperature in the place of operation, plus an additional
15 °C / 27 °F generated by the dispenser when in use. The Ambient Temperature is determined by factors
such as the temperature in the room or space where the dispenser is being operated, the amount of
ventilation in and around the machine, or any other factors in your operating environment affecting
temperature.
- In the event Operating Temperature exceeds the flashpoint of the colorant in use, you must take the following
measures:
- reduce the Operating Temperature by taking steps including but not limited to (a) operating the dispenser
in a room or environment with a lower temperature; (b) increasing ventilation in and around the dispenser;
and/or (c) taking any other steps to reduce the Ambient Temperature; and/or
- select a different colorant or paint with a flashpoint higher than the likely Operating Temperature.
- An operational and environmental assessment is required before using flammable colorants in the dispenser,
taking into account all local circumstances including ventilation around the machine, room and machine
operating temperature and room size. Please consult your supplier for more details.
- The place of operation cannot be an ATEX zone or any kind of explosive atmosphere.
- In countries for which UL or CSA standards apply: this equipment cannot be used with colorants with a
flashpoint below 38 °C / 100 °F.
2.3 User qualification for installation
Only install the machine when you are a qualified service technician who is trained and certified by Fast & Fluid
Management B.V.
2.4 CE certification
The machine is CE certified. This means that the machine complies with the essential requirements concerning
safety. The directives that have been taken into consideration in the design are available on www.fast-fluid.com.
WARNING
The use of flammable colorants or colorants that diffuse potential explosive vapours may present
fire and explosion risks. You are responsible for ensuring there is no build-up of explosive vapours
both inside or around the dispenser.
WARNING
Do not use flammable liquids in the brush container.
WARNING
Risk of fire and personal injury if the temperature inside the dispenser when in use (“Operating
Temperature”) exceeds the flashpoint of the colorant or paint being used.

Safety HA180 V. 2.0
8
2.5 Safety symbols on the machine
/i
Rotating parts hazard Pinch hazard for your hand
Read the manual Electrical hazard
Pinch hazard for your foot Can table switch up/down
Return this part to its original position.
Do not use flammable liquids in the brush
container.
Refill the canisters.
Read the manual.

9
Safety HA180 V. 2.0
2.6 Safety symbols in the manual
/i
2.7 Disposal of the machine
1. Sort the machine, the accessories and the packaging for
environmentally friendly recycling.
2. Do not dispose of the machine into domestic waste. Dispose
of the machine according to local regulations.
3. Dispose of the canisters as chemical waste, according to the
local regulations.
WARNING
Can cause personal injury.
WARNING
Pinch hazard for your foot.
CAUTION
Can cause damage to the machine.
Note
Shows further information.

10
Operator manual HA180 V. 2.0
3 Operator manual
3.1 Description
3.1.1 Overview of the machine (front) - manual can table version
A: Top cover
B: Canister
C: Pump with nozzle
D: Front cover
E: Switch plate
F: Computer cover
G: Can table
H: Wheels
I: Brush container
B
D
C
A
F
E
G
I
H

11
Operator manual HA180 V. 2.0
3.1.2 Overview of the machine (front) - electrical can table version
A: Top cover
B: Canister
C: Pump with nozzle
D: Front cover
E: Switch plate
F: Computer cover
G: Can table
H: Wheels
I: Brush container
B
D
C
A
F
E
G
I
H

12
Operator manual HA180 V. 2.0
3.1.3 Overview of the machine (back)
A: Side cover
B: Power socket
C: Net entry
D: Type plate
E: Knock-out plate for ventilation interface
B
A
D
E
C

13
Operator manual HA180 V. 2.0
3.1.4 Overview of the controls (manual can table version)
A: Emergency stop switch
B: Display with indicators and keys
C: Can table switch
C
B
A
C

14
Operator manual HA180 V. 2.0
3.1.5 Overview of the controls (electrical can table version)
A: Emergency stop switch
B: Display with indicators and keys
C: Can table switch
C
B
A
C

15
Operator manual HA180 V. 2.0
3.1.6 Overview of the display
A: Emergency stop indicator
B: Canister refill indicator
C: Error / counter display
D: Error indicator and Error / function key
E: Can indicator
F: Computer switch key
G: Brush refill indicator
H: Brush monitor indicator
/i
H
A
C
B
F
E
D
G
Item Function
Indicator When the indicator is on, it shows the status of the item or problem. See § 5.4 for
possible causes and solutions.
Error / counter
display
The display shows:
- The error codes
- The software version
- The seconds that remain for the dispense operation
See § 5.3 for a description of the error codes and the possible causes and solutions.
Error key When you push the error key, the error display shows the program version. When you
push the error key for more than 5 seconds, the machine will start/initialize.
Function key When you push the function key, the counter display shows the software version.
Computer switch
key
When you push the computer switch key, you will hear ‘two beeps’; the button will flash.
When you push and hold the computer switch key for 5 seconds, you will hear a beep
again and the PC will shut down.
Can indicator The can indicator shows the status of the can:
- Flashing green: the dispense is done
- Flashing red: the can is missing (the sensor does not see the can)

16
Operator manual HA180 V. 2.0
3.1.7 Type plate: serial number
3.1.8 Type plate: details
3.2 Operation (manual can table version)
Model
Brand
XXXXX-XX Xxxxxxxx Xxxxx
Xxxxxxxx
Serial Number
Production week
XXXXXXXXX-XXXXXX
XX-XXXX
THE TINTING COMPANY
www.fast-fluid.com
Fast & Fluid Management B.V.
IDEX Dispensing
P.O. Box 220
2170 AE Sassenheim
The Netherlands
THE TINTING COMPANY
www.fast-fluid.com
XXX V ~ XX/XX H z XXX W
Model XXX XX-XXX
Brand Xxxxxxxxxxx
Serial no. XXXXXXXXX-XXXXXX
Prod.week XX - XXXX
Mass XXXkg
Fuse X AT
Fast & Fluid Management B.V.
IDEX Dispensing
P.O. Box 220
2170 AE Sassenheim
The Netherlands
Patent
emea.fast-fluid.com/patents
Made in Xxxxxx
WARNING
Only push the emergency stop switch in the case of
a safety emergency.
Make sure that the problem is solved before you
reset the emergency stop switch.
When you reset the emergency stop switch, the
machine restarts automatically.
CAUTION
Do not remove the power from the machine. The
machine must stir the colorants periodically.

Operator manual HA180 V. 2.0
17
3.2.1 General dispensing procedure
For all the software instructions: see the software documentation.
1. Place the can. See § 3.2.2.
2. Move the can table up. See § 3.2.3.
3. Choose the recipe and dispense. See the software
documentation.
4. Move the can table down. See § 3.2.4.
5. Remove the can.
3.2.2 Place the can
1. Place the can (A) at the centre of the mark (B) on the can
table.
3.2.3 Move up the can table
1. Hold the handle (C) and push down the can table switch (A).
Keep the can table switch pushed down.
2. Manually move up the can table (B).
3. Release the can table switch. The can table locks into
position.
Note
The computer switch only turns the computer on
and off.
A B A
B
A
B
C
A
C

Operator manual HA180 V. 2.0
18
3.2.4 Move down the can table
1. Hold the handle (C) and push down the can table switch (A).
Keep the can table switch pushed down.
2. Manually move down the can table (B).
3. Release the can table switch. The can table locks into
position.
3.3 Operation (electrical can table version)
3.3.1 General dispensing procedure
For all the software instructions: see the software documentation.
1. Place the can. See § 3.3.2.
2. Move the can table up. See § 3.3.3.
3. Choose the recipe and dispense. See the software
documentation.
4. Move the can table down. See § 3.3.4.
5. Remove the can.
A
CA
B
C
WARNING
Only push the emergency stop switch in the case of
a safety emergency.
Make sure that the problem is solved before you
reset the emergency stop switch.
When you reset the emergency stop switch, the
machine restarts automatically.
CAUTION
Do not remove the power from the machine. The
machine must stir the colorants periodically.
Note
The computer switch only turns the computer on
and off.

Operator manual HA180 V. 2.0
19
3.3.2 Place the can
1. Place the can (A) at the centre of the mark (B) on the can
table.
3.3.3 Move up the can table
1. Push and hold the upper part of the can table switch (A). The
can table (B) moves up and stops when the can is in front of
the can sensor (C).
2. After the can table stops, release the can table switch.
3.3.4 Move down the can table
1. Push and hold the lower part of the can table switch (A). The
can table (B) moves down.
2. When you can remove the can, release the can table switch.
If you hold the can table switch, the can table moves down to
a halt.
A B A
B
A
A
B
A
A
B
WARNING
Do not put your foot below the can table.

Operator manual HA180 V. 2.0
20
3.4 Maintenance
3.4.1 General cleaning: after every dispensing operation
1. Clean the machine with a cloth and remove all spilled colorant
or other liquid.
3.4.2 Cleaning of the brush container: daily
Open the brush drawer
1. Push the front side of the brush drawer until the brush drawer
is unlocked.
2. Open the brush drawer (A). Use the handle (B).
Remove the brush container
1. Remove the brush container (A) from the brush drawer (B).
CAUTION
Do not use cleaning agents based on organic
solvents to clean painted or plastic parts of the
machine.
CAUTION
If you do not clean these items daily, severe
pollution will occur.
B
A
A
1
2
A
B
