FAVI RioHD-LED-2 User manual

FAVI universal mount instructions, LED-2 projector.
Before you begin, please make sure you have the following tools on hand:
● Socket driver with an 8mm socket
● 7mm wrench and socket
An Allen wrench is also required. Your mount comes supplied with this already.
Step 1: Loosen the four 8mm bolts located in the middle of the leg assembly. Then use
the Allen wrench to loosen the leg bolts. Do not remove any of the bolts yet.
Step 2: Remove the 8 MM bolt for the top right leg, then remove the leg:

Step 3: On the removed leg, use the Allen wrench to remove the inner leg. In your
mount’s accessory bag, you should find a shorter inner leg. Replace the longer inner leg
with the shorter inner leg. Tighten the bolt just enough to allow the piece to slide freely
inside the outer leg.
Step 4: On the LED-2 projector, remove the four pads on the projector’s feet:

If need be you can use a small pair of needle nose pliers to remove these foot pads.
Step 5: Attach the leg assembly to the projector. Use the 7mm bolts to attach the
mount’s legs to the projector. For now, only attach the bolts loosely.

Step 6: Use the last 7mm bolt to loosely attach the final leg to the projector. You
can then rotate the leg and slide it into the leg assembly. Replace the 8mm bolt you
removed in Step 2. Do not tighten it yet.
Step 7: After adjusting the leg assembly so that the middle is lined up with the front of
the projector, tighten all the bolts. You will need the 7mm wrench to tighten all four 7mm

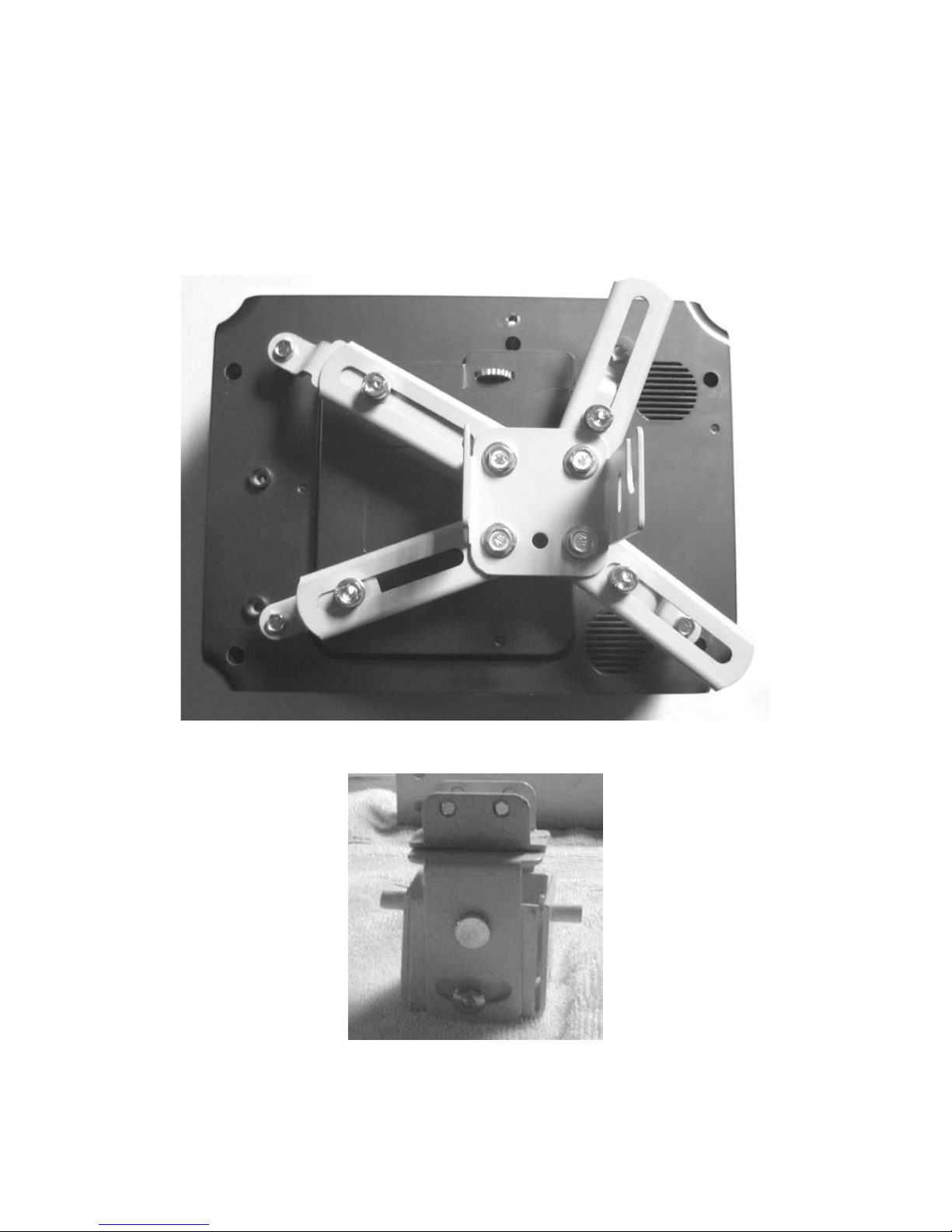

bolts. When finished, the leg assembly should look like this:
Step 8: Locate the swivel mechanism. It should look like this:
There are two screws in it which need to be temporarily removed with the Allen wrench.
Then you can slide this piece into the top of the leg assembly. There are two rivets that
slide into the top of the leg assembly like so:

Step 9: Reinsert the two screws that you removed in the previous step and tighten
them. After the projector is mounted, you can loosen these two screws to change the
angle of the projector.
Step 10: Locate the height adjuster. It consists of two rectangular tubes, one inside the
other. It should look like this:
Step 11: Place the height adjuster on top of the swivel bracket. Four screws from the
mount’s accessory bag are needed to secure it into place. Then attach the final piece
to the top of the height adjuster with four more screws. When completed, your mount
should look like this:

The projector mount can now be attached to the ceiling. After securing the mount to the
ceiling, you can adjust the height and angle of the projector.
