Dynamic Projection Mirror Head MH14 User manual

0 A
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Mirror Head Manual
Manual for MH14 / MH15 / MH17 / MH18 / MH24
VERSION: 2.4
Version 2.4
1 B
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.

2
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice. Version 2.4
Table of contents
Introduction 3
Warranty 3
Safety 4
Operating determinations 5
Package contents 6
Technical specifications 6
Description of the device 7
Mirror Head control unit 9
Mirror Head assembly 10
Mounting of the projector 11
Mounting of accessories 13
Mounting of the Mirror Head 14
Setup and adjustment 15
Using and Operations (DMX512 / Art-Net™) 16
Mirror Head control unit operations 18
Service and maintenance 20
Trouble shoot / FAQ 21
Appendix for Mirror Head manual 24

3
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Introduction
Thank you for having chosen a Mirror Head unit. If you follow the instructions given in this manual, we are sure you will enjoy this
device for a long period of time.
For your own safety, please read this user manual carefully before you initially start-up.
Every person involved with the installation, operation and maintenance of this device has to:
- be qualified
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from our website
In case you have questions about our product or need support during assembly and installation please contact our support!
Dynamic Projection Institute, Herstellungs und Vertriebs GmbH
Herzgasse 9 / 5, A-1100 Vienna
Email: of[email protected]
Web: www.dynamicprojection.com
Phone: [phone] (Mon. – Fri. from 9:00 – 18:00h)
Commercial Register: FN400806x
Warranty
DPI represents and warrants:
- that all products will be in a fully working and commercially available condition.
- for twelve (12) months from the date of proof of purchase by a customer, unless otherwise agreed.
Warranty is void if the operator of the Mirror Head violates any safety and/or operation advice in this manual.
Version 2.4

4
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Safety
This device has left our company in absolutely perfect condition.
In order to maintain this condition and to ensure a safe operation,
it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
NOTE: Damages caused by the disregard of this user manual
are not subject to warranty. The dealer will not accept
liability for any resulting defects or problems.
Never look directly into the light source of an attached
projector!
Keep away children!
There are no user serviceable parts (fuse) inside this unit.
If the device has been exposed to drastic temperature fluctuation,
do not switch it on immediately. The arising condensation water
might damage your device. Leave the device switched off until it
has reached room temperature.
Please make sure that there are no obvious transport damages.
Should you notice any damages on the A/C connection cable or
on the control unit, do not take the device into operation and
immediately consult your dealer.
This device falls under protection-class I. The power plug must
only be plugged into a protection class I outlet. The voltage and
frequency must exactly be the same as stated on the device.
Wrong voltages or power outlets can lead to the destruction of
the device and to mortal electrical shock.
Always plug in the power plug last. The power plug must always
be inserted without force. Make sure that the plug is tightly
connected with the outlet.
Never let the power-cord come into contact with other cables!
Handle the power-cord and all connections with the mains with
particular caution! Never touch them with wet hands, as this
could lead to mortal electrical shock.
Never modify, bend, strain mechanically, put pressure on, pull or
heat up the power cord. Never operate next to sources of heat
or cold. Disregard can lead to power cord damages, fire or mortal
electrical shock.
The cable insert or the female part in the device must never be
strained. There must always be sufficient cable to the device.
Otherwise, the cable may be damaged which may lead to mortal
damage.
Make sure that the power-cord is never crimped or damaged by
sharp edges. Check the device and the power-cord from time to
time.
If extension cords are used, make sure that the core diameter is
sufficient for the required power consumption of the device. All
warnings concerning the power cords are also valid for possible
extension cords.
Always disconnect from the mains, when the device is not in use
or before cleaning it. Only handle the power-cord by the plug.
Never pull out the plug by tugging the power-cord. Otherwise,
the cable or plug can be damaged leading to mortal electrical
shock. If the power plug or the power switch is not accessible,
the device must be disconnected via the mains.
If the power plug or the device is dusty, the device must be
taken out of operation, disconnected and then be cleaned with
a dry cloth. Dust can reduce the insulation which may lead to
mortal electrical shock. More severe dirt in and at the device
should only be removed by a specialist.
There must never enter any liquid into power outlets, extension
cords or any holes in the housing of the device. If you suppose
that also a minimal amount of liquid may have entered the
device, it must immediately be disconnected. This is also valid,
if the device was exposed to high humidity. Also if the device is
still running, the device must be checked by a specialist if the
liquid has reduced any insulation. Reduced insulation can cause
mortal electrical shock.
There must never be any objects entering into the device.
This is especially valid for metal parts. If any metal parts like
staples or coarse metal chips enter into the device, the device
must be taken out of operation and disconnected immediately.
Malfunction or short-circuits caused by metal parts may cause
mortal injuries.
Version 2.4

5
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Operating determinations
The Mirror Head is a projector add-on device for creating
decorative effects. This product is only allowed to be
operated with:
- the voltage labeled on the device
- the projector that the product is specified for
- the original accessories and add-on parts
The device is designed for indoor use only.
This device is designed for professional use only.
Do not shake or drop the device. Avoid brute force when installing
or operating the device. Take special care of the mirror.
When choosing the installation-spot, please make sure that
the device is not exposed to extreme heat, moisture or dust.
In order to safeguard sufficient ventilation, leave 0.5m of free
space around the device.
This device must never be operated or stockpiled in surroundings
where splash water, rain, moisture or fog may harm the device.
Moisture or very high humidity can reduce the insulation and
lead to mortal electrical shocks.
When using smoke machines, make sure that the device is never
exposed to the direct smoke jet and is installed in a distance of at
least 1.0 meters between smoke machine and device.
The ambient temperature must always be between +5°C and
+35°C. Keep away from heaters and air-condition ventilations.
The relative humidity must not exceed 80% with an ambient
temperature of +35°C. The maximum ambient temperature
T=35°C must never be exceeded.
Never use the device during thunderstorms. Over voltage
could destroy the device. Always disconnect the device during
thunderstorms.
This device is only allowed for an installation via the original
mounting brackets or clamps.
Do not mount projectors to this unit that this unit was not
designed for.
Make sure that the area below the installation place is blocked
when rigging, de-rigging or servicing the fixture.
To prevent any damage to equipment or physical injury the
installation should be carried out by at least two persons.
Always fix the fixture with an appropriate safety bond depending
on the weight of the whole fixture.
For the use of closed-type riggings such as half-coupler clamps
secure the fixture with a safety cable (or other secondary
attachments) that is approved for the weight of the fixture, so
that the safety cable will hold the fixture if the primary attachment
fails.
It is important to select the mounting position of the Mirror Head
before starting the assembly.
The fixture can be clamped to a truss or similar rigging structure
in any orientation using one or more closed-type rigging clamps
such as half-coupler clamps that completely enclose the truss
chord. Only use certified equipment.
Operate the device only after having become familiarized with its
functions. Do not permit operation by persons not qualified for
operating the device.
Never use solvents or aggressive detergents in order to clean
the device especially the mirror. Rather use a soft and damp
cloth. Do not scratch or touch the surface of the mirror with any
object or by touching with the fingers.
Please use the original packaging if the device is to be transported.
Make sure that you pack the device in the original state and that
the transport-safety is always mounted.
Please consider that unauthorized modifications on the device
are forbidden due to safety reasons!
Never remove the serial from the device as this would make the
guarantee void.
If this device will be operated in any way different to the one
described in this manual, the product may suffer damages and
the guarantee becomes void. Furthermore, any other operation
may lead to dangers like short-circuit, burns, electric shock,
crash etc.
Version 2.4

6
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Package contents
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have
been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged
from shipping or the carton itself shows signs of mishandling.
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the
fixture be returned in the original factory box and packing with all safety clamps mounted.
Before starting to assemble the product please check the contents of the package - see package list inside of the package.
Technical specications
- High resolution 16bit Pan/Tilt mirror movement
- DMX-512 control over 14 DMX channels
- DMX-IN and DMX-OUT/Through port (5-pin male and female XLR connectors)
- 14 DMX channels are required to control the unit
- Art-Net™ connection (RJ45) (Art-Net™ designed by and Copyright Artistic License Holdings Ltd.) - OEM code 0x1140
- High resolution micro step motors with maintenance free direct drive
- Self calibrating mirror position for high accuracy
- Absolute reposition accuracy smaller than 0.03°
- Movement accuracy: Pan and Tilt from the same direction to the programmed point within approximately 0.01°
- RS232 remote control connection for projector (D-sub 9 male) - cable included
- Flash-able firmware (Mini USB OTG)
- High resolution LED-Display for easy configuration
- LED-Display back-light auto turn off for energy saving
- LED-Display Flip / Flop mode for easy reading in difficult positions
- Coated mirror for optimum reflection ~98% refraction factor
- Optimized mirror optics for the specific projector
- Ambient Light LED with high power RGB LEDs (17,9 Watt total) - see compatibility list if available for your model (MH08-MH13)
- Mounting plate optimized for specific projector mounting
- Easy to adjust mounting system
- Passive cooled system (excluding projector)
- Environmental tolerances: Ambient operating temperature range: 5°–35°C, Humidity: 20%–80% (non-condensing)
- A/C power input; 100V / 2A / 60Hz – 240V / 1A / 50Hz, 10A max. 3-prong C14 male socket - 3W Standby - max. 30W
(see type plate on device for details)
Version 2.4

7 B
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Description of the device
The Mirror Head is a modern high-tech mirror that is digitally operated and is used as an add-on feature for projectors. It can be set
to move either rapidly or slowly to project pictures, videos and texts onto any imaginable surface. Projections can be moved around
from one surface to another or remain statically projected onto one specific surface. Through its high level of performance, the entire
system guarantees highly accurate positioning. Please make yourself familiar with the parts of your product and identify your model
in the list below.

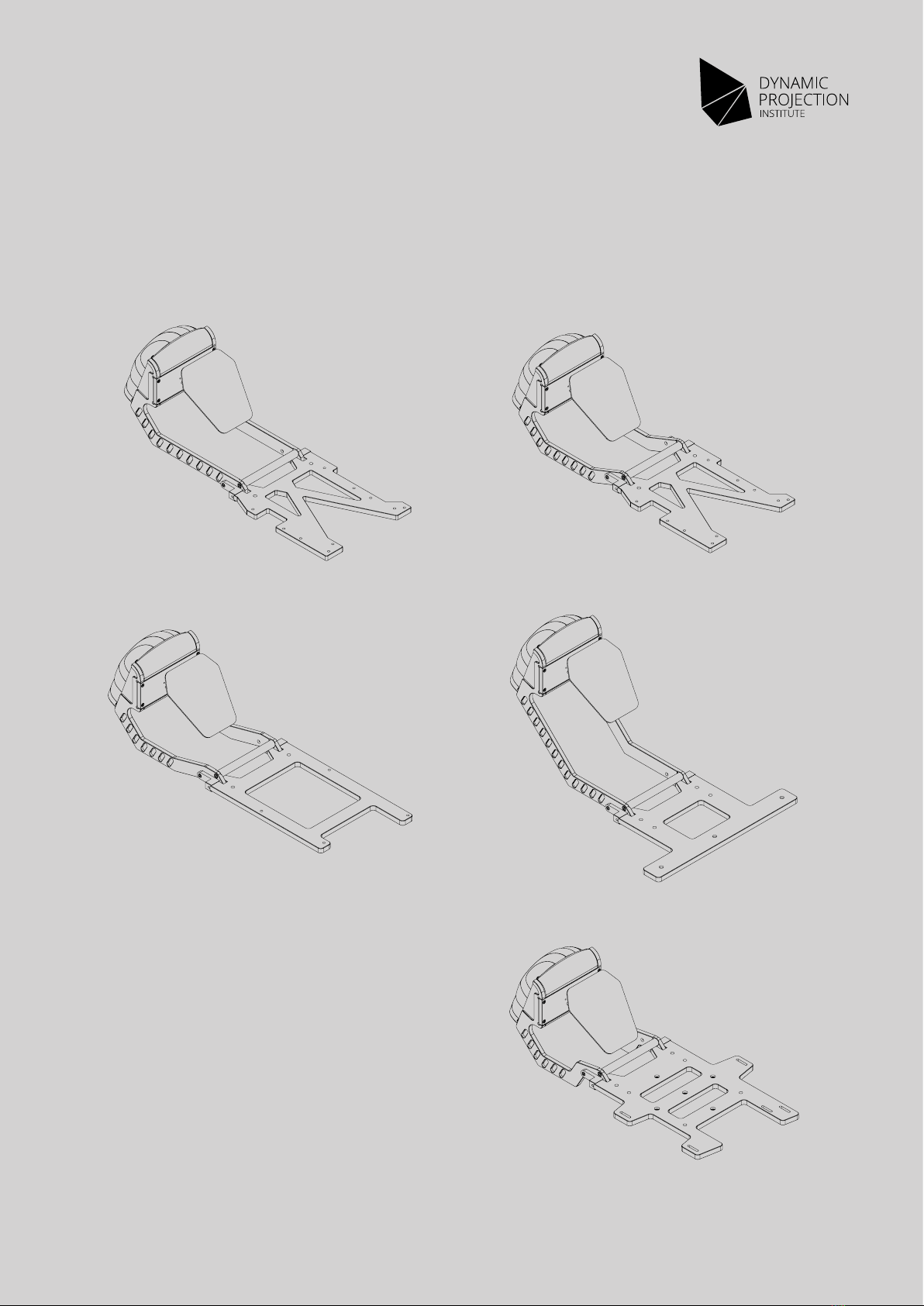

MH14
MH17 MH18
MH15
3
1
2
3
1
2
3
1
2
3
1
2

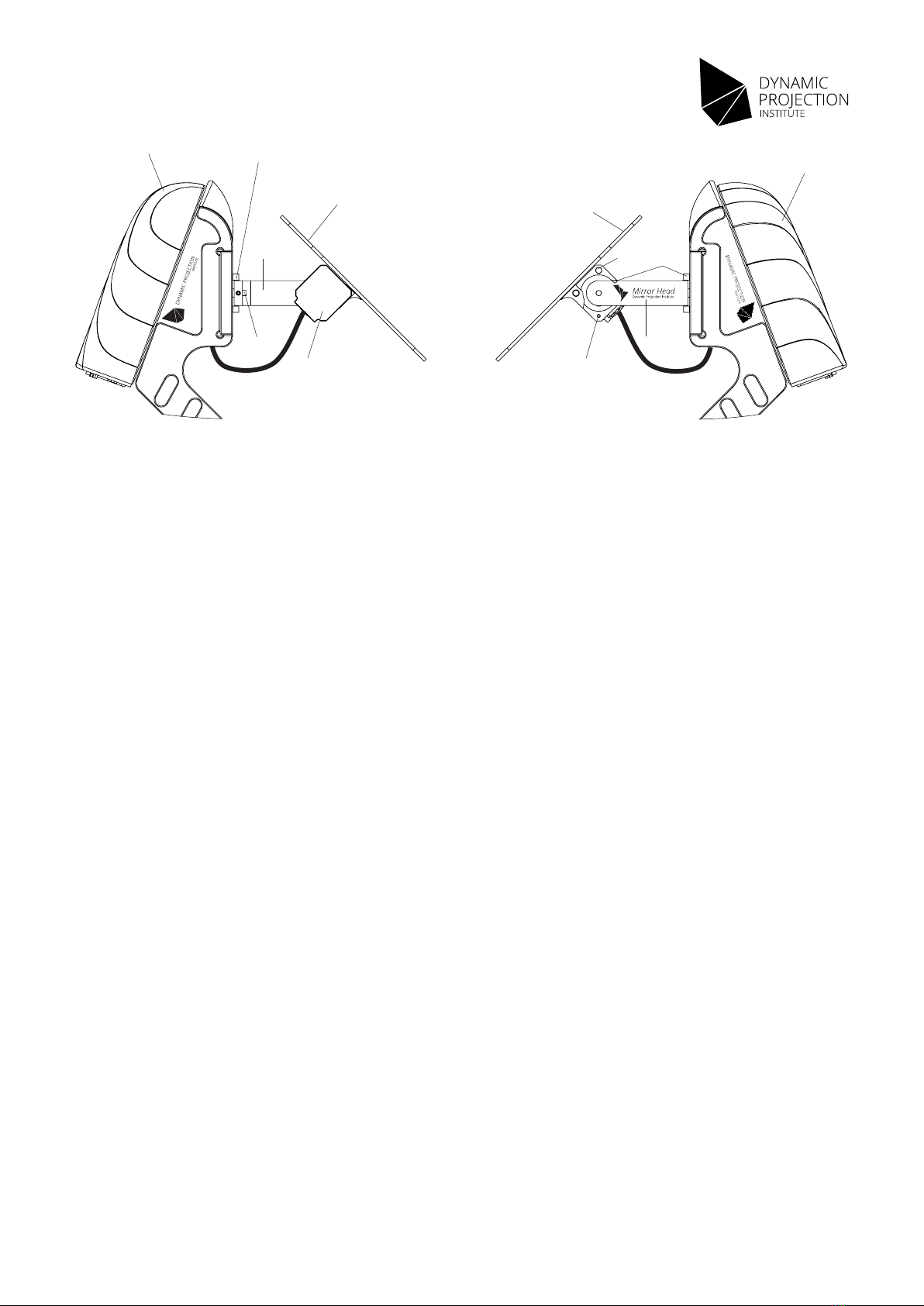

1. Surface coated mirror
2. Mirror Head control unit
3. Mirror Head base plate
MH24
3
1
2
Version 2.4

8 BCDEF
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
1. Surface coated mirror
2. Mirror Head control unit
3. Mirror Head base plate
4. Tilt motor
5. Reference magnets
6. Motor-drive-arm
7. Reference screws
8. Pan drive shaft
2
2
7
75
11
4 4
8
6
6
Version 2.4

9
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.

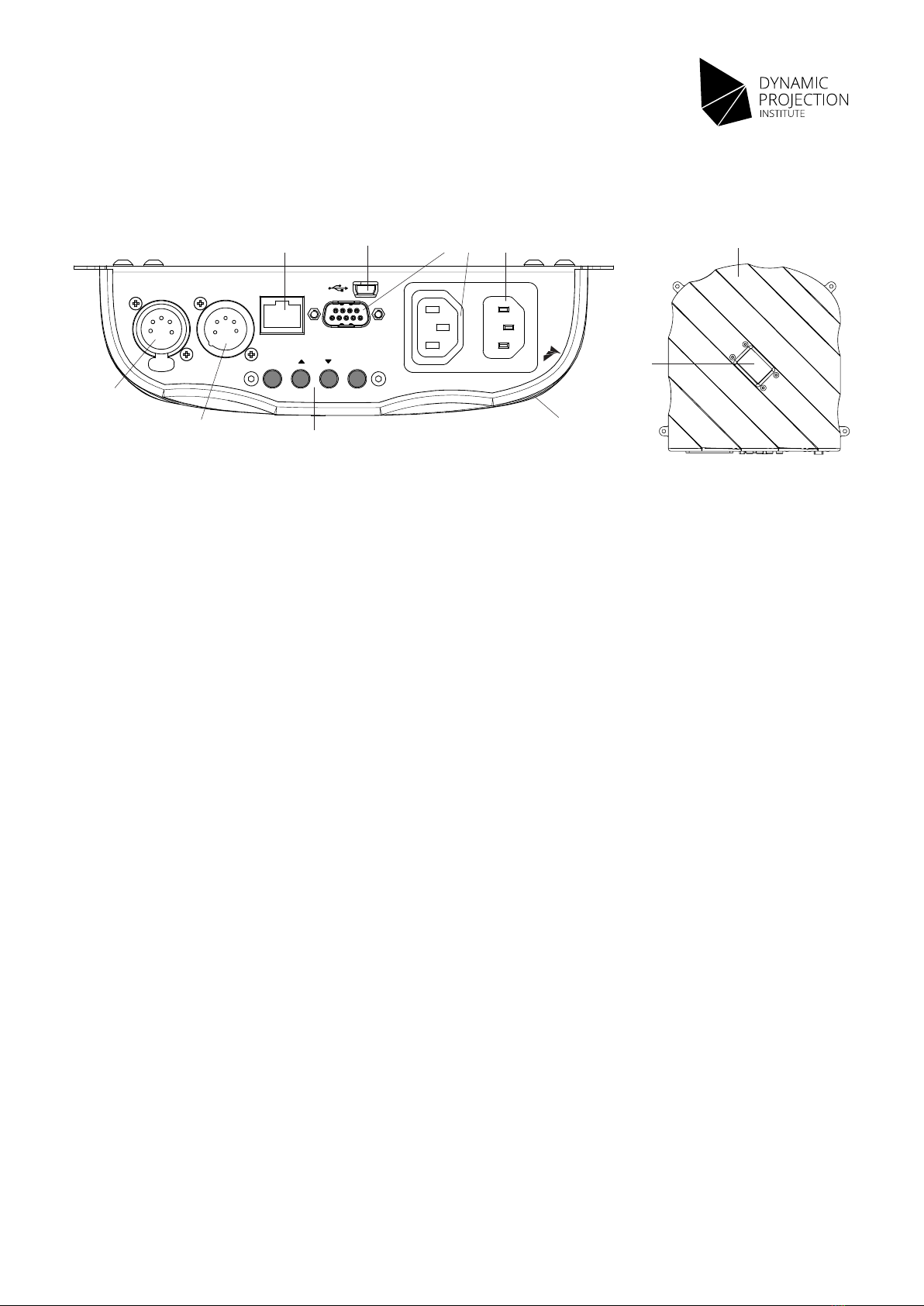

Mirror Head control unit / MHE01
Backside view Top view
1. DMX-OUT / Through Socket - 5 Pins XLR
2. DMX-IN Socket - 5 Pins XLR
3. Art-Net™ network - 10Mb/s, 100Mb/s
4. Mini USB OTG - for firmware update
5. RS232 connector - male
6. A/C power output; loop trough, 3-prong C13 female socket
7. A/C power input; 100V / 2A / 60Hz - 240V / 1A / 50Hz, 10A max. 3-prong C14 male socket
8. Control buttons for menu navigation
9. LCD display
10. Control unit
Elektronik Frontansicht komplett
all rights reserved by
www.dynamicprojection.com
25.08.14
Neumann
GEWICHT:
A3
BLATT 1 VON 1 MASSSTAB 1:1
ZEICHNUNGSNR.
BENENNUNG:
ÄNDERUNG
ZEICHNUNG NICHT SKALIEREN
WERKSTOFF:
DATUM
SIGNATUR
NAME
ENTGRATEN
UND SCHARFE
KANTEN
BRECHEN
OBERFLÄCHENGÜTE:
WENN NICHT ANDERS DEFINIERT:
BEMASSUNGEN SIND IN MILLIMETER
OBERFLÄCHENBESCHAFFENHEIT:
TOLERANZEN:
LINEAR:
WINKEL:
QUALITÄT
PRODUKTION
GENEHMIGT
GEPRÜFT
GEZEICHNET
DMX OUT DMX IN ARTNET / LAN
RS 232
MENUENTER
AC OUT AC IN
Mirror Head
Model: MHE01
34567
10
8
2
1
10
9
Version 2.4

10
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Mirror Head assembly
Before starting to mount the Mirror Head to the projector check which model of the Mirror Head you have and
follow the instructions carefully.
Only work at a clean working place and avoid any obstacles that can damage the Mirror Head or projector.
You need the following tools to mount the projector:
- Metric Hex key set from 2,5mm, 3mm, 4mm, 6mm
- Metric fork key set 7mm and 10mm (Model MH08 – MH13 only)
All mounting operations must be carried out by a qualified person.
WARNING:The Mirror Head and the projector can be very heavy – use a second person for help.
Version 2.4

11 B
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Mounting of the projector
For further help on assembly please watch our assembly videos: http://www.dynamicprojection.com/mirror-head-assembly/
1
2
3
5
6
4
7. Mount the base-plate to the projector and projector
frame. If the projector is already mounted to the frame
you have to remove the specific screws. WARNING:
Secure the projector at any time so it cannot fall out or
down. Use a second person to help.
8. Lock-in the Mirror Head into the base-plate and secure
the two screws at the front and the two screws at the
bottom. NOTE: This step of the installation can be reversed.
9. Connect the RS232 and AC power-cord to the projector
and control unit.
8
7
1
2
3
5
6
4
Flat side
1. Prepare the setscrew on the hex key.
2. Turn the setscrew into the drive arm
by two turns.
3. Slip over the end-stop (brass part)
over the pan drive shaft.
4. Take the whole drive arm end slip it
over the pan drive shaft until it
reaches the end-stop.
5. Secure the setscrew with the hex key.
Make sure that the screw is tightened
on the flat side of the D-cut shaft.
6. Connect the motor signal cable and
mount the glue strip on the motor.
Version 2.4

12 BCDEF
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Use the lens shift of your projector to adjust the position of the
projected image on the mirror as shown in the illustration.
(Mirror position for adjustment = power on position)
Adjust lens shift
Tilt-Motor
Axis
Version 2.4

13 BCDEF
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Mounting of accessories
NOTE: This device is only allowed for an installation via the original mounting brackets, clamps or stands.
NOTE: The manufacturer cannot be made liable for damages caused by incorrect installations, unauthorized parts or
insufficient safety precautions!
When mounting accessories please follow the installation instructions carefully and read the installation manual of the specific product.
Version 2.4

14 BC
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Mounting of the Mirror Head
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary
safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
When rigging, de-rigging or servicing the device staying in the area below the installation place, on bridges, under high working places
and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into
operation for the first time and after changes before taking into operation another time.
The device should be installed outside areas where persons may walk by or be seated.The device has to be installed out of the reach of people.
If the device shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The device must never be
fixed swinging freely in the room.
Devices in hanging installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible
installation, do NOT install the device! Mount the device to your trussing system using an appropriate clamp. For overhead use, always
install an appropriate safety bond.
WARNING: OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working
load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you
lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper
installation can result in bodily injury and or damage to property.
~90°
Default Mode

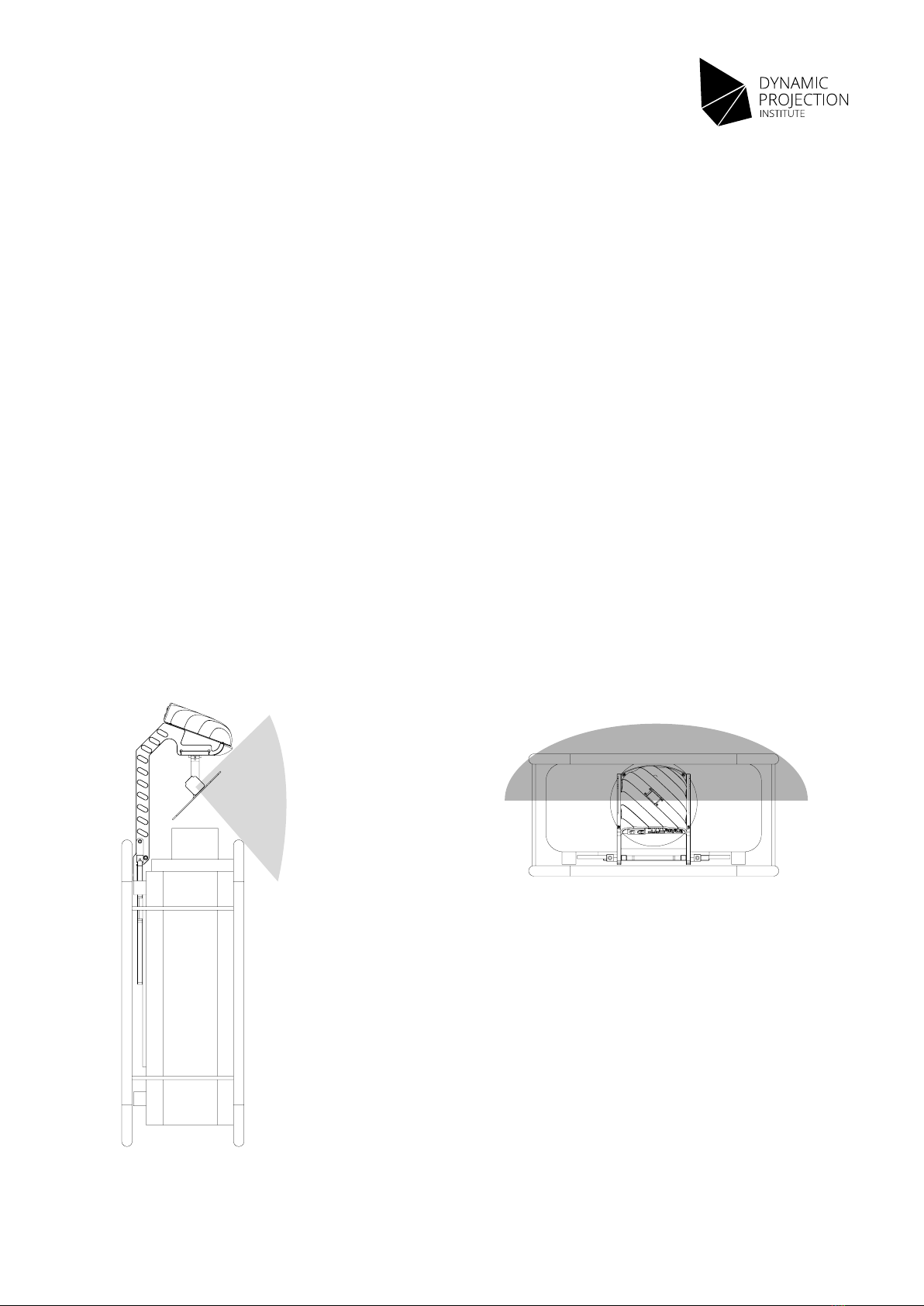

Examples of positioning the Mirror Head.
The illustrations show the approximate usable angular range of the projection
cone depending on the operation modes.The shown ranges may differ depending
on the lens-shift and blocking parts of the projector or mounting constructions.
The modes can be set in the firmware of the Mirror Head using the „Mirror
angel“ menu.
Default Mode („90 Degrees“), this is the „90° Tilt“ mode available on all Mirror
Head models.
Version 2.4
~180°
Default Mode

15
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Setup and adjustment - Basic connections
Make sure you are:
- familiar with the projector you are using together with the Mirror Head.
- have experience with projections in general
Throw ratio calculation and lens
Due to optical reasons we do not recommend a throw ratio lower than 1.7 on all Mirror Head units (image will get cut off). If your
projector does have a lens-shift adjust it so the center of the projection on the mirror aligns with the tilt-motor axis and the pan-motor
axis. Of course you can adjust the lens-shift differently if you need it.
The Mirror Head does not change the optical properties of the lens that is used by the projector. For a typical throw ratio calculation
you measure the distance from the center of the mirror to the wall you are projecting on and add 0,08m (8cm).
DMX OUT DMX IN ARTNET / LAN
RS 232
MENUENTER
AC OUT AC IN
Mirror Head
Model: MHE01
DMX OUT DMX IN ARTNET / LAN
RS 232
MENUENTER
AC OUT AC IN
Mirror Head
Model: MHE01
Art-Net™
Art-Net™
RS232 RS232
DMX
DMX Light Table
Power
Power Power
Power
Media Server
Mirror Head control unit Mirror Head control unit
Media Player
Projector
Projector
Video
Video

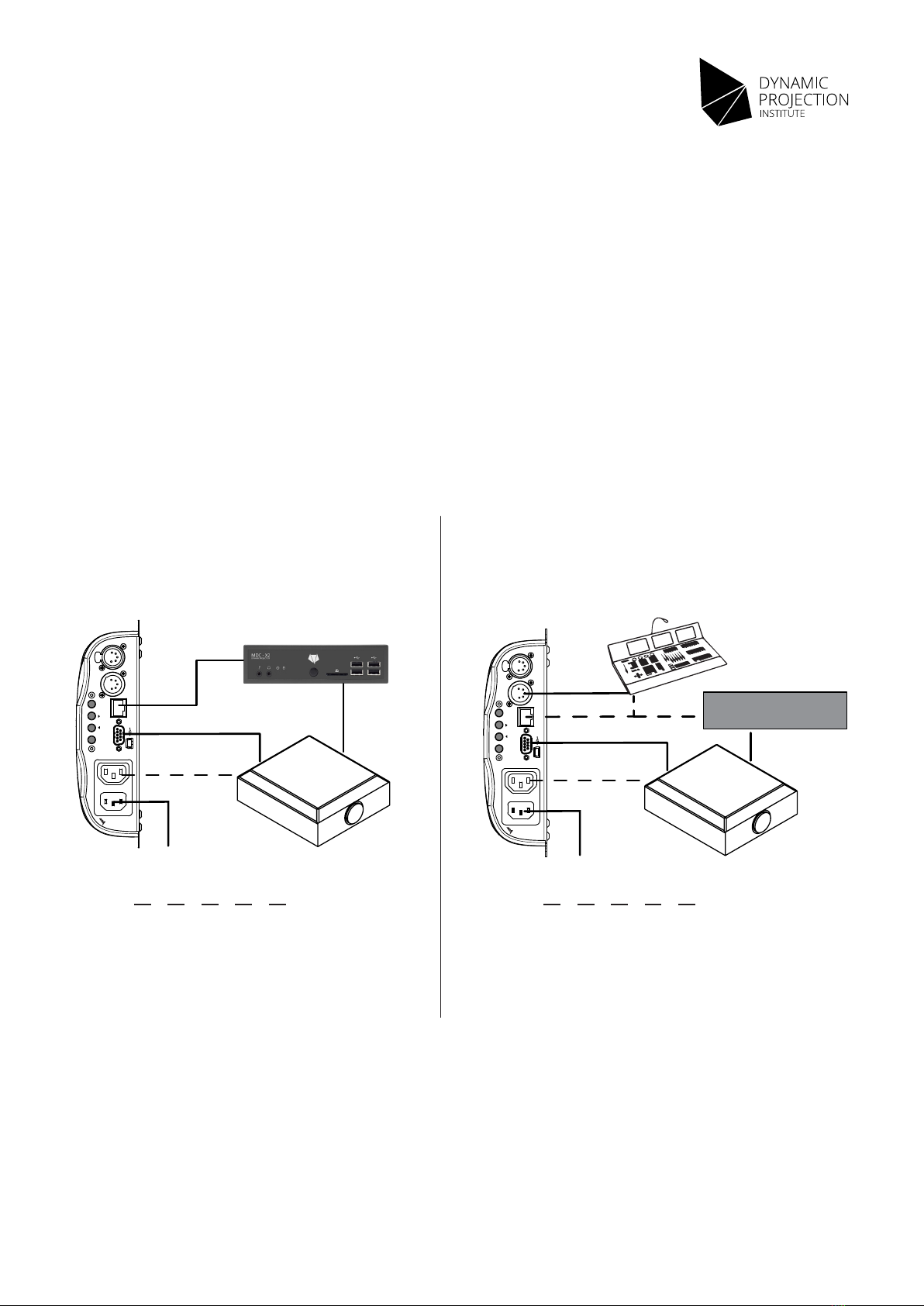

This setup shows the combination of the Mirror Head
and a Media Server (e.g. MDC-X) that is capable of
Art-Net control, video playback and optional geometry
effects. For more information about controlling the Mirror
Head see the „Using and operations“ section.
This setup shows how the Mirror Head can easily be
integrated into DMX-Light Management (DMX512-XLR or
Art-Net DMX512) and Media-playback. For more informa-
tion about controlling the Mirror Head see the „Using and
operations“ section.
Media Server with Art-Net™ control and
video playback
Media Player and DMX Light Table
optional optional
Version 2.4

16
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Using and operations (DMX512 / Art-Net™)
To use the Mirror Head as intended, a DMX512/Art-Net™ controller is needed with at least 14 channels.
General operation information
CAUTION: Never project directly onto people or animals - the light of the projector can cause blindness.
Before starting to mount the Mirror Head make sure:
- the installation-spot is suited for the Mirror Head.
- the mirror can move freely.
- there are no vibrations by ventilation systems of any kind.
- all screws are secured.
DMX operations / control
In order to control the Mirror Head at least a 14 channel DMX Master is required. You can find the fixture in the appendix of this
document.
The Mirror Head control unit allows you to assign the DMX fixture address, which is defined as the first channel from which the Mirror
Head unit will respond to the controller. If you set, for example, the address to channel 15, the device will use the channels 15 to 28
for control.
Make sure that you don’t have any overlapping channels in order to control each Mirror Head correctly and independently from any
other fixture on the DMX Network.
If two, three or more Mirror Head units have the same DMX address, they will work simultaneously.
NOTE: Two units cannot have the same Art-Net™ IP-address.
Before you start operating you have to decide if you want to control the Mirror Head with DMX-512 (XLR cable) or by Art-Net™
DMX512 (CAT cable, IP layer).
For the most basic operation start to change the values on channel 001 (Pan coarse) and 003 (Tilt coarse) - this will move the mirror.
If this works try a mirror recalibration by sending the value 255 on channel 004.
NOTE: channel values here assume a DMX address of 1.
The relative center of the mirror (position after power turned on) is equivalent to the DMX values:
Operations either with DMX-512 or Art-Net™ DMX-512 are equivalent. To get the best movements of the mirror your DMX packet
frequency should not be lower than 40Hz.
DMX channel DMX value
001 128
002 0
003 128
004 0
… …
Version 2.4

17
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
DMX-512 controlled operation
1. Make sure the unit is turned off.
2. Connect the DMX XLR cable to the DMX-IN socket.
3. Connect the power-cord so the unit turns on.
4. Check the DMX settings in the control unit.
5. Start sending DMX commands and check if the system reacts.
NOTE: It is maybe necessary to insert a DMX / XLR termination plug (with 120 Ohm) in the last unit in the link in order to ensure proper
transmission on the DMX data link – please ask your DMX operator.
Art-Net™controlled operation
1. Make sure the unit is turned off.
2. Connect the power-cord so the unit turns on.
3. Check the DMX settings in the control unit.
4. Check the IP address settings in the control unit.
5. Connect the CAT cable to the control board.
6. Start sending Art-Net™ DMX commands and check if the system reacts.
When the Mirror Head is connected to the network, it can be controlled by sending DMX data over the network using the Art-Net™
protocol. Configure the IP address and netmask according to your network infrastructure (common IP addresses used for Art-Net™
devices are 2.x.x.x or 10.x.x.x) as well as the DMX startaddress (channel offset).
NOTE: If you change the IP address of the unit you have to replug the CAT cable in order to avoid ARP / IP caching of some intermediate
switching equipment.
When configured correctly, the device will react to packets sent to IP address itself, the network broadcast address as well as the
limited broadcast address 255.255.255.255 - e.g. if the Mirror Head is set to its factory default IP address 2.0.0.3 (netmask 255.0.0.0),
packets sent to 2.0.0.3, 2.255.255.255 and 255.255.255.255 may be used to control the Mirror Head.
NOTE: It is recommended to send Art-Net™ packets with a constant data rate of 40 packets per second and “hold” the DMX values
for a short amount of time. Sending single packets may not have the intended effect regarding certain projector commands (e.g. lamp
on / off) as well as for mirror movement speed – your mileage may vary.
The Mirror Head will honour the DMX channel offset but not the Art-Net™ universe. This means that in setups with multiple Mirror
Heads and/or other Art-Net™ compliant devices in multiple universes, the Mirror Heads will react to packets sent to all universes – this
can lead to unintentional / unexpected movement / behaviour.
One way to circumvent this problem is by reconfiguring the Mirror Head to use an IP address in a different network, and send the DMX
data meant for the Mirror Head only to this network.
However, if the Art-Net™ data is incoming in the form of limited broadcast packets (destination address 255.255.255.255), the network
separation by IP address will not work. In this case, the Mirror Head must be physically separated from the network where the data is
being transmitted and other means of redirecting the DMX data for the Mirror Head must be used. (e.g. by routing or a proxy)
RS232 projector control
The Mirror Head control unit offers the possibility to send some basic remote control commands to the projector using the RS232 interface.
1. Make sure the projector is turned on and accepts RS232 commands corresponding to the RS232 compatibility list in the appendix.
2. The commands are sent to the projector whenever a specific DMX value is sent on the specific DMX channel – see DMX fixture chart.
Example:
- To turn the projector ON send a value between 230 and 238 on DMX channel 9 for 3 seconds.
- To turn the projector OFF send a value between 250 and 255 on DMX channel 9 for 3 seconds.
Version 2.4

18
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Mirror Head control unit operations
The control unit of the Mirror Head offers the possibility to adjust the system to the projector and the control environment.
Main screen
The Main-Screen shows the company logo. The back-light of the screen is turned off on default after 30 seconds of inactivity if the
system is on this screen.To turn it on again press any of the Mirror Head buttons. On this screen you can change the screen orientation
for better handling by pressing special keystroke combinations:
Main menu
This is the top level menu to access all settings of the Mirror Head. You can return to this screen anytime by pressing the (MENU])
button. To select an item in the list use the (UP) or (DOWN) buttons and press [ENTER] to access the sub-menu. Inside this menu you
can start a mirror-reset (calibration) by pressing the following buttons for 3 seconds.
Version
The version menu shows the firmware version of the Mirror Head.The firmware of all Mirror Head products can be upgraded if needed
using the USB OTG connector. In this menu you can override the factory default center of the calibration function. Under standard
conditions you should never use this function.
Function (ENTER) (UP) ▲(DOWN) ▼(MENU)
Display FLIP X X - -
Display FLOP X - X -
Function (ENTER) (UP) ▲(DOWN) ▼(MENU)
SET
Zero Position X X - -
RESET
Zero Position X - X -
Function (ENTER) (UP) ▲(DOWN) ▼(MENU)
Mirror reset - X X -
Version 2.4

19
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Network
The network interface of the Mirror Head is for Art-Net™ DMX512 communication. Please note that
the Mirror Head supports static IP addresses only (DHCP is not supported) and comes with a factory
set IP address set to 2.0.0.3, netmask 255.0.0.0.To change the IP-address use the (UP), (DOWN) and
(ENTER) buttons. After you changed the IP address press (ENTER) over and over again until you see
“DONE” on the top of the screen. Changes will then apply immediately to the network interface of
the Mirror Head. To force an ARP update disconnect the network cable for at least 5sec.
NOTE: Depending on the network infrastructure it is maybe necessary to reset the switches and / or network interfaces of other
devices if the IP-address of the Mirror Head changes.
NOTE: Every device in an IP network must have its own IP address.
NOTE: You cannot use Art-Net™ DMX512 and analog DMX at the same time. Changing this physical layer requires a power off-on
cycle of the Mirror Head.
Projector
The Mirror Head offers the possibility for a remote control of the projector over DMX via the
RS232 interface. This menu allows you to select the connected projector brand (see Appendix for
compatibility and function list) to be used with the Mirror Head. The projector must be connected
with the Mirror Head using a RS232 cable and the remote control function must be enabled and set
correctly on the projector.
Mirror angle
This option offers you the possibility to change the tilt-axis between Mode-90° and Mode-162° for
specific versions of the Mirror Head. Switching between Mode-90° and Mode-162° does not require
a restart of the Mirror Head. If you switch the mode the center position on the tilt-axis of the Mirror
Head changes.
WARNING: Use the 162° only if your Mirror Head is compatible with this setting – Check the
162° compatibility list in the appendix.
DMX
By default the DMX-Address of the unit starts at 001. Here you can set the offset if you need to
change the DMX-Address of this unit. The DMX fixture for the Mirror Head is in the appendix.
NOTE: The Mirror Head unit is always a slave device.
LEDs (MH08–MH13 only)
By default the RGB LEDs of the Mirror Head (if available for your model - see appendix) are controlled over Art-Net™/DMX by selecting
the specific RGB and intensity channel values. If the LEDs should be on no matter if there is a DMX signal or not, the fixed values can
be set here.
Version 2.4

20
Copyright © 2014 - 2020 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specications and appearance are subject to change without notice.
Firmware update
To update the Mirror Head firmware a OTG-mini USB connector cable is needed. The firmware is loaded onto the USB stick and the
cable with the USB stick is plugged into the Mirror Head. After this the Mirror Head shall be turned on. On the display a notice will
appear telling that the system is updating. Remove the USB stick and cable after the update is finished.
Service and maintenance
NOTE:The Mirror Head does not contain any serviceable parts.
NOTE: Even though the Mirror Head unit does not contain any parts that must be serviced; e.g. lubed, oiled or replaced –
Service inspection is for general safety and to avoid danger to life - keep service serious!
The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert and skilled person
on a regular basis; at least once a year.
The following points have to be considered during the inspection:
- All screws used for installing the devices or parts of the device have to be tightly connected and must not be corroded.
- There must not be any deformations on housings, fixations and installation spots (ceiling, suspension, trussing).
- Mechanically moved parts like axles, cables, motors and others must not show any traces of wearing (e.g. material
abrading or damages) and must rotate freely and without force if power is disconnected.
- The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
- Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety
problems have to be removed.
Version 2.4
