Fayat Bomag BCM GPS-STARFIRE 6000 Technical manual

SERVICE
INFORMATION
01/063/2021 –New correction signal frequency (2021) for the BCM 05 GPS receiver
1 / 2
SI number:
01/063/2021
Date:
01.02.2021
Replaces:
01/050/2015
No. of pages:
2
Title:
New correction signal frequency (2021) for the BCM 05 GPS receiver
Product:
BCM 05
Priority:
☐Immediately
☒Next service
☒Fix-as-fail
☒Information
Serial number range:
-
-
-
-
-
As part of the continuous product improvement, the correction signals of the BCM GPS receiver will be
changed.
Starting from 01.02.2021, StarFire correction signal might only be available to a limited degree
due to a frequency change. The usual accuracy of the GPS receiver will thus be reduced.
An update of the GPS firmware is required to receive coordinates with the usual accuracy (SF1/SF2).
Please inform the affected customers in your area!
The change of the firmware is to be carried out according to the enclosed description.
The required firmware is available for download under the following link:
https://www.bomag.com/ww-en/serviceinfostarfire2021/
Requirements for the new configuration:
Pos.
Part number
Description
Quantity
1
-
Machine with pre-fitting: BCM + Tablet + GPS (VM31, 32, 42)
1
2
-
Any USB 2.0 stick
1
3
-
File: SF3000_2.80S.s19 + Test Starfire3000.txt
1
4
-
File: SF6000.PRC + Test Starfire6000.txt
1
As well as a machine with the pre-fitting for BCM05 incl. the tablet and GPS (VM41, VM16).
Reimbursement
In the event of an affected GPS receiver during the warranty period, BOMAG will reimburse the following
upon submission of a warranty claim in accordance with the applicable agreed BOMAG GPS receiver:
•1 hour labour
Modifications to receivers outside the warranty period are necessary, but will not be reimbursed via a
warranty claim.
Warranty claim
•Only the costs stated in section Reimbursement can be reimbursed by means of a warranty claim.
•Required information for the warranty claim:
oText: “Work performed according to service information.”01/063/2021
oAttach images/photos of the performed work.
oGPS serial number.
•
If the required information is not provided, the warranty claim will not be valid.
Services & Solutions
S. Kneip

SERVICE
INFORMATION
01/063/2021 –New correction signal frequency (2021) for the BCM 05 GPS receiver
2 / 2
Head Office/Hauptsitz
BOMAG
Hellerwald
D-56154 Boppard
Germany
Telefon: [phone]
Fax: [phone]
E-Mail: [e-mail]
BOMAG
Niederlassung Berlin
Gewerbestraße 3
15366 Hoppegarten
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Hannover
Dieselstraße 44
30827 Garbsen-Berenbostel
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG (China) Construction Machinery
Co. , Ltd
No. 2808, west Huancheng Road,
Shanghai Comprehensive Industrial
Zone Fengxian Shanghai 201401
CHINA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG Italia Srl.
Via Roma 50
48011 Alfonsine (RA)
ITALY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
FAYAT BOMAG Polska Sp. z.o.o
Ul. Szyszkowa 52
02-285 Warzawa
POLAND
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMA Equipment Hong Kong LTD
Room 1003, 10/F Charm Centre
700, Castle Peak Road
Kowloon,
HONG KONG
Tel.: [phone]
Fax: [phone]
e-mail: bo[email protected]
BOMAG
Niederlassung Boppard
Hellerwald
56154 Boppard
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: nlboppar[email protected]
BOMAG
Niederlassung München
Otto-Hahn-Ring 3
85301 Schweitenkirchen
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG France S.A.S.
2, avenue du Général de Gaulle
91170 VIRY-CHATILLON
France
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG (CANADA), INC.
3455 Semenyk Court
Missisauga, Ontario L5C 4P9
CANADA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
FAYAT BOMAG Rus OOO
Klyazma block, h 1-g
141400 Khimki, Moscow region, RF
RUSSIA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG Americas, Inc.
125 Blue Granite Parkway
29130 Ridgeway SC
United States
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Chemnitz
Querstraße 6
09247 Chemnitz
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Stuttgart
Uferstraße 22
73630 Remshalden-Grunbach
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG (GREAT BRITAIN), LTD
Sheldon Way, Larkfield
Aylesford
Kent ME20 6SE
GREAT BRITAIN
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]m
BOMAG Maschinenhandelsgesellschaft
m.b.H
Klausenweg 654
2534 Alland
AUSTRIA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG GmbH, Singapore
300, Beach Road
The Concourse #38-03
Singapore 199555
MALAYSIA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG MARINI EQUIPMENTS LTDA.
Rua Comendador Clemente Cifali, 530
Distrito Industrial Ritter
Cachoeirinha - RS
Brazil
ZIP code 94935-225
Tel.: [phone]
Fax: [phone]
e-mail: bras[email protected]

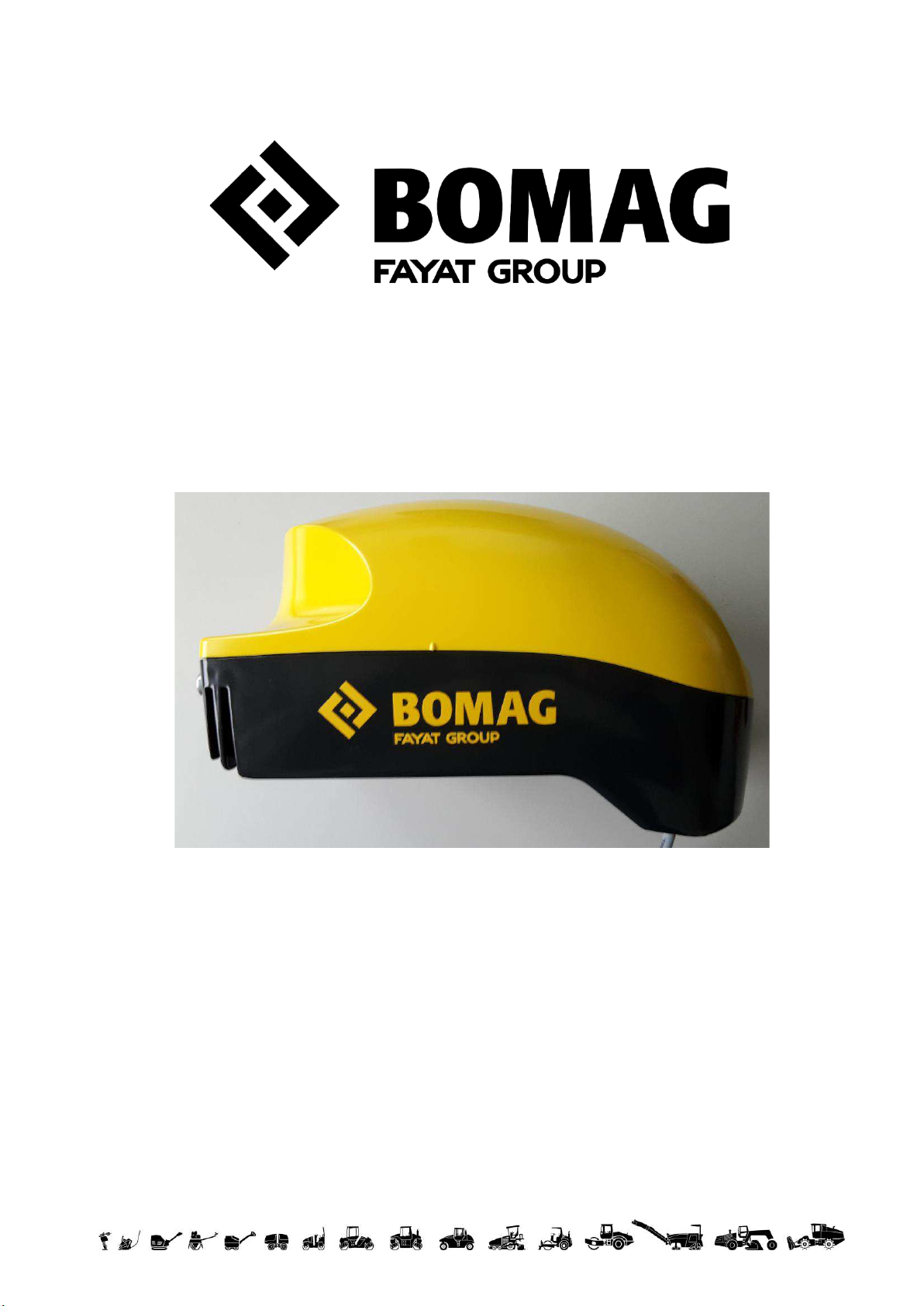

UPDATE INSTRUCTIONS
BCM GPS –STARFIRE 6000

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 3 / 16
Table of contents
1. General information ..........................................................................................................................................5
1.1. Introduction ..............................................................................................................................................5
1.2. Concerning your safety............................................................................................................................6
1.2.1. Basic prerequisites ..............................................................................................................................6
1.2.2. Basic safety regulations for safe operation..........................................................................................8
2. Preparations and commissioning ...................................................................................................................10
2.1. Assembly and system start-up (tablet) ..................................................................................................10
2.2. Preparing the USB stick and GPS receiver ...........................................................................................10
3. Preparing the software ...................................................................................................................................11
4. Performing the update....................................................................................................................................13
5. Success control ..............................................................................................................................................14

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 5 / 16
1. General information
1.1. Introduction
General information These conversion instructions are intended for professionally trained
personnel.
These conversion instructions describe the removal, dismantling,
assembly, installation and repair of components and assembly
groups, insofar as this is reasonable with respect to tools and the
spare parts supply.
Documentation For the BOMAG machines described in these conversion instructions,
the following documentation is also available:
▪Operating and maintenance instructions
▪Service manual
▪Spare parts catalogue
▪Service information (if required)
BOMAG original spare parts
Use only BOMAG original spare parts.
Original spare parts needed for repairs can be taken from the spare
parts catalogue for the machine.
Copyright Information and illustrations in these instructions are not to be
reproduced, distributed or used for the purpose of competition without
the consent of BOMAG. All rights according to copyright law are
expressly reserved.
Illustrations Illustrations are schematic diagrams and may differ from the ACTUAL
condition of the machine.

UPDATE INSTRUCTIONS
6 / 16 Correction signal frequency Starfire 6000 Update instructions
1.2. Concerning your safety
1.2.1. Basic prerequisites
1.2.1.1. General information
This BOMAG machine has been built in compliance with the latest
technical standard and complies with the applicable regulations and
technical rules.
However, this machine may represent a danger to persons and
property if:
▪it is used for purposes other than the ones it is intended for;
▪it is operated by untrained personnel;
▪it is changed or converted in an unprofessional way;
▪the safety instructions are not observed.
Each person involved in the operation, maintenance and repair of the
machine must therefore read and comply with these safety
regulations. If necessary, the operating company must obtain the
relevant signatures as confirmation.
Furthermore, the following also applies on principle:
▪applicable accident prevention instructions;
▪generally accepted safety and road traffic regulations;
▪country/state specific safety regulations.
It is the duty of the operator to be acquainted with the safety
regulations and to apply these accordingly. This also applies for local
regulations concerning different types of handling activities. Should
the recommendations in these instructions be different from the
regulations valid in your country, you must comply with the safety
regulations valid in your country.
1.2.1.2. Explanation of signal words used:
DANGER!
Danger to life if failing to comply!
Sections marked with this symbol indicate an extremely
dangerous situation that could lead to fatal or severe
injuries, if this warning is disregarded.
WARNING!
Danger to life or danger of severe injuries if failing to
comply!
Sections marked with this symbol indicate a dangerous
situation that could lead to fatal or severe injuries, if this
warning is disregarded.
CAUTION!
Danger of injury if failing to comply!
Sections marked with this symbol indicate a dangerous
situation that could lead to minor injuries, if this warning
is disregarded.

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 7 / 16
CAUTION!
Danger of material damage if failing to comply!
Sections marked with this symbol indicate potential
damage to machines or components.
Sections marked with this symbol provide technical
information or instructions on using the machine or its
components.
ENVIRONMENT!
Environmental damage if failing to comply!
Passages marked with this symbol indicate practices for
safe and environmentally friendly disposal of fuels and
lubricants as well as of replacement parts.
1.2.1.3. Personal protective equipment
Depending on the work to be carried out, personal protective equipment is required (to be provided by
the operating company):
Working clothes
Tight fitting work clothes with low tear resistance, tight fitting
sleeves and no projecting parts prevent the wearer from being
caught in moving machine parts.
Safety shoes
They protect against heavy falling parts and slipping on
slippery ground.
Protective gloves
They protect the hands against scrapes, punctures or deeper
injuries, irritating and caustic substances and burns.
Safety goggles
They protect the eyes against airborne particles and squirting
fluids.
Face protection
This protects the face against airborne particles and squirting
fluids.

UPDATE INSTRUCTIONS
8 / 16 Correction signal frequency Starfire 6000 Update instructions

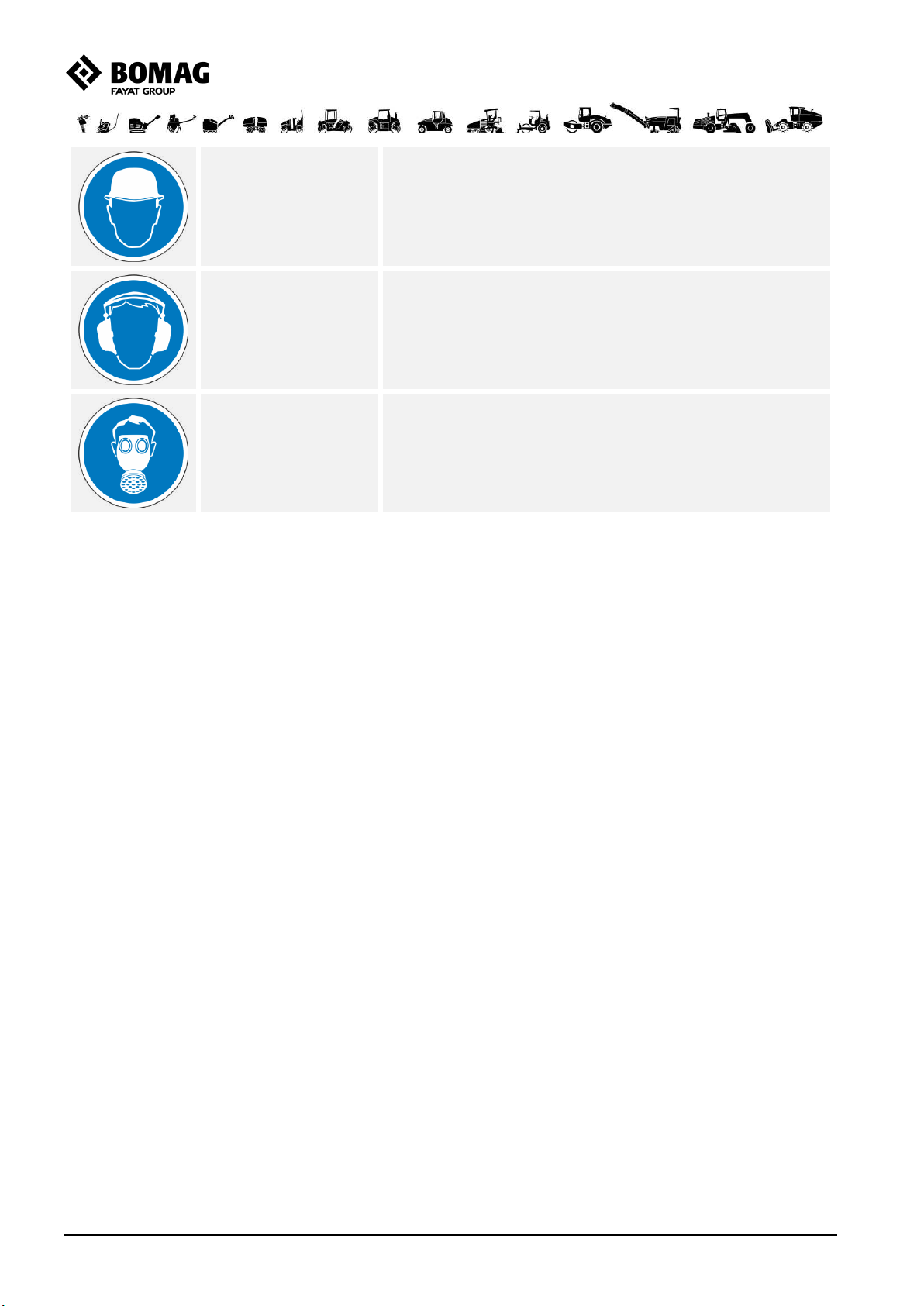

Hard hat
This protects the head against falling parts and injuries.
Hearing protection
This protects against extreme noise.
Respiratory protection
This protects the airways against substances or particles.
1.2.2. Basic safety regulations for safe operation
1.2.2.1. Other remaining dangers and risks
Despite careful work and compliance with standards and regulations it
cannot be ruled out that further dangers may arise when working with
and handling the machine.
Both the machine as well as all other system components comply with
the currently valid safety regulations. Nevertheless, remaining risks
cannot be ruled out completely, even when using the machine for its
intended purpose and following all information given in the operating
instructions.
A remaining risk can also not be excluded beyond the actual danger
zone of the machine. Persons remaining in this area must pay
particular attention to the machine so that they can react immediately
in case of a possible malfunction, an incident or failure, etc.
All persons remaining in the area of the machine must be informed
about the dangers that arise from the operation of the machine.
1.2.2.2. Regular safety inspections
Have the machine inspected by an expert/qualified person as required
for the machine’s operation and use – at least once a year at
minimum.

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 9 / 16
1.2.2.3. Modifications and alterations to the machine
Unauthorised modifications to the machine are prohibited for safety
reasons.
Original parts and accessories have been specially designed for this
machine.
We wish to make explicitly clear that we have not tested or approved
any parts or accessories not supplied by us.
The installation and/or use of such products may have an adverse
effect on active and/or passive safety.
1.2.2.4. Damage, defects, misuse of safety devices
Machines which are not safe to operate or road-safe must be taken
out of service immediately and are not to be used until any defects or
faults have been properly rectified.
Safety installations and switches must never be removed or rendered
ineffective.

UPDATE INSTRUCTIONS
10 / 16 Correction signal frequency Starfire 6000 Update instructions
2. Preparations and commissioning
2.1. Assembly and system start-up (tablet)
CAUTION!
Risk of falling
Take special caution when ascending and descending,
especially in bad weather!
1. Insert the tablet into the corresponding cabin holder.
2. Insert the GPS into the corresponding roof holder and connect the cable.
3. Switch the ignition on.
4. Start the tablet by pressing the start button on the left side (hold for 3 seconds).
2.2. Preparing the USB stick and GPS receiver
1. Unpack the appropriate SF6000.PRC firmware file onto an empty USB stick.
2. Copy the Test Starfire6000.txt file to the USB stick.
3. Insert the USB stick into the socket on the GPS receiver.
Figure 1

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 11 / 16

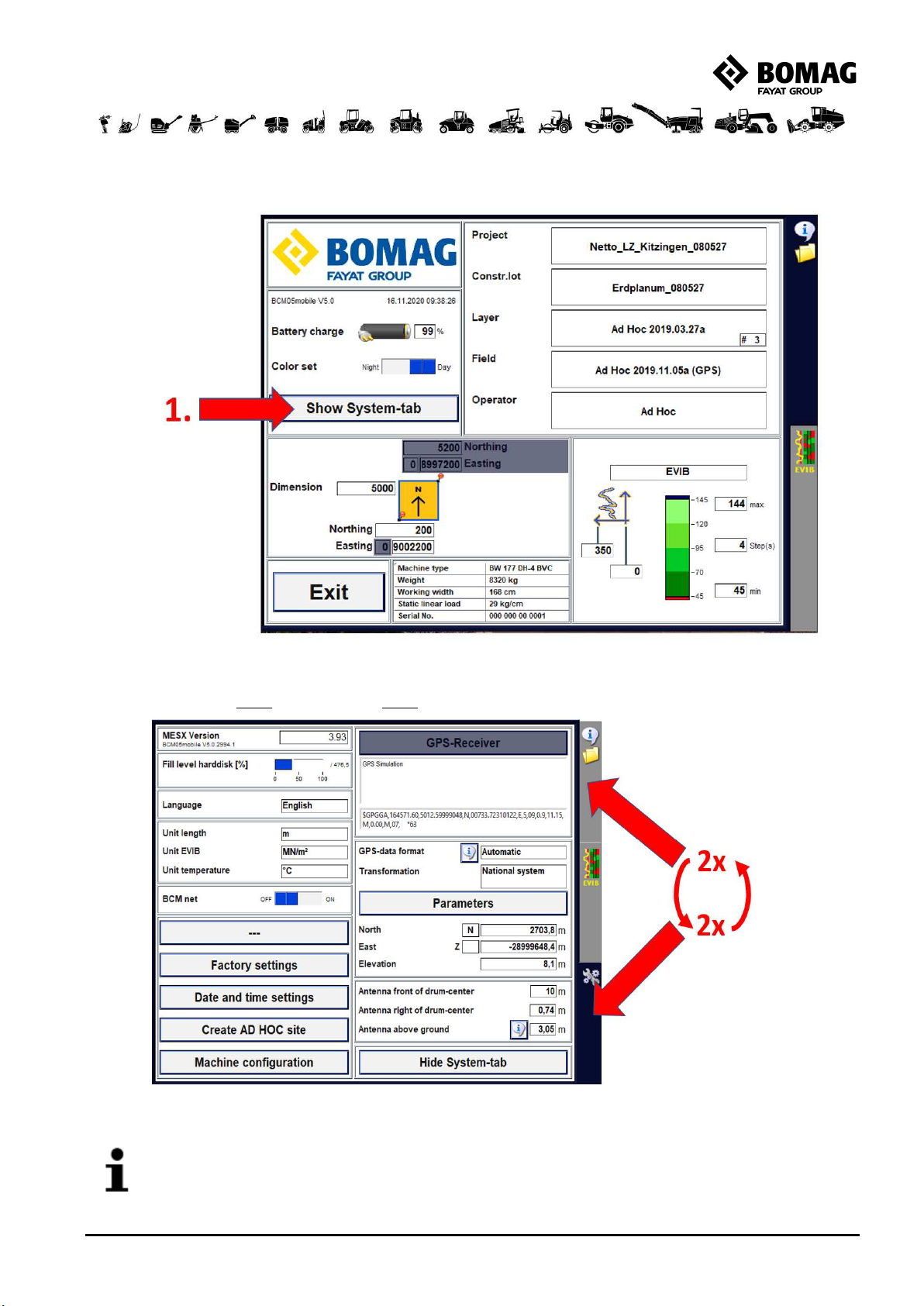

3. Preparing the software
1. Carry out the work steps according to the picture sequence:
Figure 2
2. Click TAB uptwice and TAB down twice . Repeat several times.
Figure 3
If you have problems at this point, there is also a short help video for step 2 in the download folder.

UPDATE INSTRUCTIONS
12 / 16 Correction signal frequency Starfire 6000 Update instructions
3. Carry out the work steps according to the picture sequence:
Figure 4
4. Ignore the message “Back to BCM”.
5. Start the “NovaControl” software, which is located as an icon on the desktop that is now visible.
If the icon is missing, the software is located in the Explorer under:
c:\BOMAG_positioning\Support\John Deere\Starfire_3000\Novacontrol\NovaControl.exe
Start by double-clicking.

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 13 / 16
4. Performing the update
CAUTION!
Risk of data loss and damage
- The voltage supply must not be interrupted under
any circumstances during the update process!
1. Carry out the work steps according to the picture sequence. Try all the different COM Ports until one
connects. Most likely its COM1, COM7 or COM31.
Figure 5
2. Carry out the work steps according to the picture sequence. Select “Input Terminal”.
Figure 6

UPDATE INSTRUCTIONS
14 / 16 Correction signal frequency Starfire 6000 Update instructions
3. Enter [USBLOADER]“sf6000.prc” including brackets and quotation marks and confirm with “Send”.
Figure 7
4. Wait approx. 15 minutes for the update to complete. The LED flashes lite blue at the beginning.
5. Close the “Input terminal” window.
6. Remove the GPS receiver from the voltage supply for 2 minutes.
5. Success control
1. Connect the GPS receiver to the voltage supply again.
2. Wait 2 minutes.
3. Connect the GPS again as in 4.1 explained.
4. Carry out the work steps according to the picture sequence:
Figure 8

UPDATE INSTRUCTIONS
Update instructions Correction signal frequency Starfire 6000 15 / 16

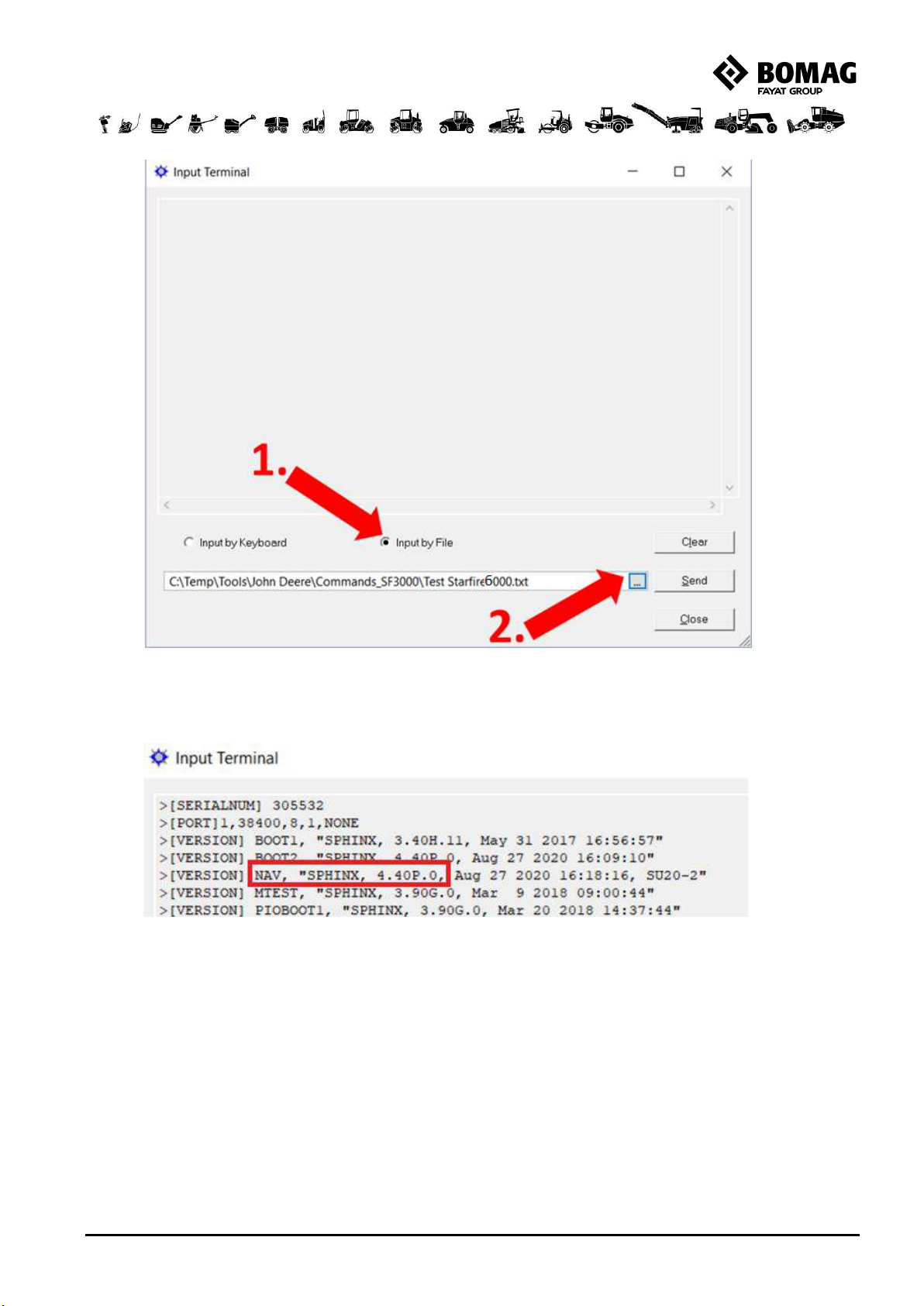

5. Carry out the work steps according to the picture sequence:
Figure 9
6. Select and confirm the “Test Starfire6000.txt” file on the USB drive.
7. Click “Send.”
8. Check the software status. (4.40P)
Figure 10
9. Exit the software and restart the tablet.
10. Check the function.

Head Office
BOMAG
Hellerwald
D-56154 Boppard
Germany
Phone: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Berlin
Gewerbestraße 3
15366 Hoppegarten
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Hannover
Dieselstraße 44
30827 Garbsen-Berenbostel
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG Maschinenhandelsgesellschaft
m.b.H.
Klausenweg 654
2534 Alland
AUSTRIA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG (China) Construction
Machinery Co. , Ltd
No. 2808, West Huancheng Road,
Shanghai Comprehensive Industrial
Zone Fengxian Shanghai 201401
CHINA
Te.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMA Equipment Hong Kong LTD
Room 1003, 10/F Charm Centre
700, Castle Peak Road
Kowloon,
HONG KONG
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
FAYAT BOMAG Rus OOO
Klyazma block, h 1-g
141400 Khimki, Moscow region
RUSSIA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Boppard
Hellerwald
56154 Boppard
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung München
Otto-Hahn-Ring 3
85301 Schweitenkirchen
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG MARINI EQUIPMENTOS LTDA
Rua Comendador Clemente Cifali, 530
Distrito Industrial Ritter
Cachoeirinha –RS
BRAZIL
ZIP cod 94935-225
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG France S.A.S.
2, avenue du Général de Gaulle
91170 VIRY-CHATILLON
FRANCE
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG Italia Srl.
Via Roma 50
48011 Alfonsine
ITALY
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
BOMAG GmbH, Singapore
300, Beach Road
The Concourse, , 18-06
Singapore 199555
SINGAPORE
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Chemnitz
Querstraße 6
09247 Chemnitz
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG
Niederlassung Stuttgart
Uferstraße 22
73630 Remshalden-Grundbach
GERMANY
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG (CANADA), INC.
3455 Semenyk Court
Missisauga, Ontario
L5C 4P9
CANADA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG (GREAT BRITAIN), LTD
Sheldon Way, Larkfield
Aylesford
Kent ME20 6SE
GREAT BRITAIN
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]m
FAYAT BOMAG Polska Sp. z.o.o.
UI. Szyszkowa 52
02-285 Warzawa
POLAND
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
BOMAG Americas, Inc.
125 Blue Granite Parkway
Ridgeway SC 29130
U.S.A.
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
