Safety Message to Installers
People’s lives depend on your safe installation of our products. It is
important to follow all instructions shipped with this product. This
device is to be installed by a trained electrician who is thoroughly
familiar with the National Electrical Code and/or Canadian
Electrical Code and will follow the NEC and/or CEC Guidelines as
well as all local codes. This horn should be considered a part of the
warning system and not the entire warning system.
The selection of the mounting location for this horn, its controls
and the routing of the wiring are to be accomplished under the
direction of the Facilities Engineer and the Safety Engineer. In
addition, listed below are some other important safety instructions
and precautions you should follow:
• Read and understand all instructions before installing,
operating, or servicing this equipment.
• In accordance with FM requirement of 120 dBA maximum
sound level, this product shall be mounted at the minimum
hearing distance from the audible appliance of ten feet.
• For optimum sound distribution do not install this horn where
objects would block any portion of the front of the horn.
• Do not connect this horn to the system when power is on.
• Do not paint the horn. No finish or coating is required. Paint
may obstruct the sound output, reducing the effectiveness of
the horn.
• All effective warning horns produce loud sounds, which
in certain circumstances, may cause permanent hearing
loss. Take appropriate precautions such as wearing hearing
protection. Recommendations in OSHA‑Sound Level
Standard (29 CFR 1910) should not be exceeded.

6
Installation and Maintenance Instructions
Model eHorn
• Establish a procedure to routinely check the signal system for
proper activation and operation.
• Any maintenance to the unit MUST be performed by a trained
electrician in accordance with NEC Guidelines and local codes.
• Never alter the unit in any manner.
•The nameplate should NOT be obscured, as it contains
cautionary and/or other information of importance to
maintenance personnel.
• After installation and completion of initial system test, provide
a copy of these instructions to all personnel responsible for
operation, periodic testing, and maintenance of the equipment.
• File these instructions in a safe place and refer to them when
maintaining and/or reinstalling the device.
Failure to follow all safety precautions and instructions may result
in property damage, serious injury, or death.
Unpacking the eHorn
After unpacking the eHorn, examine it for damage that may have
occurred in transit. If the horn has been damaged, do not attempt
to install or operate it. File a claim immediately with the carrier,
stating the extent of the damage.
Carefully check all envelopes, shipping labels, and tags before
removing or discarding them. Disposal of all shipping materials
must be carried out in accordance with national and local codes
and standards. If any parts are missing, please call Federal Signal
Customer Support at 708‑534‑4756 or 877‑289‑3246.
An Overview of the Model eHorn
The Federal Signal eHorn is a high output, continuous duty, marine
and indoor/outdoor‑rated electronic horn with volume adjustment.
The eHorn is perfect for use in high‑ambient noise environments.

7
Installation and Maintenance Instructions
Model eHorn
The horn’s non‑metallic, polycarbonate housing is corrosion
resistant and weatherproof for improved durability in harsh
industrial environments.
Product Specications
Operating Voltages:
eHorn‑024: 24 Vdc
eHorn‑120‑240: 120 Vdc, 240 Vac
Weight:
eHorn‑024: 11.7 lb
eHorn‑120‑240: 13.7 lb
Housing Material: Polycarbonate
Brackets and Hardware: Stainless Steel
Sound Pressure Level and Current Data
DO NOT USE UNSUITABLE TAPS: Not every tap is suitable for use with all
voltages and tones. Use of unsuitable taps signicantly reduces the life
of the product. The tables below identify the acceptable taps selection. A
table is also located on the rear cover of the product for quick reference.
Table 1 SPL and Current Data: DC Model 52 Horn Tone
52 Horn Tone (315.6 Hz Steady)
LEVEL
TAPS SPL DC Current (A)
WIRE 1 WIRE 2 (dBA @ 10 ft) 24 Vdc
High P1 P4 116 3.0
Med P1 P3 109 1.0
Low P2 P3 100 0.4
NOTICE: Apply wires only to the positions designated in Table 1.
Other variations could cause damage to the eHorn.

8
Installation and Maintenance Instructions
Model eHorn
Table 2 SPL and Current Data: DC Model 55/56 Horn Tone
55/56 Horn Tone (330.0 Hz Steady)
LEVEL
TAPS SPL DC Current (A)
WIRE 1 WIRE 2 (dBA @ 10 ft) 24 Vdc
High P1 P5 117 3.3
Med P1 P3 106 0.5
Low P2 P3 96 0.24
NOTICE: Apply wires only to the positions designated in Table 2. Other
variations could cause damage to the eHorn.
Table 3 SPL and Current Data: AC Model 52 Horn Tone
52 Horn Tone (315.6 Hz Steady)
LEVEL
TAPS SPL AC Current (A)
WIRE 1 WIRE 2 (dBA @ 10 ft) 120 Vac 240 Vac
High P2 P4 114 0.78 0.40
Med P1 P3 111 0.35 0.16
Low P2 P3 101 0.15 0.03
NOTICE: Apply wires only to the positions designated in Table 3. Other
variations could cause damage to the eHorn.
Table 4 SPL and Current Data: AC Model 55/56 Horn Tone
55/56 Horn Tone (330.0 Hz Steady)
LEVEL
TAPS SPL AC Current (A)
WIRE 1 WIRE 2 (dBA @ 10 ft) 120 Vac 240 Vac
High P3 P5 116 0.76 0.41
Med P1 P3 107 0.16 0.08
Low P2 P3 98 0.10 0.06
NOTICE: Apply wires only to the positions designated in Table 4. Other
variations could cause damage to the eHorn.
Mounting the eHorn
The eHorn can be mounted on any relatively at surface with or
without the supplied mounting brackets The mounting surface
must be capable of supporting the weight of the eHorn. Four
installer‑supplied 1/4 in screws are required. Use screws that are
suitable for the mounting surface.

9
Installation and Maintenance Instructions
Model eHorn
Mounting the eHorn with the Brackets
For dimensions, see Figures 2 and 3 on page 10.
NOTE: For trunnion (U‑bracket) mounting, the Model
EHORN‑TKIT is available as an accessory. Refer to instruction
manual 25500314 for bracket kit details.
To secure the eHorn to the mounting surface:
1. See Figure 1. Attach the mounting brackets to the eHorn
with the six supplied 1/4 in‑20 x 5/8 in screws. Tighten
them to 80 +/‑10 in‑lb.
Figure 1 Brackets attached to eHorn
1/4"-20 x 5/8" (6)
290A7910
2. Hold the eHorn against the mounting surface and use the
two mounting holes on the bracket as a template. Scribe
drill‑position marks on the mounting surface.
3. Remove the eHorn and drill a hole at each mark.
4. Secure the eHorn to the mounting surface using installer‑
supplied 1/4 in screws.

10
Installation and Maintenance Instructions
Model eHorn
Figure 2 Depth and height with brackets
6.68 in
16.97 cm
9.60 in
24.38 cm
1/2 in-14 NPT
0.67 in (1.70 cm)
1.18 in (3.0 cm)
9.09 in
23.09 cm
Figure 3 Width and height with brackets
8.50 in
21.59 mm
7.63 in
19.38 cm
5.00 in / 12.70 cm
4x Ø 0.30 in
4x Ø 7.60 mm
8.93 in / 22.68 cm

11
Installation and Maintenance Instructions
Model eHorn
Mounting the eHorn without the Brackets
To mount the eHorn directly to the mounting surface:
1. Using the template included with the eHorn (doc. no
25500239), scribe the centers of the six mounting holes on
the mounting surface.
NOTE: For most applications, only four outer mounting
points are necessary.
2. Drill a 9/32 in hole at each of the four scribe marks.
3. Secure the eHorn from behind the surface with the installer‑
supplied 1/4 in x 20 screws. Choose an appropriate length
fastener. Note that the threads in the cover have a depth
of 0.5 in.
Opening and Closing the Housing
Depending upon the model, the factory‑supplied leads are strain‑
relieved to the housing or to the cover.
HOUSING DAMAGE: Use caution and support the housing when loosening
the cover screws. The housing is not supported by any means other than
the cover screws. Once they are loosened, the housing will separate from
the cover.
Opening the Housing
Tools required:
3/8 in socket
6 in extension
See Figure 4 on page 12. Loosen the four cover screws while
supporting the housing so it does not fall. (The cover screws are
retained in the housing.)

12
Installation and Maintenance Instructions
Model eHorn
Figure 4 Locations of housing screws
Cover Screws (4 Places)
Closing the Housing
1. Verify that the cover gasket is in the groove around the
perimeter of the cover.
2. Align the housing with the cover. Note that the FS logo on
the front of the eHorn needs to be oriented correctly with
the arrow on the inside of the cover or the two parts will
not t together.
3. Tighten the cover screws hand tight, then torque them to
60 in‑lb +/‑ 10 in‑lb.
Wiring the 24 Vdc Model
SHOCK HAZARD: To avoid electrical shock, do not connect wires when the
circuits are energized.
To extend wire for the power connections, use only 12 AWG
to 18 AWG (2.5 mm2to 1.0 mm2) wire. The external leads and
connector must be suitably protected to prevent damage. Use
grommets, bushings, and wires ties to protect them from abrasion.

13
Installation and Maintenance Instructions
Model eHorn
Wiring the eHorn with the Supplied Leads
The power connection is made via the external leads.
To wire the 24 Vdc Model eHorn:
1. Connect the positive (+) lead of the power source to the
red wire.
2. Connect the negative (‑) lead of the power source to the
black wire.
Wiring the eHorn with User-Supplied Leads
If you are not using the external leads supplied with the eHorn,
follow these steps:
1. Strip no more than 0.25 inch (6 mm) of wire insulation
from the ends of the power leads. If you are using stranded
wire, be sure that there are no loose strands outside the
connector plug that could touch the adjacent lead and cause
a short circuit. Torque the terminal screws to 4.4 in‑lb
(0.5 Nm) maximum.
2. Connect the power source positive (+) lead to the (+)
terminal of the connector.
3. Plug and connect the power source negative (‑) lead to the
(‑) terminal of the connector plug as shown in Figure 5 on
page 14.
4. Plug the DC power connector into the power input
connector on the printed circuit board.

14
Installation and Maintenance Instructions
Model eHorn

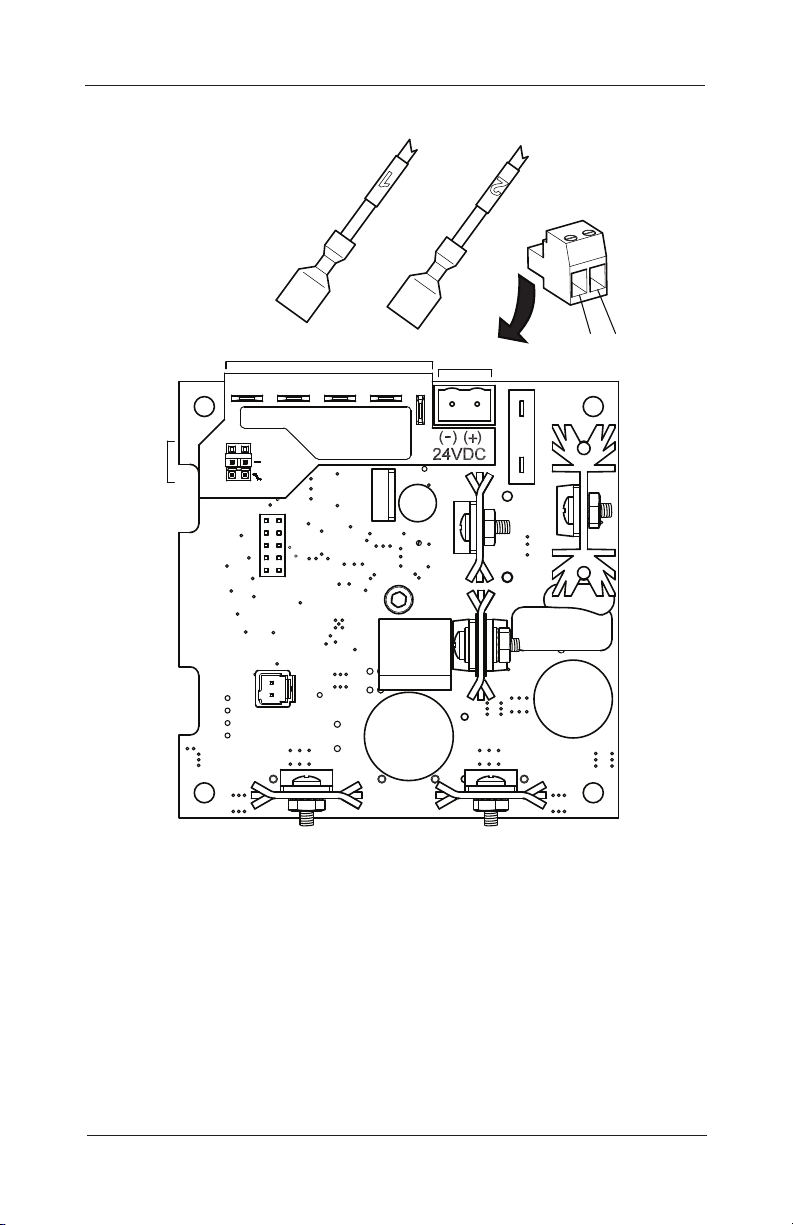

Figure 5 Tone generator/amplier board
See installation manual or
the product cover
for tap settings
Tone
Selection
P1 P3 P4 P5
1
2
DC
Power
DC Power
Connector
Input
Power
Tap
Wires
(-)(+)
P2
Power Taps
52
55/56
7.5

15
Installation and Maintenance Instructions
Model eHorn
Wiring the 120 Vac/240 Vac Model
SHOCK HAZARD: To avoid electrical shock, do not connect wires when
the circuits are energized.
To extend wire for the power connections, use only 12 AWG
to 18 AWG (2.5 mm2to 1.0 mm2) wire. The external leads and
connector must be suitably protected to prevent damage. Use
grommets, bushings, and wires ties to protect them from abrasion.
To wire the 120 Vac or 240 Vac Model eHorn:
1. Strip no more than 0.25 inch (6 mm) of wire insulation from
the ends of the power leads. If you are using stranded wire, be
sure there are no loose strands outside the connector plug that
could touch the adjacent lead and cause a short circuit. Torque
the terminal screws to 4.4 in‑lb (0.5 Nm) maximum.
2. Connect the power source hot, neutral, and earth ground wires
as shown in Figure 6.
Figure 6 120 Vac/240 Vac power supply board
L1 HOT
L2 NEUTRAL
GROUND
240 120
AC
Power
Input
120 Vac / 240 Vac
Switch, S1
L1 -
HOT
GND
L2 -
NEU
AC Power
Connector
3. Plug the AC power connector into the power input connector
on the printed circuit board.
NOTE: The eHorn is factory‑set for 120 Vac operation. For
240 Vac operation, move switch S1 to the 240 Vac position.
See Figure 6.

16
Installation and Maintenance Instructions
Model eHorn
Selecting the Tone
The eHorn is factory‑set to the 55/56 tone. To select the 52 eHorn
tone, move the jumper on the tone generator/amplier board
(Figure 5 on page 14).
Setting the Tone Volume
The volume of the eHorn is adjusted by tap selection on the tone
generator/amplier board.
Activating the Horn
To activate the horn, apply the appropriate line voltage to the horn
power input terminals. The horn remains active as long as line
voltage is present.
Getting Repair Service or Technical Assistance
Products returned for repair require a Return Authorization form
from your local distributor or from Federal Signal. To obtain
repair service or technical assistance from Federal Signal, call
708‑534‑4756 or 877‑289‑3246. For instruction manuals and
information on related products, visit:
www.federalsignal‑indust.com

25500146A
Rév. A1 0217
Imprimé aux États-Unis
Consignes d’installation
et d’entretien
Modèle eHorn
EHorn électronique classé pour usage marin et
intérieur/extérieur
Systèmes de sûreté et de sécurité / Industriels

Garantie limitée
Le présent produit est sujet à une garantie limitée et est couvert par
celle-ci. Vous pouvez obtenir une copie de cette dernière sur le site
www.fedsig.com/SSG-Warranty. Vous pouvez également obtenir une
copie de la présente garantie limitée en envoyant une demande écrite
à Federal Signal Corporation, 2645 Federal Signal Drive, University Park,
IL 60484, en envoyant un e-mail à [email protected] ou en appelant le
[phone].
La présente garantie limitée remplace toutes les autres garanties,
explicites ou implicites, contractuelles ou légales, y compris, mais sans
se limiter à la garantie de qualité marcande, la garantie d’habitabilité à
une fin particulière et toute garantie contre une défaillance de sa finalité
essentielle.

Modèle eHorn 19
Figures
Illustration1 Supports xés sur l’eHorn...............................................................26
Illustration2 Profondeur et hauteur avec les supports .................................27
Illustration3 Largeur et hauteur avec les supports.........................................27
Illustration4 Emplacements des vis du boîtier.................................................29
Illustration5 Générateur de tonalité/tableau d’amplication....................31
Illustration6 Tableau d’alimentation 120VCA/240VCA ...............................32
Table des matières
Messages de sécurité destinés aux installateurs................................. 21
Déballage du eHorn ............................................................................... 22
Présentation du modèle eHorn ............................................................. 23
Caractéristiques techniques du produit............................................... 23
Niveau de pression acoustique et données actuelles.......................... 24
Montage du eHorn ................................................................................. 25
Ouverture et fermeture du boîtier........................................................ 28
Câblage du modèle 24VCC .................................................................... 29
Câblage du modèle 120 VCA/240VCA.................................................. 32
Sélection de la tonalité .......................................................................... 33
Réglage du volume................................................................................. 33
Activation de l’avertisseur sonore ........................................................ 33
Réparation et assistance technique...................................................... 33

20 Modèle eHorn
Table des matières
Tables
Tableau1 Niveau de pression acoustique et données actuelles:
modèleCC 52 Horn Tone.......................................................................24
Tableau2 Niveau de pression acoustique et données actuelles:
modèleCC 55/56 Horn Tone ................................................................24
Tableau3 Niveau de pression acoustique et données actuelles:
modèle CA52 Horn Tone.......................................................................25
Tableau4 Niveau de pression acoustique et données actuelles:
modèle CA55/56 Horn Tone................................................................25
