Fein ABS18 Q Setup guide

ABS 18Q; ASB 18Q
Repair instructions
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 1of 19

ABS 18Q; ASB 18Q
Contents
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 2of 19
1. Models described
2. Technical data
3. Notes and requirements
4. Tools required
5. Lubricants and auxiliary substances required
6. Removal
7. Fitting
8. Troubleshooting
9. Connection diagram

ABS 18Q; ASB 18Q
1. Models described
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 3of 19
These repair instructions describe how to repair the following models:
Model Order number
ABS 18 Q 7 113 22 .. .. .
ASB 18 Q 7 113 23 .. .. .

ABS 18Q; ASB 18Q
2. Technical data
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 4of 19
Technical data
All the technical data can be found in the operating instructions for the model.
Tests
Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides).
Lubricants / Auxiliary substances
The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet
(Customer Service → Repair Guides).
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com

ABS 18Q; ASB 18Q
3. Notes and requirements
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 5of 19
Please note
These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and
electrical training.
Only use original FEIN spare parts.
Provisions
Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in
serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when
commissioning.
The German Equipment and Product Safety Act [ProdSG] applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed.

ABS 18Q; ASB 18Q
4. Tools required
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 6of 19
Standard tools Special tools
Arbor press Drawing-off plate 6 41 14 037 00 0
Torx T10
Side-cutting pliers
Soldering station
Slotted screwdriver
Punch 7 mm diameter
Sleeve 6 mm inner diameter
20 mm inner diameter

ABS 18Q; ASB 18Q
5. Lubricants and auxiliary substances required
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 7of 19
Please note
No lubricants or auxiliary substances are required for fitting ABS 18Q / ASB 18Q machines.

ABS 18Q; ASB 18Q
6. Removal
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 8of 19
Removing the motor housing
1. Remove the key-type drill chuck (1).
2. Cut through the type plate.
3. Unscrew the eight screws (2).
4. Remove the motor housing (3).
Tools:
- Blade
- Torx T10
1
2
3

ABS 18Q; ASB 18Q
6. Removal
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 9of 19
Removing the motor housing
1. Remove the nut (1).
2. Remove all components from the motor housing.
3. Pull off the gearbox (2).
4. Remove the insulating ring (3).
5. Pull out the rotor (4).
3
2
4
1

ABS 18Q; ASB 18Q
6. Removal
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 10 of 19

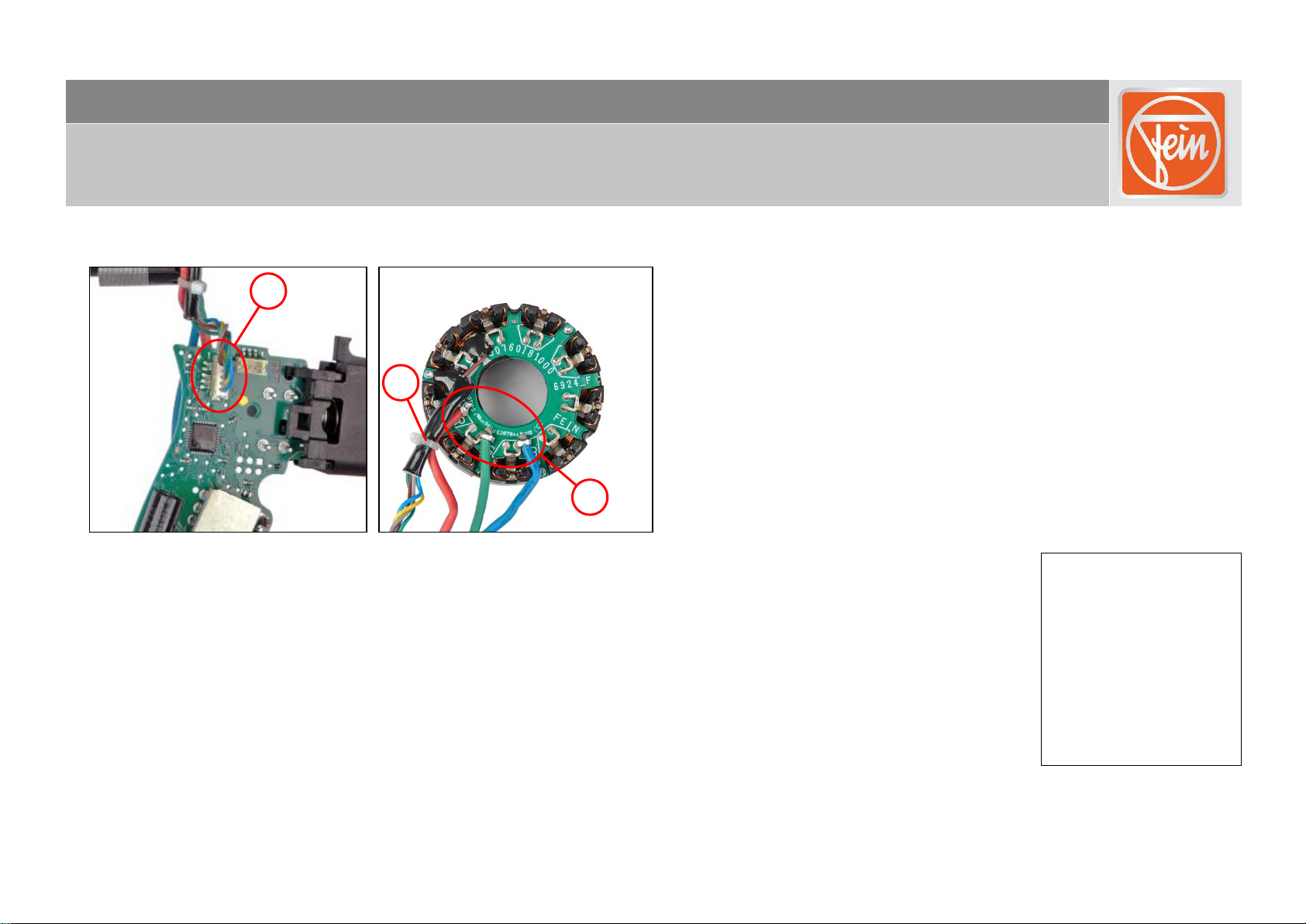

Removing the motor housing
1. Remove the plug (1).
2. Remove the cable tie (2).
3. Unsolder the three cables (3).
Tools:
- Side-cutting pliers
- Soldering station
1
2
3

ABS 18Q; ASB 18Q
6. Removal
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 11 of 19

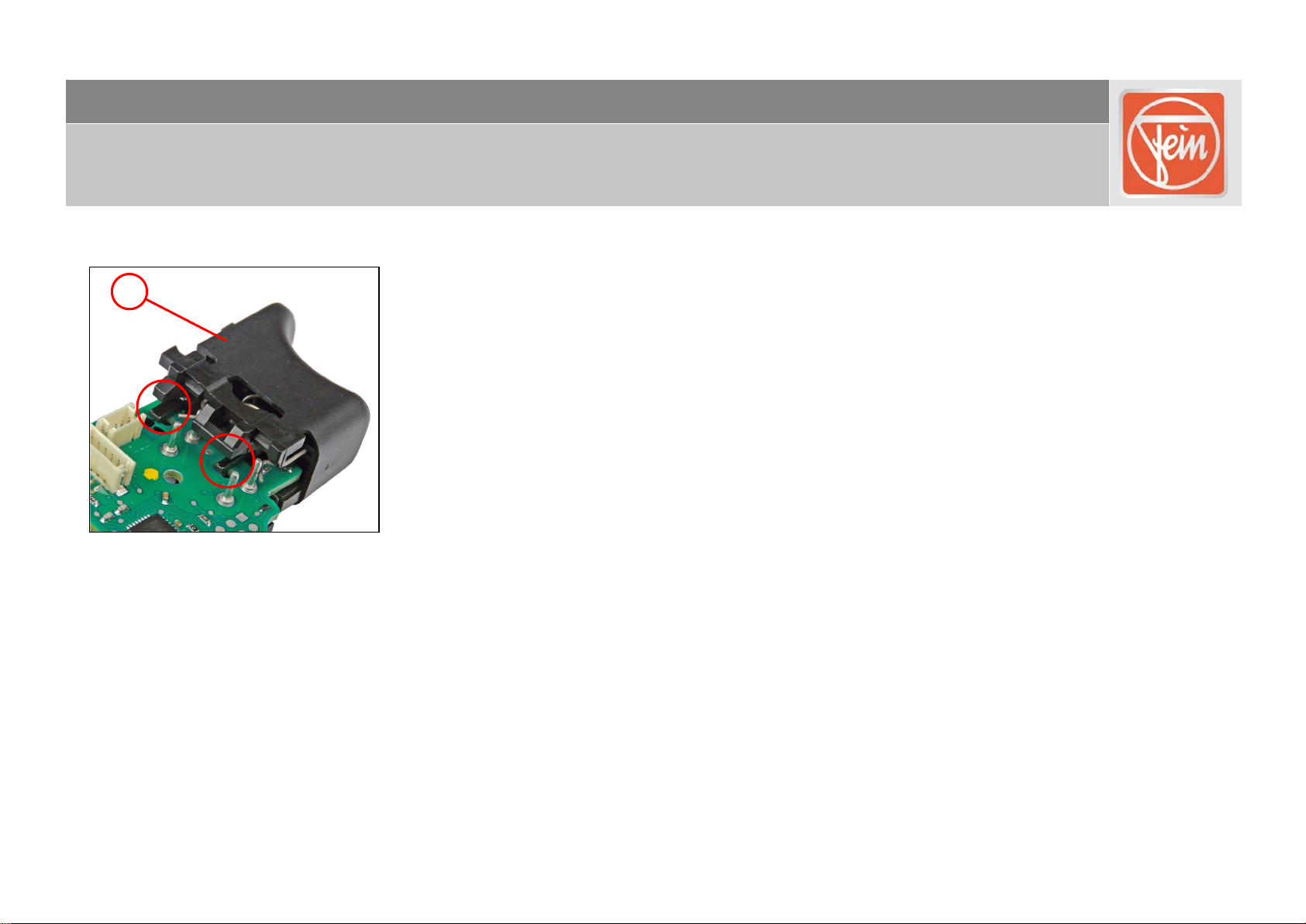

Removing the switch
1. Lift up the two hooks (1).
2. Pull off the switch (2). Tools:
- Slotted screwdriver
2
1

ABS 18Q; ASB 18Q
6. Removal
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 12 of 19
Removing the stator
1. Press down on the gear-wheel (1) with the grooved ball bearing (2).
2. Press down on the grooved ball bearing (3). Tools:
- Arbor press
- Punch, 7 mm diameter
- Drawing-off plate
1
3
2

ABS 18Q; ASB 18Q
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 13 of 19
Fitting the rotor
1. Press on the grooved ball bearing (1).
2. Press on the grooved ball bearing (2).
3. Press on the gear-wheel (3).
Tool:
- Arbor press
- Sleeve
6 mm inner diameter
20 mm outer diameter
3
1
2

ABS 18Q; ASB 18Q
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 14 of 19
Fitting the switch
1. Position the switch (1).
1

ABS 18Q; ASB 18Q
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 15 of 19
Fitting the stator
1. Solder the three cables (1) as shown in the connection diagram.
2. Push the protective hose up to the soldering point.
3. Secure the cable harness to the red cable (2) with a cable tie.
Place the cable tie in the correct position as shown in the photograph.
4. Insert the cable (3).
Tool:
- Soldering station
- Side-cutting pliers
2
1
3

ABS 18Q; ASB 18Q
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 16 of 19
Fitting the gearbox
Caution: Magnetic field!
Damage caused by metal foreign bodies on the rotor.
Clean the rotor before fitting.
1. Insert the rotor (1).
2. Position the insulating ring (2).
3. Fit the gearbox (3).
1
2
3

ABS 18Q; ASB 18Q
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 17 of 19
Fitting the gearbox
1. Insert the gearbox (1) in the correct position.
2. Insert the toggle switch (2).
3. Insert the electronics (3) in the correct position.
4. Insert the nut (4).
5. Position the motor housing (5).
6. Screw in the ten screws (6) [1.2 Nm ±0.1 Nm].
7. Fit the key-type drill chuck (7).
Tool:
- Torx T10
6
5
7
1
4
3
2

ABS 18Q; ASB 18Q
8. Troubleshooting
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 18 of 19
Currently unavailable.

ABS 18Q; ASB 18Q
9. Connection diagram
C-SC_CSSM
Version 1.0
2017-10-09
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 19 of 19
