Fender RT-1000 User manual

R
RT-1000 T-1000
RR
RRAA AACC CCKK KK TT TTUU UUNN NNEE EERR RR
Owner’s Manual
Owner’s Manual

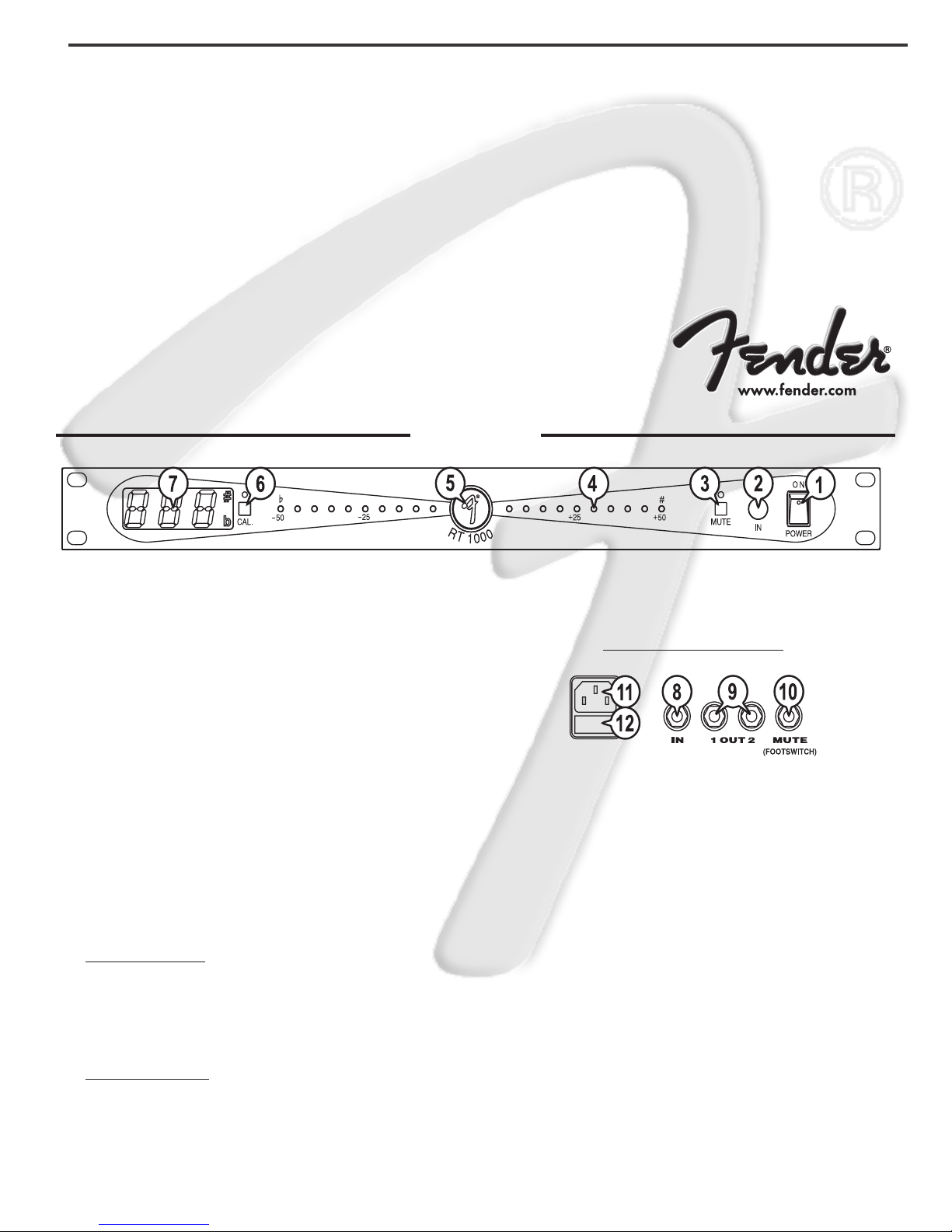

1. POWER - Switches the RT-1000 on-off.
2. INPUT - Use either this jack or the rear panel IN jack
{8} to input your guitar signal.
3. MUTE - Disconnects the OUT 2 jack audio output as
indicated by the MUTE LED, useful for silent guitar
tuning. MUTE can be activated from either the front
panel MUTE button or a MUTE footswitch (optional),
but MUTE can only be deactivated by the same switch
that activated it.
4. TUNING LEDs - These 20 LEDs indicate the degree of
flatness or sharpness of the played note compared to
the displayed note {7} in 5 cent intervals. The RT-1000
puts on a “light show” after 1 minute of no input.
5. FENDER®“F” - Lights brightly to indicate when the
played note is “in tune” to the displayed note {7}.
6. CALIBRATION MODE and FLAT NOTE DISPLAY -
Calibration Mode: Adjusts the A4 reference frequency
(default 440Hz) from 438Hz to 445Hz. Press and hold
CAL to activate Calibration Mode. While the
calibration frequency is displayed, press CAL
repeatedly to change the reference frequency in 1Hz
steps. Calibration Mode cancels automatically.
Flat Note Display: Press CAL to display flats, rather
than sharps (“Ai” instead of “Gg”), as indicated by the
LED. Press CAL again to cancel.
7. NOTE DISPLAY - Indicates the closest note to the
played note (see FLAT NOTE DISPLAY above).
Rear Panel
8. IN - Alternate input jack. This jack is disabled
automatically if a plug is inserted into the front panel
INPUT jack {2}.
9. OUT 1 and OUT 2 - Connect either of these output
jacks to your amplifier input: OUT 1 is always active.
OUT 2 can be disabled by the MUTE switch {3}.
10. MUTE FOOTSWITCH - Connect a standard latch-
type footswitch to enable remote audio muting, see
MUTE {3}. (Mute is active when the footswitch is in
the “closed” position.)
11. MAIN POWER INPUT - Connect the included power
cord to a grounded AC outlet in accordance with the
voltage and frequency ratings specified on the rear
panel of your RT-1000.
12. MAIN FUSE - Protects the unit from electrical faults.
Replace a blown fuse only with the type specified on
the rear panel of your RT-1000.
FF
FFee eeaa aatt ttuu uurr rree eess ss
wwwwww .. ffeennddeerr..ccoomm ✧ wwwwww ..mmrrggeeaarrhheeaadd..nneett

A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORPORATION, CORONA, CA USA
Fender
®
is a registered trademark of FMIC. © 2004 FMIC. All rights reserved v.040818
SS
SSpp ppee eecc ccii iiff ffii iicc ccaa aatt ttii iioo oonn nnss ss
II
IImm mmpp ppoo oorr rrtt ttaa aann nntt tt SS SSaa aaff ffee eett ttyy yy II IInn nnss sstt ttrr rruu uucc cctt ttii iioo oonn nnss ss
TYPE: PR 644
PART NUMBER: 023-9995-000 (120V, 60Hz) USA 023-9995-030 (240V, 50Hz) AUS 023-9995-040 (230V, 50Hz) UK
023-9995-060 (230V, 50Hz) EUR 023-9995-070 (100V, 50Hz) JPN
SCALE: 12 note equal temperament
RANGE: A0 (27.5Hz)–B7 (3951.06Hz)
PRECISION: ±1 cent
CALIBRATION RANGE: 438Hz–455Hz, 1Hz steps (A4 440Hz default)
POWER CONSUMPTION: 27W
FUSE: 100V–120V models: T250mAL 220V–240V models: T150mAL
DIMENSIONS: Height: 44mm Width: 483mm Depth: 190mm
WEIGHT: 2.5kg
Product specifications are subject to change without notice.
This symbol warns the user of dangerous voltage levels localized
within the enclosure.
This symbol advises the user to read all accompanying literature for
safe operation of the unit.
∆Read, retain, and follow all instructions. Heed all warnings.
∆CAUTION: No user serviceable parts inside, refer servicing to qualified
personnel only.
∆WARNING: To prevent damage, fire or shock hazard, do not expose this unit
to rain or moisture.
∆Do not drip nor splash liquids, nor place liquid filled containers on the unit.
∆Hazardous voltages may be present within the cabinet even when the power
switch is off and the power cord is connected. Therefore, disconnect the
power cord from the rear panel power inlet before servicing. The power inlet
must remain readily operable.
∆This product should be located away from heat sources such as radiators,
heat registers, or other products that produce heat.
∆This product should be serviced by qualified service personnel when: the
power supply cord or the plug has been damaged; or objects have fallen, or
liquid has been spilled onto the product; or the product has been exposed to
rain; or the product does not appear to operate normally or exhibits a marked
change in performance; or the product has been dropped, or the enclosure
damaged.
∆This product should only be used with a cart or stand that is recommended
by the manufacturer.
∆Maintain at least 6 inches (15.25 cm)of unobstructed air space behind the
unit to allow for proper ventilation and cooling of the unit.
∆This product may be equipped with a polarized plug (one blade wider than
the other). This is a safety feature. If you are unable to insert the plug into
the outlet, contact an electrician to replace your obsolete outlet. Do not
defeat the safety purpose of this plug.
∆Only connect the power supply cord to an earth grounded AC receptacle in
accordance with the voltage and frequency ratings listed under INPUT
POWER on the rear panel of this product.
∆Protect the power supply cord from being pinched or abraded.
∆The power supply cord of this product should be unplugged from the outlet
when left unused for a long period of time, or during electrical storms.
∆Unplug the power supply cord before cleaning the unit exterior (use a damp
cloth only). Wait until the unit is completely dry before reconnecting it to
power.
