Ferax BAG-900 User manual

Manual
Angle grinder
Instruktionsbok
Vinkelslip
BAG - 900
Code no. 19694
- 1108

45
ENGLISH
Original instructions
CONTENTS
1. Introduction..........................................45
2. Technical specifications.......................45
3. Contents of packing .............................46
4. Features ................................................46
5 Safety instructions................................46
5.1 Safety warnings common for grinding or
abrasive cutting-off operations ............46
5.2 Kickback and related warnings............47
5.3 Safety warnings specific for grinding and
abrasive cutting-off operations ............48
5.4 Additional safety warnings specific for
abrasive cutting-off operations ............48
5.5 Special safety instructions ...................49
5.6 Electrical safety....................................49
6 Assembly..............................................50
6.1 Assembling the hand grip ....................50
6.2 Disassembly .........................................50

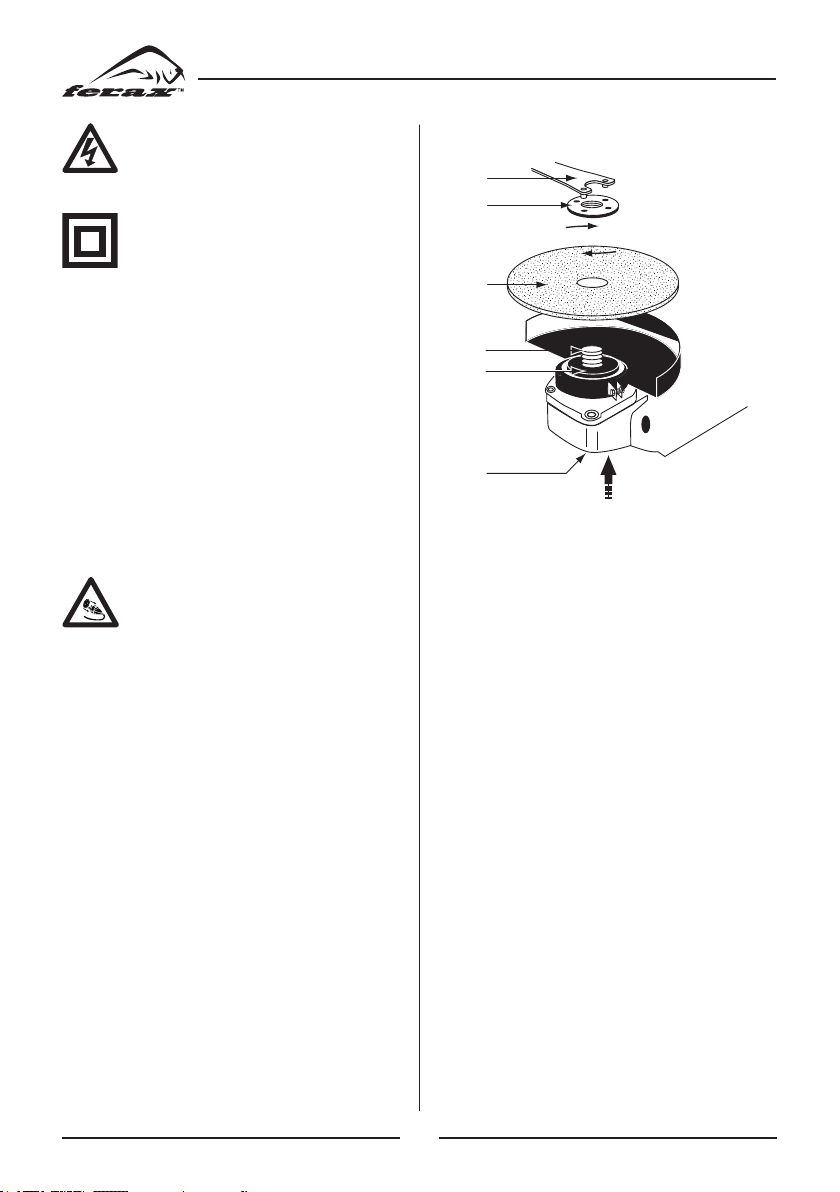

6.3 Mounting a grinding disc.....................50
6.4 Mounting grinding discs and roughing
discs......................................................51
7 Use .......................................................51
7.1 Deburring .............................................51
7.2 Cutting ..................................................52
7.3 The ON/OFF/ switch ...........................52
7.4 Carbon brush indicator.........................52
8 Service & maintenance ........................52
8.1 Trouble shooting ..................................52
8.2 Cleaning ...............................................53
8.3 Faults....................................................53
8.4 Environment.........................................53
Spare parts list...............................................81
EC conformity declaration............................82
1. INTRODUCTION
Read this operators guide carefully,
before using the machine. Ensure that
you know how the machine works,
and how it should be operated. Maintain the
machine in accordance with the instructions,
and make certain that the machine functions
correctly.Keepthisoperator’sguideandother
enclosed documentation with the machine.
The angle grinder is suitable for non-professio-
nal use for cutting or separating materials. Any
other use is strictly forbidden.
2. TECHNICAL SPECIFICATION
Voltage ....................................... V 230
Frequency................................. Hz 50
Powerinput ............................... W 850
No-load speed ...................... r/min 11000
Disc diameter ..........................mm 125
Spindle dimension......................... M14
Weight....................................... kg 2.3
Lpa (sound pressure)...........dB(A) 87.4+3
Lwa (sound power).............dB(A) 98.4+3
Vibration value....................... m/s27.41
................................................ m/s2 K=1.5
Vibration level
The vibration emission level stated in this
instruction manual has been measured in accor-
dance with a standardised test given in EN
60745; it may be used to compare one tool
with another and as a preliminary assessment
of exposure to vibration when using the tool for
the applications mentioned.
• Using the tool for different applications, or
with different or poorly maintainted accesso-
ries, may significantly increase the exposure
level.
• The times when the tool is switched off or
when it is running but not actually doing the
job, may signifi cantly reduce the exposure
level.
Protectyourselfagainsttheeffectsofvibration
by maintaining the tool and its accessories,
keeping your hands warm, and organizing your
work patterns.

46
3. CONTENTS OF PACKING
1 Angle grinder
1 Side handle
1 Spanner
1 Instruction manual
1 Safety instructions
Check the machine, loose parts and accessories
for transport damage.

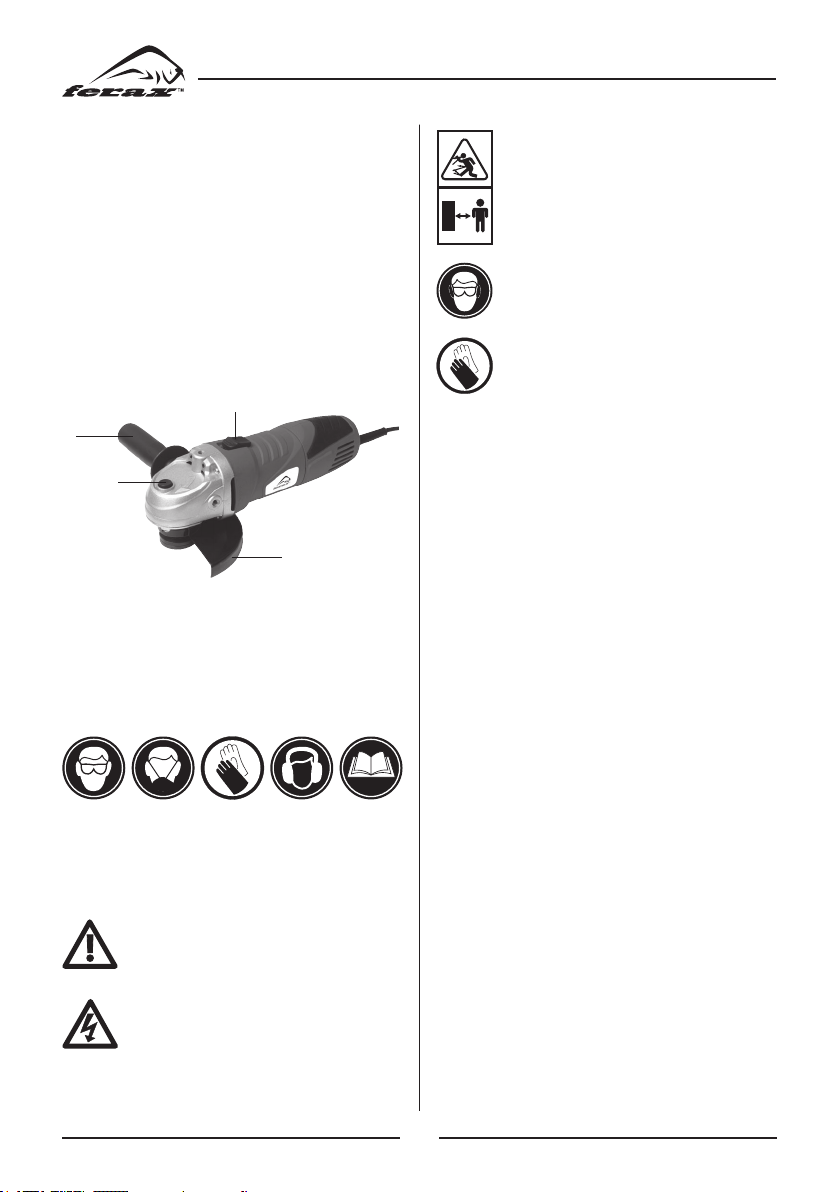

4. FEATURES
2
4
3
1
Fig. 1
1. On/off switch
2. Guard
3. Side handle
4. Spindle lock
5. SAFETY INSTRUCTIONS
In this manual and/or on the machine the fol-
lowing symbols are used:
Denotes risk of personal injury, loss
of life or damage to the tool in case
of non-observance of the instructions
in this manual.
Indicates electrical shock hazard.
Keep bystanders away
Wear ear and eye protection
Wear protective gloves
5.1 Safety warnings common for grin-
ding or abrasive cutting-off opera-
tions
• Thispowertoolisintendedtofunctionasa
grinder or cut-off tool. Read all safety war-
nings, instructions, illustrations and specifi-
cations provided with this power tool. Failure
to follow all instructions listed below may
result in electric shock, fire and/or serious
injury.
• Operations such as sanding, wire brushing
or polishing are not recommended to be per-
formed with this power tool. Operations for
which the power tool was not designed may
create a hazard and cause personal injury.
• Donotuseaccessorieswhicharenotspecifi-
cally designed and recommended by the tool
manufacturer. Just because the accessory can
be attached to your power tool, it does not
assure safe operation.
• Theratedspeedoftheaccessorymustbeat
least equal to the maximum speed marked on
the power tool. Accessories running faster
than their rated speed can break and fly apart.
• The outside diameter and the thickness of
your accessory must be within the capacity
rating of your power tool. Incorrectly sized
accessories cannot be adequately guarded or
controlled.
• Thearboursizeof wheels,flanges,backing
pads or any other accessory must properly
fit the spindle of the power tool. Accessories

47
with arbour holes that do not match the
mounting hardware of the power tool will run
out of balance, vibrate excessively and may
cause loss of control.
• Donotuseadamagedaccessory.Beforeeach
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad
for cracks, tear or excess wear, wire brush
for loose or cracked wires. If power tool or
accessory is dropped, inspect for damage
or install an undamaged accessory. After
inspecting and installing an accessory, posi-
tion yourself and bystanders away from the
plane of the rotating accessory and run the
power tool at maximum no-load speed for
one minute.
Damaged accessories will normally break
apart during this test time.
•Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As appro-
priate, wear dust mask, hearing protectors,
gloves and workshop apron capable of stop-
ping small abrasive or workpiece fragments.
The eye protection must be capable of stop-
ping flying debris generated by various ope-
rations. The dust mask or respirator must be
capable of filtrating particles generated by
your operation. Prolonged exposure to high
intensity noise may cause hearing loss.
• Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken acces-
sory may fly away and cause injury beyond
immediate area of operation.
• Hold power tool by insulated gripping sur-
faces only, when performing an operation
where the cutting accessory may contact hid-
den wiring or its own cord. Cutting accessory
contactinga“live”wiremaymakeexposed
metal parts of the power tool “live” and
shock the operator.
• Positionthecordclearofthespinningacces-
sory. If you lose control, the cord may be cut
or snagged and your hand or arm may be
pulled into the spinning accessory.
• Never lay the power tool down until the
accessory has come to a complete stop. The
spinning accessory may grab the surface and
pull the power tool out of your control.
• Do not run the power tool while carrying
it at your side. Accidental contact with the
spinning accessory could snag your clothing,
pulling the accessory into your body.
• Regularly clean the power tool’s air vents.
Themotor’sfanwilldrawthedustinsidethe
housing and excessive accumulation of pow-
dered metal may cause electrical hazards.
• Do not operate the power tool near flam-
mable materials. Sparks could ignite these
materials.
• Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
5.2 Kickback and related warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel, backing pad, brush
or any other accessory. Pinching or snagging
causes rapid stalling of the rotating accessory
which in turn causes the uncontrolled power
tool to be forced in the direction opposite of the
accessory’srotationatthepointofthebinding.
For example, if an abrasive wheel is snagged
or pinched by the workpiece, the edge of the
wheel that is entering into the pinch point can
dig into the surface of the material causing the
wheel to climb out or kick out. The wheel may
either jump toward or away from the operator,
depending on direction of the wheel’s move-
ment at the point of pinching. Abrasive wheels
may also break under these conditions.
Kickback is the result of power tool misuse
and/or incorrect operating procedures or con-
ditions and can be avoided by taking proper
precautions as given below.
• Maintainafirmgripon thepower tooland
position your body and arm to allow you to
resist kickback forces. Always use auxiliary

48
handle, if provided, for maximum control
over kickback or torque reaction during start-
up. The operator can control torque reactions
or kickback forces, if proper precautions are
taken.
• Never place your hand near the rotating
accessory. Accessory may kickback over
your hand.
• Donotpositionyourbodyintheareawhere
power tool will move if kickback occurs.
Kickback will propel the tool in direction
opposite to the wheel’s movement at the
point of snagging.
• Use special care when working corners,
sharp edges etc. Avoid bouncing and snag-
ging the accessory. Corners, sharp edges or
bouncing have a tendency to snag the rotating
accessory and cause loss of control or kick-
back.
• Donotattachasawchainwoodcarvingblade
or toothed saw blade. Such blades create fre-
quent kickback and loss of control.
5.3 Safety warnings specific for grinding
and abrasive cutting-off operations
• Useonlywheeltypesthatarerecommended
for your power tool and the specific guard
designed for the selected wheel. Wheels for
which the power tool was not designed can-
not be adequately guarded and are unsafe.
• The guard must be securely attached to the
power tool and positioned for maximum
safety, so the least amount of wheel is expo-
sed towards the operator. The guard helps
to protect operator from broken wheel frag-
ments and accidental contact with wheel.
• Wheelsmustbeusedonlyforrecommended
applications. For example: do not grind with
the side of cut-off wheel. Abrasive cut-off
wheels are intended for peripheral grinding,
side forces applied to these wheels may cause
them to shatter.
• Always use undamaged wheel flanges that
are of correct size and shape for your selec-
tedwheel.Properwheelflangessupportthe
wheel thus reducing the possibility of wheel
breakage. Flanges for cut-off wheels may be
different from grinding wheel flanges.
• Do not use worn down wheels from larger
power tools. Wheel intended for larger power
tool is not suitable for the higher speed of a
smaller tool and may burst.
5.4 Additional safety warnings specific
for abrasive cutting-off operations
• Do not “jam” the cut-off wheel or apply
excessive pressure. Do not attempt to make
an excessive depth of cut. Overstressing the
wheel increases the loading and suscepti-
bility to twisting or binding of the wheel in
theDonot“jam”thecut-offwheelorapply
excessive pressure. Do not attempt to make
an excessive depth of cut. Overstressing the
wheel increases the loading and susceptibility
to twisting or binding of the wheel in the cut
and the possibility of kickback or wheel brea-
kage.
• Donotpositionyourbodyinlinewithand
behind the rotating wheel. When the wheel,
at the point of operation, is moving away
from your body, the possible kickback may
propel the spinning wheel and the power tool
directly at you.
• Whenwheelisbindingorwheninterrupting
a cut for any reason, switch off the power
tool and hold the power tool motionless until
the wheel comes to a complete stop. Never
attempt to remove the cut-off wheel from the
cut while the wheel is in motion otherwise
kickback may occur. Investigate and take
corrective action to eliminate the cause of
wheel binding.
• Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed
and carefully reenter the cut. The wheel may
bind, walk up or kickback if the power tool is
restarted in the workpiece.
• Support panels or any oversized workpiece
to minimize the risk of wheel pinching and
kickback. Large workpieces tend to sag under

49
their own weight. Supports must be placed
under the workpiece near the line of cut and
near the edge of the workpiece on both sides
of the wheel.
• Use extra caution when making a “pocket
cut”intoexistingwallsorotherblindareas.
The protruding wheel may cut gas or water
pipes, electrical wiring or objects that can
cause kickback.
5.5 Special safety instructions
• Checkthatthemaximumspeedindicatedon
the grinding disc corresponds to the maxi-
mum speed of the machine. The speed of the
machine must not exceed the value on the
grinding disc.
• Make sure that the dimensions of the grin-
ding disc correspond to the specifications of
the machine.
• Make sure that the grinding disc has been
mounted and fastened properly. Do not use
reducing rings or adapters to make the grin-
ding disc fit properly.
• Treat and store grinding discs in confor-
mancewiththesupplier’sinstructions.
• Do not use the machine for grinding work-
pieces with a maximum thickness exceeding
the maximum grinding depth of the grinding
disc.
• Donotusegrindingdiscsfordeburring.
• Whengrindingdiscshavetobemountedon
the thread of the spindle, make sure that the
spindle has sufficient thread. Make sure that
the spindle is sufficiently protected and does
not touch the grinding surface.
• Beforeuse,inspectthegrindingdiscforany
damage. Do not use grinding discs which are
crack-ed, ripped or otherwise damaged.
• Before use, let the machine run idle for 30
seconds. Immediately switch off the machine
in case of abnormal vibrations or occur-
rence of another defect. Carefully inspect the
machine and grinding disc before switching
the machine on again.
• Makesurethatsparksdonotputpeopleinto
danger or that they contact highly flammable
substances.
• Makesurethattheworkpieceissufficiently
supported or clamped. Keep your hands away
from the surface to be cut.
• Alwayswearsafetygogglesandhearingpro-
tection. If desired or required also use another
kind of protection like for example an apron
or helmet.
• Ensure that mounted wheels and points are
fittedinaccordancewiththemanufacturer’s
instructions.
• Ensurethatblottersareusedwhentheyare
provided with the bonded abrasive product
and when they are required.
• Ifaguardissuppliedwiththetoolneveruse
the tool without such a guard.
• Fortoolsintendedtobefittedwiththreaded
hole wheel, ensure that the thread in the
wheel is long enough to accept the spindle
length.
• Ensure that ventilation openings are kept
clear when working in dusty conditions. If it
should become nessesary to clear dust, first
disconnect the tool from the mains supply
(use non metallic objects) and avoid dama-
ging internal parts.
• Though poor conditions of the electrical
mains, shortly voltage drops can appear when
starting the equipment. This can influence
other equipment (eq. blinking of a lamp). If
the mains-impedance Zmax <0.348 Ohm,
such disturbances are not expected. (In case
of need, you may contact your local supply
authority for further information.
5.6 Electrical safety
When using electric machines always obser-
ve the safety regulations applicable in your
country to reduce the risk of fire, electric
shock and personal injury. Read the following
safety instructions and also the enclosed safety
instructions.

50
Always check that the power supply
corresponds to the voltage on the
rating plate.
Yourmachineisdoubleinsulated;
therefore no earthwire is required.
Replacing cables or plugs
Immediately throw away old cables or plugs
when they have been replaced by new ones. It
is dangerous to insert the plug of a loose cable
in the wall outlet.
Using extension cables
Only use an approved extension cable suitable
for the power input of the machine. The mini-
mum conductor size is 1.5 mm2. When using a
cable reel always unwind the reel completely.
6. ASSEMBLY
Priortomountinganaccessoryalways
unplug the tool.
6.1 Assembling the hand grip (Fig. 1)
The hand grip is suitable for either left or right-
handed use.
• Turn the hand grip (3) to the notch on the
right side of the machine for left-handed use.
• Turnthehandgrip(3)tothenotchontheleft
side of the machine for right-handed use.
• Turnthehandgriptothenotchonthetopof
the machine to use it vertically.
6.2 Disassembly
• Removetheflangenutandthegrindingdisc
with lower flange from the spindle.
• Unscrew the 4 screws (with washers) en
remove the fixing-ring.
• Removetheguardfromthemachine.
6.3 Mounting a grinding disc (Fig. 2)
+
11
12
7
9
6
5
Fig. 2
Use grinding discs of the correct dimension.
Use fibre reinforced grinding discs only.
The grinding disc must not touch the edge of
the guard.
• Pressthespindlelock(6)andturnthespindle
(9) until it engages in the lock. Keep the
spindle lock pressed during this procedure.
• Removetheflangenut(12)fromthespindle
using the spanner(11).
• Position the grinding disc (7) on the flange
(5).
• Placetheflangenutonthespindleantighten
it using the spanner.
• Releasethespindlelockandcheckthatthe
spindle is unlocked by rotating it.

51
6.4 Mounting grinding discs and roug-
hing discs
Fig. 3
Fig. 4
30 - 40
o
Fig. 5
Fig. 4 and 5 show how to mount the flange (10)
when using thick (4-8 mm) and thin (2,5-4 mm)
discs.
The following grinding discs can be used with
this grinder.
• Fordeburring:grooved,fibreglassreinforced
type 27. Dimensions Ø 125×6.0× 22.2 mm.
• Forslitting/cutting:grooved,fibreglassrein-
forced, type 41 and type 42. Dimensions
Ø125×3.0× 22.2 mm.
If you use normal grinding discs they
should always be fibreglass reinfor-
ced.
7. USE
Always follow the safety instructions
and keep to the applicable regula-
tions.
Hold the machine away from the workpiece
when turning it on and off because the grinding
disc could damage the workpiece.
• Clamp the workpiece firmly or use another
method to ensure that it cannot move while
working.
• Check the discs regularly. Worn grinding
discshaveanegativeeffectonthemachine’s
efficiency. Change to a new grinding disc in
good time.
• Always first turn the machine off after use
before removing the plug from the socket.
7.1 Deburring (Fig. 5)
An angle of inclination of 30° to 40° will give
the best results when deburring. Move the
machine back and forth using light pressure.
This will prevent the workpiece from disco-
louring or becoming too hot and will avoid
making groves.
Never use abrasive cutting discs for
deburring work!

52
7.2 Cutting (Fig. 6)
Fig. 6
Maintain firm contact with the workpiece
to prevent vibration and do not tilt or apply
pressure and when cutting. Use moderate pres-
sure when working, appropriate to the material
that is being worked on. Do not slow down
grinding discs by applying sideways counter
pressure. The direction in which you want to
cut is important. The machine must always
work against the direction of the cut; so never
move the machine in the other direction! There
is the risk that the machine will catch in the cut
causing kickback and that you will lose control.
7.3 The ON/OFF/ switch (Fig. 1)
Switching on
• SlidetheON/OFFswitchforwards.
• The machine will start and keeps engaged
when releasing the switch.
Switching off
• PresstheON/OFFswitch:thiswillthenjump
to the OFF-position.
The grinder will continue to run after
it is turned off.
Only lay the machine down once the motor
has completely stopped turning. Do not put the
machine on a dusty surface. Dust particles can
penetrate the machine.
Never use the spindle key to stop the
motor turning.
Never use the machine to grind mag-
nesium workpieces.
7.4 Carbon brush indicator (Fig. 1)
When the carbon brushes are worn this indi-
cator will light up. The cabon brushes need to
the be replaced by the manufacturer’s custo-
mer service department or equally qualified
persons.
8. SERVICE & MAINTENANCE
Make sure that the machine is not
live when carrying out maintenance
work on the motor.
The machines have been designed to operate
over a long period of time with a minimum of
maintenance. Continuous satisfactory opera-
tion depends upon proper machine care and
regular cleaning.
8.1 Trouble shooting
Should the machine fail to function correctly, a
number of possible causes and the appropriate
solutions are given below:
Machine fails to operate.
• Powerturnedoff.
• (Extension)cabledamaged.
The elektromotor hardly reaches maximum
speed.
• The extension cable is too thin and/or too
long.
• Themainsvoltageislowerthan230V.
Machine overheats.
• Airventsareblocked.Cleanthemwithadry
cloth.
• The machine has been overloaded. Use the
machine for the purpose it is made for

53
Excessive sparking or elektromotor runs
irregular
• There’s dirt inside the motor or the carbon
brushes are worn.
• Replace the carbon brushes or bring the
machine to a specialized repair centre.
Repairs and servicing should only be
carried out by a qualified technician
or service firm.
8.2 Cleaning
Keep the ventilation slots of the machine clean
to prevent overheating of the engine.
Regularly clean the machine housing with a
soft cloth, preferably after each use. Keep the
ventilation slots free from dust and dirt. If the
dirt does not come off use a soft cloth moiste-
ned with soapy water. Never use solvents such
as petrol, alcohol, ammonia water, etc. These
solvents may damage the plastic parts.
8.3 Faults
Should a fault occur, e.g. after wear of a part,
please contact your reseller. On the separately
enclosed spare parts list you can find an over-
view of the parts that can be ordered.
8.4 Environment
To prevent damage during transport, the app-
liance is delivered in a solid packaging which
consists largely of reusable material. Therefore
please make use of options for recycling the
packaging.
Faulty and/or discarded electrical or
electronic apparatus have to be col-
lected at the appropriate recycling
locations.

81
BAG- 900 DIAGRAM

82
BAG- 900 PART LIST
No. Description Specication Qty
1 Special spanner 1
2 Pressureplate  1
3 Grinding wheel 1
4 Pressureplate  1
5 Screw M5×20 1
6 Guard 1
7 Nut 1
8 Main spindle 1
9 Woodruff key 3×10 1
10 Screw M4×14 4
11 Spring washer 4 4
12 Bearing block 1
13 Bearing 6201 1
14 Check ring 32 1
15 Large bevel gear 1
16 Check ring 10 1
17 Bearing 8×12× 10 1
18 Cross screw ST4×22 4
19 Reduction gear box 1
20 Check ring 5 1
21 Spring 1
22 Lock pin 1
23 Nut 1
24 Small bevel gear 1
25 Bearing 6000 1
26 Pressplateofbearing  1
27 Screw M5×10 2
No. Description Specication Qty
28 Rotor 1
29 Bearing 627 1
30 Bearing sheath 1
31 Wind screen 1
32 Cross screw ST4×75 2
33 Stator 1
34 Nameplate 1
35 Pushbutton  1
36 Pullpole  1
37 Side handle 1
38 Spring 2
39 Cross screw ST3×10 4
40 Inductor 2
41 Cross screw ST4×16 3
42 Right handle 1
43 Cross screw ST4×16 2
44 Cable clip 1
45 Cable jacket 1
46 Powercord  1
47 Housing 1
48 Nameplate 1
49 Brush holder 2
50 Carbon brush 2
51 Switch 1
52 Cover board 1
53 Capacitor 1
54 Left handle 1

ARETE S UPP
LIES S . L .
www.aretesupplies.co m
Angle grinder
BAG - 900
