FERREX CSP5300 User manual

AFTER SALES SUPPORT 708115
1300 855 831
[email protected]
MODEL:
CSP5300
3
YEAR
WARRANTY
AU
Made in China
FERREX®is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
AU
ALDI guarantees that our exclusive brand products are developed to our
stringent quality specifications. If you are not entirely satisfied with this
product, please return it to the nearest ALDI store within 60 days from the
date of purchase, for a full refund or replacement, or take advantage of our
after sales support by calling the supplier’s Customer Service Hotline.
04/2023

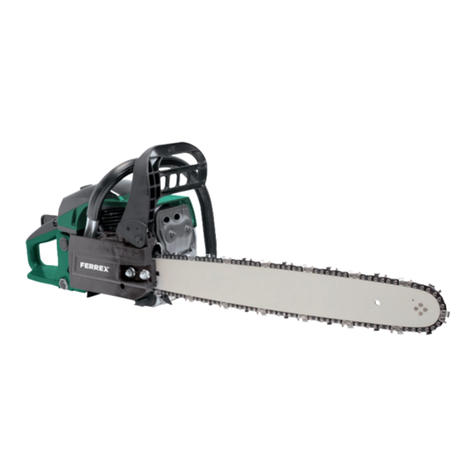

PETROL CHAINSAW CSP5300
User Manual
Dok./Rev.-Nr.708115_221011

Contents
Overview 4
Package content/part list 6
Explanation of the symbols on the device 11
Introduction 15
Device description 16
Scope of delivery 17
Proper use 17
Safety information 18
Technical data 33
Before starting up 35
Operation 39
Cleaning 41
Maintenance, Servicing 41
Storage 47
Transport 48
Disposal and recycling 48
Troubleshooting 49
Warranty Details 53
Repair and Refurbished Goods or Parts Notice 54
3

41 2 3 4 5 6 7 8
15 14 13 12 11 10 9
2
17 18 19
20
16
21
22
23
2
1
15
24
1

5
5
18
19
19a
B
D1 D2
2
Z
Y
C
11
C2
C1
11
20
11a 11b
17
3 4
6
7 8
910

Package contents/part list
1 x Chainsaw
1 x Guide bar
1 x Saw chain
5 6
1 x Guide-bar cover
1 x Allen key 4 mm
1 x Spark plug wrench
1 x Fuel mixing tank
1 x Screwdriver
1 x Saw chain round file
1 x Operating manual
1 x Warranty card

7910100706 188PXBK095
7910100705 21BPX072X
WALBRO

A
11
16
13
17
14 4
8
S
H
10
V
16
18
3
U
T
3a 3b
6
19
23 12
7
24
10x
CHOKE
15
7
CHOKE
7

19
21
23
20
22
24
K
L1
L2
M
G
25
R
T
8
T

Fallrichtung
45_
Fluchtweg
Fluchtweg
Pos.1
Pos.1
Pos.2
Keil
Erster
Schnitt
Zweiter
Schnitt
Abschließender Schnitt hier. 5 cm
überder Keilmitte.
5 cm
5 cm
Pos.1
Pos.2
Pos.3
Pos.4
Pos.1
Pos.1
Pos.2
Pos.1 Pos.4
Pos.3
Pos.2
A B
“Scharnier” hält den Baum auf seinem
Stumpf und steuert die Fallrichtung
Fallschnitt
öffnet sich
Keil
schließt
sich
Pos.2
Pos.4
Pos.2
Pos.4
C D
9

Oberschnitt Unterschnitt
Pos.2Pos.1
Zweiter Schnitt
Erster Schnitt auf belasteter
Stammseite
Erster Schnitt auf der belasteten
Stammseite
Zweiter Schnitt
Pos.1
Pos.2
Mit Stammseite
1.Schnitt
2.Schnitt
2.Schnitt
1.Schnitt
Pos.1 Pos.1
Pos.2
Pos.2
1.
Schnitt
2.
Schnitt
Mit Stützbock
1.Schnitt
2.Schnitt
Pos.1
Pos.1
Pos.2
Pos.2
Erster
Schnitt
Zweiter Schnitt
Dritter
Schnitt
Überstand
Stutzmethode
Pos.1
Pos.2
Pos.3
Pos.1
Pos.2 Pos.1
Pos.1
Pos.1
Pos.1
Pos.1 Pos.2
Pos.3
Pos.2 Pos.2
Pos.2
Pos.2
Pos.2
Pos.1
E
G
K
F
H
ATTENTION!
Read the operating instruction manual carefully and follow all safety regulations
before first using!
This petrol chain saw may only be operated by persons with appropriate train-
ing and risk education („participation certificate of chainsaw training course with
country-typical training standard“)!
Preserve this manual carefully!
Note:
Please note that some national regulations may restrict the use of the machine.
10

Bedienung
11
Warning! When working with the chainsaw particular
safety measures are required. Read and observe all
warning information!
Warning! Risk of kickback. Protect yourself from
kickback from the chainsaw and avoid all contact
with the bar tip.
Do not use the chainsaw one-handed.
Always use the chainsaw with both hands.
Wear a safety helmet with face protection or safety
goggles and hearing protection.
Read through the whole operating manual carefully
beforefirstuseandkeepthissafelyforfuturereference.
Wear protective gloves.
1. Explanation of the symbols on the device
Explanation of the symbols on the device

12
Symbole Explanation of the symbols on the device
Wear non-slip safety shoes!
Wear close-fitting protective clothing with a cut
protection insert.
Fuel filler cap.
Never work without chain lubrication! Always check
chain lubrication before starting work.
CHOKE
Choke knob
10x
Press the fuel pump primer 10x
Adjustments for carburettor:
( L ) Low Speed
( H ) High Speed
( T ) Idle Speed
Chain brake (open/closed)

Bedienung
13
Running direction of the chain
Guaranteed sound power level of the device
Warning - Hot surfaces!
On-/Off Switch - “ON“
On-/Off Switch - “STOP“
Weight
Fuel mixing ratio
Avoid contact with the bar tip.
Naked flames or smoking near the device is strictly
prohibited!
Explanation of the symbols on the device

14
Symbole
3Warranty class.
Complies with the Australian norms and standards.
Explanation of the symbols on the device

15
Introduction
2. Introduction
Congratulations on choosing to buy a FERREX® product.
All products brought to you by FERREX® are manufactured to the highest standards of per-
formance and safety, and as part of our philosophy of customer service and satisfaction,
are backed by our comprehensive 3 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
Note:
According to the applicable product liability law the manufacturer of this device is not liab-
le for damages which arise on or in connection with this device in case of:
• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non-authorised skilled workers,
• installation and replacement of non-original spare parts,
• improper use.
Recommendations:
Read the entire text of the operating instructions prior to the assembly and operation of
the device.
These operating instructions are intended to make it easier for you to get familiar with your
device and utilise its intended possibilities of use.
The operating instructions contain important notes on how to work safely, proper-
ly and economically with your machine and how to avoid dangers, save repair costs,
reduce downtime, and increase the reliability and working life of the machine.
In addition to the safety regulations contained herein, you must in any case com-
ply with the applicable regulations of your country with respect to the operation of the
machine.
Keep the operating instructions in a clear plastic folder to protect them from dirt and hu-
midity; store them near the machine. The instructions should be read and carefully under-
stood by each operator prior to using the machine. Only persons who have been trained in
the use of the machine and are aware of the related dangers and risks should be allowed
to use the machine. The local required minimum age must be met.
In addition to the safety notes contained in these operating instructions and any specific
regulations in your country, the generally recognised technical rules for the operation of
identically constructed machines must be observed.

16
3. Device description (Fig. 1, 2)
1. Saw chain
2. Guide bar
3. Front hand guard / Chain brake
4. Front handle
5. Housing cover air filter
6. Mounting nut housing cover air filter
7. Choke
8. Throttle trigger lock
9. Rear handle
10. Throttle trigger
11. ON/OFF switch
12. Fuel tank cap
13. Starter pull cord
14. Oil tank cap
15. Guide-bar cover
16. Chain-saw round file
17. Housing cover saw chain drive unit
18. Chain catcher
19. Stopper claw
20. Spark plug wrench
21. Fuel mixing vessel
22. Screwdriver
23. Allen key 4 mm
24. Fuel pump “Primer“ / Primer button for cold start
Device description

17
Scope of delivery/Proper use
4. Scope of delivery
• Chainsaw (1x)
• Saw chain (1x)
• Guide bar (1x)
• Guide-bar cover (1x)
• Spark plug wrench (1x)
• Allen key 4 mm (1x)
• Fuel mixing tank (1x)
• Saw chain round file (1x)
• Screwdriver (1x)
• Operating manual (1x)
• Warranty card (1x)
Open the packaging and remove the device carefully.
Remove the packaging material as well as the packaging and transport bracing (if avail-
able).
Check that the delivery is complete.
Check the device and accessory parts for transport damage.
If possible, store the packaging until the warranty period has expired.
mATTENTION!
The device and packaging materials are not toys! Children must not be allowed to
play with plastic bags, film and small parts! There is a risk of swallowing and suf-
focation!
5. Proper use
The petrol chainsaw is designed exclusively for sawing wood.
You may only fell trees if you have received the appropriate training. The manufacturer
cannot be held liable for damage caused by improper or incorrect usage.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be
a case of misuse.
The user / operator and not the manufacturer will be liable for any damage or injuries of
any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications.
Our warranty will be voided if the machine is used in commercial, trade or industrial busi-
nesses or for equivalent purposes.

18
5.1 Non-approved operators:
People who are not familiar with this operating manual, children under the age of 16 and
people under the influence of alcohol, drugs or medication are not permitted to operate
the device.
National regulations may restrict the use of the device!
6. Safety information
IMPORTANT!
READ CAREFULLY BEFORE USE AND STORE SAFELY FOR FUTURE REFERENCE.
mDANGER
For an imminent danger that will lead to severe personal injury or death.
m WARNING
For a potentially dangerous situation that can lead to severe personal injury or death.
mCAUTION
Information on a potentially dangerous situation that can lead to minor injuries.
m ATTENTION
Information on a potentially dangerous situation that can lead to property damage.
6.1 General safety instructions
mCAUTION!: When working with tools that use fuel, the following basic rules must be
followed in order to minimise the risk of physical injury and/or damage to the machine.
Read these notices before using the saw, and store them safely.
1. Do not use the saw when you are tired, ill or under the influence of alcohol and/or
drugs.
2. Be careful when handling fuel. Use the saw at a distance of at least 3m from the fuel
filling location.
3. Start cutting only when the working environment has been tidied, when you have
established secure footing and planned an escape route from the falling tree.
4. Before starting the chainsaw, make sure it is not in contact with any objects.
5. Carry the chainsaw only when the motor has stopped running, the blade cover is on
the chain bar and the exhaust is facing away from you.
Safety information
