FERREX DC100 User manual

User Manual
DUST EXTRACTOR 50L
DC100
Contents
3
Dok./Rev.-Nr.710184_220407
AFTER SALES SUPPORT 710184
1300 855 831
[email protected]
MODEL:
DC100
3
YEAR
WARRANTY
AU
Made in China
FERREX®is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
AU
ALDI guarantees that our exclusive brand products are developed to our
stringent quality specifications. If you are not entirely satisfied with this
product, please return it to the nearest ALDI store within 60 days from the
date of purchase, for a full refund or replacement, or take advantage of our
after sales support by calling the supplier’s Customer Service Hotline.
11/2022
3
9
1
12 3
4
5
8
4
Overview ..................................................................................... 3
Package contents/part list .........................................................6
Explanation of Symbols .............................................................. 7
Introduction ................................................................................8
Device description....................................................................... 9
Scope of delivery.........................................................................9
Proper use ..................................................................................10
Safety regulations...................................................................... 11
Technical data ............................................................................15
Assembly ....................................................................................16
Operation....................................................................................16
Electrical connection..................................................................17
Cleaning......................................................................................17
Storage and Transport...............................................................18
Maintenance...............................................................................19
Disposal and recycling ...............................................................19
Troubleshooting........................................................................ 20
Warranty Details........................................................................ 22
Repair and Refurbished Goods or Parts Notice ....................... 24
2
5 6
10
8 8
712 11
110 11 110/11
6 7
CAUTION! Read the instruction manual before using the machine.

56 4
Package contents/part list
1Suction system, 1x
2Suction hose, 1x
3Hose coupling, 1x
4Adapter set (4-piece), 1x
6Filter cartridge, 1x
7Filter bag, 4x
8Hose clamp, 2x
9Hose coupling Ø100mm, 1x
10 Warranty card
11 Instruction manual
56
8
110/11
7
5
5 8 7

Kapitelüberschrift
7
Explanation of Symbols
The use of symbols in this manual is intended to draw your attention to possible risks. The
safety symbols and the explanations that accompany them must be perfectly understood.
The warnings in themselves do not remove the risks and cannot replace correct actions for
preventing accidents.
Warning: Read the operating instructions to reduce the risk of injury
Wear ear-muffs. The impact of noise can cause damage to hearing.
Wear a breathing mask. Dust which is injurious to health can be
generated when working on wood and other materials. Never use
the device to work on any materials containing asbestos!
Wear safety goggles. Sparks generated during working or splinters,
chips and dust emitted by the device can cause loss of sight.
Complies with the Australian norms and standards.
36 Warranty period.
3Warranty class.
Protection class II
Explanation of symbols

Kapitelüberschrift
8
Introduction
Congratulations on choosing to buy a FERREX®product.
All products brought to you by FERREX®are manufactured to the highest standards
of performance and safety, and as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 3 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
Note:
According to the applicable product liability law the manufacturer of this device is
not liable for damages which arise on or in connection with this device in case of:
• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non-authorised skilled workers,
• installation and replacement of non-original spare parts,
• improper use.
Recommendations:
Read the entire text of the operating instructions prior to the assembly and operation
of the device.
These operating instructions are intended to make it easier for you to get familiar
with your device and utilise its intended possibilities of use.
The operating instructions contain important notes on how to work safely, properly
and economically with your machine and how to avoid dangers, save repair costs,
reduce downtime, and increase the reliability and working life of the machine.
In addition to the safety regulations contained herein, you must in any case comply
with the applicable regulations of your country with respect to the operation of the
machine.
Keep the operating instructions in a clear plastic folder to protect them from dirt and
humidity; store them near the machine. The instructions should be read and careful-
ly understood by each operator prior to using the machine. Only persons who have
been trained in the use of the machine and are aware of the related dangers and
risks should be allowed to use the machine. The local required minimum age must
be met.
In addition to the safety notes contained in these operating instructions and any
specific regulations in your country, the generally recognised technical rules for the
operation of identically constructed machines must be observed.
Introduction

Kapitelüberschrift
9

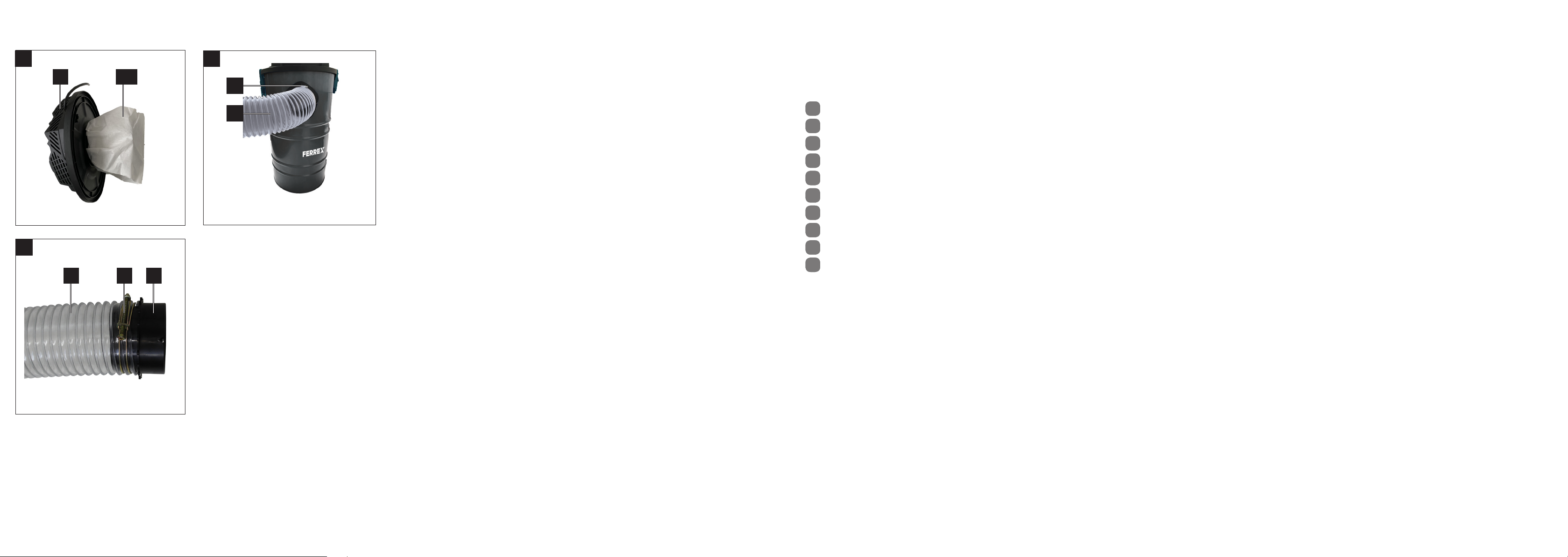

Device description (Fig. 1 - 3)
1. Engine housing
2. Handle
3. Chip container
4. ON/OFF switch
5. Suction hose
6. Adapter
7. Hose coupling
8. Hose clamp
9. Locking hooks
10. Filter cartridge
11. Filter bag
12. Hose coupling Ø100mm
Scope of delivery
1x Suction system
1x Suction hose
1x Hose coupling
1x Adapter set (4-piece)
1x Filter cartridge
4x Filter bag
2x Hose clamp
1x Hose coupling Ø100mm
1x Warranty Card
1x Instruction manual
• Open the packaging and take out the equipment with care.
• Remove the packaging material.
• Check that all listed contents are present.
• Inspect the equipment and parts for any damage. Please contact the helpline if
anything is missing.
• If possible, keep the packaging until the end of the guarantee period.
• Read the operating instructions fully to familiarise yourself with the tool prior to
using it.
Device description/Scope of delivery

Kapitelüberschrift
10
• Only use original accessories and spare parts. Spare parts are available by
contacting the helpline.
• Specify the part numbers when you contact the helpline.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic bags, film and small parts!
There is a risk of swallowing and suffocation!
Proper use
The dust extractor is designed for extracting wood chips using the appropriate fil-
ter. The appliance is not suitable for vacuuming flammable, explosive or harmful
substances.
The equipment is to be used only for its prescribed purpose. Any other use is deemed
to be a case of misuse. The user / operator and not the manufacturer will be liable
for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade
or industrial applications. Our warranty will be voided if the equipment is used in
commercial, trade or industrial businesses or for equivalent purposes.
The machine complies with the applicable EC machinery directive.
• The machine has been built according to the state-of-the-art and the technical
safety requirements. Nevertheless, its use may cause danger to the life and limb
of the user or third parties, or damage to the machine and other material assets.
• Only use the machine when in a technically faultless condition, appropriately and
in compliance with the operating manual and with full knowledge of safety and
hazards! In particular, rectify malfunctions that could impair safety immediately (or
commission rectification works accordingly)!
• This machine is intended for indoor DIY use only, and is not intended for commer-
cial, industrial or trade use.
• Please observe that our equipment was not designed with the intention of use for
industrial purposes. We assume no guarantee if the equipment is used in industrial
applications, or for equivalent work.
Scope of delivery/Proper use

Kapitelüberschrift
11
• Check the filter regularly for damage. Replace damaged filters! Regularly check the
housing seal and the seals for the filter and dust bag.
• When using the cleaning nozzles, do not suck up any foreign bodies such as screws,
nails, pieces of plastic or wood.
• The machine may only be operated with original parts and original accessories
from the manufacturer.
• The suction of wood dust and wood chippings in commercial areas is not permitted.
• The suction of flammable liquids or dusts hazardous to health is not permitted.
• Only suitable for collecting chips (not dust).
• Any use beyond this is improper use. The manufacturer is not responsible for the
resulting damages; the user solely bears the risk.
• The safety, operating and maintenance specifications of the manufacturer, as well
as the dimensions specified in the technical data, must be observed.
• The applicable accident prevention regulations and the other generally accepted
safety rules must be observed.
• The machine may only be used, maintained or repaired by persons who are famil-
iar with it and have been informed of the dangers. Any liability of the manufacturer
for damages resulting from arbitrary changes to the machine is excluded.
• The machine may only be operated with original accessories from the manufac-
turer.
Safety regulations
mAttention!The following basic safety measures must be observed when using
electric tools for protection against electric shock, and the risk of injury and fire.
Read all these notices before using the electric tool and store the safety in-
structions well for later reference.
Safe work
• Warning! When power tools are used, basic safety precautions must be fol-
lowed to eliminate the risks of fire, electric shock and injury to persons.
• Follow all these instructions before and while working with the machine.
• Store these safety instructions safely.
• Protect yourself from electric shock! Avoid physical contact with earthed
parts.
• Unused devices should be stored in a dry, locked place and out of reach of chil-
dren.
Proper use/Safety regulations

Kapitelüberschrift
12
• Keep tools sharp and clean in order to be able to work better and more safely.
• Check the cable of the tool regularly and have it replaced by a recognised spe-
cialist when damaged.
• Check extension cables regularly and replace them when damaged.
• Only use extensioncables that havebeen approvedand appropriatelylabelled
for use outdoors.
• Pay attention to what you are doing. Remain sensible when working. Do not
use the tool when you are fatigued.
• Do not use any tools on which the switch cannot be switched on and off.
• Warning! The use of other insertion tools and other accessories can entail a
danger of injury.
• Pull out the mains plug for any adjustment or repair tasks.
• Pass the safety instructions on to all persons who work on the machine.
• Before commissioning, check that the voltage on the device type plate corre-
sponds to the mains voltage.
• If an extension cable is required, make sure that its cross-section is sufficient for
the current consumption of the device. Minimum cross section 1.5 mm2.
• Only use the cable drum when unrolled.
• Check the mains connection cable. Never use any faulty or damaged connec-
tion cables.
• Do not use the cable to pull the plug out of the outlet. Protect the cable from
heat, oil and sharp edges.
• Do not expose the machine to rain and do not use the machine in a damp or
wet environment.
• Ensure good lighting.
• Do not use in the vicinity of combustible fluids or gases.
• When working outdoors, anti-slip footwear is recommended. Tie long hair back
in a hair net. Avoid abnormal posture
• The operating person must be at least 18 years of age; trainees must be at least
16 years, however only under supervision.
• Keep children away from the device when connected to the mains.
• Keep the workplace free of wood debris and parts lying around.
• Disorder in the work area can lead to accidents.
• Do not allow other persons, especially children, to touch the tool or the mains
cable. Keep such persons away from the workplace.
• Personnel working on the machine must not be distracted.
• Only carry out assembly, maintenance, modifications, adjustment, measuring
and cleaning work when the engine is switched off. - Pull out mains plug –
Safety regulations

Kapitelüberschrift
13
• Before switching on, make sure that keys and adjusting tools are removed.
• Switch off the engine and pull out the mains plug when leaving the workplace.
• All protection and safety equipment must be reassembled immediately after
repair or maintenance work is completed.
• The safety, operating and maintenance information of the manufacturer, as
well as the dimensions specified in the technical data, must be observed.
• The applicable accident prevention regulations and the other generally accept-
ed safety rules must be observed.
• Do not use low-output machines for heavy work.
• Do not use the cable for purposes for which it is not intended!
• Make sure that you have secure footing and always maintain your balance.
• Checkwhetherthe movingparts functionfaultlessly anddonot jam orwhether
parts aredamaged. All parts must be correctly mountedand all conditionsmust
be fulfilled to ensure fault-free operation of the tool.
• Damaged protective devices and parts must be repaired properly or replaced
by a recognised specialist workshop unless otherwise specified in the usage
instructions.
• Have damaged switches replaced by a customer service workshop.
• This tool conforms tothe applicable safetyregulations.Repairs mayonly beper-
formed by an electrician using original spare parts. Otherwise, accidents can
occur.
• If necessary, wear suitable personal protective equipment. This could include:
-Hearing protection to avoid the risk of becoming hearing impaired;
-Respiratory protection to avoid the risk of inhaling harmful dust.
• The operator must be informed about the conditions that influence the noise
generation.
• Errors in the machine must be reported to the person responsible for safety as
soon as they are discovered.
• This device is not designed to collect dangerous dust.
• Make sure the device is level on a flat surface during unpacking, installation
and storage, operation, testing, maintenance and when not in use.
• This machine is not intended for use by persons (including children) with re-
ducedphysical,sensory ormental capabilities,or lack ofexperienceand knowl-
edge. Children should be supervised to ensure that they do not play with the
appliance.
• Warning! Operators must be adequately instructed on the use of these ma-
chines.
• Warning!Thismachineisnotsuitabletoextractdustthatishazardoustohealth.
Safety regulations

Kapitelüberschrift
14
• Warning! This machine is for dry use only.
• Warning! This machine is for indoor use only.
• Warning! This machine shall be stored indoors only.
• Warning!Donotletthepowercordcomeintocontactwiththerotatingbrushes.
mWarning! This electric tool generates an electromagnetic field during opera-
tion. This field can impair active or passive medical implants under certain condi-
tions. In order topreventthe riskof serious ordeadly injuries, we recommend that
persons withmedical implants consult with theirphysician andthe manufacturer
of the medical implant prior to operating the electric tool.
Residual risks
The machine has been built according to the state-of-the-art and the recog-
nised technical safety requirements. However, individual residual risks can
arise during operation.
• Risk to health from wood dust or wood chippings. Wearing personal protective
equipment such as protective goggles and dust masks is mandatory.
• Dust inhalation may occur when closing and changing the dust collection bag.
Afailuretoobservethedisposal notesintheoperating instructions (e.g.regard-
ing the use of dust masks P2) may result in dust inhalation.
• Risk to health due to noise.The permissible noise levelisexceeded during oper-
ations. It is essential that personal protective equipment, such as hearing pro-
tection, is worn.
• Hazard due to electrical power, with the use of improper electrical connection
cables.
• Furthermore, despite all precautions having been met, some non-obvious re-
sidual risks may still remain.
• Residual risks can be minimised if the “safety instructions” and the “Proper use”
are observed along with the whole of the operating instructions.
Ensure careful storage of the safety instructions.
Safety regulations

Kapitelüberschrift
15
Technical data
Model number DC100
Suction port, connection Ø 100 mm
Hose length 2000 mm
Air power 130 m³/h
Pressure difference 22000 Pa
Filter surface 0.2 m²
Container volume 50 L
Weight 5.2 kg
Rated voltage 220 - 240 V~
50/60 Hz
Rated input 1200 W
Motor speed 35000 min-1
Protection class II
Technical changes reserved!
Noise and vibration
mWarning: Noise can have serious effects on your health. If the machine noise ex-
ceeds 85 dB (A), please wear suitable hearing protection.
Sound pressure level LPA: 84.2 dB(A)
Sound power level LWA: 97.9 dB(A)
Uncertainty K: 2 dB(A)
Vibration total value ahv: 1.46 m/s2
Uncertainty: U=0.2 m/s2, K=2
Technical Data

Kapitelüberschrift
16
Assembly
mATTENTION!
Always make sure the device is fully assembled before commissioning!
Only carry out assembly, modifications, adjustment work when the engine is
switched off. - Pull out mains plug –
8.1 Installing the filter cartridge (10) with filter bag (11), Fig. 3 - 5
Insert the filter cartridge (10) into the filter bag (11). (Fig. 3 + 4)
Press the overhang into the filter cartridge (10). (Fig. 4)
Now fit the filter cartridge (10) on the engine housing (1). (Fig. 5)
Place the complete engine housing (1) on the chip container (3) and lock the locking
hooks (9).
8.2 Installing the suction hose (5), Fig. 1 + 6 + 7
Fit the suction hose (5) with the hose clamp (8) on the hose port of the chip container
(3).
Fit the other side of the suction hose (5) with the hose clamp (8), hose coupling (7) and
adapter (6).
Instead of hose coupling (7) with adapter (6), you can also use hose coupling (12) to
prevent larger residual pieces from being sucked in.
Operation
m ATTENTION!
Always make sure the device is fully assembled before commissioning!
9.1 Switching on/off, Fig. 1
To switch on, set the ON/OFF switch (4) to position “I”.
To switch the device off again, set the ON/OFF switch (4) to position “0”.
Assembly/Operation

Kapitelüberschrift
17
Electrical connection
The electrical motor installed is connected and ready for operation. The connection
complies with the applicable VDE and DIN provisions. The customer‘s mains connec-
tion as well as the extension cable used must also comply with these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often damaged.
This may have the following causes:
• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not be used and are life-threatening
due to the insulation damage.
Check the electrical connection cables for damage regularly. Ensure that the connec-
tion cables are disconnected from electrical power when checking for damage.
Electrical connection cables must comply with the applicable VDE and DIN provisions.
Only use connection cables of the same designation.
The printing of the type designation on the connection cable is mandatory.
For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for ma-
chines with a high starting current (from 3000 watts)!
Cleaning
Attention!
Disconnect the mains plug before carrying out any cleaning work.
Empty the chip container
Unlock the locking hooks (9) and remove the complete engine housing (1) from the
chip container (3).
Electrical Connection/Cleaning

Kapitelüberschrift
18
Remove the accumulated dirt and dust from the chip container (3).
Reassemble the unit in reverse order.
We recommend that you clean the device directly after every use.
Wipe swarf and dust off the machine from time to time with a cloth.
Clean the device at regular intervals using a damp cloth and a little soft soap. Do not
use any cleaning products or solvents; they could attack the plastic parts of the device.
Make sure that no water can penetrate the device interior.
Replacing the filter bag
If you notice that the suction power of the unit is decreasing, change the filter bag (11).
Remove the used filter bag (11) from the filter cartridge (10) and replace it with a new
filter bag (11).
Cleaning the filter cartridge
We recommend cleaning the filter cartridge after each use.
First remove the filter bag (11) from the filter cartridge (10).
Then remove the filter cartridge (10) from the motor housing (1).
To remove the accumulated dirt and dust residues, tap out the filter cartridge (10) and
then clean with water.
Attention! Wait until the filter cartridge (10) is completely dry again.
Reassemble the appliance in reverse order.
Storage and Transport
• Store the device and its accessories in a dark, dry and frost-free place that is inac-
cessible to children.
• The optimum storage temperature lies between 5 and 30 ˚C.
• Store the tool in its original packaging.
• Cover the tool to protect it from dust or moisture.
• Store the operating manual with the tool.
• The unit can be transported by the handle (2).
Cleaning/Storage and Transport

Kapitelüberschrift
19
Maintenance
Attention!
Disconnect the mains plug before carrying out any maintenance work.
Connections and repairs
Connections and repair work on the electrical equipment may only be carried out by
electricians.
Please provide the following information in the event of any enquiries:
Type of current for the motor
Machine data - type plate
Engine data - type plate
Service information
With this product, it is necessary to note that the following parts are subject to natural
or usage-related wear, or that the following parts are required as consumables.
Wearing parts*: Filter bag, filter cartridge
* may not be included in the scope of supply!
Spare parts and accessories can be obtained from our Service Centre. Spare parts and
accessories can be obtained from our Service Centre.
Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit.
The raw materials in this packaging can be reused or recycled. The equipment and
its accessories are made of various types of material, such as metal and plastic. Never
place defective equipment in your household refuse. The equipment should be taken
to a suitable collection center for proper disposal. If you do not know the whereabouts
of such a collection point, you should ask in your local council offices.
Maintenance/Disposal and recycling

Kapitelüberschrift
20
Troubleshooting
Fault Possible cause Remedy
Motor does
not run
Check whether the plug is
plugged in. Plug the mains plug back in to the socket.
Check whether there is power to
the socket. Call an electrician.
Check whether the dust extractor
on/off switch is switched on. Switch the on/off switch on.
Reduced
suction
power
Is the filter bag full of dust Remove and replace the filter
bag.
Is the filter cartridge full of dust Remove and clean the filter
cartridge.
Troubleshooting

Kapitelüberschrift
21

Dust Extractor 50L
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period of 36
months from the date of purchase. Defects that occur within this warranty period, under normal
use and care, will be repaired, replaced or refunded at our discretion.The benets conferred by this
warranty are in addition to all rights and remedies in respect of the product that the consumer has
under the Competition and Consumer Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
3
YEAR
WARRANTY
AFTER SALES SUPPORT
 1300 855 831 [e-mail]
AU Hotline Costs: Local rate for landline calls*
*Charges may vary dependent upon network operator or mobile network provider.
TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

Kapitelüberschrift
23

Dust Extractor 50L
Repair and Refurbished Goods
or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned to
the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such asles stored
on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a
portable media player, games saved on a games console or les stored on a USB memory stick)
during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them withrefurbished
goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they meet
ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your com-
plaint. Please telephone us on"1300 855 831" or write to us at:
RossMac Pty. Ltd.
Unit 6, 4 Ovata Drive, Tullamarine, Victoria, 3043, Australia
Telephone: [phone] (Monday - Friday 8:30am-6:00pm)
Email: [email protected]om.au
AFTER SALES SUPPORT
 1300 855 831 [e-mail]
AU Hotline Costs: Local rate for landline calls*
*Charges may vary dependent upon network operator or mobile network provider.
3
YEAR
WARRANTY
TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
