Ferris IS1500Z Series Manual

OPERATOR’S
MANUAL
NHSystem Number: Description:
5600001 IS500Z, & IS1500Z, 44” Mower Deck - 2 Bag System
5600002 IS1500Z & S150X, 48” Mower Deck - 2 Bag System
5600003 IS1500Z & S150X, 48” Mower Deck - 3 Bag System
5600004 IS1500Z & S150X, 52” Mower Deck - 3 Bag System (S/N: 2012628762 & Below)
5600005 IS3000ZL, 61” Mower Deck - 3 Bag System
5600006 IS3000Z & IS3000ZX, 61” Mower Deck - 3 Bag System (S\N 3631 & Above)
5600007 IS1000Z, 52” Mower Deck - 3 Bag System (S\N 2531 & Above)
5600008 IS1000Z, 61” Mower Deck - 3 Bag System (S\N 2899 & Above)
5600009 IS4500Z, 61” Mower Deck - 3 Bag System
5600057 IS2000Z & S200X, 61” Mower Deck - 3 Bag System
5600060 IS3100Z, 61” Mower Deck - 3 Bag System
5600061 IS2000Z, 52” Mower Deck - 3 Bag System (S/N: 2012628762 & Below)
5600083 IS3100ZBS, 61” Mower Deck - 3 Bag System
5600148 IS1500Z & S150X, 52” Mower Deck - 3 Bag System (S/N: 2012628763 & Above)
5600150 IS2000Z, 52” Mower Deck - 3 Bag System (S/N: 2012628763 & Above)
FAST-Vac
Grass Collection Systems
with Setup Instructions
IMPORTANT NOTE:
These FAST-Vac Systems fit 2005
and newer Model Year product
equipped with the rubber
discharge chute.
5100063
Revision K
Rev. Date: 10/2007
TP 100-7219-K-AT-UV

Thank you for purchasing this quality-built Ferris product. We’re pleased that
you’ve placed your confidence in the Ferris brand. When operated and
maintained according to the instructions in this manual, your Ferris product will
provide many years of dependable service.
This manual contains safety information to make you aware of the
hazards and risks associated with this machine and how to avoid them. This
machine is designed and intended to be used and maintained according to the
manual for finish cutting of established lawns and is not intended for any other
purpose. It is important that you read and understand these instructions
thoroughly before attempting to start or operate this equipment.
DATE PURCHASED / FECHA COMPRADA
Briggs & Stratton Yard Power Products Group
Copyright © 2007 Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved.
The Ferris logo is a trademark of Briggs & Stratton
Corporation Milwaukee, WI, USA.
Contact Information:
Briggs & Stratton Yard Power Products Group
5375 N. Main St.
Munnsville, NY 13409-4003
[phone]
www.ferrisindustries.com

1
Table of Contents
SAFETY RULES & INFORMATION .....................2
Safety Decals..........................................................3
GENERAL OPERATING INSTRUCTIONS...........4
Before Operation.....................................................4
Mowing with the Double / Triple Catcher ................4
After Operation........................................................5
Storing the Grass Catcher ......................................5
Mowing Without the Blower ....................................5
INSTALLATION.....................................................6

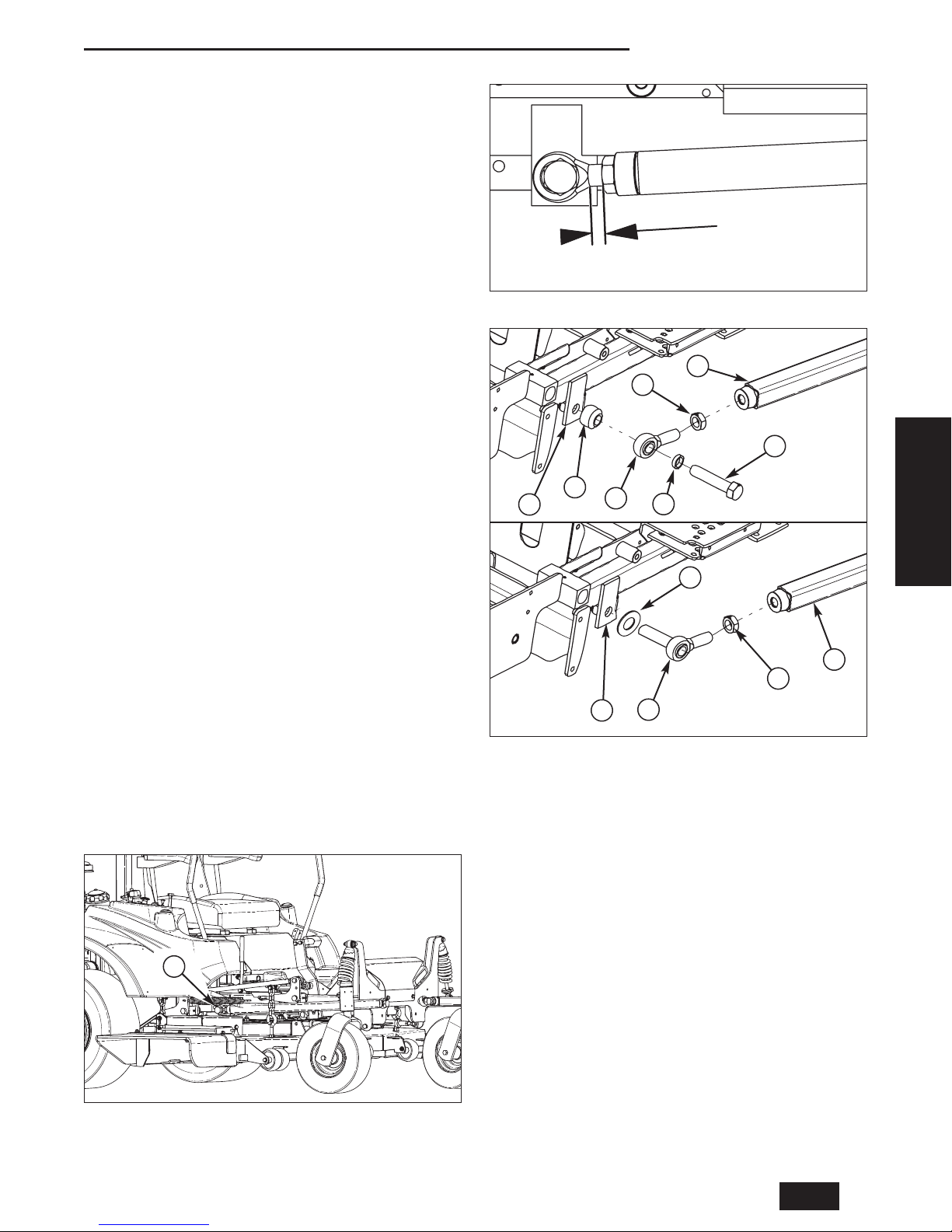

Suspension Adjustment ..........................................6
Ball Joint Replacement ...........................................7

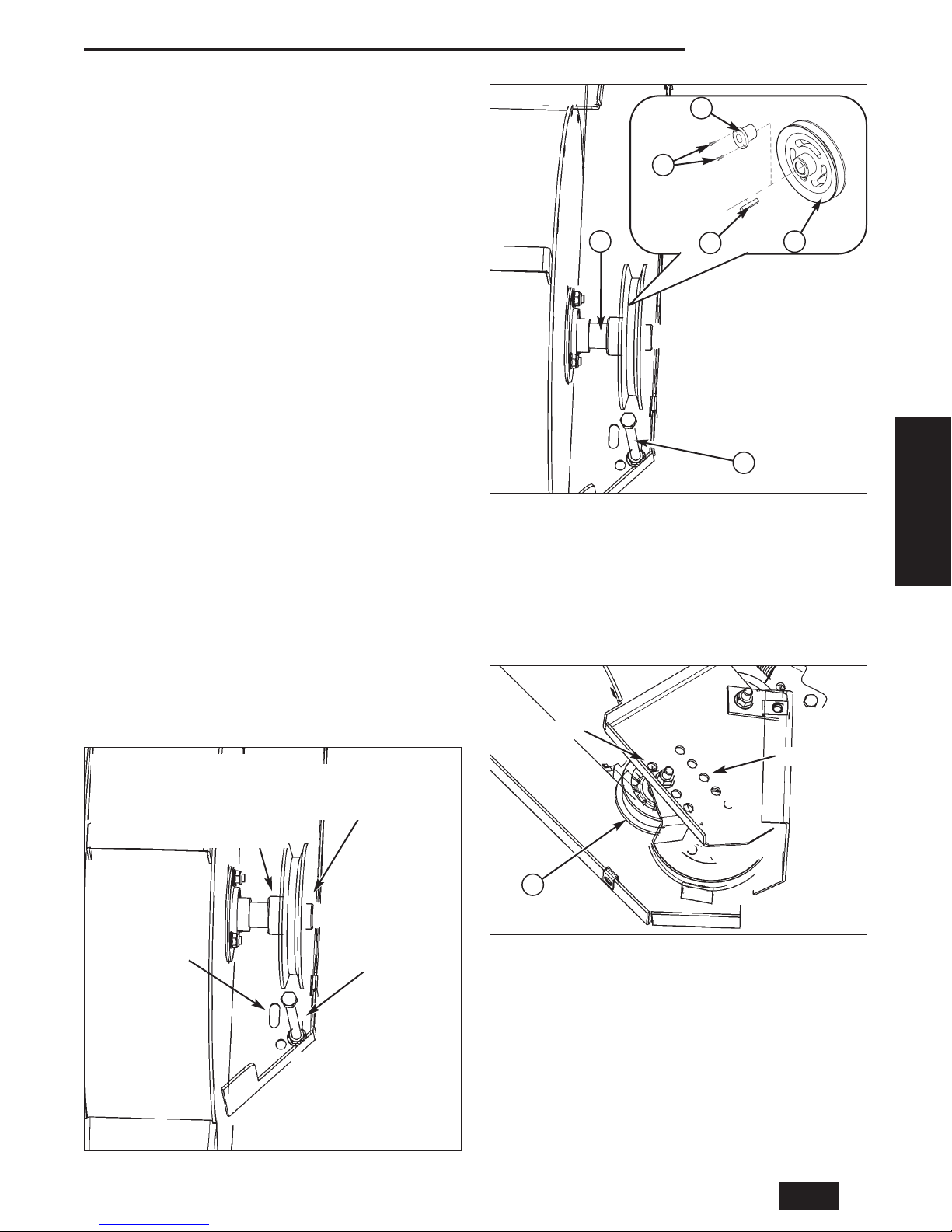

Blower Assembly.....................................................8

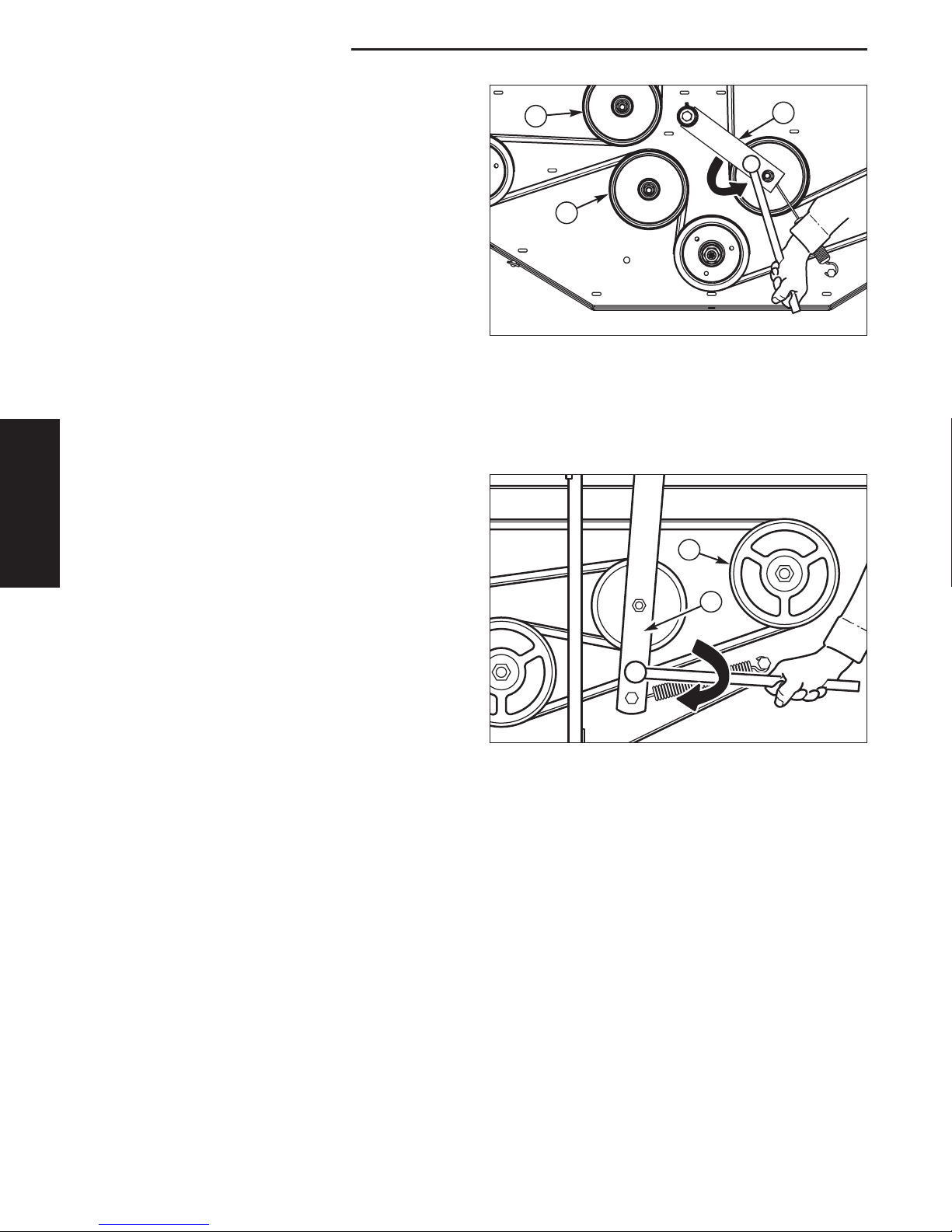

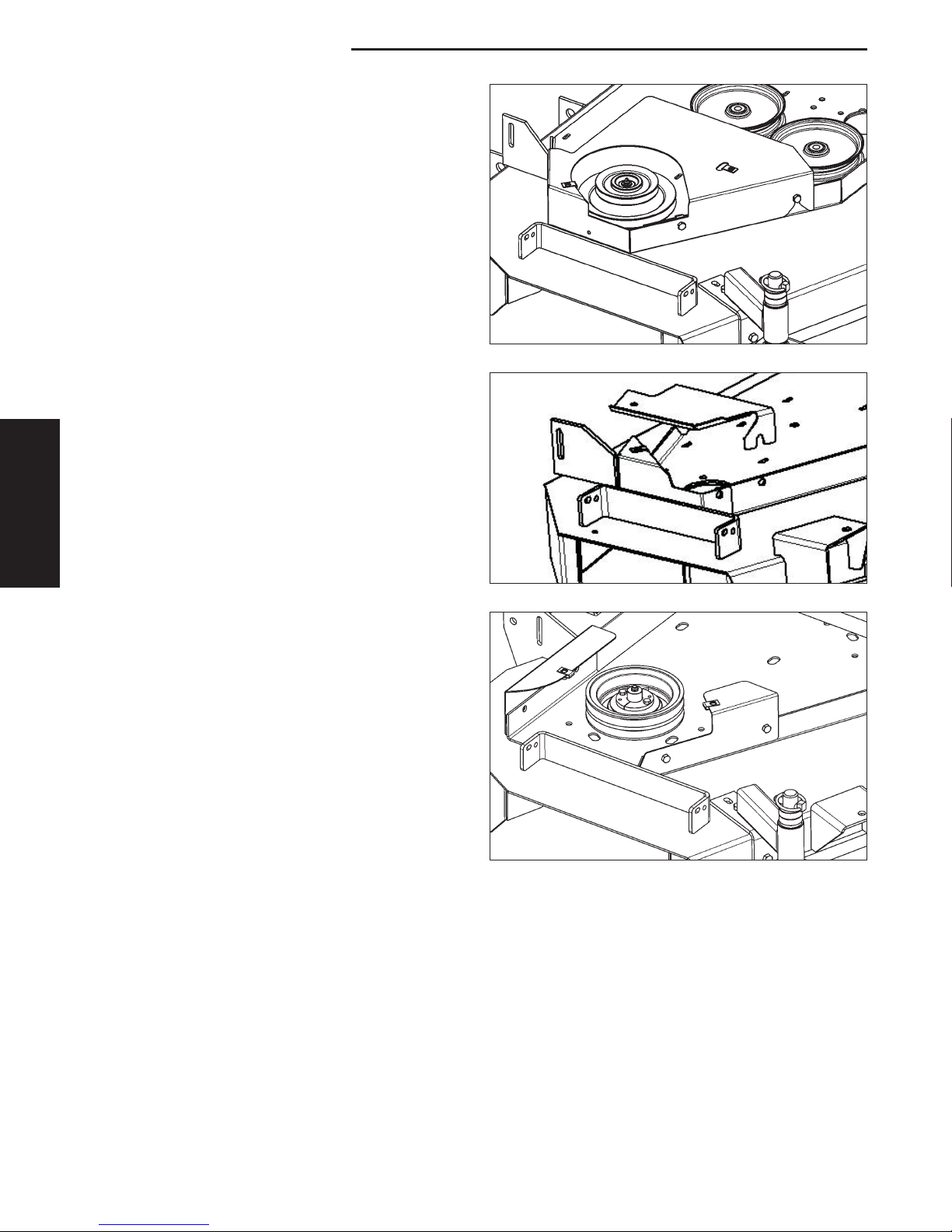

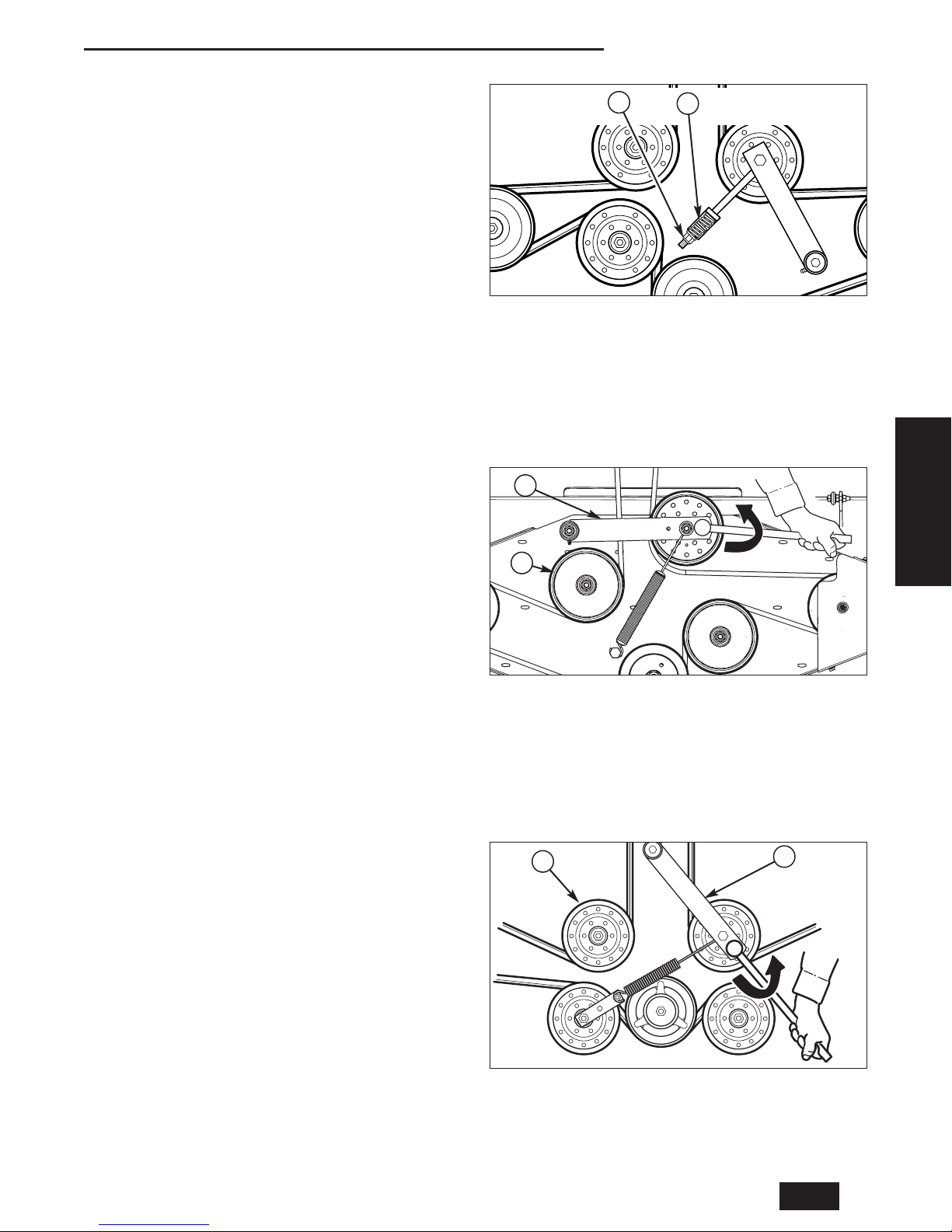

Mower Deck Preparation ......................................12

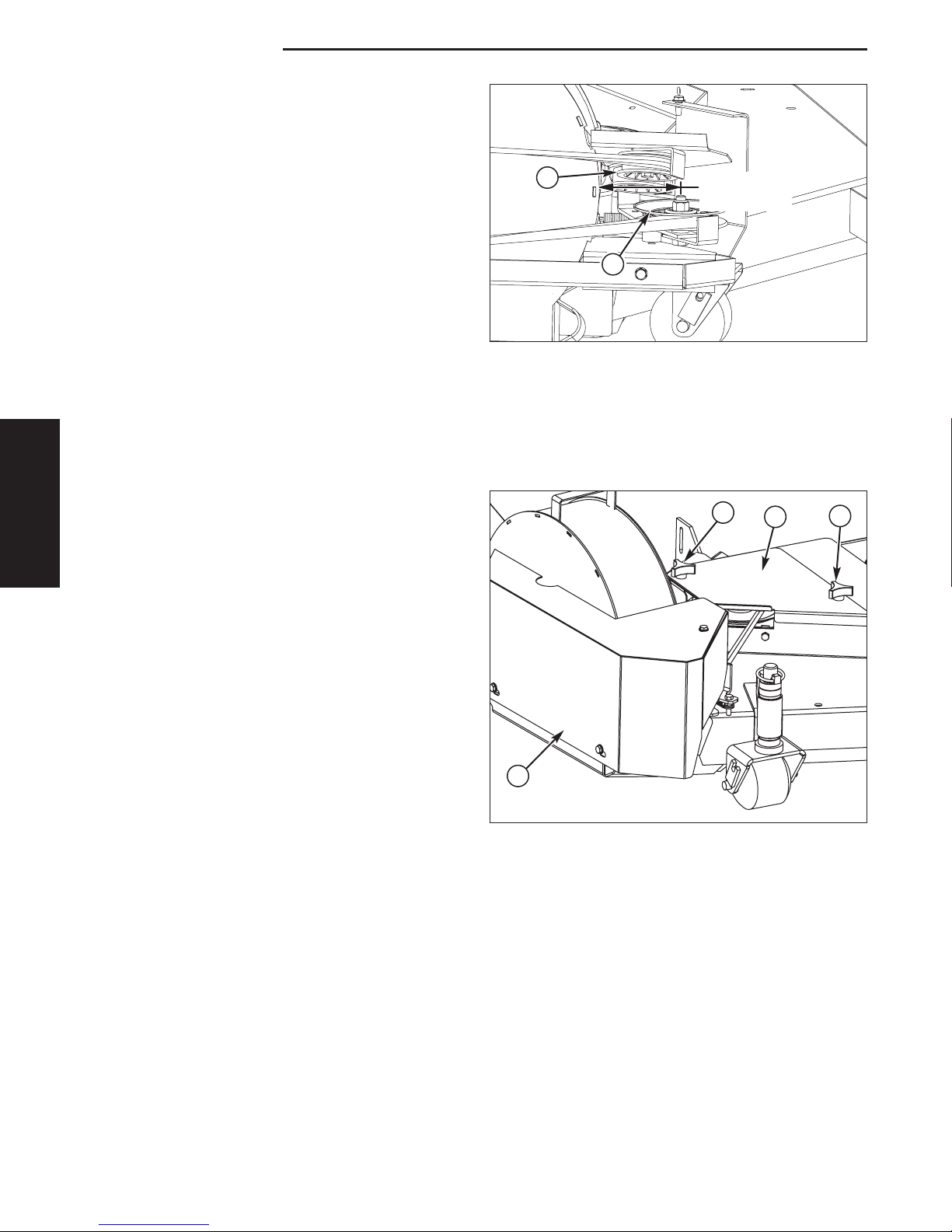

Blower Installation.................................................17
Collector Installation..............................................19
Weight Mount Installation
1000Z Series ...................................................27
Weight Mount Installation
IS1000Z Series................................................28
Weight Mount Installation
IS3000Z Series & IS3100Z Series ..................29
Weight Mount Installation
IS500Z & IS1500Z Series ...............................30
Weight Mount Installation
IS2000Z Series................................................31
Weight Mount Installation
IS4500Z Series................................................32
Weight Mount Installation
S150X & S200X Series ...................................33
BLOWER & COLLECTOR REMOVAL ...............34
REGLAS E INFORMACIÓN DE SEGURIDAD...36
Calcomanías de seguridad ...................................36
INSTRUCCIONES GENERALES
DE OPERACIÓN.................................................37
Antes de la operación...........................................37
Podar con el receptor doble o triple......................37
Después de la operación......................................38
Almacenar el receptor de pasto............................38
Podar sin el soplador ............................................39
REMOCIÓN DEL SOPLADOR Y RECEPTOR...39
Safety Operation Installation Removal Seguridad Operación
ES GB
Spanish English

2www.ferrisindustries.com
Safety
GENERAL WARNINGS
• Know the mower controls, safety rules and how to
stop quickly. READ AND UNDERSTAND THE
MOWER OPERATOR’S MANUAL.
• Read and obey all safety decals.
• Wear appropriate ear, eye and breathing
protection.
• Only allow responsible adults, who are familiar
with the instructions, to operate the unit.
• Disengage the electric clutch (PTO). Shut off the
engine and wait for all moving parts to stop before
attaching, adjusting, or disconnecting any part of
the collection system.
• Check the collection system to make sure it is
bolted tightly to the rider.
• DO NOT operate the mower without either the
entire grass catcher or the deflector in place.
• Turn off the PTO switch to disengage the blades
when not mowing.
• DO NOT mow in reverse. Always look down and
behind before and while travelling in reverse.
• DO NOT turn sharply when travelling alongside a
building or any object. Slow down before turning.
• DO NOT carry passengers on the rider.
• When blower assembly is removed from the
mower deck, the deflector must be properly
installed.
• Collector bags are subject to deterioration and
wear during normal use. Inspect the bag
periodically for tears, holes or weak spots and
replace with a new bag that meets manufacturer’s
durability standards.
• If the mower stalls or the turbo blower chute plugs:
1. Disengage the electric clutch (PTO);
2. Stop the engine and remove the key;
3. Set the parking brake, and wait for all moving
parts to stop.
4. Remove the foreign object or clear the chute
with a piece of wood before restarting the
engine. NEVER place hands into blower
housing to clear jammed object. Blower
may rotate when object is removed.
• For added rider stability and to prevent tipping or
loss of control:
a. Use reduced speed on uneven ground and
when turning corners.
b. Reduce loads on hillsides. It is recommended
that the collection system be kept no more than
half full when negotiating any slopes. Start
mowing on slopes when the collection system
is empty.
c. Mow across the face of slopes; not up and
down.
•Never operate on slopes greater than 17.6%
(10°).
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of
control of unit, severe personal injury or death to you, or bystanders, or damage to property or
equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
The triangle in text signifies important cautions or warnings which must be followed.
Safety Rules & Information

3
Safety
GB
SAFETY DECALS
This unit has been designed and manufactured to
provide you with the safety and reliability you would
expect from an industry leader in outdoor power
equipment manufacturing.
Although reading this manual and the safety
instructions it contains will provide you with the
necessary basic knowledge to operate this equipment
safely and effectively, we have placed several safety
labels on the unit to remind you of this important
information while you are operating your unit.
All DANGER, WARNING, CAUTION and
instructional messages on your rider and mower
should be carefully read and obeyed. Personal bodily
injury can result when these instructions are not
followed. The information is for your safety and it is
important! The safety decals below are on your rider
and mower.
If any of these decals are lost or damaged, replace
them at once. See your local dealer for replacements.
These labels are easily applied and will act as a
constant visual reminder to you, and others who may
use the equipment, to follow the safety instructions
necessary for safe, effective operation.
Safety Decals
