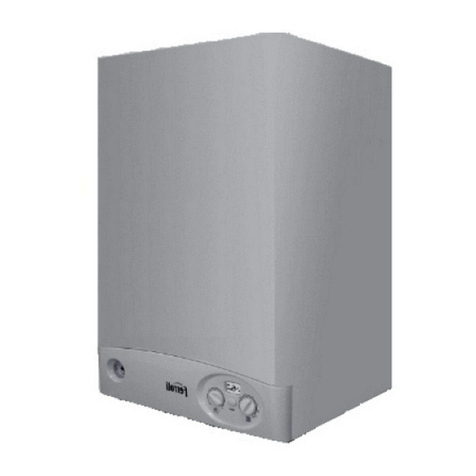

Ferroli DOMIcompact F 30 B Troubleshooting guide

wall-mounted gas red,
condensing combination boiler
FERROLI F 30 B
cod. 3540B30/1 - 04/2005
Seasonal Efciency
(SEDBUK)
band B
G C N° 47-267-36
INSTRUCTIONS FOR USE, INSTALLATION AND
MAINTENANCE FOR THE UNITED KINGDOM AND EIRE

2
3
Ferroli F 30 B
Ferroli F 30 B
IMPORTANT
Your "benchmark" Installation, Commissioning and Service Record Log Book is enclosed in the
last pages of this manual. “This record must be completed and left with the end user”.
Ferroli is a member of the Benchmark initiative and fully supports the aims of the programme.
Benchmark has been introduced to improve the standards of installation and commissioning of central
heating systems in the UK and to encourage the regular servicing of all central heating systems to
ensure safety and efciency.
Please see installation and servicing guidelines.
For EIRE (Southern Ireland), it is necessary to complete a “Declaration of Conformity” to indicate compliance
to I.S. 813. An example of this is given in the current edition of I.S. 813. In addition it is neccssary to complete
the “Benchmark” logbook.
• Read the warnings given in this manual thoroughly.
They provide important information for safe
installation, use and maintenance
• The instruction manual, by law must be left with
the end user.
• If the appliance is sold or transferred to another
owner or if the owner moves, leaving the appliance
behind, always ensure that the manual is kept
with the appliance for consultation by the new
owner and /or installer.
• Incorrect installation or poor maintenance absolves
the manufacturer from all liability for damage to
persons and property.
• Installation and maintenance must be carried out
in accordance with current legislation, according
to the manufacturer’s instructions and by qualified
corgi registered engineer.
• Before service or maintenance work is carried out
isolate the appliance from the mains electricity
supply.
• In the event of malfunction or faulty operation, iso-
late the appliance. Do not attempt to repair or carry
out any other operation on the appliance directly.
Contact Ferroli or a qualied engineer only.
• Repairs or the replacement of components must
be carried out exclusively by qualified personnel
using original spare parts only. Failure to adhere
to the above may compromise the safety of the
appliance.
• To guarantee efficient operation, the appliance
must be serviced once a year by a Corgi registered
engineer.
• The appliance may not be used for purposes other
than those for which it was explicitly designed.
• Incorrect installation and use or failure to follow the
instructions provided by the manufacturer absolve
the manufacturer from all liability for damage.
• After unpacking, check that the contents are correct
and undamaged.
• Keep packing out of reach of children as it could be
potentially hazardous.
• To clean external parts, use a damp cloth moistened
with soapy water if necessary. Avoid using abrasive
cleaning products and solvents.
This symbol indicates “Caution” and is placed next to all safety information.
Strictly follow these instructions in order to avoid danger and damage to
persons or property.
This symbol calls attention to a note or important information, please read thourougly.

2
3
Ferroli F 30 B
Ferroli F 30 B
1. OPERATING INSTRUCTIONS ................................................................................ 4
1.1 Introduction............................................................................................................................ 4
1.2 Control panel.......................................................................................................................... 5
1.3 Operating instructions............................................................................................................ 6
1.4 Adjustments ........................................................................................................................... 6
1.5 Maintenance........................................................................................................................... 7
1.6 Faults...................................................................................................................................... 7
1.7 Time Clock............................................................................................................................. 8
2. INSTALLATION ........................................................................................................ 9
2.1 General Instructions............................................................................................................... 9
2.2 Boiler location...................................................................................................................... 10
2.3 Boiler water connections...................................................................................................... 12
2.4 Connection to the gas system............................................................................................... 14
2.5 Electrical Connections ......................................................................................................... 14
2.6 Flue system .......................................................................................................................... 15
2.7 Condensate outlet connection .............................................................................................. 22
3. SERVICE AND MAINTENANCE .......................................................................... 24
3.1 Adjustments ......................................................................................................................... 24
3.2 Initial start-up....................................................................................................................... 26
3.3 Maintenance......................................................................................................................... 27
3.4 Troubleshooting ................................................................................................................... 29
4 TECHNICAL CHARACTERISTICS AND DATA................................................... 33
4.1 Dimensions and connections................................................................................................ 33
4.2 General view and main components .................................................................................... 34
4.3 Hydraulic diagram ............................................................................................................... 35
4.4 Technical data table.............................................................................................................. 36
4.5 Diagrams.............................................................................................................................. 37
4.6 Wiring diagram .................................................................................................................... 38
Benchmark .................................................................................................................... 40

4
5
Ferroli F 30 B
Ferroli F 30 B
1. OPERATING INSTRUCTIONS
1.1 Introduction
Dear Customer,
Thank you for choosing FERROLI F 30 B, a FERROLI wall-mounting boiler featuring advanced design
and technology, high reliability and quality construction. Please read this manual carefully and keep it
for future reference.
FERROLI F 30 B is a high-efciency condensing appliance for heating and hot water production run-
ning on natural or liqueed petroleum gas (congurable at the time of installation) and regulated by an
advanced microprocessor control system.
The boiler shell consists of a primary copper laminar heat exchanger, a secondary aluminium heat exchanger providing
effective condensation of the water vapour contained in the ue gases, and burner equipped with electronic ignition
and ionisation ame control.
The boiler is totally room sealed from the installation room: the air needed for combustion is drawn from outside.
The boiler also includes a fan, modulating gas valve, pump, expansion vessel, ow meter, safety valve, temperature
sensors, a safety thermostat and a low system water pressure sensor.
Thanks to the microprocessor control and adjustment system with advanced self-diagnosis, unit ope-
ration is for the most part automatic. The power for heating is automatically governed by the control
system according to the indoor characteristics of the building and its location. The power for hot water
is automatically and continually governed to ensure a fast delivery and comfort under all operating
conditions.
The user only has to set the temperature desired inside the home (by means of an optional room
thermostat, which is required under the building regulations 2002) or regulate the temperature of the
system, and set the desired outlet temperature for the hot water. The adjustment and control system
will provide optimum operation throughout the year.

4
5
Ferroli F 30 B
Ferroli F 30 B
Fig. 1
1.2 Control panel
The boiler is designed for use with two types of gas: natural gas NG or propane (LPG). The type of
gas can be selected when purchasing the boiler or the appliance can be converted later on site by a
competent person. It operates with technologically advanced systems such as electronic control, safety
and control devices.
The boiler is tted with automatic electronic ignition so there is no pilot to worry about.
Pull down cover to reveal control facia panel.

6
7
Ferroli F 30 B
Ferroli F 30 B
1.3 Operating instructions
Ignition
• Open the gas isolation valve upstream of the boiler.
• Purge the air from the pipe upstream of the gas valve.
• Ensure power is on to appliance.
• Turn the switch A (g. 1) to the ON position.
• The boiler is now ready to function automatically whenever hot water is drawn or the clock and room
thermostat calls for heating.
Turning off
Turn the switch A (g. 1) to the OFF position.
When the boiler is turned off with this button, the P.C.B. is no longer powered and the frost protection will
be disabled.
Close the gas isolation valve upstream of the boiler and disconnect the electrical power supply.
To avoid damage caused by freezing during long shutdowns in winter, it is advisable to drain
all water from the boiler, the tap water and the system water.
1.4 Adjustments
Room temperature adjustment (with optional room thermostat)
Using the room thermostat, set the temperature desired in the room. Controlled by the room thermostat,
the boiler lights and heats the system water to the set system setpoint temperature. The burner shuts
down when the desired temperature in the rooms is reached.
A room thermostat is a mandatory requirement (building regulations Doc “L” 2002).
C.H. temperature adjustment
To set the system ow temperature, use the C.H. control knob B (g. 1). Turning it
clockwise increases the temperature, turning it anticlockwise decreases it.
Domestic hot water temperature adjustment
To set the hot water temperature, use the D.H.W. control knob C (g. 1). Turning it
clockwise increases the temperature, turning it anticlockwise decreases it.
Hot Water Only - “SUMMER” ( )
To obtain hot water only from the boiler, turn switch (A g. 1) to the on position. The
top green light on the left side of the control panel is illuminated (power on ).
Turn the temperature regulator (B g. 1) to the position. Open a hot water tap, green light (tap
symbol) comes on, fan starts and burner will light. Indicated by ame symbol, green light coming on.
The temperature of the hot water can be adjusted by turning the hot water thermostat (C g. 1) clockwise
to increase and anti-clockwise to decrease the water temperature.
C
60
80
50 70
40
C

6
7
Ferroli F 30 B
Ferroli F 30 B
Heating and Hot Water - "WINTER” ( )
To obtain heating from the boiler, turn the temperature regulator (B g. 1) clockwise to the maximum
position, ensure that any other heating controls e.g. room thermostats, clock etc. are in the on posi-
tion.
The boiler may be in heating delay of three minutes as indicated by the green light ashing ( radiator symbol ). When
this light comes on all the time. The fan and pump will run and the burner will light indicated by the green ame
symbol light. Adjust the temperature regulator to the desired setting. (In winter do not run boiler below 50°C). If
a hot water tap is opened whilst the boiler is running for heating the pump will stop, suspending the heating phase
and the boiler will give priority to hot water production. When the tap is closed the boiler will go into a three minute
delay cycle before resuming for heating.
Frost Protection
In cold weather the boiler may appear to run when there is no demand for heating (i.e. clocks or room
thermostats turned off). This is due to the central heating sensor going into frost protection mode.
Once the boiler has reached 14°C or more it will close down until either the temperature again falls
below 7°C or the clock or room thermostat is turned on.
For this reason we recommend that the electricity to the boiler is left turned on. If you wish to turn off
the electricity to the boiler in winter you should drain completely the heating and hot water circuits.
1.5 Maintenance
It is strongly recommended to carry out annual maintenance on the boiler and the heating system. Please
refer to the “maintenance” section in this manual.
The casing, the control panel and the aesthetic parts of the boiler can be cleaned using a soft and damp
cloth.
Do not use abrasives or solvents.
1.6 Faults
Low system water pressure
Low system pressure will be indicated by ashing light on the right hand side of the facia illuminating (
bar
).
The boiler pressure gauge (D g. 1) should read at least 1 bar.
Boiler lock out
In the event of the red lockout light ( ) coming on, the on/off/reset switch (A g. 1) should be turned clockwise
against the spring tension to the reset position and released (this will put the boiler into three minute delay if in the
heating mode). Check gas supply or condensate discarge. Clean condensate discharge if dirty or obstructed. If the
lockout light ( ) illuminates repeatedly, contact an approved Férroli service engineer.
For other faults, refer to section 3.4 “Troubleshooting.”
Before calling the Ferroli service centre, check that the problem is not due to an installation
error or a problem with the gas/electricity or low water pressure in the system.

8 9
Ferroli F 30 B Ferroli F 30 B
1.7 Time Clock
A 24 hour time clock is tted to the boiler to control the central heating, this will come into operation when the selector
switch “F” is turned to the position marked “auto”.
To set time of day
1. Slide switch (A) to left position
2. Using button + and - adjust until the correct time is shown on display (B).
Pre Set Programmes. The timer is pre programmed with 3 ON and 3 OFF times.
6:30 - 8:30
12:00 - 12:00
16:30 : 22:30
To Set Own ON and OFF times. Symbol in Display = ON time
If these are suitable no programming is required and the slide switch (A) can be moved to
the Auto position and the central heating will be ON for these periods.
(12:00 - 12:00 will not switch on the boiler)
A Slide switch: set clock - auto - set programme
B Display. Symbol in Display = Timer ON
P Select programme ON/OFF 1.....8
D Push buttons Time + Time -
E Override: Boiler will switch ON if it is OFF; and OFF if it is ON
F I=Heating continuous - AUTO=Heating timed - O=Heating disabled
R Reset (with pencil) only with switch A in set clock position
1.1 Use buttons + and - to set 1st ON time eg. 6:00
Display
2.1 Use buttons + and - to set OFF time, eg. 9:00
Display
3.1 Use button + and - to set 2nd ON time, eg. 12:30
Display
4.1 Use button + and - to set 2nd OFF time eg. 14:00
Display
5.1 Use button + and - to set 3rd ON time, eg. 16:00
Display
6.1 Use button + and - to set 3rd OFF time eg. 23:30
Display
8. On completion of programming slide switch (A) to Auto position,
the time of day will be displayed and the central heating will switch
ON and OFF according to the programme set.
1. Slide switch (A) to right position (P)
Display
2. Press button (P)
Display
3. Press button (P)
Display
4. Press button (P)
Display
5. Press button (P)
Display
6. Press button (P)
Display
7. The timer can be programmed with up to 8 ON and
8 OFF times by repeating the above procedure.
6:30 1
8:30 2
12:00 3
12:00 4
6:00 1
9:00 2
12:30 3
14:00 4
16:30 5
22:30 6
16:00 5
23:30 6
Over ride
By pressing the over ride button (E) the timer programme is over ridden ie, if programme is in OFF time it will
come ON and if in ON time will go OFF.
The timer will revert back to it set programme on reaching the next ON or OFF time.
When the programme is on over ride the sign will be shown in the display window (B).
Reset Button
By the use of a pencil the reset button can be pushed (R). This will clear all programmes apart from those factory pre
set.
Reset is only possible with switch (A) in set Clock position!

8 9
Ferroli F 30 B Ferroli F 30 B
2. INSTALLATION
2.1 General Instructions
This device must only be used for the purpose for which it is specially designed. This unit is
designed to heat water to a temperature below boiling point and must be connected to a hea-
ting system and/or a water supply system for domestic use, compatible with its performance,
characteristics and its heating capacity. Any other use is considered improper.
BOILER INSTALLATION MUST ONLY BE PERFORMED BY QUALIFIED PERSONNEL, IN ACCORDANCE
WITH ALL THE INSTRUCTIONS GIVEN IN THIS TECHNICAL MANUAL, THE PROVISIONS OF CURRENT
LAW, THE RECOMENDATION OF BS STANDARDS, ANY LOCAL REGULATIONS AND THE RULES OF
COMPETENT WORKMANSHIP.
In IE, the installation must be carried out by a Competent Person and installed in accordance with the current edition
of I.S. 813 “Domestic Gas Installations”, the current Building Regulations and reference should be made to the current
ETCI rules for electrical installation.
Incorrect installation can cause damage or physical injury for which the manufacturer declines
any responsibility.
This appliance must be installed strictly in accordance with these instructions
and regulations:
The Gas Safety Regulations (Installations & Use).
The Local Building Regulations.
The Building Regulations (Part L).
The Buildings Standards (Scotland - Consolidated) Regulations.
British Standards Codes of Practice:
B.S. 5440 Part 1 Flues
B.S. 5440 Part 2 Air supply
B.S. 5449 FORCED CIRCULATION HOT WATER SYSTEMS
B.S. 6798 INSTALLATION OF GAS FIRED HOT WATER BOILERS
B.S. 6891 GAS INSTALLATIONS
B.S. 7671 IEE WIRING REGULATIONS
B.S. 4814 SPECIFICATION FOR EXPANSION VESSELS
B.S. 5482 INSTALLATION OF LPG
B.S. 7593 TREATMENT OF WATER IN DOMESTIC HOT WATER CENTRAL HEATING SYSTEMS
B.S. 5546 INSTALLATION OF HOT WATER SUPPLIES FOR DOMESTIC PURPOSES
B.S. 3632 RESIDENTIAL PARK HOMES
I.E. 813 DOMESTIC GAS INSTALLATIONS (EIRE ONLY)
Local Water Bye Laws
B.S. 5955-8 PLASTIC PIPEWORK INSTALLATION
For Northern Ireland the rules in force apply

10
11
Ferroli F 30 B
Ferroli F 30 B
Minimum
A
B
D
5 cm
20 cm
60 cm
(via an openable panel)
C 20 cm
Table 1
g. 2
2.2 Boiler location
The unit’s combustion circuit is sealed off from the installation room. The installation room must be
sufciently well ventilated to prevent any dangerous conditions from forming in the event of even slight
gas leakage. This safety standard is required by the EEC Directive no. 90/396 for all gas units, including
those with a so-called sealed chamber.
Therefore the place of installation must be free of dust, flammable materials or objects or corrosive
gases. The room must be dry and not subject to freezing.
The boiler is design to be installed on a solid wall. The wall xing must ensure a stable and effective
support for the appliance, using the bracket and xings supplied.
If the unit is enclosed in a cupboard or mounted alongside, there must be space for normal maintenance work. Fig. 2
and tab. 1 give the minimum clearances to leave around the unit.
Drilling Template
Select suitable mounting position for boiler, using the template mark ue outlet and boiler mounting points. Drill
two 10mm holes 70mm deep to accept the wall plugs. Fit standard wall plugs on the left and right side and the special
wall plug in the middle (g. 3). Fix the wall bracket to the wall using standard lock nut (M8) on both sides. Mount
the boiler on the wall bracket and x using the special antitheft nut (M8) as described in the g. 3. Using a core drill
cut a 118mm diameter hole for the ue.
Fig. 3

10
11
Ferroli F 30 B
Ferroli F 30 B
Make Up Water
Provision must be made for replacing water lost from the sealed system. Reference should be made
to BS6798, for methods of lling and making up sealed systems. There must be no direct connection
between the boiler's central heating system and the mains water supply. The use of mains water to
charge and pressurise the system directly, is conditional upon the Local Water Byelaws. Again any such
connection must be disconnected after use. The supplied temporary lling loop is shown in g. 5. Ensure
the lling point is on the return pipe to the boiler.
Attention - is drawn to the Local Water Byelaws.
Fittings manufactured from duplex (alpha-beta) brass are not acceptable for underground use and
certain water undertakings will not accept their use above ground.
Ensure all pipework is adequately supported
NOTE: An automatic bypass capable
of passing 6 ltrs per minute must be
tted as far as possible from the boiler
if thermostatic radiator valves are tted
thoughout.
As per the building regulations part “L”
Fig. 4
Gas
Hot water
Additional expansion
vessel C.H. (if required)
Filling
point C.H.
Automatic
Bypass
Key
1. Filling point C.H. 15mm isolation valve
2. Temporary exible connection
3. Cold water supply 15mm isolation
valve
4. Double check valve
Fig. 5
3
2
1
4

12
13
Ferroli F 30 B
Ferroli F 30 B
2.3 Boiler water connections
The heating capacity of the unit should be previously established by calculating the building’s heat
requirement according to current regulations. For good operation and long life of the boiler, the plumbing
system must be well proportioned and always complete with all those accessories that guarantee regular
operation and running, room thermostat, trv’s and automatic bypass.
If the delivery and return pipes follow a path where air pockets could form in certain places, it is esential
to install vent valves at these points. Also, install a type “A” drain cock device at the lowest point in
the system to allow its complete draining.
The temperature differential between the flow manifold and the return to the boiler should
not exceed 20° C.
A minimum ow of 6 litres/min is requied through the heat exchanger, it is therefore essential to t a automatic bypass
a min of 3 metres away from the appliance, calibrated on site.
Do not use the water system pipes to earth
electrical appliances.
Before installation, carefully ush all the pipes of the heating
system to remove residues or impurities that could affect the
unit’s good working (BS 7593 Building regs Doc L).
Make the connections to the appliance as shown in g. 6.
Key
1 System ow (22 mm with isolation valve tted)
2 DHW outlet (15 mm with isolation valve tted)
3 Gas inlet (22 mm with isolation valve tted)
4 Cold main inlet (15 mm with isolation valve tted)
5 System return - 22 mm with isolation valve tted (c/w lter)
6 System drain
7 Condense outlet
It is essential to install the isolation valves supplied between the boiler and heating system, allowing
the boiler to be isolated from the system if necessary.
The safety valve outlet must be connected to a 15 mm pipe to allow system water out onto the ground in the
event of over-pressure in the heating circuit. If this is not done, and the drain valve trips and oods the room,
the boiler manufacturer is not to be held responsible. The outlet should face back against the outer brickwork
or building face to prevent harm or injury from hot water discharging in the event of an over-pressurised
system.
Make the boiler connection in such a way that its internal pipes are free of stress. If a check valve is installed on the
tap water circuit (where applicable), it is necessary to mount a safety valve between the boiler and this circuit (check
valve minimum 3 metres from boiler).
g. 6
1235
4
155
175
6
7
54
120
95
27
189
49
36

12
13
Ferroli F 30 B
Ferroli F 30 B
The connecting kits shown in g. 7 are supplied as standard.
Key
A = Nut
B = Compression olive
D = 3/4Ó seal (green)
E = 1/2Ó seal (green)
F = 1/2Ó gas seal (blue)
G = Filter
H = Cap
Flow isolation valve
Hot water connection
Gas isolation valve
Cold water isolation valve
Return isolation valve
¯22
¯22
¯22
¯15
¯15
A
A
A
A
AB
B
B
B
B
D
D
E
E
F
GH
g. 7
Water treatment
When treatment is used Ferroli limited only recommend the use of a proprietary brand, such as Fernox or Sentinel water
treatment products, which must be used in accordance with the manufacturer’s instructions. for further information
contact:
Fernox Manufacturing Co. LTD.
Cookson Electronics, Forsyth Road
Sheerwater, Woking, Surrey GU21 5RZ
Tel: [phone]
Sentinel Division
Betz Dearborn LTD
Widnes, Cheshire WA8 8ND
Tel: [phone]
Note - When the boiler is installed with an existing or new system any unsuitable additives or system debris
must be removed by thorough cleansing. All systems should be cleansed according to B.S. 7593.
Note - In hard water areas treatment to prevent lime scale may be necessary.
Note - It is important that the correct concentration of the water treatment product is maintained in
accordance with the manufacturers instructions.

14
15
Ferroli F 30 B
Ferroli F 30 B
2.4 Connection to the gas system
If necessary the local Gas supplier should be consulted, at the installation planning stage, in order to
establish the availability of an adequate supply of gas.
An existing service pipe must not be used without prior consultation with the local Gas supplier.
A gas meter can only be connected by the Local Gas supplier, or by a Local Gas suppliers Contractor.
Installation pipes should be tted in accordance with BS6891.
Appliance inlet working pressure must be 20 mbar MINIMUM, for NG and 37 mbar minimum for pro-
pane.
Do not use pipes of a smaller size than the combination boiler inlet gas isolation valve (22 mm).
The complete installation must be tested for gas soundness and purged as described in BS6891. All pipework must
be adquately supported. An isolating gas valve is provided and should be tted on the boiler gas inlet. Please
wait 10 minutes when lighting from cold before checking the gas rate. Gas pressures should be checked after
the boiler has operated for 10 minutes to ensure thermal equilibrium.
The connecting kits shown in g. 7 are supplied as standard.
2.5 Electrical Connections
The unit must be installed in conformity with current national and local regulations.
Connection to the electrical supply
The boiler must be connected to a single-phase, 230 Volt-50 Hz electric supply.
The unit’s electrical safety is only guaranteed when correctly connected to an efcient earthing system installed
according to current safety standards. Have the integrity of the earthing system checked by professionally
qualied personnel. The manufacturer is not responsible for any damage caused by failure to earth the system.
Also make sure that the electrical system is adequate for the maximum power used by the unit, as specied
on the boiler dataplate, in particular ensuring that the cross section of the system’s cables is suitable for the
power used by the unit.
The boiler is prewired and provided with a cable for connection to the electricity supply. The connections to the
supply must be made with a permanent connection and equipped with a double pole switch whose contacts have a
minimum opening of at least 3 mm, and fused at max. 3A between the boiler and the line. It is important to respect
the polarities (LIVE: brown wire / NEUTRAL: blue wire / EARTH: yellow-green wire) in making connections to
the electrical supply.
The user must never change the unit’s power cable. If the cable gets damaged, switch off the unit and have
it changed only by professionally qualied personnel. If changing the electric power cable, use solely “HAR
H05 VV-F” 3x0.75 mm2 cable with a maximum outside diameter of 8 mm.
5 Core cable must not be used to replace the existing 3 core!
Access to the electrical terminal block

14
15
Ferroli F 30 B
Ferroli F 30 B
Room thermostat
CAUTION: THE ROOM THERMOSTAT MUST HAVE VOLTAGE FREE CONTACTS. CONNECTING
230 V. TO THE TERMINALS OF THE TIME CLOCK AND ROOM THERMOSTAT WILL IRREPARABLY
DAMAGE THE P.C.B.
When connecting a room thermostat with a daily or weekly program, or a timer switch, do not
take the power supply for these devices from their cut-out contacts. Their power supply must
be taken with a direct connection to the mains or with batteries, depending on the type of
device (isolation to mains fed clocks via a 3amp fused spur).
Follow the instructions A given in g. 8a to access the electrical connection terminal block (B g. 8b). The layout of
the terminals for the various connections is given in the wiring diagram in the Technical Data chapter.
B
g. 8a g. 8b
A
2.6 Flue system
The unit is “type C” with a sealed chamber and forced draught, the air inlet and flue outlet
must be connected to one of the following flue systems. With the aid of the tables and methods
of calculation indicated, before commencing installation, it is first necessary to check that the
flue system does not exceed the maximum permissible length. The current standards and local
regulations must be observed.
It should be noted that only Ferroli ue system and accessories should be used on this appliance, as per BS
5440 2000 and C.E. test certication.

16
17
Ferroli F 30 B
Ferroli F 30 B
1
Restrictor
For boiler operation, the restrictor supplied with the unit must be mounted following the instructions
below.
Determine the correct size of flue restrictor required. Before inserting the flue gas duct in the boiler,
check that the restrictor tted is correct and that it is correctly positioned (see g. 9).
Fig. 9
Choice of restrictor:
• With 2 pipe system:
- Calculate the total flow resistance of the
air and ue pipes in metres (cap. 3.04.2)
- utilise the table shown below to choose
the more suitable restrictor for the flow
resistance calculated
RESTRICTOR FOR TWO PIPE SYSTEM
Total flow resistance
of flue system
Use
restrictor
size
minimum maximum mm
0 m 32 m 50
32 m 48 m No restrictor
RESTRICTOR FOR CONCENTRIC SYSTEM
Flue lenght up to:
Use
restrictor
size
Concentric
60 / 100
1 bend + 1 meter 50 mm
1 bend + 3 metersNo restrictor
Concentric
80 / 125
1 bend + 5 meters 50 mm
1 bend + 12 metersNo restrictor
N.B.: the diameter of the hole is
stamped on the restrictor
• With concentric systems:
- Choose correct restrictor from table
below.

16
17
Ferroli F 30 B
Ferroli F 30 B
Connection with concentric ue system
The unit can be connected to a concentric air/ue duct with a horizontal or vertical outlet as shown on the following
drawings. Numerous accessories are available on request to meet the various installation requirements. Please refer
to our “ue manual” or the price list.
Horizontal concentric ue installation
Horizontal ue installation
1. Dene the position for installing the unit.
2. When installing a horizontal ue kit, please ensure a 3mm per metre fall back to the appliance is incorporated.
3. Make a hole of diameter 10 - 20 mm greater than the nominal diameter of the concentric pipe used.
4. If necessary, cut the end pipe to size, ensuring that the external pipe protrudes from the wall by between 10 and 60
mm (Fig. 10a and 10b). Remove the cutting burrs and lubricate the seals with a suitable sillicone based grease.
5. Connect the ue to the boiler, positioning the seals correctly. Seal the ue into the wall with silicone or sand & cement
* = between
10 and 60 mm
Drill the wall 10‚20 mm
more than the pipe diameter
010008X0
* = between
10 and 60 mm
Drill the wall 10‚20 mm
more than the pipe diameter
95
125
S50* 125
50*
125
50*
S
D
L
30
95
178,5281,5
L
P
50*
S
191
191
95
30
178,5281,5
30
Install level
Install level
1KWMA56W
Install level
Install level
DS
95
30
P
281,5178,5
75
Side view
View from above
g. 10a
Side Outlet
g. 10b
Front view
View from above
P = S + 176 mm
Rear Outlet
L = S + D + 163,5 mm

18
19
Ferroli F 30 B
Ferroli F 30 B
Vertical Outlet
g. 10c
The total length in equivalent metres of the concentric
ue must not exceed the maximum lengths stated in the
following table, note that each bend gives an increase
to the stated reduction. For example, a duct = 60/100
composed of 1 bend of 90° +1 horizontal metre + 2 bends
of 45° + 1 horizontal metre has a total equivalent length
of 4 metres.
Angled roof tile
1KWMA82U
1KWMA56U
950
50
010009X0
max. 4 metres 60/100 max. 12 metres 80/125
Roof end piece
1KWMA83U
68
950
50
50 950
50
1000 125
10
Reduction factors for bends
Concentric bend at 90 - Ø 60/100 mm
Concentric bend at 45 - Ø 60/100 mm
Concentric bend at 90 - Ø 80/125 mm
Concentric bend at 45 - Ø 80/125 mm
1 m
0.5m
0.5m
0.25m
Table 2b
Maximum permissible
duct length (Horizontal)
Ø mm
60/100
3 m 12 m
Ø mm
80/125
Table 2a
Maximum permissible
duct length (vertical) 4 m 12 m
and cover with wall seals provided.
Flue seals should be lubricated with a silicone type grease to prevent damage (grease
not supplied)

18
19
Ferroli F 30 B
Ferroli F 30 B
1
3
4
2
1KWMA84U
Ref.
1
2
3
4
N Pieces
16
10
1
1
Vertical flue pipe Ø80
Vertical air pipe Ø80
Vertical flue terminal
Two pipe adaption kit (1KWMR54A)
Description Equivalent
loss
25,6 m
10,0 m
12,0 m
0,0 m
47,6 m
Total
Table 3
g. 11
g. 12
Connection with 80 mm pipe system
The unit can be connected to a system of separate
air/ue pipes for a horizontal or vertical outlet as
shown on the g. 11 - 12. Numerous accessories are
available on request to meet the various installation
requirements.
Please refer to the ue manual catalogue or the
price list for additional components.
To check you do not exceed the maximum
permissible ue length, it is necessary to make
a simple calculation before installation:
1. For each component, tables 4 - 5 provide an
“equivalent loss in metres”, depending on
the position of installation of the component
(with air intake or flue extraction, vertical
or horizontal).
The loss is called “equivalent length” since it
is compared to the loss of one metre of ue
(dened as equal to 1). For example, a bend
at 90° of Ø80 in ue run has an equivalent loss
of 2.5 linear metres, i.e. it has a loss equal to
that of 2.5 metres of ue length.
2. After designing the layout of the system, add up
the losses in equivalent metres, depending on the
installation position, of all the components and
accessories in the system.
3. Check that the total calculated loss is less
than or equal to 48 equivalent metres, i.e.
the maximum permissible for this model of
boiler.
For further flue options please contact
FERROLI or check our comprensive ue
manual.
2
Ø80
AIR
Ø80
FUMES
Remove
the closing
cap
1
Two pipe adaption
kit cod. 1KWMR54A
191
178,5
120
161,5

20
21
Ferroli F 30 B
Ferroli F 30 B
Table of ue and accessories
The stated loss values refer to genuine Ferroli ue accessories.
Terminal Position
