Ferroli GN2 N User manual

Supplied By www.heating spares.co Tel. [phone]
GN2 N
HIGH-EFFICIENCY CAST IRON BOILER FOR LIQUID FU-
ELS and/or GAS
OPERATING, INSTALLATION AND MAINTENANCE IN-
STRUCTIONS
CALDAIA DI GHISAAD ALTO RENDIMENTO PER
COMBUSTIBILI LIQUIDI E/O GASSOSI
ISTRUZIONI PER L’USO L’INSTALLAZZIONE E LA
MANUTENZIONE
CHAUDIÈRE en FONTE A HAUT RENDEMENT POUR
COMBUSTIBLES LIQUIDES et/ou GAZEUX
INSTRUCTIONS POUR L’INSTALLATION ET L’ENTRETIEN
HEIZKESSELAUS GUSSEISEN MIT HOHEM WIRKUNGS-
GRAD FÜR FLÜSSIGE und/oder GASFÖRMIGE BRENN-
STOFFE
INSTALLATIONS-, BEDIENUNGS- UND WARTUNGSAN-
LEITUNGEN
CALDERA DE FUNDICIÓN, DEALTO RENDIMIENTO PARA
COMBUSTIBLES LÍQUIDOS y/o GASEOSOS
INSTRUCCIONES DE USO, INSTALACIÓN Y MANTENI-
MIENTO
CALDEIRA em FERRO FUNDIDO DE ALTO RENDIMENTO
PARA COMBUSTÍVEIS LÍQUIDOS e/ou GASOSOS
INSTRUÇÕES PARA O USO, INSTALAÇÃO E MANUTEN-
ÇÃO
VERWARMINGSKETEL in GIETIJZER MET HOOG RENDE-
MENT VOOR VLOEIBARE en/of GASVORMIGE BRAND-
STOF
AANWIJZINGEN VOOR HET GEBRUIK, DE INSTALLATIE
EN HET ONDERHOUD
STØBEJERNSFYR MED ØGET UDBYTTE TIL FLYDENDE
BRÆNDSTOF og/eller GAS
INSTRUKTIONER VEDRØRENDE BRUG, INSTALLATION
OG VEDLIGEHOLDELSE
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VERSIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VERSIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VER‹MLML
MLML
ML‹DÖKÜMDÖKÜM
DÖKÜMDÖKÜM
DÖKÜM
DD
DD
D‹LL
LL
L‹MLML
MLML
ML‹KAZANKAZAN
KAZANKAZAN
KAZAN
ENGLISH
ITALIANO
FRANÇAIS
DEUTSCH
ESPAÑOL
PORTUGUÊS
NEDERLANDS
DANSK
TÜRKÇE
cod. 3544122/0 ediz. 01/2002

Supplied By www.heating spares.co Tel. [phone]
EnglishDeutsch ItalianoFrançaisEspañol
PortuguêsNederlands
DanskTürkçe
2
GN2N
Dear Customer,
Thank you for having chosen the GN2 N, an advanced-concept Ferroli boiler
featuringcutting-edgetechnology,highreliabilityandconstructionalquality. Carefully
read this manual and keep it for future reference.
The GN2 N is a high-efficiency heat generator for the production of hot water for
heating purposes, suitable for operation with jet burners on gas or liquid fuel.
The boiler body consists of cast-iron elements, the shape of which, together with
the careful design of the fins, ensure high heat exchange efficiency in all operating
conditions.
Important warnings
• Thismanualprovides importantindications onthe safety
of operation, installation and maintenance, and is an
integral and essential part of the product. Read this
manual before installation and operation. It should be
carefully kept for future reference.
• This appliance must only be used for the purposes it
has been specifically designed for. This appliance is
used to heat water to below-boiling temperatures at
atmospheric pressure, and must be connected to a
heating and/or domestic hot water distribution system,
accordingtoits characteristics,performanceand heating
capacity. All other uses are considered improper and
thus dangerous.
• The appliance may not be opened nor its components
tampered with, except for the parts included in the
maintenance operations. The appliance may not be
modified to alter its performance or use.
• The installation and maintenance operations must be
performed according to the standards in force, the
instructions of the manufacturer and must be carried
out by professionally qualified personnel.
• Incorrect installation or poor maintenance may cause
damageto people, animalsor things.The manufacturer
declines all liability for damage deriving from errors in
the installation and operation of the appliance, and in
any case from the failure to observe the instructions
provided.
• Before performing any cleaning or maintenance
operations, disconnect the appliance from the mains
power supply using the system switch and/or the
corresponding on-off devices.
• In the event of faults and/or poor operation of the
appliance, it should be deactivated. Do not attempt to
repair the appliance. Contact professionally qualified
personnel only.
• After having removed the packaging, check that the
contents are intact. The parts of the packaging must
not be left within the reach of children, as they are
potential sources of danger.
ENGLISH

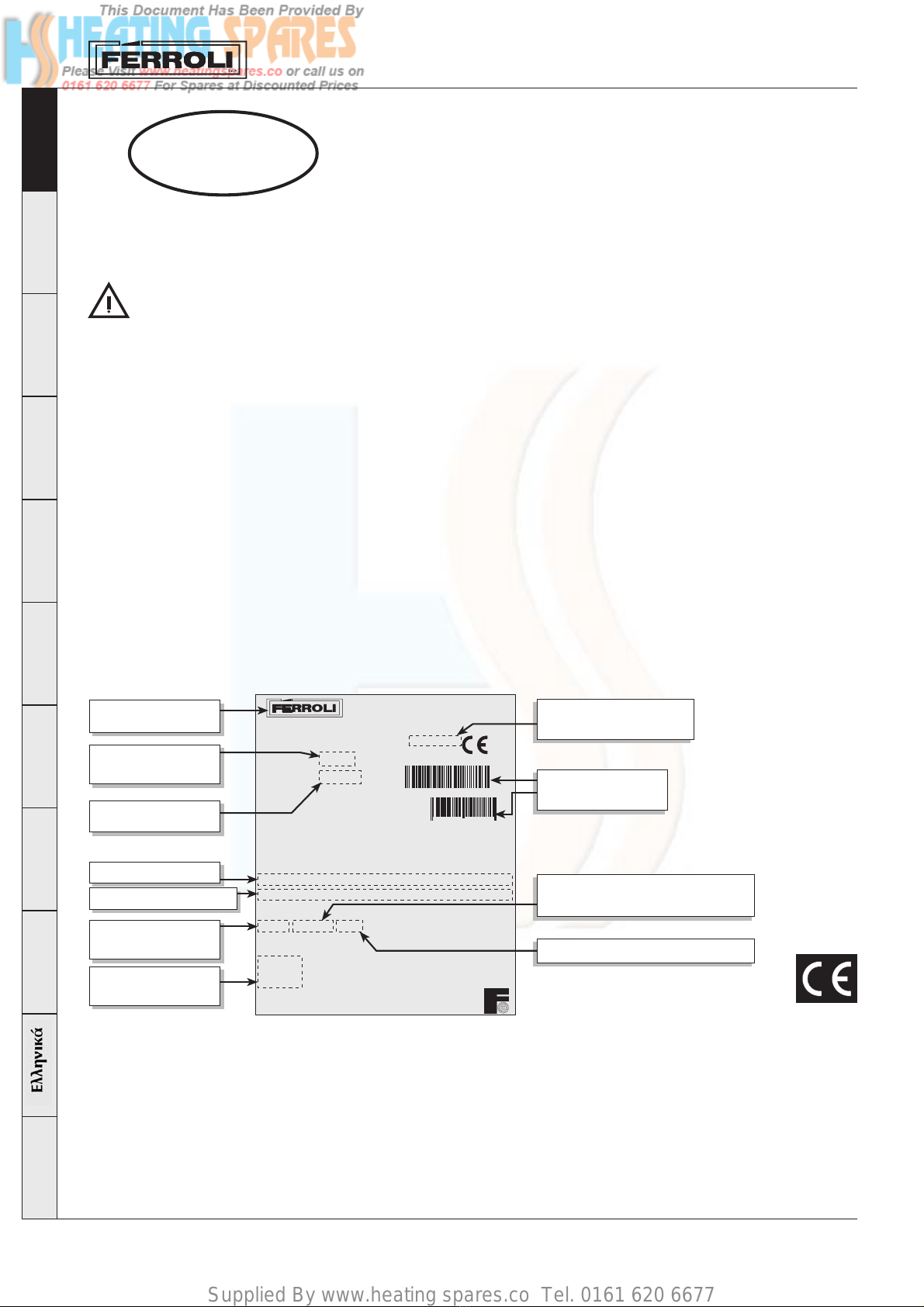

C95.02G 05
CE-0085AQ0771
0085
1QGDX05B
028693 3301698
EN303 - Appr.No.
PIN
Type
N°
GN2 N 05
0000000000
MAX. MIN.
116 80
105 73
kW
kW
Q (Hi)-INPUT
P -OUTPUT
PMS 4 bar - Tmax 110 °C- -H2O 49 I
230 V - ~50 Hz
IPX0D
Electrical power
supply
Max operating pressure
temperature
Manufacturer
Ferroli Spa
Via Ritonda 78A 37047 San Bonifacio (VR) - Italia
PIN
Trade name
Serial number
Max operating
pressure
Heat output
Uselful heat output
Bar code
Water content
Certification
The CE Mark attests that Ferroli appliances
conform to the requirements specified in the
applicable European directives.
In particular, this appliance conforms to the
following EEC directives:
• Gas directive 90/396
• Efficiency directive 92/42
• Low voltage directive 73/23 (amended by 93/
68)
• Electromagnetic compatibility directive 89/336
(amended by 93/68)

Supplied By www.heating spares.co Tel. [phone]
GN2N
3
English DeutschItaliano Français Español
Português Nederlands
Dansk Türkçe
1. OPERATING INSTRUCTIONS
1.1 Control panel
123 4 5
1.2 Ignition
Move the main switch 5to position “I” to power the boiler and the burner. Refer to the burner manual for the operation of this device.
1.3 Setting
Set the desired system temperature using the control thermostat 4. If the thermoregulation control unit (optional) is connected, refer to the
corresponding instruction manual.
1.4 Shut-down
For brief periods of inactivity, simply move switch 5(Fig. 1) on the control panel to position “0”.
For extended periods of inactivity, as well as operating switch 5, the fuel on-off valve must also be closed.
Forextendedperiodsof inactivityduringthe winterperiod,to avoid damagefromfrost, addspecialantifreeze tothesystem or drainthesystem
completely.
1.5 Anomalies
Two lockout conditions may occur that can be reset by the user:
a- Burner lockout signalled by the corresponding light 6 (Fig. 1). Refer to the burner manual.
b- Activation of the safety thermostat when the temperature in the boiler reaches the limit value above which a dangerous situation may arise.
To reset operation, unscrew cap 3and press the reset button.
If the problem occurs again, contact qualified personnel or the service centre.
Intheeventoffaultsand/orpooroperationoftheappliance,itshouldbedeactivated.Donotattempttorepairtheappliance.Contactprofessionally
qualified and authorised personnel only.
2. INSTALLATION
General instructions
This appliance must only be used for the purposes it has been specifically designed for. This appliance is used to heat water to below-boiling
temperatures at atmospheric pressure, and must be connected to a heating and/or domestic hot water distribution system, according to its
characteristics, performance and heating capacity. All other uses are considered improper.
THEBOILERMUSTONLYBEINSTALLEDBY QUALIFIEDANDSPECIALISTPERSONNEL,INCOMPLETE COMPLIANCE WITHALLTHE
INSTRUCTIONS REPORTED IN THIS TECHNICAL MANUAL, THE LEGAL STANDARDS IN FORCE, THE PRESCRIPTIONS OF ANY
NATIONAL AND LOCAL STANDARDS, AND ACCORDING TO THE RULES OF GOOD PRACTICE.
Incorrect installation may cause damage to people, animals and things. The manufacturer will not be held liable in such events.
Place of installation
The room in which the boiler is installed must have ventilation openings to the outside according to the standards in force. If the same room
features a series of burners or exhaust devices that can operate at the same time, the ventilation openings must be large enough for the
simultaneous operation of all the appliances.
The place of installation must be free of flammable objects or materials, corrosive gas, dust or volatile substances that, sucked in by the
burner’s fan, may block the internal tubing of the burner or the combustion head. The environment must be dry and not exposed to rain, snow
or frost.
Positioning the boiler
The minimum spaces shown in the figure must be complied with. Specifically, make sure that after
assembling the boiler with the burner on the front door, the latter can be opened without the burner
hittingagainst the wall orany other boiler. Leave a free space of at least100mm on the sidethat the door
swings towards.
6
100
mm
550==
Bruciatore
Key
1Ready for electronic control unit
2Thermohydrometer
3Safety thermostat
4Control thermostat, 2 Stages
5Line switch “0 - I - TEST”
6Burner lockout indicator light
fig. 1
fig. 2
Burner

Supplied By www.heating spares.co Tel. [phone]
EnglishDeutsch ItalianoFrançaisEspañol
PortuguêsNederlands
DanskTürkçe
4
GN2N
2.1 Water connections
Make the water connections to the appliance according to the indications shown both next to each fitting and in Figure 2 of this booklet.
The connections must be made in such a way that the pipes are not under stress. The safety valve must be fitted in the central heating circuit,
as close as possible to the boiler, without there being any obstructions or on-off devices between the boiler and the valve.
The appliance is not supplied with an expansion vessel, and therefore such device must be connected by the installer. Please note that in this
regard, the pressure in the system, when cold, must be between 0.5 and 1 bar.
2.2 Connecting the burner
Oil or gas jet burners for pressurised furnaces can be used if their operating characteristics are suitable for the dimensions of the boiler’s
furnaceand its over-pressurevalue.The burner must bechosen following the instructionsprovidedbythe manufacturer, accordingto the field
of operation, fuel consumption and pressure, as well as the length of the combustion chamber.
Fit the burner following the instructions provided by the manufacturer of the device.
2.3 Electrical connections
The boiler should be connected to a single-phase, 230 Volt-50 Hz electrical line, using a permanent connection, installing a double
pole switch with contact openings of at least 3mm, and suitable fuses. Connect the burner and the room thermostat (if featured) as
shown in the wiring diagram in Chap. 4.
The electrical safety of the appliance is ensured only when the appliance is correctly connected to an effective earth system, as prescribed by
thesafety standards inforce.Have professionally qualifiedpersonnel check theefficiency and therating of the earth system.The manufacturer
isnot liable for any damage causedby the appliance not being correctlyearthed. In addition, make sure thatthe electrical system is adequately
rated for the maximum power absorbed by the appliance, indicated on the rating plate, and in particular that the cross-section of the wires is
suitable for the power absorbed by the appliance.
2.4 Flue connections
Theboiler should be connected to a suitable flue,manufactured in compliance with the standards in force. Thepipe between boiler and the flue
mustbe made from materialsuitable for this purpose,that is, resistant to both high temperatures and corrosion. The joints shouldbe carefully
sealed and the entire length of the pipe between the boiler and the flue should be thermally insulated, to avoid the formation of condensate.

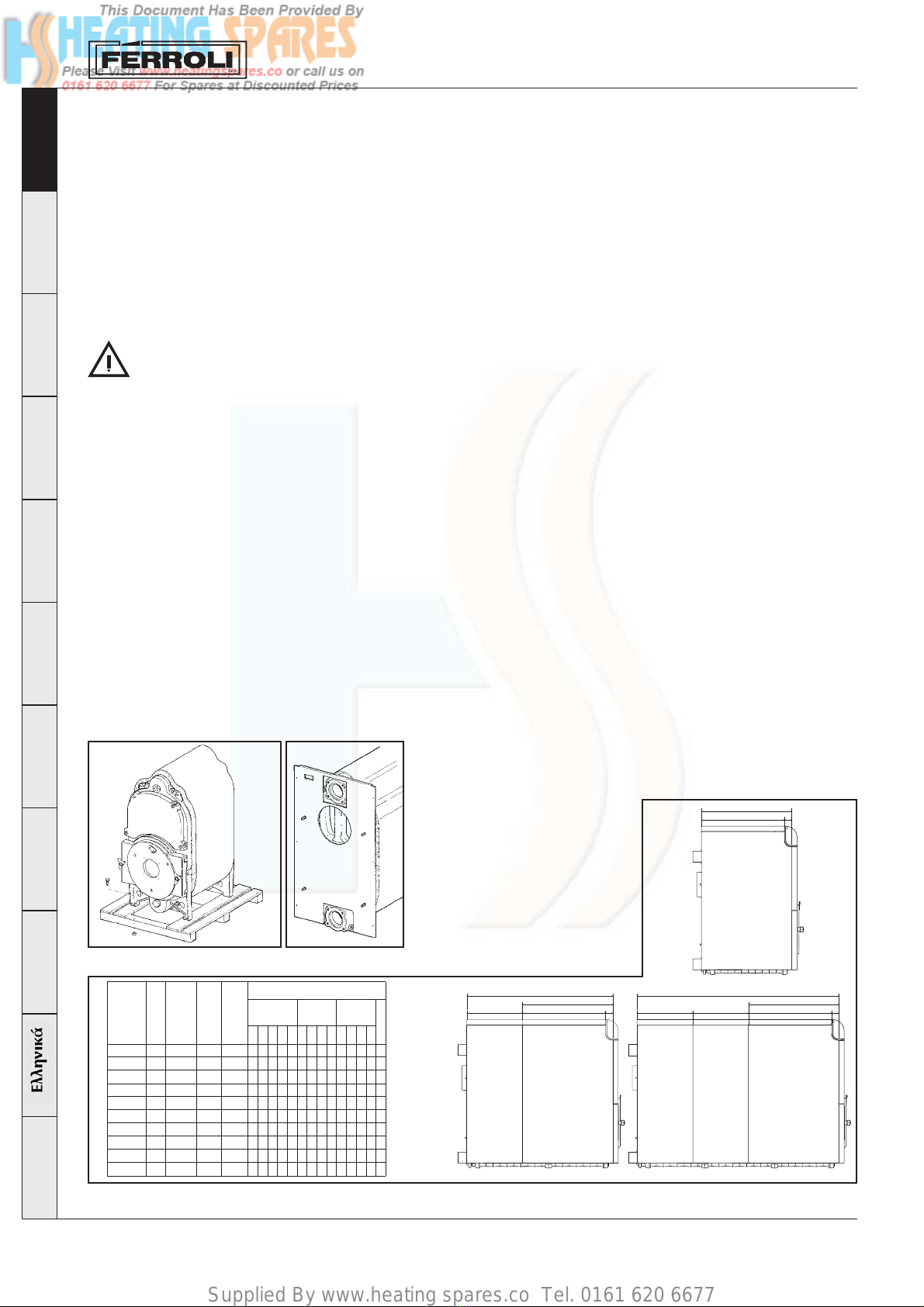

2.5 Assembling the boiler
The boiler may be supplied:
1. As a set of elements, in 4 separate boxes, containing the Casing, Control panel, Elements, and accessories for assembling the elements.
Followthe instructions enclosed with the setof elements to assemble the boilerbody.Follow the instructions below toassemble the casing
and control panel.
2. With the body already assembled, in 3 separate boxes containing the Casing, Control panel and Boiler body.
Follow the instructions below to assemble the casing and the control panel.
AIf the boiler body is supplied already
assembled and is delivered from the
factory on a pallet, remove the bolts
1that fasten it to the pallet and
position it for final installation. Then
assemble the various panels.
BFittherear panel 1onthestuds2and
loosely tighten the bolts.
Cover type 5 Cover type 5 Cover type 1, 2, 3 e 4Cover type 5 Cover type 1, 2, 3 e 4
Cover type 1, 2, 3 e 4
Version 13-14 Elements
R and L sides
Type: 1,2,3,4
Reversible
side
Reversible
side
L
B440440 57
Version 9-12 Elements
R and L sides
Type: 1,2,3,4
Reversible
side
L
B440 57 AA
Version 5-8 Elements
R and L sides
Type: 1,2,3,4
B 57
A
Quantity
GN2 N
GN2 N
GN2 N
GN2 N
GN2 N
GN2 N
GN2 N
GN2 N
GN2 N
GN2 N
L
5
6
7
8
9
10
11
12
13
14
604
714
824
934
604
714
824
934
604
714
Model
AB
547
657
767
877
547
657
767
877
547
657
/
/
/
/
1044
1154
1264
1374
1484
1594
Cover
type R side type
Rev. side
2
2
2
2
4
4
N°Elem.
1
1
1
1
2
1
1
1
3
1
1
4
1
1
1
1
1
1
2
1
1
1
3
1
1
4
1
1
1
1
1
1
2
1
1
1
3
1
1
4
1
1
5
1
1
1
1
2
2
L side
type
CPrepare the right and left sides, choosing the quantity of side panels according to the dimensions of the boiler (see table).
AB
C
11
22
22

Supplied By www.heating spares.co Tel. [phone]
GN2N
5
English DeutschItaliano Français Español
Português Nederlands
Dansk Türkçe
DConnect the panels together, using the screws 1, the washers 2 and the nuts 3,
reinforcing the bottom parts using the blades 4 fastened with the screws 5.
ELoosen the nuts “A”.
FInsert the side fastening bracket “A” between nuts “A” and “B”.
GFit the side to the bracket “A” and fasten it using the screws “B” (right side view). Repeat the
operations in point G for the left side.
HFasten the sides to the rear wall “A” using the screws “B”.
IUnwind the hydrometer capillary tubing and tighten its connector to the sheathing on the front
of the boiler body.
LFit the wiring protection case “A” using the screws “B” on the sides.
MFit the control panel to the sides using the tabs “A”. Place the
reinforcement spring “B” between the head of the screw and
the tab.
NInsert the 3 bulbs (safety thermostat, boiler thermostat and
thermohydrometer).
OFit the lower front panel “A”.
PFit the upper panel “A”.
QFitthe top cover or covers “A”, according to the length of the boiler (see table 1, sequence C).
EF
GHI
L
M
NO
P
Q
D
B
A
B
A
B
A
A
BB
A
B
A
A
A
A

Supplied By www.heating spares.co Tel. [phone]
EnglishDeutsch ItalianoFrançaisEspañol
PortuguêsNederlands
DanskTürkçe
6
GN2N
3. SERVICE AND MAINTENANCE
All the adjustment, commissioning and maintenance operations must be performed by Qualified Personnel, in compliance with the standards
in force.
FERROLI S.p.A. declines all liability for damage to persons and/or things deriving from the tampering with the appliance by unqualified or
unauthorised persons.
Before performing any cleaning or maintenance operations, disconnect the appliance from the mains power supply using the system switch
and/or the special on-off devices.
3.1 Commissioning
Checksto be performed on firstignition, and afterall maintenance operations that involve the disconnectionof the appliancefrom the systems
or intervention on the safety devices or parts of the boiler:
Before first ignition
Before igniting the boiler for the first time, check that:
athe system is filled at the right pressure and any air has been correctly vented;
bthere are no water or fuel leaks;
cthe electrical power supply is correct;
dall the flues have been installed correctly and not too near to or across any flammable parts;
ethere are no flammable substances near the appliance;
fthe burner is suitably sized for the output of boiler;
gthe water on-off valves are open.
First ignition
After having carried out the preliminary checks, the following ignition operations can be performed:
1Open the fuel on-off valve.
2Set the thermostat 4 (Fig. 1) to the desired value.
3Close the switch upstream from the boiler and switch 5 (Fig. 1) on the control panel.
At this stage, the burner will be ignited and the boiler will start operation.
After first ignition
After first ignition, check that:
1The door of the burner and smokebox are well sealed.
2Theburner isworking correctly.This checkshould beperformedusing the required instruments,following themanufacturer’sinstructions.
3The thermostats are working correctly.
4Water is circulating in the system.
5The flue gas is completely expelled through the flue.
3.2 Adjustments
Adjusting the burner
The efficiency and correct operation of the boiler depend above all on accuracy of the adjustments made to the burner.
Carefully follow the instructions provided by the manufacturer. Two-stage burners must have the first stage adjusted to an output that is no
lower than the minimum rated output of the boiler. The output of the second stage must not be greater than the maximum rated output of the
boiler.
3.3 Shut-down
For brief periods of inactivity, simply use switch 5 (Fig. 1) on the control panel.
For extended periods of inactivity, as well as operating switch 5, the fuel on-off valve must also be closed.
3.4 Maintenance
To ensurethe maximumreliability of theheating system andminimum runningcosts, the boilermust be cleaned regularly,at leastoncea year.
These maintenance operations must be performed by qualified and specialist personnel.
Cleaning the boiler
1Disconnect the power supply to the boiler
2Remove the upper and lower front panel.
3Open the door by unscrewing the knobs.
4Clean the inside of the boiler and the entire flue gas discharge path, using a brush or compressed air.
5Close the door again, and fasten it using the knob.
To clean the burner, refer to the instructions provided by the manufacturer.

Supplied By www.heating spares.co Tel. [phone]
GN2N
7
English DeutschItaliano Français Español
Português Nederlands
Dansk Türkçe

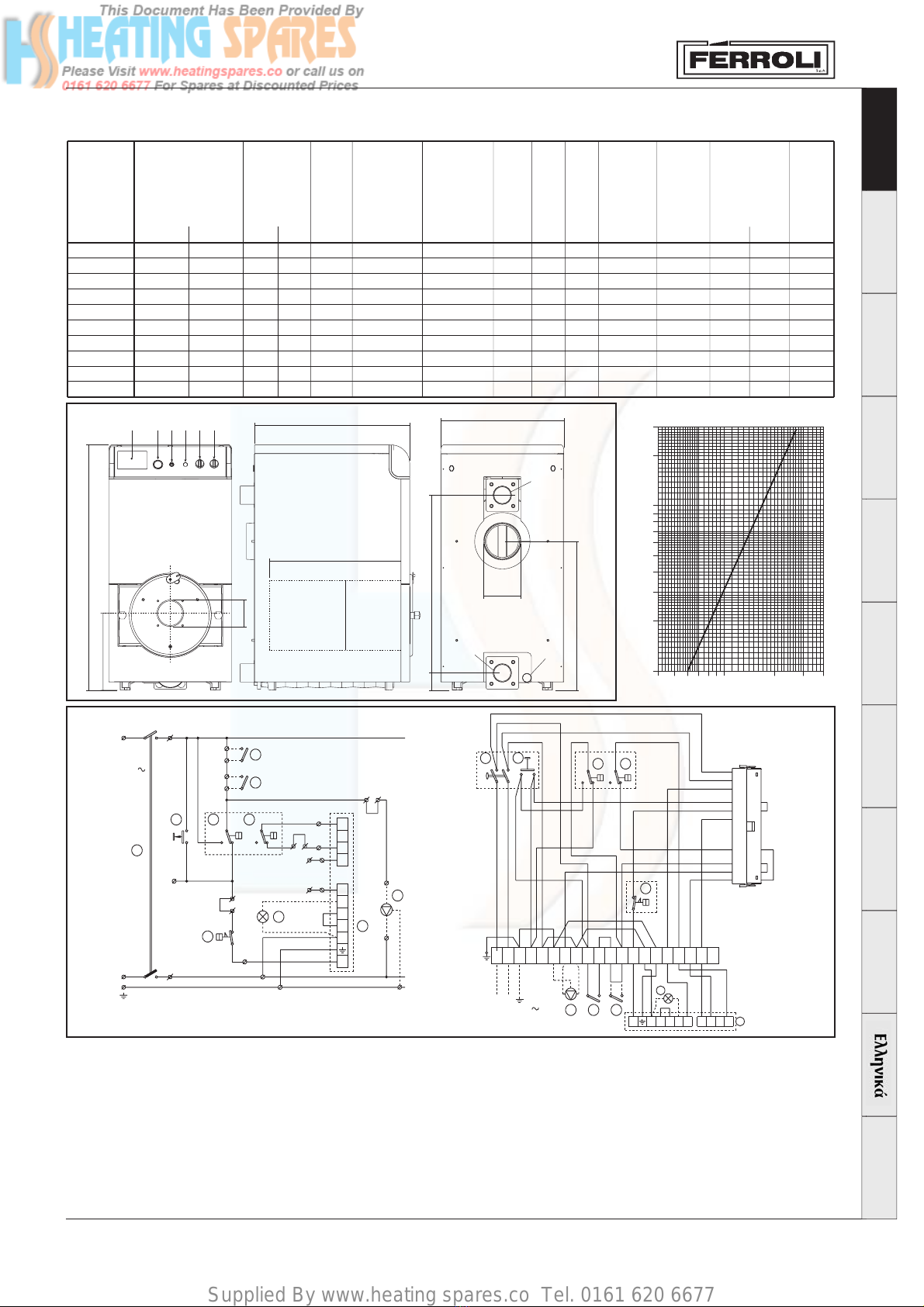

4. TECHNICAL SPECIFICATIONS
Water
pressure
drop
Model
GN2 N 05
GN2 N 06
GN2 N 07
GN2 N 08
GN2 N 09
GN2 N 10
GN2 N 11
GN2 N 12
GN2 N 13
GN2 N 14
98,8
117,4
136,9
156,5
176,0
195,6
215,2
234,7
254,3
273,9
Max
80
95
110
125
140
155
170
185
200
215
Min
Heat output
kW
90
108
126
144
162
180
198
216
234
252
Max
73
87
101
115
129
143
157
171
185
199
Min
Heat input gas+oil
(NHV) kW
5
6
7
8
9
10
11
12
13
14
N°
elem.
49
57
65
73
81
89
97
105
113
121
Water
content
dm3
4
4
4
4
4
4
4
4
4
4
Operating
pressure
bar
647
757
867
977
1087
1197
1307
1417
1527
1637
A
mm
130
130
130
154
154
154
154
154
154
154
B
mm
180
180
180
200
200
200
200
200
200
200
Ø
mm
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4
Comb.
chamber
pressure
drop
∆p mbar
310
361
412
463
514
565
616
670
725
780
Body
weight
kg
-
-
0,5
0,8
1,8
2,2
2,6
3,2
4
4,5
∆t 20
2,8
3,4
4,8
6,5
8,5
11
13
16
19
23
∆t 10
63
77
91
104
118
132
146
160
174
187
Comb.
chamber
volume
dm3
1234 56
375 1196
B
Ø cam. comb.
Lg cam. comb.
A600
867
A1
A2 A3
84
726
C
2
3
4
5
6
7
8
9
20
30
4 5 6 7 8 9 20 30 4010
10
1
Q (m
3
/h)
∆p (m c. H
2
O)
159
d
4
B4
T2 S3T1
N
L1
189
LN
114
1419
4
5
2345678 1011 12 13
13
16
3
4
12
918
17
11
10
B4
T2
S3
T1
N
L1
189
21
24 22
c
2
49
211
1a
3C
98
9
114
10
11
72
12
170
1
L
8
32
6
7
6
14
2
N
3
T8
T6
T7
B5
11
14
12
171
160
230V
50Hz
32
230V 50Hz
T8
T6 T7
B5
1
2
211
2015 16 17 18 19
123 456 789 10 11 12 123 456 789 10 11 12
11
12
14
171
21
22
24
170
c
13
a
d4
159
98
49
2
c
19
6
Legenda
1Ready for electronic control unit
2Thermohydrometer
3Safety thermostat
4Control thermostat, 2nd Stage
5Line switch
6Burner lockout indicator light
a1 Central heating flow outlet DN80 - 3”
a2 Central heating return inlet DN80 - 3”
a3 Boiler drain 3/4”
32 Pump (not supplied)
49 Safety thermostat
72 Room thermostat (not supplied)
98 Switch
114 Water pressure Switch
159 Test knob
160 Auxiliary contact
170 Boiler setting thermostat, 1st stage
171 Boiler setting thermostat, 2nd stage
189 Lockout indicator light (not supplied)
211 Burner connector
fig. 3 fig. 4
fig. 5
Note The dashed sections of wiring are the
responsibility of the installer
