ferrum WANDLA User manual

WANDLA by Ferrum
user’s manual

WANDLA by Ferrum
user’s manual
user’s manual
WANDLA by Ferrum

user’s manual
WANDLA by Ferrum 2
CONTENTS
1. IMPORTANT SAFETY INFO � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
2. BOX CONTENT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
3. DEVICE FEATURES � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
4. WANDLA OVERVIEW � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
4�1 Front Panel � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
4�2 Back Panel Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
5. CONNECTING THE WANDLA � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
6. GETTING STARTED� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
7. SCREEN AND MENU STRUCTURE� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
7�1 Main Screen � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
7�2 Buttons � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
7�3 Menu Structure � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
8. MQA � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
9. REMOTE CONTROL� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
10. USB AUDIO CONTROL PANEL� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
10�1 Driver and application installation� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
10�2 Control Panel settings � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
11. FIRMWARE UPDATE� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
12. TECHNICAL SPECIFICATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
14. CONTACT FERRUM � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
15. WARNING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
16. INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT (PRIVATE
HOUSEHOLDS)� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18

user’s manual
WANDLA by Ferrum 3
Thank you for choosing WANDLA!
Just prepare to be converted by the real thing�
WANDLA is Ferrum’s flagship DA Converter� With WANDLA, we are making a statement to the current and next
generation of music lovers, because it represents tomorrow’s standard of high end digital-to-analog conversion�
Think of WANDLA like a Formula 1 racing car� Like the F1 constructor’s team building the best racing car, Ferrum
created the best engine for The Converter� We transformed our ARM chip, making it capable of doing the work
of five chips, and took the ESS Sabre DAC chip to the next level with our new current to voltage converter� With
its power technology coming from both OOR and HYPSOS, you may rest assured you are getting the absolute
best we can build� By adding a unique set of digital filters, you now can fine-tune your DAC to your specific sonic
needs� WANDLA will sound great right out of the box, but please feel free to experiment with the various digital
filter settings� Many hours of musical bliss are right in front of you� Enjoy!
WANDLA by Ferrum
Owner’s Manual Ver� 1�0 / Firmware v1�0�0 April 2022

user’s manual
WANDLA by Ferrum 4
1� IMPORTANT SAFETY INFO
WARNING: To reduce the risk of fire, electric shock or enclosure discoloration, be sure that the apparatus shall
not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed
near or on the apparatus.
Read and follow all the instructions before connecting or operating the component� Keep this manual so you
can refer to these safety instructions� Heed all warnings and safety information in these instructions�
Do not allow any objects to get into the enclosure� If the unit is exposed to moisture, or a foreign object gets into
the enclosure, immediately disconnect the power cord�
Take the unit to a qualified service person for inspection and necessary repairs�
Unplug this product from the power supply before cleaning� Do not use liquid cleaners or aerosol cleaners� Use
a damp cloth for cleaning�
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over�
Do not place the unit on a bed, sofa, rug, carpet, or similar surface that could block the heatsink airflow�
If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper
cooling�
Keep the WANDLA away from radiators, kettles, heat registers, stoves, or any other appliance that produces
heat�
Connect the WANDLA only to a power source that meets its requirements (voltage and amps)� We recommend
using Ferrum power supplies�
The safest and only method of isolating the device from the power supply is to disconnect the DC plug�
Ensure that the DC plug remains accessible at all times�
Unplug the WANDLA during lightning storms or when unused for long periods of time�
Do not route the DC cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged
in any way� Pay particular attention to the DC cord at the plug and where it exits the back of the unit�
user’s manual
WANDLA by Ferrum

user’s manual
WANDLA by Ferrum 5
Immediately unplug and stop using the WANDLA and have it inspected and/or serviced by a qualified service
agency if:
— the power cord or plugs have been damaged,
— objects have fallen or liquid has been spilled into the unit,
— the unit has been exposed to rain,
— the unit shows signs of improper operation,
— the unit has been dropped or damaged in any way,
— when the product exhibits a distinct change in performance�
This indicates a need for service�
When replacement parts are required after the warranty period, be sure the service technician has used
replacement parts specified by the manufacturer or have the same specification as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards. Upon completion of any service
or repairs to this product, ask the service technician to perform safety checks to determine that the product is
in proper operating condition.
In households with small children, an adult should provide supervision until the child is capable of following all
the rules essential for the safe operation of the unit.
2� BOX CONTENT
— WANDLA DAC
— AC/DC power adapter
— USB cable
— power cord
— remote
— quick guide
3� DEVICE FEATURES
— Ultra-low THD analog section with very well tuned I/V converter for ESS9038PRO
— Hybrid internal power supply (low noise, ultra fast, etc�); power rails are separated i�e� channels are separated
— Digitally controlled analog attenuators for volume control; selectable: analog or digital
— Preamp function (analog and digital input selector, volume control, balance, trim for every input etc�)
— Digital filters (upsampler) inside ARM chip designed by HQ Player creator
— Wide range of inputs including I2S and ARC
— Smart controlling over CEC (TV), IR remote, touchscreen, trigger
— Ambient sensor to adjust brightness of logo and screen to lightning conditions
— Line outputs only (XLR and RCA)

user’s manual
WANDLA by Ferrum 6
4� WANDLA OVERVIEW
4�1 Front Panel
A� Ferrum logo
B� Touch screen
C� IR receiver and ambient light sensor
D� Volume knob
D
A B C

user’s manual
WANDLA by Ferrum 7
4�2 Back Panel Overview
A� analogue output (XLR)
B� analogue output (RCA)
C� analogue input (RCA)
D� AES/EBU input (XLR)
E� S/PDIF optical input (TOSLINK)
F� S/PDIF coaxial input (RCA)
G� USB input (Type-C)
H� ARC input
I� I2S input
J� trigger output (3�5 mm TRRS jack)
K� Ferrum Power Link DC input (can be used with HYPSOS)
L� 5�5/2�5 mm DC power input (can be used with other PSUs)
D J DE
A B C D F H I K

user’s manual
WANDLA by Ferrum 8

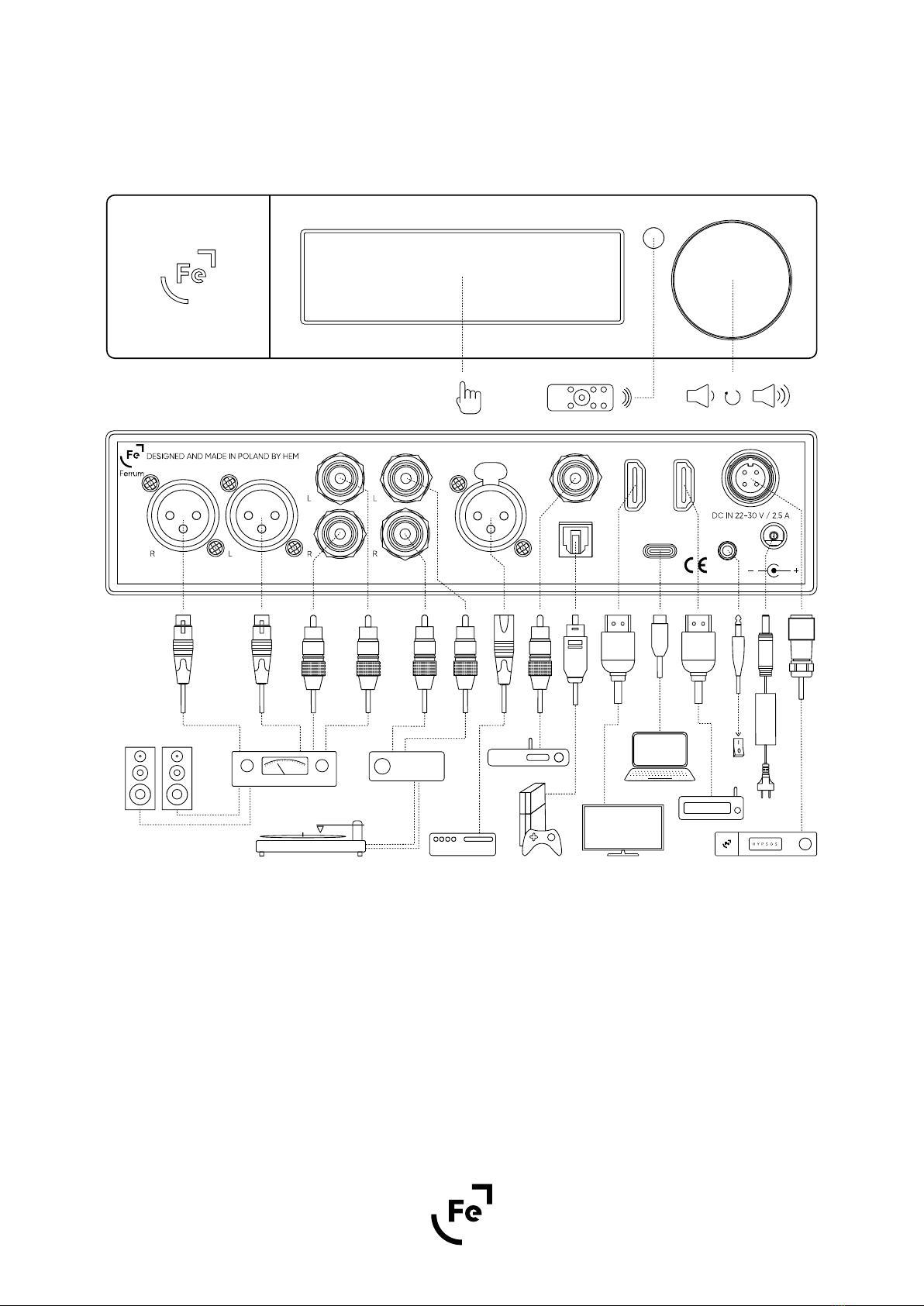

5� CONNECTING THE WANDLA
Note: Please connect all signal cables before connecting DC cable/switching on the WANDLA.
Figure 3
6� GETTING STARTED
After taking the device out of the box and connecting any audio devices in the system (signal cables), connect
WANDLA to the power supply�
To turn on the Wandel touch the screen anywhere� Then tap the ON/OFF icon that appears on the screen�
Alternatively, you can use the remote control to turn on the converter�
ANLG OUT ANLG OUT ANLG INAES INOPTO IN
COAX IN ARC IN I2S IN
WANDLA
USB INTRIG
OR
XLR RCA
AMP
+12V
PHONO PRE
CD PLAYER
STREAMER
TV
DAB/FM
IR
PSU

user’s manual
WANDLA by Ferrum 9
Figure 4
Touch the Input (see Figure 5) button to select the desired input, then adjust the volume using the knob located
on the front panel, remote control or directly on the touch display�
See the next paragraph for more information on how to use the touch screen or how to change WANDLA
settings�
To put WANDLA in standby mode touch Menu button
and then select ON/Standby icon
To turn WANDLA on, touch anywhere on the screen or rotate the knob in any direction - the ON/Standby icon
will appear on the screen� Touch this icon and the converter will turn on�
7� SCREEN AND MENU STRUCTURE
Figure 5
7�1 Main Screen
A� Input button
When the Input button is touched, a list of all inputs available in WANDLA will appear� Swipe left and right to
scroll through the list and activate the desired input with a tap� To go back to the main screen use the Back
button�
B� Data format
Display information about the currently playing file, such as sample rate, bit depth and file format�
CD
A B E

user’s manual
WANDLA by Ferrum 10
C� Volume bar
Displays current volume level� It can act also as volume control - simply touch and swipe to left or right to
change volume level�
D� Mute
When activated it will mute all outputs�
E� Menu
This button gives access to the functions of the device and the Standby button�
7�2 Buttons
Return to the previous screen�
Close/cancel
Confirmation
Tooltip/info
Back to main screen
Left/right arrows - changes selected value
Slider - changes selected value
7�3 Menu Structure
7�3�1 STANDBY
This button turns on or puts WANDLA in standby mode�
7�3�2 AUDIO
Contains audio settings�
7�3�2�1 Volume Control
Allows you to set preferred volume regulation type refers to volume and trim�
●Analog - digitally controlled resistor ladder
●Digital - last stage of DAC processing (will not work with analogue input)

user’s manual
WANDLA by Ferrum 11
7�3�2�2 Upsampling
You can choose interpolation filter type for upsampling slow (44�1 kHz - 192 kHz) PCM signals� Fast (352�8 kHz
- 768 kHz) signals are not upsampled� There are two realizations of interpolation filters:
HQ — made by HQ Player's creator, always upsamples signals to 352�8 kHz or 384 kHz� Processing is done in
SERCE�
ESS — built-in ESS Sabre32 DAC filters, upsamples signals 8 times� Processing is done in DAC chip�
We will add more filters in future releases�
●HQ Gauss
●HQ Apod�
●ESS Lin-Ph
●ESS Min-Ph
●ESS Apod�
7�3�2�3 Bypass
Bypasses volume regulator for all inputs to use it with external preamp� After activation converter will work at
full volume�
Please use the Bypass function with caution! A sudden jump in volume may damage your hearing and/or the
speakers!
It is best to reduce the input signal at the source to a minimum before the Bypass function is activated�
Note: Ferrum refuses every liability for damage to equipment due to using Bypass function.
7�3�2�4 Theater Bypass
Bypasses volume regulator for analog input only to use it with AVR source and its volume control�
7�3�2�5 Digital Input Trim
You can trim the level of all digital inputs up to -12 dB� It is realized on selected volume regulator (analogue or
digital)�
7�3�2�6 Analog Input Gain
Here you can trim or gain signal (+/-12 dB) of analogue input� It is realized on analogue volume regulator�
7�3�2�7 I2S In Format
You can choose frame format of the I2S input� Possible values are:
●STD 32 bits - standard I2S: word clock advanced by 1 bit and low level for left channel�

user’s manual
WANDLA by Ferrum 12
●MSB 32 bits - MSB/left-justified: no word clock advancement and high level for left channel�
●I2S Input DSD - PinYou can choose pin of I2S connector used to select DSD format� Please read the manual
of your source device ti find out which pin is usef to select DSD format�
— None
— Pin 13
— Pin 14
— Pin 15
— Pin 16
7�3�3 VISUALS
Contains visual settings�
7�3�3�1 Display Brightnes
Brightness of display in percent� It is relative to ambient brightness level or absolute when the ambient sensor
is disabled�
7�3�3�2 Logo Brightnes
Brightness of Ferrum logo in percent� It is relative to ambient brightness level or absolute when the ambient
sensor is disabled�
7�3�3�3 Logo Stb Brightnes
Brightness of the Ferrum logo in standby� It does not depend on the ambient sensor�
7�3�3�4 Ambient Sensitivity
Sensitivity of the ambient sensor used to change brightness of display and logo� Automatic brightness control
can be also disabled�
7�3�3�5 Screensaver
If you don’t do anything for the selected time the screen will turn o� This feature can be disabled�
7�3�3�6 Home Return Time
If you don’t do anything for the selected time the screen will return to Home Screen� This feature can be disabled�

user’s manual
WANDLA by Ferrum 13
7�3�4 CONTROL
Contains other settings
7�3�4�1 Trigger Direction
In this settings you can set direction of trigger:
●Input - external device can turn on/o the Wandla using trigger socket
●Output - Wandla can turn on/o external device using trigger connection
7�3�4�2 TV Control (CEC)
Here you can turn on/o CEC control� CEC allows your TV to turn on/o the Wandla�
7�3�5 ABOUT
7�3�5�1 Contact
Contains contact information to our company�
7�3�5�2 Device
It contains information about the currently installed firmware, serial numbers of the motherboard and SERCE
module�
Note. The serial number of the converter is located on a sticker located on the bottom of the device.
7�3�5�3 Restore
Here you can reset Wandla to factory settings�
8� MQA
Authentication Types
The color of the small spot next to the MQA logo indicates if the MQA stream is detected�
The spot glows green to indicate that the unit is decoding and playing an MQA stream or file, and denotes
provenance to ensure that the sound is identical to that of the source material�

user’s manual
WANDLA by Ferrum 14
It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the
artist/producer or has been verified by the copyright owner�
It glows magenta when WANDLA is receiving MQA signal which is unfolded by some upstream decoder or
software where the media source is initially handled�
You can find more info about MQA on this website: https://www�mqa�co�uk/customer/how-it-works
Note: For proper MQA decoding make sure your source can provide a bit perfect signal to the WANDLA� All
digital inputs will accept MQA signal�
MQA and the Sound Wave Device are registered trade marks of MQA Limited © 2016
9� REMOTE CONTROL
Figure 6�
A� On/Standby button
B� Input selector button
C� Function button - not used now
D� Mute button
E� Left/right or change value buttons
F� Volume buttons
G� Back button
H� Home screen button
AB
D
E
F
F
H
C
E
G

user’s manual
WANDLA by Ferrum 15
10� USB AUDIO CONTROL PANEL
10�1 Driver and application installation�
macOS
Wandla will work driverless in macOS� Set WANDLA as a main audio output device in audio settings in macOS�
Linux
Wandla will work driverless in Linux� Set WANDLA as a main audio output device in audio settings in Linux�
Windows
WANDLA will be automatically detected as an audio device and will appear in the Audio Settings menu in
Windows, however we recommend installing our ASIO driver for the best audio experience�
You can download latest USB driver from our website: ferrum�audio/support
After downloading the driver, install it according to the instructions displayed in the installer�
Ferrum USB Audio Control Panel will also be installed along with the driver�
10�2 Control Panel settings
Ferrum USB Audio Control Panel will allow you to change some settings and get information about the device�
10�2�1 STATUS
Status of the device is shown in this tab� If it is detected you will see WANDLA name and motherboard serial
number� Also current sample rate selection is displayed�
Note: The WANDLA serial number is located on a sticker underneath the unit�
10�2�2 FORMAT
It lists the available channels and bit depth�
10�2�3 BUFFER SETTINGS
●The Buer Size (measured in samples) configures the amount of memory used by the software used for
playback to buer the audio for processing and playback�
It determines the amount of latency or delay for audio to pass from the audio interface through the computer
to headphones/speakers� Lower latency settings will take more system resources at a higher rate than higher
latency settings�

user’s manual
WANDLA by Ferrum 16
●Safe Mode compensates for lengthy processing performed by a playback software in the ASIO callback� If
safe mode is turned on, then the driver tolerates that a processing interval extends and overlaps with the next
interval� It will extend the output latency�
Note: Ferrum recommends to stay at default settings�
10�2�4 INFO
Some information about the currently connected WANDLA�
10�2�5 ABOUT
Some information about the currently used Ferrum USB Audio Control Panel�
11� FIRMWARE UPDATE
This paragraph will be updated as soon as a new firmware version for WANDLA is released�To check if new
firmware is available please check our website: https://ferrum�audio/support/
12� TECHNICAL SPECIFICATION
●DAC chip: ESS Sabre ES9038PRO
●DAC resolution: 768 kHz / 32 bit, DSD 256
●Digital inputs:
— AES/EBU (up to 192 kHz / 24bit, DoP 64)
— TOSLINK (up to 192 kHz / 24bit, DoP 64)
— S/PDIF (up to 192 kHz / 24bit, DoP 64)
— USB (up to 768 kHz / 32bit, DSD 256)
— ARC (up to 192 kHz /24bit)
— I2S (up to 768k/32bit, DSD 256)
●MQA decoder and renderer on all digital inputs
●Analog inputs: RCA
●Analog input maximum voltage: 9�5 VRMS, 2-3�5 VRMS recommended
●Analogue input impedance: 47 kΩ
●Line outputs: balanced XLR; unbalanced RCA
●Volume control: analogue with bypass option / digital for DAC operation only
●Output level: Vout @ 0dBFS, 1kHz sine:
— RCA: 4�65 VRMS
— XLR: 9�3 VRMS
●Frequency response analog inputs: 10 Hz - 200 kHz +/-0�1 dB
●DAC THD: -121 dB (0�00009%); THD+N: -115 dB (unweighted)

user’s manual
WANDLA by Ferrum 17
●Analog input THD: -123 dB @ 2 VRMS output level
●Dynamic range analog: 127 dB (A-weighted)
●Dynamic range digital: 122 dB (A-weighted)
●Crosstalk: -120 dB for 1 kHz, better than -100 dB for 20 Hz -20 kHz
●Output impedance unbalanced: 22 Ω
●Output impedance balanced: 44 Ω
●Power consumption: 10 W idle / 15 W max
●Power inputs: 5�5/2�5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL); 22-30 VDC
●Power adapter: 100-240 VAC to 24 VDC
●Dimensions (W x D x H): 21�7 cm x 20�6 cm x 5 cm / 8�6” x 8�1” x 2�0”
●Weight: 1�8 kg
13� WARRANTY
Each individual WANDLA undergoes comprehensive quality control and a complete test before shipping�
This headphone amplifier is guaranteed by Ferrum to the owner or holder of the original proof of purchase
against defects in workmanship and materials used in manufacture for a period of three years from the date of
purchase and in the country of purchase�
If you suspect that your product is faulty, please contact the place of purchase or you contact Ferrum support�
Prior to shipping for warranty services the customer or dealer must obtain an RMA number from Ferrum for
warranty services� Units sent without an RMA number will not be accepted�
Proof of purchase in the form of a bill of sale or received invoice, which is evidence that this product is within
the warranty period, must be presented to obtain warranty service� This warranty is void and inapplicable if the
factory applied Serial Number has been altered or defaced from this product� Faults due to customer misuse,
unauthorized modifications or accidents are not covered by this warranty�
In case of need to send the WANDLA for service please pack the product very carefully, preferable in the original
packing, to be sure no damage can be done during shipment�
Ferrum is not responsible for accessories, items left in the packaging and the box in which the device has arrived
for service� Ferrum reserves the right to use a replacement box if necessary�
14� CONTACT FERRUM
In case of questions, problems or suggestions regarding its form or contents, please contact us via our support
system available on our website: ferrum�audio/support

user’s manual
WANDLA by Ferrum 18
15� WARNING
Excessive sound pressure from speakers and headphones can cause hearing loss� In order to use this product
safely, avoid prolonged listening at excessive sound pressure levels�
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment�
This equipment can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications�
You are cautioned that any changes or modifications not expressly approved in this manual could void your
authority to operate this equipment�
All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules�
This device complies with Part 15 of the FCC Rules� Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation�
This product with the CE marking complies with the EMC Directive issued by the Commission of the European
Community� Compliance with this directive implies conformity to the following European standards:
• EN55103-1 : Electromagnetic Interference (Emission)
• EN55103-2 : Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following Electromagnetic Environments: E1 (residential), E2 (commercial
and light industrial), E4 (controlled EMC environment, ex� TV studio)�
16� INFORMATION ON DISPOSAL FOR USERS OF
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT
(PRIVATE HOUSEHOLDS)
The Wheelie Bin symbol on the products and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste� Disposing of this product correctly will
help save valuable resources and prevent any potential negative eects on human health and the environment�
To properly dispose harmful substances and recycle the product, the user is obliged to return it at the point
of collection of electrical and electronic equipment waste� For more information please contact your local
authorities, waste disposal units or retailer�
