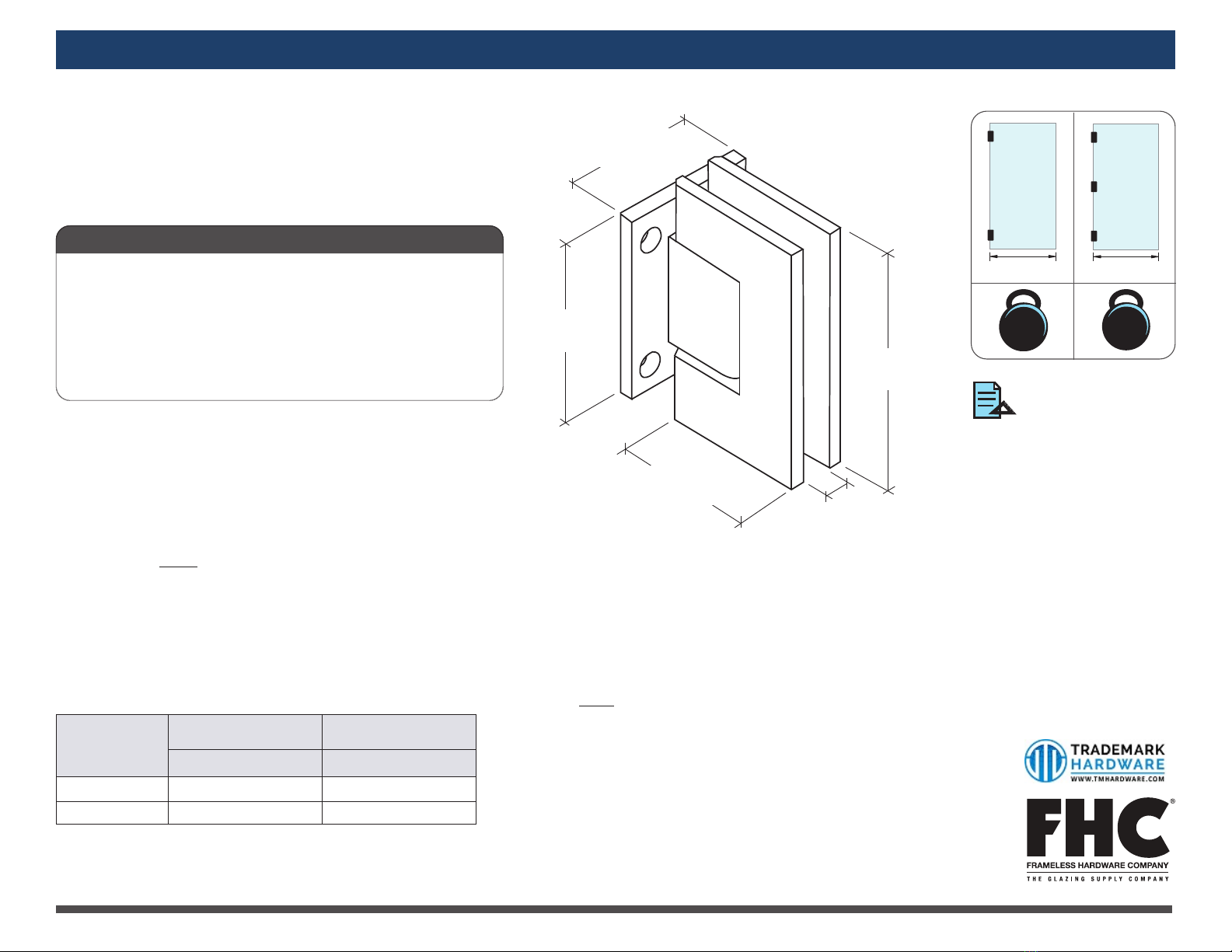

FHC VENICE VENS2 User manual

FRAMELESS HARDWARE COMPANY P.O. Box 1906, South Gate, CA 90280 Toll Free: [phone] |Fax: [phone] |Web: fhc-usa.com
SHOWER HINGE TEMPLATE PROFESSIONAL GRADE
SPECIFICATIONS
2-HINGES 3-HINGES
SEE TEMPLATE ON BACK
Refer to Dimensions Shown
to Ensure Accuracy
CARE & CLEANING GUIDELINES:
For best results, keep the following recommendations in mind when caring for your FHC shower door hardware.
Your shower door should be dried daily with a soft towel or cloth to ensure its original nish. Do not use harsh
cleaners or chemicals on the hardware, as many of the components are coated with a clear lacquer that will
become damaged beyond repair. Always test your cleaning solution in an inconspicuous area prior to cleaning
the entire hardware surface. Wipe surfaces clean using a soft, dampened cloth or sponge, and rinse completely
with warm water immediately after applying the cleaning solution. Use only small amounts of liquid, gentle,
cleaner. Never use abrasive products, sponges, or wire scrub brushes while cleaning hardware.
MAINTENANCE:
FHC’s hinges come factory greased for a silent, hassle-free experience.
If there is any noticeable squeaking that occurs after installation, it is recommended
to apply a few drops of (3 in 1) multi-purpose oil to the hinge, at the nylon washer/pivot
location. The lubricant will penetrate the hinge crevices, reducing friction, cleaning
grime, and/or buildup. Spray lubricants are prohibited. If, for some reason, the hinge
is disassembled during maintenance, use a small amount of white lithium grease
to lubricate the interior hinge components.
EXPERIENCE AND INNOVATION
MAX
WIDTH
SEE
CHART
BELOW
MAX
140
LBS
MAX
110
LBS
GASKET SPECIFICATIONS:
For 3/8" (10mm) Glass: Use One Thick Gasket On Each Side
For 1/2" (12mm) Glass: Use One Thin Gasket On Each Side
GLASS INSTRUCTIONS:
Only use tempered safety glass. To prevent damage to the hinge nish
during installation, do not use power tools when installing these hinges.
IMPORTANT INFORMATION:
The Venice Series Hinge has a dual degree pivot pin. It comes factory set
at 90 degrees for normal door closing applications. There is also a secondary
setting on the hinge pivot pin that can be eld adjusted to allow an additional
5 degrees of closing for jobs that require a rmer positive position against a
jamb or seal.
Glass Sizes: 3/8" to 1/2" (10 to 12 mm) Tempered Glass Only
Construction: Solid Brass
Closing Type: Self-Centering When Within 15 Degrees of Closed Position
Cutout Required: Cutout No. SD4 or SD3
Includes: Hinge, glazing gaskets, wall mounting screws, allen
head/phillips head cover plate screws, and fabrication template.
Use: Residential Bath and Commercial Hotel Applications
VENICE
Wall Mount Hinge - Short Back Plate
ITEM NO. VENS2
ITEM NO. VENS5 (5 DEGREE FACTORY SET)
ITEM NO. VENAS2 (ADJUSTABLE)
VENICE HINGES
VENF1
VENS2
VEN03
VEN180
2-3/4"
(70 mm)
3-15/16"
(100 mm)
2-1/8"
(54 mm)
2-5/16"
(59 mm)
MAX
WIDTH
SEE
CHART
BELOW
7/16"
(11 mm)
LIT0003BREV. 07.29.221 PG 1 OF 3
MAXIMUM DOOR
CAPACITY
3/8" (10 mm) GLASS
Approx. 5 lb/ft2
1/2" (12 mm) GLASS
Approx. 6.4 lb/ft2
DOOR WEIGHT DOOR WIDTH
USING 2 HINGES 110 LBS. (50 kg) 36" (914 mm)
USING 3 HINGES 140 LBS. (64 kg) 36" (914 mm)
NOTE: Do not exceed either maximum weight or width when choosing proper quantity of hinges.

FRAMELESS HARDWARE COMPANY P.O. Box 1906, South Gate, CA 90280 Toll Free: [phone] |Fax: [phone] |Web: fhc-usa.com
SHOWER HINGE TEMPLATE PROFESSIONAL GRADE
DO NOT MEASURE / SCALE DRAWING
USE DIMENSIONS SHOWN
For Technical Support
Call Toll Free in the U.S.
[phone]
USE ONLY
MONOLITHIC
TEMPERED GLASS
PROFESSIONAL GRADE
EXPERIENCE AND INNOVATION
VENICE
Wall Mount Hinge - Short Back Plate
ITEM NO. VENS2
ITEM NO. VENS5 (5 DEGREE FACTORY SET)
ITEM NO. VENAS2 (ADJUSTABLE)
Cutout No. SD3
Cutout No. SD4
1-15/16"
(49 mm)
1-11/16"
(43 mm)
2-3/4" (70 mm)
1/4"
(6 mm)
5/8" (16 mm)
Diameter
Holes
3" (76 mm)
1-3/8"
(35 mm)
1/8" (3 mm) 1/8" (3 mm)
1-3/8”
(35 mm)
EDGE OF GLASSEDGE OF GLASS
1-15/16"
(49 mm)
3" (76 mm)
1-1/2"
(38 mm)
1-1/2”
(38 mm)
1/2" (12 mm)
Diameter
Holes CUT OUTCUT OUT
Tight Clearance Template
1/8" to 3/16" (3 to 5 mm)
TRADITIONAL RECTANGULAR
CUTOUT OPTION
PREFERRED “MOUSE-EAR”
CUTOUT OPTION
EDGE OF GLASSEDGE OF GLASS
LIT0003BREV. 07.29.22 PG 2 OF 3
IMPORTANT:
Measure from Finished
Edge of Glass
NOTE:
Template is for tight
1/8" to 3/16" (3 to 5 mm)
glass-to-wall clearance.
IMPORTANT:
Measure from Finished
Edge of Glass
NOTE:
Template is for tight
1/8" to 3/16" (3 to 5 mm)
glass-to-wall clearance.

FRAMELESS HARDWARE COMPANY P.O. Box 1906, South Gate, CA 90280 Toll Free: [phone] |Fax: [phone] |Web: fhc-usa.com
SHOWER HINGE TEMPLATE PROFESSIONAL GRADE
DO NOT MEASURE / SCALE DRAWING
USE DIMENSIONS SHOWN
For Technical Support
Call Toll Free in the U.S.
[phone]
USE ONLY
MONOLITHIC
TEMPERED GLASS
PROFESSIONAL GRADE
EXPERIENCE AND INNOVATION
VENICE
Wall Mount Hinge - Short Back Plate
ITEM NO. VENS2
ITEM NO. VENS5 (5 DEGREE FACTORY SET)
ITEM NO. VENAS2 (ADJUSTABLE)
Cutout No. SD3
Cutout No. SD3
1-13/16"
(46 mm)
1-9/16"
(40 mm)
2-3/4" (70 mm)
1/4"
(6 mm)
5/8" (16 mm)
Diameter
Holes
3" (76 mm)
1-3/8"
(35 mm)
EDGE OF GLASS
CUT OUT
1/8" (3 mm) 1/8" (3 mm)
1-3/8"
(35 mm)
EDGE OF GLASS
1-13/16"
(46 mm)
3" (76 mm)
1-1/2"
(38 mm)
1-1/2”
(38 mm)
1/2" (12 mm)
Diameter
Holes
CUT OUT
Standard Clearance Template
1/4" to 5/16" (6 to 8 mm)
EDGE OF GLASSEDGE OF GLASS
TRADITIONAL RECTANGULAR
CUTOUT OPTION
PREFERRED “MOUSE-EAR”
CUTOUT OPTION
LIT0003BREV. 07.29.22 PG 3 OF 3
IMPORTANT:
Measure from Finished
Edge of Glass
NOTE:
Template is for standard
1/4" to 5/16" (6 to 8 mm)
glass-to-wall clearance.
IMPORTANT:
Measure from Finished
Edge of Glass
NOTE:
Template is for standard
1/4" to 5/16" (6 to 8 mm)
glass-to-wall clearance.
