Fiat 500e 2016 User manual
Download a FREE electronic copy
of the Owner’s Manual and Warranty Booklet by visiting:
www.atusa.com/en/owners/manuals (U.S.);
www.owners.mopar.ca/en (Canada).
16BEV24-926-AA
FIAT®500e
Fourth Edition Rev 1
User Guide
2016 USER GUIDE
© 2016 FCA US LLC.All Rights Reserved. FIAT is a
registered trademark of FCA Group Marketing S.p.A.,
used under license by FCA US LLC.

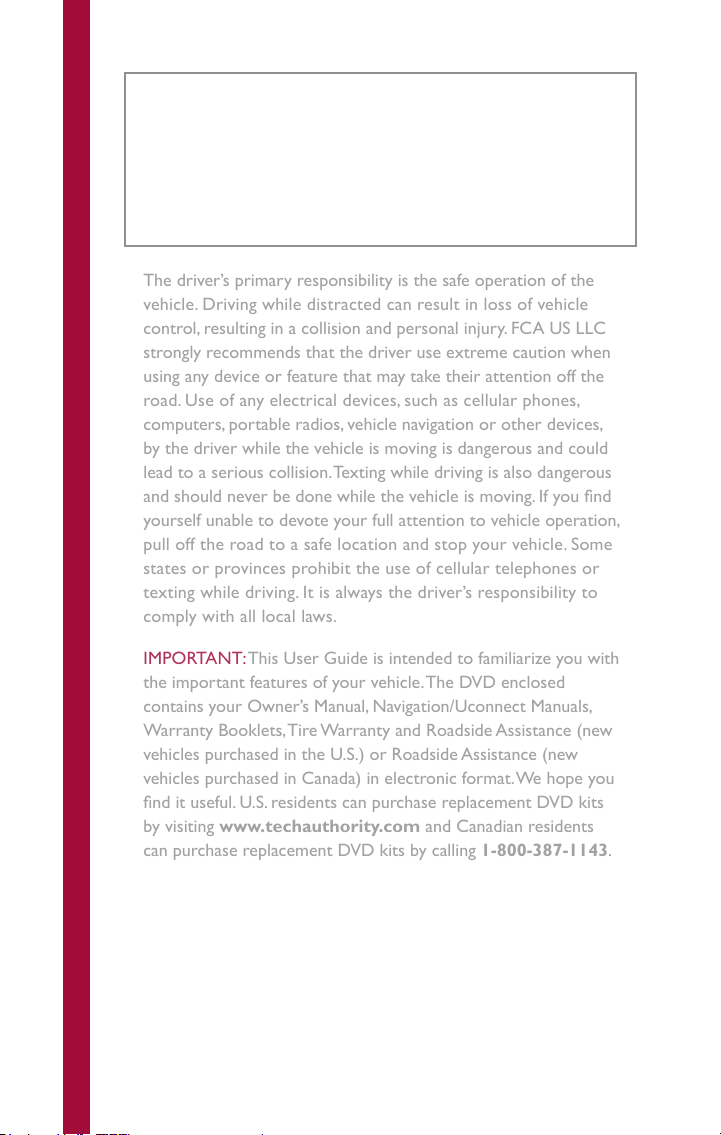

The driver’s primary responsibility is the safe operation of the
vehicle. Driving while distracted can result in loss of vehicle
control, resulting in a collision and personal injury. FCA US LLC
strongly recommends that the driver use extreme caution when
using any device or feature that may take their attention off the
road. Use of any electrical devices, such as cellular phones,
computers, portable radios, vehicle navigation or other devices,
by the driver while the vehicle is moving is dangerous and could
lead to a serious collision.Texting while driving is also dangerous
and should never be done while the vehicle is moving. If you nd
yourself unable to devote your full attention to vehicle operation,
pull off the road to a safe location and stop your vehicle. Some
states or provinces prohibit the use of cellular telephones or
texting while driving. It is always the driver’s responsibility to
comply with all local laws.
IMPORTANT:This User Guide is intended to familiarize you with
the important features of your vehicle.The DVD enclosed
contains your Owner’s Manual, Navigation/Uconnect Manuals,
Warranty Booklets,Tire Warranty and Roadside Assistance (new
vehicles purchased in the U.S.) or Roadside Assistance (new
vehicles purchased in Canada) in electronic format.We hope you
nd it useful. U.S. residents can purchase replacement DVD kits
by visiting www.techauthority.com and Canadian residents
can purchase replacement DVD kits by calling 1-800-387-1143.
This guide has been prepared to help you get quickly acquainted
with your new FIAT®vehicle and to provide a convenient reference
source for common questions. However, it is not a substitute for your
Owner’s Manual.
For complete operational instructions, maintenance procedures and
important safety messages, please consult your Owner’s Manual,
Navigation/Uconnect Manuals and other Warning Labels in your vehicle.
Not all features shown in this guide may apply to your vehicle. For
additional information on accessories to help personalize your vehicle,
visit www.mopar.com (U.S.), www.mopar.ca (Canada) or your
local FIAT®Dealer.
DRIVING AND ALCOHOL: Drunken driving is one of the most frequent
causes of collisions.Your driving ability can be seriously impaired with
blood alcohol levels far below the legal minimum. If you are drinking,
don’t drive. Ride with a designated non-drinking driver, call a cab, a friend,
or use public transportation.
If you are the rst registered retail owner of your
vehicle, you may obtain a complimentary printed copy
of the Owner’s Manual, Navigation/Uconnect Manuals or
Warranty Booklet by calling 1-888-242-6342 (U.S.) or
1-800-387-1143 (Canada) or by contacting your dealer.
Driving after drinking can lead to a collision.Your perceptions are less
sharp, your reexes are slower, and your judgment is impaired when you
have been drinking. Never drink and then drive.
WARNING
INTRODUCTION/WELCOME
WELCOME FROM FIAT ...............2
IMPORTANT VEHICLE INFORMATION ......4
CONTROLS AT A GLANCE
DRIVER COCKPIT ..................6
INSTRUMENT CLUSTER ..............8
GETTING STARTED
ELECTRIC VEHICLE FEATURES ..........10
ELECTRIC SYSTEM OPERATION .........13
CHARGING THE HIGH VOLTAGE BATTERY ...16
STARTING YOUR 500e ...............19
KEY FOB ......................20
VEHICLE SECURITY ALARM ...........21
POWER DOOR LOCKS ..............21
OCCUPANT RESTRAINT SYSTEMS........21
HEAD RESTRAINTS.................32
SEATS ........................33
REAR SEATS .....................38
TILT STEERING COLUMN .............39
OPERATING YOUR VEHICLE
EXTENDING YOUR DRIVING RANGE PER
CHARGE .......................40
LIGHTS .......................41
WIPER/WASHER LEVER ..............44
ELECTRONIC SPEED CONTROL ........45
POWER WINDOWS ................48
AUTOMATIC TEMPERATURE CONTROLS
(ATC) .........................49
REAR PARK ASSIST .................50
POWER SUNROOF .................50
ELECTRONICS
YOUR VEHICLE'S SOUND SYSTEM ........52
CYBERSECURITY ..................54
IDENTIFYING YOUR RADIO............55
UCONNECT 5.0..................56
USB/AUX CONTROL ................60
UCONNECT 5.0 VOICE RECOGNITION
QUICK TIPS .....................61
UCONNECT PHONE ...............68
STEERING WHEEL AUDIO CONTROLS .....77
ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ...................77
PROGRAMMABLE FEATURES ...........78
TRIP BUTTON ....................79
POWER OUTLET .................80
UTILITY
TRAILER TOWING .................81
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.)...............81
WHAT TO DO IN EMERGENCIES
ROADSIDE ASSISTANCE ..............82
WARNING AND INDICATOR LIGHTS ......82
TIRE SERVICE KIT ..................87
JUMP-STARTING PROCEDURE (12 VOLT
BATTERY ONLY) ..................93
MANUAL PARK RELEASE .............96
TOWING A DISABLED VEHICLE .........97
FREEING A STUCK VEHICLE ............98
ENHANCED ACCIDENT RESPONSE
SYSTEM (EARS) ...................98
EVENT DATA RECORDER (EDR) .........98
MAINTAINING YOUR VEHICLE
OPENING THE HOOD ..............99
ENGINE COMPARTMENT — ELECTRIC ....100
FLUID CAPACITIES ................102
FLUIDS, LUBES, AND GENUINE PARTS .....102
MAINTENANCE PROCEDURES .........103
MAINTENANCE SCHEDULE ..........103
FUSES .......................106
TIRES — GENERAL INFORMATION ......109
TIRE ROTATION RECOMMENDATIONS ....113
REPLACEMENT BULBS ..............114
CUSTOMER ASSISTANCE
FIAT CUSTOMER CENTER ............115
ASSISTANCE FOR THE HEARING
IMPAIRED .....................115
PUBLICATIONS ORDERING ...........115
REPORTING SAFETY DEFECTS IN THE
UNITED STATES ..................115
MOPAR® ACCESSORIES
AUTHENTIC ACCESSORIES BY MOPAR ....116
FAQ’s
FREQUENTLY ASKED QUESTIONS .......117
INDEX
......................118
TABLE OF CONTENTS
1
WELCOME FROM FIAT
Congratulations on selecting your new FIAT 500e.Be assured that your 500e represents
an elegant marriage of technology and Italian styling that is as good for the environment
as is fun to drive!
Your new 500e has characteristics to enhance the driver's control under some driving
conditions.These are to assist the driver and are never a substitute for attentive driving.
They can never take the driver's place.Always drive carefully.
Your new vehicle has many features for the comfort and convenience of you and your
passengers.Some of these should not be used when driving because they take your eyes
from the road or your attention from driving.Never text while driving or take your eyes
more than momentarily off the road.
This guide illustrates and describes the operation of features and equipment that are ei-
ther standard or optional on this vehicle.This guide may also include a description of fea-
tures and equipment that are no longer available or were not ordered on this vehicle.
Please disregard any features and equipment described in this guide that are not available
on this vehicle.FCA US LLC reserves the right to make changes in design and specifica-
tions and/or make additions to or improvements to its products without imposing any
obligation upon itself to install them on products previously manufactured.
This User Guide has been prepared to help you quickly become acquainted with the im-
portant features of your vehicle.It contains most things you will need to operate and
maintain the vehicle, including emergency information.
The DVD includes a computer application containing detailed owner's information which
can be viewed on a personal computer or MAC computer.The multimedia DVD also
includes videos which can be played on any standard DVD player.Additional DVD opera-
tional information is located on the back of the DVD sleeve.
For complete owner information, refer to your Owner's Manual on the DVD in the
owner’s kit provided at the time of new vehicle purchase. For your convenience, the in-
formation contained on the DVD may also be printed and saved for future reference.
We are committed to protecting our environment and natural resources.By converting
from paper to electronic delivery for the majority of the user information for your ve-
hicle, together we greatly reduce the demand for tree-based products and lessen the
stress on our environment.
INTRODUCTION/WELCOME
2
WARNING!
•Pedals that cannot move freely can cause loss of vehicle control and increase the
risk of serious personal injury.
•Always make sure that objects cannot fall into the driver foot well while the ve-
hicle is moving.Objects can become trapped under the brake pedal and accelera-
tor pedal causing a loss of vehicle control.
•Failure to properly follow floor mat installation or mounting can cause interference
with the brake pedal and accelerator pedal operation causing loss of control of
the vehicle.
•Never leave children alone in a vehicle, or with access to an unlocked vehicle.Al-
lowing children to be in a vehicle unattended is dangerous for a number of rea-
sons.A child or others could be seriously or fatally injured.Children should be
warned not to touch the parking brake, brake pedal or the transmission gear se-
lector.
•Do not leave the key fob in or near the vehicle, or in a location accessible to chil-
dren.A child could operate power windows, other controls, or move the vehicle.
•Never use the ‘PARK’ position as a substitute for the parking brake.Always apply
the parking brake fully when parked to guard against vehicle movement and pos-
sible injury or damage.
•Refer to your Owner's Manual on the DVD for further details.
USE OF AFTERMARKET PRODUCTS (ELECTRONICS)
The use of aftermarket devices including cell phones, MP3 players, GPS systems, or char-
gers may affect the performance of on-board wireless features including Keyless Enter-
N-Go and Remote Start range.If you are experiencing difficulties with any of your wire-
less features, try disconnecting your aftermarket devices to see if the situation improves.If
your symptoms persist, please see an authorized dealer.
When it comes to service, remember that your authorized dealer knows your vehicle
best, has factory-trained technicians and genuine MOPAR® parts, and cares about your
satisfaction.
INTRODUCTION/WELCOME
3
IMPORTANT VEHICLE INFORMATION
Your 500e operates entirely on electricity stored in the high voltage battery.Unlike a
conventional vehicle or Hybrid there is no internal combustion engine.Battery Electric
Vehicles have unique operating characteristics that you should become familiar with to
ensure you are getting the optimal performance from your vehicle.
High Voltage Battery
Your vehicle is equipped with a Lithium-ion high voltage battery that is used to power
the electric powertrain systems and the 12 Volt vehicle electrical system.
The high voltage battery is located under the vehicle.The high voltage battery is mainte-
nance free and designed to last for the life of the vehicle.
Lithium-ion batteries provide the following
benefits:
•Lithium-ion batteries are much lighter
than other types of rechargeable batter-
ies of the same size.
•Lithium-ion batteries hold their charge;
they only lose approximately 3% of their
charge per month when not in use.
•Lithium-ion batteries have no memory,
which means that you do not have to
completely discharge them before re-
charging, as with some other batteries.
•Lithium-ion batteries can be recharged
and discharged thousands of times.1 — High Voltage Cables
2 — High Voltage Battery
INTRODUCTION/WELCOME
4
High Voltage Battery Service Disconnect
The high voltage battery service disconnect is located under the rear passenger seat
lower cushion.If your vehicle requires service see your authorized dealer.
WARNING!
Never try to remove the high voltage service disconnect.The high voltage service dis-
connect is used when your vehicle requires service by a trained technician at an autho-
rized dealer.Failure to follow this warning can cause severe burns or electrical shock
that may result in serious injury or death.
Disposal Of The High Voltage Battery
Your vehicle’s high voltage battery is designed to last the life of your vehicle.See your
authorized dealer for information on the disposal of the battery if it should require re-
placement.
General Information
The vehicle is also equipped with a Battery Management System that is designed to:
•Ensure safe operation
•Maximize driving range
•Maximize the life expectancy of the high voltage battery
NOTE:
The high voltage battery contains contactors that will open and close during vehicle shut
down, start up or when plugging the vehicle in for charging.The contactors will produce
a clicking noise that can be heard from within the vehicle.The clicking noise observed is
the sound of these contactors as they open and close and is normal operation for your
500e.
INTRODUCTION/WELCOME
5
DRIVER COCKPIT
1.Turn Signal/Lights Lever (behind steering wheel) pg.41
2.Uconnect 5.0 Voice Recognition Controls pg.61
3.Instrument Cluster pg.8
4.Speed Control pg.45
5.Electronic Vehicle Information Center (EVIC) Controls pg.77
6.Wiper/Washer Lever pg.44
7.Audio System pg.52
8.Glove Compartment
9.Defroster
CONTROLS AT A GLANCE
6
ELECTRIC VEHICLE FEATURES
Auto Park
The Auto Park feature automatically places the vehicle into PARK if there is any indication
that the driver may leave the vehicle while the drive mode indicator is in the D (DRIVE),
N (NEUTRAL) or R (REVERSE) modes.
Auto Park is enabled under the following conditions:
– READY mode (12 Volt ON and High Voltage ON).
– Vehicle speed is below 2 mph (3 km/h).
NOTE:
•Auto Park feature only occurs once per key cycle.
•Auto Park is disabled above 2 mph (3 km/h) and the drive mode range will be
maintained.
The instrument cluster will display an Auto Shift To Park message and chime once when
Auto Park action occurs.
Mode Of Operation With Key ON
Auto Park will be engaged when the drive mode is in DRIVE, NEUTRAL or REVERSE
and the following conditions are detected:
•Seat Belt is unlatched
•Brake pedal is released
•Driver's door is ajar
•Vehicle speed is below 2 mph (3 km/h)
Mode Of Operation With Key OFF
Auto Park will engage as you turn off the key while in gear/neutral and speed is less than
2 mph (3 km/h).
Audible Pedestrian Warning System
Your vehicle is equipped with an Audible Pedestrian Warning System.The Audible Pedes-
trian Warning System uses distinct sounds to alert pedestrians that your vehicle is ap-
proaching.
The audible warning system uses an in-car sound synthesizer with a speaker located in
the underhood compartment.The warning system is automatically activated when select-
ing D (DRIVE) or R (REVERSE).
In D (DRIVE) range, the system will remain active until the vehicle reaches a speed of
approximately 22 mph (35.5 km/h).At approximately 22 mph (35.5 km/h) the warning
system is deactivated and will automatically be active when the vehicle returns to approxi-
mately 20 mph (32 km/h).
GETTING STARTED
10
Smartphone Features
With the “Uconnect Access” app, you can monitor the state of charge of the high voltage
battery or initiate charging from your phone.You can also turn on your vehicle’s climate
control system remotely.The app provides the following features:
•Monitor battery charge level
•Display available driving distance
•Check charging status
•Remotely activate vehicle climate control system
•Unlock and lock doors
•Assist with locating your vehicle
•Locate charging stations
•Send a point-of-interest to your vehicle’s navigation system
•Schedule a charge
•View energy consumed
•Notifications for charging and preconditioning events
How Do I Get The “Uconnect Access” Smartphone App?
Visit the 500e registration website:
www.fiatusa.com/500eRegistration
Once in the registration website, you will
need to enter your vehicle’s VIN (Vehicle
Identification Number) and Connectivity ID.
The connectivity ID is found in the vehicle's
instrument cluster.To locate the connectiv-
ity ID follow the steps below:
1.Push the Menu button on the instru-
ment cluster.
500e Registration Website
GETTING STARTED
11
2.Choose “Settings” and scroll down and select “Connectivity ID”.
After obtaining the connectivity ID and VIN
number return to the vehicle registration
website and perform the following:
1.After entering the VIN, Connectivity ID
and your email address, click “submit”.
2.You will now be asked to fill in your
contact information and a user name
and password.
3.Once finished with registration you will
be directed to your 500e owner’s site.
4.From the owner’s site you will be able
to download the 500e Uconnect Access
mobile application and learn how to use
your connected features.
5.Use your owner’s site username and
password for logging into the 500e
Uconnect Access mobile application.
NOTE:
Your smartphone must have a valid data
connection to use the 500e mobile applica-
tion.
Need Help With Registration?
Please call the Uconnect Call Center Toll
Free number below:
(855) 792-4241
Settings
Connectivity ID
GETTING STARTED
12
ELECTRIC SYSTEM OPERATION
Your vehicle is equipped with one of the two available Level 1 EVSE charging cords.
Please refer to the Owner’s Manual on the DVD to determine which style cord your
vehicle is equipped with as well as detailed instructions on charging your vehicle.
Level 1 Charging (120V — Requires NEMA 5–15 Outlet)
Level 1 charging is done by using a conventional 120 Volt AC (Alternating Current)
grounded receptacle along with the NEMA 5–15 Electric Vehicle Supply Equipment
(EVSE) that comes standard with your vehicle.Refer to “Vehicle Charging Cord” for fur-
ther information.

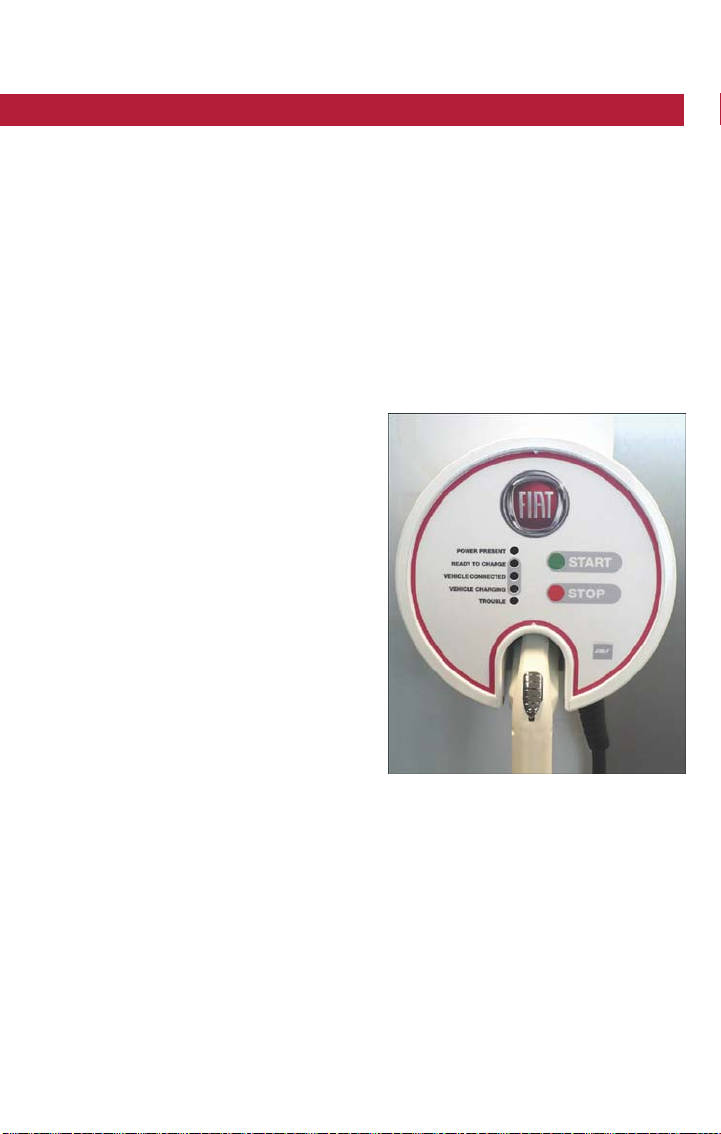

Level 2 Charging (240V — Requires A 40 Amp Circuit Breaker Or
Greater)
•Level 2 charging is accomplished by using
a 240V permanently mounted EVSE and
is the preferred method for charging
your vehicle.
•A Level 2 charging station can be in-
stalled at your residence.
•The Level 2 unit and installation service
is available for purchase at your autho-
rized dealer.
Electric Vehicle Supply Equipment (EVSE)
GETTING STARTED
13
Charge Times
Type Of Charge Approximate Time
Level 1 (120V/15A) Approximately 23 hours to fully recharge
* 3 hours will restore 10 miles of range *
Level 2 (240V/30A) Approximately 4 hours to fully recharge
* 30 minutes will restore 10 miles of range *
The following factors determine how long a battery recharge will take:
•The battery’s current state of charge (percent depleted)
•What recharging device is being used (Level 1 or Level 2)
•Ambient temperatures
NOTE:
•Charging times are estimates based on a completely discharged high voltage battery
pack.
•Charging times will vary based on the age, condition state of charge and temperature
of the high voltage battery pack.
EVSE Operation And Status Information
Indicator Description
1 — AC Indicator LED Green indicates READY
RED Indicates a fault
2 — Fault Indicator LED Green indicates READY
RED indicates a fault
3 — Charge Level Indicator LED's
All ON indicates system ready and not
charging
LED's turning on and off in sequence
indicates vehicle charging
•When the EVSE is first plugged in it will go through an initialization and self test.For
the first three seconds after plugging in your EVSE all the LED's will remain off.
•After approximately three seconds the EVSE performs an internal self test and
Ground Continuity Test.This process takes approximately six seconds.
•During the internal self test the unit turns on one Charge Level Indicator LED every
1.5 seconds until all the Charge Level Indicator LED's are illuminated.
AC LED Fault Indicator
LED Charge Level Indicator LED's Time
• • •ooo 1.5 sec
• • ••oo 3.0 sec
• • •••o 4.5 sec
• • •••• 6.0 sec
GETTING STARTED
14
•If the self test is successful the AC LED, the Fault Indicator LED and the four Charge
Level LED's will turn solid green.
•The EVSE LED's will be used to indicate the vehicle's connection status if no faults are
found during the self test.
AC LED Fault Indicator
LED Charge Level Indicator LED's
••••••
•After the EVSE is connected to the vehicle's charge inlet the EVSE will continue to
illuminate all LED's green.
•Once the vehicle begins charging the EVSE Charge level LED's will illuminate in order
from left to right, then shut off.This pattern will repeat as long as the EVSE remains
connected to AC power and the battery is charging.
•The LED's are illuminated and turn off at the rate of one change per second.
AC LED Fault Indicator
LED Charge Level Indicator LED's Time
• • •ooo 1.0 sec
• • ••oo 2.0 sec
• • •••o 3.0 sec
• • •••• 4.0 sec
NOTE:
Refer to the Level 1 User Manual for any additional information on its use or operation.
CAUTION!
Do not bend or damage the Level 1 EVSE terminals as this could cause the EVSE to
become inoperative and/or illuminate the fault LED.
GETTING STARTED
15
CHARGING THE HIGH VOLTAGE BATTERY
1.Put the vehicle in PARK.
2.Turn the ignition to the OFF position.
3.Remove the Level 1 EVSE from its storage bin by lifting the rear cargo cover.
4.Uncoil the entire length of the EVSE
(charge cord).
5.Plug the EVSE into a standard 120V AC
outlet that is properly grounded.It is
recommended that the EVSE is con-
nected to an AC outlet on a circuit
which is not electrically loaded by other
devices.Extension cords may not be
used.
NOTE:
All of the EVSE LED’s illuminate green.
6.Open the charge receptacle door.
NOTE:
The charge receptacle door is locked
whenever the vehicle is locked.Unlock the doors to unlock the charge receptacle door
for charging.
7.Plug the EVSE into the charge receptacle.Push the EVSE in firmly until it is completely
engaged (if not completely engaged the vehicle may not charge).
Electric Vehicle Supply Equipment (EVSE)
Charge Receptacle
GETTING STARTED
16
NOTE:
•The vehicle will initiate the charging cycle automatically when all the conditions are
satisfied.
•The vehicle battery gauge will show the pattern for charging.
•Do not use an extension cord with
the EVSE.
•To remove the EVSE push the button
on the connector and pull firmly to
remove it from the vehicle’s charge
receptacle.
8.When charging is complete, or the ve-
hicle needs to be unplugged, remove the
EVSE by pushing the button on the
charge connector and pull firmly to re-
move it from the charge receptacle.
9.Close the charge receptacle door.
NOTE:
•In the event of an error in the charging
process the AC power to the vehicle will stop and a red indicator will illuminate on
the EVSE.
•Keep the door for the charge receptacle closed when not in use.
Battery Gauge
GETTING STARTED
17
Instrument Panel State Of Charge Indicator
•In addition to the instrument cluster the vehicle is also equipped with a State Of
Charge indicator.The indicator is made up of five lights that are mounted to the cen-
ter of the instrument panel.
•The State Of Charge indicator repre-
sents the current state of charge for the
high voltage battery.The indicator lights
quickly identify the battery state of
charge while the vehicle is being
charged.Each light represents an incre-
mental 20% level of charge.Solid and
blinking lights indicate charge status simi-
lar to a mobile device.
NOTE:
In the event of an error in the charging
process the outer two lights will blink.
Number Of Indicator Lights Illuminated Percent Of Battery Charge
1 Light 0 – 20%
2 Lights 21 – 40%
3 Lights 41 – 60%
4 Lights 61 – 80%
5 Lights 81 – 100%
State Of Charge Indicator
GETTING STARTED
18
