FIBERNET UN1CO mobile User manual

User Manual
Ver. 3.1 - July 2022
www.bernet.it/en

Summary
What is UN1CO mobile
UN1CO mobile: The standard package
UN1CO mobile: Oponals
Oponal: Tripod
Oponal: Ladder bracket
Oponal: Pole mounng system
Technical Specicaon
Cleaning - Maintenance
3
4
6
8
12
12
11
9
10
UN1CO mobile: Compability 5

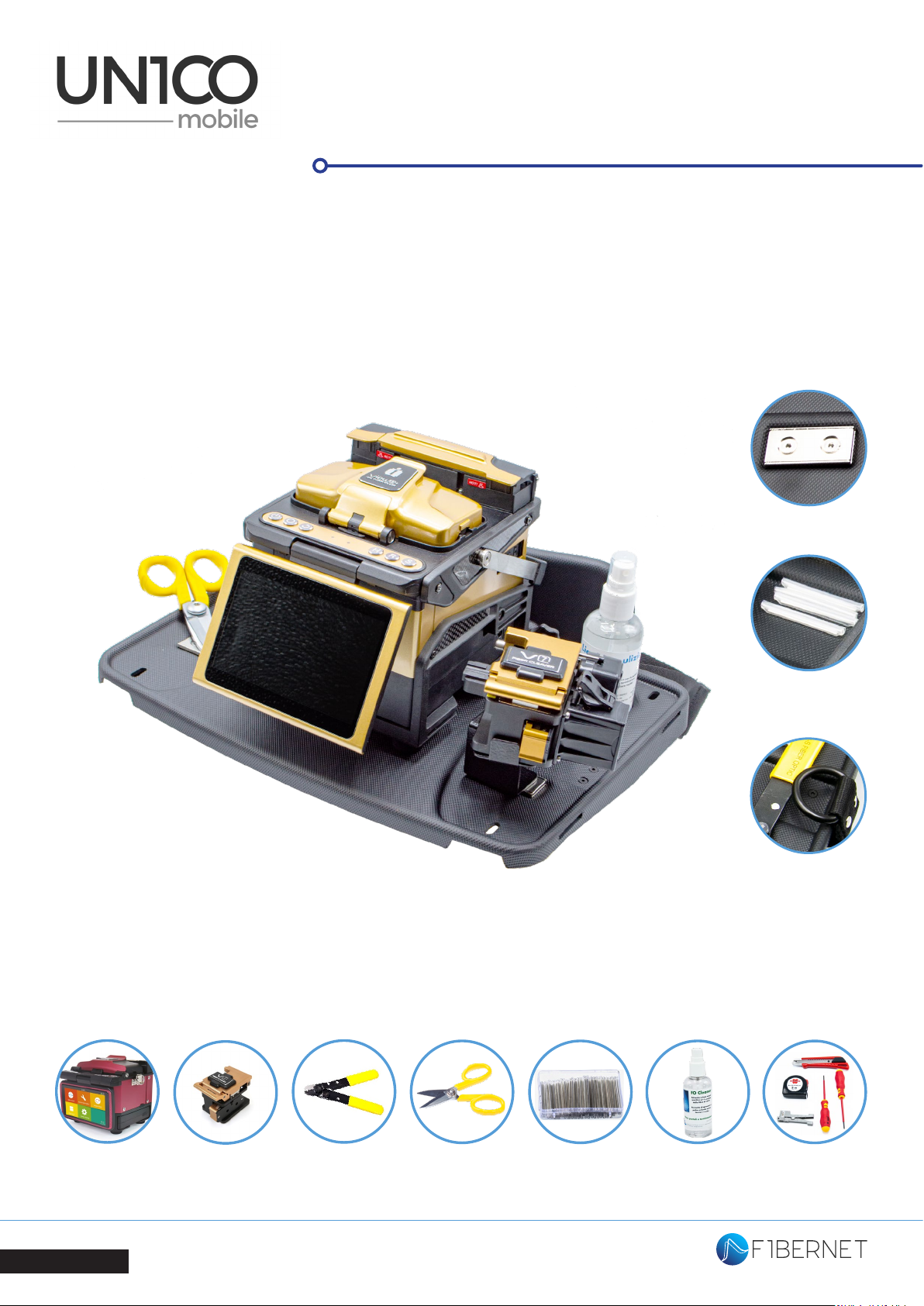

WHAT IS UN1CO mobile
UN1CO mobile is a portable workbench on which you can fasten, with the xing screw, intruments
or tools. This soluon allows to prevent the accidental fall of the equipment, both on “ground” or
“aerial” applicaons.
4
Magnets
Splice protecon
sleeves tray
Belt hooking ring
UN1CO mobile consists of a main shelf in reinforced plasc designed to aach in complete security:
Fusion splicer
machine Cleaver Stripper Scissors Splice protecon
sleeves FO Cleaner Other tools

5
UN1CO mobile is conceived to ensure full compability with main arc fusion splicers and cleavers
available on the market
UN1CO mobile: COMPATIBILITY
Type C screwType A screw Type B screw
Brand Splicer model Splicer fixing system
Cleaver fixing system
View 3 PRO “A” screw
“B” screw
View 5 PRO “A” screw
“B” screw
View 8 PRO “A” screw
“B” screw
M7 “A” screw
“B” screw
12S “C” screw
“C” screw or
Double-sided stretch
22S “C” screw
“C” screw or
Double-sided stretch
31S “C” screw
“C” screw or
Double-sided stretch
41S “C” screw
“C” screw or
Double-sided stretch
62S “C” screw
“C” screw or
Double-sided stretch
70S “C” screw
“C” screw or
Double-sided stretch
70S+ “C” screw
“C” screw or
Double-sided stretch
Fitel S-179 “C” screw
“C” screw or
Double-sided stretch
Fitel Ninja NJ-001 “B” screw
“C” screw or
Double-sided stretch
Z1C “C” screw
Double-sided stretch
T-25 “C” screw
Double-sided stretch
T-39 “C” screw
Double-sided stretch
T-66 “C” screw
Double-sided stretch
T-71C “C” screw
Double-sided stretch
Mini 4S “A” screw
“A” screw or
Double-sided stretch
Mini 6S “A” screw
“A” screw

6

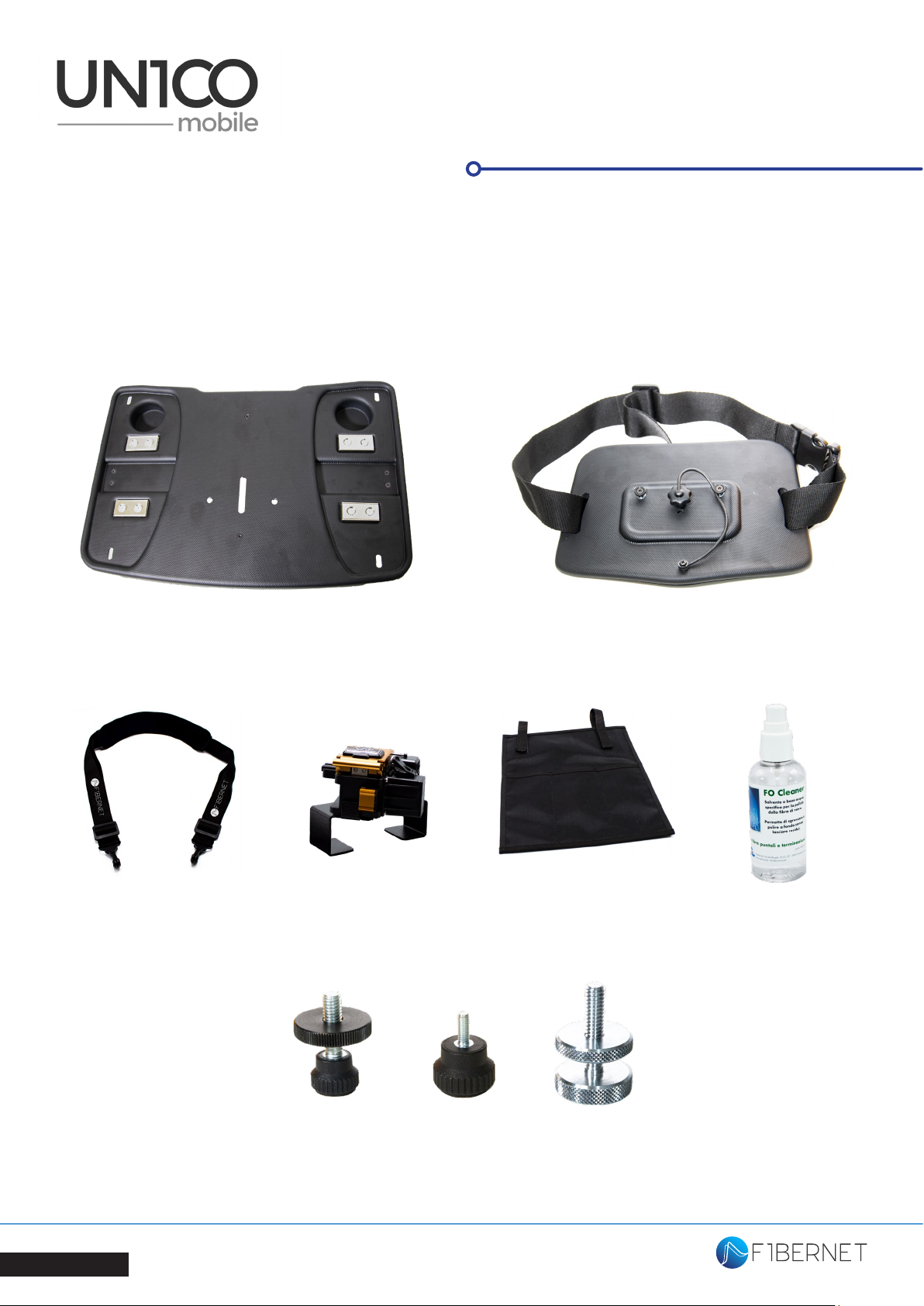

UN1CO mobile: THE STANDARD PACKAGE
UN1CO mobile standard package consists of: workbench, cleaver support, shoulder strap, belt
hooking system, 1 tool holsters, 2 type A screws, 1 type B screws, two type C screws, 1 100 ml
rellable FO cleaner.
Shoulder strap Cleaver support
Workbench
Tool holster
Type C screw*Type A screw* Type B screw*
FO cleaner
Belt hooking system
*Be careful: pay aenon during the screwing procedure to avoid accidental damages to the splicer baery

7
What is needed for this conguraon:
1. Workbench
2. Belt hooking system
3. Shoulder strap
4. Cleaver support
5. Screws
6. Tool holster
In this kind of conguraon, UN1CO mobile is worn by the operator during the work
operaons

8
Ladder bracket
Tripod
Pole mounng system
UN1CO mobile: OPTIONALS
This system transform UN1CO mobile into
a stand alone workstaon. A compact table,
easily transportable, which eases operators
on the eld tasks.
Thanks to this kit, UN1CO mobile can be
easily xed on a pole. Lightweight and easy to
assemble, it is suitable for operaons on aerial
cabling.
With this bracket, UN1CO mobile can be
xed to the ladder: the operator can work
safely in aerial applicaons.
Thanks to its oponal features, UN1CO mobile can be used in any type of on the eld applicaons,
always ensuring safety against accidental falls of your equipment

9

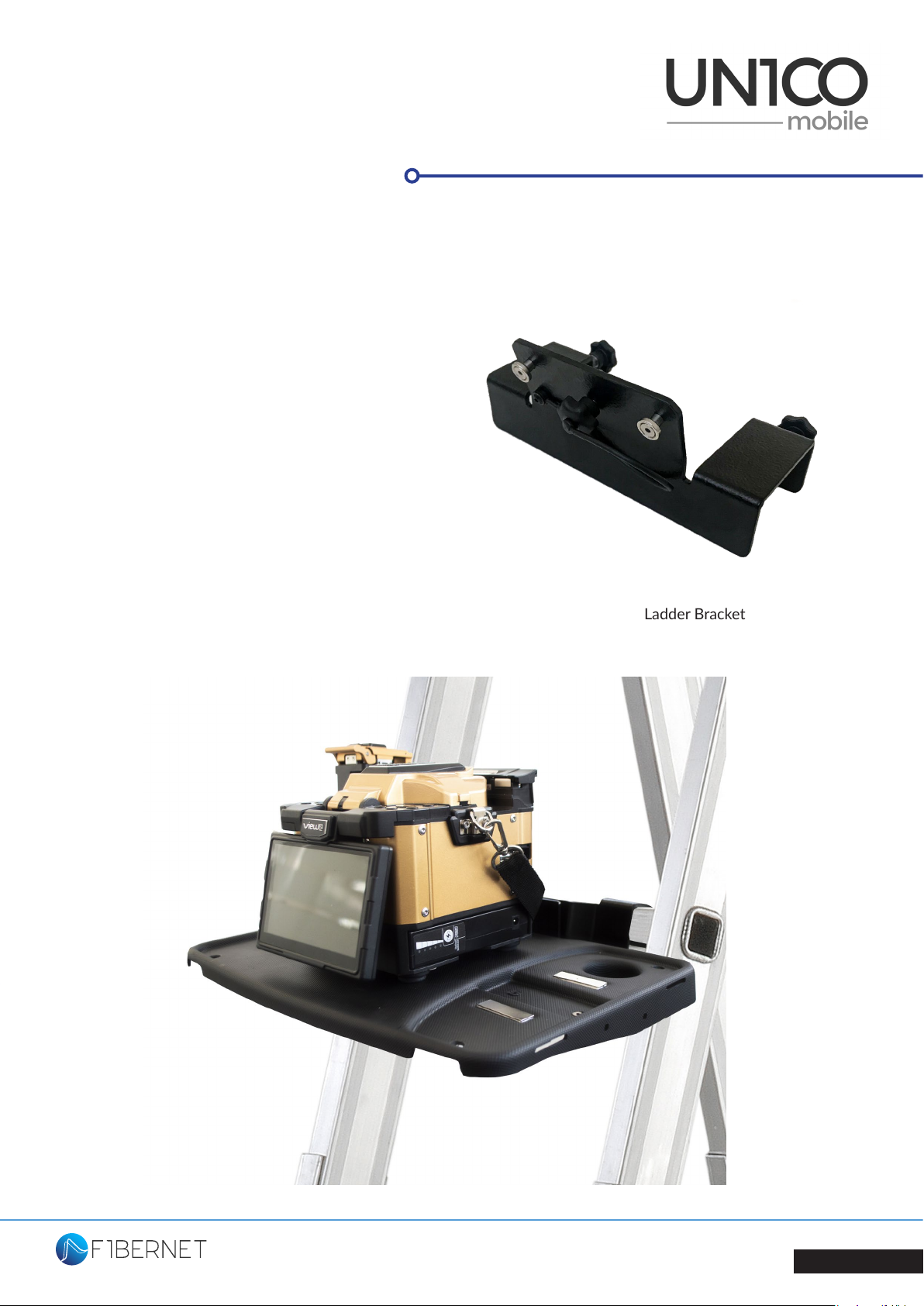

UN1CO mobile can be installed, using a special bracket, directly on the ladder where the
operator works. This allows a completely safe “hands free” work mode keeping the equipment
fasten to the work surface.
What is needed for this conguraon:
1. Workbench
2. Ladder bracket
3. Cleaver support
4. Screws
5. Tool holster
OPTIONAL - LADDER BRACKET
Ladder Bracket
Complete conguraon

10
OPTIONAL - POLE MOUNTING SYSTEM
UN1CO mobile can be easily aached to poles, to ease the aerial installaon tasks. The kit con-
sists of a bracket and a ratchet strap, with a coil of 400 kg capacity, which allows a safe and fast
assembly.
What is needed for this conguraon:
1. Workbench
2. Pole mounng system
3. Cleaver support
4. Screws
5. Tool holster
Pole mounng system
Complete conguraon

11

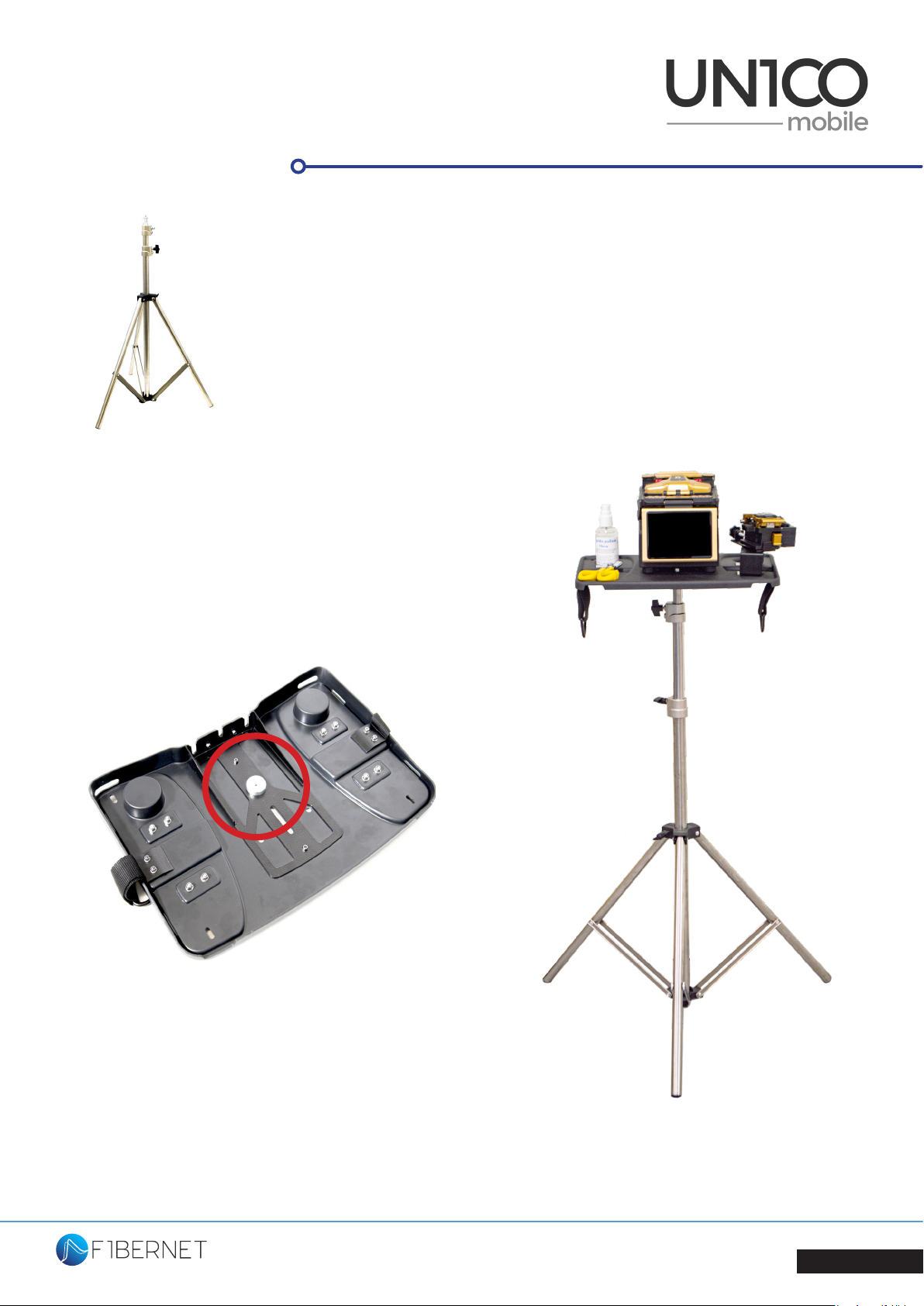

OPTIONAL - TRIPOD
Thanks to a special support UN1CO mobile can be installed on a tripod,
which turns it into a stand alone worktop.
What is needed for this conguraon:
1. Workbench
2. Tripod
3. Cleaver support
4. Screws
5. Tool holster
Tripod
Mounng hole: detail
Complete conguraon

12
TECHNICAL SPECIFICATIONS
Width: 365 mm - 14.37 in
Depth: 260 mm - 10.23 in
Height: 178 mm - 7.00 in
Weight: 1.25 kg - 2.75 lbs
Material: ABS - ASA
Belt hooking system length: 80 - 115 cm (31.50 - 45.27 in)
with oponal extension: addional 15 - 30 cm (5.90 - 11.81 in)
Magnets: 4 (Tracon: 17 kg in orthogonal direcon to the magnet)
Fastening Accessories:
2 x Type A screws
1 x Type B screws
1 x Type C screws
CLEANING - MAINTENANCE
The most common soaps or detergents, dissolved in hot water, can be used to clean up general dirt. If it
doesn’t work, isopropyl alcohol can also be used. Avoid abrasive powders. Rough areas can be restored
using silicone-based polishes.
