FID RACING FID VOLT Z User manual

1/5 4WD SOLID REAR STRAIGHT BRIDGE DESERT TRUCK
FID VOLTZ
Manual
OFFROAD
44--WHEEL DRIVEWHEEL DRIVE

— 1 —
FID RACING
Introduction
¾Thank you for selecting this FID RACING product! This kit is designed to be fun to drive and uses top quality parts for durabil-
ity and performance. The instruction manual you are reading was designed to be easy to follow yet thorough in its explana-
tions. FID RACING wants you to enjoy driving your new R/C kit. If you come across any problems or need some help getting
through a step, give us a call and we will do our very best to help you.
¾This is a high performance R/C kit, and it requires regular maintenance for best performance. If you don’t do regular mainte-
nance the performance will suer. FID has all the necessary parts and accessories available to keep your car performing at its
best.
¾The caution or attention symbols will warn you about steps that can be very dangerous. Please read and understand the
instructions carefully before proceeding.
Before Running
¾Read manual under the guidance of a parent, guardian or a responsible adult if possible.
While Operating
¾Do not run in public street, which could cause serious accidents, personal injuries and property damages.
¾Do not run near pedestrians or small children.
¾Do not run in small or conned areas.
Before Operating
¾Make sure that all screws and nuts are properly tightened.
¾Always use fresh batteries for your transmitter and receiver to avoid losing control the model.
¾Always check the position of throttle trigger and make sure it is in Neutral.
After Running
¾Turn o receiver rst, then o transmitter, to prevent the car from losing control.
¾After running FID RACING product, it is necessary to perform routine maintenance.
¾Failure to do this can result in increased wear and damage to the engine and chassis.
Battery Safety
¾Be careful when handling the battery. It will be hot after running. Frayed wire might result in short circuit which possibly
causes re.
!Cautions
Failure to follow these instructions would damage your kit, and even cause serious bodily
injury or even death.
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Receiver Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
ESC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Steering Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rear Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Gearbox Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Frontend Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Battery Box Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Center Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tyres Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Body Shell Painting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Roll Cage & Body Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Body Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Roll Cage Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

— 2 —
FID RACING
CH1: Steering Channel
CH2: Throttle Channel
VoltZ Main Chassis:
▪5mm Thick Milled Alloy Chassis 6061-T6
▪Dual Steering Servo Set-Up 2x 65kg Servos
(130kg Combined)
▪Independent Front Shock Absorbers
▪Large Capacity Shock Absorbers: Rear in
235mm, Front in 185.5mm & Thick Shock Shafts
in 7mm
▪Four Link Rear Trailing Arm Suspension System
▪FID 4WD drive System
▪Internal Rear Drive Shafts: 12mm
▪Helical Cut Front, Rear Dierential Crown and
Pinion Gears
▪Middle Dierential Reversible System
▪Rear Telescopic Centre CVD Driveshaft: 25mm
External
▪Front CVD Driveshaft: 20mm external
Voltz Electrical System :
▪ZTW 300A ESC
▪Motor: 680KV 34000 Max RPM, 74/120 Brushless
Motor
▪8S Lipo Battery Capability
▪High Capacity Battery Box (8S Lipo Battery
Capability)
▪Built in Cooling System
Voltz General Parameters:
▪L*H*W: 878*545*423mm
▪Wheelbase: 620mm
▪Tire Track: 465mm
▪Max Speed: 90km/h (8S)
▪Main Chassis: 5mm 6061-T6
▪Main Chassis Height: 120mm
▪Battery Box Size: 190x75mm
▪Mud Terrain Tyres: 230*85mm

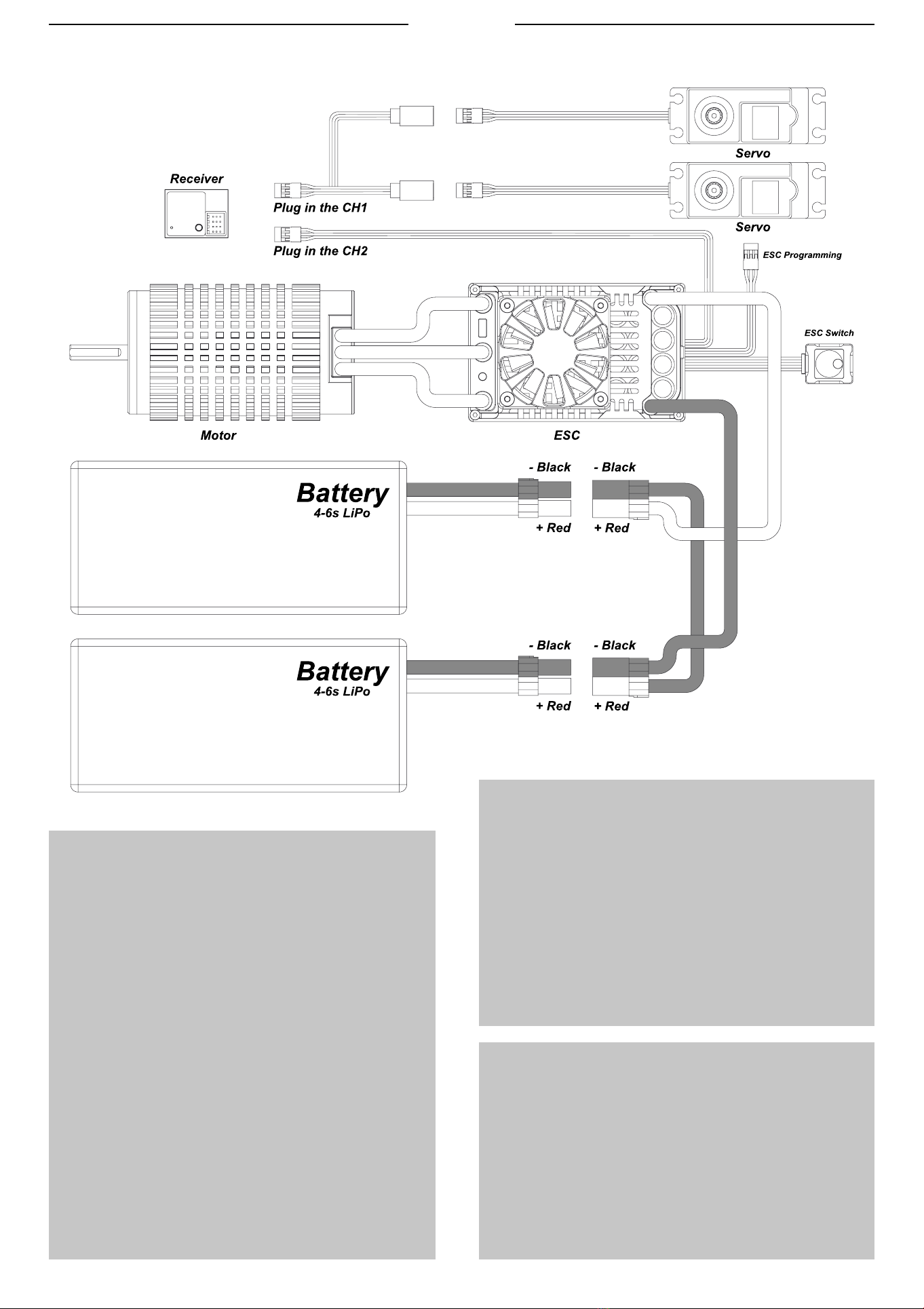

Receiver Connection

— 3 —
FID RACING
ESC Setup
Before rst rnning, ESC should be set up properly. Please follow below steps to nish the setup. After
completion of setup, rst unplug battery connector and then turn o transmitter.
LED Indicator in
Blue & Red Color
electronic switch LED ashes Blue
2
Open the remote control switch, LED will ash in blue and
red. Press and hold the switch until the RED light turns o
and BLUE LED on.
LED ashes Blue again
4
Reverse the trigger's position and hold until LED ashes
blue again and the Motor will ring twice.
6
Press the switch for 3 seconds to turn o the ESC and then
reopen it. Now the code matches.
7
When ESC turns on, it would give a short bleep and then a
long bleep tells the unit is ready for run.
1
Connect the receiver and the battery with ESC according to
above diagram.
LED ashes Red
3
Turn the remote control throttle trigger into position and
hold until LED ashes red and the Motor will ring once.
LED ashes Red & Blue
5
Turn the trigger to normal position and LED ashes red
and blue, do not release the trigger until the Motor will ring
thrice.

— 4 —
FID RACING
DHE029
FSC5030
FW051010
FW051010
FSC4030
FSC4030
FSC4020
FSC4020
DHE030
DHE031
DHE032
DHE032
FSC3008
FSC3008
FSC3008
FSB4014
FSB4014
DHE079
DHE079
DHE074
DHE074
DHE075
DHE075
DHE076
DHE076
DHE042
DHE042
FMS4004
FMS4004
DHE080
DHE080
DHE077
DHE077
DHE034
DHE035
DHE036
DHE039
DHE040
DHE037
DHE038
DHE038
DHE042
DHE042
DHE062
DHE062
DHE088
DHE089
DHE090
DHE090
DHE087
DHE092
DHE092
DHE069
DHE068
DHE065
DHE070
DHE070
DHE070
DHE070
DHE066
DHE067
DHE064
DHE066
DHE071
DHE071
DHE071
DHE071
FN60
FN60 FW061308
FW061308
FSC5030
FSC5030
FSC5020
DHE045
DHE046
DHE048
FMS5008
FMS5008
FSC5020
FSC5020
FSC5020
FSC5020
FSC5020
DHE072
DHE072
DHE073
DHE073
FSC5040
FSC5030
FSC5030
FN50
FNF50
FSC5040
FNF50
FN50
FMS6020
FMS6020
FSC3025
FSC3025
DHE093
DHE091
DHE091
FSC3010
FMS4005
FSC3010
FMS4005
FMS4005
FMS4005
FSB4005
FSB4005
DHE086
FSF5016
FSC5030
FSC5030
DHE122
DHE122
DHE133
DHE133
FSC5020
FSC5020
FSC5030
FSC5030
DHE082
DHE083
DHE082
DHE083
DHE085
FSC4016
FSC4016
FSF4012 FN60
FN60
FW061308
FW061308
FNF50
FNF50
DHE111
DHE111
DHE111
DHE111
DHE095
DHE095
DHE095
DHE095
DHE096
DHE096
DHE096
DHE096
DHE097
DHE097
DHE115
DHE128
FN40
DHE125
DHE191
DHE120
DHE114 DHE187
DHE129
DHE124
DHE127
DHE126
DHE129
DHE130
DHE131
DHE116
DHE118
DHE189
DHE119
DHE190
DHE117
DHE121
DHE123
Front Rear
Shock Oil
Front Rear
200CS 200CS
FSF4012
FSF4012
FSF4012
FSF4012
DHE049
DHE049
DHE047
DHE047
DHE054
DHE053
DHE050
DHE056
DHE056
DHE055
DHE055
DHE051
DHE052
DHE041
DHE041 DHE057
DHE057
DHE058
DHE058
DHE059
DHE059 DHE044
DHE044
Front

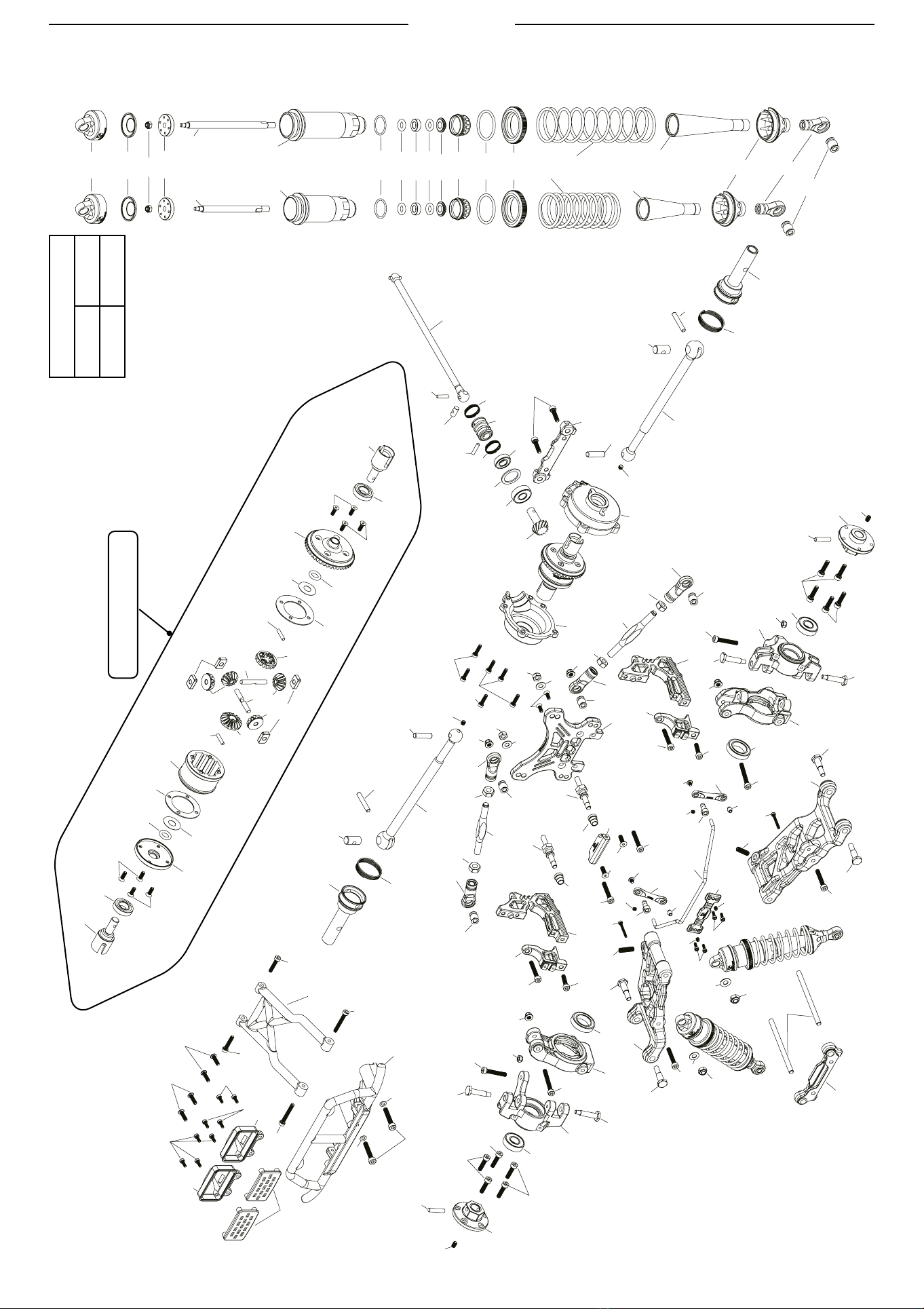

Front Assembly
Di Oil 50000CS

— 5 —
FID RACING
DHE112
DHE112
DHE112
DHE112
DHE140
DHE140
DHE095
DHE095
DHE095
DHE095
DHE132
DHE141
DHE141
DHE135
DHE135
DHE133
DHE133
DHE134
DHE134
DHE136
DHE137
DHE137
DHE139
DHE096
DHE096
DHE098
DHE096
DHE096
DHE098
DHE100
DHE100
DHE109
DHE109
DHE099
DHE105
DHE106
DHE106
DHE101 DHE102
DHE103
DHE107
DHE108
DHE108
DHE108
DHE108
FSF5035
FSF5035
FN50
FN50
FSB4025
DHE104
FN40
DHE110
DHE138
FN40 FN40
FN40
FSC3008
FSC3008
FSC3008
FSC3008
FSC3016
FSC3016
FSC3016
FSC3016
DHE205
DHE205
DHE205
DHE205
DHE141
DHE141
Steering Links
Front Camber Links
Servo Links
84.5mm
130.5mm
147mm
90˚
90˚

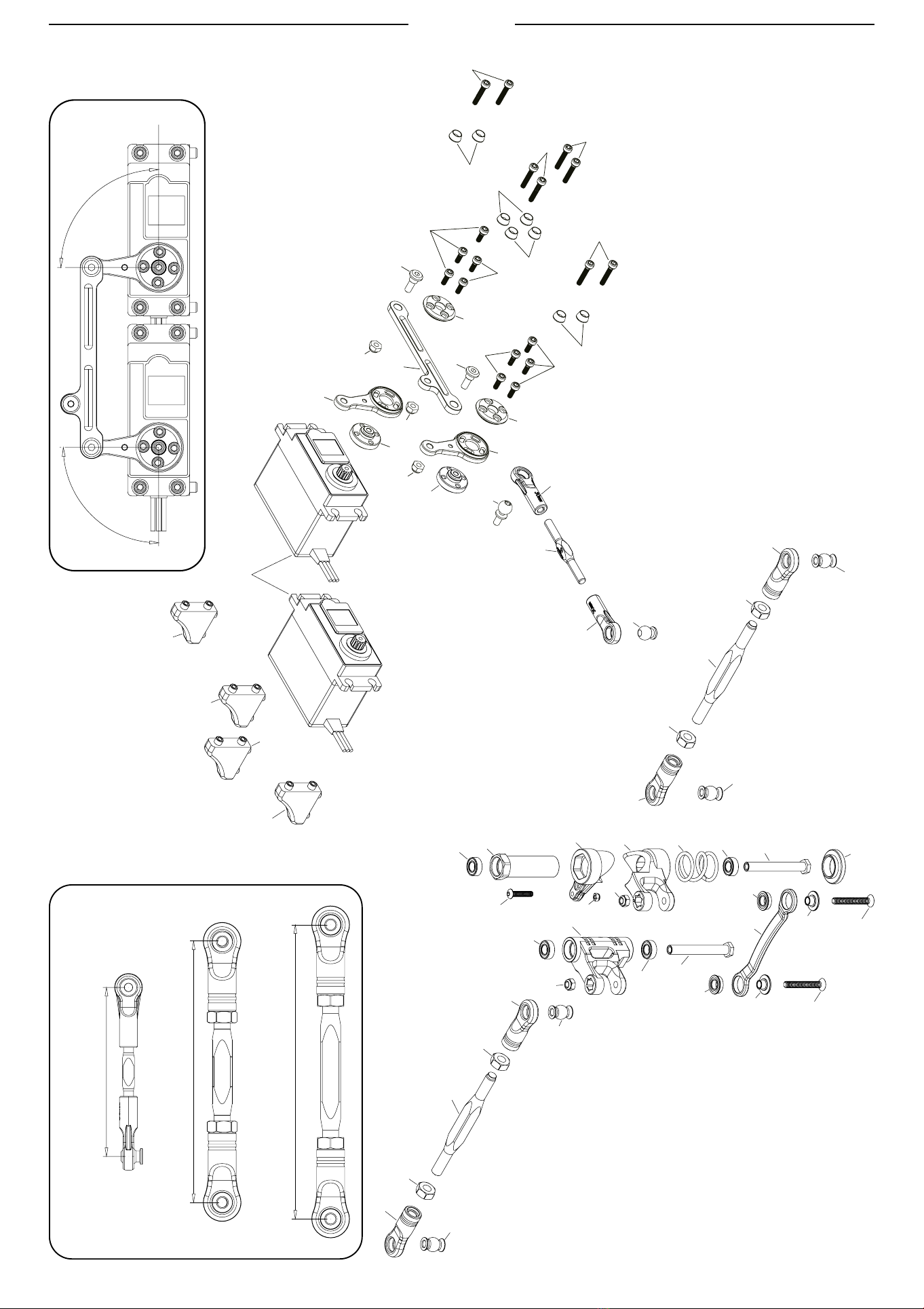

Steering Assembly

— 6 —
FID RACING
Rear Assembly
DHE179
DHE179
DHE179
DHE179
DHE179
DHE179
DHE179
DHE179
DHE178
DHE178
DHE178
DHE178
DHE178
DHE178
DHE178
DHE178
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE177
DHE176
DHE176
DHE175
DHE175
DHE175
DHE175
DHE178
DHE178
DHE178
DHE178
DHE178
DHE178
DHE178
DHE178
DHE170
FSC5012
FSC5030
FSC5030
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
DHE129
FSC5035
FSC5035
DHE111
DHE111
FN50
FN50
FN50
FN50
FSC5040
FSC5040
FSF5020
FSF5020
DHE169
DHE169
DHE045
DHE046
DHE194
DHE193
DHE036
DHE043
DHE043
FMS4004
FMS4004
DHE195
DHE195
DHE072
DHE072
DHE079
DHE079
DHE192
DHE192
FMS5008
FMS5008
FSC5020
FSC5020
FSC5020
FSC5020
FSC4020
FSC4020
FSC5016
FSC5014
FSC5016
FSC5014
FSC5025
FSC5025
DHE200
DHE199
DHE197
DHE196
DHE080
DHE198
DHE079
DHE043
DHE042
FS5010
Rear
DHE049
DHE047
DHE049
DHE047
FSF4012
FSF4012
DHE054
DHE056
DHE055
DHE052
DHE041
DHE059
DHE057
DHE058
DHE041
DHE057
DHE058
DHE059
DHE044
DHE044
DHE053
DHE051
DHE050
DHE055
DHE056
FSF4012
FSF4012
Di Oil 50000CS

— 7 —
FID RACING
DHE148
FSC4016
FSC4020
DHE150
DHE043
DHE043
DHE157
DHE057
DHE152
FMS6008
FSC4016
FSC4016
DHE151
DHE047
FSC4020
FSC4020
DHE047
DHE047
DHE156
FSC4020
FSC4025
FSC4025
DHE155
DHE047 FSF4012
FSF4012
DHE050
DHE056
DHE055
DHE041
DHE051
DHE053
DHE059
DHE059
DHE057
DHE057
DHE057
DHE058
DHE058
DHE058
DHE044
DHE055
DHE041
DHE056
FSF5008
FSF5008
DHE153
DHE052
DHE154
FSF4012
FSF4012
DHE047
DHE049
DHE201
DHE198
FMS5010
DHE197
DHE199
DHE200
DHE043
DHE159
DHE148
FSC4016
FSC4020
DHE150
DHE043
DHE043
DHE157
DHE057
DHE152
FMS6008
FSC4016
FSC4016
DHE151
DHE047
FSC4020
FSC4020
DHE047
DHE047
DHE156
FSC4020
FSC4025
FSC4025
Di Oil #50000

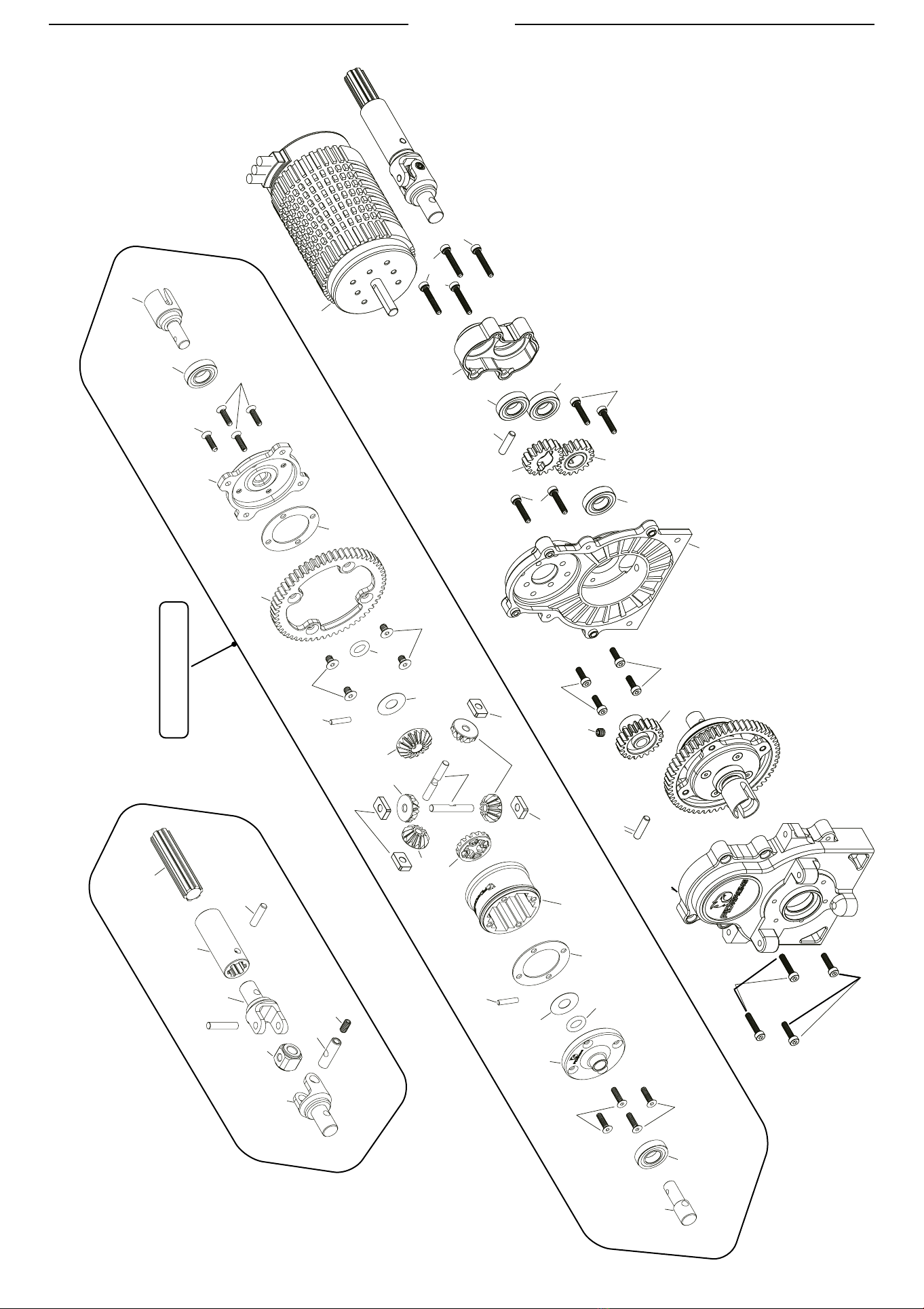

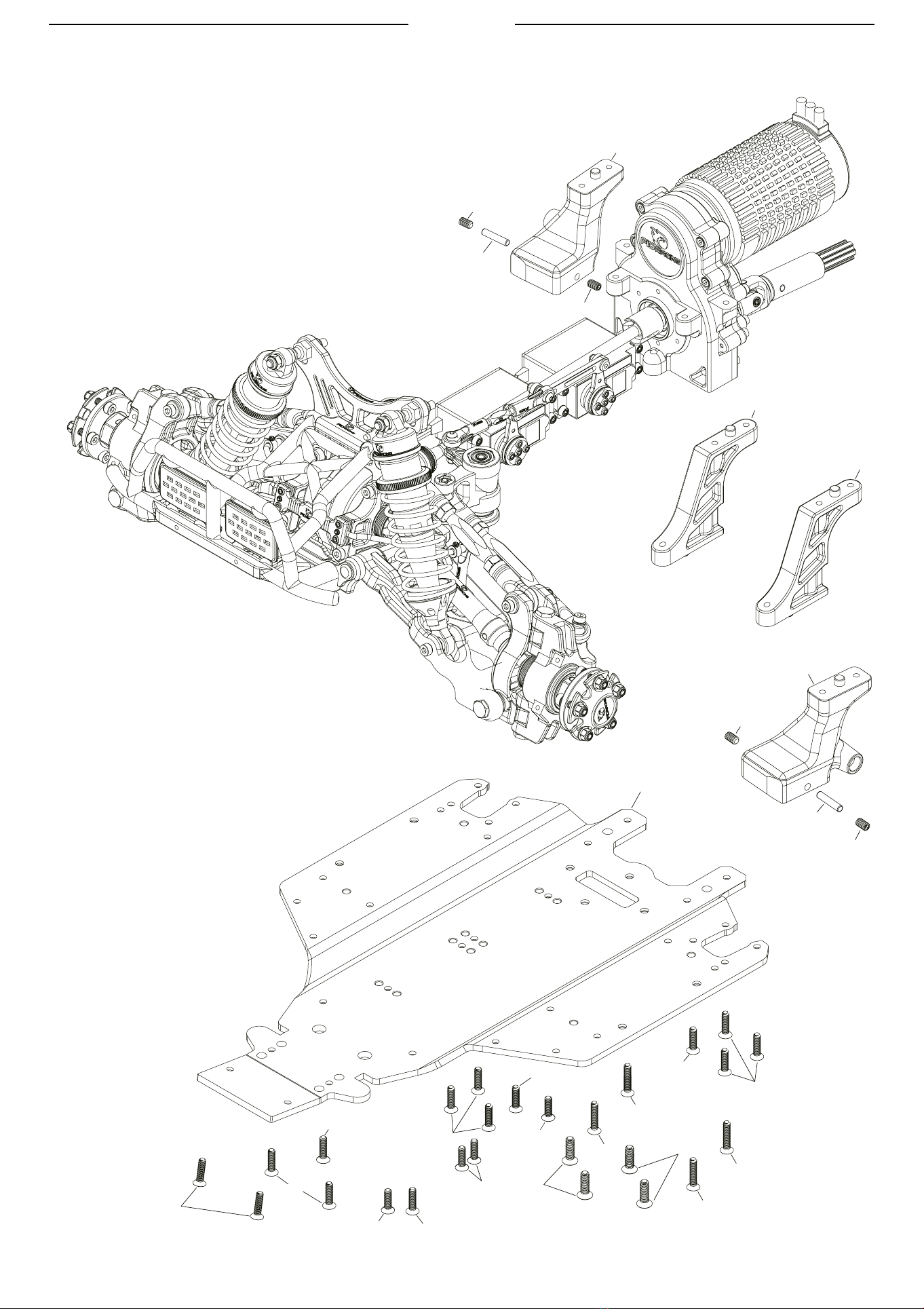

Gearbox Assembly

— 8 —
FID RACING
FMS6005
FMS6005
DHE079
DHE173
FMS6005
FMS6005
DHE079
DHE172
DHE174
DHE174
DHE094
FSF5020
FSF5020
FSF5020
FSF5020
FSF5020
FSF5020
FSF6016
FSF6016
FSF5016
FSF5016 FSF5016
FSF5016
FSF5020
FSF5025
FSF5016
FSF5020
FSF5020
Frontend Assembly

— 9 —
FID RACING
DHE142
DHE143
DHE147
DHE147
FSF5016
FSF5016
FSF5016
FSF5025
FSF5016
FSF5020
FSF5016
FSF5016

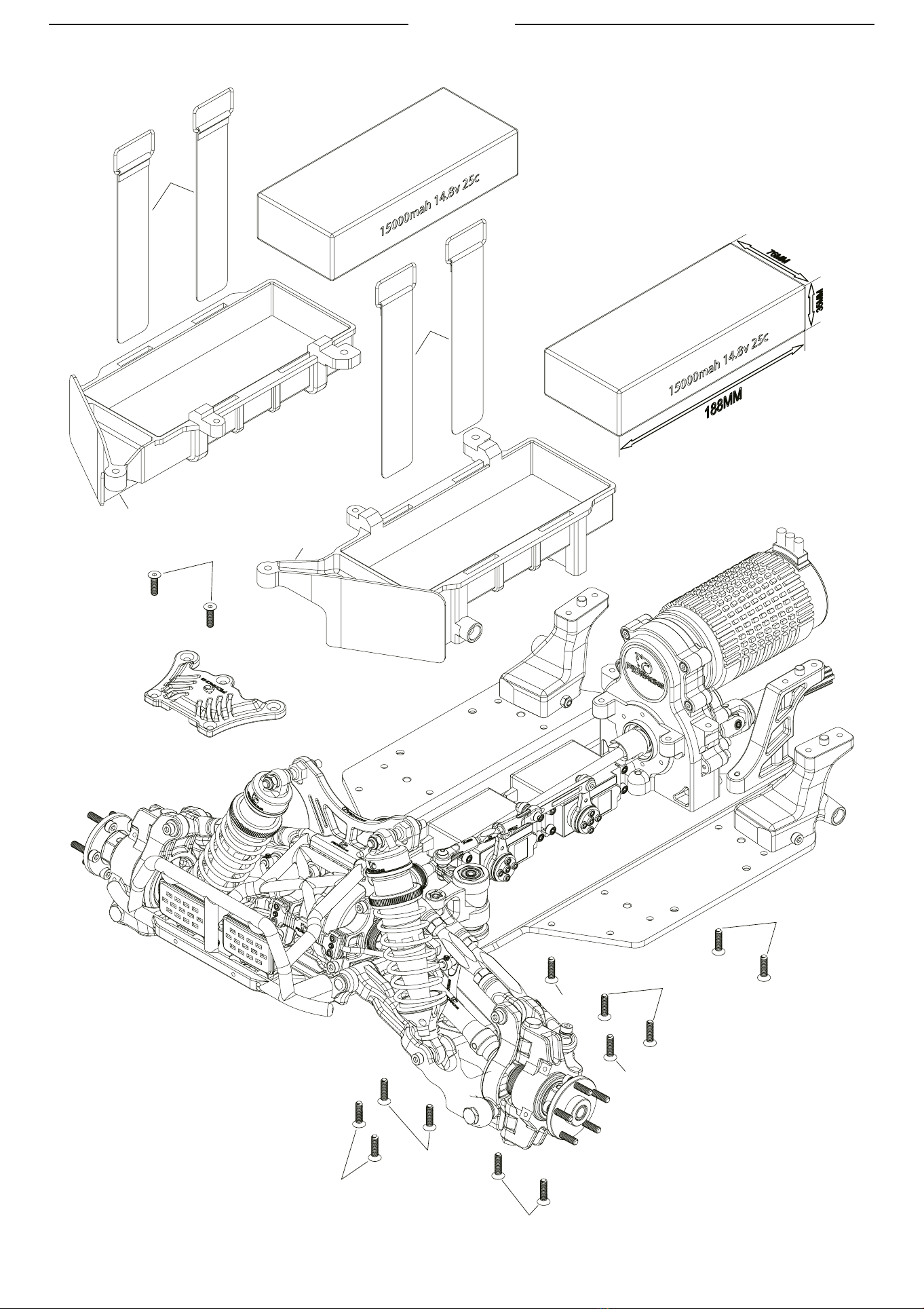

Battery Box Assembly

— 10 —
FID RACING
DHE149
DHE144
DHE145
DHE166
DHE166
DHE171
DHE171
DHE161
FSB5012
FSB5012
FSB4012
FSB4012
DHE163
DHE163
DHE162
DHE162
DHE164
DHE164
DHE167
DHE167
DHE180
DHE180
DHE183
DHE183
DHE184
DHE186
DHE185
DHE185
DHE185
DHE185
FSC5030
FSC5030
FN50
FN50
DHE113
DHE113
DHE122
DHE122
FSC5035
FSC5035
FSB4025
FSB4030
FSB4030
FSB4025
FSB4025
FSB4025
FSB4030
FSB4030
FSB4012
FSB4012
FL0001
FL0001
FSC5016
FSC5016
FN60
FN60
FMS6008
FMS6008
FSC4020
FSC4020
FSC4020
FSB5016
FSB5016
DHE160
FSF6016
FSF6016
FSF5016
FSF5016
FSF5016
FSF5016
FSF5016
FSF5016
FSF5016
Receiver
DHE146
DHE160
FN50
FN50
FSC5016
FSC5016
FSC5016
FSC5016
Center Assembly

— 11 —
FID RACING
FSC5035
FSC5035
FSC5016
FSC5016
FSC5025
FSC5025
FW061308
FW061308
FN60
FN60
FSC5030
FSC5030
FN50
FN50
FSC5035
FSC5035
Rear Assembly

— 12 —
FID RACING
DHE022
DHE023
DHE025
DHE024
DHE021
FSC3016 ×10PCS
FSC3016 ×10PCS
FSC3016 ×10PCS
FSC3016 ×10PCS
FSC3016 ×10PCS
FSC3016 ×10PCS
DHE025
DHE025
DHE023
DHE023
DHE024
DHE024
DHE060
DHE060
DHE061
DHE061

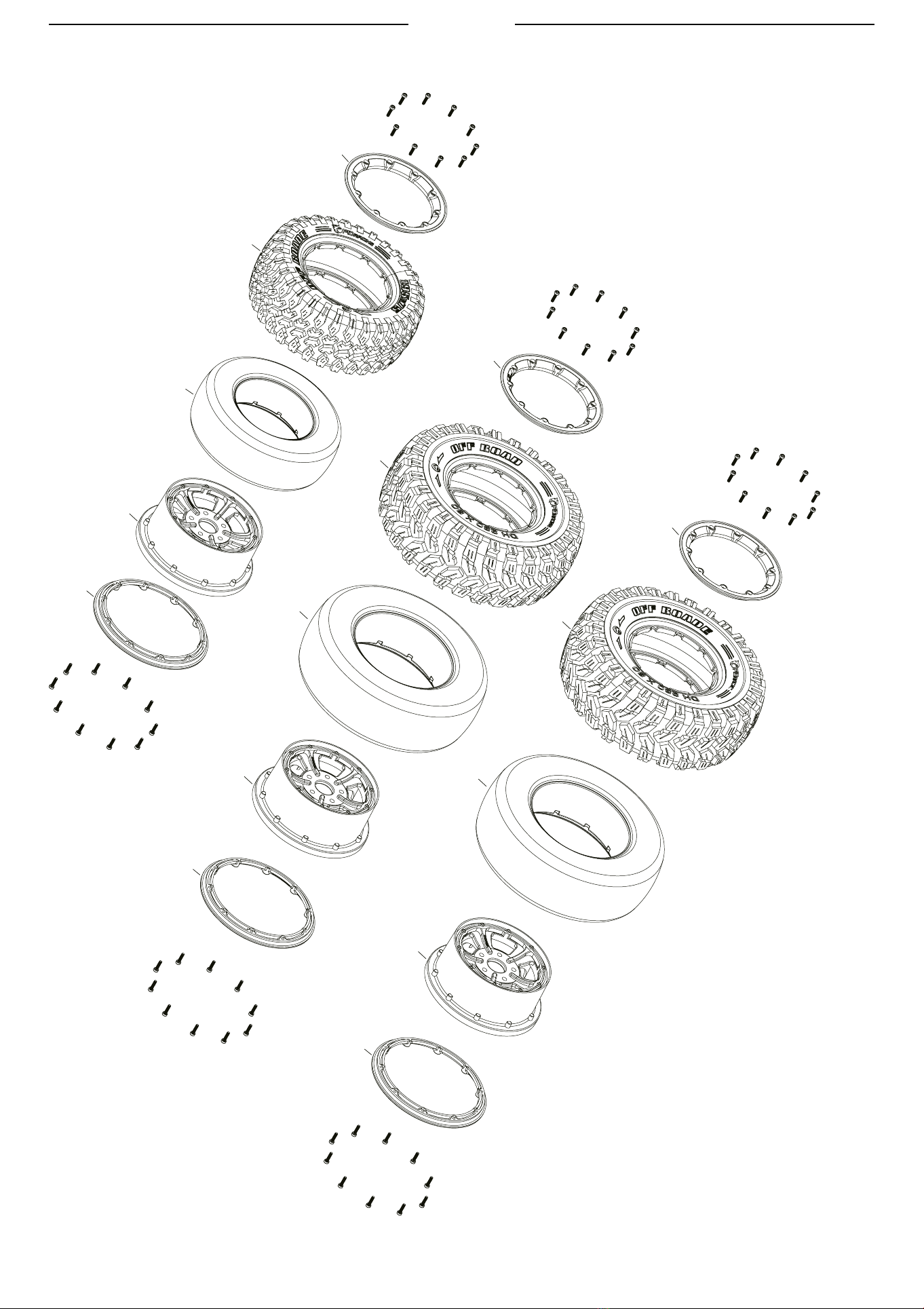

Tyres Assembly

— 13 —
FID RACING

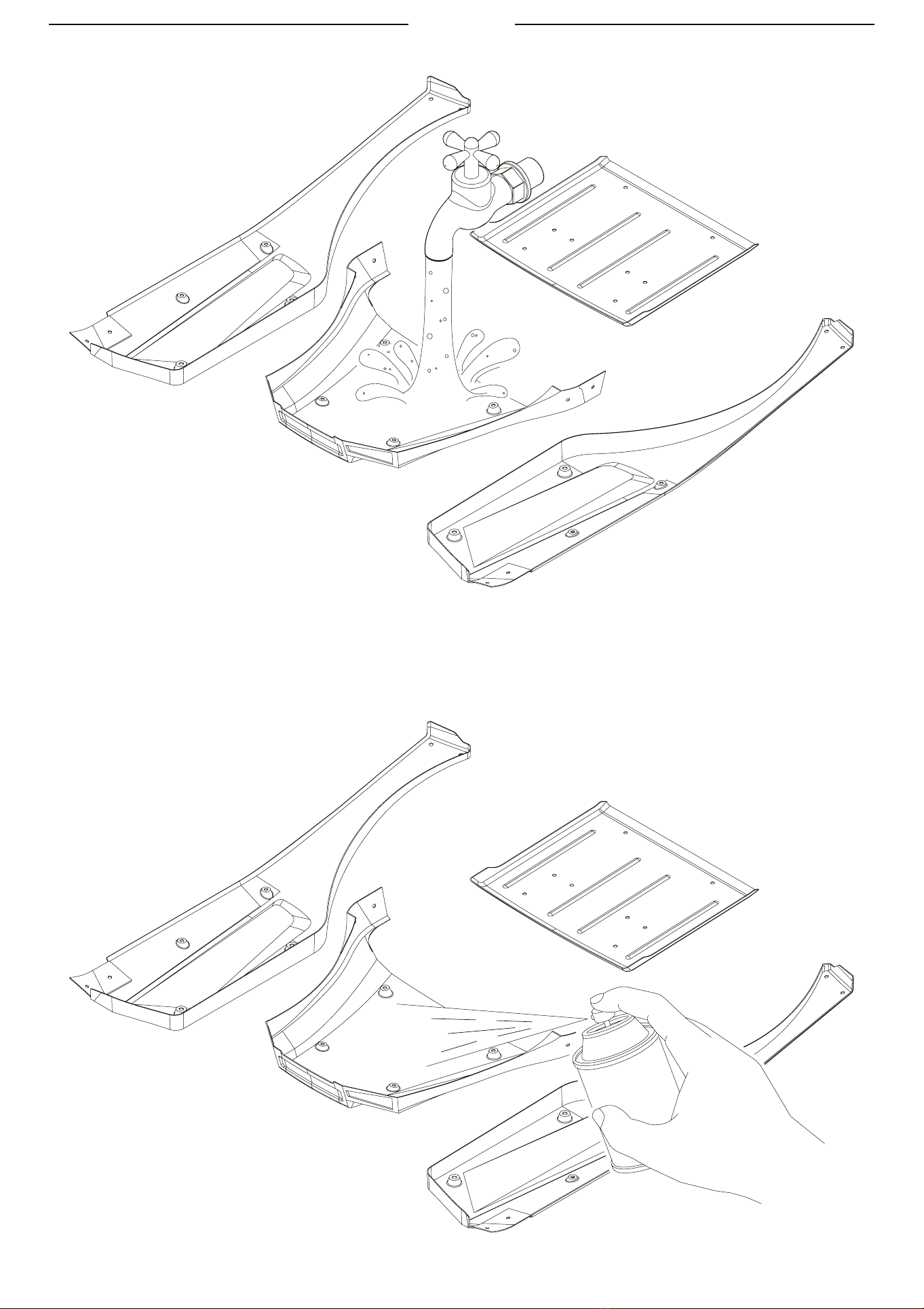

Body Shell Painting
Note: spray paint the body shell from inside.

— 14 —
FID RACING
FSC5020
FSC5020
DHE026
DHE028
DHE001
DHE002
DHE003
DHE004
DHE005
DHE006
DHE007
DHE008
DHE009
DHE010
DHE011
DHE012
DHE013
DHE013
DHE014
DHE014
DHE015
DHE015
DHE016
DHE016
DHE017
DHE018
DHE019
DHE020
FSB4020
FSB4020
FSB4012
FSB4012
FSB4018
FSB4018
FSB4016
FSB4016
FN40
FSB4016
FSB4016
FSC3008
FSC3008
FSC3008
FSC3008
FSC3008
FSB4025
FSB4025
FN40
FSF4030
FSF4030
FSC4035
FSC4035
FSF4030
FSF4035
FSF4030
FSF4035
FSB4035
FSB4030
FSB4035
FSB4030
FSB4030
FSB4030
FSB4030
FSB4030
FSF4050
FSF4050
FSC4070
FSC4070
DHE027
FSC4030
FN40
FSC4035
FSC4035
FSC4025
FSC4025
FSC4020
DHE206 DHE206
DHE206
DHE206
DHE206
DHE206
DHE206
DHE206
DHE206
DHE206
DHE206 DHE206
DHE206
DHE206
FSB4016
FSB4016
FSC4020
FSC4010
FSC4010
FSC4010

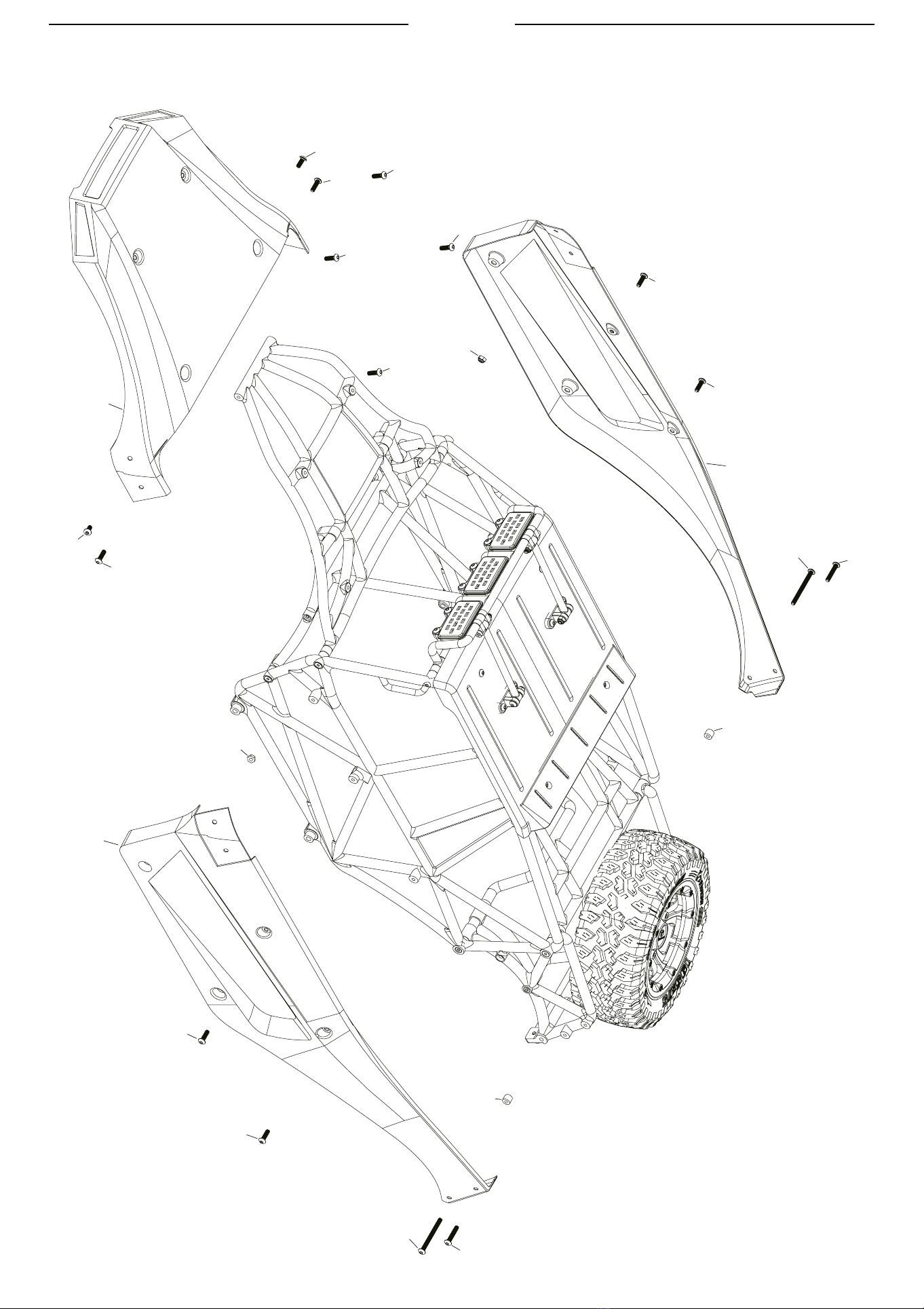

Roll Cage & Body Assembly

— 15 —
FID RACING
DHE001 DHE001
DHE001
FSB4014
FSB4014
FSB4014
FSB4014
FSB4008
FSB4008
FSB4020
FSB4020
FN40
FN40
FSB4014
FSB4020
FSB4014
FSB4020
FSB4020
FSB4020
FSB4035
FSB4035
DHE206
DHE206

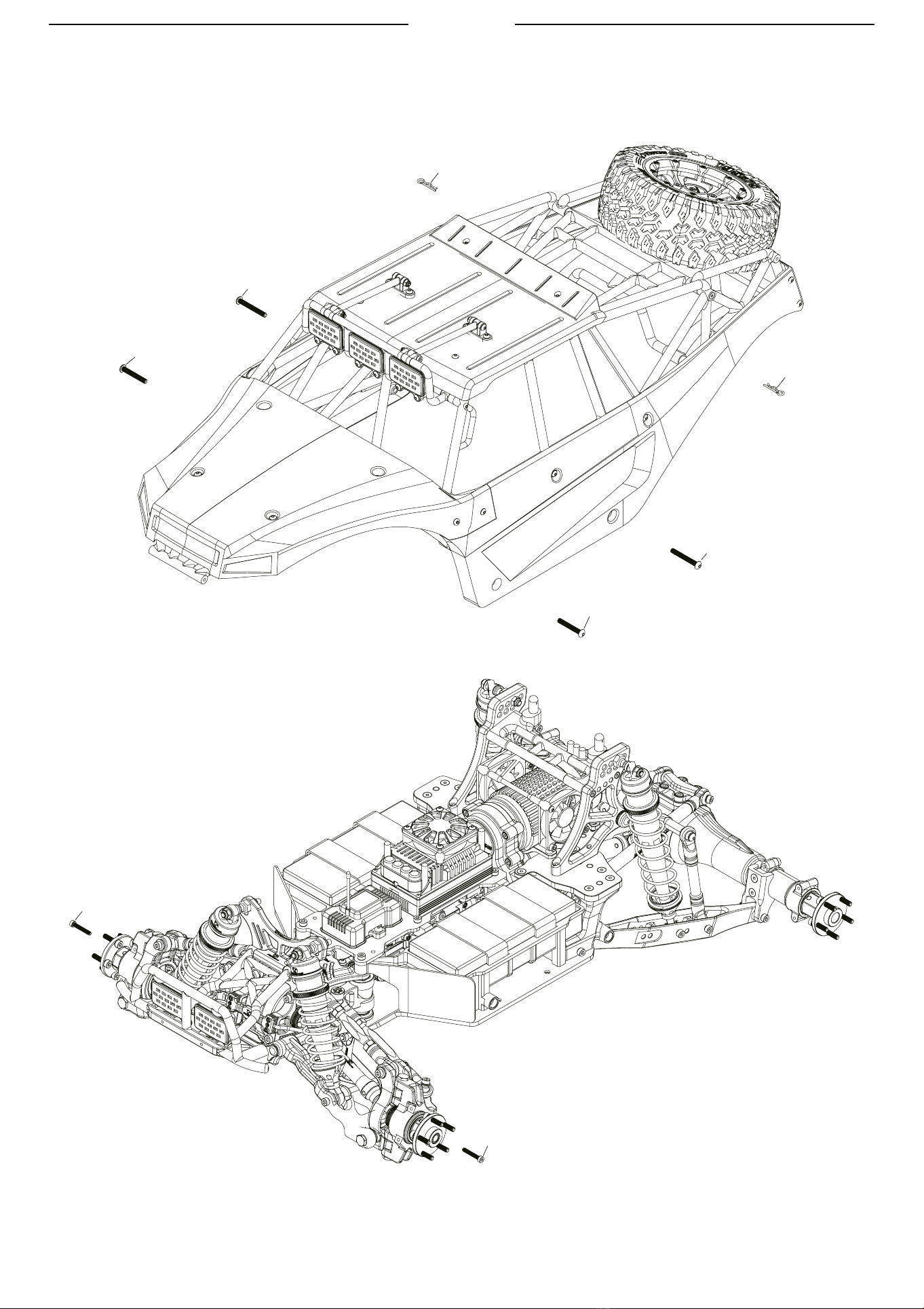

Body Assembly

— 16 —
FID RACING
FL0001
FL0001
FSB5035
FSB5035
FSB5035
FSB5035
FSC4025
FSC4025
Roll Cage Installation

— 17 —
FID RACING
DHE026
DHE026
FNF50 ×5PCS
FNF50 ×5PCS

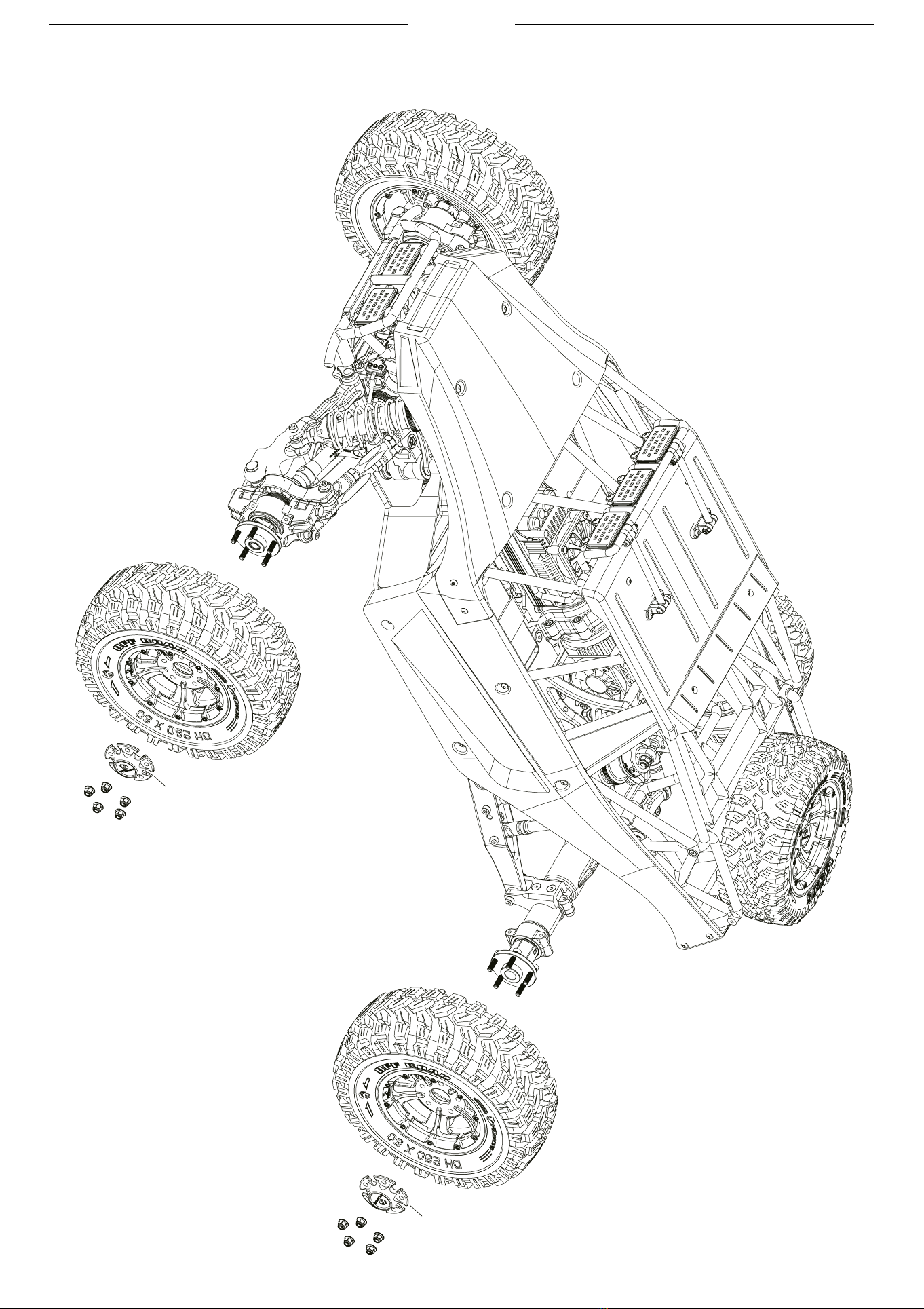

Final Assembly

— 18 —
FID RACING
Part No. Description Part No. Description Part No. Description
DHE001 Clear Body Set DHE100 King Pin Bushing DHE199 Rear Drive Shaft Joint
DHE002 Roll Cage Right DHE101 Servo Saver Right DHE200 Female Shaft
DHE003 Roll Cage Left DHE102 Servo Saver Top DHE201 Male Shaft
DHE004 Roll Cage Rear DHE103 Servo Saver Bottom DHE202 M3 Washer
DHE005 Roll Cage Front DHE104 Servo Saver Body DHE203 Body Pin (8mm)
DHE006 Roll Cage Top DHE105 Servo Saver nut FSC3008 M3×8 Cap Head Screw (10pcs)
DHE007 Roll Cage Set DHE106 Servo Saver Post FSC3010 M3×10 Cap Head Screw (10pcs)
DHE008 Roll Cage Set Front DHE107 Servo Saver Spring FSC3016 M3×16 Cap Head Screw (10pcs)
DHE009 Roll Cage Set Right DHE108 Bearing 7 x 14 x 5mm FSC3025 M3×25 Cap Head Screw (10pcs)
DHE010 Roll Cage Set Left DHE109 Flange Bearing 7 x 13 x 4mm FSB4005 M4×5 Button Head Screw (10pcs)
DHE011 Tail Lights Mount DHE110 Ball 9 x 10.8mm FSB4008 M4×8 Button Head Screw (10pcs)
DHE012 Light Mount DHE111 Ball 11 x 13mm FSB4012 M4×12 Button Head Screw (10pcs)
DHE013 Light Bar DHE112 Ball 11 x 15mm FSB4014 M4×14 Button Head Screw (10pcs)
DHE014 Light Mount Set DHE113 Shock Mount FSB4016 M4×16 Button Head Screw (10pcs)
DHE015 Front Light Cover D H E114 Front Shock Body FSB4018 M4×18 Button Head Screw (10pcs)
DHE016 Light Pod DHE115 Shock Top Cover FSB4020 M4×20 Button Head Screw (10pcs)
DHE017 Roll Cage Rear Set Left DHE116 Spring Adjustter FSB4025 M4×25 Button Head Screw (10pcs)
DHE018 Roll Cage Rear Set Right DHE117 Spring Mount FSB4030 M4×30 Button Head Screw (10pcs)
DHE019 Link Bar Left DH E118 Front Shock Spring FSB4035 M4×35 Button Head Screw (10pcs)
DHE020 Link Bar Right D H E119 Shock Boot FSC4016 M4×16 Cap Head Screw (10pcs)
DHE021 Tires (175 x 75mm) DHE120 Front Shock Shaft FSC4020 M4×20 Cap Head Screw (10pcs)
DHE022 Inner Foam (175mm) DHE121 Shock Ball End FSC4025 M4×25 Cap Head Screw (10pcs)
DHE023 Hub DHE122 Plastic Bushing FSC4030 M4×30 Cap Head Screw (10pcs)
DHE024 Out Rim DHE123 Ball 11 x 13mm FSC4035 M4×35 Cap Head Screw (10pcs)
DHE025 Inner Rim DHE124 Shock Bottom Cover FSC4070 M4×70 Cap Head Screw (10pcs)
DHE026 Hub Cap DHE125 Shock Piston FSF4010 M4×10 Flat Head Screw (10pcs)
DHE027 Spare Tire Lower Mount DHE126 Washer FSF4012 M4×12 Flat Head Screw (10pcs)
DHE028 Spare Tire Mount DHE127 Plastic Washer FSF4030 M4×30 Flat Head Screw (10pcs)
DHE029 Front Bumper DHE128 Diaphragm FSF4035 M4×35 Flat Head Screw (10pcs)
DHE030 Front Bumper Set DHE129 O-ring D14 x ø3.5 FSF4050 M4×50 Flat Head Screw (10pcs)
DHE031 Light Cover DHE130 O-ring D21 x ø2 FSB5012 M5×12 Button Head Screw (10pcs)
DHE032 Light Pod DHE131 O-ring D33 x ø2.5 FSB5016 M5×16 Button Head Screw (10pcs)
DHE033 License Plate Mount DHE132 Steering Servo FSB5035 M5×35 Button Head Screw (10pcs)
DHE034 Front Gear Box Left DHE133 Servo Arm Washer FSC5014 M5×14 Cap Head Screw (10pcs)
DHE035 Front Gear Box Right DHE134 Servo Arm FSC5016 M5×16 Cap Head Screw (10pcs)
DHE036 13T Pinion Gear DHE135 Servo Arm Mount FSC5020 M5×20 Cap Head Screw (10pcs)
DHE037 Drive Shaft Joint DHE136 Servo Arm Link FSC5025 M5×25 Cap Head Screw (10pcs)
DHE038 Spring Ring DHE137 Servo Arm Link Shaft FSC5030 M5×30 Cap Head Screw (10pcs)
DHE039 Center Drive Shaft (220mm) DHE138 Ball 9 x 19mm FSC5035 M5×35 Cap Head Screw (10pcs)
DHE040 King Pin (6.5mm) DHE139 Servo Turnbuckle FSC5040 M5×40 Cap Head Screw (10pcs)
DHE041 PIN 3.5 x 18mm DHE140 Servo Turnbuckle Ball End FSF5008 M5×8 Flat Head Screw (10pcs)
DHE042 PIN 4 x 20mm DHE141 Servo Mount FSF5016 M5×16 Flat Head Screw (10pcs)
DHE043 PIN 5 x 20mm DHE142 Battery Box Left FSF5018 M5×18 Flat Head Screw (10pcs)
DHE044 Di Shaft DHE143 Battery Box Right FSF5020 M5×20 Flat Head Screw (10pcs)
DHE045 Bearing 10 x 22 x 6mm DHE144 Receiver Box FSF5025 M5×25 Flat Head Screw (10pcs)
DHE046 Bearing 10 x 26 x 8mm DHE145 2nd Floor Plate FSF5035 M5×25 Flat Head Screw (10pcs)
DHE047 Bearing 12 x 24 x 6mm DHE146 Antenna Pipe FSF6018 M6×18 Flat Head Screw (10pcs)
DHE048 Washer ø24 x ø27 x 1.5mm DHE147 Velcro Tape FW051010 Washer 5×10×1Mm (10pcs)
DHE049 Di Connecting Cup DHE148 74120 Motor FW061308 Washer 6×13×0.8Mm (10pcs)
DHE050 Di Cap DHE149 300A ESC FMS4004 M4×4 Set Screw (10pcs)
DHE051 Dierential Pads (44.9mm) DHE150 Center Gear Box (Front) FMS4005 M4×5 Set Screw (10pcs)
DHE052 Dierential Pads (49mm) DHE151 Center Gear Box (Rear) FMS5008 M5×8 Set Screw (10pcs)
DHE053 Dierential Housing DHE152 21T Gear FMS5010 M5×10 Set Screw (10pcs)
DHE054 43T Di Gear DHE153 57T Gear FMS6005 M6×5 Set Screw (10pcs)
DHE055 Washer ø9.2 x ø22 x 0.5mm DHE154 57T Gear Mount FMS6008 M6×8 Set Screw (10pcs)
DHE056 O-ring D15 x ø3.1 DHE155 Center Di Shaft FMS6020 M6×20 Set Screw (10pcs)
DHE057 Di Shaft Mount DHE156 Gear Box Cover FN40 M4 Nylon Nut (10pcs)
DHE058 12T Di Gear DHE157 18T Gear 6mm FN50 M5 Nylon Nut (10pcs)
DHE059 16T Di Gear DHE158 19T Gear 4.6mm FN60 M6 Nylon Nut (10pcs)
DHE060 Tires (230mm) DHE159 Center Gear Box Shaft FNF50 M5 Flanged Nylon Nut (10pcs)
DHE061 Inner Foam (231mm) DHE160 Motor Mount Bottom
DHE062 Front Wheel Hex Hub DHE161 Motor Mount Top
DHE063 Steering Block Right DHE162 Fan Mount
DHE064 Front Carriers Right DHE163 Fan
DHE065 Front Lower Arm Right DHE164 Fan Mount Link
DHE066 Steering Block Left DHE165 Y-Line
DHE067 Front Carriers Left DHE166 Rear 2nd Floor Plate
DHE068 Front Lower Arm Left DHE167 Rear Shock Tower
DHE069 PIN 6 x 100mm (2pcs) DHE168 Rear Arm
DHE070 Arm Shaft DHE169 Rear Arm Mount
DHE071 Steering Shaft DHE170 Rear Turnbuckle Mount
DHE072 Bearing 12 x 28 x 8mm DHE171 Turnbuckle Mount Front
DHE073 Bearing 20 x 32 x 7mm DHE172 Rear Arm Mount Left
DHE074 CVD Connecting Cup DHE173 Rear Arm Mount Right
DHE075 Drive Shaft (153.5mm) DHE174 Rear 2nd Floor Plate Mount
DHE076 Shaft (8 x 16mm) DHE175 Ball End
DHE077 PIN 4 x 24mm DHE176 Rear Turnbuckle
DHE078 Description DHE177 Spring Clip
DHE079 PIN 5 x 24mm DHE178 Washer 6 x 7.3mm
DHE080 Big Spring Ring DHE179 Bearing 6 x 14 x 6mm
DHE081 Dust Cover DHE180 Rear Swaybar Mount
DHE082 Front Gear Box Top Mount DHE181 Rear Swaybar Link
DHE083 Front Gear Box Lower Mount DHE182 Ball 11 x 13mm
DHE084 Steering Top Plate DHE183 Rear Swaybar Shaft
DHE085 Front Shock Tower DHE184 Rear Swaybar
DHE086 Front Bumper Mount DHE185 Bearing 9 x 17 x 4mm
DHE087 Sway Bar Mount DHE186 Roll Cage Mount
DHE088 Arm Mount-FF DHE187 Rear Shock Body
DHE089 Arm Mount-FR DHE188 Description
DHE090 Sway Bar Ball End DHE189 Rear Shock Spring
DHE091 Ball 6.5 x 7mm DHE190 Rear Shock Ball
DHE092 Ball 6.5 x 17mm DHE191 Rear Shock Shaft
DHE093 Front Sway Bar DHE192 Rear Sheel Hex Hub
DHE094 Chassis DHE193 Solid Axle Set Rear
DHE095 Ball End DHE194 Solid Axle Set Front
DHE096 M8 Nut Set DHE195 Rear Drive Shaft
DHE097 Turnbuckle 85mm DHE196 Rear Drive Shaft Joint
DHE098 Turnbuckle 105mm DHE197 Drive Shaft Mount
DHE099 Steering Plate DHE198 Drive Shaft
Part List

www.d-racing.com
Since being founded in Oct 2010, FID Racing strives to bring the best car to the market, sophisticated
as well as playful, robust. Our manufacture are mainly done with numerical controlled equipment. Each
product is tested before delivery.
