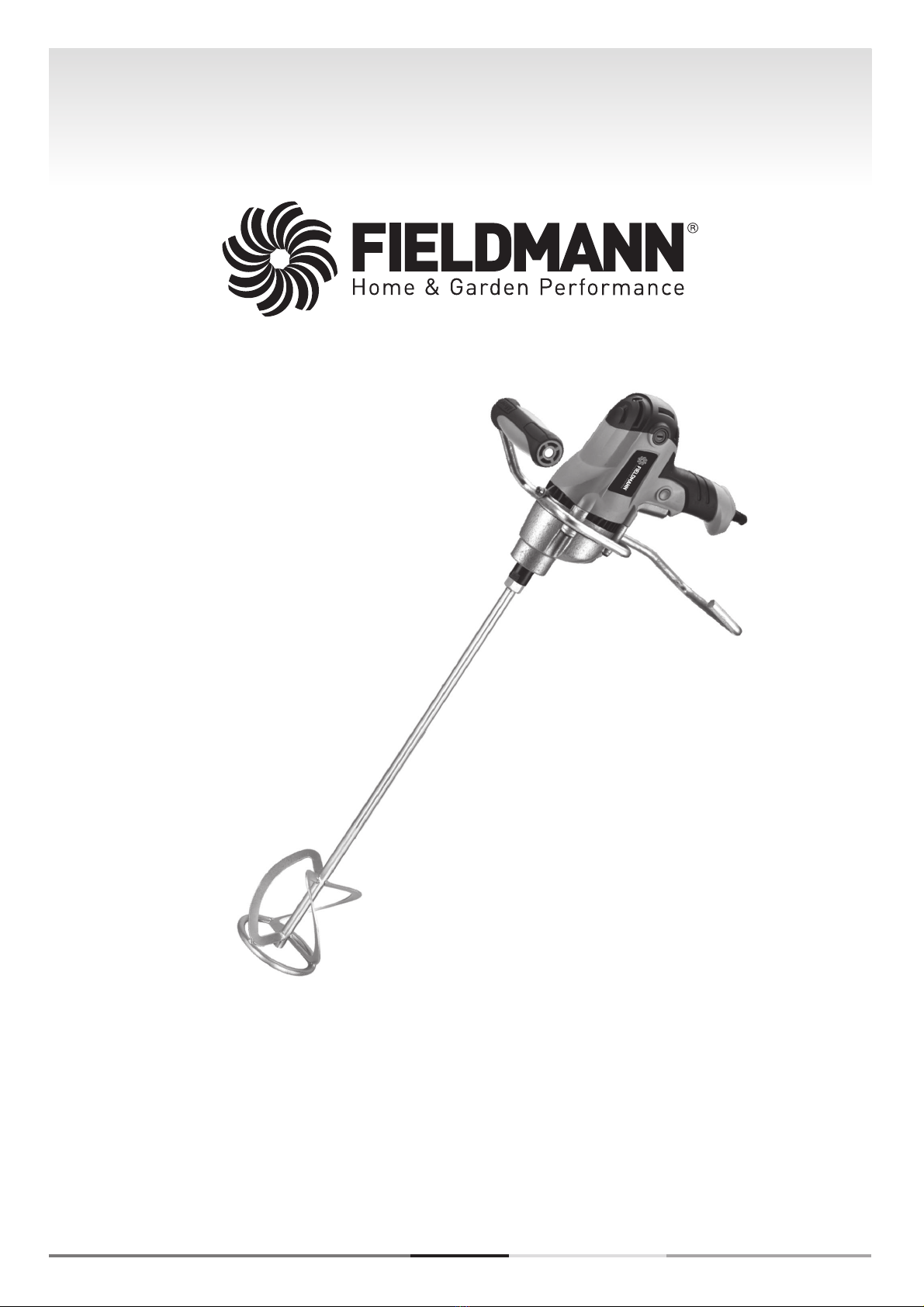

(/(&75,&0,;(5 OPERATING INSTRUCTIONS

&MFDUSJDNJYFS
INSTRUCTION MANUAL
Thank you for your purchase of the FMFDUSJD NJYFS. For your personal safety, read and
understand the Instruction Manual before using. Keep the Instruction Manual in a safe
place for future reference.
CONTENTS
1. GENERAL SAFETY INSTRUCTIONS ................................................................................................................ 8
2. SYMBOLS .............................................................................................................................................................. 13
3. GENERAL DESCRIPTION ................................................................................................................................. 14
4. TECHNICAL SPECIFICATIONS ..................................................................................................................... 1
5. DISPOSAL ...............................................................................................................................................................

&RQWHQWV

*HQHUDOVDIHW\LQVWUXFWLRQV
1. GENERAL SAFETY INSTRUCTIONS
WARNING! Carefully read the instruction manual before use.
Important safety warnings
Unpack the product carefully and be sure not to throw away any part of the package before having found all
components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in
an accident, fire and/or a serious injury.
Packaging
The product is placed in a package preventing damage during transport. This package is a raw material
therefore it can be handed-over for recycling.
Instructions for use
Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize
with operating elements and the proper use of the device. Keep the manual in a safe place for future reference.
We recommend keeping the original package including the inner packaging materials, cash voucher and
guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the
original box from the manufacturer, thus ensuring a maximum protection of the product during a possible
transport (e.g. moving or sending into a service station)..
Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence
to the attached instructions for use is a precondition for the proper use of the machine. The operation
manual includes also instructions for operation, maintenance andrepairs.
The manufacturer does not take any responsibility for accidents or damages resulting
from the failure to adhere to this manual.
(1
)'50(

(1
(/(&75,&0,;(5 OPERATING INSTRUCTIONS

*HQHUDOVDIHW\LQVWUXFWLRQV
Carefully read, remember and keep these safety instructions
WARNING! In the use of electric machines and power tools, it is necessary to respect
and follow the following safety instructions for the reasons of protection against electric
shock, personal injury and danger of fire. The term “power tool” in the instructions below
refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool.
Save all warnings and instructions for future reference.
Workplace
Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite
accidents. Store power tools that you don’t currently use.
Do not operate power tools in environments with danger of occurrence of a fire or explosion,
such as in the presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep unauthorised persons, especially children, away from the work area while operating
a power tool! Distractions can cause you to lose control over the performed activity. In no
event leave your power tool unattended. Keep the equipment away from animals.
Electrical Safety
Power tool plugs must match the mains socket outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Undamaged plugs and
matching outlets will reduce risk of electric shock. Damaged or fouled supply cables increase
the risk of electric shock. If the power cord is damaged, it must be replaced by a new power
cord which is available at the authorised service centre or the importer.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cooking
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet conditions. Never touch the power tool with wet
hands. Never wash the power tool under running water or immerse it in water.
Never use the supply cable for other than intended purposes. Never use the cord for carrying
or pulling the power tool. Never unplug the plug from the outlet by pulling the cable. Keep
electric cables away from sharp or hot objects to prevent mechanical damage.
The power tool was designed to be powered solely by alternating electric current. Always
check if the electric voltage matches the information specified in the type label of the power
tool.
Never use power tool with damaged electric cable or plug or which has been dropped or is in
any way damaged.

 *HQHUDOVDIHW\LQVWUXFWLRQV
If an extension cord is used, always check whether its technical parameters match the
information specified in the type label of the power tool. When operating a power tool
outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these
must be rolled out to prevent overheating of the cord.
If a power tool is operated in a damp location or outdoors, its operation is only permitted if
connected to an electric circuit protected by a residual current device <30 mA. Use of residual
current device (RCD) reduces the risk of electric shock.
Hold the power tool by insulated gripping surfaces only as the cutting or drilling tool may
contact hidden wiring or its own power cord during operation.
Personal Safety
Be careful, stay alert and watch what you are doing when operating a power tool.
Concentrate on your work. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury. Do not eat, drink and smoke while operating a power tool.
Use personal protective equipment. Always wear eye protection. Use protective equipment
corresponding to the type of work you are doing. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used in accordance with the working
conditions will reduce the risk of personal injury.
Prevent unintentional starting. Do not carry the power tool while it is energised or with
your finger on the switch or trigger. Ensure the switch or trigger is in the “off” position before
connecting to power source. Carrying power tools with your finger on the switch or energising
power tools that have the switch on may result in serious injuries.
Remove any adjusting key or wrench before turning the power tool on. An adjusting wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
Keep proper footing and balance at all times. Do not overreach. Never overestimate your own
capabilities. Never use power tools while you are tired.
Dress properly. Wear work clothes. Do not wear loose clothing or jewellery. Keep your hair,
clothing, gloves and other part of your body away from moving or hot parts of the power tool.
Connect the equipment to dust exhaustion. If the tools are provided for the connection of dust
collection or exhaustion devices, ensure these are properly connected and used. Use of such
devices can reduce dust-related hazards.
Fix the work-piece tightly. Use a cabinet clamp or a cramp to fix the work-piece you are about
to machine.
Never use power tools if you are under the influence of alcohol, drugs, medication or other
narcotic or addictive substances.
This equipment is not intended for use by persons (including children) with limited physical,
sensual or mental capacities or lack of experience or knowledge unless they are supervised
or instructed about the use of the equipment by a person responsible for their safety. Children
must be supervised to make sure they are not playing with the equipment.
(1
)'50(

(1
(/(&75,&0,;(5 OPERATING INSTRUCTIONS

*HQHUDOVDIHW\LQVWUXFWLRQV
Power Tool Use and Maintenance
Always disconnect the power tool from the mains in case of any problem during the work,
before cleaning the power tool or its maintenance, during each transportation and after the
completion of the work! Never operate a power tool if it is damaged in any way.
Immediately stop working if the power tool generates abnormal noise or smell.
Do not overload the power tool. The power tool will operate better and safer if it is used at the
rate for which it was designed. Use correct power tool which is intended for the given activity.
The correct power tool will do the job it was designed for better and safer.
Do not use the power tool if it cannot be safely turned on and off using the control switch.
Use of such power tool is dangerous. Defective switches must be repaired by a certified
service provider.
Disconnect the tool from the power source before making any adjustments, changing
accessories or maintenance. Such preventive safety measure prevents the risk of starting the
power tool accidentally.
Store idle power tools out of the reach of children and unauthorised persons. Power tools can
be dangerous in the hands of untrained users. Store the power tools in a dry and safe place.
Keep the power tool in good condition. Check the adjustment of moving parts and their
mobility. Check for any damage to the protective guards or other parts which could affect
safe operation of the power tool. If damaged, have the power tool properly repaired before
further use. Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges facilitate work, reduce the risk of injury and are easier to control. Use of accessories
other than those specified in the instructions for use could result in damage to the power tool
and cause injuries.
Use the power tool, accessories and tool bits etc. in accordance with these instructions and
in the manner intended for the particular type of power tool taking into account the working
conditions and the work to be performed. Use of the power tool for purposes other than those
the power tool was intended for could result in hazardous situations.
Use of Cordless Power Tools
Before inserting the battery, make sure the switch is in the “0-OFF” position. Inserting a battery
into a switched-on power tool could result in hazardous situations.
Charge batteries only using the chargers prescribed by the manufacturer. Using a charger
intended for other battery type could result in its damage and occurrence of fire.
Use only batteries intended for particular power tool. Use of different batteries could cause
injury or occurrence of fire.
If the battery is not used, keep it separately from metal objects such as clamps, keys, bolts
and other small metal items which could cause connection of one battery contact with the
other. Short-circuiting the battery could result in injury, burns or occurrence of fire.
