Fiilex AL250 User manual

AL250
Aerial Light
User Manual

What’s in the Box
Getting to Know your Light
Setup and Basic Operation
Specifications
For Your Safety
1 Year Limited Warranty
1
3
5
9
9
10
Table of Contents

What’s in the Box
•Drawstring Bag•Charger
•Li-ion Rechargeable Battery•AL250 (Light Body)
• USB Cable
• Mounting Knob
(GoPro MountCompatible)
• Mounting Base
(GoPro MountCompatible)
•Safety Lanyard
•User Manual
AL250
AerialLight
UserManual
12

Getting to Know your Light
34
B
I
F
H
J
C
G
E
D
Mounting Base
Li-ion Rechargeable Battery
Mounting Knob
Hole for Safety Lanyard
AL250 (Light Body)
Power (Charge Indicator)
Charger Input
Safety Lanyard
USB Cable
Charger
A
B
C
D
E
F
G
H
I
J

5
1. Press and hold battery
release.2. Separate battery from fixture.
Setup and
BasicOperation
Removing Battery

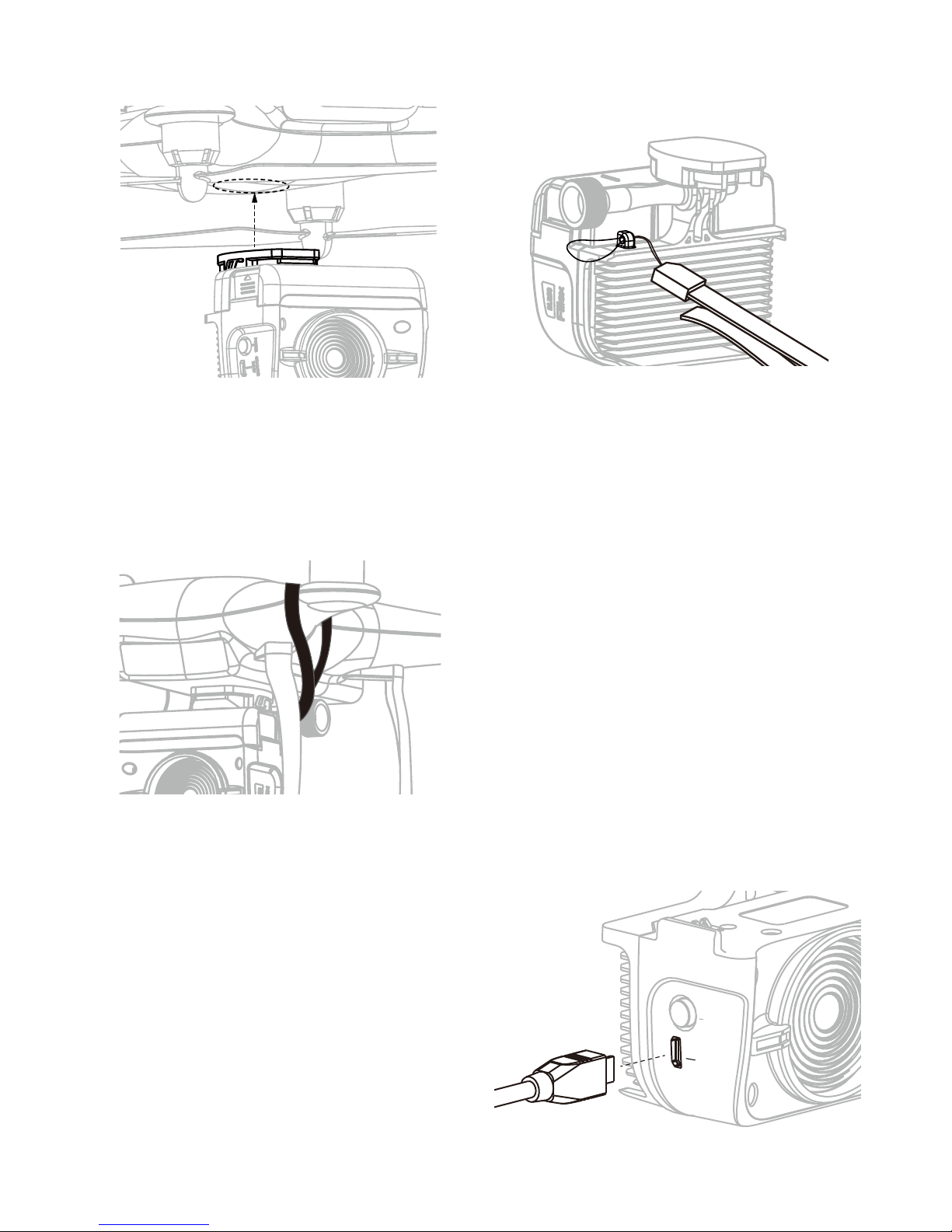

1. Attach the MountBase (A) to
the AL250.
2. Insertthe MountKnob (C) into
the MountBase and tighten.
3. Tear away the sticker on the
MountBase (A).
4. IMPORTANT:Clean attachment
surface on bottom of drone with
alcoholwipe to guarantee secure
attachment.
6
Installon theDrone *
*Mount installationnot necessary on drones with existing GoPro mounts.

Charge
Insert the USB Cable (I) into the
Charger Input(G)on the AL250.
Plug the Power Charger into a
standard AC wall outlet to
charge.
5. Stick the AL250 on the bottom
of your drone.
6. Fasten the Safety Lanyard
(H) to the hole (D).
7. Secure the Safety Lanyard
(H) onto the propeller arm.
7
REWOP REG
RAHC
T
UP
NI

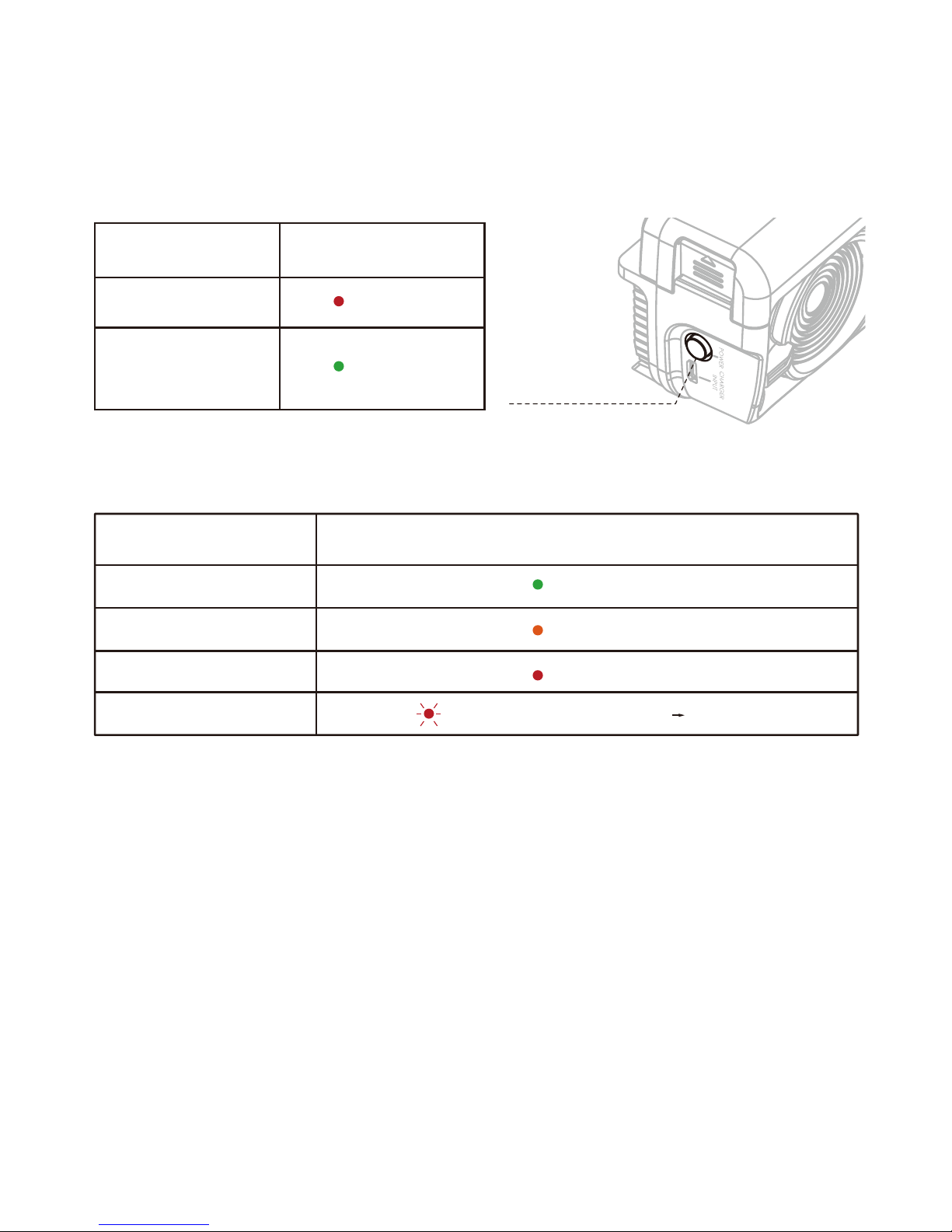

While charging the battery, the Charge Indicator (F) on the AL250 turns
red. It(F) turns green when the battery is fully charged.
IndicatorLightStatus
Charging
Full-charge
Red
Green
Charge Indicator
8
* AL250 will enter the Self Protection Mode when the heat sink is
overheated (The lightoutput will down to 30%).
*AL250 requires rechargeableLi-ion batteries.UseonlyFiilex-approved
batteries and chargers.
*You must fully charge the battery for first use. A discharged battery
recharges fully in approximately 3 hours.
* For connection to an electrical supply outside the U.S., the proper
adapter must be used for the power outlet. Use of the wrong adapter
and/or power configuration could result in damage to the AL250 and
void the warranty.
Note
Green
Orange
Red
The Charge Indicator (F) will show theuser the remainingchargeof
the battery with one ofthe followingcolors:
Charge Indicator (Working Status)Status
100-40%
40-20%
20-0%
Error
Charge Indicator
(FastBlink 10 secondsOff)

9
Specifications
For Your Safety
•Do not remove Battery fromAL250 when when power is on.
•Do not attempt to disassemble the bodyof AL250.
•Do not install AL250 in a damp or wet area.
•Use only the includedpower supply.
•Use only a soft, dry towel to gently clean the exterior of the AL250.
•Do not attempt to disassemble, deform, solder, or heat battery.
•Do not insert battery with different connector.
•Stop using if battery expands or the temperature is over 40 °C(104 F) or
under 0 °C(32 F).
•Do not short circuit battery.
•Do not leave AL250 inside ahot vehicle or trunk. Avoid using AL250 in direct
sunlight for prolonged amounts of time.
•If batteries will notbe used for an extended length of time, they should be
fully discharged, sealed in aplastic bag, and stored in a refrigerator.
•Never leave a batteryoperated device unattended whileit is running .
Size 3.7” (Length) × 2.9” (Width) × 2.1” (Height)
Weight 0.59 lb/ 270 g
20 Wh (Watt hours)
2600mAh Power Capacity
Charger (Port Type) 5V/2A(Micro USB)
CCT 5600K
CRI >93
Battery Li-ion Rechargeable Battery2600mAh
Operating Temperature 0 to 40 °C

1110
1 Year Limited Warranty
Unless otherwise stated, your product is covered by a one year
parts and labor limited warranty. Fiilex guarantees, to the original
buyer, that this product (Battery Not Included) is to be free of
defects in both workmanship and material for a period of one year
from the date of shipment. This warranty extends to all products
(Battery Not Included) which have proved defective through
normal use but excludes products that have been disassembled,
modified or misused by the buyer or any other person. This
warranty is in lieu of all other warranties, and disclaims all
warranties expressed or implied, including any warranty of
merchantability, fitness for aparticular purpose,or arising from the
course of dealingbetween the parties or usage of trade.
Returningan Item Under Warranty for Repair
It is necessary to obtain a Return Merchandise Authorization
Number (RMA#) fromyour dealer /pointof purchase BEFORE any
units are returned for repair. Fiilex will make the final determination
as to whether or not the unit is covered by warranty. Fiilex will
replace or repair to proper working condition any products that are
returned under warranty. Products repaired or replaced under
warranty are under warranty only for the remaining unexpired
period of time of the original warranty.
Any product unit or part returned to Fiilex must be packaged in a
suitable manner to ensure the protection of such productunit or
parts. The package must be clearly and prominently marked to
indicate that the package contains returned product units or parts
with a Return Merchandise Authorization Number(RMA#). All
returned product units or parts must be accompanied by a written
explanation of the alleged problem or malfunction.
Information and Specifications inthis document are subject to change without notice.
DiCon Lighting, Inc. assumes no responsibility or liability for any error or inaccuracies that
may appear in this manual. Unlawful reproduction or distribution in any manner without the
written permission of DiCon Lighting, is strictly prohibited.
© DiCon Lighting 1996-2016 All Rights Reserved
