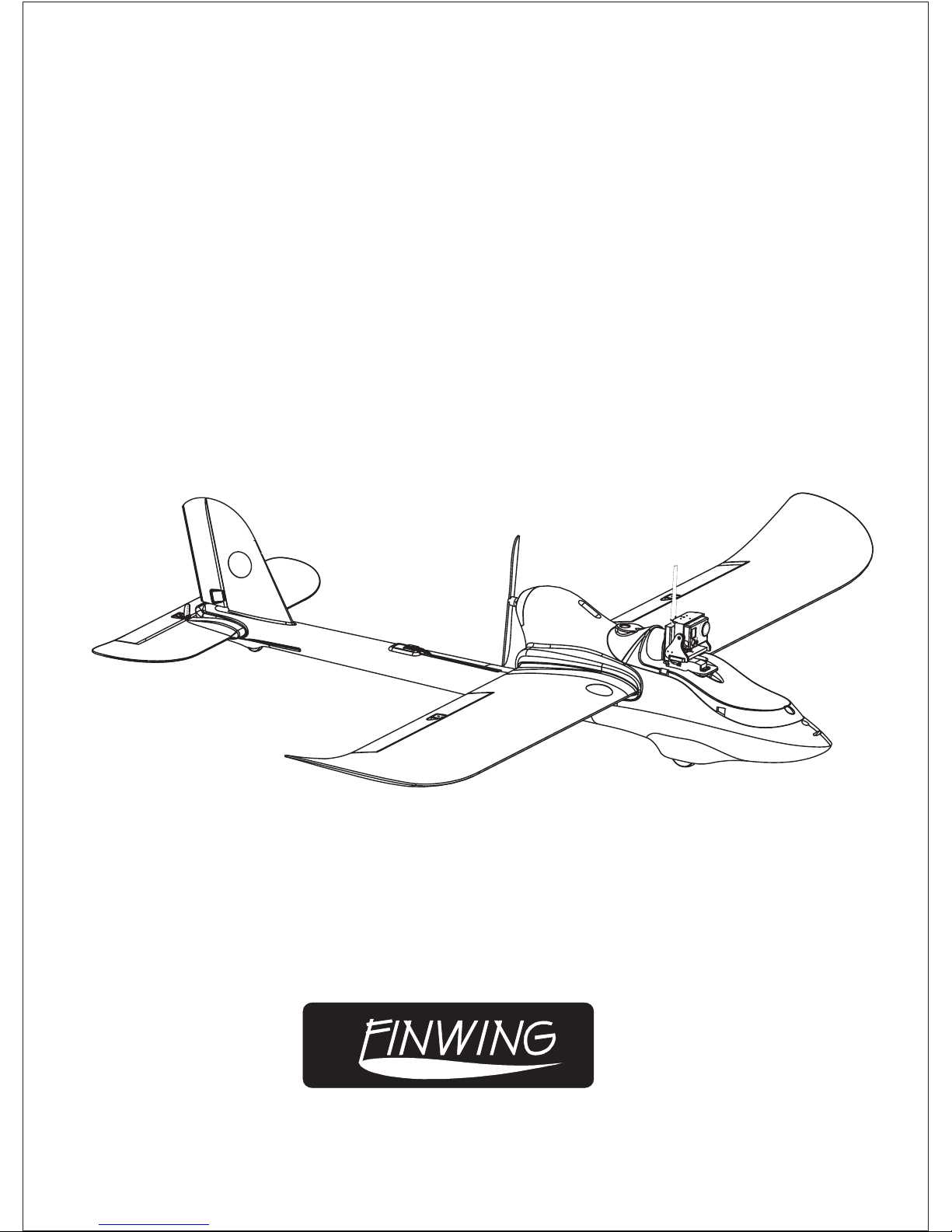

Finwing Penguin 1720 User manual

USER MANUAL
FINWING PENGUIN 1720FINWING PENGUIN 1720
FINWING TECHNOLOGY
WWW FINWINGHOBBY COM
PATENT PENDING
..

FINWING TECHNOLOGY
WWW FINWINGHOBBY COM
PATENT PENDING
..
Warning:
'
Penguin
Penguin pilots the Penguine is easy flying recommend for FPV beginner
:,feedbacks
This manual aims to help direct the user on how to build the RC plane.
Please visit the Finwing official website for additional highlighted features, functions, and more.
Please read through the manual carefully before installation and flying
1 This model airplane is not a toy not recommended for children under 14 years old., ,
2. Be cautious and prepared while flying this plane as a range of issues could lead to a crash
including the environment/weather, speed, pilot error, improper building/testing,
interference or other component failures
3. Flying field: Choose an adequate flying space at least 100 meters long/wide and in an unpopulated
and non-built up area for safe flying. This includes avoiding flying over cities or other populated areas.
4. Please don't fly this model airplane in bad weather including rainy and/or windy environments.
5. Remember to unplug your flight/video battery when not in use to avoid any interference to others
who might be on similar channels.
6. Please remember switch on the transmitter first before connecting the battery, and disconnect
the battery first before switching off your transmitter.
7. Keep away from the propeller when the Penguin is powered as it can be dangerous and could
lead to injury. Keep the powered plane away from children at all times to avoid any accidents or injury.
.

1
Fuselage installation
Please read through this page first before joining halves of the fuselage
The traditional control horn layout
Control horn has been
installed under the stabilizer
New layout up installed""
Control horn has been
installed the stabilizeron
The purpose of the up installed control horn is to avoid grass Drag during landing
at the grass field it may need some minor modifications if you like up installed
but ignore this page if you do not need up stalled control horn
""
,""
25MM
Use hobby knife to cut out a small slot
*:'Note Don t glue
keep it removable
*:'Note Don t glue
keep it removable
1
4
Use hobby knife to elarge the tube slot
2
Elevator control surface
3
Add glue to install the extension tube
insert it into position

2

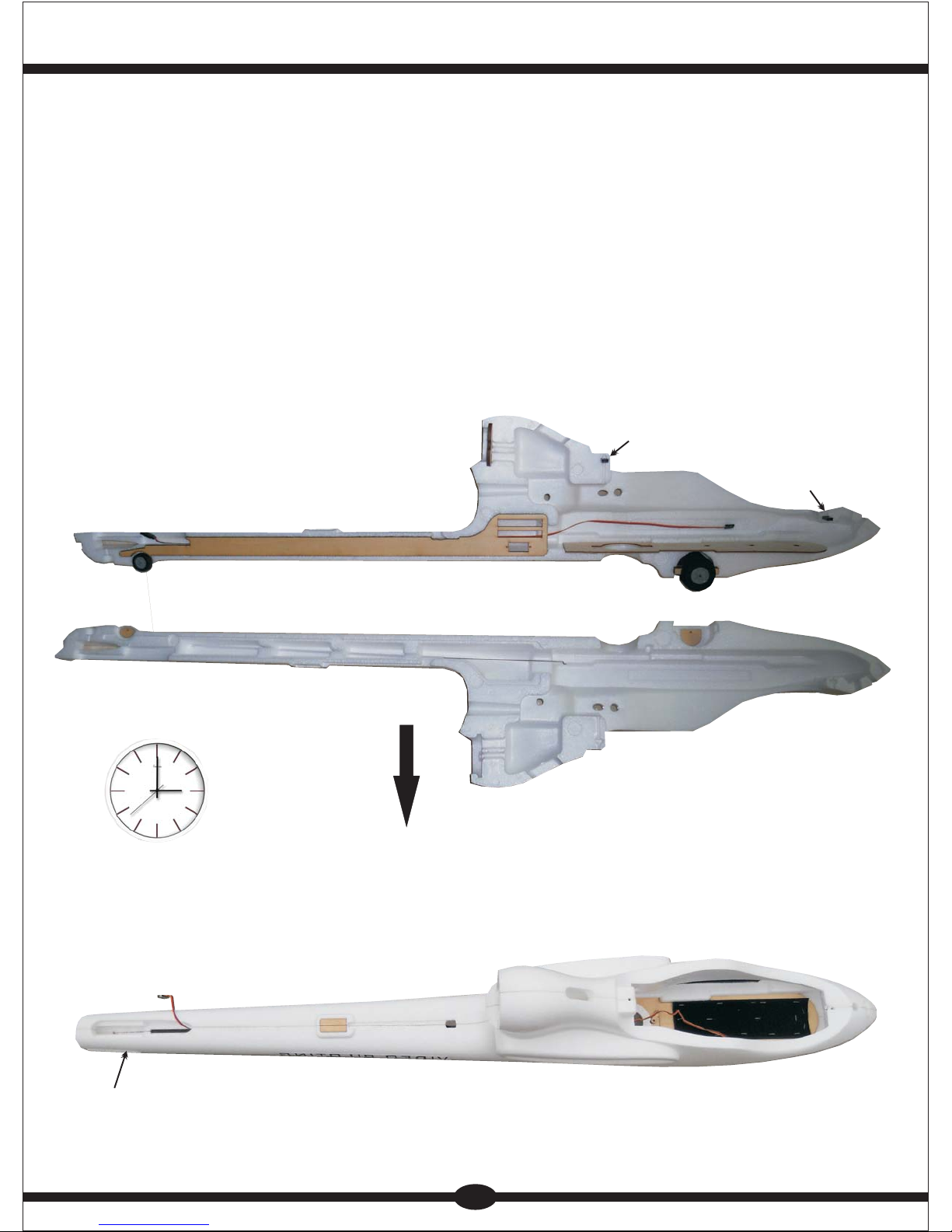

Join the two halves of fuselage
If you have other wiring or modifications to add for the build run those through the
fuselage and tail-boom before closing the fuselage
*Note: Double check to ensure all parts are prepared and no parts are missing.
MAKE SURE to plan where you need glue before you begin!
Glue the left-half of fuselage, and other reinforcements parts that also need gluing
where the fuse halves meet. Make sure ample glue is across all points to be connected.
*Note: All gluing needs to be done at one time so make sure to move quickly
once starting as glue will dry fast. Gluing should be completed in about 9 minutes.
Add a moderate amount of glue to the contact surface.
Too much glue can cause erosion in the foam.
*
Fuselage installation
*: 'Note Glue don t flow to nut
*
:. :.
-
Note
please find out one wood washer
size Φ15MM Thickness 3 0MM
add a little glue install it to the bottom of the tail boom
Join both halves of fuselage immediately after gluing, press firmly and use clamps
or other tools like painters tape to secure it until glue has dried.
Generally with air-drying indoors the glue will set after a 24 hour period.

3
Rudder servo and Servo horn Installation
Don t recommend over height'-
Big size and Heavy Camera
*Note
Wrap tape to secure the connectors as it can prevent
the connectors from disconnecting when pulling the
extension cables.
Install the control horn with screws to
secure the servo horn
Reinforce rudder joint with pack tape
*
*
Install servo,
Push rod and clevis
*()FUS009
Vertical stabilizer
Cockpit and Canopy
Please find out the Camera mount wood base from Airplane package
installed it as needed
This is the third generation canopy
Adopted new material and it s much better than the Second generation canopy
.
'

Thanks for buying the great Penguin Aircraft Here is some of the latest update
on how to building the penguin including some tips from previous penguin owners
Thanks for sharing and their efforts please read it before your building works
.
.
,
Update 1#
(- )New servo horn left 3PCS
Stainless steel Servo horn
Elevator Aileron Aileron Rudder
&Main wing Aileron Servo Servo horn installation
Vertical stabilizer Rudder Servo Servo horn installation()_&

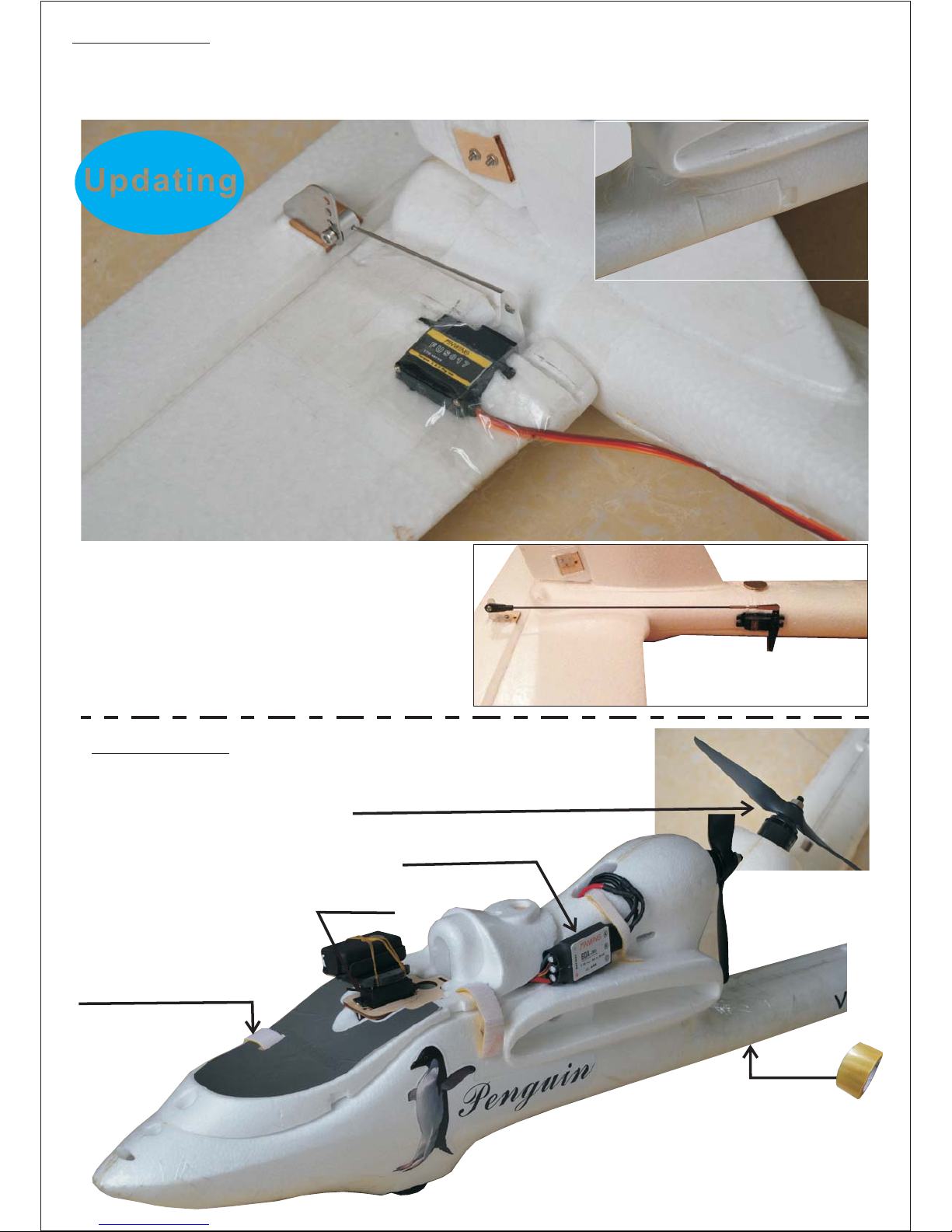

Tips Sharing 1#
-
. .
,
Some of Penguin owners preferred to install the servo on the H wing directly or at the back of
the fuselages The Main purpose is to
Another reason is to use as shorter pull rod as possible this is good to protect the Servo Gear
Here Shown is the pilot modified his Airplane for your reference
avoid cutting out a hole by the side of the fuselage
Another Penguin owners modified
it like this for your reference
note
All the tips displayed here is
Not the must works to do with your building
Just sharing information for your reference
Please do it according to your own preference
*:
Tips Sharing 2#I noticed some flyers installed the
propeller at wrong direction
Bear in mind for most of the Propeller
the embed words forward toward the nose
!
()
Wrap tape
this is the easiest way
it s good to further
reinforce this junction
'
Outside Cooling
Finwing 390 Pan Module
0
Use Velcro to secure it
if you wish fast install and
uninstall of the cockpit
()modified it like the AirTitan Aircraft
Elevator

6
Penguin1720 Power system
Penguin Power Combo
*Note: The following instructions are only for Finwing Stock Electronic combo
(FUP1201 and FUP1205)
6CH Receiver
()For Example
1
2
3
4
5
6
B
ESC
(-)with built in BEC
34-SLipo
Battery
FINWING
Motor
Stock
Penguin 60A (SBEC output 5V 3A
Penguin 40A BEC output
:.)
:- / : ( )
:
:
:
:. / %
:
:
:
:
Stock ESC
Factory default setting
Input 3 4S lipo Burst Current 70A Less than 10 seconds
2
Brake type Brake off
Battery Lipo
Cut off voltage threshold 3 0V 60
Timing Auto
Governor Mode RPM off
Start up
Lower voltage cut off type Reduce power
:- / : ( )
Stock ESC ( :.)5V 3A
Input 3S lipo Burst Current 5 A Less than 10 seconds0
Acceleration Soft acceleration
Penguin 60A (SBEC output 5V 3A
Penguin 40A BEC output
:.)
( :.)5V 3A
Throttle calibration setting required for The first time use or changed new transmitter
*:' " "Note it s possible to cause lost throttle signal if no throttle calibration
Switch on Transmitter
Throttle stick to
the Maximum Position
Power on UBEC
Power on ESC
waiting for a moment
Seconds<- >23
Hear
Motor
Beep Beep
Throttle stick to
the Minimum Position
Motor Beep.....
Indicating cell number
and signal confirmation
Throttle calibration done
Disconnect UBEC and ESC
Reconnect UBEC and ESC
Ready to fly
Plese visit FINWINGHOBBY COM for detailed introductions and instructions of program.FAQ

7
Insert one of the Wings first Insert another Wing
Use the Velcro hook and loop to stick to the
fuselage wooden base to hold
your battery, FPV gear, etc. into place.
Generally Hook stick to fuselage body
Airplane ready to fly
Insert screw and secure it with nuts
7
