Fire-Lite Alarms MS-5024 User manual

12 Clintonville Road, Northford, CT 06472
The MS-5024/MS-5024E
Fire Control
Communicator
© 1997 Fire•Lite Alarms, Inc.
Document # 50066Document # 50066
Document # 50066Document # 50066
Document # 50066
5/2/975/2/97
5/2/975/2/97
5/2/97 Rev: D
P/N 50066:D ECN 97-173
Installation, Programming, Operation
and Maintenance Manual
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

WARNING: This equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instruction manual, may
cause interference to radio communications. It has been tested and found to comply
with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC
Rules, which is designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user will be required
to correct the interference at his own expense.
Installation Precautions - Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING - Several different sources of power can be connected to the fire alarm
control panel. Disconnect all sources of power before servicing. Control unit and
associated equipment may be damaged by removing and/or inserting cards,
modules, or interconnecting cables while the unit is energized. Do not attempt to
install, service, or operate this unit until this manual is read and understood.
CAUTION - System Reacceptance Test after Software Changes: To ensure
proper system operation, this product must be tested in accordance with NFPA 72-
1993 Chapter 7 after any programming operation or change in site-specific software.
Reacceptance testing is required after any change, addition or deletion of system
components, or after any modification, repair or adjustment to system hardware or
wiring.
All components, circuits, system operations, or software functions known to be
affected by a change must be 100% tested. In addition, to ensure that other
operations are not inadvertently affected, at least 10% of initiating devices that are
not directly affected by the change, up to a maximum of 50 devices, must also be
tested and proper system operation verified.
This system meets NFPA requirements for operation at 0-49OC/32-120OF
and at a relative humidity of 85% RH (non-condensing) at 30O C/86OF.
However, the useful life of the system's standby batteries and the electronic
components may be adversely affected by extreme temperature ranges and
humidity. Therefore, it is recommended that this system and its peripherals be
installed in an environment with a nominal room temperature of 15-27OC/60-80O
F.
Verify that wire sizes are adequate for all initiating and indicating device loops.
Most devices cannot tolerate more than a 10% I.R. drop from the specified device
voltage.
Like all solid state electronic devices, this system may operate erratically or can
be damaged when subjected to lightning induced transients. Although no system is
completely immune from lightning transients and interferences, proper grounding will
reduce susceptibility. Overhead or outside aerial wiring is not recommended, due to
an increased susceptibility to nearby lightning strikes. Consult with the Technical
Services Department if any problems are anticipated or encountered.
Disconnect AC power and batteries prior to removing or inserting circuit boards.
Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing, reaming, or punching
of the enclosure. When possible, make all cable entries from the sides or rear.
Before making modifications, verify that they will not interfere with battery,
transformer, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs. Over tightening may damage
threads, resulting in reduced terminal contact pressure and difficulty with screw
terminal removal.
This system contains static-sensitive components. Always ground yourself with a
proper wrist strap before handling any circuits so that static charges are removed
from the body. Use static suppressive packaging to protect electronic assemblies
removed from the unit.
Follow the instructions in the installation, operating, and programming manuals.
These instructions must be followed to avoid damage to the control panel and
associated equipment. FACP operation and reliability depend upon proper
installation.
Fire Alarm System Limitations
While installing a fire alarm system may make lower insurance
rates possible, it is not a substitute for fire insurance!
An automatic fire alarm system - typically made up of smoke detectors, heat
detectors, manual pull stations, audible warning devices, and a fire alarm control
with remote notification capability can provide early warning of a developing fire.
Such a system, however, does not assure protection against property damage or
loss of life resulting from a fire.
Any fire alarm system may fail for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot reach the detectors such
as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke
detectors also may not sense a fire on another level or floor of a building. A second
floor detector, for example, may not sense a first floor or basement fire. Further-
more, all types of smoke detectors - both ionization and photoelectric types, have
sensing limitations. No type of smoke detector can sense every kind of fire caused
by carelessness and safety hazards like smoking in bed, violent explosions,
escaping gas, improper storage of flammable materials, overloaded electrical
circuits, children playing with matches, or arson.
IMPORTANT! Smoke detectors must be installed in the same room as the
control panel and in rooms used by the system for the connection of alarm
transmission wiring, communications, signaling, and/or power. If detectors are
not so located, a developing fire may damage the alarm system, crippling its
ability to report a fire.
Audible warning devices such as bells may not alert people if these devices are
located on the other side of closed or partly open doors or are located on another
floor of a building.
A fire alarm system will not operate without any electrical power. If AC power fails,
the system will operate from standby batteries only for a specified time.
Rate-of-Rise heat detectors may be subject to reduced sensitivity over time. For
this reason, the rate-of-rise feature of each detector should be tested at least once
per year by a qualified fire protection specialist.
Equipment used in the system may not be technically compatible with the control.
It is essential to use only equipment listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a premise to a central
monitoring station may be out of service or temporarily disabled.
The most common cause of fire alarm malfunctions, however, is inadequate
maintenance. All devices and system wiring should be tested and maintained by
professional fire alarm installers following written procedures supplied with each
device. System inspection and testing should be scheduled monthly or as required
by National and/or local fire codes. Adequate written records of all inspections should
be kept.
FCC Warning
Canadian Requirements
This digital apparatus does not exceed the Class A limits for radiation noise
emissions from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques depassant les
limites applicables aux appareils numeriques de la classe A prescrites dans le
Reglement sur le brouillage radioelectrique edicte par le ministere des Communica-
tions du Canada.
Technical Publishing Document PRECAULG.P65 12/31/96
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

3
50066 Rev D 5/2/97 P/N 50066:D
Table of Contents
NFPA Standards, UL Documents 5
1.0 Product Description 7
1.1 Product Features 7
Figure 1-1: Optional DP-5024 7

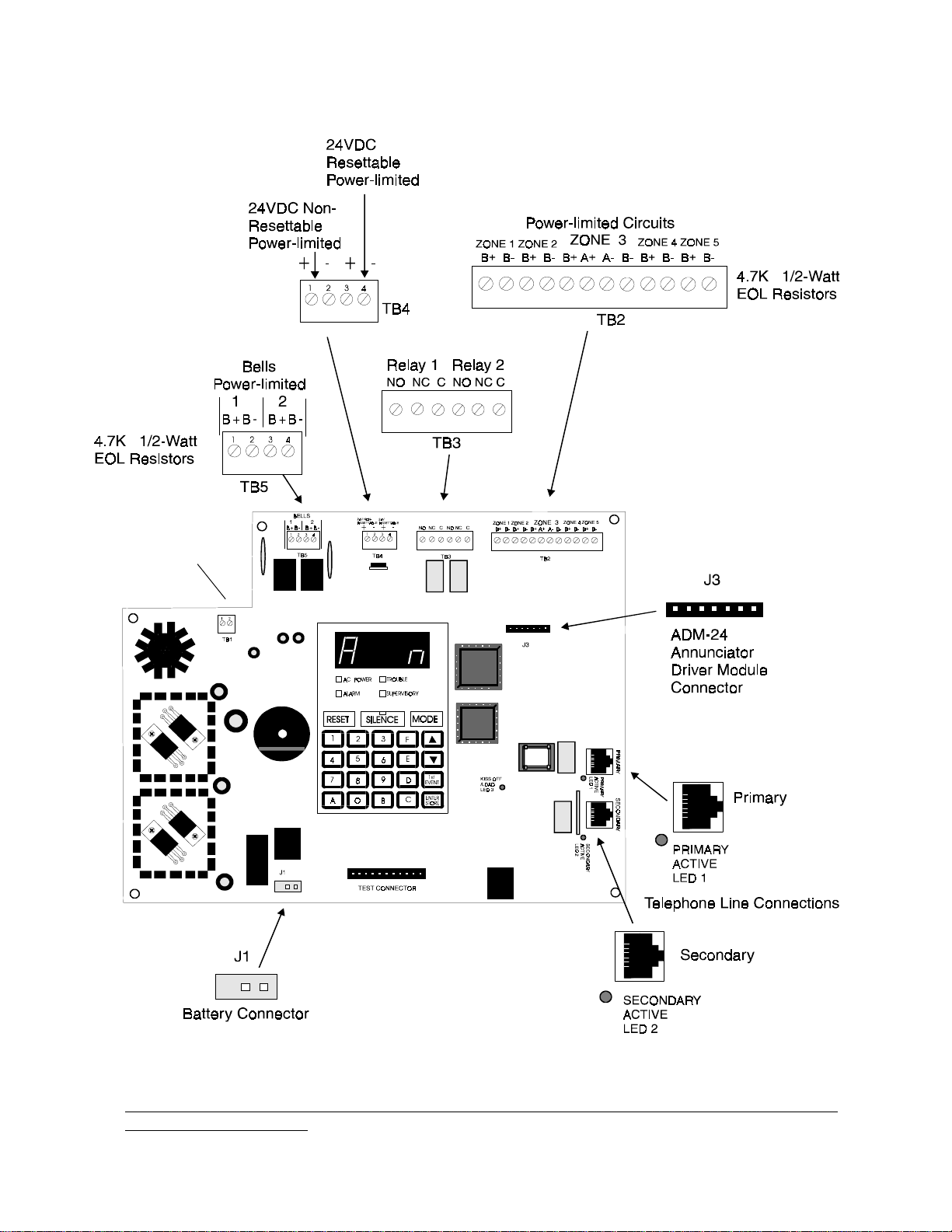

Figure 1-2: MS-5024 Panel 8
1.2 Controls and Indicators 9
1.3 Circuits 9
1.4 DigitalCommunicator 10
1.5 Components 10
1.6 Optional Devices 11
1.7 Specifications 12
1.8 Telephone Requirements and Warnings 13
1.8.1 Telephone Circuitry 13
1.8.2 Digital Communicator 13
1.8.3 Telephone Company Rights and Warnings 13
1.8.4 For Canadian Applications 14
2.0 Installation 15
2.1 General 15
2.2 Backbox Mounting 15

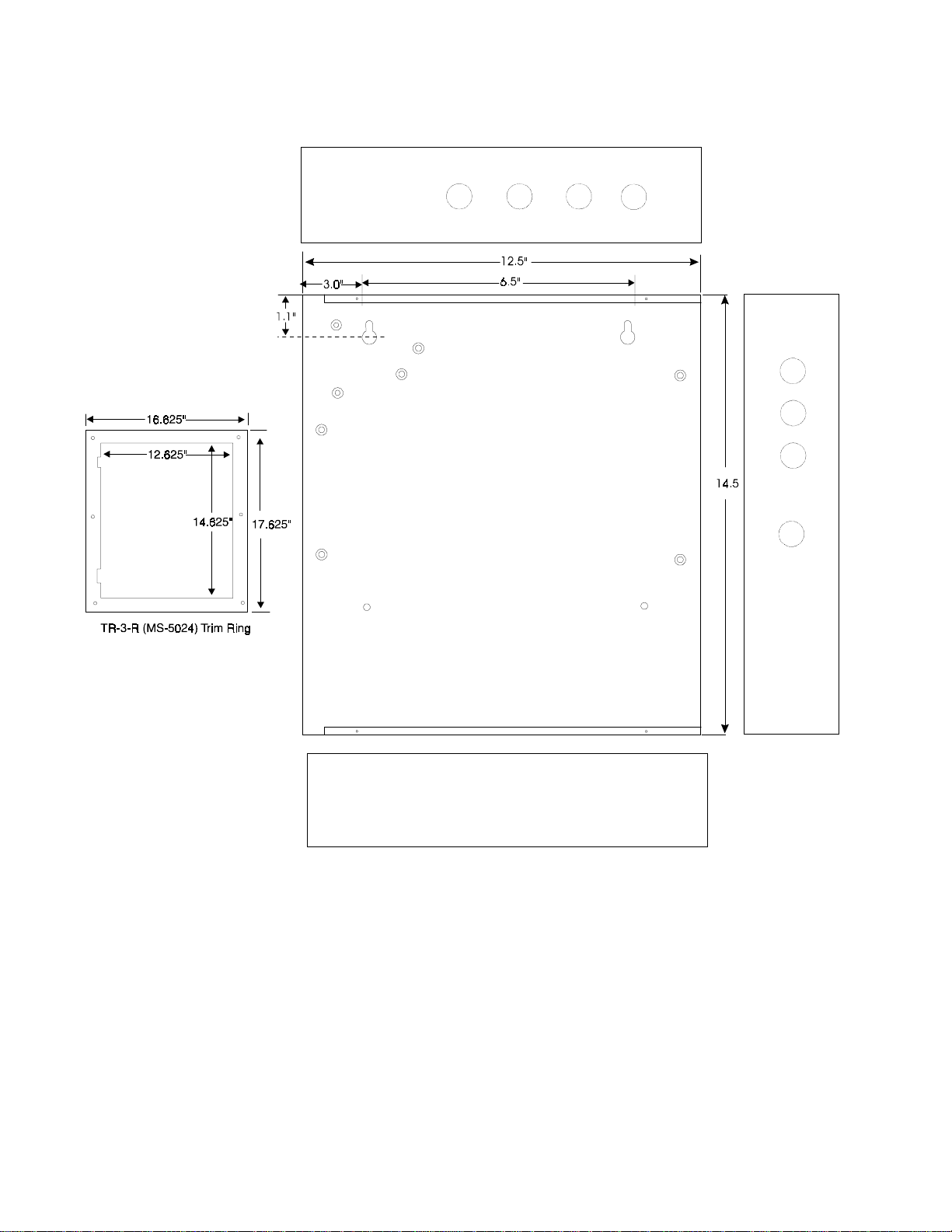

Figure 2-1: Cabinet Dimensions & Knockouts 16

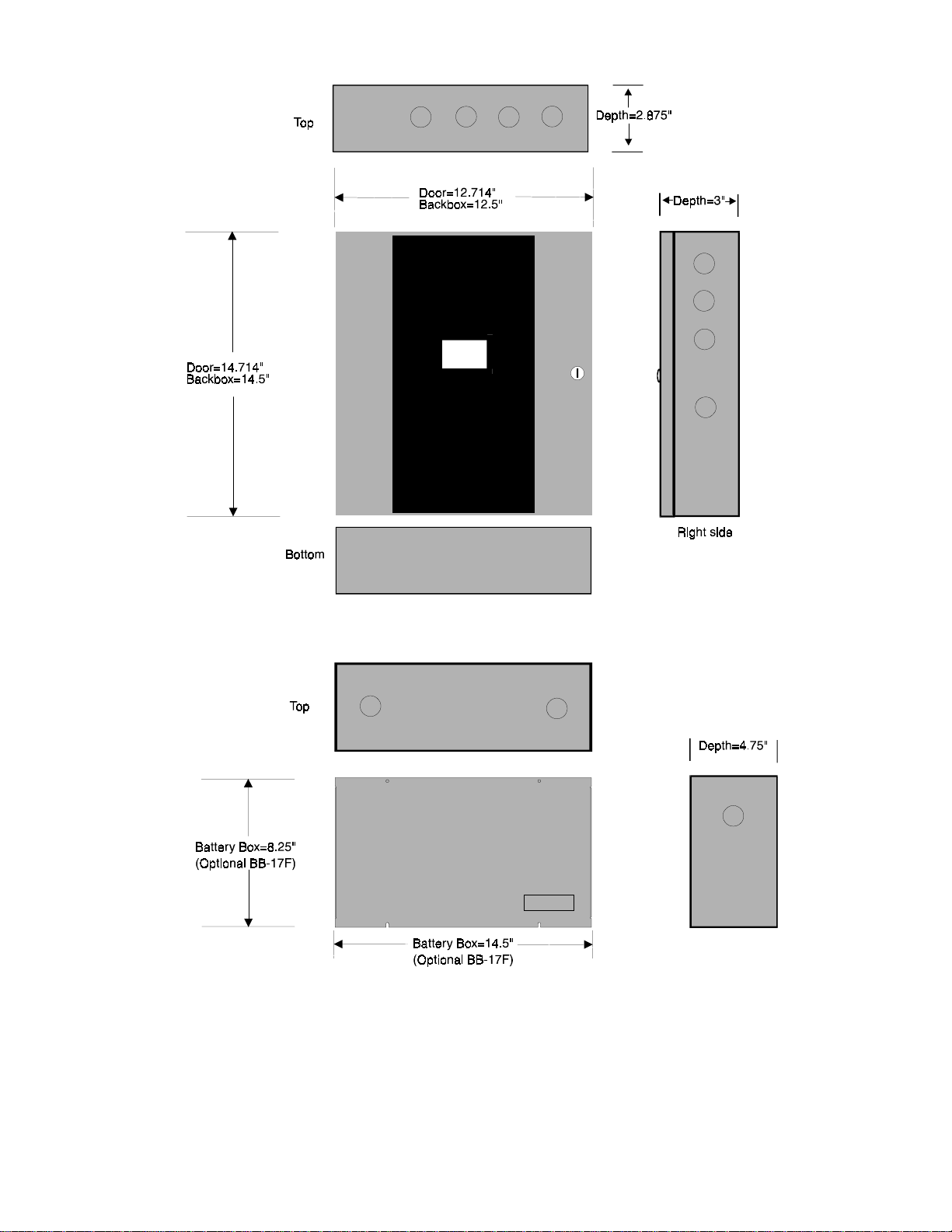

Figure 2-2: Backbox and Battery Box 17
2.3 Operating Power 18

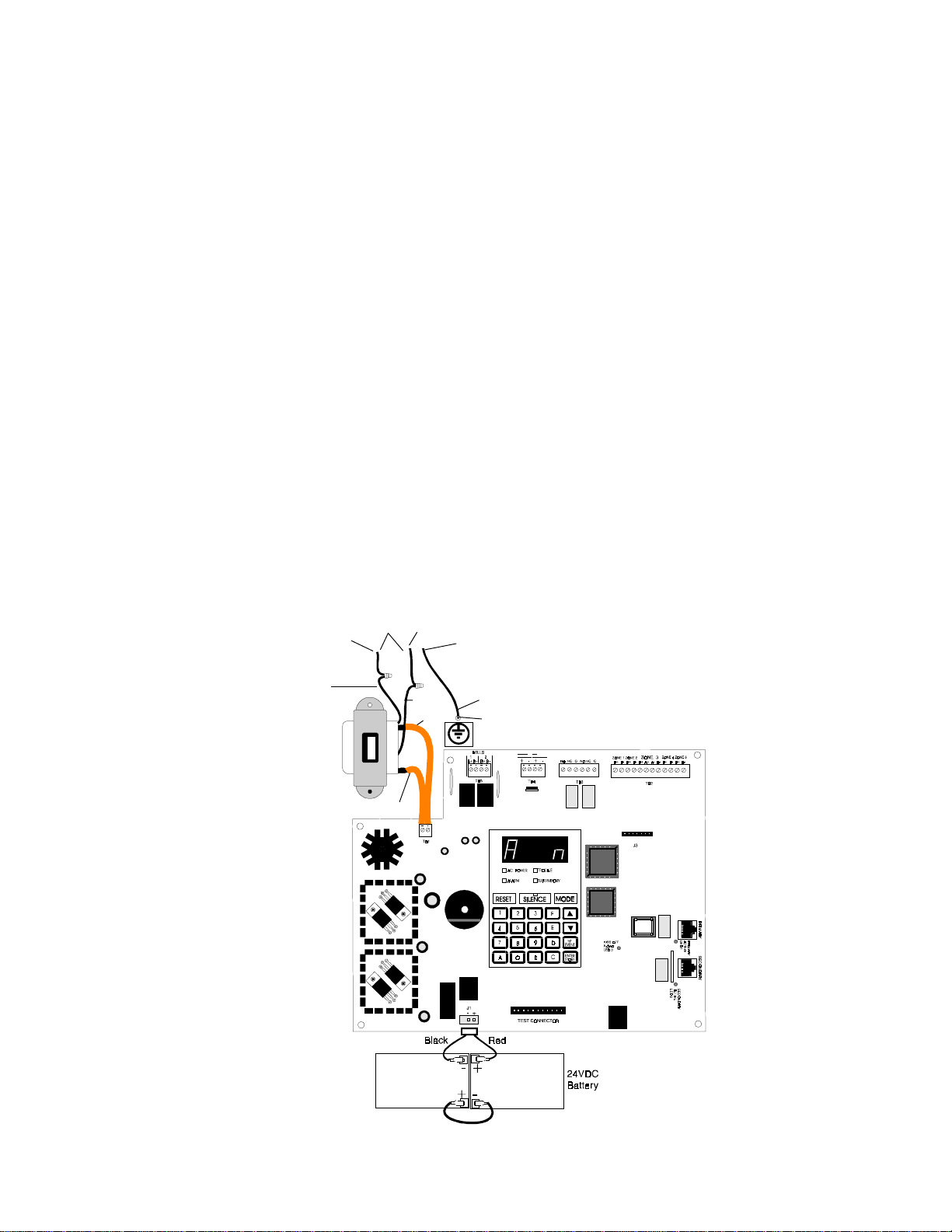

Figure 2-3: Operating Power Connections 18
Figure 2-4: Auxiliary Power Connections 19
2.4 Input Circuits 19

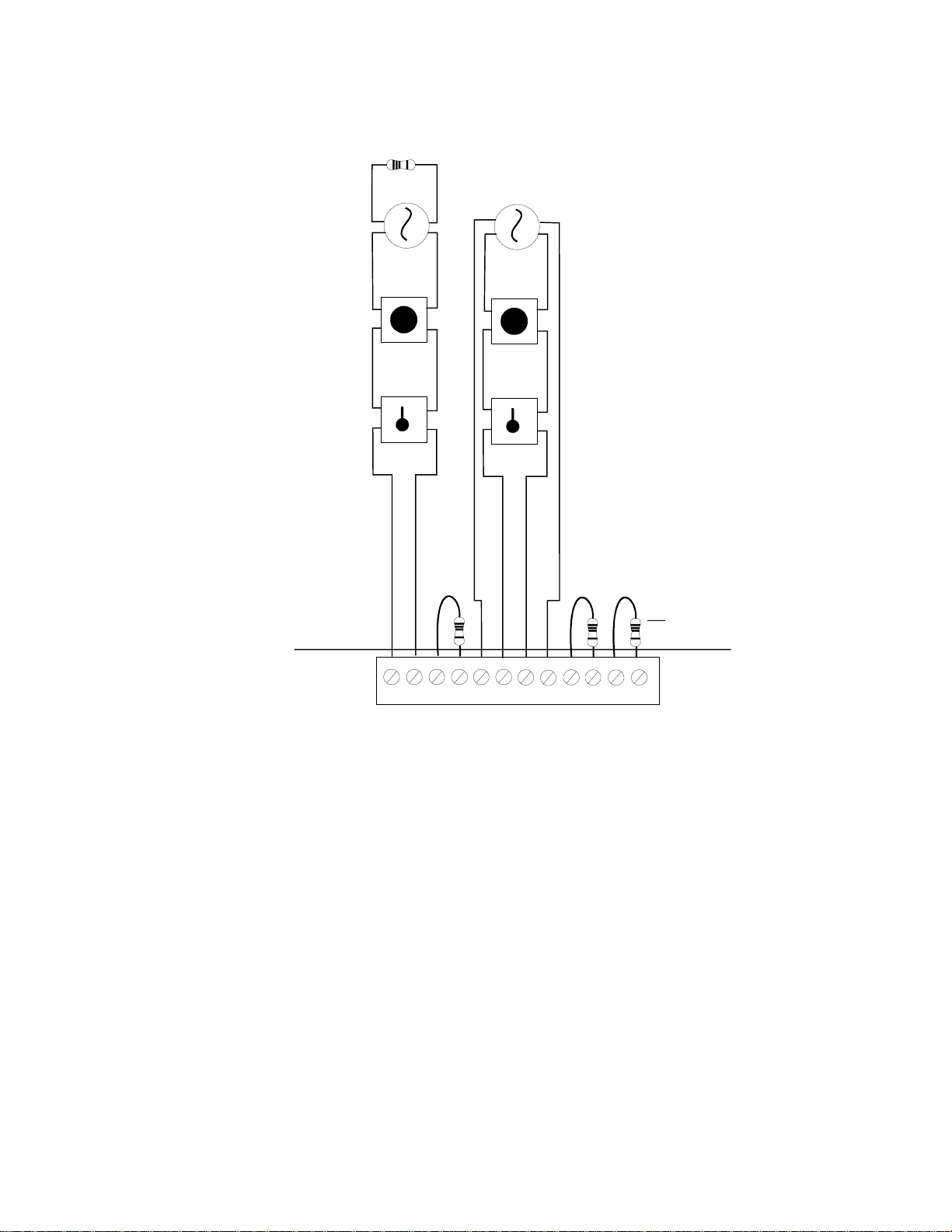

Figure 2-5: Typical Initiating Device Circuit 20
2.5 Output Circuits 20
Figure 2-6: Notification Appliance Circuit Connections 21
Figure 2-7: Programmable Relay Terminals 21
2.6 UL power-limited Wiring Requirements 22
Figure 2-8: Typical Wiring for UL Power-limiting 22
2.7 DigitalCommunicator 23
Figure 2-9: Wiring Phone Jacks 23
2.8 Optional Boards 24
Figure 2-10: ADM-24 24
Figure 2-11: RZA-5F 24
Figure 2-12: Wiring the RZA-5F/ADM-24 25
Figure 2-13: Installing the Annunciator 25
Figure 2-14: NACA-2F Style Z Converter 26
Figure 2-15: CAC-5F Style D Converter 26
3.0 Programming Instructions 27
3.1 Entering Program Mode 27
3.2 Switch Functions 28
Figure 3-1: Control Panel Keypad 28
3.3 Programming Options 28
Table 3-1: Event Codes, Primary C.S. Number 30
Table 3-2: Event Codes, Primary C.S. Number 31
Table 3-3: Event Codes, Secondary C.S. Number 33
Table 3-4: Event Codes, Secondary C.S. Number 34
Figure 3-2: Verification Timing Diagram 35
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

450066 Rev D 5/2/97 P/N 50066:D
Table of Contents
4.0 Operating Instructions 40
4.1 Switches 40
4.2 Displays 41
Figure 4-1: Phone Connectors & LEDs 42
4.3 Operation 43
4.3.1 Alarm Response 43
4.3.2 Alarm Restoral 44
4.3.3 System Supervisory Condition Response 44
4.3.4 System Supervisory Restoral Response 44
4.3.5 Trouble Condition Response 44
4.3.6 Trouble Condition Restoral 45
4.3.7 OFF Normal Reporting 45
4.3.8 Zone Disable/Enable 45
4.3.9 Fire Drill 46
4.4 Central Station Communications 46
Table 4-1: Format Selection Address (16 + 42) 47
Table 4-2: Format Selection Address Explanation 48
4.4.1 Transmittal Priorities 49
Table 4-3: Compatible UL Listed Receivers 50
5.0 Servicing 51
5.1 Walk Test Mode 51
5.2 History Mode 52
5.3 Troubleshoot Mode 54
5.4 Lamp Test 55
6.0 Slave Communicator Configuration 56
Figure 6-1: Slave Communicator Connections 57
Appendix A: Battery Calculations 58
Appendix B: Programming Reference Sheets 61
Appendix C: Wire Requirements 67
Appendix D: Operation and Function Modes 68
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

5
50066 Rev D 5/2/97 P/N 50066:D
This control panel has been designed to comply with standards set forth by the following
regulatory agencies:
•Underwriters Laboratories Standard UL 864
•NFPA 72-1993 National Fire Alarm Code for Local, Remote Station and Central Station Fire Alarm Systems
• CAN/ULC - S527-M87 Standard for Control Units for Fire Alarm Systems
Before proceeding, the installer should be familiar with the following documents.
NFPA-1993 Standards:
NFPA 72-1993 National Fire Alarm Code
Underwriters Laboratories Documents:
UL 38 Manually Actuated Signaling Boxes
UL 217 Smoke Detectors, Single and Multiple Station
UL 228 Door Closers—Holders for Fire Protective Signaling Systems
UL 268 Smoke Detectors for Fire Protective Signaling Systems
UL 268A Smoke Detectors for Duct Applications
UL 346 Waterflow Indicators for Fire Protective Signaling Systems
UL 464 Audible Signaling Appliances
UL 521 Heat Detectors for Fire Protective Signaling Systems
UL 864 Standard for Control Units for Fire Protective Signaling Systems
UL 1481 Power Supplies for Fire Protective Signaling Systems
UL 1638 Visual Signaling Appliances
CAN/ULC - S524-M91 Standard for Installation of Fire Alarm Systems
Other:
NEC Article 300 Wiring Methods
NEC Article 760 Fire Protective Signaling Systems
Applicable Local and State Building Codes
Requirements of the Local Authority Having Jurisdiction
Fire-Lite Documents
Fire-Lite Device Compatibility Document, #15384
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

650066 Rev D 5/2/97 P/N 50066:D
TB1
Secondary
Transformer
Connector
Note: When dressing wires, maintain a minimum of a 1/4" distance between conductors to power limited and
non-power limited circuits.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

7
50066 Rev D 5/2/97 P/N 50066:D
1.0 Product Description
The MS-5024 is a combination control panel and digital communicator all on one circuit board. It is a five-zone panel
which uses conventional input devices. The panel accepts waterflow devices, two-wire smoke detectors, four-wire
smoke detectors, pull stations and other normally open contact devices. Outputs include two Notification Appliance
Circuits, and two programmable relays.
The integral communicator transmits system status (alarms, troubles, AC loss, etc.) to UL-listed Central Stations via
the public switched telephone network. The control panel has a built in programmer and may also serve as a slave
communicator to a host panel. It also supervises all wiring, AC voltage, telephone line input voltage and battery level.
The MS-5024E offers the same features as the MS-5024 but allows connection to 220/240 VAC input.
1.1 Product Features
• Selectable as Fire Panel, Fire Panel/Communicator,
or Slave Communicator
• Programmable Zone ID: 2 Wire Smoke; Pull Station;
Normally Open Contact; Supervisory; Supervisory-
Auto Silence; Waterflow-Silenceable; Waterflow-
Non-Silenceable
• One Style D (Class A) Initiating Zone
• Four Style B (Class B) Initiating Zones
• 3.6 amps Usable Power
• Two NFPA Style Y (Class B) Notification
Appliance (bell) Circuits
• Built-in Programmer
• Built-in Voltmeter
• Telephone Line Active LED Indicators
• Communication Confirmation (Kissoff) LED
• Disable report by event
• Programmable Event Codes
• 24 Volt Operation
• Real Time Clock
• Trouble Reminder
• Alarm Verification
• Alarm Presignal
• RZA-5F Remote Annunciator (requires ADM-24
Annunciator Driver Module)
• Small Size 14.5" x 12.5" x 2.875"
• History File with 32 Event Storage
• Silence Inhibit per Notification Appliance Circuit
• Auto-Silence per Notification Appliance Circuit
• Touchtone/Rotary Dialing
• Programmable Make/Break Ratio
• Fuseless
• Number of dial attempts (5 min, 10 max)
• Programmable Channel ID (slave)
• Programmable Zone Delay (waterflow only)
• Two Form-C Programmable Relays
Figure 1-1: Optional DP-5024
• Low AC Voltage Sense
• One Man Walk Test
• Optional Dead Front cover (DP-5024)
• CAC-5F Class A Converter module for
Initiating Device Circuits
• NACA-2F Class A Converter module for
Notification Appliance Circuits
Note: Unless otherwise specified, MS-5024 shall be used in this manual to refer to both the MS-5024 and
MS-5024E Fire Control Communicators.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

850066 Rev D 5/2/97 P/N 50066:D
Holds up to 7AH Batteries
Up to 60 Hrs. of Standby

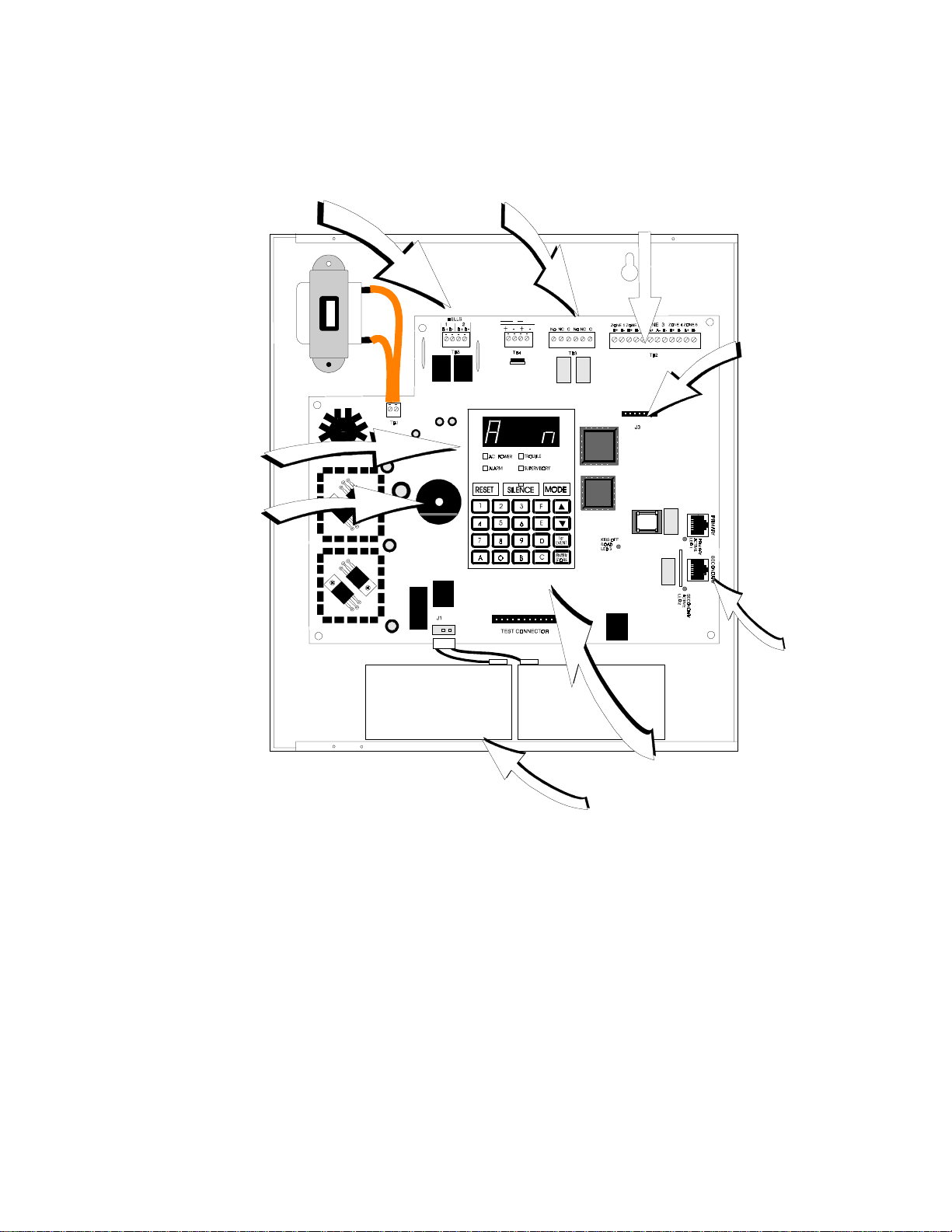

Figure 1-2: MS-5024 Panel
Four Character
7-Segment LED
Display
Annunciator
Driver Module
Interface
Connector
Keypad
Piezo
85dB
Primary &
Secondary
Phone Lines
5 Input
Zones
Programmable
Relays
Notification
Appliance Circuits
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

9
50066 Rev D 5/2/97 P/N 50066:D
1.2 Controls and
Indicators Front Panel Switches
RESET Digits 0-9
SILENCE A
MODE B
Up Arrow C
Down Arrow D
1st EVENT E
ENTER/STOREF
Displays
• Alarm - red LED
• Trouble - yellow LED
• Supervisory - yellow LED
• AC Power - green LED
• Four, Seven Segment Displays - red
• Primary Phone Line Active - red LED
• Secondary Phone Line Active - red LED
• 'Kissoff' Signal from Central Station - green LED
• Silence - yellow LED
Local Sounder - A piezo sounder provides separate and distinct sounds for alarm,
trouble and supervisory conditions.
Input Circuits
Five input circuits provide Style B configuration with one circuit also configurable
for Style D. Input circuits may be used as standard fire control panel zones or slave
communicator input channels.
Initiating Device Circuit 1 (Style B) accepts Normally Open contact devices and 2-
wire smoke detectors.
Initiating Device Circuit 2 (Style B) accepts Normally Open contact devices and 2-
wire smoke detectors.
Initiating Device Circuit 3 (Style B/D) accepts Normally Open contact devices, 2-
wire smoke detectors and waterflow devices.
Initiating Device Circuit 4 (Style B) accepts Normally Open contact devices and 2-
wire smoke detectors.
Initiating Device Circuit 5 (Style B) accepts Normally Open contact devices and 2-
wire smoke detectors.
Output Circuits
• 24 Volt Resettable Power Output
• 24 Volt Non-Resettable Power Output
• Primary Telephone Line
• Secondary Telephone Line
• 24 Volt Battery Charger
Notification Appliance Circuits - Two Notification Appliance Circuits configurable
for Style Y (Class B) with various programmable features.
Relays - Two dry Form-C relay contacts programmable for Alarm, Trouble,
supervisory, and/or communications failure. Contacts are rated 2 amps at 30 VDC
and 0.5 amps at 30 VAC resistive.
Figure 1-3: Controls and
Indicators
1.3 Circuits
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

10 50066 Rev D 5/2/97 P/N 50066:D
1.4 Digital
Communicator Two modular phone jacks allow easy connection to telephone lines. Modular jacks
are labeled PH1 and PH2 for the Primary and Secondary phone lines. Telephone line
active red LEDs are provided as well as a green 'Kissoff' LED. The integral digital
communicator provides the following functions:
• Line Seizure - takes control of the phone lines disconnecting any premises
phones.
• Off/On Hook - perform on and off-hook status to the phone lines.
• Listen for dial tone - 440 hertz tone typical in most networks.
• Dialing the Central Station(s) number - default is Touch-Tone®,
programmable to rotary.
• For tone burst or touchtone type formats: Discern proper 'Ack' and 'Kiss-off'
tone(s) - The frequency and time duration of the tone(s) varies with the
transmission format. The control panel will adjust accordingly.
• Communicate in the following formats:
✓12 Tone Burst Types: 20 pps
(3+1, 4+1, 4+2, 3+1 Exp., 4+1 Exp., 4+2 Exp.)
✓2 Touchtone Types:
4 + 1 Ademco Express
4 + 2 Ademco Express
See Table 4-3 for list of compatible receivers.
The main circuit board contains the system's CPU, power supply, other primary
components and wiring interface connectors. Optional modules plug in and are
mounted to the main circuit board. The main circuit board is delivered pre-mounted
in the cabinet.
The cabinet is red with an attractive navy blue front overlay. The backbox measures
14.5" x 12.5" x 2.875" and provides space for two batteries (up to 7 Amp Hours).
Also available is an optional dress panel, DP-5024, which mounts inside
the cabinet.
One 100VA transformer is provided standard with the panel.
The cabinet provides space for 7 Amp Hour batteries (for 12 Amp Hour to 17 Amp
Hour batteries use the UL listed BB-17F battery box). Batteries must be ordered
separately.
Main Circuit Board
1.5 Components
Cabinet
Transformer
Assembly
Batteries
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

11
50066 Rev D 5/2/97 P/N 50066:D
ADM-24
The ADM-24 Annunciator Driver Module supports the RZA-5F Remote
Annunciator module. Annunciator wiring is supervised for open circuits by this
module. The Annunciator Driver Module mounts to connector J3 in the upper right
corner of the main board. See Figure 1-2 and 2-10.
Remote Annunciator
The RZA-5F Remote Annunciator mounts on a standard single-gang box, and
provides LED indication of the following:
Alarm Zone 1 (red)
Alarm Zone 2 (red)
Alarm Zone 3 (red)
Alarm Zone 4 (red)
Alarm Zone 5 (red)
System Trouble (yellow)
A Local Trouble Sounder and Tone Silence Switch are also provided. All LEDs and
their wiring are supervised for open conditions. Any open condition will cause the
System Trouble LED to illuminate. Slide in paper labels permit an easy change of
zone information. See Figure 2-11. Note: The RZA-5F Remote Annunciator
requires the use of the ADM-24 Annunciator Driver Module. Only one ADM-24/
RZA-5F combination is allowed per system.
CAC-5F
The CAC-5F Class A Converter module converts the Style B (Class B) Initiating
Circuits to Style D (Class A). The CAC-5F mounts to terminal block TB2 located in
the upper right corner of the main circuit board (refer to Figures 1-2 and 2-15). The
removable terminal block on the CAC-5F module provides for ease of wiring.
NACA-2F
The NACA-2F Notification Appliance Circuit Class A Converter module converts
the two NAC circuits from Style B (Class B) to Style D (Class A). The converter
module mounts to terminal block TB5 located in the upper left corner of the main
circuit board (refer to Figures 1-2 and 2-14). The removable terminal block on the
NACA-2F module provides for ease of wiring.
Dress Panel
A red dead-front dress panel (DP-5024) is available as an option (required for
Canadian installations). The dress panel restricts access to the system wiring while
allowing access to the membrane switch panel. See Figure 1-1.
Battery Box
The BB-17F battery box may be used to house two 12 Amp Hour or 17 Amp Hour
batteries. The battery box mounts directly below the main circuit board in the
cabinet (refer to Figure 2-2). The BB-17F is red and is provided with knockouts.
1.6 Optional Devices
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

12 50066 Rev D 5/2/97 P/N 50066:D
AC Power (Supervised) - TB1
MS-5024: 120 VAC, 60 Hz, 1.2 amps
MS-5024E: 220/240 VAC, 50 Hz, 0.6 amps
Wire size: minimum #14 AWG with 600V insulation
Battery (Supervised ) - lead acid only - J1
Maximum Charging Circuit: Normal Flat Charge—27.6V @ .8 amp.
Maximum Charger Capacity: 17 Amp Hour battery. (MS-5024 cabinet holds max. 7
Amp Hour battery. Larger batteries require Fire-Lite #BB-17F or other UL listed
battery cabinet).
Initiating Device Circuits TB2
Detector Zones 1, 2, 3, 4, 5
Power-limited Circuitry
Operation: All zones (NFPA Style B), Zone 3 (NFPA Style B or D). Use CAC-5F
for Style D operation.
Normal Operating Voltage: 24 VDC (ripple = 100 mV max)
Alarm Current: 26 mA
Short Circuit Current: 42 mA max.
Maximum Loop Resistance: 100 ohms
End-of-Line Resistor: 4.7K, 1/2-Watt (part # 27072 UL listed)
Detector Loop Current sufficient to ensure operation of one alarmed detector/zone.
Standby Current: 7.26 mA (includes ELR and 2 mA maximum detector current)
Smoke Detector Identifier A
Refer to Fire-Lite Compatibility Chart for listed compatible devices.
Notification Appliance Circuits - TB5
Non-regulated special purpose power, Style Y supported. Use NACA-2F for Style Z
operation.
Power-limited Circuitry
Operating Voltage Nominal 24 volts.
Current for all external devices: 3.0 amps.
Current Limit: PTC
Max. signaling current/circuit: 1.5 amps
End-of-line resistor: 4.7K, 1/2-Watt (part # 71252 UL listed) for Notification Appli-
ance Circuits
Refer to Fire-Lite Compatibility Chart for listed compatible devices.
Programmable Relays - TB4
Contact rating: 2.0 amps @ 30 VDC (resistive), 0.5 amps @ 30 VAC (resistive)
Programmable: Form-C
Four-wire Smoke Detector Power - TB-4 Terminals 3 (+) & 4 (-)
Max. ripple voltage: 10 mVRMS Operating Voltage nominal 24 volts
Up to 300 mA is available for powering 4-wire smoke detectors.
Power-limited Circuitry. Maximum Standby current is 50 mA.
Refer to Fire-Lite Compatibility Chart for compatible listed devices.
Non-resettable Regulated 24V Power - TB-4 Terminals 1 (+) & 2 (-)
Max. ripple voltage: 10 mVRMS Operating Voltage nominal 24 volts
Total DC current available from this output is up to 300 mA.
Power-limited Circuitry. Maximum Standby current is 150 mA.
Refer to Fire-Lite Compatibility Chart for compatible listed devices.
Notes: 1) For power supply calculations, refer to Appendix A.
2) Total current for non-resettable power, four-wire smoke power, and two
Notification Appliance Circuits must not exceed 3.6 amps.
1.7 Specifications
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

13
50066 Rev D 5/2/97 P/N 50066:D
1.8.1 Telephone Circuitry:
Ringer Equivalence Number (REN) = 1.3B
AC Impedance 10.0 Mega Ohm
Complies with FCC Part 68
Mates with RJ31X Male Connector
Supervision Threshold: less than 4.0 volts for 2 minutes
The REN is used to determine the quantity of devices which may be connected to the
telephone line. Excessive REN's on the telephone line may result in the devices not
ringing in response to an incoming call. In most, but not all areas, the sum of the
REN's should not exceed five (5.0). To be certain of the number of devices that may
be connected to the line, as determined by the total REN's, contact the telephone
company to determine the maximum REN for the calling area.
1.8.2 Digital Communicator:
Before connecting the control panel to the public switched telephone network, the
installation of two RJ31X jacks is necessary. The following information is provided
if required by the local telephone company :
Manufacturer : Fire·Lite Alarms, Inc.
12 Clintonville Rd.
Northford, CT 06472
Product Model Number: MS-5024
FCC Registration Number: 1W6USA-20004-AL-E
Ringer Equivalence 1.3B
1.8.3 Telephone Company Rights and Warnings:
The telephone company under certain circumstances may temporarily discontinue
services and/or make changes in its facilities, services, equipment or procedures
which may affect the operation of this control panel. However, the telephone
company is required to give advance notice of such changes or interruptions.
If the control panel causes harm to the telephone network, the telephone company
reserves the right to temporarily discontinue service. Advance notification will be
provided except in cases when advance notice is not practical. In such cases,
notification will be provided as soon as possible. The opportunity will be given to
correct any problems and to file a complaint.
DO NOT CONNECT THIS PRODUCT TO COIN TELEPHONE, GROUND START,
OR PARTY LINE SERVICES.
When the control panel activates, premise phones will be disconnected.
Two separate phone lines are required. Do not connect both telephone interfaces to
the same telephone line.
1.8 Telephone
Requirements
and Warnings
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

14 50066 Rev D 5/2/97 P/N 50066:D
The control panel must be connected to the public switched telephone network
upstream of any private telephone system at the protected premises.
An FCC compliant telephone cord must be used with this equipment. This
equipment is designed to be connected to the telephone network or premises wiring
using a compatible RJ31X male modular plug which is Part 68 compliant.
1.8.4 For Canadian Applications
The following is excerpted from CP-01 Issue 5:
"NOTICE: The Canadian Department of Communications label identifies certified
equipment. This certification means that the equipment meets certain
telecommunications network protective, operational and safety requirements. The
Department does not guarantee the equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection. In
some cases, the company's inside wiring associated with a single line individual
service may be extended by means of a certified connector assembly (telephone
extension cord). The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations made by
the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines and internal metallic water pipe system, if
present, are connected together. This precaution may be particularly important in
rural areas.
Caution: Users should not attempt to make such connections themselves, but should
contact the appropriate electric inspection authority, or electrician, as appropriate."
"The Load Number (LN) assigned to each terminal device denotes the percentage of
the total load to be connected to a telephone loop which is used by the device, to
prevent overloading. The termination on a loop may consist of any combination of
devices subject only to the requirement that the total of the Load Numbers of all the
devices does not exceed 100."
Industry Canada (IC) Compliance - "This digital apparatus does not exceed the
Class A limits for radio noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of Communications."
IC Registration Number: 21325785A
Load Number: 2
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

15
50066 Rev D 5/2/97 P/N 50066:D
2.0 Installation
2.1 General Mounting Options
The cabinet may be either semi-flush or
surface mounted. The door is removable
during the installation period by opening
and lifting off the hinges.
The cabinet mounts using two key slots and
two additional 0.250" diameter holes
located in the backbox. The key slots are
located at the top of the backbox and the two
securing holes at the bottom.
Carefully unpack the system and check
for shipping damage. Mount the cabinet
in a clean, dry, vibration-free area where
extreme temperatures are not
encountered. The area should be readily
accessible with sufficient room to easily
install and maintain the panel. Locate the
top of the cabinet approximately five feet
above the floor with the hinge mounting on the left. Determine the number of
conductors required for the devices to be installed. Sufficient knockouts are provided
for wiring convenience. Select the appropriate knockout(s) and pull the required
conductors into the box. Note that there are no knockouts on the left (hinged) side of
the cabinet. All wiring should be in accordance with the National and/or Local codes
for fire alarm systems.
• Refer to Figures 2-1 and 2-2.
• Open the door and lift the door off the pin hinges.
• Remove AC wiring.
• Remove the main PC board assembly by unscrewing the five screws in the
corners of the board. Two standoffs support the board in the center. Set the board
aside in a safe, clean place. Avoid static discharge which may damage the
board.
• Mark and predrill holes for the top two keyhole mounting bolts using the
dimensions shown.
• Install two upper fasteners in the wall with the screw heads protruding.
• Using the upper 'keyholes', mount the backbox over the two screws.
• Mark and drill the lower two holes.
• Mount backbox, install remaining fasteners and tighten.
• When the location is dry and free of construction dust, reinstall the main PC
board.
2.2 Backbox
Mounting
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

16 50066 Rev D 5/2/97 P/N 50066:D
Draw wires through the respective knockout locations.
Figure 2-1: Cabinet Dimensions & Knockout Locations
Right Side
Top
Bottom
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

17
50066 Rev D 5/2/97 P/N 50066:D
Figure 2-2: Backbox and Battery Box
Notes:
1) Mount the MS-5024 cabinet to wall.
2) Remove appropriate knockouts from FACP cabinet and BB-17F.
3) Position BB-17F near MS-5024 cabinet and connect with conduit
making sure there is at least 1/2" of clearance between the two
cabinets.
4) Anchor BB17-F to wall.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

18 50066 Rev D 5/2/97 P/N 50066:D
CAUTION: Several different sources of power can be connected to this panel.
Disconnect all sources of power before servicing. The panel and associated
equipment may be damaged by removing and/or inserting cards, modules, or
interconnecting cables while this unit is energized.
Primary Power Source (AC) and Earth Ground Connections
AC power connections are made inside the control panel cabinet. Primary power
source is 120 VAC, 60 HZ, 1.2 amps and for the MS-5024E is 220/240 VAC, 50 Hz,
0.6 amps. Run a pair of wires (with ground conductor) from the protected premises
main breaker box to the orange and black primary leads of the MS-5024 transformer.
As per the National Electric Code, use 14 AWG (1.6 mm O.D.) or heavier gauge
wire with 600V insulation. No other equipment may be connected to this circuit. In
addition, this circuit must be provided with overcurrent protection and may not
contain any power disconnect devices. A separate Earth Ground connection must be
made to ensure proper panel operation and lightning and transient protection.
Connect the Earth Ground wire (minimum 14 AWG) to the grounding stud indicated
by the ground symbol label. Note: Do not use conduit for the Earth Ground
connection since this does not provide reliable protection.
Secondary Power Source (Batteries)
Observe polarity when connecting the battery. Connect the battery cable to J1 on the
main circuit board using the plug-in connector provided. The battery charger is
current limited and capable of recharging sealed lead acid type batteries. The charger
shuts off when the system is in alarm. See Appendix A for calculation of the correct
battery rating. CAUTION: Battery contains sulfuric acid which can cause severe
burns to the skin and eyes, and can destroy fabrics. If contact is made with sulfuric
acid, immediately flush the skin or eyes with water for 15 minutes and seek
immediate medical attention.
2.3 Operating
Power
Figure 2-3: Operating Power Connections
Connect Earth
Ground Wire
Hot
Brown
Black
Orange
AC Feed
Neutral Ground
Red Ground Stud
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

19
50066 Rev D 5/2/97 P/N 50066:D
DC Power Output Connections
All DC power outputs are power-limited
*4-Wire Smoke Detector Power (300 mA)
24 VDC filtered, resettable power for 4-wire
smoke detectors can be obtained from TB4
Terminals 3 (+) and 4 (-).
*Non-resettable Power (300 mA)
24 VDC filtered, non-resettable
power can be obtained from TB4
Terminals 1 (+) and 2 (-).
Figure 2-4: Auxiliary Power Connections
The control panel has five zone input circuits. The maximum loop resistance limit
for each is 100 ohms. All field wiring of each zone is supervised for opens and
ground faults. Both conditions are visually and audibly annunciated as well as
communicated to a Central Station.
Each zone is a Style B Initiating Device Circuit (IDC) designed to accept any
Normally Open contact device and conventional 2-wire, 24 volt smoke detectors.
Each zone is power limited to 7.26 mA in standby and 42 mA in alarm. Zone 3 may
also be configured as a Style D Initiating Device Circuit. Figure 2-5 illustrates
typical circuit connections.
Note: All five initiating zones may be converted to Style D (Class A) by using a CAC-
5F Class A Converter module (refer to Figure 2-15).
Zones 1-5 may be programmed as shown below. The factory default is 2-wire smoke
detector for all zones.
• 2-wire Smoke Detector (factory default)
• Pull Station
• Normally Open Contact Device(s)
• Supervisory
• Supervisory, Auto-Resettable
Zone 3 may also be programmed as:
• Waterflow Silenceable
• Waterflow, Non-Silenceable
Note: A maximum of five waterflow devices may be used on zone 3 per NFPA 72.
Four-wire smoke detectors may be connected to any zone. Resettable power is
provided via terminals TB4, 3 and 4.
It is allowable to mix an assortment of device types (ie, smoke detectors, heat
detectors, pull stations) on any zone. However, this is not recommended since
specific and detailed reports will not be possible. For example, the report of general
fire alarm versus pull station fire alarm or smoke detector fire alarm.
*Refer to the Fire-Lite Device Compatibility Document for a list of compatible
smoke detectors, Notification Appliances and Auxiliary Devices.
2.4 Input Circuits
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

20 50066 Rev D 5/2/97 P/N 50066:D
Telephone Circuits
Provision to connect to two independent telephone lines is available via two
telephone jacks labeled PH1 (Primary) and PH2 (Secondary). Telephone line control/
command is possible via double line seizure as well as usage of an RJ31X style
interconnection. See Figure 2-9.
Notification Appliance Circuits (Full-wave Rectified)
The MS-5024 provides two Notification Appliance Circuits (Style Y), each circuit
capable of 1.5 amps of current. Total current drawn from these as well as other DC
power outputs cannot exceed 3.6 amps. Circuits are supervised and power-limited.
Figure 2-6 illustrates a typical circuit connection. Refer to the Fire-Lite Device
Compatibility Document for a listing of compatible Notification Appliances.
Note: Both Notification Appliance Circuits may be converted to Style Z (Class A) by
using an NACA-2F Class A Converter module (refer to Figure 2-14).
2.5 Output Circuits
B+ B- B+ B- B+ A+ A- B- B+ B- B+ B-
Heat Detector
Manual Pull Station
UL listed compatible 2-wire smoke detector
Dummy load all unused circuits
with 4.7K ELR P/N: 71245
across B+ and B-
Style B Initiating Device Circuit
(Supervised and power-limited).
4.7K Ω , 1/2-Watt Part# 71252 UL listed. Style D Initiating Device Circuit
(Supervised and power-limited)..
MS-5024
TB2
Figure 2-5:Typical Initiating Device Circuit Connections
Manual Pull Station
Heat Detector
UL listed compatible 2-wire smoke detector
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com
