Fired Up Corporation Adam User manual

CO9144 V3_080714
USE & CARE MANUAL
CONTEMPORARY ELECTRIC
FIREPLACE SUITE
www.adamfires.co.uk

02
SECTION 01
Read ALL the instructions before use.
These instructions are for your safety. Please read
through them thoroughly before use and retain for
future reference. Failure to follow them could cause
injury and/or property damage.
Note: This manual applies for a number of different
products. Please make sure you follow the
appropriate product guide lines.
CONTENTS
SECTION 01
Cautions 03-05
Important Safety Information 05-07
Introduction 08
Handling 08
Unpacking 08
SECTION 02
Tools required 09
Identification 09
Parts supplied 09
Fixings pack 09
SECTION 03
Installation 10
Use 11
Care 11
Specification 12
Guarantee 16
Contacts 16

03
SECTION 01
CAUTIONS
DO’S
• Read ALL the instructions before using this heater.
• Only use this appliance for its intended use as
described in this manual.
• Always install the fire in accordance with this guide. If
in doubt obtain expert advice.
• Always check your mains supply is the same as that
indicated on the product before connecting.
• Always make sure the electrical socket is accessible
and located adjacent to, but not above or behind the
fire.
• Always disconnect the heater from the electrical supply
before carrying out cleaning or maintenance. To
disconnect the heater, switch controls to OFF then
remove plug from the outlet.
• Always make sure the fire is firmly secured.
• Always ensure the product is assembled in an area
that is free from dust, grease or liquids.
• Always ensure that the correct tools are used to mount
this fire.
• Always make sure the fire is firmly secured to the wall
when complete.

04
SECTION 01
DON’TS
• Never leave children unsupervised in a room where the
fire is ON and unguarded.
• Never obstruct or cover the fan outlet or force items
into fire openings.
• Never install or use the fire anywhere where water is in
use, i.e. Bathrooms, Kitchens, Shower Rooms, and
Swimming Pool etc.
• Never use aerosols or steam cleaners on or around the
fire.
• Never route the supply cord under carpeting and never
cover the cord with throw rugs, runners, etc. Arrange
the cord away from traffic areas and where it will not
be tripped over.
• Never install the heater close to curtains or combustible
materials. Keep furniture, bedding, papers, clothes,
curtains, etc. at least 1m away from the front of the
heater and keep away from the sides and rear.
• Never use the fire to dry clothes etc.
• Never sit or stand on the fire.
• Never lean or put weight on the fire.
• Do not use outdoors.
• Do not site the fire on deep pile carpets or rugs.

05
SECTION 01
• Never cut off the plug and hard wire into a fixed fused
spur
• Never use with a timer or any other device that
switches the fire on automatically.
PLEASE DO NOT OBSTRUCT THE AIR VENTS OF THE HEATER
UNIT
This appliance has a ‘self resetting’ safety cut out
system. To prevent overheating, ensure the air inlets and
outlets are not obstructed. If the safety cut-out operates,
switch off the heater and allow to fully cool down.
Remove any obstruction before re-use.
IMPORTANT ELECTRICAL SAFETY
The plug must always be accessible, after installation, in
order to disconnect the heater from the electrical supply
for maintenance cleaning or isolation in an emergency.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
This heater must be earthed. The supply cord must be
safely routed from the heater to an electrical socket.
Any new wiring required, must be In accordance with
local and national codes and other applicable
regulations in order to reduce the risk of fire, electric
shock, or other injuries. Always use a certified electrician
should new circuits or outlets be required.

06
SECTION 01
Avoid the use of an extension cord which may overheat
and cause risk of fire. If an extension cord is necessary, it
must be rated above the maximum rated power of the
appliance. Care must be taken to arrange the cord so
that it cannot be pulled or be tripped over.
IMPORTANT!
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING: In order to avoid overheating, DO
NOT COVER THE HEATER
• The heater must not be located immediately below a
socket outlet.
• WARNING: This heater is not equipped with a device
to control the room temperature. Do not use this
heater in small rooms when they are occupied by
persons not capable of leaving the room on their own
unless constant supervision is provided.
• Children of less than 3 years should be kept away
unless continuously supervised.

07
SECTION 01
• Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
• CAUTION — Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
• This heater is hot when in use. To avoid burns, do not
touch hot surfaces such as surfaces around the grille
in front of the heater. Never let bare skin touch hot
surfaces.
• Do not use this heater in the immediate surroundings
of a bath, a shower or a swimming pool.
Note: When the heater is turned on for the first time or
when it has not been used for some time, it may
release a slight, harmless odour. This odour is a
normal occurrence caused by the initial heating
of the internal heating elements and will
disappear with use.

08
SECTION 01
INTRODUCTION
Thank you for choosing this Electric Suite. The suite is designed to meet the most
stringent quality, performance, and safety requirements. This guide aims to improve
your understanding and appreciation of your new suite by providing simple and
informative assembly instructions.
HANDLING
Before continuing any further with the installation of this fire please read the
following:
• When lifting always keep your back straight. Bend your legs and not your back.
• Avoid twisting at the waist. It is better to reposition your feet.
• Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist.
• Do not lean forward or sideways whilst handling the suite.
• Always grip with the palm of the hand. Do not use the tips of fingers for support.
• Always keep the product as close to the body as possible. This will prevent
unnecessary and undue strain on the body.
• Use gloves to provide additional grip.
• Always use assistance if required.
UNPACKING
The unit is supplied in a single package carton. Carefully unpack the product using
the following procedure:
• Carefully lift the parts out of the box
• Carefully remove the protective wrapping from the parts
• Locate the fixing pack and put aside

09
SECTION 02
IDENTIFICATION

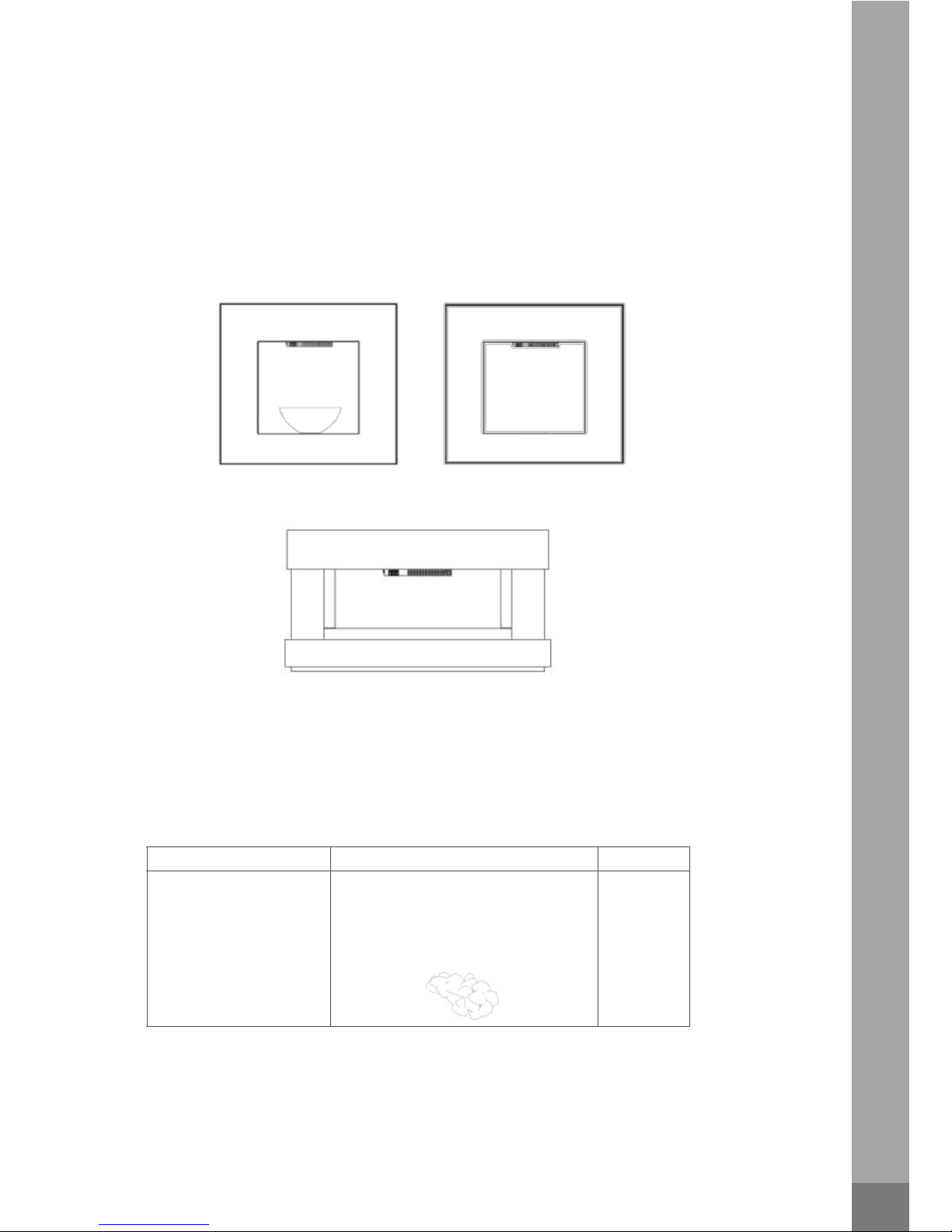

(Image for illustrative purposes only)
PARTS SUPPLIED
Please identify the parts listed below and ensure you have ALL the correct parts
before installing the unit.
FIXING PACK
4x 16mm Screw, 2x Mirror Clips, 2x 32mm Screw,
2x Wall Plug
x 1
x 1
x 1
Suite
Fixings Pack
Pebble Set
See product identification -
page 9
See fixings pack -
page 9
Description Illustration Qty
Pebble bowl suites
(Floor standing)
Pebble bed suites
(Floor standing)
Pebble & flame effect suite
(Floor standing)
TOOLS REQUIRED
• Crosshead screw driver (an electric screw driver is recomended).
• Electric drill (with 6mm masonry bit)

10
SECTION 03
Mirror
Clip
Surround
(Leg)
16mm
Screw
Location
Wall
32mm screw
and wall
plug
location
INSTALLATION
This surround is floor-standing and must be fixed to a wall. Please ensure both the wall
and floor are flat before installation and that secure anchorage points can be made to
the wall. Always ensure there is enough room to place suite.
Please ensure that there is an accessible electrical socket within reach of the supply
cord. The electrical socket must not be behind or above the suite.
WARNING! Never cut off the plug and hard wire into a fixed fused spur
Before installing this product please take note that should removal or relocation of the
product be necessary, any installation methods used may be left exposed.
Note: If fitting the product to plaster board with a cavity behind then propriety wall
fixings (not supplied) will be required.
To secure the suite to the wall, follow the instructions below:
This method applies to both A and B type contemporary electric suites. Please be aware
that styles may vary
UNINSTALL
Unplug the unit and remove the two screws securing the bracket to the wall

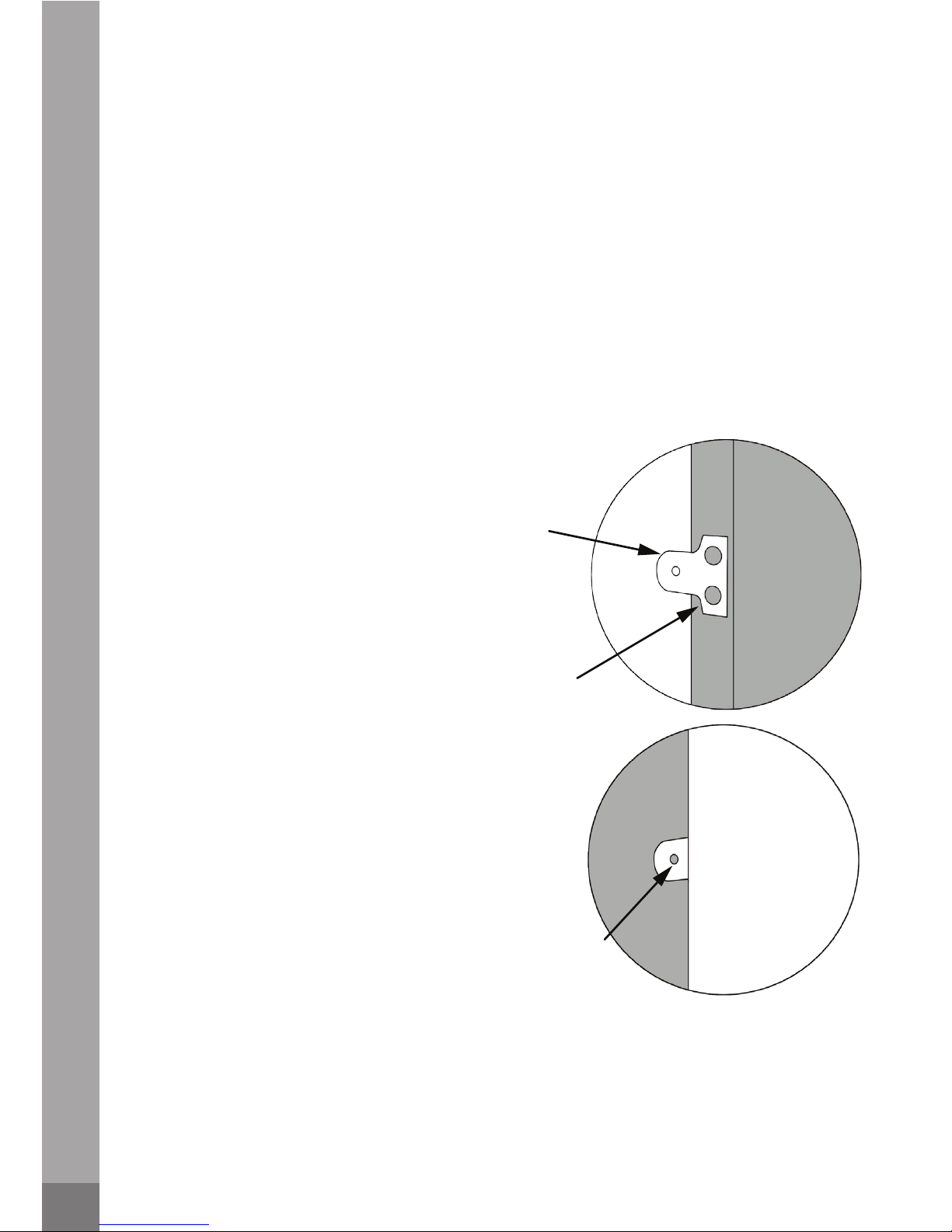

1. Attach a mirror clip to the
back of each leg as shown using
4 x 16mm screws. Pre-drill the
holes to stop the MDF splitting.
2. Place the surround to the wall,
and mark the positions of the
exposed holes on both mirror
clips.
Note: Check the wall does not
have any wiring or pipe work
behind where you intend to drill.
3. Using an electric drill (6mm
bit), drill holes into the walls
approximately 35mm deep.
4. Insert the wall plugs, then
secure the suite with 2 x 32mm
screws (supplied).

11
SECTION 03
USE
To prepare the electric suite, randomly place the pebbles in the correct positions:
• In the bowl for pebble bowl suites
• On the bed for pebble bed suites
The appliance is controlled using 3 switches. A switch is in the ON position when the
side with marking on (i.e. I or II) is ‘pressed in’. Use the following sequence to operate.
The grey represents a ‘pressed swtich’.
NOTE: The heater is located, as shown
on the example on the right, on all
Contemporary Suites
CARE
• Brushed stainless steel fires can be cleaned using a cloth and propriety cleaner.
• Other features (non-silver) can be cleaned using a damp cloth.
• If the supply cord is damaged, it must be replaced by a suitably qualified person.
• The area around the suite should be kept free from animal hair, lint and other
extraneous material that may be drawn into the workings of the appliance
which could affect its performance.
• Before installing this product please take note that should removal or relocation of
the product be necessary, any installation methods used may be left exposed.
On/Off with
effect only
1kW heat
setting
2kW heat
setting

12
SECTION 03

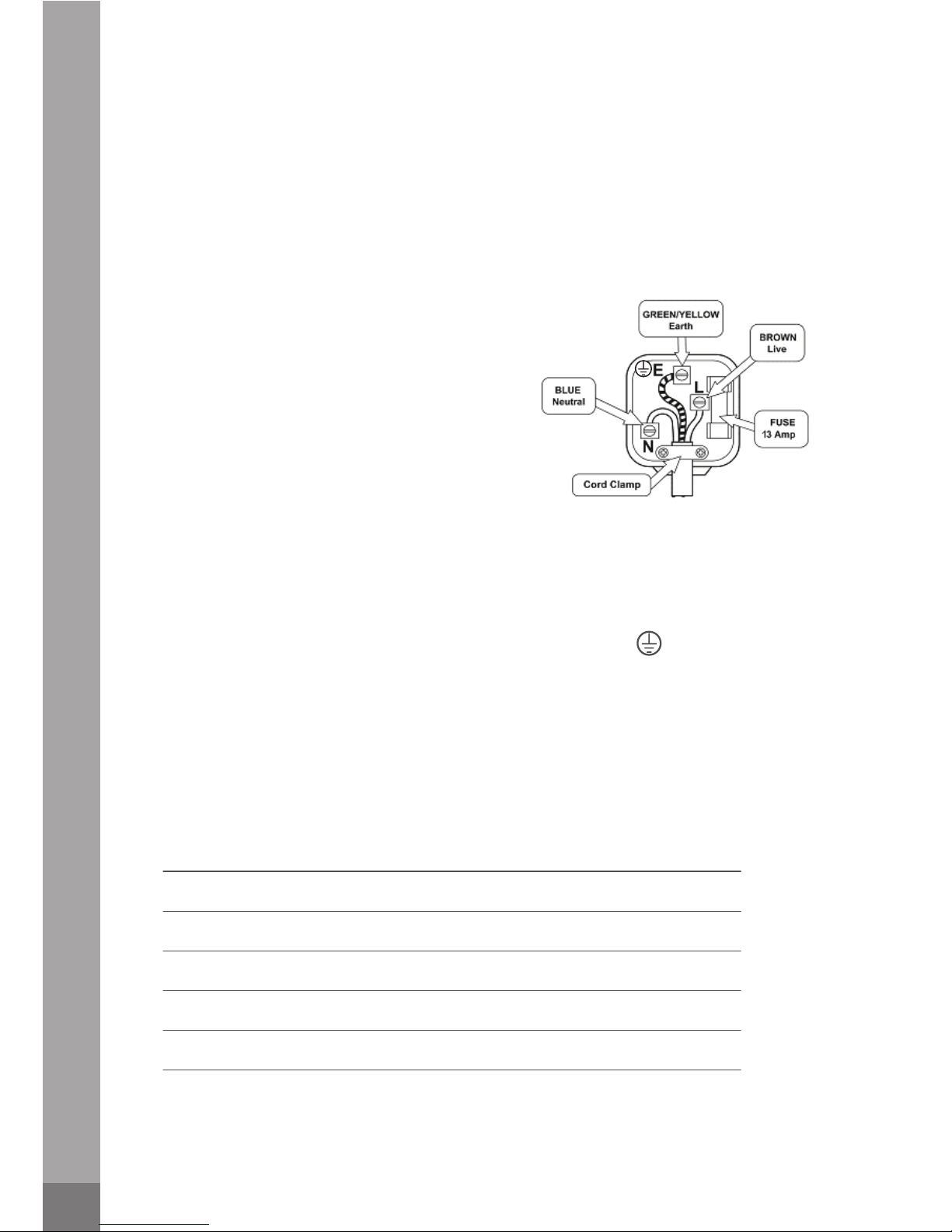

PLUG REPLACEMENT
(for product fitted with BS plug)
This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. Should
the fuse require replacement, it must be replaced with a fuse rated at 13 Amp and
approved to BS1362.
In the event the mains plug has to be removed/replaced for any reason, please
note:
The wires in the mains lead on this appliance are coloured in accordance with the
following code:
THIS APPLIANCE MUST BE EARTHED
As the colours may not correspond with the markings identifying the terminals in your
plug proceed as follows.
• The green and yellow earth wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol
• The blue wire must be connected to the terminal marked N
• The brown wire must be connected to the terminal marked L
Important - any cut off plug should be disposed of safely to prevent hazard. There is
a danger of electric shock if a cut off plug is inserted into a socket outlet.
SPECIFICATION
Supply Voltage - 220-240V~50Hz
Rated Power - 2000W
Fuse Rating (BS Plug) - 13 Amp
Lighting - 5W LED Array (non serviceable)
Class - 1
Earth
Neutral
Live
Green and Yellow -
Blue -
Brown -

13
SECTION 03
CONFORMITY WITH DIRECTIVES
Conforms with relevant European Directives
ENVIRONMENTAL PROTECTION
• (WEEE) Waste Electrical and Electronic Equipment
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice.
• This appliance complies with the RoHS directive which restricts the use of certain
hazardous substances in electrical and electronic equipment.
This directive bans the placing on the EU market of new electrical and electronic
equipment containing more than agreed levels of lead, cadmium, mercury,
exavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl
ether (PBDE) flame retardants.

14
SECTION 03
[BLANK]

15
SECTION 03
[BLANK]

16
SECTION 03
GUARANTEE
For your convenience, you are not required to complete a form and return it to us in
order to validate your guarantee. However, please ensure that you retain your
receipt which will act as both proof of purchase and a guarantee validation docu-
ment. We recommend that you attach your receipt to this documentation.
Your product carries a 12 month guarantee from the date that the original purchaser
receives it. If your product fails to operate to its specification, due to faulty workman-
ship or materials during the guarantee period, we will either repair or replace the
product. We will use our discretion to determine whether to offer a repair or provide a
replacement. The product will not be covered by the guarantee if it has been
misused, transformed, modified or altered in any way.
If your product fails within the guarantee period please ensure that you have all
necessary documentation available including proof or purchase (receipt or invoice
with serial number, location and date of purchase) in addition to all original undam-
aged packaging and leaflets etc. It is strongly recommended that you inspect your
product carefully before it is used or installed. For full details of your product you
should refer to the instruction manual which accompanies the product. You are
strongly advised to read this manual carefully in its entirety and to retain it for future
reference.
This product guarantee does not affect your statutory rights.
CUSTOMER HELPLINE
03300 882 068
[email protected]
AFFIX RECEIPT OR PROOF
OF PURCHASE HERE
www.firedupcorporation.com
Fired Up Corporation Ltd.
Fired Up Buildings
St Thomas Road
Huddersfield
HD1 3LF
United Kingdom
