Firefly YASBP-56HL User manual

Air Source Heat Pump
Applicable Models: YASBP-25HL
YASBP-38HL
YASBP-56HL
YASBP-90HL
Jan. 2012s V
Presented by Jimmy Zhang
Thank you very much for purchasing our air source heat pumps.
Please read this manual carefully and keep it for future reference before installing and using the heat pumps.

Hot Water Series
CONTENTS
9. Maintenance and Trouble Shooting
9.1 Maintenance
9.2 Parameter Checking
9.3 Error Code
9.4 Trouble Shooting
7. Controller Operation
7.1 Keys Illustration
7.2 Illustration for LCD Display
7.3 Water Temperature Setting
7.4 Clock Setting
7.5 ON/OFF Time Setting
6. Commissioning
6.1 Preparation Before Commissioning
6.2 Commissioning
5. Installation
5.1 Heat Pump unit Installation
5.2 Water System Installation
5.2.1 Water Tank Installation
5.2.2 Water Piping Installation
5.3 Power Source Installation
4. Technical Data
4.1 Parameter Table
4.2 Dimension
4.3 Performance Curves
4.4 System Diagram
4.5 Components
1. Features/Benefits
2. Notes/Precautions
3. Model Number Nomenclature
8. Circuit Drawing
1
1
2
2
2
3
4
8
9
10
10
11
11
11
12
14
14
14
15
15
16
16
18
19
21
23
23
24
24
25
5.4 Wire Controller Installation 13

1. Features/Benefits
Wide Application Ranges Full Consideration for Noise Control
The Thermal Master Series is designed for Compressor rubber feet are specially selected for
domestic hot water for a houses, as well as small reducing vibration. Specially, compressor sound
commercial buildings such as small hotels, jacket is available for every unit. Well-balanced
offices, schools, hospitals, apartments etc. The fans and fan motors, with the optimized fan
holder, contributes to the low noise operation. The
hot water outlet range is wide from 20 to 60 ,
cabinet inside is insulated to reduce noise
meeting demands for most hot water project. The
transmission.
performance is at wide ambient temperature
range from -10~43 . Modular control system is
Reliable Design and Strict Quality Control
available to meet the demand of bigger hot water Standard safety features for the refrigerant circuit
projects. include high-pressure switch and low-pressure
Assuring You Get Grants from Government switch to detect loss of refrigerant, as well as
Designed for high efficiency performance over a deficient water flow. Equipment safety features
lifetime of operation. The annual average COP is include water loop temperature monitoring,
up to 4.5. The water pipes and refrigerant pipes voltage protection, water coil freeze protection.
are well insulated to minimize the heat loss. All safety features are tested and run at the factory
to assure proper operation of all components and
Durable and Long Life
safety switches.
High efficiency compressor for all units, with
All components are carefully designed and
durable features against high temperature and
selected for endurance, durability, and carefree
high pressure for long life. The tube in shell heat
day-to-day operation. Each unit is fully tested in
exchanger are durable for anti-corrsion, hard
performance and safety before exit factory.
water, high pressure and unexpected freeze
caused by power cut-off. Simple Maintenance and Serviceability
Full access for maintenance or service is provided
Strong Cabinet from the maintenance panel, for better flexibility in
Standard unit fabrication consists of heavy gage
confined space. Easy removal of the control box
galvanized sheet metal cabinet construction that
from the unit provides access to all refrigerant
provides maximum strength. All interior sheet
components. The refrigerant circuit is easily
metal surfaces are powder-painted for maximum
tested and serviced though the use of high and
corrosion protection to ensure resilience for long
low pressure ports integral to the refrigerant
term vitality. Compact, stackable cabinets are
circuit.
designed to minimize installation space.
° °
C C
°C
Hot Water Series
1
The installation, commissioning and wires are apart from hot or moving parts [eg:
maintenance of the system should only be done compressor, fan] of the system to avoid
by qualified personnel with adequate knowledge damage to the wires.
of the relevant standards and local regulations as Anti-freezing measures must be well done to
well as experience with similar systems. avoid damage to the water system and the heat
pump water heat exchanger.
Please make sure the water flow is sufficient all
the time. Please make sure the lifting and transportation
are safely done according to the heat pump
All ground line connections must be prepared in
size and weight.
accordance with relevant local regulations.
It is very dangerous work done at the facility
To reduce the risk of electrical insulation faults,
without previously cutting off the electricity from
you first make the connection of the protective
the main power source.
conductor of the heat pump safe according to
local regulations.When installing the system, please ensure that
no contaminants enter the water cycle.
When installation,make sure that the inside
2. Notes/Precautions
■
■
■
■
■
■
■
■
■

Hot Water Series
3. Model Number Nomenclature
Y ASBP - 25 HL
HL - Single Phase; HS - 3 Phases
25 -1HP 38 - 1.5HP 56 - 2HP 90 - 2.5HP
ASBP - Horizontal Fan; YASA - Vertical Fan
FIREFLY
Power Supply
Case Structure
Company
Input Power
Running Current
Max. Input Power
Max. Running Current
Refrigerant
Compressor
Compressor Type
Compressor Quantity
Outlet Water Temp
Max. Outlet Water Temp
Hot Water Output
Water Flow
Condenser
Water Pressure Drop
Water Connection Tube
Noise
Electric Protection
Mechanical Protection
Power Supply
Heating Capacity
Net/Gross Weight
Dimension
Packing Dimension
3.91
0.8
3.64
1.2
5.57
R410a
Panasonic
Rotary
1
55
60
86
0.8
Tube in shell
20
3/4"
<48
I
IPX4
220/1/50
YASBP-25HL
38/43
770/300/490
820/325/520
kW
kW
A
kW
A
ºC
ºC
L/h
3
m /h
Kpa
mm
dB(A)
V/Ph/Hz
kg
mm
mm
5.1
1.214
5.31
1.7
7.75
R410a
Panasonic
Rotary
1
55
60
110
1.1
Tube in shell
20
<48
I
IPX4
220/1/50
YASBP-38HL
51/56
940/360/550
985/390/590
3/4"
7.53
1.88
8.7
2.23
10.32
165
1.6
20
<48
220/1/50
YASBP-56HL
58/63
940/360/550
985/390/590
R410a
Rotary
1
55
60
Panasonic
Tube in shell
3/4"
I
IPX4
Measuring condition: Dry/wet bulb temp 20ºC/15ºC; Water outlet temp 15ºC~55ºC.
4. Technical Data
4. 1 Parameter Table
2
Modle Type
9.05
2.61
11.86
3.99
18.12
210
2.1
20
<48
220/1/50
YASBP-90HL
65/70
1010/370/615
1140/400/670
R410a
Rotary
1
55
60
Panasonic
Tube in shell
3/4"
I
IPX4

Water Outlet
Water Inlet
Power Supply Cable Hole
Controller Cable Hole
Hot Water Series
770
940
Length (mm)
300
360
Wide (mm)
490
550
Height (mm)
YASBP-25HL
YASBP-38HL
Model
4. 2 Dimension
3
L
H
W
High Pressure Gauge
940 360 550
YASBP-56HL
1010 370 615
YASBP-90HL

Hot Water Series
4.3 Performance Curves
Model: YASBP-25HL
4
KRS-35B/N2-S HeatingCapacityCurves
0
500
1000
1500
2000
2500
3000
3500
4000
-10 -5 0 5 10 20
AmbientTemp. (℃)
Heating Capacity (W)
R eturn Water Temp.30℃
R eturn Water Temp.35℃
R eturn Water Temp.40℃
R eturn Water Temp.50℃
R eturn Water Temp.55℃
YASBP-25HL Heating Capacity
Heating Capacity (W)
Ambient Temp. (℃)
COP Curves
0
1
2
3
4
5
6
-10 -5 0 5 10 20
AmbientTemp. (℃)
COP
Return Water Temp.30℃
Return Water Temp.35℃
Return Water Temp 40℃
Return Water Temp.50℃
Return Water Temp.55℃
YASBP-25HL COP Curve
COP
Ambient Temp. (℃)

Hot Water Series
Model: YASBP-38HL
5
C OP C urves
0
1
2
3
4
5
6
-10 -5 0 5 10 20
AmbientTemp. (℃)
COP
R e turn W a te r T e m p.30℃
R e turn W a te r T e m p.35℃
R e turn W a te r T e m p.40℃
R e turn W a te r T e m p.50℃
R e turn W a te r T e m p.55℃
YASBP-38HL COP Curve
COP
Ambient Temp. (℃)
KRS-50B/N2-S HeatingCapacity
0
1000
2000
3000
4000
5000
6000
-10 -5 0 5 10 20
AmbientTemp. (℃)
Heating C apacity (W)
Return Water Temp.30℃
Return Water Temp.35℃
Return Water Temp.40℃
Return Water Temp.50℃
Return Water Temp.55℃
YASBP-38HL Heating Capacity
Heating Capacity (W)
Ambient Temp. ( )℃

Hot Water Series
6
Model: YASBP-56HL
K R S -72B /N2-S He ating C apa c ity
0
1 0 0 0
2 0 0 0
3 0 0 0
4 0 0 0
5 0 0 0
6 0 0 0
7 0 0 0
8 0 0 0
-1 0 -5 0 5 1 0 2 0
Am bie nt T e m p. (℃)
HeatingCapacity(W)
R e tu rn W a te r T e m p .3 0 ℃
R e tu rn W a te r T e m p .3 5 ℃
R e tu rn W a te r T e m p .4 0 ℃
R e tu rn W a te r T e m p .5 0 ℃
R e tu rn W a te r T e m p .5 5 ℃
YASBP-56HL Heating Capacity
Heating Capacity (W)
Ambient Temp. (℃)
C OP C urves
0
1
2
3
4
5
6
-10 -5 0 5 10 20
AmbientTemp. (℃)
COP
R e turn W a te r T e m p.30℃
R e turn W a te r T e m p.35℃
R e turn W a te r T e m p.40℃
R e turn W a te r T e m p.50℃
R e turn W a te r T e m p.55℃
YASBP-56HL COP Curve
COP
Ambient Temp. (℃)

Hot Water Series
7
Model: YASBP-90HL
Ambient Temp. (℃)
KRS-90B/N2-S Heating Capacity
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
-10 -5 0 5 10 20
AmbientTemp. (℃)
HeatingCapacity(W)
R e turn W ate r T e m p.30℃
R e turn W ate r T e m p.35℃
R e turn W ate r T e m p.40℃
R e turn W ate r T e m p.50℃
R e turn W ate r T e m p.55℃
YASBP-90HL Heating Capacity
Heating Capacity (W)
C OP C urves
0
1
2
3
4
5
6
-10 -5 0 5 10 20
AmbientTemp. (℃)
COP
R e turn W a te r T e m p.30℃
R e turn W a te r T e m p.35℃
R e turn W a te r T e m p.40℃
R e turn W a te r T e m p.50℃
R e turn W a te r T e m p.55℃
YASBP-90HL COP Curve
COP
Ambient Temp. (℃)

Hot Water Series
4.4 System Diagram
Heating Mode Water inlet
Water inlet
Water outlet
Water outlet
Defrosting Mode
High pressure switch
High pressure switch
Low pressure switch
Low pressure switch
4 way valve
4 way valve
Suction accumulator
Suction accumulator
Compressor
Compressor
Condenser
(fin-tube)
(fin-tube)
Evaporator
Throttling
element
Evaporator
(Tube in shell)
Condenser
(Tube in shell)
8
Throttling
element

Hot Water Series
4.5 Components
Compressor
The dependable high efficiency
compressor, with optimized
R410a system, can achieve high
water temperature up to 60DegC,
while ensures long life of the
compressor.
4-Way valve
The reliable 4 way valve can
avoid gas mixing, and ensure
stable defrosting.
Condenser
The Tube in shell heat exchanger as
condenser, with bigger heat
exchanging area and higher
efficiency.
Evaporator
The hydrophilic fin-tube heat
exchanger has big heat exchanging
area and rational fin distance, thus
significantly improves heating and
defrosting efficiency.
Fan
The exterior motor fan, with multiple fan
blades, is strictly balanced. The multiple
fan blades run slower, and make sure
high air volume, thus largely brings down
the noise.
Photo Features/AdvantagesComponents
Circulation pump
Famous German brand WILO
circulation water pump used.
The main components are of famous brands and with good quality tested.
For example: Panasonic compressor, R410A gas, high efficiency tube-in-shell heat exchanger etc.
Also, components can be replaced by customer’s own requirement.
9

Hot Water Series
5. Installation
5.1 Heat Pump Installation
10
Selection of installation site
1. Installation must be simple and allow easy access for later work.
2. If the unit is to be installed on the floor, its undercarriage should be heightened, to avoid
ingression of acculated water in rainy season. In snowy areas, it is important to prevent
accumulated snow from blocking up the air-out.The recommended height is 20cm to 30cm.
3. Drain ditch or other facilities should be arranged under the outdoor unit, to avoid the
environment influence because of water discharge.
4. To install the unit at balcon or top of building, the installation site must meet the
Allowable bearing capacity of building structure, without affecting the structural safety.
5. Ensure the unit is well ventilated, direction of air exhaust is kept away from windows of
neighboring buildings, and the exhaust air cannot flow back. Moreover, adequate service
clearance should be kept around the unit.
6. The unit sould not be installed at places accompanied with oil, Inflammable gas, corrosive
compents, e.g. Sulfur compound, or high-frequency equipment.
7. The unit must be installed on reliable base or framework. Weight capacity of framework
should be 3 times of the body weight, and safeguard measures should be taken to avoid
malfunction of fastenings.
8. The unit should not be installed at sites with typhoon/earthquake hazards. Midair
installation should be avoided as much as possible as machine falling down may result in
Severe accident.
9. Do not install the heat pump close to a road or path to avoid mud splashing on the unit.
10. Keep, wherever possible, the unit out of reach of children.

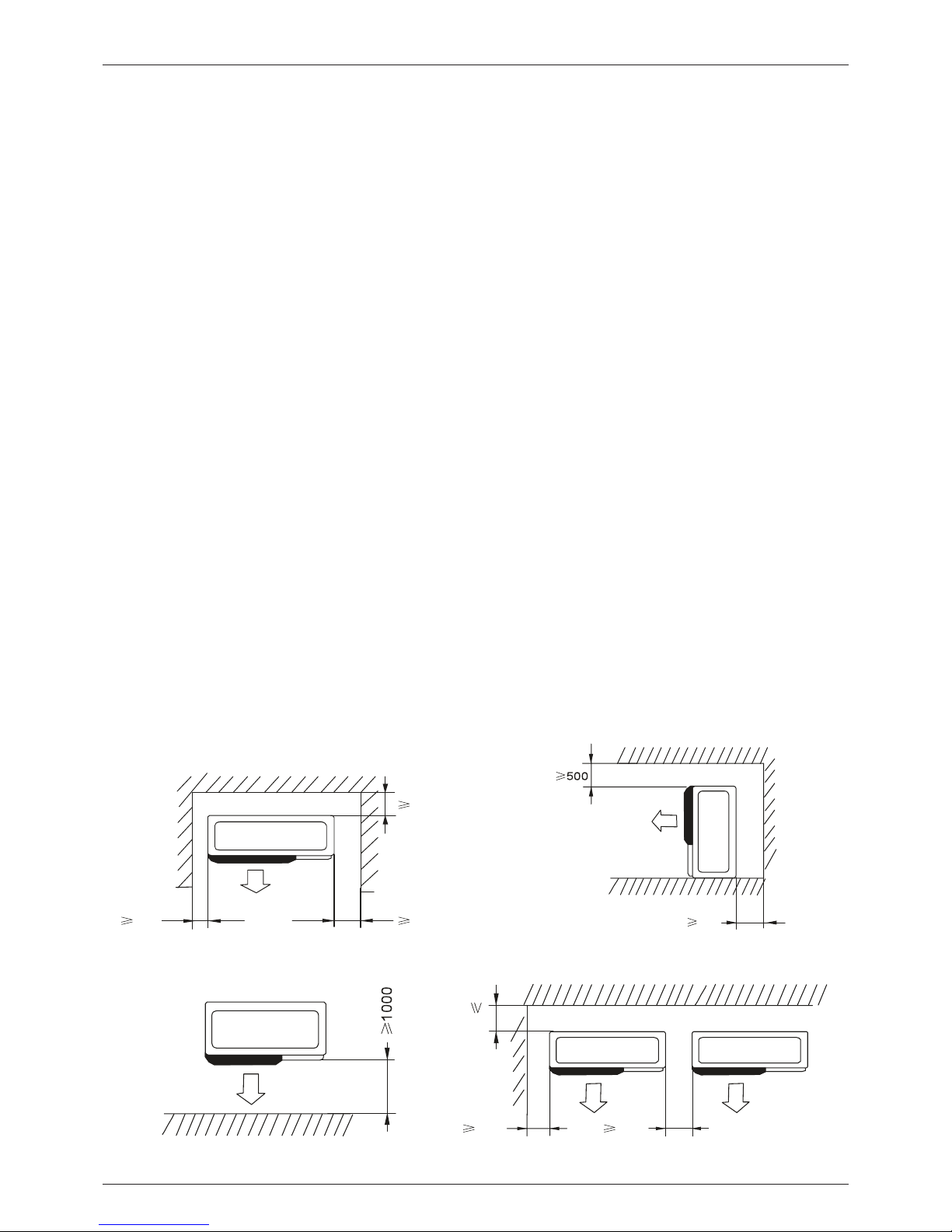

Installation in some exceptional circumstances (mm):
350
200 350
4 0 0
350
350
200
No obstacle in front of the heat pump Obstacle above the heat pump
Several heat pumps installed in a row

Hot Water Series
5.2 Water System Installation
5.2.1 Water Tank Installation
5.2.2 Water Piping Installation
1. The water tank should be put in a place where suggested to install the heat pump, the water
ambient temperature is more higher. tank and the circulation pump at the same level.
Besides, the height difference between the heat
2. It can be installed either outdoors or on the pump and the water tank should be no more than
roof-top (some elements such as the size of 2 meters, when water tank position is higher than
water tank and the bearing capability of the that of the heat pump.
building should be considered). Installation on
roof-top should be based on support such as 4. Do not install the water tank in a pollutive or
crossbeam or pillar. corrosive area.
3.The water tank should not be installed lower
than the foundation of the heat pump; It is
1. Drainpipe and overflow pipe should be carried out for the water supply valve and the
installed near the gutter or the sinkhole for stop valve of the system (according to local
draining water more efficiently. Discharge valve ambient temperature) for avoiding icing of the
is necessary on the drainpipe. water supply pipe and the valves.
2. Service valve needs to be installed before the 6. Keep the water pipes straight and the pipeline
magnet-valves on the system pipeline for further allocation reasonable; Reduce pipe turnings as
inspection. many as possible to reduce water resistance.
3. The pressure of the water outlet should be 7. Prevent the pipeline and the connectors from
between 0.3MPa and 0.6MPa. water leakage.
4. It is recommended to use metal pipeline such 8. The water pressure bearing capability of each
as stainless steel pipes, internal-plastic pipes, part of the piping system should be tested after
internal stainless steel pipes or copper pipes the installation is finished; Drainage should be
etc; Telescopic issue of the pipeline between done to create a clean interior system.
heat pump unit and water tank should be
9. Measures of heat preservation for the hot
considered if plastic pipeline such as PPR pipe
water pipeline need to be conducted after
and ABS pipe etc. is used.
assuring no water leakage.
5. In winter, heat preservation may need to be
11
Water
Tank
Water
Tank

Hot Water Series
Heat pump Installation
Shut Off Valve
Solenoid Valve
Check Valve
Elec Heater
Water Pump
Y-Shape Filter
12
Flow Switch
Heat Pump
Controller
Heat Pump
Dinning Hall
Filter
Filter
Flow Switch
(can omit)
Guest Room
Sauna Room
Drainage
Water Tank
Check Valve
Water tank
temp. sensor
5.3 Power Source Installation
Recommended wire specification
2
3x1.5mm
Power Cable LCD controller SensorModel Water Pump
YASBP-25HL
YASBP-38HL
YASBP-56HL
2
3x1.5mm
2
3x2.5mm
2
3x0.75mm
2
3x0.75mm
2
3x0.75mm
2
3x0.35mm
2
3x0.35mm
2
3x0.35mm
2
2x0.35mm
2
2x0.35mm
2
2x0.35mm
NOTE: the above specification is the lowest one we recommend. Please choose bigger wires if additional
power is required under installation.
YASBP-90HL 2
3x2.5mm 2 3x0.75mm 2 3x0.35mm 2 2x0.35mm
NOTE:
Before installing the heat pump unit, please read this manual carefully and keep it for future reference.

M
SET
MSET
5.4 Wire Controller Installation
The wired controller is originally fixed on the maintenance door of the machine; please refer to below
steps if you want to install it on the wall:
1.Take down the controller from the machine. Please pay attention that the communication wire is
connected with the circuit board, separate them from where they match.
2.Use a screwdriver to open the clip as picture 1, separate the controller as 2 parts, as picture 2
3.On the wall that you are going to install the controller, drill 2 holes at a level parallel to the sight line as
picture 3.
The hole distance is 60mm, diameter is 8mm.
4.Place the plastic screws of the enclosure into the hole, and use the tapping screw (ST4*16 D-1)
enclosed to fix the back cover of controller on the wall, as picture 4.
5.Match the front and back covers perfectly, as picture 5, make sure that it is fixed firmly on the wall.
6.Connect the communication wire well.
1 2
56
The front cover
60mm
Φ8
3 4
Outlet of the communication wire
Attention:
Please don't use keen-edged things to hit the controller face and keys, or it may cause damage.
When the controller is fixed on the wall, don't pull the communication wire, or it may cause poor contact.
The back cover
Hot Water Series
13

6. Commissioning
6.1 Preparation Before Commissioning
6.2 Commissioning
Check the heat pump Check the piping system
Check if the outside case and the inside check if the water piping system,
system of the heat pump have been including water supply pipe, return
damaged during the transportation. water pipe, pressure gauge,
Check if there is still air inside the water thermometer, valves, water level switch
system. If yes, use the air vents on the are installed correctly. Please open all
water system and the circulation pumps, the valves which should be opened, and
to discharge the air out. close all that should be closed before
the commissioning.
Check the power source system Make sure the heat preservation of the
Make sure the power source is water system is in good condition.
accordance with the specification in the
manual or on the heat pump nameplate.
Make sure all power connections and
control circuit are in place. Make sure
the wiring , grounding and all terminals
are strong and reliable.
The commissioning should be carried down the power supply and adjust the
out by profession. phase-order. Make sure the compressor
current is in normal range, without
Comprehensive inspection of the entire abnormal sound.
system should be identified as meeting
the requirements, and the water level Check the circulation pump and all other
inside the tank is higher than the cycling parts meet the requirement. The whole
heating outlet and the water outlet, system can be put into use after the pre-
before the commissioning. operation for a period of time.
After power on the electricity, turn on the
heat pump by pressing the on/off key on
the wire control panel. Please check if
the fan and the circulation pump are
running in the right direction. If not, shut
Hot Water Series
14

ON/OFF
Mode selection
Up and Down
Clock Time Setting
ON/OFF Timing Setting
7.1 Key Illustration
Press it to switch on or off heat pump.
Press it to select the mode. The sequence is: cooling-heating.
Long press it for more than 6 seconds,heat pump will come to defrosting.
During parameter setting, press it to adjust parameters;
During clock and timer setting, press it to choose the hour value or minute value.
Press them to adjust the value of water temperature, clock, timer, parameters; During failure checking and
parameter checking, press any of them to exit checking.
Long press them for a few seconds can lock and unlock the keys.
Press it to set clock time.
Set the correct local time by using Up and Down key.
Press it to set auto ON/OFF time of the heat pump.
The already set ON/OFF timing is memorized even the heat pump is power-off.
7. Controller Operation
Hot Water Series
15
ON/OFF
LCD display
Mode selection Up Down Parameter setting
Clock and timer
Time
Defrosting Mode Heating Mode
Current Water Temp. Temp. Set

Middle area
Outllet water temperature symbol, the figure under is the temperature value.
Failure symbol.
Bottom area
Turning on timer symbol. It appears when setting turn on timer.
Turning off timer symbol. It appears when setting turn off timer.
Auto ON/OFF timing setting.
ON
OFF
7.2 Illustration for LCD Display
Top area
Circulation pump running.
Cooling mode symbol / Defrosting symbol (flash).
Heating mode symbol.
Auxiliary heat source start.
Parameter number symbol, the figure under is the parameter number .
Water tank temperature symbol, the figure under is the temperature value.
Clock time setting symbol.
Parameter value symbol, the figure under is the parameter value.
This symbol means heat pump has two compressors.
7.3 Water Temperature Setting
When the heat pump is switched on, just press or to check the parameter.
Initial state
For example
press or
“1" means parameter of water tank temperature.
Hot Water Series
16
Press “up” and “down” key for 3~5 seconds, “Bee~~!!” sound is heard and the keys are lock (vice versa).

3
1
Set the water outlet temperature as follows:
Hot Water Series
17
Press and for 3~5 seconds
till “Bee~~!!” sound heard; and the
temperature value flashes.
Press or to adjust
the water outlet temperature.
Flashing
Press and for 3~5 seconds
to save the setting.
Press or to check the
parameter, please choose “1"
(0~11) for water tank temperature
setting (see “1" on the above
picture).
NOTICE
During parameter setting, if no operation for more than 8 seconds, the interface of the controller panel
will automatically back to the main view.
Press ON/OFF key and Mode key will defrost forcedly.
The water outlet temperature of the domestic hot water heat pumps is set
with 55~60℃ before delivery in factory.
It is suggested to be 55℃ for expanding the working life of the compressor
and whole system.
IMPORTANT

3
1
7.4 Clock Setting
Set the system time according to the local time as follows:
Step 1 Step 2
Press to start clock setting. Press again to start
setting hour value. The hour
value flashes.
Step 4
Flashing
Step 5
Flashing
Step 3
Flashing
Flashing
Step 6
Flashing
Press or to adjust
the hour value.
Press to select minute and
the minute value flashes.
Press or to adjust
the minute value.
Press to confirm the value
and return to main interface.
Main Interface
The current time is adjusted from 13:20 to 15:30.
Hot Water Series
18
NOTICE
At the first time, the time should be defined according to local time zone; otherwise, the accuracy of
“Timer on/Timer off” would be influenced.
