Firegear SANCTUARY-LPTE User manual

Model: SANCTUARY-LPTE
Firegear Outdoors LP Tank Enclosure
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For
Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
Description: The LP tank enclosure is constructed of Glass Fiber Reinforced Concrete (GFRC). It is designed to
hide a 20lb. Liquid Propane (LP) tank for use with any LP re pits. It weighs 135lbs and comes in a Slate color.
This tank enclosure is ventilated at the top lid and at the bottom on all four
sides. It is imperative not to block these vents at any time.
REV. 10-17-19

Step 1: Remove the enclosure from the packaging.
Step 2: Set enclosure on a at level surface. Note: The
enclosure must be a minimum of 60-inches from the side
of the re pit or re feature. See Fig. 1 and 3.
Step 3: Remove the lid by carefully lifting at the bottom
edge of the lid as shown in Fig. 1. Carefully set the lid
aside to prepare for installing LP tank.
Step 4: Attach the LP gas regulator to the LP tank and
carefully sit the tank inside of the enclosure and feed the
regulator hose through one of the bottom vents of the
enclosure. Tank will sit centered inside the enclosure and
sit up right. See Fig. 2.
Step 5: Connect the regulator hose to the gas
connection of the re pit or re feature.
CAUTION: Ensure you use gas rated Teon tape to seal
any NPT ttings. Flared ttings do not use Teon tape.
Step 6: Turn LP tank handle ON. Test for any gas leaks.
After conrming no leaks replace the lid on top of the
enclosure. Installation is complete.

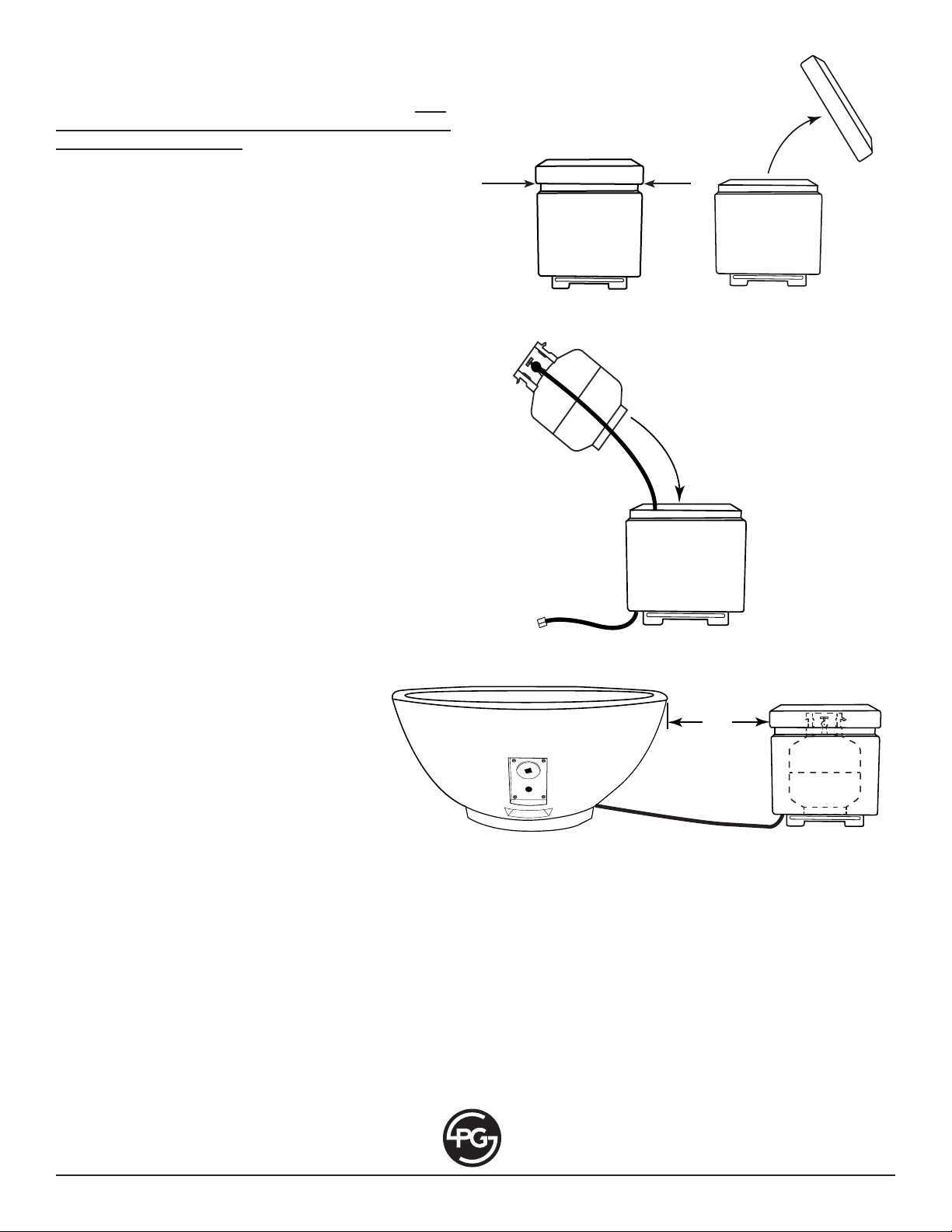

Fig. 1 Shows where to lift the enclosure lid.
LP
Gas
FG-12QDK-2
(Min. distance
from tank)
60”
Fig. 2 Installing LP tank and regulator hose.
LP
Gas
Hard Pipe
Access
Top View
FG-12QDK-2
4”
(Min. distance
from tank)
60”
Fig. 3 Shows competed installation with LP tank inside of enclosure.
NOTE:
• Do not operate if enclosure is closer than 60-inch from
the re pit or re feature.
• Do not operate if lid is not installed on enclosure.
• Do not sit on top of the enclosure.
• Ensure the enclosure vents are not blocked or buried in
the ground.
REV. 10-17-19
Firegear Outdoors: SANCTUARY-LPTE
