FirmTek SeriTek/Q6G Instructions for use

Store and Share your Digital Creations
Quick Install -SeriTek/Q6G or SeriTek/6G2+2 in ThunderTek/PX
I. Package Contents
Four
Rubber
Feet
Two
Screws
Secure
PCBA to
Posts
ThunderTek/PX2+2
Includes Two
Posts
Two
Screws
Secure
Posts to
Housing
Screws
Secure
PCIe to
Housing
ThunderTek/PX-
Q6G includes
SeriTek/Q6G
ThunderTek/PX2+2
includes
SeriTek/6G2+2

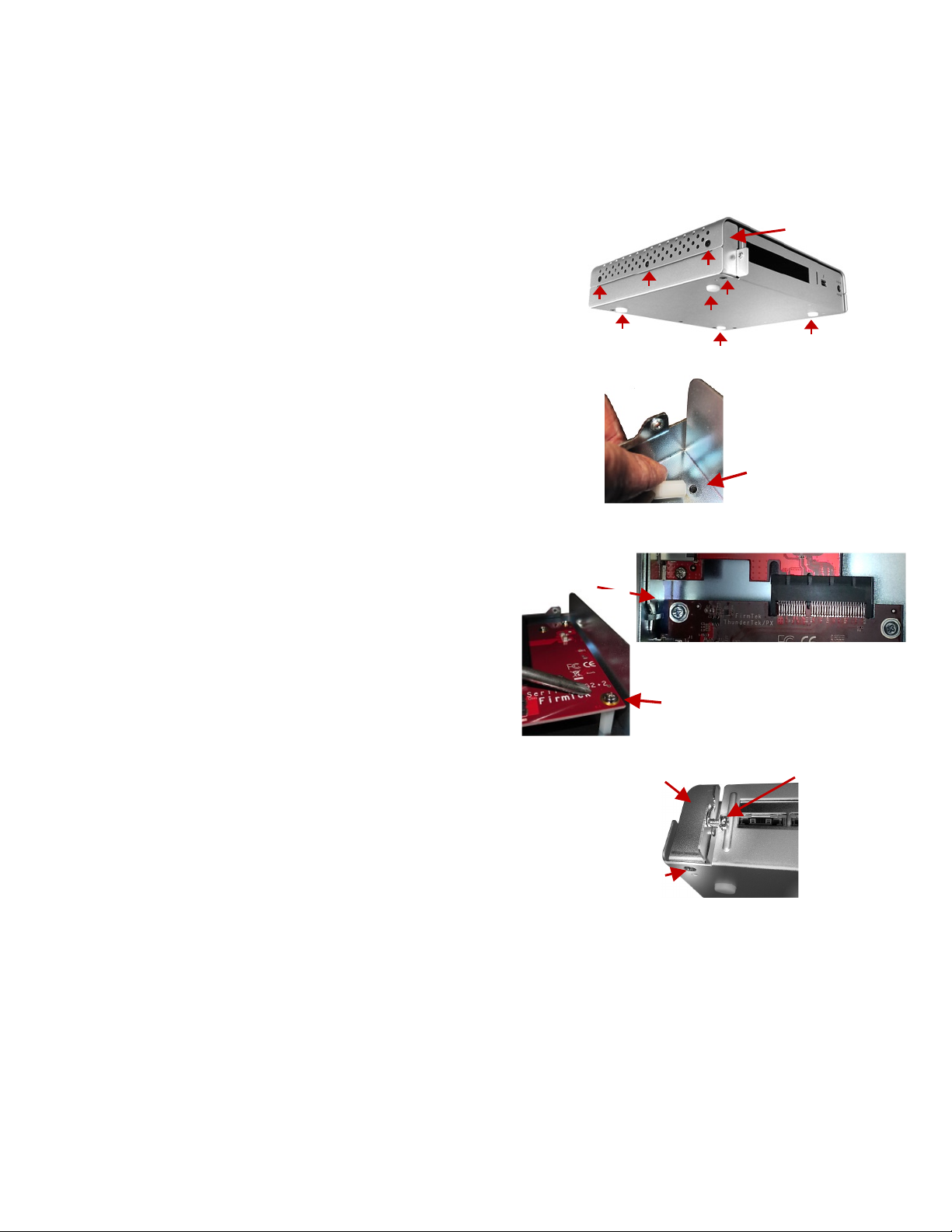

II. Install SeriTek/Q6G in ThunderTek/PX
1. Mount Rubber Feet in suggested locations.
2. Remove Top Housing:
Remove three screws on each side of
ThunderTek/PX
3. Loosen screw and remove PCI Mounting Tab
4. Install SeriTek/Q6G Card:
-Insert adapter bracket into PCIe Tab Slot and
push Gold Teeth into PCIe slot
- Gently press PCIe adapter to verify card is
firmly seated in PCIe slot
Note: Hold the PCIe card by its edges only. Do NOT
touch Gold Teeth or any components on the card.
5. Reinstall PCI Mounting Tab
-Position & Place PCI Mounting Tab into
housing. Verify both holes align properly
- Tighten screw to secure the PCI Mounting Tab
to housing
- Tighten screw to secure Card to Mounting Tab
6. Reinstall Top Housing
- Attach Top Cover and secure with six screws
1
1
1
1
2
3
2
2
PCI Mounting
Tab
PCI Mounting
Tab
Card Firmly Seated
4
Tighten Screw to
Secure Tab
Tighten Screw to
Secure Adapter
5

III. Install SeriTek/6G2+2 in ThunderTek/PX
1. Mount Rubber Feet in suggested locations.
2. Remove Top Housing:
Unscrew three screws on each side of
ThunderTek/PX
3. Loosen screw and remove PCI Mounting Tab
4. Screw Posts to Bottom Chassis
- Insert screw (Flat Head) from bottom of chassis
- Tighten Post: Use finger to press on Flat Head
Screw while other hand turns Post until tight
- Repeat the same steps for the 2nd Post
5. Install SeriTek/6G2+2 Card:
- Install drive(s) on SeriTek/6G2+2
- Insert adapter bracket into PCIe Tab Slot and
firmly push Gold Teeth into PCIe slot
- Gently press PCIe adapter to verify card is
seated properly in PCIe slot
Note: Hold PCIe card by its edges only. Do NOT touch
Gold Teeth or any components on the card.
- Screw SeriTek/6G2+2 to Posts
6. Reinstall PCI Mounting Tab
- Position & Place PCI Mounting Tab into
housing. Verify both holes align
- Tighten screw to secure PCI Mounting Tab to
housing
- Tighten screw to secure Card to Mounting Tab
7. Reinstall the Top Housing
- Attach Top Cover and secure with six screws
1
1
1
1
2
3
2
2
Mounting Tab
Tighten Screw to
Secure Tab
Tighten Screw to
Secure Adapter
6
Flat Head
Screw
4
5
Card Firmly Seated
Secure PCBA
