Bosch CDR 500 Kit User manual

Getting Started Guide & Warranty
CDR 500 Kit
Thank you for purchasing the CDR 500 Kit. The CDR 500
Adapter enables the CDR Tool to retrieve EDR data directly
from ECUs with a FlexRay communications network. This
advanced technology is much different than traditional
CAN or K-Line networks currently supported by the CDR
Tool.
The rst application of the CDR 500 will be for select
BMW and MINI vehicles. In the near future, the CDR 500
will be required for direct-to-module EDR downloads on
Audi and other vehicles.
Kit Contents:
Qty Description P/N
(1) CDR 500 Adapter F00K108803
(1) Interface Cable 1699200106
(1) 6’ USB Cable 06501262
Refer to the CDR Tool software help le for vehicle
application, connection instructions and using the CDR
500 for the rst time.
System Requirements:
`PC computer system requirements are the same as
those specied for the CDR Tool software
`Two USB ports with mass storage device support
enabled (e.g., USB Flash Drive)

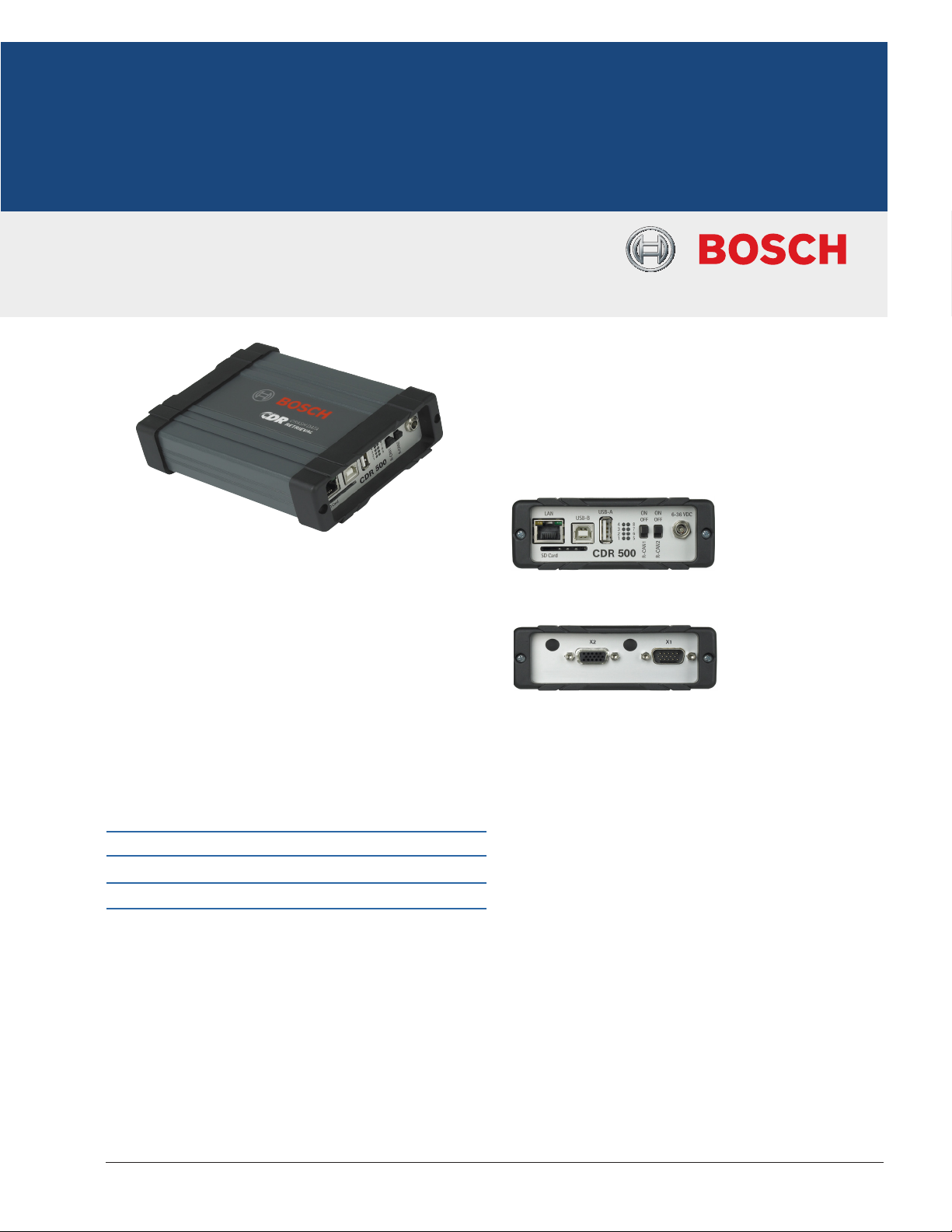

CDR 500 Adapter:
The CDR 500 can only be used in conjunction with the
CDR Interface Module and the F00K108387 ACM Power
Adapter. Power to the CDR 500 is supplied through the
ACM Adapter and controlled by the CDR Tool software.
Inputs/Outputs:
–LAN - not used
–SD Card - not used
–USB-B - device reprogramming
–USB-A - not used
–LEDs 1-8 - activity indicator lights
–R-CAN1 switch - any position
–R-CAN2 switch - any position
–6-36V DC - power jack, use only
as instructed in the CDR Tool
help le
–X2 - ACM direct to module cable
connection
–X1 - CDR 500 interface cable
connection
–
ATTENTION:
When operating the CDR 500, use only the AC power
supply provided with the CDR Tool Kit when powering
the device directly or through the ACM Power Adapter. Do
not use another power source including a vehicle battery.
Failure to do so may cause damage to the adapter and void
the warranty.
Interface Cable:
The CDR 500 interface cable is used to connect the
F00K108387 ACM Power Adapter to the X1 port of the CDR
500. This cable carries the necessary signals between the
CDR Interface Module and the CDR 500 Adapter.
6’ USB Cable:
Use this cable to connect your PC to the CDR 500 Adapter for
future updates. The CDR Tool software will guide you through
the update process when updates become available.
Getting Started Guide & Warranty (P/N: 1699200145, rev A) © Copyright 2014 Bosch Automotive Service Solutions

Bosch CDR 500 Adapter
Getting Started Guide & Warranty (P/N: 1699200145, rev A) © Copyright 2014 Bosch Automotive Service Solutions
Warranty:
Bosch offers a limited, 24 month warranty on all CDR hardware.
For details on the warranty, refer to the CDR Tool Operator’s
Manual provided with your CDR Tool Kit.
Connecting the CDR 500:
The CDR Tool software and help file will guide you through
connecting, updating and using your new CDR 500 Adapter. An
example connection diagram is provided below. The gray items in
the diagram are not included in the CDR 500 Adapter Kit.
