First Choice FCL-57673 User manual

www.rstchoicelighting.co.uk
info@rstchoicelighting.co.uk
ip67
Page 1
INTRODUCTION
Thank you for purchasing this item
Please ensure you have the kit in your possession before commencing any form of installation
Please read our instructions carefully before commencing any installation to ensure safe and satisfactory operation of this product
This item is not like a pre-assembled Christmas light set, and WILL NOT automatically work once plugged in straight out of the box
Before installation please visually check all components including plug, cable, driver and heads for damage
If any part looks damaged, the product should not be installed or used
KEEP THESE INSTRUCTIONS FOR FUTURE USE
INSTALLATION INSTRUCTIONS
Plan your layout carefully
Ensure cables reach between driver and each head
Avoid locating cables in positions that would cause a trip hazard
Position cables away from areas where they may be at risk from being cut, trapped or damaged
Ensure the cables and connectors are accessible for future maintenance
Secure any excess cable neatly using insulated staples or plastic ties
If your model has a plug-in driver, please ensure that it is situated indoors (e.g. house, garage, shed) to protect it from the elements
DO NOT ADD MORE HEADS. This kit is not designed to power an increased number of heads
You can use less than the maximum lamps as required
A
C
B
Connect LED heads in strict order sequence
from closest to plug to the furthest away
Feed cables for each head through drilled holes
Push head fully into drilled hole to secure
Ensure head is fully ush with mounting surface
ENSURE ARROWS ON CONNECTORS LINE UP
ENSURE CONNECTORS ARE FIRMLY PUSHED TOGETHER
A drill bit is required to install this kit
Ensure you use the correct cutter size
Please ensure you use the correct cutter type for the mounting surface
Test drill a hole in a spare piece of wood to conrm head ts securely
Drill holes for heads
Take care not to damage any pipes or cables beneath the mounting surface
LED head type Cutter size
15mm diameter 12mm diameter
20mm diameter 17mm diameter
30mm diameter 24mm diameter
30mm square 24mm diameter
45mm diameter 32mm diameter
60mm diameter 45mm diameter

www.rstchoicelighting.co.uk
info@rstchoicelighting.co.uk
ip67
Page 2
CAUTION
The light sources of this kit are non-changeable light emitting diodes (LED)
Do not disassemble the product; light emitting diodes can cause damage to the eyes
Do not immerse in water
Always disconnect from the mains when installing and maintaining
This kit should be tted by a qualied electrician in accordance with IEE wiring regulations and current building regulations
This kit is designed to be installed vertically or horizontally into a suitable mounting surface
Not suitable for installation directly into the ground
Not suitable for dimming unless by the remote controller included with all RGB kits
WARNING
Deviation from these assembly instructions may result in a risk of re or electric shock
To reduce the risk of re, electric shock, or injury to persons use only insulated staples or plastic ties to secure cables
Any modications made to this kit will void manufacturers warranty
This product contains a non-replaceable light source
This product contains a non-replaceable control gear
CARE & MAINTENANCE
It is recommended to regularly spray on or apply by a cloth a water displacing oil to clean and protect the metal surfaces of the LED heads
This will provide protection from the elements especially if living near the sea
Sea air & other corrosive elements will inevitably tarnish stainless steel over time, but following this advice will prolong the life of the product
If part of the product is damaged, it cannot be repaired and must be destroyed
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist
Check with your local authority for recycling advice

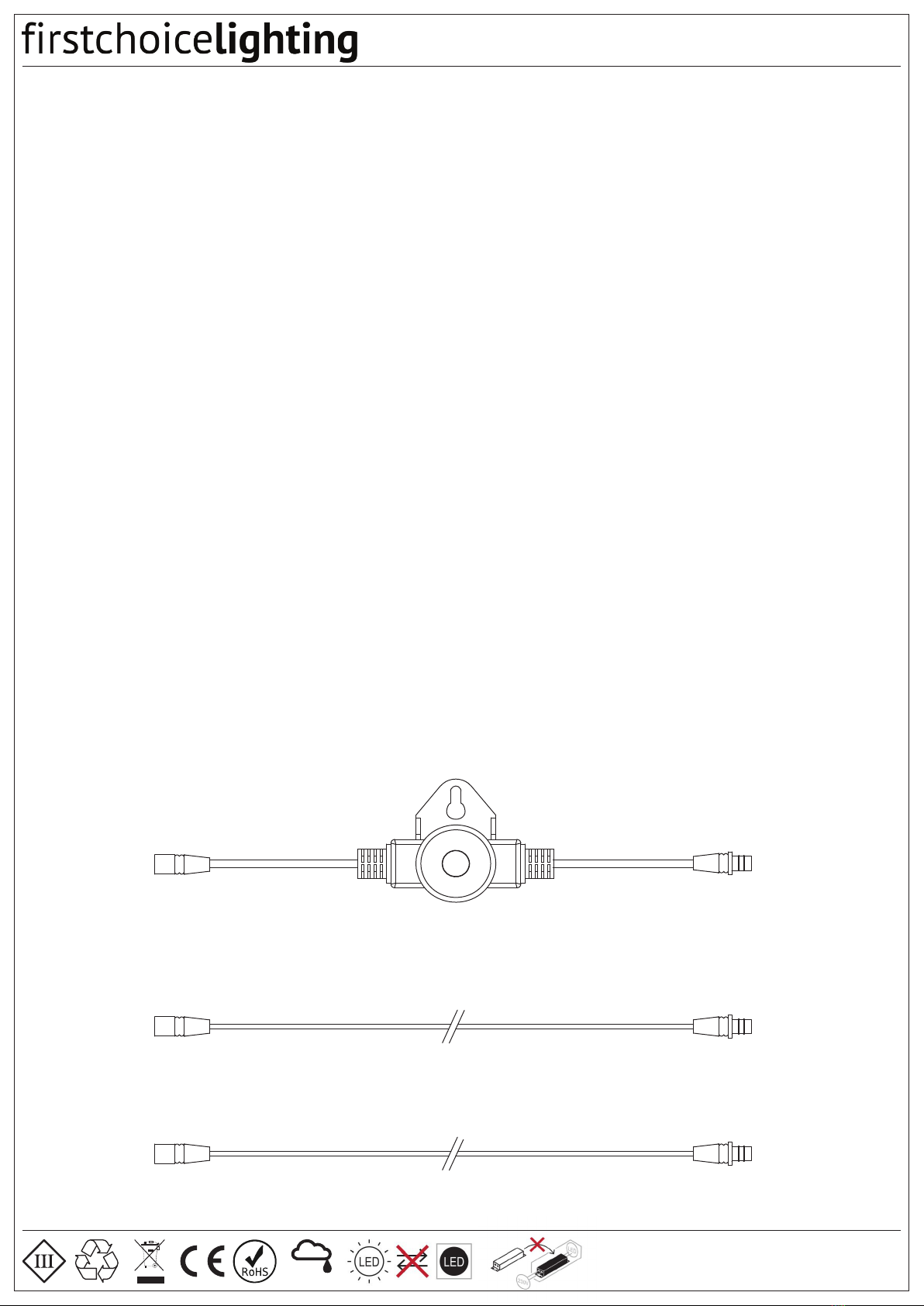

ACCESSORIES
55820 IN-LINE PHOTOCELL
When installed between the power lead and rst LED head, the in-line photocell (alternatively known as a dusk ‘til dawn sensor) will turn the kit
on when it starts to get dark and off again when it starts to get light. 30 Lux on, 30 Lux off
Install between the included 5m extension lead and rst LED head, in an unobstructed position (in direct sunlight is not necessary)
This accessory can only be used with warm white, cool white or blue kits. It cannot be used with any RGB (colour changing) kits.
For the 30 head kits and where the splitter cable accessory is used, 2 x photocells are required; one for each split set of heads.
57688 10M power extension lead
This accessory extends the distance between the power source and rst head by a maximum of 10m
This accessory can only be used with warm white, cool white or blue kits. It cannot be used with any RGB (colour changing) kits
This accessory is installed between the driver connector and the 5m extension lead
For the 30 head kits only, 2 x 10m power extension leads can be used in parallel from the power splitter cable included in the kit
57689 1M head to head extension lead x 5
This accessory extends the distance between up to 5 heads by 1m
The accessory pack contains 5 x 1m extension leads
This accessory can only be used with warm white, cool white or blue kits. It cannot be used with any RGB (colour changing) kits

www.rstchoicelighting.co.uk
info@rstchoicelighting.co.uk
ip67
Page 3
TROUBLE SHOOTING
It is highly unusual to have faulty LED lamps and issues with installing and using these kits
On those rare occasions, please use these instructions, and be patient!
All LED kit connections
LED Heads that do not light up?
Turn off power and unplug
Check product for any visible signs of broken or damaged parts - plug, driver, cables, connectors, receiver or LED heads
Starting at the plug lead connector and working through the complete kit, unplug each connector
Check that none of the pins inside are bent or damaged
Starting at the plug lead connector and working through the complete kit again, reconnect the connectors
Turn one connector 180˚ in the socket in turn until the arrows line up
Ensure the arrows moulded into each connector line up
See page 1, section C for further information
Place plug back in socket and turn on
Repeat this process until all heads are working
RGB (colour changing) LED kits only
RGB remote controller does not work ?
Ensure clear plastic tag has been removed from battery compartment
Check battery is inserted the right way round
Check LED light on front of controller ashes when a button is pressed
RGB remote controller does not work ?
Try a replacement battery if necessary
Battery required is a CR2025 3V
LED heads are not changing colour at the same time ?
Pair the controller to the in line receiver
Press buttons 1 & 2 simultaneously on the remote controller for 5 seconds
LED heads are now synchronised
LED heads are not changing colour at the same time and pairing above did not work ?
Re-code the remote the controller
Turn off power and unplug
Leave for 5 seconds
Ensure mains power is turned back on, plug back in and switch on
Press buttons 9 & 11 on the remote controller simultaneously for 5 seconds
LED heads will ash once
LED heads are now synchronised and paired
If these steps do not solve the problem you are having,
please contact the customer support team through our website or by email
1
3
6
9
10
10
4
2
7
10
10
10
5
8
11
10
10
+
CR2025
3V
1
3
6
9
10
10
4
2
7
10
10
10
5
8
11
10
10
1
3
6
9
10
10
4
2
7
10
10
10
5
8
11
10
10

www.rstchoicelighting.co.uk
info@rstchoicelighting.co.uk
ip67
Page 4
My lights are not coming on ?
This item is not like a pre-assembled Christmas light set, and WILL NOT automatically work once plugged in straight out of the box
Please read our instructions carefully before commencing installation
LED heads are not lighting up ?
If the power to the plug socket is on, then this is likely to be a connector issue. Please follow the trouble shooting guide on page 3
What do you mean by “Connect in Sequence” ?
To avoid connection issues, we recommend that the kit is installed by working from one end of the kit to the other
Starting at the plug socket to the plug, leads, rst head through to last head, nishing with the waterproof cap at the end on the last head
Can I use the RGB (colour changing) controller to control more than one kit ?
Yes, any number of RGB (colour changing kits) can be controlled by a single remote control
However, the limitation is that every receiver (the black box situated in-line after the plug connector) for each RGB kit must be positioned as
closely together as possible of each other without any barrier between
Remote controllers will work effectively within a 10m radius of the RECEIVER - NOT the last LED head
Can I dim the kit ?
White and blue kits cannot be dimmed. All RGB kits have a dimming function on the remote controller
How does the Photocell accessory work and can I use it on all kits ?
When installed between power lead and rst LED head, the in-line photocell (alternatively known as a dusk ‘til dawn sensor) will turn the kit
on when it starts to get dark and off again when it starts to get light. 30 Lux on, 30 Lux off
This accessory can only be used with warm white, cool white or blue kits. It cannot be used with any RGB (colour changing) kits
For the 30 head kits and where the splitter cable accessory is used, 2 x photocells are required; one for each split set of heads.
Can I bypass the driver ?
All kits with a plug in driver have been designed for use with a specic driver and cannot be removed or wired in any other way
For kits purchased with the in-line driver, the plug can be removed and terminated into a BS junction box
This should only be done by a qualied electrician in accordance with IEE wiring regulations and current building regulations
Why are some lights dimmer than others ?
Check all connections as detailed on page 3 in troubleshooting
Ensure you have not connected extra heads to the kit. These kits are designed to only work with the number of heads included in the kit
If you have connected any extension lead accessories, ensure that you have not made the complete kit longer than 30m
Can I purchase extra heads ?
No. The kits are designed to only work with the number of heads included in the kit
We recommend you purchase the kit with a larger number of heads and not use some of them
These kits can run less heads on a kit, but not more
Can I extend the length of the kit ?
You can purchase the 57689 1M head to head extension lead accessory pack
This accessory pack gives you an additional ve 1m extension leads to increase the distance between a number of heads
You can purchase the 57688 10M power extension lead accessory pack
This accessory pack gives you an additional 10m power extension leads to increase the distance between the plug socket and rst head
see page 2 for further detail
Can the RGB kits be set to white ?
Yes, the RGB kits have seven xed colour options (along with the other more dynamic strobe and fade modes), one colour of which is white
Is the location of the driver and plug important ?
Yes. The LED heads themselves are IP67 weatherproof and designed to be suitable for use outside in all weathers
However the plugs themselves are designed to be situated in a more sheltered position, preferably indoors such as in the house, garage or
shed to protect it from the elements
The plugs for kits with an in-line driver must still be placed indoors, but the in-line driver is fully IP67 waterproof and can be placed outdoors
What is the IP rating of the kits ?
The heads are IP67, as is the in-line driver if you have purchased one of the kits with this variation
The remote control receiver, all leads and all connectors are also IP67 and therefore suitable for outdoors
The plugs and remote controller are not waterproof and should be situated indoors
What material are the LED heads made of ?
Our LED heads are manufactured using stainless steel and are corrosion resistant.
We recommend regular cleaning as detailed under Care & Maintenance on page 2
FREQUENTLY ASKED QUESTIONS

20cm
INDOOR
OUTDOOR
500cm
50cm
50cm
CONNECTION DETAIL
1 - turn on/standby
2 & 7 - dynamic mode adjust
3 & 5 - dynamic speed adjust
4 - demo mode
6 & 9 - static colour adjust
8 & 11 - brightness adjust
10 - direct colour adjust
1
3
6
9
10
10
4
2
7
10
10
10
5
8
11
10
10
1
3
6
9
10
10
4
2
7
10
10
10
5
8
11
10
10

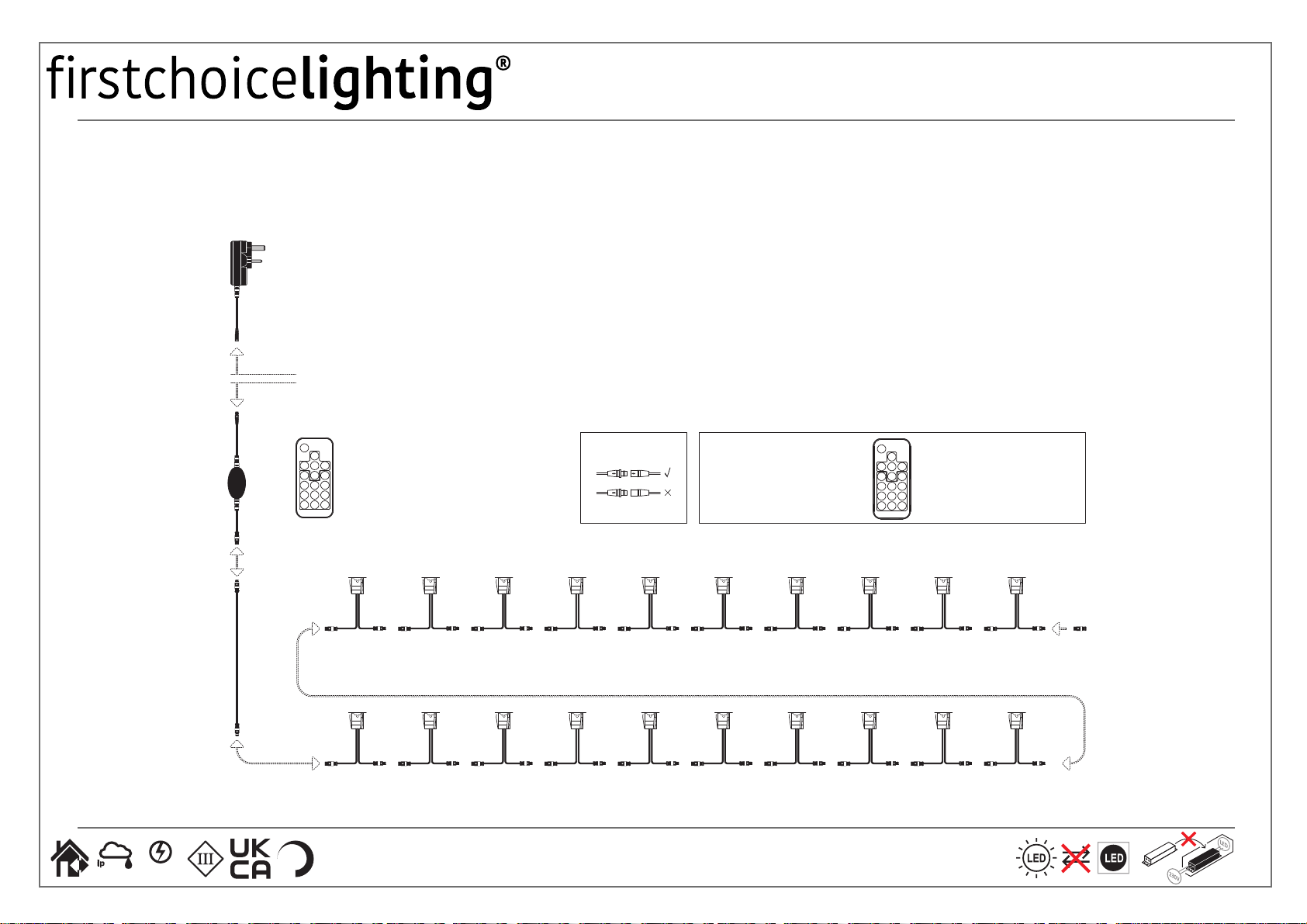

95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
95cm 5cm
www.firstchoicelighting.co.uk
[email protected]
dimension diagram - 14/12/2021
FCL-57673 - IP67 - SET OF 20 - 15MM - Colour Changing RGB
20 x 0.5W LED (included) INTEGRATED LED
Cut Out: 12 Dia Recess Depth: 35
67
240V
dim
This product contains a non-replaceable light source
This product contains non-replaceable control gear
