Olafus 3-LBG80KB User manual

Quick Start Guide
PIR LED WALL LIGHTS WITH
MOTION SENSOR
MODEL: 3-LBG80KB

2

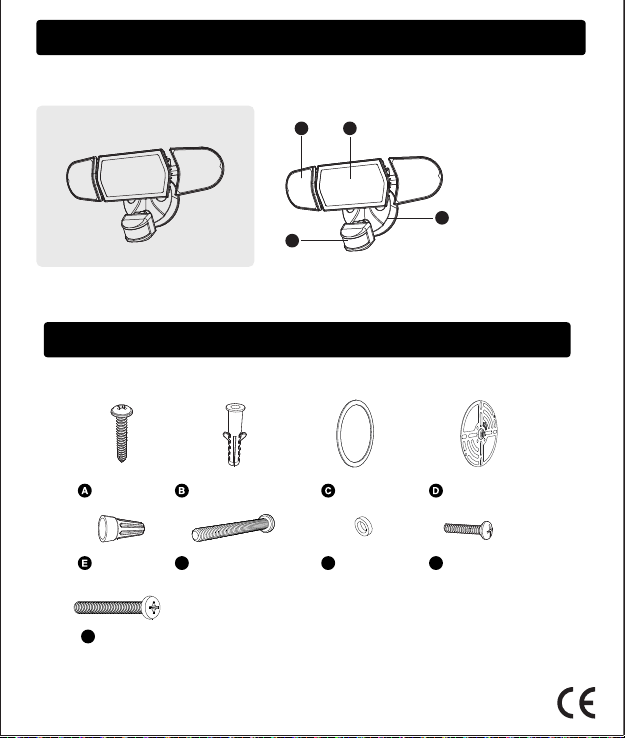

PARTS LIST
Wire Nuts
QTY: 3 FLong Machine Screw
QTY: 1 GSilicone Gasket QTY: 1 HMachine Screw QTY: 2
Machine Screw
QTY: 3
Expansion Rubber Plug
QTY: 3
EVA Gasket
QTY: 1
Mounting Bracket
QTY: 1
IMachine Screw
QTY: 2
COMPONENTS AND STRUCTURE
1. Cover
2. LED Light Source
3. Lamp Bracket
4. Sensor Head
3-LBG80KB
4
3
21

3
SPECIFICATIONS
Model
Input Voltage
CCT
CRI
Power Factor
L
70
B
50
lifetime
Beam Angle
t
a
Luminaire Location
3-LBG80KB
Input Current
Rated Power
Luminous Flux
0.68A
80W
7300lm
120°
-20-40°C/-4°F-104°F
SUITABLE FOR WET LOCATIONS
100 -120V～60Hz
6500K
≥80
≥0.9
30000hours L
70
B
50
@25°
LED WALL LAMP
The testing standard of the product's
luminous flux:Place the three/two lights
on the same horizontal surface for
testing, and the tested luminous flux
is the accurate luminous flux.
Note:
Weight
Max Projected Area
Max. Lighting Coverage
Dimensions（LxHxW）
1.18 kg / 2.6 lb
0.0512 m² / 0.551 ft²
128 m² / 1377 ft²
364x158x116 mm /
14.33x6.22x4.57 in
W
H
L

1.ThePIRsensorshallalwaysbetiltedslightlydownward.
2.Theorientationangleofthesensorshallbebetween0-45°.
3.Thedetectiondistanceofthesensoristhefarthestwhentheambienttemperatureis25℃.
Anytemperaturefluctuationsaboveorbelow25℃willaffectthedetectiondistance.
4.Ifthelightcontinuestodetectmotionwhileitison,itwillremainonuntilthemotionstops.
NOTE:

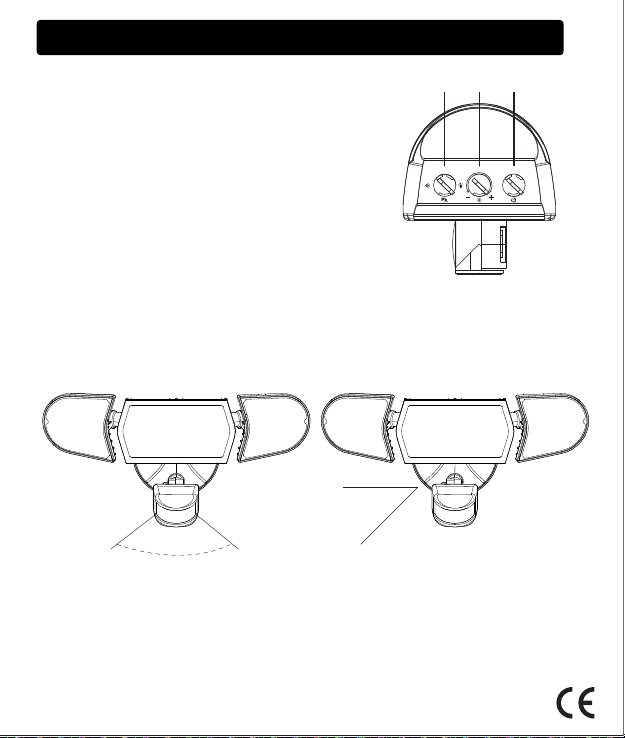

OPERATION INSTRUCTIONS
Detection Range: 180°
4
0°
45°
180°
ON
M 1M
L H 10S 10M
D2D 5M30S
1 2 3
1.The function knob is divided into 5 gears
L: Low sensitivity, sensing distance is 4-6 meters.
D2D: Light control mode, automatically turn the light on/off
depending on the ambient brightness.
M: Medium sensitivity, sensing distance is 6-10 meters.
ON: Constant light mode: the light will always be on after
being powered on, and won’t switch on/off automatically.
H: High sensitivity, sensing distance is 10-15 meters.
2.Can identify day and night: The consumer can adjust work
ambient light. It can work in the daytime and at night when it is
adjusted on the “+” position (max). It can work in the ambient
light less than 10LUX when it is adjusted on the “−” position
(min).
3.Time-delay adjustment: It can be set according to the consumer’s
desire, there are five gears: 10 seconds / 30 seconds / 1 minute / 5 minutes / 10 minutes.
Time-delay is added continually: When it receives the second induction signals after the first
induction, it will compute time once more on the rest of the first time-delay basic (set time).

PREPARATION
5
Before beginning assembly of product,make sure all parts are present.Compare parts with
parts list.If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time:30-60 minutes.
Product appearance may vary from image shown.
Recommended to be installed on the ground above 2.5m (8.2 ft) and no higher
than 5 m (16.4 ft).

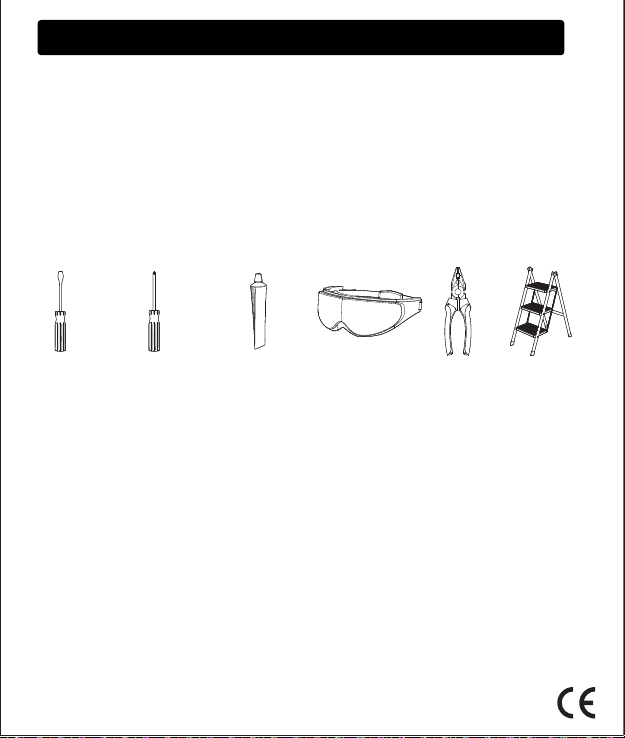

TOOLS REQUIRED（not included）
Flathead
screwdriver
screwdriver Silicone Sealant Eye Protection Pliers Step Ladder
WARNING:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH
THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF
THE PRODUCT AND THE HAZARDS INVOLVED.
NOTE:
CAUTION:
PLEASE MAKE SURE YOUR WALL SWITCH AND POWER AT
MAIN CIRCUIT BREAKER BOTH ARE OFF.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION, CONSULT
A LICENSED ELECTRICIAN.

RISK OF SHOCK:
BEFORE BEGINNING INSTALLATION,TURN OFF ELECTRICITY
AT THE CIRCUIT BREAKER BOX OR THE MAIN FUSE BOX.
PREPARATION
6
DO NOT CONNECT THIS LIGHT FIXTURE TO AN UNGROUNDED
ELECTRICAL SYSTEM. ATTACH GROUND FIXTURE WIRE TO
EITHER GREEN GROUND SCREW ON MOUNTING PLATE OR
THE GROUND WIRE IN THE OUTLET BOX.
WARNING:
INSTALLING THIS LIGHT IN AN UNGROUNDED ELECTRICAL
SYSTEM MAY CAUSE THE METAL PARTS OF THE LIGHT TO
CARRY CURRENT IF ANY WIRES OR WIRE CONNECTIONS ARE
DAMAGED OR LOOSE. IN THIS CASE, ANYONE WHO TOUCHES
THE LIGHT WILL RECEIVE AN ELECTRIC SHOCK, RESULTING IN
INJURY OR DEATH.
NOTE:
BE SURE TO USE WIRE NUTS/CONNECTORS RATED FOR
THE CORRECT GAUGE AND NUMBER OF WIRES USED.
MAKE SURE THERE ARE NO EXPOSED WIRE BUNDLES
OUTSIDE THE WIRE NUT/CONNECTOR (IF APPLICABLE).
BE CAREFUL NOT TO DAMAGE OR CUT THE WIRE INSULA-
TION (COVERING) DURING INSTALLATION. DO NOT LET THE
WIRES TOUCH ANY SHARP EDGES.

FOR WET LOCATION, MAKE SURE FILL FULL THE GAP OF EVA GASKET AND MOUNTING
SURFACE WITH SEALING COMPOUND OR SILICON GLUE.
7

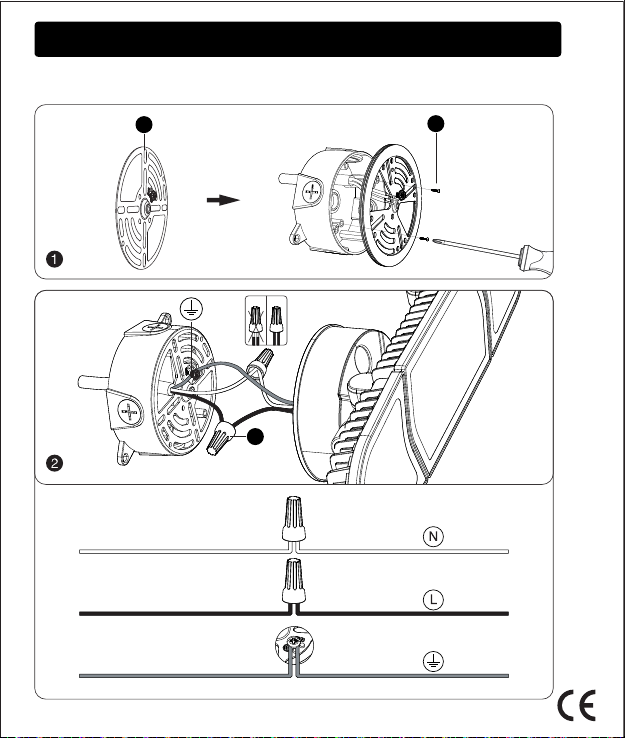

INSTALLATION STEPS
D
E
H
BLACK
LIVE WIRE
BLACK
LIVE WIRE
FROM FIXTURE
FROM HOUSE
GREED
GROUND WIRE
GREED
GROUND WIRE
FROM FIXTURE
FROM HOUSE
WHITE
NEUTRAL LINE
WHITE
NEUTRAL LINE
FROM FIXTURE
FROM HOUSE
NOK OK

8

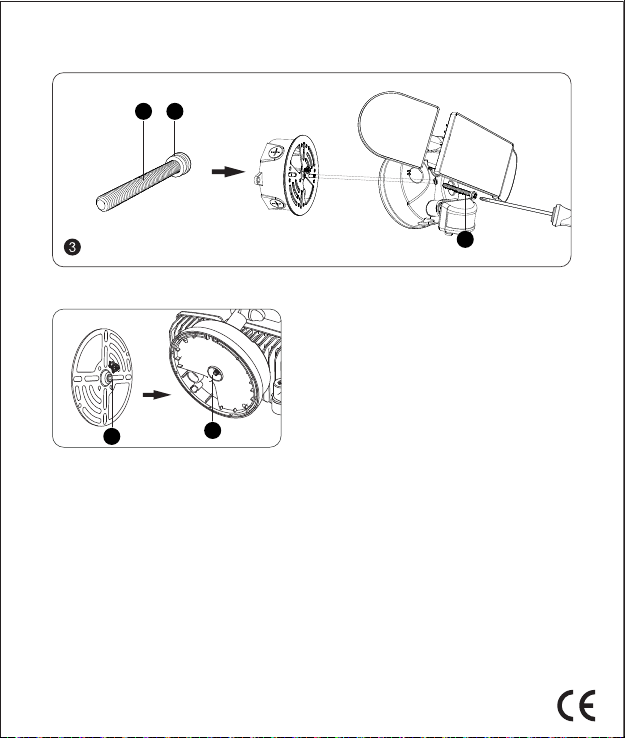

GF
F
The raised part (RA) of the metal plate must be
engaged with the recessed part (RE) of the base,
otherwise it cannot be installed.
Note：
RA RE

TROUBLESHOOTING
LED senses a
movement, the light
does not light up
LED sensor light did
not go out, continued
to light up
Cause RemedyMalfunction
1. The light is not energized
2. Other surrounding light
sources make the light
misjudge it as daytime
3. During the day, the
brightness is in night mode
4. Internal wiring is loose
Continuous movement within
the sensing range
1. Check power-on status
2. Turn off the nearby lights or
sensor head to other directions
3. Reset
4. Rewiring after power failure
Check the relevant area and
retune or override the sensor
head if necessary
LED sensor light
illuminates during
the day
The shadows around the
sensor make it mistakenly
think it's night
1. Do not cover the sensor head
2. Place the light in a place where
the light is bright enough during
the day
LED sensor light
flashing
Surrounded by other unstable
light sources shining onto the
induction
Avoid being exposed to
such light sources
LED lights turn on
unexpectedly
1. Wind blows the branches
and bushes within the sensing
range
2. Sensing cars on the road
3. Sudden temperature change
due to climate factors or fans,
exhaust from open windows
1. Adjust its scope
2. Adjust its scope
3. Change irradiation area
9
