red lighting Classe L5 User manual

Classe LS 60 v1.0
- 1 -
Contents
1. FEATURES..................................................................................................................................................- 2 -
2. FIXTURE OVERVIEW..............................................................................................................................- 3 -
3. SAFETY INSTRUCTIONS........................................................................................................................- 3 -
3.1) Important safety warns....................................................................................................................- 3 -
3.2) GENERAL GUIDELINES..............................................................................................................- 4 -
4. INSTALLATION INSTRUCTIONS..........................................................................................................- 5 -
4.1) Mounting the device.........................................................................................................................- 5 -
5. DMX-512 control connection......................................................................................................................- 8 -
6. DMX-512 connection with DMX terminator............................................................................................- 9 -
7. Projector DMX start address selection......................................................................................................- 9 -
8. Control Board............................................................................................................................................- 10 -
8.1 FUNCTION MODE.........................................................................................................................- 11 -
9.1.1 Set DMXAddress..................................................................................................................- 11 -
8.1.2 Value Display.........................................................................................................................- 12 -
8.1.3 Set to slave.............................................................................................................................- 12 -
8.1.4Auto Program........................................................................................................................- 12 -
8.1.5 Music control.........................................................................................................................- 12 -
8.2 Information.......................................................................................................................................- 12 -
8.2.1 Time information..................................................................................................................- 12 -
8.2.2 Temperature Info..................................................................................................................- 13 -
8.2.3 Software version ...................................................................................................................- 13 -
8.3PERSONALITY.................................................................................................................................- 14 -
8.3.1Status setting..........................................................................................................................- 14 -
8.3.2 Fans Control..........................................................................................................................- 16 -
9.3.3 Display settings .....................................................................................................................- 16 -
9.3.4 Temperature C/F...................................................................................................................- 16 -
9.3.5 Initial effect ...........................................................................................................................- 17 -
9.3.6 Restore Default .....................................................................................................................- 17 -
8.4 Reset-functions.................................................................................................................................- 17 -
8.5 Effect Adjust......................................................................................................................................- 17 -
8.5.1 Test channel...........................................................................................................................- 17 -
8.5.2 Manual control......................................................................................................................- 17 -
8.5.3 Calibrate values....................................................................................................................- 18 -
8.6 Users mode set ..................................................................................................................................- 18 -
8.6.1 User mode..............................................................................................................................- 18 -
8.6.2 Preset User mode..................................................................................................................- 18 -
8.7 Edit program.....................................................................................................................................- 18 -
8.7.1 Select program......................................................................................................................- 18 -
8.7.2 Edit program.........................................................................................................................- 18 -
8.7.3 Edit scenes.............................................................................................................................- 18 -
8.7.4Auto scenes rec......................................................................................................................- 18 -
9. INSTRUCTIONS ON USE:......................................................................................................................- 21 -
10. ERROR MESSAGE................................................................................................................................- 23 -
11. CLEANINGAND MAINTENANCE.....................................................................................................- 24 -
12. TECHNICALSPECIFICATIONS.........................................................................................................- 25 -

Classe LS 60 v1.0
- 2 -

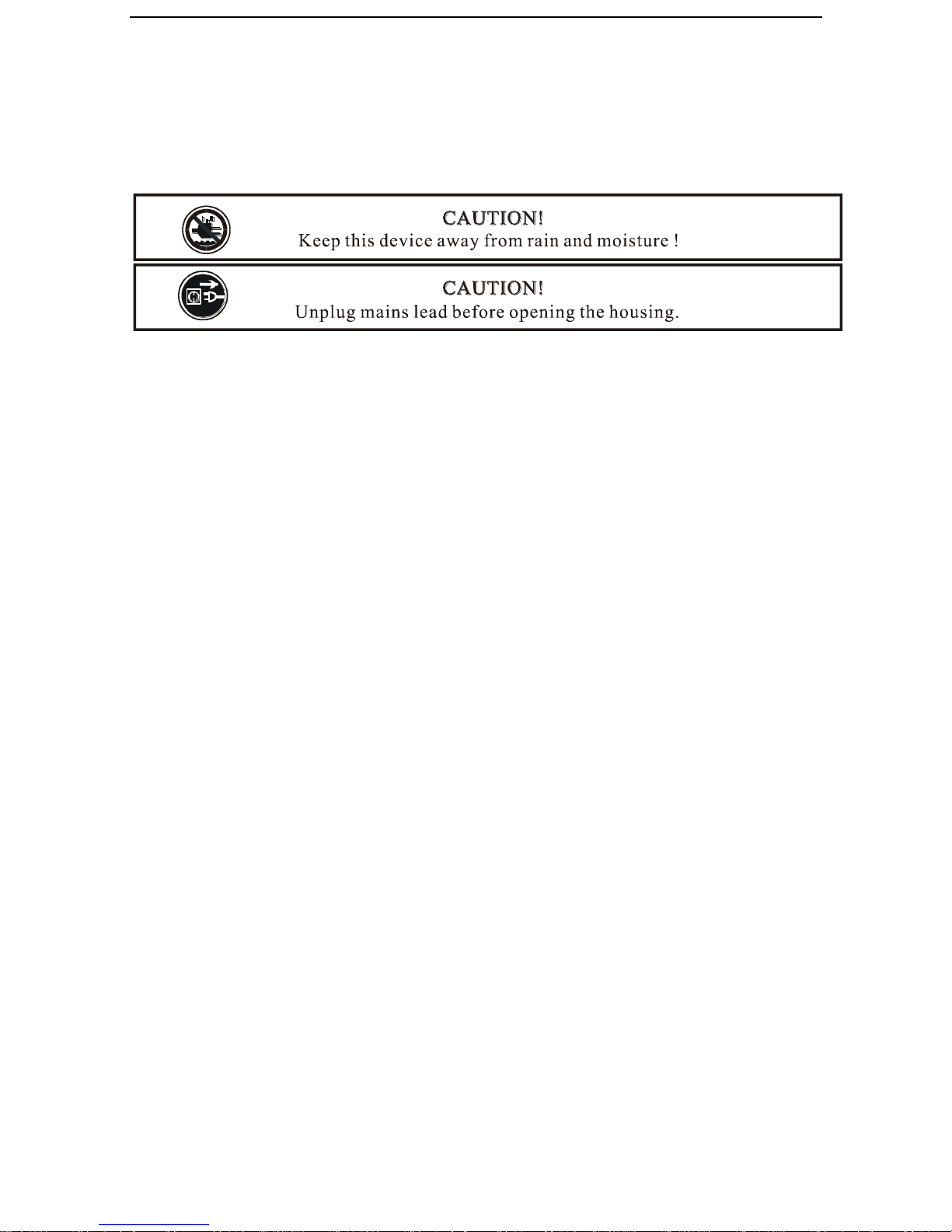

Thank you for your patronage. We are confident that our excellent products and service can
satisfy you.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction
strictly.
INTRODUCTION:
Thank you for having chosen this professional led moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. One XLR connection cable
2. One omega clamps
3. One safety rope
4. Manual
Please check carefully that there is no damage caused by transportation. Should there be any,
consult your dealer and don’t install this device.
1. FEATURES
·LED type: SST-90
·Extremely Long Life: 100,000 hr and lower power consumption
·3 DMX channel mode: 12/14/16 channels
·3 operational modes: DMX-512, Master/Slave & Sound Active
·630°or540° pan / 270° tilt (8-bit)
·Strobe effect with 1-13 flashes per second and pulse effect
·Color wheels：8dichroic filters plus open, rainbow-effect with adjustable speed in both
directions
·Rotation gobo: 7 interchangeable, rotating gobos plus open
·Prism and prism rotating , with 16 prism macros
·Linear dimmer in precise speed from 0% ~ 100%
·Friendly blue LCD display
·Rechargeable Back up Battrty for Display
·Preset program: 7 built in programs can be called up via DMX controller
·Fan automatically adjust speed according to the LED temperature
·Software-upload by optional accessory via DMX line

Classe LS 60 v1.0
- 3 -
2. FIXTURE OVERVIEW
3. SAFETY INSTRUCTIONS
3.1) Important safety warns
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
1: Lens
2: Display
3: Mode/Esc-button
4: Up-button
5: Down-button
6: Enter-button
7: Microphone
8: 3-Pin DMX out
9: 3-DMX in
10: 5-Pin DMX out
11: 5-DMX in
12: Power switch
13: Fuse
14: Power supply

Classe LS 60 v1.0
- 4 -

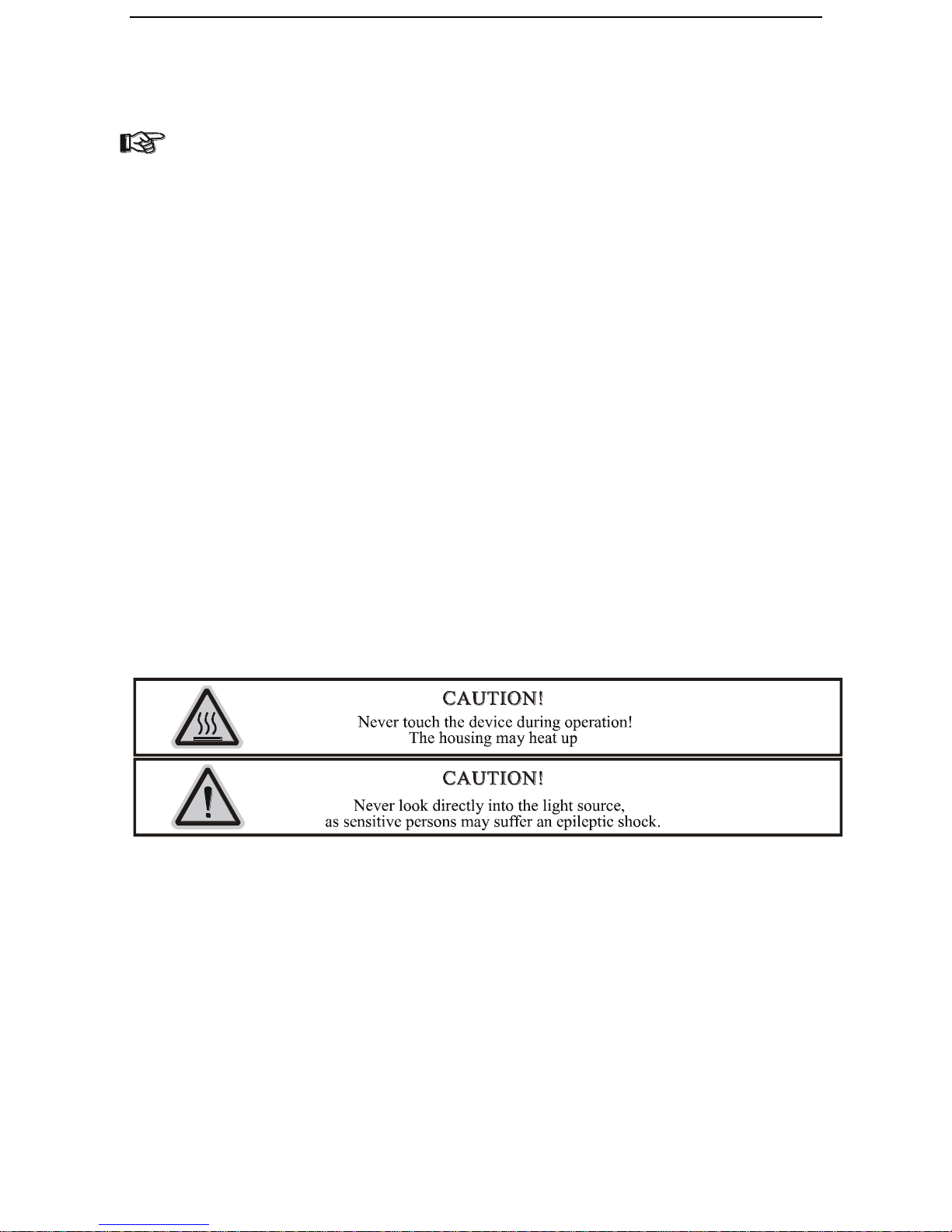

Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Please be aware that damages caused by manual modifications to the device are not subject
to warranty. Keep away from children and non-professionals.
3.2) GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the
device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks may
ensure that the device will serve you for a long time without defects.

Classe LS 60 v1.0
- 5 -
Do not shake the device.Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme
heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum
distance between light-output from the projector and the illuminated surface must be more than
0.5 meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.
If this device will be operated in any way different to the one described in this manual, the
product may suffer damages and the guarantee becomes void. Furthermore, any other operation
may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc.
4. INSTALLATION INSTRUCTIONS
4.1) Mounting the device
The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting
under or above the temperature.
The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.
Never stand directly below the device when mounting, removing or servicing the fixture.
The operator has to make sure the safety relating and machine technical installations are approved
by an expert before taking the device into operation for the first time.
These installations have to be approved by a skilled person once a year.
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.

Classe LS 60 v1.0
- 6 -
Theelectric connection must only be carried out by a qualified electrician.
Before mounting make sure that the installation area can hold a minimum point load of 10 times
the device’s weight.
Connect the fixture to the mains with the power plug.
Installation via the Omega holders
a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in
the middle of the bracket.
b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device. Tighten the quick-lock fasteners fully clockwise.
c) Install the second Omega holder.
d) Pull the safety-rope through the holes on the bottom of the base and over the trussing system
or a safe fixation spot. Insert the end in the carabine and tighten the safety screw.
Notice: this step is quite important to ensure that the fixture will not drop out by the
damage of the clamp.

Classe LS 60 v1.0
- 7 -
Dimensional Drawings:

Classe LS 60 v1.0
- 8 -

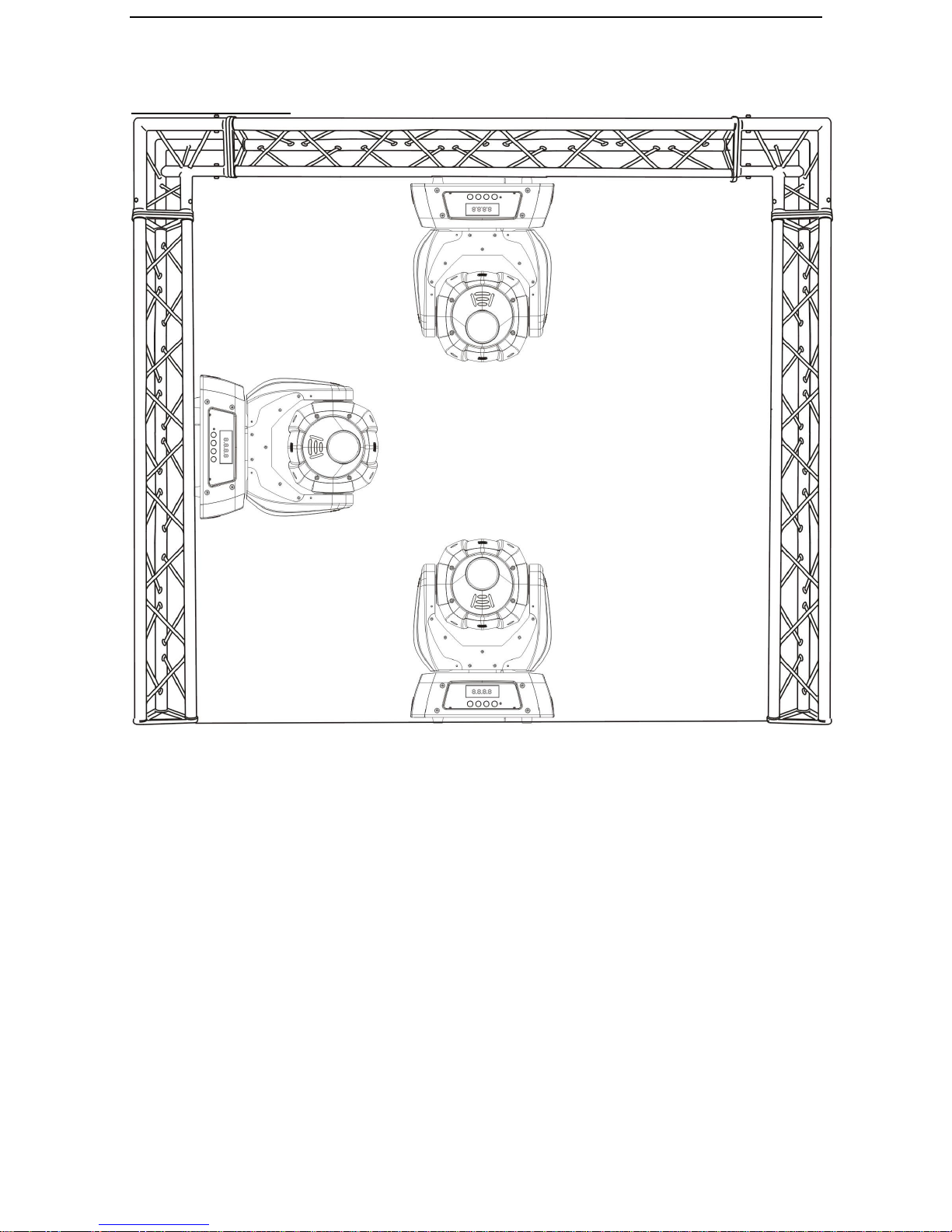

Layout Drawings:
Mounting points
Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.
Overhead mounting requires extensive experience, including amongst others calculating working
load limits, a fine knowledge of the installation material being used, and periodic safety
inspection of all installation material and the fixture. If you lack these qualifications, do not
attempt the installation yourself. Improper installation can result in bodily injury.

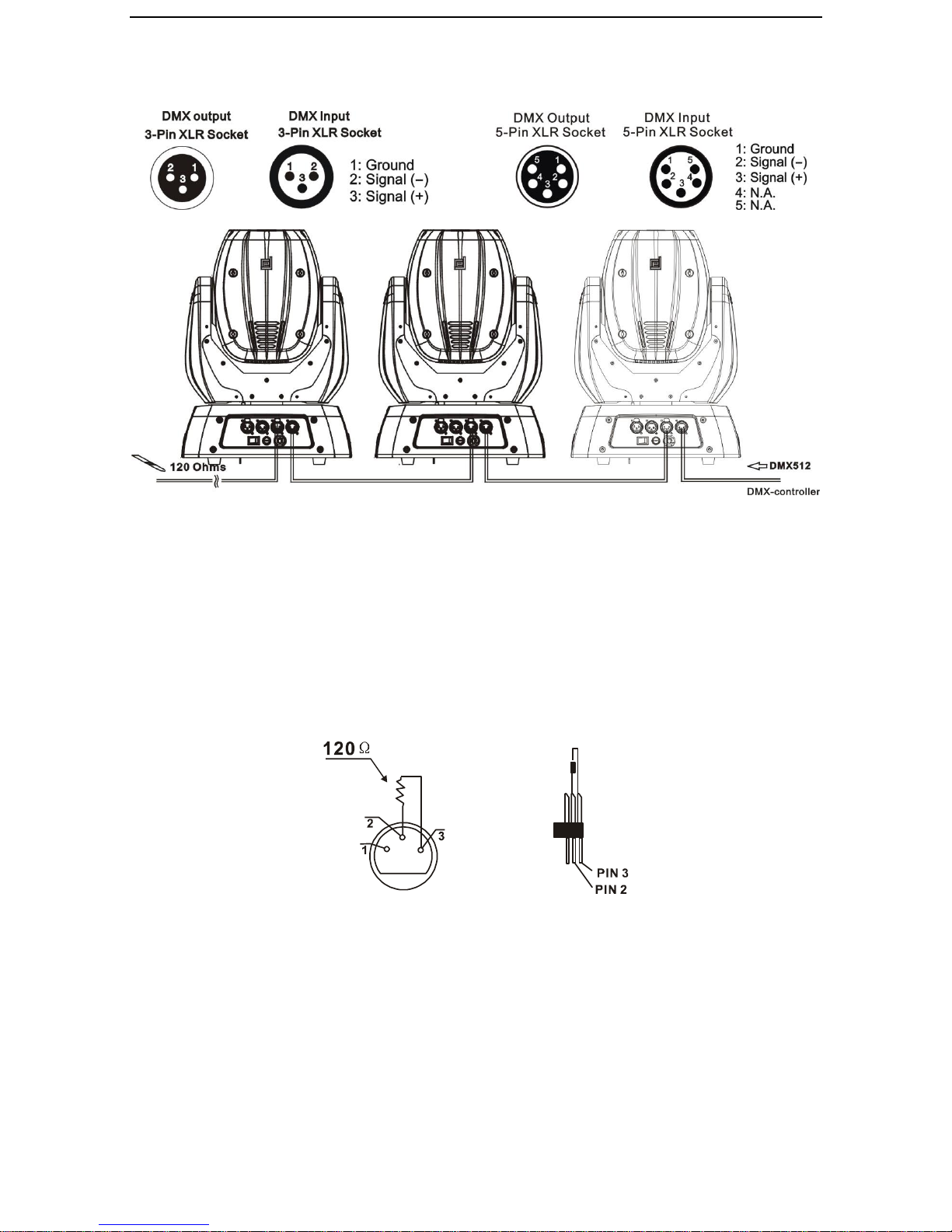

5. DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.

Classe LS 60 v1.0
- 9 -
Address 29 Address15 Address 1
6. DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in
preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged
into the output XLR socket of the last fixture in the chain. Please see illustrations below.
7. Projector DMX start address selection
All fixtures should be given a DMX starting address when using a DMX signal, so that the
correct fixture responds to the correct control signals. This digital starting address is the channel
number from which the fixture starts to “listen” to the digital control information sent out from
the DMX controller. The allocation of this starting address is achieved by setting the correct
number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures, or make different
address for each fixture individually.

Classe LS 60 v1.0
- 10 -
If you set the same address, all the units will start to “listen” to the same control signal from the
same channel number. In other words, changing the settings of one channel will affect all the
fixtures simultaneously.
If you set a different address, each unit will start to “listen” to the channel number you have set,
based on the quantity of control channels of the unit. That means changing the settings of one
channel will affect only the selected fixture.
In the case of the led moving head, which is 14 channels fixture when you select the standard
channel mode, you should set the starting address of the first unit to 1, the second unit to 15(14 +
1), the third unit to 29 (14+ 15), and so on.
8. Control Board
The Control Board offers several features: you can simply set the starting address, switch on and
off the lamp, run the pre-programmed program or make a reset.
The main menu is accessed by pressing the Mode/esc-button until the display starts flashing.
Browse through the menu by pressing the Up-button or Down-button. Press the Enter-button in
order to select the desired menu. You can change the selection by pressing the Up-button or
Down-button. Confirm every selection by pressing the Enter-button. You can leave every mode
by pressing the Mode/esc-button. The functions provided are described in the following sections.
To access the display menu via the internal battery, press the UP or DOWN button. The display will
automatically switch off about 10 seconds after the last actuation of the buttons.
Function Mode
Set Dmx Address
Value Display
Set To Slave
Auto Program
Music Control
A001~AXXX
PAN……
Slave1,Slave2,Slave3
Master / Alone
Master / Alone
DMX address setting
DMX value display
Slave setting
Auto program
Music control
Information
Time Information
Current Time
Total Life Hours
Clear Life Time
XXXX(Hours)
XXXX(Hours)
ON/OFF(密码 838)
Power on running time
Fixture running time
Clear Fixture Life time
Temperature Info
Head Temperature
XXX℃/℉
Temperature in the head
Software Version
Ver1.0……
Software version of each IC
Personality
Status Settings
Address via DMX
No DMX Status
Pan Reverse
Tilt Reverse
Pan Degree
Feedback
Movement Speed
Mic Sensitivity
Hibernation
ON/OFF
Close/Hold/Auto/Music
ON/OFF
ON/OFF
630/540
ON/OFF
Speed 1~ 4
0~99%
0FF/1~99M，15M
Add. via DMX
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback switch
Movement Mode Select
Sensitivity of Mic.
Stand by mode
Fans Control
Auto Fans Speed
High Fans Speed
Low Fans Speed
Fans Speed Mode Select
Display Setting
Shutoff Time
Key Lock
02~60m 05m
ON/OFF
Display shutoff time
Key Lock

Classe LS 60 v1.0
- 11 -
Temperature C/F
Celsius
Fahrenheit
Temperature switch
between ℃/℉
Initial Effect
PAN……
PAN =XXX
Initial effect position
Reset Default
ON/OFF
Restore factory set.
Reset Function
Reset All
Reset Pan&Tilt
Reset Colors
Reset Gobos
Reset Others
Reset all motors
Reset Pan/Tilt
Reset color wheel
Reset gobos
Reset other motors
Effect Adjust
Test Channel
PAN ……
Test function
Manual Control
PAN
:
PAN =XXX
:
Fine adjustment of the lamp
Calibrate Values
--Password--
Color wheel
:
Password=XXX
Color wheel=XXX
:
Calbrate and adjust the
effects to standard/right
position Password “050”
Users Mode Set
User Mode
Standard Mode
Basic Mode
Extended Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Edit User Mode
Max Channel
PAN
:
Max Channel = XX
PAN = CH01
:
Preset User modes
Edit Program
Select Programs
Auto Pro Part 1
Auto Pro Part 2
Auto Pro Part 3
Program 1 ~ 10 Program 1
Program 1 ~ 10 Program 2
Program 1 ~ 10 Program 3
Select programs to be run
Edit Program
Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
(“STEP XX”)
Testing program
Program in loop
Save and exit
Edit Scenes
Edit Scene 001
~ Edit Scene
250
Pan,Tilt,……
--Secne Time--
Input By
Outside
Pan=xxx……
TIME=xx.xs
Save and automatically
return
manual scenes edit
Rec. Controller
XX~XX
Automat. scenes rec
Default settings shaded
8.1 FUNCTION MODE
9.1.1 Set DMX Address
With this function, you can adjust the desired DMX-address via the Control Board.
1．Access the main menu.
2．Tap the <Up/Down>button until“Set DMX Address”is displayed.
3．Press ENTER, the display will show “Set DMX Address”.
4．Tap the <Up/Down>button，the display will show “A001~AXXX”
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.

Classe LS 60 v1.0
- 12 -
8.1.2 Value Display
With this function you can display the DMX 512 value of each channel. The display
automatically shows the channel with a value changing.
1．Access the main menu.
2．Tap the <Up/Down>button until“Value Display”is displayed.
3．Press ENTER, the display will show “Value Display”.
4．Tap the <Up/Down>button，choose each channel.
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
8.1.3 Set to slave
With this function, you can define the device as slave.
1．Access the main menu.
2．Tap the <Up/Down>button until“Set To Slave”is displayed.
3．Press ENTER, the display will show “Set To Slave”.
4．Tap the <Up/Down>button，the display will show “Slave1”, ”Slave2”, ”Slave3”.
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.

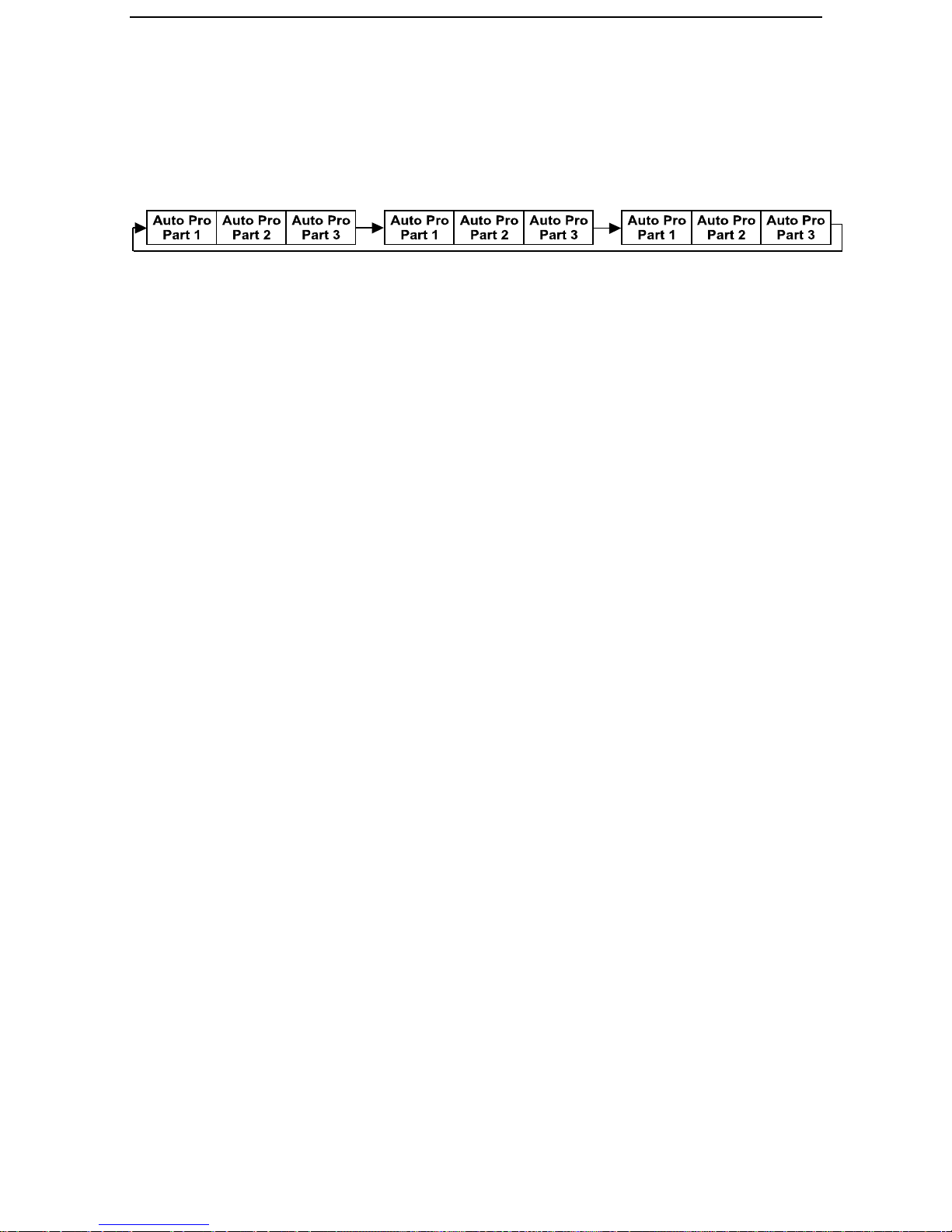

8.1.4 Auto Program
With this function, you can run the internal program. You can select the desired program under
“Select program”. You can set the number of steps under “Edit program”. You can edit the
individual scenes under “Edit scenes”. With this function, you can run the individual scenes
either automatically, i.e. with the adjusted Step-Time.
1．Access the main menu.
2．Tap the <Up/Down>button until“Auto Program”is displayed.
3．Press ENTER, the display will show “Auto Program”.
4．Tap the <Up/Down>button，the display will show “Master1”, ”Alone”.
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
8.1.5 Music control
With this function, you can run the internal program sound-controlled.
1．Access the main menu.
2．Tap the <Up/Down>button until“Music control”is displayed.
3．Press <ENTER>, the display will show “Music control”.
4．Tap the <Up/Down>button，the display will show “Master”, ”Alone”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.2 Information
8.2.1 Time information
Current Time
With this function, you can display the temporary running time of the device from the last
power on. The display shows “XXXX”, “XXXX” stands for the number of hours. The
counter is resetted after turning the device off.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”. Tap
the <Up/Down>button until the display will show“Time Information”. Press ENTER,
the display will show “Time Information”.
2．Press <Up/Down>, the display will show “Current Time”.

Classe LS 60 v1.0
- 13 -
3．Press< ENTER>, the display will show “Current Time”.
4．The display will show “XXXX”(Hours) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Total Life Hours
With this function, you can display the running time of the device. The display shows
“XXXX”, “XXXX” stands for the number of hours.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”. Tap
the <Up/Down>button until the display will show“Time Information”. Press ENTER,
the display will show “Time Information”.
2．Press <Up/Down>, the display will show “Total Life Hours”.
3．Press< ENTER>, the display will show “Total Life Hours”.
4．The display will show “XXXX”(Hours) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Clear Life Time
With this function, you can clear total run time of the fixture. The display shows “ON”or
“OFF”, Press “Enter”to confirm.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”. Tap
the <Up/Down>button until the display will show “Time Information”. Press ENTER,
the display will show “Time Information”.
2．Press <Up/Down>, the display will show “Clear Life Time”.
3．Press< ENTER>, the display will show “OFF”or“ON”.
4．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.2.2 Temperature Info
Head Temperature
With this function you can display the temperature on the display board of the base (near
CMY-filter) in Celsius.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until“Temperature Info”is displayed. Press ENTER, the display will
show “Temperature Info”.
2．Press <Up/Down>, the display will show “Head Temperature”.
3．Press< ENTER>, the display will show “Head Temperature”.
4．The display show “XXX °C/ °F”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.2.3 Software version
With this function, you can display the software version of the device.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”.
2．Press <Up/Down>, the display will show “Software version”.
3．Press< ENTER>, the display will show “Software version”.

Classe LS 60 v1.0
- 14 -
4．The display show “Ver 1.0……”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.3PERSONALITY
8.3.1Status setting
Address via DMX
With this function, you can adjust the desired DMX-address via an external controller.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Address via DMX”.
3．Press< ENTER>, the display will show “Address via DMX”.
4．The display show “ON”,Press <Up/Down>, the display will show “OFF”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
No DMX Status
With this function, when the drive is not DMX signal, it runs automatism, close, hold and
music, the default is hold.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show“Personality”. Tap the
<Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “No DMX Status”.
3．Press< ENTER>, the display will show “No DMX Status”.
4．The display show“Hold”,Press <Up/Down>, the display will show “Close”, “Auto”,
“Music”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Pan Reverse
With this function you can reverse the Pan-movement.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Pan Reverse”.
3．Press< ENTER>, the display will show “Pan Reverse”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Tilt Reverse
With this function you can reverse the Tilt-movement.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.

Classe LS 60 v1.0
- 15 -
2．Press <Up/Down>, the display will show “Tilt Reverse”.
3．Press< ENTER>, the display will show “Tilt Reverse”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Pan Degree
With this function, you can select pan degree for 630 or 540.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Pan Degree”.
3．Press< ENTER>, the display will show “Pan Degree”.
4．The display show “540”,Press <Up/Down>, the display will show “630”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Feedback
With this function, you can feedback switch of pan movement or tilt movement.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Feedback”.
3．Press< ENTER>, the display will show “Feedback”.
4．The display show “ON”,Press <Up/Down>, the display will show “OFF”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Movement Speed
With this function, you can select scan mode from 1 to 4.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Movement Speed”.
3．Press< ENTER>, the display will show “Movement Speed”.
4．The display show “Speed 1”,Press <Up/Down>, the display will show “Speed 2”,
“Speed 3”, “Speed 4”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Mic Sensitivity
With this function, the default is 70%, you can select the desired microphone sensitivity
from 0 % to 99 %.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Mic Sensitivity”.
3．Press< ENTER>, the display will show “Mic Sensitivity”.

Classe LS 60 v1.0
- 16 -
4．The display show “70%”,Press <Up/Down>, the display will show “0~99%”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Hibernation ——Standby mode
The lamp and step motors will be power off if the fixture stay without DMX signal for 15
mins (Factory default).And the fixture will be reset before working once it receive DMX
signal again.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”. Tap
the <Up/Down>button until the display will show “Status setting”. Press ENTER, the
display will show “Status setting”.
2．Press <Up/Down>, the display will show “Hibernation”.
3．Press< ENTER>, the display will show “Hibernation”.
4．The display show “15M”,Press <Up/Down>, the display will show “01M”，
“02M”…. “99M”or“OFF”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.3.2 Fans Control
With this function, you can set the speed of the running fans. The selections have Auto、high and
low.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”.
2．Press <Up/Down>, the display will show “Fans Control”.
3．Press< ENTER>, the display will show “Fans Control”.
4．The display show “Auto Fans Speed”,Press <Up/Down>, the display will show “High
Fans Speed”, “Low Fans Speed”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.3 Display settings
Shut off time
With this function you can shut off the color LCD display after 2 to 59 minutes. Turn the
encoder in order to select the desired shut off time. The default is 5 minute.
Key Lock
With this function you can activate the automatic keylock function. If this function is
activated, the keys will be locked automatically after exiting the edit mode for 15 seconds.
keeping press the <MODE/ESC> key for 3seconds if you want to deactivate the keylock
status.
1. Tap the<Up/Down>button until “LOCK” is displayed and tap the < ENTER> button.
2. Press the <Up/Down> button to select “ON” to activate this function, or “OFF” to
deactivate this function. Press< ENTER> to confirm.
3. Press <MODE/ESC> to return to the main menu.
9.3.4 Temperature C/F
With this function, Display the temperature for Celsius or Fahrenheit.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”.

Classe LS 60 v1.0
- 17 -
2．Press <Up/Down>, the display will show “Temperature C/F”.
3．Press< ENTER>, the display will show “Temperature C/F”.
4．The display show “Celsius”,Press <Up/Down>, the display will show “Fahrenheit”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.5 Initial effect
With this function, Display initial effect position.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”.
2．Press <Up/Down>, the display will show “Initial effect”.
3．Press< ENTER>, the display will show “Initial effect”.
4．The display show “XXX”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.6 Restore Default
With this function, you can select restore factory set for ON or OFF, the default is OFF.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Personality”is displayed. Press ENTER, the display will show “Personality”.
2．Press <Up/Down>, the display will show “Restore Default”.
3．Press< ENTER>, the display will show “Restore Default”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.4 Reset-functions
With this function you can reset the device via the Control Board. You can select the different
reset functions by turning the encoder.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Reset-functions”is displayed. Press ENTER, the display will show“Reset-functions”.
2．The display show “Reset All”, Press <Up/Down>, the display will show “Reset
Pan/Tilt”, “Reset Colors”, “Reset Gobos”, “Reset Others”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.5 Effect Adjust
8.5.1 Test channel
With this function you can test each channel on its (correct) function.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”.
2．Press <Up/Down>, the display will show “Test Channel”.
3．Press< ENTER>, the display will show “Test Channel”.
4．The display show “Pan Moving”frist channel, Press <Up/Down>, can choose other
channel.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.5.2 Manual control
With this function, you can adjust the lamp more easily. All effects will be canceled, the shutter
opens and the dimmer intensity will be set to 100 %. With the individual functions, you can

Classe LS 60 v1.0
- 18 -
focus the light on a flat surface (wall) and erform the fine lamp adjustment.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”.
2．Press <Up/Down>, the display will show “Manual control”.
3．Press< ENTER>, the display will show “Manual control”.
4．The display show “PAN=XXX”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.5.3 Calibrate values
With this function, you can calibrate and adjust the effect wheels to their correct positions. The
password of calibrate values is 050.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”.
2．Press <Up/Down>, the display will show “Calibrate values”.
3．Press< ENTER>, the display will show “Calibrate values”.
4．The display show “Password=XXXX”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.6 Users mode set
In this menu, user can select different channels list by different sequence:
For example, after the user enter this manual, if select Auto Program = CH 22, means in this
User’s mode, the “Dimmer” is in Channel 16.
8.6.1 User mode
With this function, you can create user defined channel orders.
8.6.2 Preset User mode
With this function, you can adjust the rest user defined channel order.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Users
mode set”is displayed. Press ENTER, the display will show “Users mode set”.
2．The display show “User Mode”frist channel, Press <Up/Down> the display will show
“Edit User Mode”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
8.7 Edit program
8.7.1 Select program
With this function, you can select the program for the Program Run.
8.7.2 Edit program
With this function, you can edit the internal programs.
8.7.3 Edit scenes
With this function, you can edit the scenes of the internal programs.
8.7.4 Auto scenes rec.
The moving head features an integrated DMX-recorder by which you can transmit the
programmed scenes from your DMX-controller to the moving head. Adjust the desired scene
numbers via the encoder (from –to). When you call up the scenes at your controller, they will

Classe LS 60 v1.0
- 19 -
automatically be transmitted to the moving head.
Excursion:
A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start
3 different Slave units, which run 3 different programs. The Master unit sends the 3 program
parts in a continuous loop.
The Slave unit receives data from the Master unit according to the group which the Slave unit
was assigned to. If e.g. a Slave unit is set to “Slave 1” in the menu “Set to Slave”, the Master unit
sends “Auto Program Part 1” to the Slave unit. If set to “Slave 2”, the Slave unit receives “Auto
Program Part 2”.
To start a Auto Program please proceed as follows:
1. Slave-Setting
•Select “Function Mode” by turning the encoder.
•Press the Enter button to confirm.
•Select “Set to slave” by turning the encoder.
•Press the Enter button to confirm.
•Turn the encoder to select “Slave 1”, “Slave 2” or “Slave 3”.
•Press the Enter button to confirm.
•Press the MODE/ESC button in order to return to the main menu.
2. Automatic Program Run
•Select “Function Mode” by turning the encoder.
•Press the Enter button to confirm.
•Select “Auto Program” by turning the encoder.
•Press the Enter button to confirm.
•Turn the encoder to select “Master” or “Alone”. The selection "Alone" means Stand
Alone-mode and "Master" that the device is defined as master.
•Press the Enter button to confirm.
•Press the MODE/ESC button in order to return to the main menu.
3. Program selection for Auto Pro Part
•Select “Edit program” by turning the encoder.
•Press the Enter button to confirm.
•Select “Select programs” by turning the encoder.
•Press the Enter button to confirm.
•Turn the encoder to select “Auto Pro Part 1”, “Auto Pro Part 2” or “Auto Pro Part 3”, and thus
select which Slave program is to be sent. Selection “Part 1” means, that the Slave unit runs the
same program as the master units.
•Press the Enter button to confirm.
•Press the MODE/ESC button in order to return to the main menu.
4. Program selection for Edit Program
•Select “Edit program” by turning the encoder.
•Press the Enter button to confirm.
•Select “Edit program” by turning the encoder.
