FISCHER EA15 User manual

Operating manual
EA15
Measured value display
with 2.8" Touch LCD
09005878 • BA_EN_EA15 • Rev. ST4-A • 05/15 *09005878*

| Masthead FISCHER Mess- und Regeltechnik GmbH
2 / 60 BA_EN_EA15
Masthead
Manufacturer: FISCHER Mess- und Regeltechnik GmbH
Bielefelderstr. 37a
D-32107 Bad Salzuflen
Telefon: [phone]
Telefax: [phone]
eMail: [email protected]
web: www.fischermesstechnik.de
Technical editorial team: Documentation representative: S. Richter
Technical editor: R.Kleemann
All rights, also those to the translation, reserved. No part of these instructions
may be reproduced or processed, duplicated or distributed using electronic sys-
tems or any other form (print, photocopy, microfilm or another process) without
the written consent of the company Fischer Mess- und Regeltechnik GmbH,
Bad Salzuflen.
Reproduction for internal use is expressly allowed.
Brand names and procedures are used for information purposes only and do
not take the respective patent situation into account. Great care was taken
when compiling the texts and illustrations; nevertheless, errors cannot be ruled
out. The company FISCHER Mess- und Regeltechnik GmbH will not accept any
legal responsibility or liability for this.
Subject to technical amendments.
© FISCHER Mess- und Regeltechnik 2015
Version history
Rev. ST4-A 05/15 Version 1 (first edition)
Rev. ST4-B 01/17 Version 2 (Modbus interface)

FISCHER Mess- und Regeltechnik GmbH Table of Contents
BA_EN_EA15 3 / 60
Table of Contents
1 Safety guidelines ............................................................................................................................................5
1.1 General .....................................................................................................................................................5
1.2 Personnel Qualification.............................................................................................................................5
1.3 Risks due to Non-Observance of Safety Instructions ...............................................................................5
1.4 Safety Instructions for the Operating Company and the Operator............................................................5
1.5 Unauthorised Modification ........................................................................................................................5
1.6 Inadmissible Modes of Operation .............................................................................................................5
1.7 Safe working practices for maintenance and installation work .................................................................6
1.8 Pictogram explanation ..............................................................................................................................6
2 Product and functional description ..............................................................................................................7
2.1 Lieferumfang.............................................................................................................................................7
2.2 Use as intended........................................................................................................................................7
2.3 Function diagram ......................................................................................................................................8
2.4 Design and mode of operation..................................................................................................................8
3 Installation and assembly............................................................................................................................10
3.1 General ...................................................................................................................................................10
3.2 Electrical connections .............................................................................................................................10
3.2.1 Electrical connection units with analogue and switch outputs .................................................... 10
3.2.2 Electrical connection units with Modbus ..................................................................................... 12
4 Commissioning.............................................................................................................................................14
4.1 General ...................................................................................................................................................14
4.2 Measured value display ..........................................................................................................................15
4.2.1 Tile view ...................................................................................................................................... 15
4.2.2 List view ...................................................................................................................................... 17
4.2.3 Presentation variants .................................................................................................................. 18
4.3 Control elements.....................................................................................................................................19
5 Parameterization...........................................................................................................................................21
5.1 General Information ................................................................................................................................21
5.2 Navigation in the menu tree....................................................................................................................21
5.3 Value input..............................................................................................................................................21
5.3.1 Input of number values ............................................................................................................... 22
5.3.2 Text input .................................................................................................................................... 22
5.3.3 Dialogue box ............................................................................................................................... 22
5.4 Main menu [Level 1] ...............................................................................................................................23
5.4.1 Menu: History [Level 2] ............................................................................................................... 23
5.4.2 Menu: Event log [Level 2] ........................................................................................................... 23
5.4.3 Menu: Login [Level 2].................................................................................................................. 24
5.4.4 Menu: Configuration [Level 2] ..................................................................................................... 25
5.4.4.1 Menu: Display [Level 3] ............................................................................................... 26
5.4.4.2 Menu: Switch outputs [Level 3] ................................................................................... 27
5.4.4.3 Menu: Inputs [Level 3] ................................................................................................. 29
5.4.4.4 Menu: Outputs [Level 3] .............................................................................................. 41
5.4.4.5 Menu: Outputs Modbus ............................................................................................... 43
5.4.4.6 Menu: Datalogger [Level 3] ......................................................................................... 45
5.4.5 Menu: Language [Level 2] .......................................................................................................... 49

Table of Contents FISCHER Mess- und Regeltechnik GmbH
4 / 60 BA_EN_EA15
5.4.6 Menu: System [Level 2] .............................................................................................................. 49
5.4.6.1 Menu: Configuration [Level 3] ..................................................................................... 50
5.4.6.2 Menu: Overview inputs/outputs [Level 3] .................................................................... 50
5.4.6.3 Menu: System info [Level 3] ........................................................................................ 51
5.4.6.4 Menu: Firmware update [Level 3]................................................................................ 51
5.4.6.5 Menu: Date/Time [Level 3] .......................................................................................... 52
5.4.6.6 Menu: Unmount SD card [Level 3] .............................................................................. 52
5.4.6.7 Menu: Data transfer SD->USB [Level 3] ..................................................................... 53
6 Technical Data ..............................................................................................................................................54
6.1 Generalities.............................................................................................................................................54
6.2 Input variables ........................................................................................................................................54
6.3 Output parameters..................................................................................................................................54
6.3.1 Analogue outputs ........................................................................................................................ 54
6.3.2 Switching outputs........................................................................................................................ 54
6.4 Measurement accuracy ..........................................................................................................................55
6.5 Digital interfaces .....................................................................................................................................55
6.6 Display and operating interface ..............................................................................................................55
6.7 Auxiliary energy .....................................................................................................................................56
6.8 Application conditions .............................................................................................................................56
6.9 Construction design ................................................................................................................................56
6.10 Dimensional drawings.............................................................................................................................57
7 Order Codes..................................................................................................................................................58
8 Attachments..................................................................................................................................................59
8.1 EU Declaration of Conformity .................................................................................................................59

FISCHER Mess- und Regeltechnik GmbH Safety guidelines | 1
BA_EN_EA15 5 / 60
1 Safety guidelines
1.1 General
WARNING
This operating manual contains instructions fundamental to the installation, op-
eration and maintenance of the device that must be observed unconditionally. It
must be read by the assembler, operator and the specialized personnel in
charge of the instrument before it is installed and put into operation.
This operating manual is an integral part of the product and therefore needs to
be kept close to the instrument in a place that is accessible at all times to the re-
sponsible personnel.
The following sections, in particular instructions about the assembly, commis-
sioning and maintenance, contain important information, non-observance of
which could pose a threat to humans, animals, the environment and property.
The instrument described in these operating instructions is designed and manu-
factured in line with the state of the art and good engineering practice.
1.2 Personnel Qualification
The instrument may only be installed and commissioned by specialized person-
nel familiar with the installation, commissioning and operation of this product.
Specialized personnel are persons who can assess the work they have been
assigned and recognize potential dangers by virtue of their specialized training,
their skills and experience and their knowledge of the pertinent standards.
1.3 Risks due to Non-Observance of Safety Instructions
Non-observance of these safety instructions, the intended use of the device or
the limit values given in the technical specifications can be hazardous or cause
harm to persons, the environment or the plant itself.
The supplier of the equipment will not be liable for damage claims if this should
happen.
1.4 Safety Instructions for the Operating Company and the Operator
The safety instructions governing correct operation of theinstrument must be
observed. The operating company must make them available to the installation,
maintenance, inspection and operating personnel.
Dangers arising from electrical components, energy discharged by the medium,
escaping medium and incorrect installation of the device must be eliminated.
See the information in the applicable national and international regulations.
Please observe the information about certification and approvals in the Tech-
nical Data section.
1.5 Unauthorised Modification
Modifications of or other technical alterations to the instrument by the customer
are not permitted. This also applies to replacement parts. Only the manufacturer
is authorised to make any modifications or changes.
1.6 Inadmissible Modes of Operation
The operational safety of this instrument can only be guaranteed if it is used as
intended. The instrument model must be suitable for the medium used in the
system. The limit values given in the technical data may not be exceeded.

1 | Safety guidelines FISCHER Mess- und Regeltechnik GmbH
6 / 60 BA_EN_EA15
The manufacturer is not liable for damage resulting from improper or incorrect
use.
1.7 Safe working practices for maintenance and installation work
The safety instructions given in this operating manual, any nationally applicable
regulations on accident prevention and any of the operating company's internal
work, operating and safety guidelines must be observed.
The operating company is responsible for ensuring that all required mainten-
ance, inspection and installation work is carried out by qualified specialized per-
sonnel.
1.8 Pictogram explanation
DANGER
Type and source of danger
This indicates a direct dangerous situation that could lead to death or serious
injury (highest danger level).
a) Avoid danger by observing the valid safety regulations.
WARNING
Type and source of danger
This indicates a potentially dangerous situation that could lead to death or ser-
ious injury (medium danger level).
a) Avoid danger by observing the valid safety regulations.
CAUTION
Type and source of danger
This indicates a potentially dangerous situation that could lead to slight or seri-
ous injury, damage or environmental pollution (low danger level).
a) Avoid danger by observing the valid safety regulations.
NOTICE
Note / advice
This indicates useful information of advice for efficient and smooth operation.

FISCHER Mess- und Regeltechnik GmbH Product and functional description | 2
BA_EN_EA15 7 / 60
2 Product and functional description
2.1 Lieferumfang
• Measured value display EA15
• Operating instructions
2.2 Use as intended
The EA15 is a measuring value display unit for measuring transducers with out-
put signals for current and voltage acc. to IEC 60381. Up to four measuring
transducers in two or three-conductor versions can be connected.
Typical applications
• Universal measurement display in an industrial environment.
Important features
• 2.8" (7.2 cm) TFT Touch LCD colour display
• Configurable colour switching
• 2 or 4 channel mode with …
– 2 or 4 configurable analogue inputs
(for uniform signals (0/4 … 20 mA, 0 … 10 V) acc. to IEC 60381)
– 2 or 4 configurable analogue outputs
(with possibility of characteristic curve spread and reversal with any off-
set)
– 2 or 4 configurable switching outputs
(with potential-free relay contacts or semiconductor switches)
• Optional Modbus RTU interface
– Units with Modbus interfaces do not have analogue nor switch outputs
• USB interface
• Mathematical functions like formulas or tables
• Optional data logger function with data storage on conventional Micro SD
cards
• Configuration of all parameters and a measuring point protocol(1) are pos-
sible via an optionally available PC software
(1) parameter profile that can be saved and loaded

2 | Product and functional description FISCHER Mess- und Regeltechnik GmbH
8 / 60 BA_EN_EA15
2.3 Function diagram
E1
E2
E3
E4
USB
SD
A
D A
DA1
A2
A3
A4
K1
K2
K3
K4
CPU
21
3
4
5
6
Illustration1: Function diagram
1E
2E
3E
4E
USB
SD
A
D
CPU
1
3
5
6
Modbus
RTU
7
Illustration2: Function diagram option Modbus
1 Analogue inputs 2 Analogue outputs
3 Touch colour display 4 Switching outputs
5 Micro SD memory card 6 Micro USB interface
7 Modbus interface
2.4 Design and mode of operation
The measuring signals of up to four connected measuring transducers can be
analysed simultaneously by the microcontroller electronics. The configurable
2.8" touch display can display up to four measuring values at the same time. A
configurable colour switch serves to present specific operating modes. Option-
ally, the device can be delivered with a data logger function.

FISCHER Mess- und Regeltechnik GmbH Product and functional description | 2
BA_EN_EA15 9 / 60
All parameters can also be set on the device via the touch display or (optionally)
via a PC software. The measuring value display unit has a USB interface to
which a USB stick can be connected for this purpose. For instance, the USB
stick can be used to allow simple configurations to be exported to other devices.
The PC software also allows a measuring point protocol (2) .
Units with analogue and switch outputs
The processed input signals are converted into the following output signals:
• 2 or 4 configurable switching outputs Parameters, such as activation and
deactivation points, switching function or delay, are available for this pur-
pose. The switching states are displayed with symbols on the display.
• 2 or 4 analogue outputs with configurable output range. Every output signal
can be set freely within the signal limits (see Technical Data). The charac-
teristic curve change can be made in a linear, rooted, tabular or mathematic
form proportional to the displayed value.
Units with Modbus RTU interface
Units with Modbus RTU interface do not have analogue or switch outputs
The input signals can be queried via the Modbus and processed by the Master.
For more information about this topic, please reference the product user manual
and the Modbus reference manual.(http://www.fischermesstechnik.de/de/
downloads/Handbücher)
(2) parameter profile

3 | Installation and assembly FISCHER Mess- und Regeltechnik GmbH
10 / 60 BA_EN_EA15
3 Installation and assembly
3.1 General
The device is designed for installation onto flat assembly plates. For screw con-
nection to the assembly plate, the device features four assembly bores on its
back, which can be used for Ø 3.5 mm tapping screws.
Optionally, the device can be delivered with a wall-mounting plate.
The enclosure protection type IP 65 is only guaranteed, if a suitable power sup-
ply cable is used (see accessories) and the rubber strap is closed tightly.
3.2 Electrical connections
3.2.1 Electrical connection units with analogue and switch outputs
ST1
Supply
analogue outputs
ST2
Switching outputs
ST3
Analogue input E1
ST5
Analogue input E3
ST4
Analogue input E2
ST6
Analogue input E4
Rubber strap
USB port
Micro SD slot
Illustration3: Electrical plug unit without Modbus
Terminal assignment ST1
M12 flanged connector
8-pin
4 channel version
B
Illustration4: M12 plug 8-pin
+bridge
PIN Signal Name Cable colour
1 +UbSupply (+) white
2 +Sig A1 Analogue output 1 (+) brown
3 -UbSupply (-) green
4 +Sig A2 Analogue output 2 (+) yellow
5 FE Functional earth grey
6 +Sig A3 Analogue output 3 (+) pink
7 +Sig A4 Analogue output 4 (+) blau
8 -Sig A Analogue output (-) red
AType A Plug code
BBridge (-Ub and -Sig A are bridged internally.)

FISCHER Mess- und Regeltechnik GmbH Installation and assembly | 3
BA_EN_EA15 11 / 60
M12 flanged connector
5-pin
2 channel version
Illustration5: M12 plug 5-pin
PIN Signal Name Cable colour
1 +UbSupply (+) brown
2 +Sig A1 Analogue output 1 white
3 -Ub /-Sig A Supply / analogue output (-) blau
4 +Sig A2 Analogue output 2 Black
5 FE Functional earth grey
AType A Plug code
Terminal assignment ST2
M12 flanged connector
8-pin
4 channel version
Illustration6: M12 plug 8-pin
PIN Signal Name Cable colour
1 K1.1 Relay 1 white
2 K1.2 Relay 1 brown
3 K2.1 Relay 2 green
4 K2.2 Relay 2 yellow
5 K3.1 Relay 3 grey
6 K3.2 Relay 3 pink
7 K4.1 Relay 4 blue
8 K4.2 Relay 4 red
AType A Plug code
M12 flanged connector
4-pin
2 channel version
Illustration7: M12 plug 4-pin
PIN Signal Name Cable colour
1 K1.1 Relay 1 brown
2 K2.1 Relay 2 white
3 K2.2 Relay 2 blue
4 K1.2 Relay 1 black
AType A Plug code
Terminal assignment analogue inputs ST3 - ST6
M12 flange sleeve 5-pin The occupation of the connection sockets for the external measuring trans-
ducers is the same for all inputs. The only difference is the respective <No.> of
the analogue input.
Illustration8: M12 socket 5-pin
+bridge
PIN Signal Name Cable colour
1 +UTTransmitter supply (+) brown
2 -Sig E<Nr.> Analogue input (-) white
3 -UTTransmitter supply (-) blau
4 +Sig E<No.> Analogue input <No.> Black
5 FE Functional earth grey
AType A Plug code
Bbridge

3 | Installation and assembly FISCHER Mess- und Regeltechnik GmbH
12 / 60 BA_EN_EA15
3.2.2 Electrical connection units with Modbus
ST1
Supply
+ bus connection
ST2
Supply
+ bus connection
ST3
Analogue input E1
ST5
Analogue input E3
ST4
Analogue input E2
ST6
Analogue input E4
Rubber strap
USB port
Micro SD slot
Illustration9: Electrical plug unit with Modbus
Terminal assignment ST1
M12 flanged connector 5-
pin
Illustration10: M12 connector 5-
pin
PIN Signal Surname Cable colour
1 +UbSupply (+) brown
2 BUS-D1 Modbus white
3 -UbSupply (-) blue
4 BUS-D0 Modbus black
5 BUS-R Modbus grey
AType A Plug code
Terminal assignment ST2
M12 flange sleeve 5-pin
Illustration11: M12 socket 5-pin
PIN Signal Surname Cable colour
1 +Ub Supply (+) brown
2 BUS-D1 Modbus white
3 -Ub Supply (-) blue
4 BUS-D0 Modbus black
5 BUS-R Modbus grey
AType A Plug code

FISCHER Mess- und Regeltechnik GmbH Installation and assembly | 3
BA_EN_EA15 13 / 60
Terminal assignment analogue inputs ST3 - ST6
M12 flange sleeve 5-pin The occupation of the connection sockets for the external measuring trans-
ducers is the same for all inputs. The only difference is the respective <No.> of
the analogue input.
Illustration12: M12 socket 5-pin
+bridge
PIN Signal Name Cable colour
1 +UTTransmitter supply (+) brown
2 -Sig E<Nr.> Analogue input (-) white
3 -UTTransmitter supply (-) blau
4 +Sig E<No.> Analogue input <No.> Black
5 FE Functional earth grey
AType A Plug code
Bbridge
Passive TAP
If the unit is connected to the Modbus via a Passive TAP (e.g. T-adapter con-
nection), the unit can be disconnected from the bus without interrupting it. It can
either be connected via ST1 or ST2.
LT LT
ST1 ST2 ST1 ST2 ST1 ST2
Passive TAP
Slave 1 Slave 2 Slave N
Master

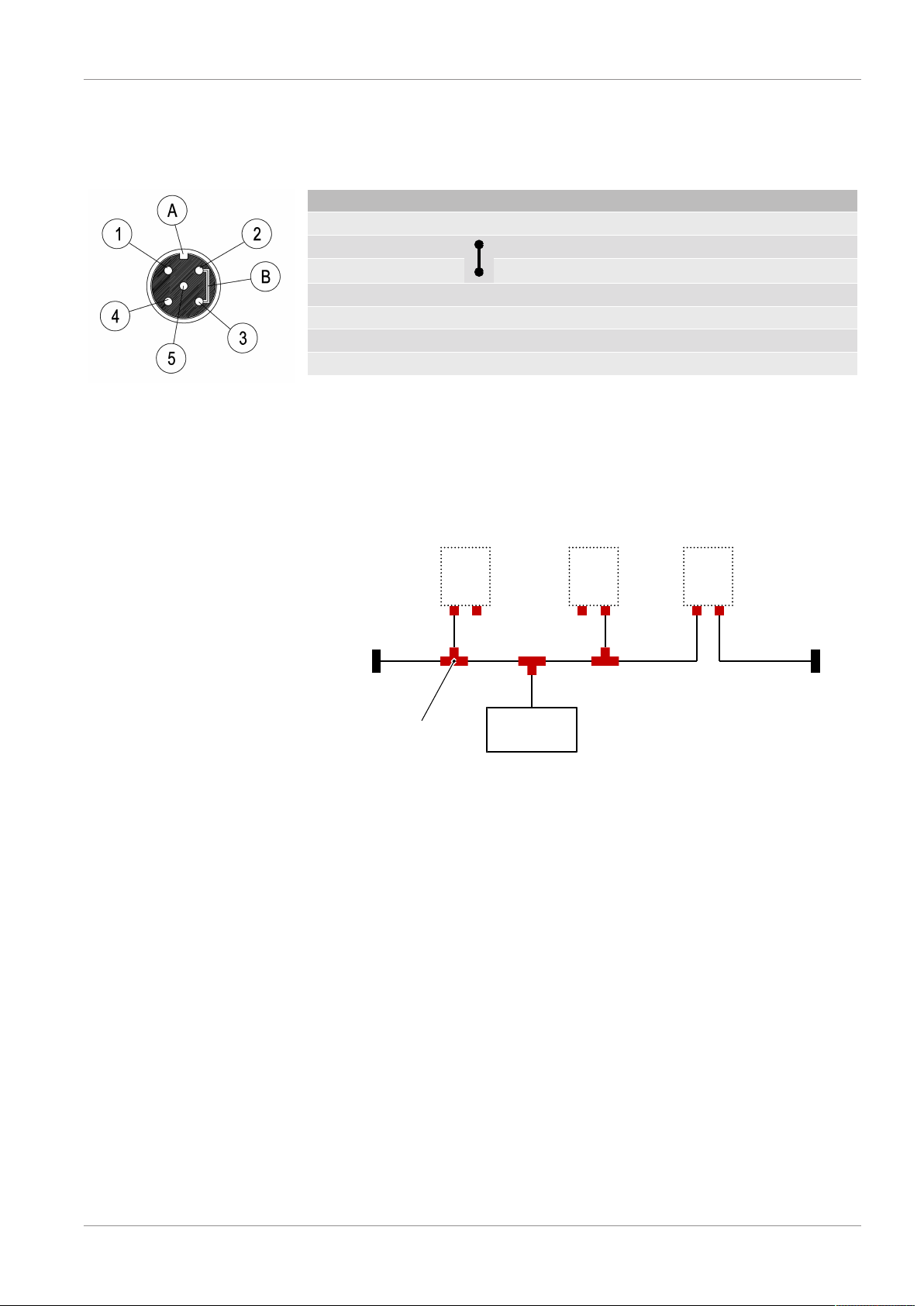

Illustration13: Modbus infrastructure

4 | Commissioning FISCHER Mess- und Regeltechnik GmbH
14 / 60 BA_EN_EA15
4 Commissioning
4.1 General
All electrical supply, operating and measuring lines, and the pressure connec-
tions must have been correctly installed before commissioning.
NOTICE
Figures
All illustrations are examples to demonstrate a certain situation. The contents of
the screen may vary greatly on the unit. For instance, the names of the input
channels can be freely selected; the status displays for the switch outputs can
be hidden and lots more.
Explanation of symbols
This table explains how the different objects (menu, parameters etc.) are shown
in the texts in these operating instructions.
Symbol Description
Operating keys
þ
Increasing
W
Left
û
OK
X
right side
ÿ
Decreasing
Esc
Cancel
Yes on
No Off
Touch the screen (with your hand or stylus
pen), the symbol may be in a different col-
our
Paging symbol
Menu
Parameterization
Menu Name
Surname Parameter name
<Value> System parameter value
Access Rights
T
No access
V
read only
NOTICE!Swipe function Important comments
e.g. only swipe function
Further links

FISCHER Mess- und Regeltechnik GmbH Commissioning | 4
BA_EN_EA15 15 / 60
4.2 Measured value display
There are two options for the measured value display presentation.
• Tile view
• List view
The colour of the individual chapters can be changed depending on the respect-
ive input signal. To do this, certain thresholds are configured for each colour in
the menu
Colour change
. The associated colours represent the respective
operating statuses.
In the list view, the background shadowing and the warning symbol assume the
function of the tiles. The colours are controlled depending on the input signal
like the tiles.
Depending on the unit model (2-channel/4-channel), there are different present-
ation variants [}18] for the measured value display.
4.2.1 Tile view
Pressure Pa
35.8
E1O2
O4
O3
Humidity %rF
55
Temp °C
24.7
Particle ppm
12803
PQ
2
3
1
4
5 6
Monitoring sluice 1
7
Channel 1 Channel 2
Channel 4Channel 3
O-
Status bar T
8

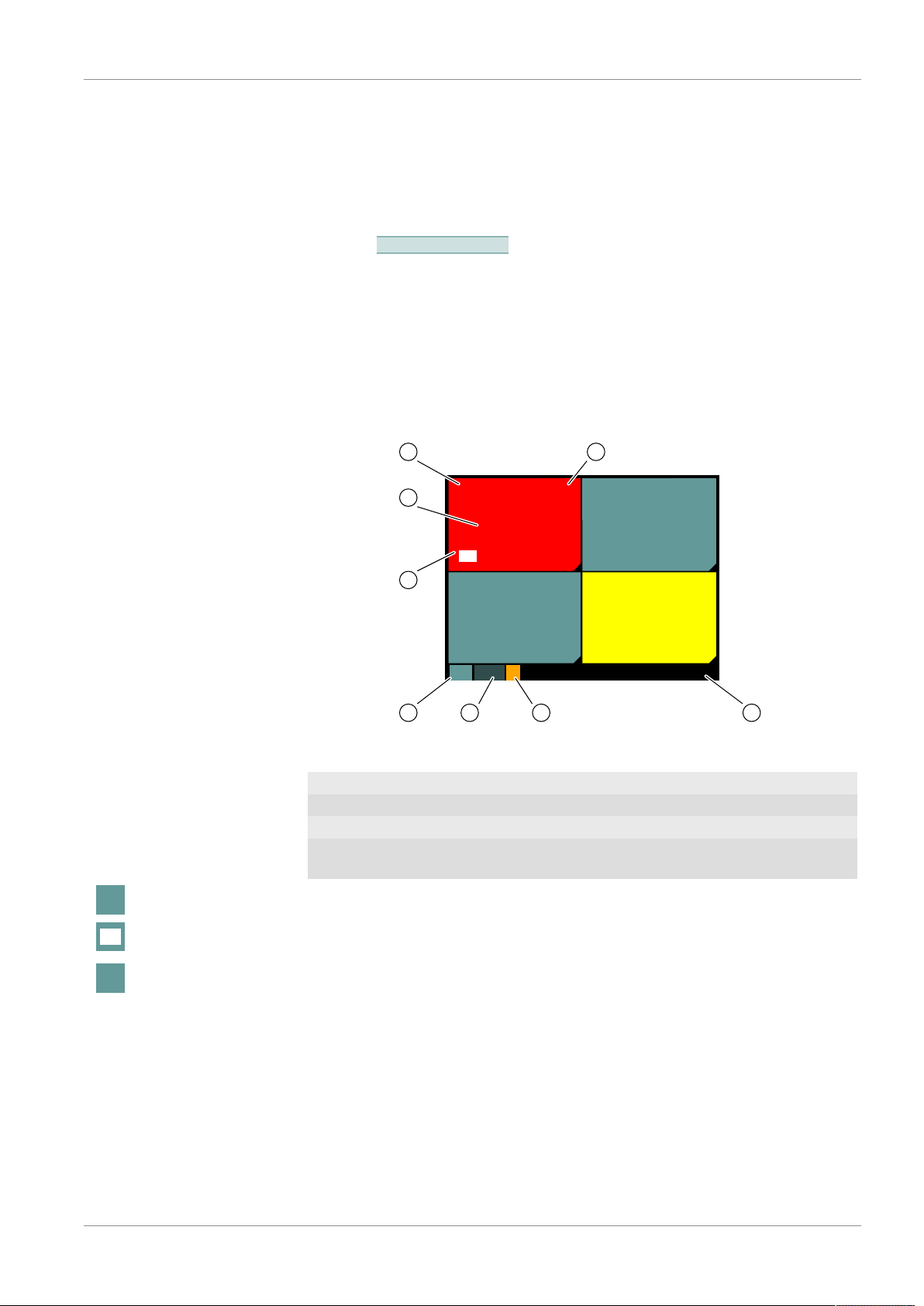

Illustration14: Measured value display
1 Channel name 2 Einheit
3 Measurement 4 Status switch output
5 Status SD card 6 Status USB
7 Unit designation
or Date / Time
8 Login symbol
S1
R1
Contact switched
Contact not switched
R-No contact assigned
Illustration15: Status display
The example of a switch output demonstrates how the status display works.
1. The symbol for the switch output lights up, if the contact is switched.
2. The backlighting disappears, if the contact is not switched. The contact
symbol is shown in grey.
NOTICE!Back lighting
The backlighting colour is usually white. However the backlighting for a yellow
tile is black.
In the status displays for the SD card and USB interface, access to the medium
is symbolised by orange backlighting. The green backlighting shows that a unit
is connected. The backlighting is grey, if no unit is connected.
A logged-in user is shown by the login symbol. If the user is inactive, he will be
automatically logged out after a timeout time has expired.

4 | Commissioning FISCHER Mess- und Regeltechnik GmbH
16 / 60 BA_EN_EA15

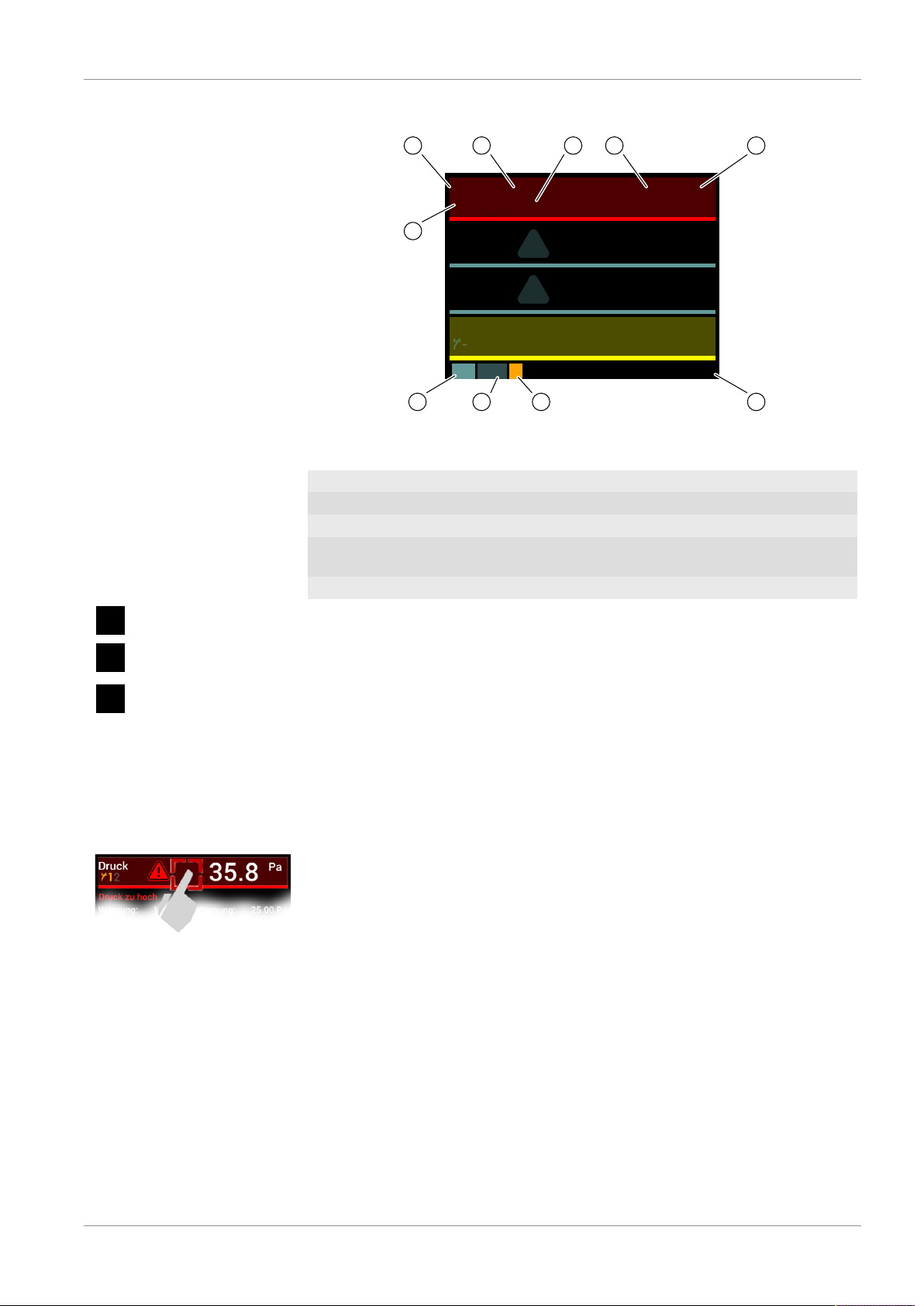

Detail view channel 1
Illustration16: To detail view
Tip the respective tile to go to the detail view of a channel. Return to the meas-
ured value screen in the same way. The following uses the detailed view of the
first channel to demonstrate all channels.
Pressure Pa
35.8
E1O2
PQMonitoring sluice 1
50.00
0.00
-50.00
Warning:
Alarm: 30.00 Pa
25.00 PaWarning:
Alarm:
15.00 Pa
10.00 Pa
12
3
2.1
2.2
2.3
2.4
3.1
3.4
3.2

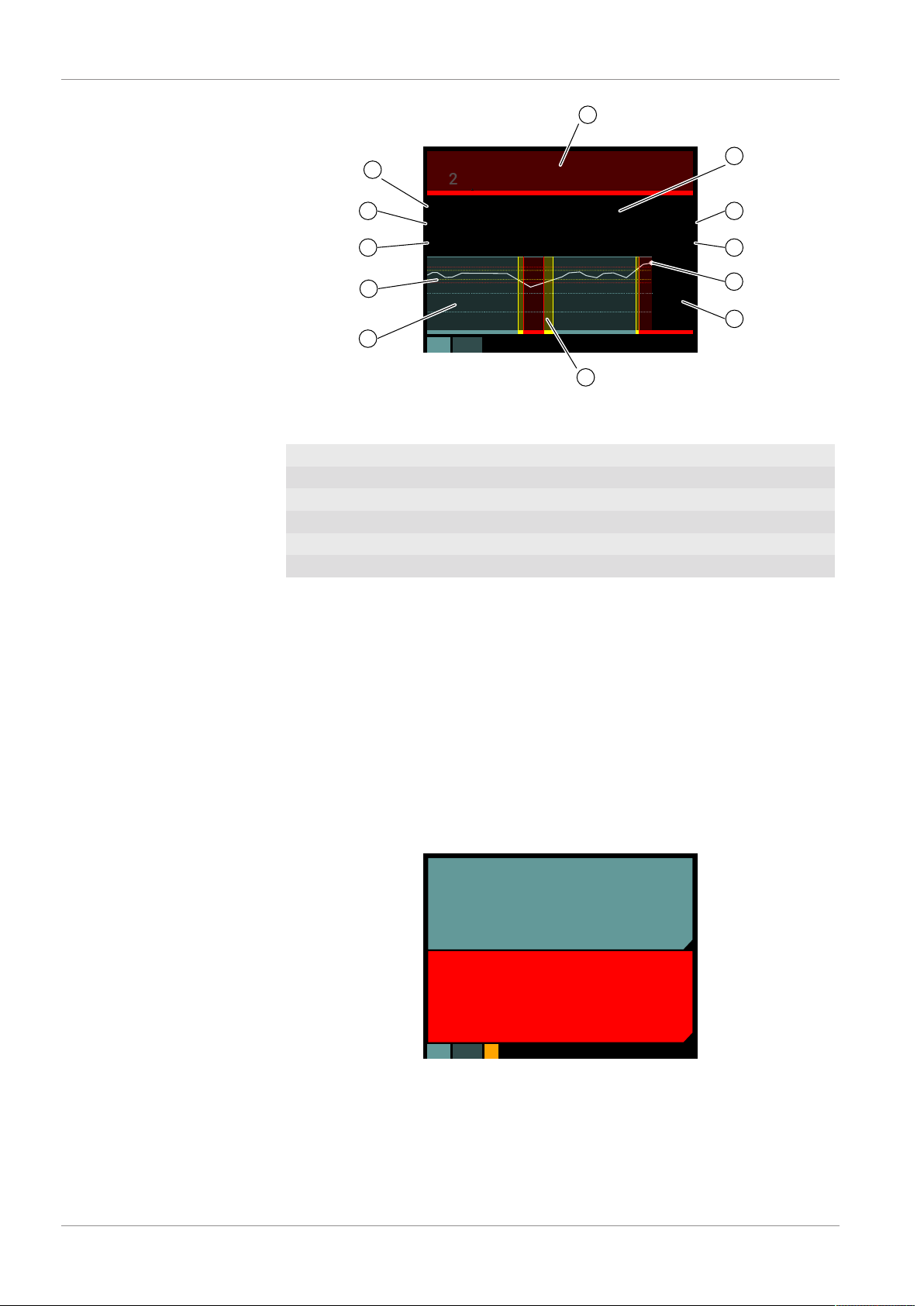

3.3
Illustration17: Detailed view
1 Measured value display
2 Status display 3 Trend display
2.1 Threshold high - red 3.1 Current measured value
2.2 Threshold high - yellow 3.2 Measuring range
2.3 Threshold low - yellow 3.3 Colour change
2.4 Threshold low - red 3.4 Limit lines of the thresholds
Illustration18: Scroll
The scrolling symbol shows that there are further pages belonging to the status
display. Touch anywhere on the status display to show the next page. At the
end, you automatically return to the first page.
Pressure Pa
35.8
E1O2
PQMonitoring sluice 1
50.00
0.00
-50.00
Pressure too high
1
2
Illustration19: Detail view alarm message
1 Message high - red (input 1) 2 Paging symbol

FISCHER Mess- und Regeltechnik GmbH Commissioning | 4
BA_EN_EA15 17 / 60
4.2.2 List view
Pressure
S135.8Pa
2
Humidity
S355%rF
Temp.
S424.7°C
Particle 12803ppm
PQMonitoring sluice 1
S-
Channel 1
Channel 2
Channel 3
Channel 4
1 23
4
5 6 7
89
Status bar T
10
C
B
C
B
C
B
C
B
C
Illustration20: Measured value display
1 Channel name 2 Einheit
3 Measurement 4 Status switch output
5 Status SD card 6 Status USB
7 Unit designation
or Date / Time
8 Warning signs
9 Background shadowing 10 Login symbol
S1Contact switched
Contact not switched
R1
No contact assigned
R-
Illustration21: Status display
The example of a switch output demonstrates how the status display works.
1. The symbol for the switch output goes orange, if the contact is switched.
2. The symbol for the switch output goes grey, if the contact is idle.
NOTICE!Back lighting
In the status displays for the SD card and USB interface, access to the medium
is symbolised by orange backlighting. The green backlighting shows that a unit
is connected. The backlighting is grey, if no unit is connected.
A logged-in user is shown by the login symbol. If the user is inactive, he will be
automatically logged out after a timeout time has expired.
Detail view channel 1
Illustration22: To detail view
Tip the respective list entry to go to the detail view of a channel. Return to the
measured value screen in the same way. The following uses the detailed view
of the first channel to demonstrate all channels.

4 | Commissioning FISCHER Mess- und Regeltechnik GmbH
18 / 60 BA_EN_EA15
Pressure
S135.8 Pa
2
PQMonitoring sluice 1
50.00
0.00
-50.00
Pressure too high
Warning:
Alarm: Alarm:
Warning:15.00 Pa
10.00 Pa
25.00 Pa
30.00 Pa
1
2
2.1
2.3 2.2
2.12.4
3
3.4 3.1
3.2
3.3
C
B
C
Illustration23: Detailed view
1 Measured value display
2 Status display 3 Trend display
2.1 Threshold high - red 3.1 Current measured value
2.2 Threshold high - yellow 3.2 Measuring range
2.3 Threshold low - yellow 3.3 Colour change
2.4 Threshold low - red 3.4 Limit lines of the thresholds
4.2.3 Presentation variants
The unit is available in a 2-channel and 4-channel version. This setting is made
ex-works.
The detail views are identical to the detail views of the 4-channel version.
The analogue inputs on both versions can be switched off individually. This
status is indicated by OFF in the respective tile (or list). If two analogue outputs
are switched in the 4-channel version, the presentation variant of the 2-channel
model is shown on the measured value display.
2-channel tile view
PQMonitoring sluice 1
Channel 1
Channel 2
Status bar T
Temperature error °C
24.7
O1
Humidity %rF
55
O2
Illustration24: 2-channel measured value display

FISCHER Mess- und Regeltechnik GmbH Commissioning | 4
BA_EN_EA15 19 / 60
2-channel list view
Humidity
S255%rF
Temp.
S124.7°C
PQMonitoring sluice 1
Channel 1
Channel 2
Status bar T
Warning
Alert
°C20.0
15.0 °C
Warning
Alert
°C20.0
15.0 °C
Warning
Alert
%rF35,000
20,000 %rF
Warning
Alert
%rF55,000
70,000 %rF
B
C
C
B
C
Illustration25: 2-channel measured value display
4.3 Control elements
The unit is equipped with a TFT Touch LCD colour display. It is operated via a
list menu and the input interfaces that depend on the functions.
The touch function is not explained because so many devices have this state-
of-the-art function.
We recommend using a stylus pen.
Illustration26: Menu input
Example: Password input
Touch anywhere on the status bar to go to the menu. The following menu ap-
pears on the screen:
P
Esc
K
J
I
Log-in
Event log
History
Parameterization
Sprache (language)
T
T
T
QMain menu/
Menu bar
Escape button
OK button
Arrow button
upwards
Arrow button
downwards
Operating keys
Status bar
Menu path
Menu item
selected
Access rights
T
Illustration27: Main menu
The dotted red line marks the picture section. This can be moved using the ar-
row keys
þ
ÿ
, the arrow shows the respective direction.
The menu entry in the centre of the screen is always selected and opened by
pressing the OK button
û
. Alternatively, a menu entry can also be touched to
open it.
In this example, the screen opens when a password is entered. The menu path
shows where you are in the menu tree.

4 | Commissioning FISCHER Mess- und Regeltechnik GmbH
20 / 60 BA_EN_EA15
P
Esc
W
J
X
QMain menu/login/
DEL
1230
4 5 6 -
789

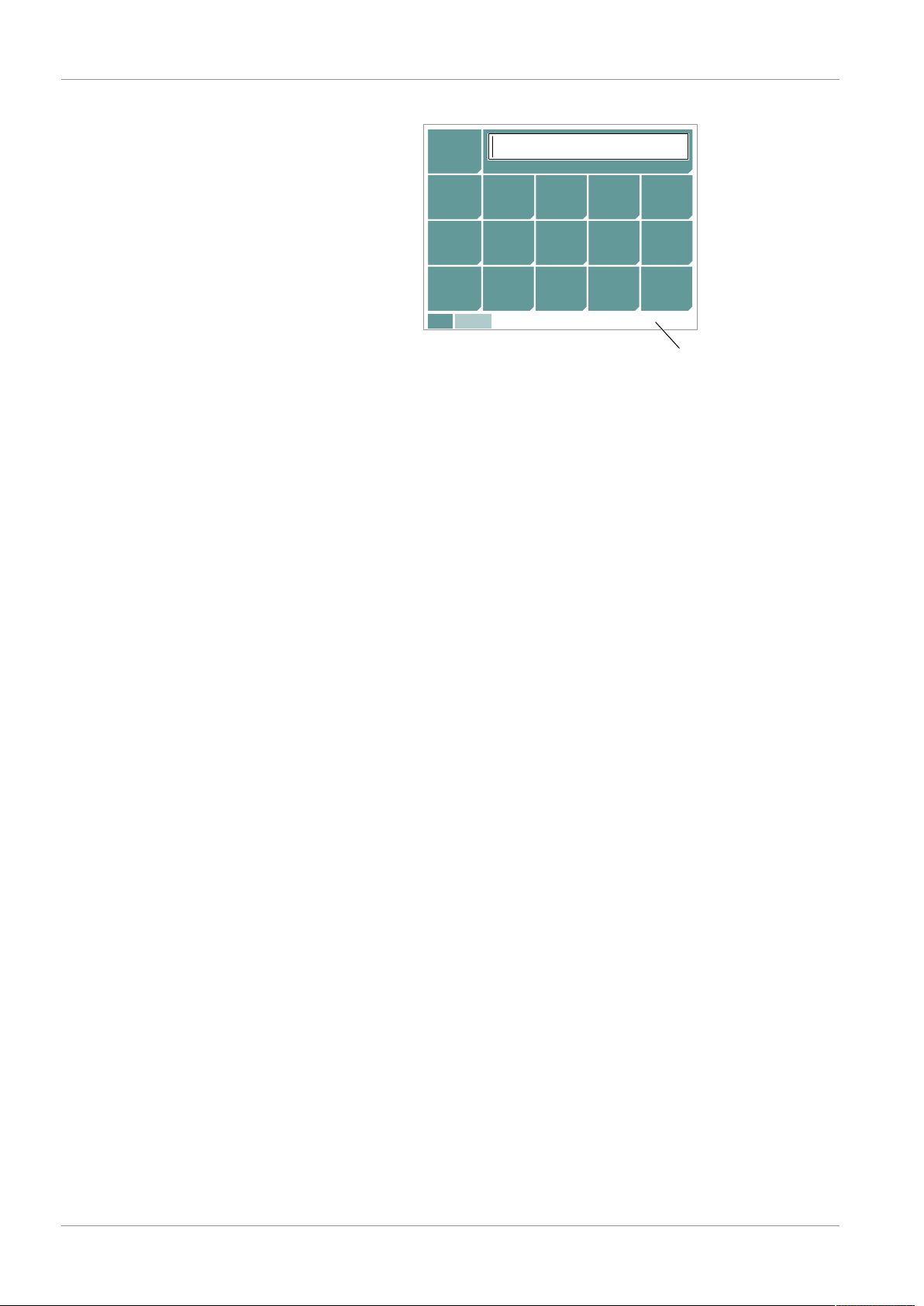

Please enter your password
Menu path
Illustration28: Main menu/login
Enter the password and complete the input by pressing the OK button
û
. A
message appears on the screen showing the user type you have logged in as.
Once you have acknowledged the message, you return to the main menu.
