Fisher & Paykel DishDrawer DD60DI9 User manual

DishDrawer
Phase 9.5
CONNECTED
DD60, DD24
AA GB EU SG US BI
SERVICE MANUAL

1
FEATURED PRODUCT & CONTACT ADDRESSES
BRAND MODEL DESCRIPTION CA CA
CONNECTED MARKET
Fisher & Paykel DD60DAW9 Double white model 81584 82309 AA
Fisher & Paykel DD60DAX9 Double stainless steel model 81585 82310 AA
Fisher & Paykel DD60DCW9 Double classic white model 81586 82311 AA
Fisher & Paykel DD60DCX9 Double classic stainless steel model 81587 82312 AA
Fisher & Paykel DD60SAW9 Single white model 81588 82313 AA
Fisher & Paykel DD60SAX9 Single stainless steel model 81589 82314 AA
Fisher & Paykel DD60SCW9 Single classic white model 81590 82315 AA
Fisher & Paykel DD60SCX9 Single classic stainless steel model 81591 82316 AA
Fisher & Paykel DD60SCTW9 Single classic tall tub white model 81592 82317 AA
Fisher & Paykel DD60SCTX9 Single classic tall tub stainless steel model 81593 82318 AA
Fisher & Paykel DD60DI9 Double integrated 81209 82319 AA
Fisher & Paykel DD60STI9 Single tall tub integrated 81210 82320 AA
Fisher & Paykel DD60SI9 Single integrated 81211 82321 AA
Fisher & Paykel DD60SLI9 Single commerical integrated 81212 82322 AA
Fisher & Paykel DD60DDFX9 Double designer flat handle stainless steel 81213 82323 AA
Fisher & Paykel DD60SDFTX9 Single designer flat handle tall tub stainless steel 81214 82324 AA
Fisher & Paykel DD60SDFX9 Single designer flat handle stainless steel 81215 82325 AA
Fisher & Paykel DD60DDFB9 Double designer flat handle black 81833 82326 AA
Fisher & Paykel DD60SDFTB9 Single designer flat handle tall tub black 82143 82327 AA
Fisher & Paykel DD24DAX9 Double value stainless steel 81596 82328 US
Fisher & Paykel DD24DCTW9 Double classic tall tub white 81597 82329 US
Fisher & Paykel DD24DCTB9 Double classic tall tub black 81598 82330 US
Fisher & Paykel DD24DCTX9 Double classic tall tub stainless steel 81599 82331 US
Fisher & Paykel DD24DCHTX9 Double classic water softener tall tub stainless steel 81600 82332 US
Fisher& Paykel DD24SAX9 Single value stainless steel 81603 82333 US
Fisher & Paykel DD24SCTW9 Single classic tall tub white 81604 82334 US
Fisher & Paykel DD24SCTB9 Single classic tall tub black 81605 82335 US
Fisher & Paykel DD24SCTX9 Single classic tall tub stainless steel 81606 82336 US
Fisher & Paykel DD24DHTI9 Double water softener tall tub integrated 81216 82337 US
Fisher & Paykel DD24DTI9 Double tall tub integrated 81217 82338 US
Fisher & Paykel DD24DI9 Double integrated 81218 82339 US
Fisher & Paykel DD24SHTI9 Single water softener tall tub integrated 81219 82340 US
Fisher & Paykel DD24STI9 Single tall tub integrated 81220 82341 US
Fisher & Paykel DD24SI9 Single integrated 81221 82342 US
Fisher & Paykel DD24DDFTX9 Double designer flat handle tall tub stainless steel 81222 82343 US
Fisher & Paykel DD24SDFTX9 Single designer flat handle tall tub stainless steel 81223 82344 US
Fisher & Paykel DD24DV2T9 Double version 2 tall tub 82756 82345 US
Fisher & Paykel DD24SV2T9 Single version 2 tall tub 82757 82346 US
Fisher & Paykel DD24DDFTB9 Double designer flat handle tall tub black 81834 82347 US
Fisher & Paykel DD60DCHX9 Double classic water softener stainless steel 81613 82348 BI
Fisher & Paykel DD60SCTHX9 Single classic tall tub water softener stainless steel 81615 82349 BI
Fisher & Paykel DD60SCHX9 Single classic water softener stainless steel 81944 82350 BI
Fisher & Paykel DD60DHI9 Double water softener integrated 81234 82351 BI

2
Fisher & Paykel Appliances Ltd U.K
Turing House
Ortensia Drive
Milton Keynes
MK17 8LX
Buckinghamshire
England
tel: [phone]
fax: [phone]
email: customer.care@sherpaykel.co.uk
Fisher & Paykel Appliances
Unit D2
North Dublin Corporate Park
Swords
Co Dublin
Ireland
tel: [phone]
fax: [phone]
email: customer.care@sherpaykel.ie
Fisher & Paykel Appliances Ltd
PO Box 58-546
Botany, Manukau 2163
78 Springs Rd
East Tamaki
Manukau 2013
New Zealand
tel: [phone]
fax: [phone]
email: customer[email protected].nz
Fisher & Paykel Appliances
150 Ubi Avenue 4
#03-01A
Ubi Biz-Hub
408825
Singapore
tel: [phone]
Customer Care: [phone]
email: customer.care@sherpaykel.co.sg
FEATURED PRODUCT & CONTACT ADDRESSES
BRAND MODEL DESCRIPTION CA CA
CONNECTED MARKET
Fisher & Paykel DD60SHTI9 Single water softener tall tub integrated 81237 82352 BI
Fisher & Paykel DD60SHI9 Single water softener integrated 81665 82353 BI
Fisher & Paykel DD60DDFHX9 Double designer flat handle water softener stainless steel 81235 82354 BI
Fisher & Paykel DD60SDFHTX9 Single designer flat handle water softener tall tub stainless steel 81259 82355 BI
Fisher & Paykel DD60SDFHX9 Single designer flat handle water softener stainless steel 81258 82356 BI
Fisher & Paykel DD60DDFHB9 Double designer flat handle water softener black 81835 82357 BI
Fisher & Paykel DD60DCHX9 Double classic water softener stainless steel 81616 82358 EU
Fisher & Paykel DD60SCHX9 Single classic water softener stainless steel 81618 82359 EU
Fisher & Paykel DD60DHI9 Double wtaer softener integrated 81241 82360 EU
Fisher & Paykel DD60SHTI9 Single wtaer softener tall tub integrated 81244 82361 EU
Fisher & Paykel DD60SHI9 Single water softener integrated 81667 82362 EU
Fisher & Paykel DD60DDFHB9 Double designer flat handle water softener black 81943 82363 EU
Fisher & Paykel DD60DCX9 Double classic stainless steel 81624 82364 SG
Fisher & Paykel DD60SCTX9 Single classic tall tub stainless steel 81625 82365 SG
Fisher & Paykel DD60SCX9 Single classic stainless steel 81626 82366 SG
Fisher & Paykel DD60DI9 Double integrated 81238 82367 SG
Fisher & Paykel DD60STI9 Single tall tub integrated 81260 82368 SG
Fisher & Paykel DD60SI9 Single integrated 81240 82369 SG
Fisher & Paykel Appliances Inc
695 Town Center Drive
Suite 180
Costa Mesa, CA 92626-1902
USA
Telephone: [phone]
Fisher & Paykel Customer Services Pty Ltd
PO Box 798, Cleveland, QLD 4163
A.C.N. 003 3335 171
19 Enterprise Street Cleveland, QLD 4163 Australia
tel: [phone]
fax: [phone]
email: customer[email protected]m.au

3
CONTENTS
1HEALTH & SAFETY 5
2SPECIFICATIONS 7
2.1 Electrical Specifications 7
2.2 Component Specifications 7
2.3 Wash Profiles 8
3MODEL NUMBER LOCATION & IDENTIFICATION 11
3.1 Model Number & Product Code 11
3.2 Clearances & Dimensions 11
3.3 Serial Number 11
4TECHNICAL OVERVIEW 12
4.1 Chassis 12
4.2 Draw Fronts 12
4.3 Electronics 12
4.3.1 Wash Controller 13
4.3.2 Motor Controller 13
4.4 Drying Fan 13
4.5 Tub Home Sensor 14
4.6 Motor 14
4.7 Motor Rotor 14
4.8 Spray Arm 14
4.9 Filter Plate 14
4.10 Drain Filter 15
4.11 Lid System 15
4.11.1 When Activated 15
4.11.2 During Power Failure 15
4.12 Fill with Water 16
4.12.1 Dispensing Detergent and Rinse Aid 16
4.12.2 Amount of Water 17
4.12.3 Flood Protection 17
4.13 Heating 17
4.13.1 Heating Element 17
4.13.2 Heating the Water 18
4.13.3 Maintaining the Temperature 18
4.14 Drain Cycle 18
4.15 Water Softener (some markets only) 19
4.16 WiFi Module 20
4.17 Knock to Pause Sensor 20
5OPERATION 21
5.1 WiFi Connection and Remote mode 21
6DIANOSTICS 23
6.1 Entering Dianostics 23

4
CONTENTS
6.2 Entering Diagnostics with Top of Door UI 25
6.3 Getting into Hardware Output Mode (HO) 26
6.4 Getting into Fast Test cycle 28
6.5 Demo Mode 29
7FAULT DIAGNOSTICS 30
7.1 Troubleshooting 30
7.2 Fault Codes 33
7.3 Top of Door UI Fault Codes 37
7.4 Component Testing 38
8SERVICING PROCEDURES 39
8.1 Removal of UI and PCB for servicing 39
8.1.1 Removal of FlangeUI Subassembly for servicing 39
8.2 Removal of WiFi Module/Housing 40
8.3 Removal of Drawer Front 41
8.4 Dissassembly of Inner Door Panel 41
8.5 Removal of UI Display 42
8.6 Removal of the Top Cap 43
8.7 Removing the Wash Controller 44
8.8 Removing the Dispenser 44
8.9 Removing the Drying Fan & Flapper Valve 44
8.10 Removing the Water Softener (some models only) 45
8.11 Removing the Strainer (some models only) 45
8.12 Removing the Filter Plate 46
8.13 Removing the Rotor Motor 46
8.14 Removing the Pump Cap Cover 46
8.15 Removing the Tub 47
8.16 Removing the Kickstrip 47
8.17 Removing the Lower Cowling 47
8.18 Removing the Wiring Cover 48
8.18.1 With the Tub removed 48
8.18.2 With the Tub in place 48
8.19 Removing the Heater 49
8.20 Replacing the Motor 50
8.21 Replacing a Fill Hose, Drain Hose or Wiring Harness 51
8.22 Replacing the Motor Controller 52
8.23 Replacing the Flood Sensor Harness 53
8.24 Replacing the Water Valve 53
8.25 Repacing the Lid Actuator 54
8.26 Replacing the Lid Assembly 54
8.27 Replacing the Yoke 54
8.28 Replacing the Side Rail 56
8.29 Replacing the Chassis Trim 56
8.30 Replacing the Temperature 56
9WIRING DIAGRAM 57

5
1 HEALTH & SAFETY
IMPORTANT !
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
When servicing the Dishwasher, health and safety issues must be considered at all times.
1.1 Health & Safety
Note: Specific safety issues are listed below with their appropriate icon. These are illustrated throughout the service information.
1.1.1 Electrical Safety
Ensure the mains power has been disconnected before servicing the DishDrawer™. If the
mains supply is required to be on to service the DishDrawer™, make sure it is turned off
when removing any electrical component or connection to avoid electrical shock.
1.1.2 Electrostatic Discharge
An anti-static strap is to be used as electrical static discharge (ESD) protection when servicing
electronic components.
1.1.3 Good Working Practices
Ensure the work area is in a tidy and orderly condition at all times so as not to cause a hazard
while service work is being completed. Always clean and tidy the DishDrawer™ and work area
aer service is completed.
1.1.4 Isolate Water Supply
Turn o the water connection tap before servicing.
1.1.5 Water Leak Check
Check for water leaks as part of the testing aer the service has been completed.
1.1.6 Insulation Test
Megger test to check insulation.
Warning: Short together the phase and neutral pins on the plug so as not to damage any
electronic circuitry.
1.1.7 Solvent and Excessive Heat Damage
Solvents and excessive heat can damage plastic surfaces.
1.1.8 Sheet Metal Edges
When working around cut sheet metal edges use appropriate gloves or protection to eliminate
the chance of receiving a laceration.
D
D
D
D
D
D
D
D

6
1.2 Specialised Tools
1.1.9 Diagnostics
While in diagnostics some safety devices are bypassed. Ensure you do not run components
unattended.
They may overheat, flood or burn out or cause water damage.
D
1.2.1 Static Strap
For servicing this product, some specialist tools are required.
An anti static strap is required to prevent ESD (electrocstatic discharge) when handling electronic components.
1.3 Training Videos
In section 8, Service Procedures, you will find web links to take you through to training videos on specific service procedures.
These training videos are also available on the service website Cool Blue World.
1 HEALTH & SAFETY

7
2 SPECIFICATIONS
COMPONENT SPECIFICATION
Controller AA/GB/EU/DK/PF/SG 240V
US/TW 120V
Water inlet valve 24v DC
65 +- 10 Ohms per coil
2.5L per minute
Dispenser coil 24V DC
65 +- 10 Ohms
Rinse aid tanks AA/GB/EU/DK/PF/SG 50 mls (approx 25 washes)
US/TW 3.05 cubic inches
Motor
Drain speed
Wash speed
80V DC 3 phase brushless
5000rpm
2200 - 2800rpm
Stator 8 Ohms per winding
16 Ohms phase to phase
Heater AA/GB/EU/DK/PF/SG 230V - 920W
55 - 60 Ohm
US/TW 120V -570W
24-27 Ohm
Thermal cut out temp 120 Deg C +- 6.5 Deg C
248 Deg F +- 42 Deg F
Temperature sensor 12000 Ω @ 20 oC (68 oF)
8300 Ω @ 30 oC (86oF)
3000 Ω @ 60 oC (140oF)
Water inlet hose Pressure rating
Length from chassis edge
(view from front)
1MPa (145psi) max
1650mm (64 3/4’’) LH side
1250mm (49’’) RH side
Water pressure Incoming water
Pressure ratings
1MPa (145psi) max
0.03 MPa (4.3psi) min
Drain hose 2000mm (78 1/2’’) from LH side
1800mm (70 1/2’’) from RH side
Power cord AA/GB/EU/DK/PF/SG 1650mm
US/TW 29 1/2’’
Drying fan 24V brushless DC motor
0.27A
Lid actuator 24V DC
User display One per product, runs both tubs via a
selector switch
2.2 Component Specifications
MARKET VOLTAGE V FREQUENCY HZ CURRENT  A
AA GB EU DK PF SG 220/240 50 10
US TW 120 60 10
2.1 Electrical Specifications

8

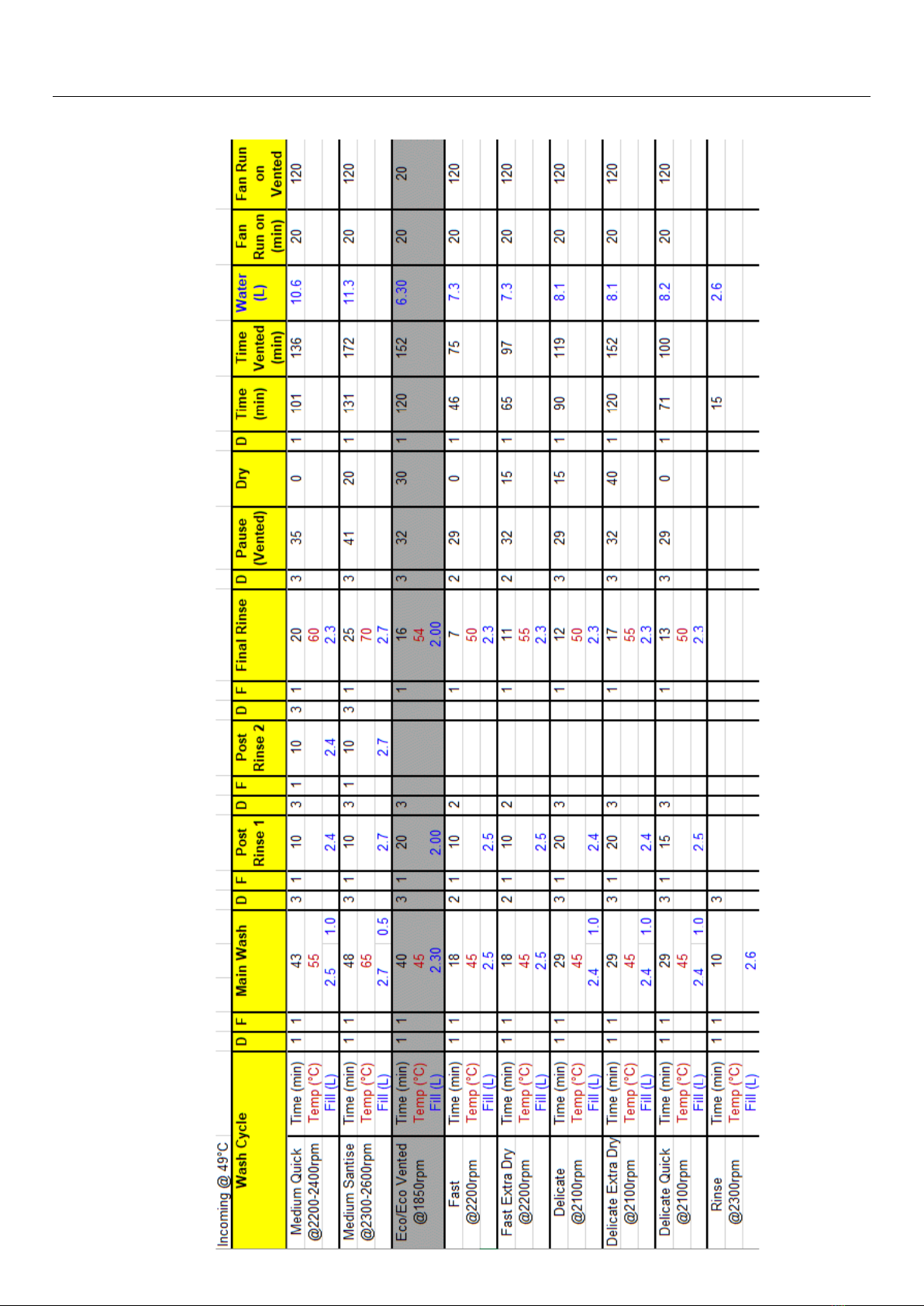

2.3 Wash Profiles
AA market
2 SPECIFICATIONS

9
EU market
2 SPECIFICATIONS

10
US market
2 SPECIFICATIONS

11
3 MODEL NUMBER LOCATION & IDENTIFICATION
The serial number consists of three letters and six digits and contains the information shown in the following example:
R I G 123456
Cumberland code
Letter C U M B E R L A N D
Year 1 2 3 4 5 6 7 8 9 0
Fisherpaykul code
Letter F I S H E R P A Y K U L
Month 1 2 3 4 5 6 7 8 9 10 11 12
Manufacturing Plant Codes
Code Factory Country
Refrigeration B New Zealand
Manufacturing G Thailand
Manufacturing P Mexico
In the example above, the appliance was manufactured in the sixth month (Feb) of 2016 in the Thailand factory.
3.1 Model Number & Product Code
The model number and product code is shown on the product data plate, which is located on the front of the chassis trim.
The product code is a specific code relating to that product, which if ordering spare parts, you need to use the product code to
ensure you get the correct parts manual, as some parts for the Phase 9 DD are specific for this model.
The model number shows the product type, as follows:
3.2 Serial Number
Sequential serial number
Manufacturing plant code
FISHERPAYKEL code indicating month of
manufacture
CUMBERLAND code indicating year of
manufacture

12
4.1 Chassis
The DishDrawer chassis is one complete assembly composed of 5 steel metal components locked together by a proprietary
riveting process. The chassis exterior is made of a lacquered electro-galvanised material.
4.2 Drawer Fronts
Prefinished drawer fronts are formed from steel blanks. The drawer fronts are attached to the tub by means of formed hooks
and two square pins that are inserted through either side of the tub.
4.3 Electronics
4 TECHNICAL OVERVIEW
The electronics system is made up of 2 separate boards, the wash controller and the motor controller. Each tub has 1 wash
controller, and in the base of the product is a motor controller, which both tub wash controllers are connected to.
The wash controller is the main control. This board controls the wash program selected on the LED display. It monitors the
water temperature, tells the motor controller to activate the lid actuators, wash motor and fill valves as required. The wash
controller also controls the drying fan, detergent dispenser and water softener (if fitted).
The display LED is also connected to the wash controller, and depending on model, may control the tub it is connected to, or
control both upper and lower tubs. There are no secondary touch switches shown on the tub. All cycles are selected through the
display.
The power supply to the wash controller is isolated, but it is still recommended that the power be disconnected from the main
supply before any servicing is carried out.
The motor controller is situated in the base of the chassis, and is connected to the 2 wash controllers by way of a harness.
The motor controller controls the wash motors, fill valves, lid motors and elements on both tubs. It has two 24V rails, one of the
24V power supplies is used for the loads that the motor controller runs, this supply is not isolated and must be treated as live at
all times.
The other 24V supply is isolated and is fed up to the wash controllers to allow them to run their loads.
The motor controller requires several conditions to be met before it will run certain loads. For example, in order to prevent
accidental flooding it won’t run the motor in the wash direction unless the tub is closed and the lids are down.
In addition, except in diagnostic mode, it won’t turn on an element unless the wash motor has prime, which requires the tub to
be closed and the lid to be down.
Unlike previous versions of the DishDrawer, the element is now switched by a double pole relay. This protects against certain
element fault conditions which can occur. The element is further protected by two non resettable thermal limiters.

13
4.3.1 Wash Controller
Wash controller, one situated in each tub.
Outputs: Dispenser
Water Softener
Drying fan
Inputs: Rinse Dispenser coil
Motor Controller
Flange UI
User Interface
Thermistor
WiFi module
4.3.2 Motor Controller
Motor controller situated in the base panel area.
There are 2 types of motor controller:
NZ, AU, GB, EU, DK, SG 230V
US, CA, TW 110V
Outputs: Lids Motors
Wash Motor
Fill valve
Heating Elements
Wash Controllers
Inputs: Flood Sensor

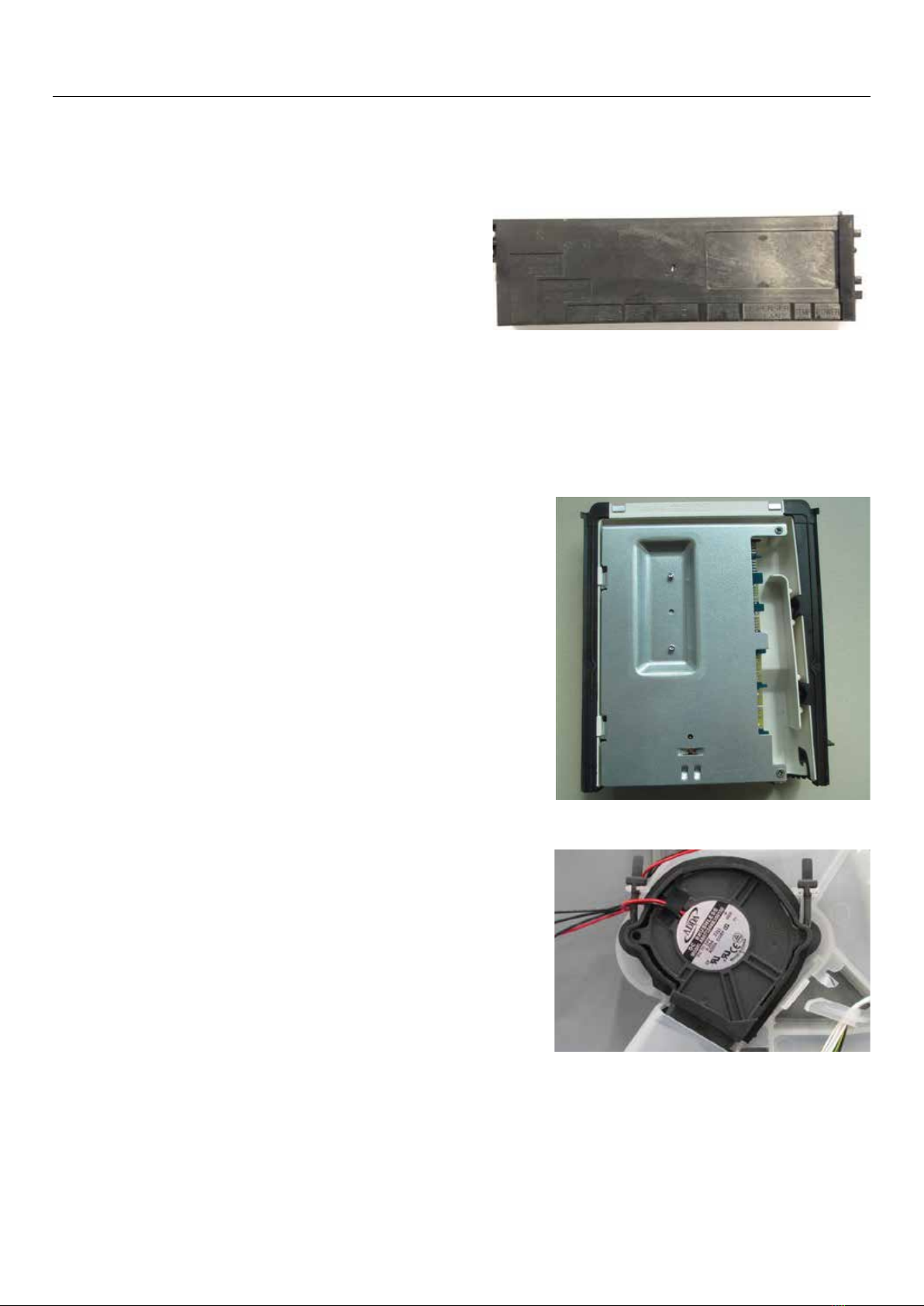

4.4 Drying Fan
Immediately after water from the final hot rinse has been drained from
the tub, the drying cycle begins.
The drying fan draws air through the vent in the rear into the tub where
it absorbs water from the dish load. The moisture-laden air is then
mixed with a larger quantity of ambient air (drawn from the kitchen),
to minimise the amount of vapour visible when air is exiting from the
bottom of the drawer front.
A flap valve is located in the fan housing. This is closed to prevent moist
air from entering the space behind the door panel during the wash. The
fan runs continuously during the drying cycle for various times
depending on the program selected, and will restart if the tub is
opened and closed again.
After the wash program is complete, the lid drives up, and the fan
continues to run for anything up to 120 minutes depending on
the program.
4 TECHNICAL OVERVIEW
DRAWN
CHKD
AP PD
TITLE
B Wils on
00-00-00
name name
00-00-00
4/7/11
PH9 WIRING DIAGRAM
ISS BY CN No DATE
DRG NO
DRG No
4
BJW ??? 4/4/13
C on cep t
PA GE
1 OF 1
FU LL FI LE NA ME
C:\USER S \W ILS ONB\F IS H E R & PA YKE L A PPL IAN C ES\EL EC TR ONIC S D EV ELO PMEN T - HARNESS AND WIRING\DD_VA LUE \WIR ING D IAG RA M VALUE_R EV8.VS D
Fisher & Paykel
F is he r & Pa ykel A ppl ian c es Lt d
Le vel 2, W al l Str ee t M all
21 1 Ge orge S tr e et
Dunedin 90 16
N ew Z e al an d
Ph 64 3 46 7 7 60 0 Fax [phone]
P in 1
P in 1
P in 1
P in 1
P in 1
P in 1
1
2
Fill valve
M M
°t
Temperature
Sensor
P in 1
P1N
E
LINK (Upper)To Upper
Tub
LINK (Lower)
Fill valve
To Upper Tub Lid Motor
Lower
Tub Lid
Motor
To Upper Tub Lid Motor
Lower
Tub Lid
Motor
Door
Ea r th
Wire
Element
Earth
Flood Sensor
7
BJW 30 /8/21
Add WiFi module
Heater Plate
With Water Softener
RinseAid
Pump
Brine Pump
P in 1 P in 1 P in 1 P in 1 P in 1
RINSEAID
LE D
Salt
Sensor
P in 1 P in 1
SA LT L OW
LE D
Water
softener
Flange
UI
Knock sensor
or button
Dry Fan
No Water
Softener
Detergent
Diverter
Softener Bypass
Valve
RINSEAID
LE D
Detergent
Diverter
RinseAid
Pump
Water softener
(from Wash
controller)
WiFi (Top Tub Only)
51 14 59 52 48 75 51 57 46 51 57 47 51 31 49 or 51 55 27
51 17 62 (to p t ub ) 51 17 61 (botto m tub )
51 06 69
Tub Detect Loop (Top Tub Only)
51 27 73
P in 1
Door
Ea r th
T ab
Y cap
Designer and
Integrated
models only
51 30 63

14

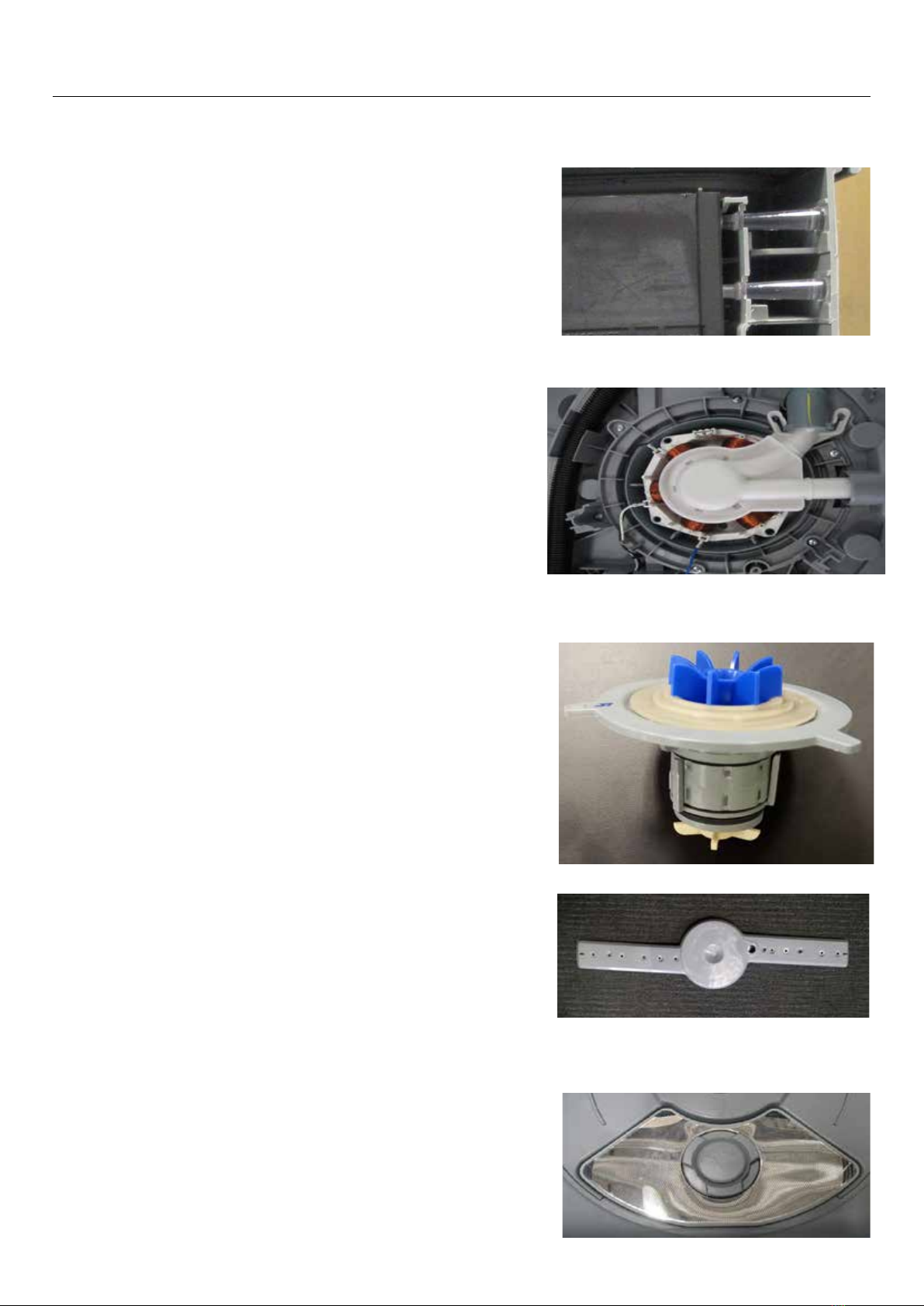

4.6 Motor
The motor is a fully electronically controlled 80V, 60w, 3 phase, 6 pole
brushless DC motor, running on wash at between 2200 - 2800 rpm
depending on the cycle selected, and at approximately 5000 rpm on drain.
4.7 Motor Rotor
The rotor is a four-pole permanent magnet rotor with a graphite bearing
at each end of the vertical shaft. At the lower end of the rotor shaft is the
drain impellor and at the upper end is the wash impellor.
4.8 Spray Arm
The spray arm is shaped for most efficient water flow. The holes are
positioned for best penetration into the wash load, with the water jets
angled to ensure the spray arm rotates at the most efficient speed. There
are 2 sluicing jets located at the bottom of the spray arm to direct soils
into the drain filter.
The filter plate is positioned below the dish rack and spray arm.
The filter plate has a rubber over mould around the edge and centre to
reduce soil re-depositing.
These improvements will ensure a better wash performance.
The drain filter fits tightly into the filter plate, due to the rubber over
mould around the edge.
4.9 Filter Plate
4 TECHNICAL OVERVIEW
The tub home sensor determines when the tub is closed. The tub home
sensor consists of an infrared transmitter and receiver mounted on the
right side of wash controller. When the tub is fully closed, infrared light
is transmitted from the sender through a light pipe on the side of the tub,
through a prism mounted in the chassis trim, then back through the other
light pipe to the receiver. If the tub is not fully closed, the circuit is not
complete and the appliance will not operate.

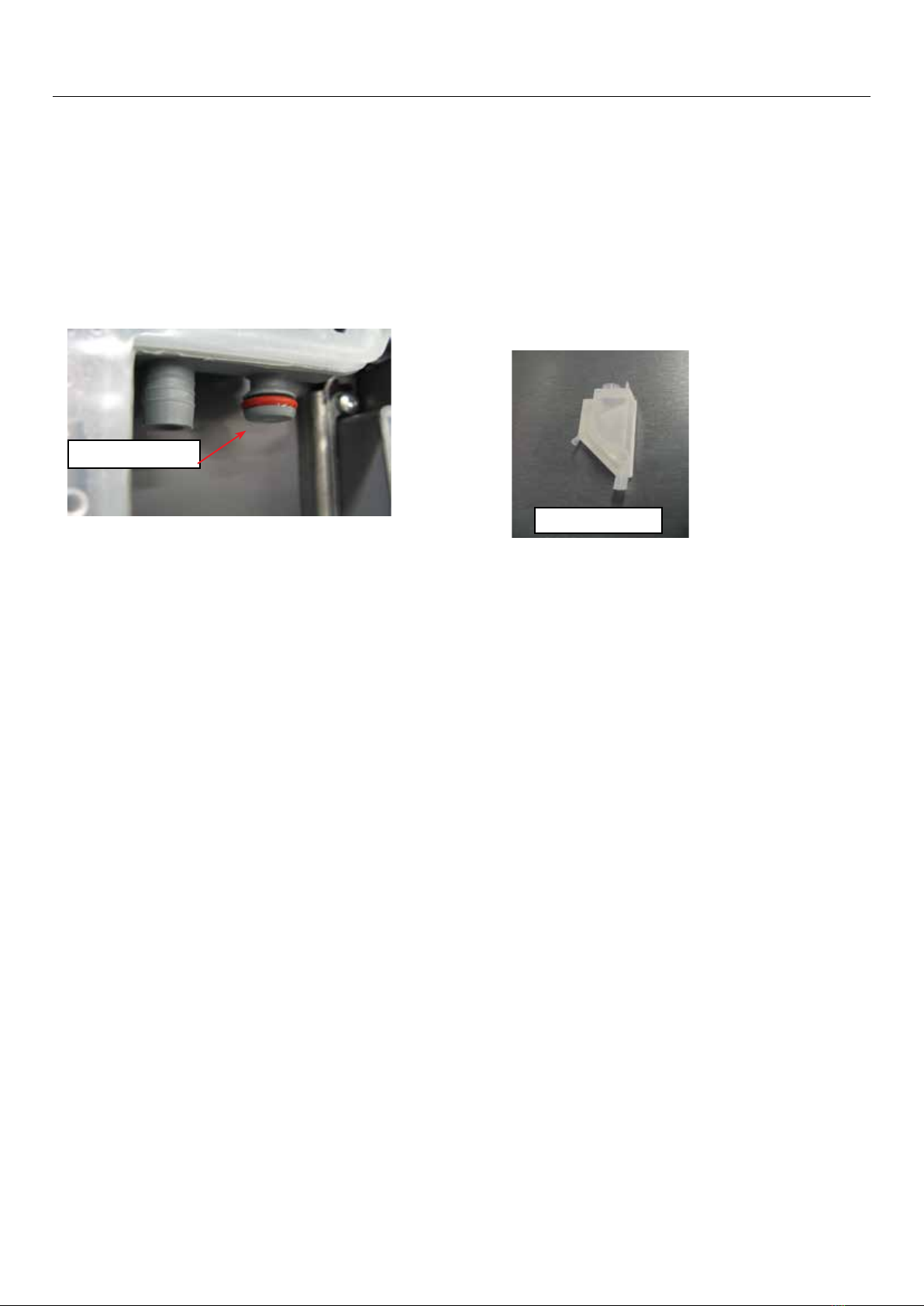

4.5 Tub Home Sensor

15
4 TECHNICAL OVERVIEW
4.10 Drain Filter

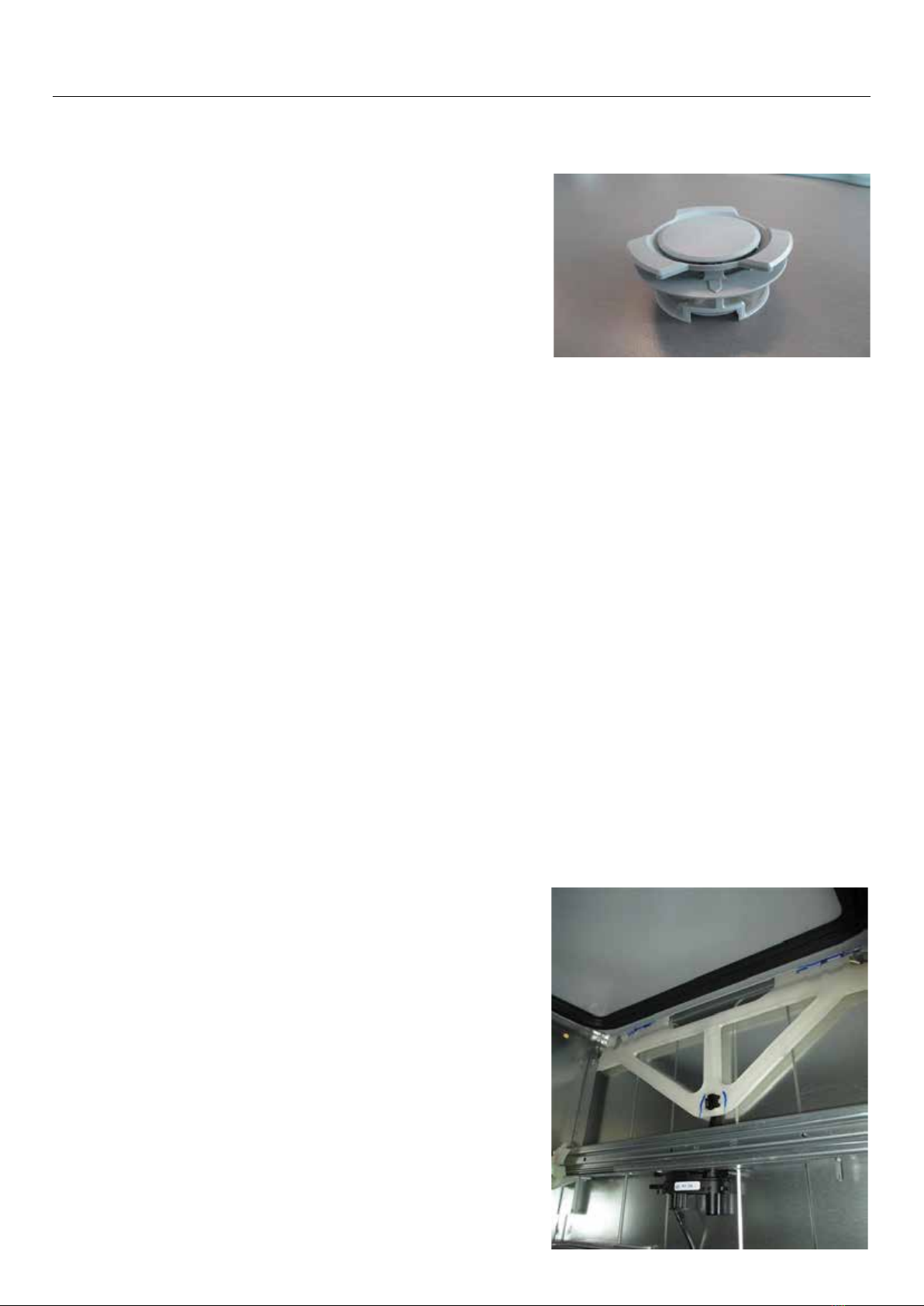

4.11 Lid System
The lid is a single piece of polymer plastic with a diaphragm/seal co-injection moulded into it. The centre of the lid can move
relative to the seal. Each side of the lid is clipped into a yoke, which is in turn connected to a worm drive lid actuator assembly
containing a small brushed DC 24 volt motor.
When the product is first plugged in and switched on at the wall, the lid motors are powered up to ensure that the lid is fully
raised.
4.11.1 When Activated
At the beginning of the wash cycle, both lid motors are powered up to pull the lid down onto the tub flange in approx 2 -3
seconds. The lid remains down for the duration of the wash and is only lifted when the DishDrawer beeps to signal the end of
the cycle, or if the cycle is paused to gain access to the tub.
If power to the DishDrawer™ fails with the lid down, the tub can still be forced open manually if access is required. It is very
difficult however to close the tub again without raising the lid. The lid actuators can be wound up manually with the tub fully
removed. Failure to raise the lid before closing the drawer can result in the lid seal being damaged.
4.11.2 During a Power Failure
The drain filter is a combination of a large catchment area for solid food
pieces and a fine mesh for straining wash water, it is designed to minimise
soils re-depositing on the wash load.
The Drain filter assembly can be separated into 2 pieces for fine cleaning,
but we recommend rinsing out as one piece. If reassembling use guide
arrows to orientate and ensure they click together snuggly.

16
4.12 Filling with Water
The wash tubs of the DishDrawer fill by a single water inlet hose. Hot water connection is recommended for the USA market
only, while cold water connection recommended for the AU & NZ markets.
From the connection to the water supply tap in the kitchen, the inlet hose enters the cabinet of the dishwasher at the base, into
a dual water valve.
Each tub is supplied water independently via one of the dual valve coils and a fill hose that runs through a customised link
assembly at the back of each tub and travels along the base of the tub under the wiring cover to the front.
At the front of the tub, the fill hose connects to the water softener (if fitted) then to the detergent dispenser which directs water
into the tub.
The controller allows only one inlet valve coil to operate at a time, and the top tub always has priority on fill.

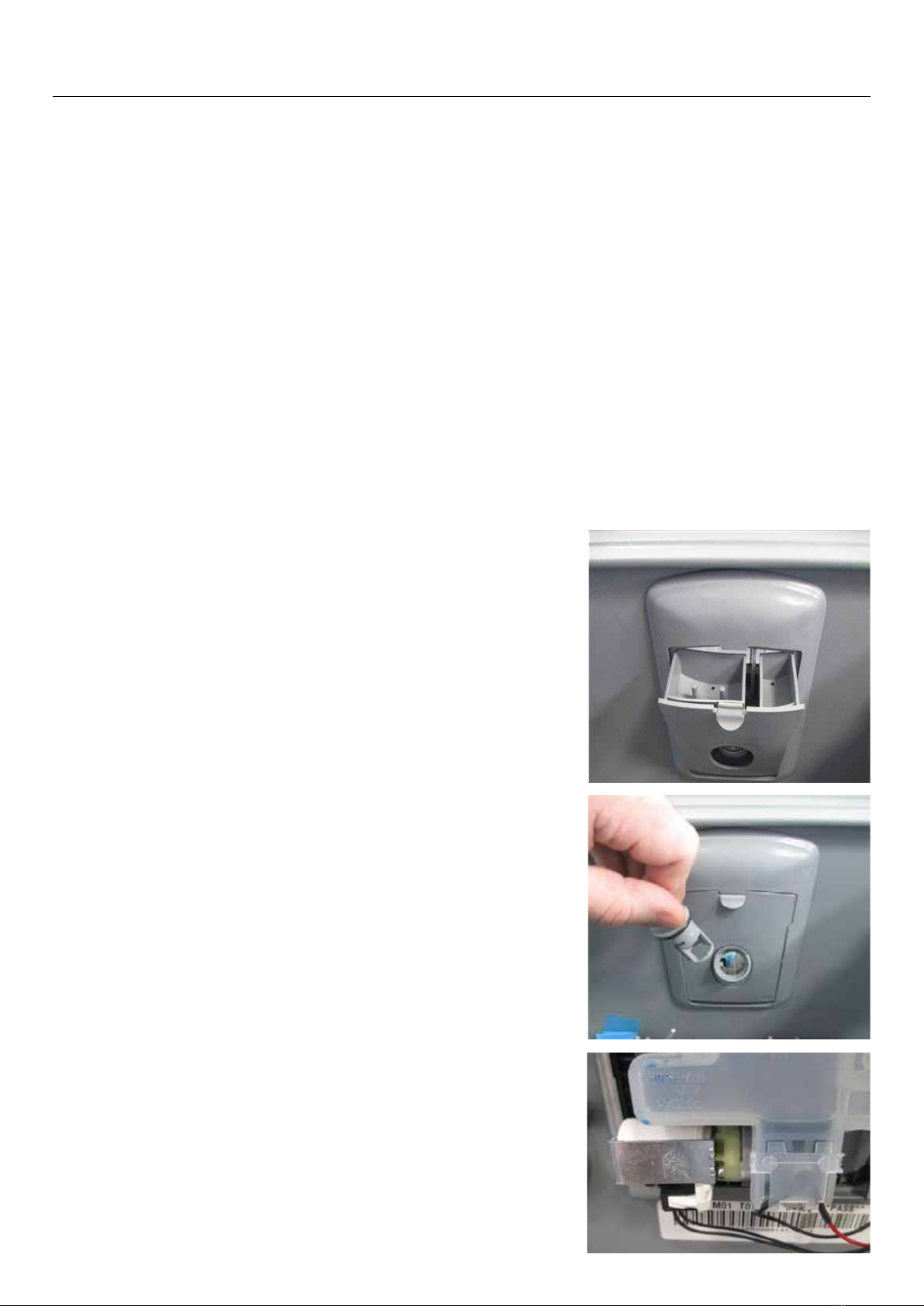

4.12.1 Dispensing Detergent and Rinse Aid
The dispenser is mounted in the front of the wash tub, and is held in
place with 2 brackets and 6 T10 torx screws.
The dispenser consists of 2 separate detergent chambers, the large
one is the main wash bucket, the smaller one is utilised for any extra
detergent required for hard water areas.
The detergent dispenser door is opened manually to fill the detergent
buckets, and is then closed manually.
There is a positive displacement pump unit and storage tank
incorporated within the dispenser to dispense rinse aid.
The rinse aid volume dispensed is adjusted through the user
preference options, refer to section 5.
When the rinse aid tank is empty, a glowing red light on the tank filler
cap will alert the customer to refill the rinse aid tank.
4 TECHNICAL OVERVIEW

17
4.12.2 Amount of Water
The tub fills with approximately 2.8 litres (3/4 gallon) of water.
The phase 9 model uses a new HYBRID filling system. This new filling system works slightly differently to the older dynamic
filling system by looking for a good consistent prime over a LONGER time period (about 15 secs) and looks for this over a 40
sec period.
4.12.3 Flood Protection
A flood sensor is mounted in the base of the product. It is housed
in the plastic housing. The flood sensor detects any water spillage
and will alert the customer to the flood by showing an E1 on
the display panel and will beep. The drain pump will also run
continously.

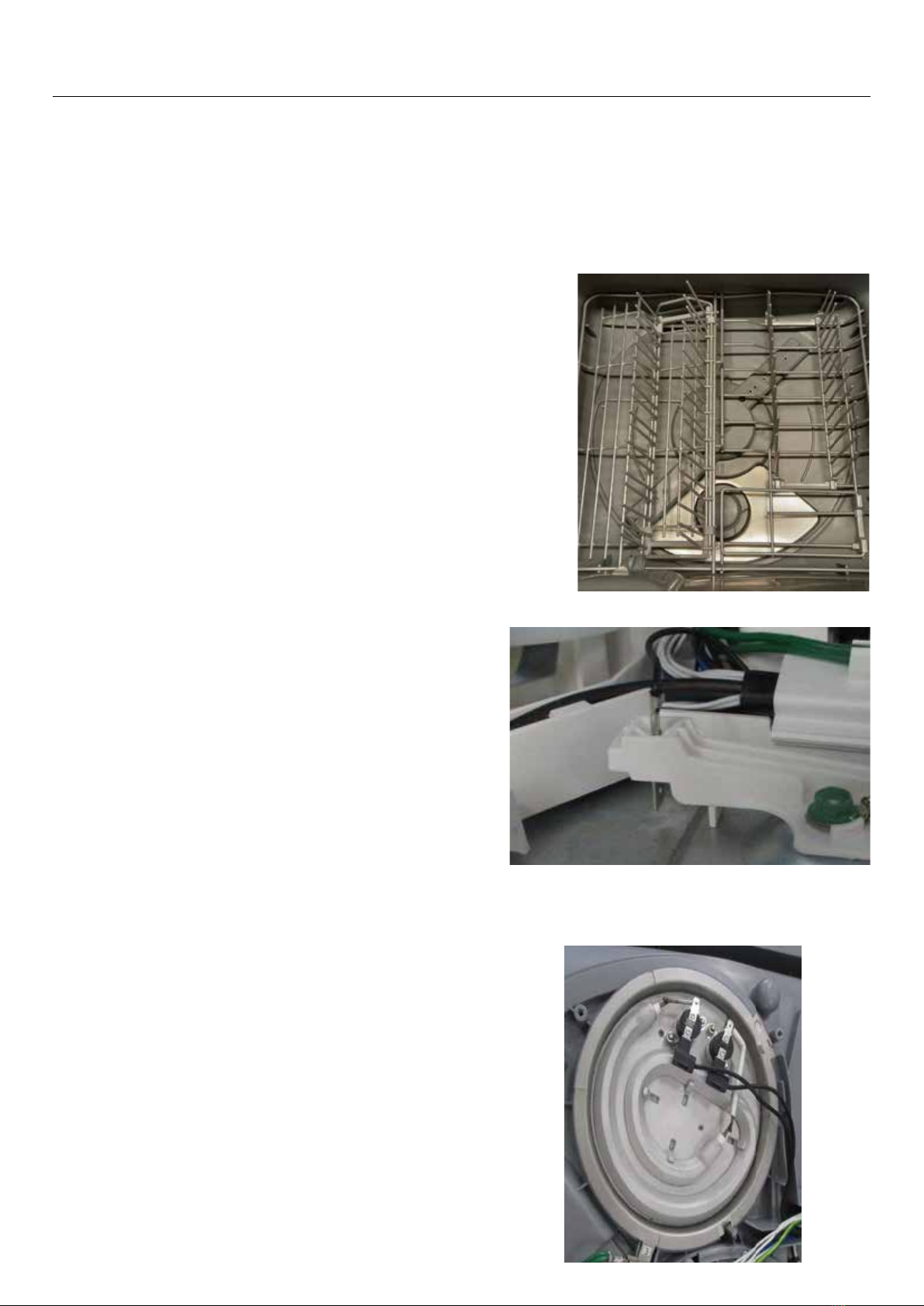

4.13 Heating
The heating element is a small circular sheathed element with a
stainless steel flat plate on the wet side.
There are 2 thermal limiters to detect an element over heat
situation. These limiters are non servicable and the element would
need to be replaced should they fail.
The element is held in place by by a cover and 3 torx screws.
4.13.1 Heating Element
4 TECHNICAL OVERVIEW
The initial fill will have up to THREE attempts to find this prime,
so the product will start and stop while filling, and will initially
look overfilled, as water will be up to the bottom of the spray arm
(this is normal).
If this prime is found then some EXTRA water is added depending
on which cycle was chosen and washing starts. If not there is now
a series of small fills to CREEP up on the Prime to make the same
decision.
This series of small fills gradually increases till this prime is found,
this is how LOW PRESSURE (which is low fill rate) will accurately
find prime as well.
So the series of short fills IS NOT a fault, but a more robust
detection process and will ensure the product does not get any
large overfills.

18
4.13.2 Heating the Water
The heater plate is situated below the water duct cover. The water
is passed over the heating element during the wash cycle via the
duct. The heated water is then picked up by the motor rotor and
distributed to the wash load via the spray arm.
4.13.3 Maintaining the Temperature
The water temperature is monitored by a thermistor situated
in the base of the tub.
It is connected to the wash controller, which monitors the
water temperature.
4.14 Drain Cycle
The drain pump is a self priming centrifugal pump that only pumps
when the motor is rotating in the drain direction (anti-clockwise). It
has a 5 blade impellor pushed onto a spline on the lower end of the
rotor shaft.
The drain pump housing, which incorporates an inlet and outlet
pipe, is welded to the motor housing, hence captivating the motor.
The inlet pipe plugs straight into the drain sump in the tub, and is
sealed by a small o-ring.
The outlet pipe has a non-return valve to prevent soiled water
returning to the tub.
The drain hose is an extruded blow moulded hose that is routed
through the link assembly and exits out the base of the product and
is connected to the domestic drain.
The drain speed during the drain cycle is approx 5000 rpm. In the
hardware output diagnostic mode, it is set at the same speed as drain,
to help diagnose drain problems.
inlet
outlet
4 TECHNICAL OVERVIEW
drain
impellor

19
4.15 Water Softener ( some markets only)
The Water Softener uses a softening material (resin) to prevent most of the elements that cause hard water from being present
in the wash water. The resin can only treat a limited amount of water before it needs to be regenerated. Regeneration is
achieved by pumping salty water (brine) through the resin, and flushing away the hard elements to the drain. The process of
delivering softened water, and regeneration of the resin is controlled by the electronic controller.
Delivering Softened Water: - Supply water arrives from the inlet valve then through an inline Strainer to remove large deposits.
The strainer is attached to the water softener by an inlet spigot.
Strainer Spigot
In the water softener the water passes through an air break and a diverter valve. It is then either directed
through the resin to the dispenseras softened water, or directly to the dispenser, then into the tub.
The electronic controller measures the volume of water treated soft water, and adds an appropriate amount of non-treated hard
water, to deliver a mix that is at the required hardness according to a pre-determined schedule. Water is treated according to its
supply hardness. The customer is able to select one of 5 supply hardness settings in option adjustment mode.
Regeneration:- Regeneration is triggered when the amount of water that has been treated since the last regeneration nears the
capacity of the water softener. The quantities treatable for each of the five settings of supply hardness have been predetermined,
and are stored in the electronic controller. When triggered, immediately after filling for the main wash, the brine pump is
activated and delivers a volume of salty water into the resin, at an amount appropriate to the hardness setting. The frequency
of the pump is 3 Hz, and makes a slight rattling sound. Later in the wash cycle, the resin is flushed with supply water, and
the by-products of regeneration are delivered into the wash water, and drained with it away to waste. During the flush the fill
valve turns on and off alternately for 5 seconds for a number of times depending on the hardness setting. Normal treatment of
incoming water then resumes.
Salt:- The customer is required to fill the salt tank with dishwashing salt from time to time. Salt is used in the water softener
by mixing it with water to produce the salty water (brine) used in regeneration. When the salt level is low, a salt level detector
causes a glowing red light to appear in the salt bung, and a “Salt” symbol appears in the LCD if one is fitted. When this
happens, the customer should remove the salt bung, and using the salt container provided, pour salt into the salt reservoir
until salt can be seen at the opening. The “Salt” symbol on the LCD will disappear and the red light will not be visible when
the salt tank bung is replaced. In areas where the supply water is moderately hard, 21 dH (degrees of hardness) or 375 parts
per million, water softener setting 3) the salt reservoir will need to be filled about once a month, and in harder areas more
frequently. Delivery of treated water from one fill of the salt reservoir:
240 litres (63 gallons) at 30 – 100 ppm from 375 ppm supply water (setting 3)
144 litres (38 gallons) at 30 – 100 ppm from 625 ppm supply water (setting 5)
Strainer
4 TECHNICAL OVERVIEW
