Fisher & Paykel DISHDRAWER DD60STX6I1 User manual

INSTALLATION GUIDE
INTEGRATED
DD60STX6I1, DD60STX6HI1
SINGLE DISHDRAWER™ DISHWASHER
NZ AU BI

3
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Fitting an integrated panel requires access to
electrical service areas. This must be performed
by a Fisher & Paykel trained and supported
service technician or qualified person.
• Before fitting the front panel, the dishwasher
must be disconnected from the power supply.
• After installing the front panel, the installer
must ensure that the following components
are electrically earthed: the panel bracket and
any custom metal component (e.g. handle) that
extends past the rubber seal.
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug.
• Before installing the DishDrawer™ Dishwasher,
remove the house fuse or open the circuit breaker.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Do not modify the power supply plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
• The dishwasher must be completely enclosed at
the time of installation.
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• WARNING - Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you are in
doubt as to whether the appliance is properly
earthed.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care - panel edges are sharp.
SAFETY AND WARNINGS
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.

4
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken by a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
zInstallation of this DishDrawer™ Dishwasher requires basic mechanical and electrical
skills.
zInstallation must comply with your local building and electricity regulations.
zRemove all packaging materials supplied with the dishwasher.
zBe sure to leave these Instructions with the Customer.
zAt the completion of the installation, the Installer must perform the Final Checklist.
zThis dishwasher is manufactured for indoor use only.
zEnsure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
zThe DishDrawer™ Dishwasher MUST be installed to allow for future removal from the
enclosure if service is required.
zThe switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
zCare should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
zIf the DishDrawer™ Dishwasher is relocated from one installation site to another it must
be kept upright to avoid damage from water spillage.
zEnsure only supplied hoses are used for connection. Old hoses should not be reused.
zFailure to install correctly could invalidate any warranty or liability claims.
zIf the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.

5
TOOLS AND COMPONENTS
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
zFisher & Paykel is not responsible for shipping damage.
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install
Side mounting bracket
kits (2)*
*Optional | **Comes fitted to the product | ***DD60DA models only | ****DD60DC & DD60DD models only
Rubber washer (1)** Drain hose support (1)
Flat-blade screwdriver
Level
Top mounting bracket
kit (1)*
38mm bottom fixing
screws and washers (2)
Drain hose joiner (1)
Powered driver
Pliers
Box cutter
Router
Pencil
Multi-tool
Moisture protection
tape (1)
Wire clip (1) External venting kit (1)
16mm Phillips screws (16)
Clamp (1) Panel bracket kits (1)**
Supplied
Not supplied
PARTS SUPPLIED TOOLS REQUIRED
INSTALL VIDEO
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.

6
PRODUCT DIMENSIONS
Actual product dimensions may vary by ± 2 mm
PRODUCT DIMENSIONS MM
A Overall height 454
B Overall width 599
C Overall depth* 571
D Depth of chassis 553
E Front panel depth** 16-20
F Max. drawer extension*** 527
*based on front panel thickness of 18mm
**refer to ‘Custom panel dimension’ for more information
***excluding custom panel and handle
PLAN ISOMETRIC
PROFILEFRONT
A
C
b
f
D
e

7

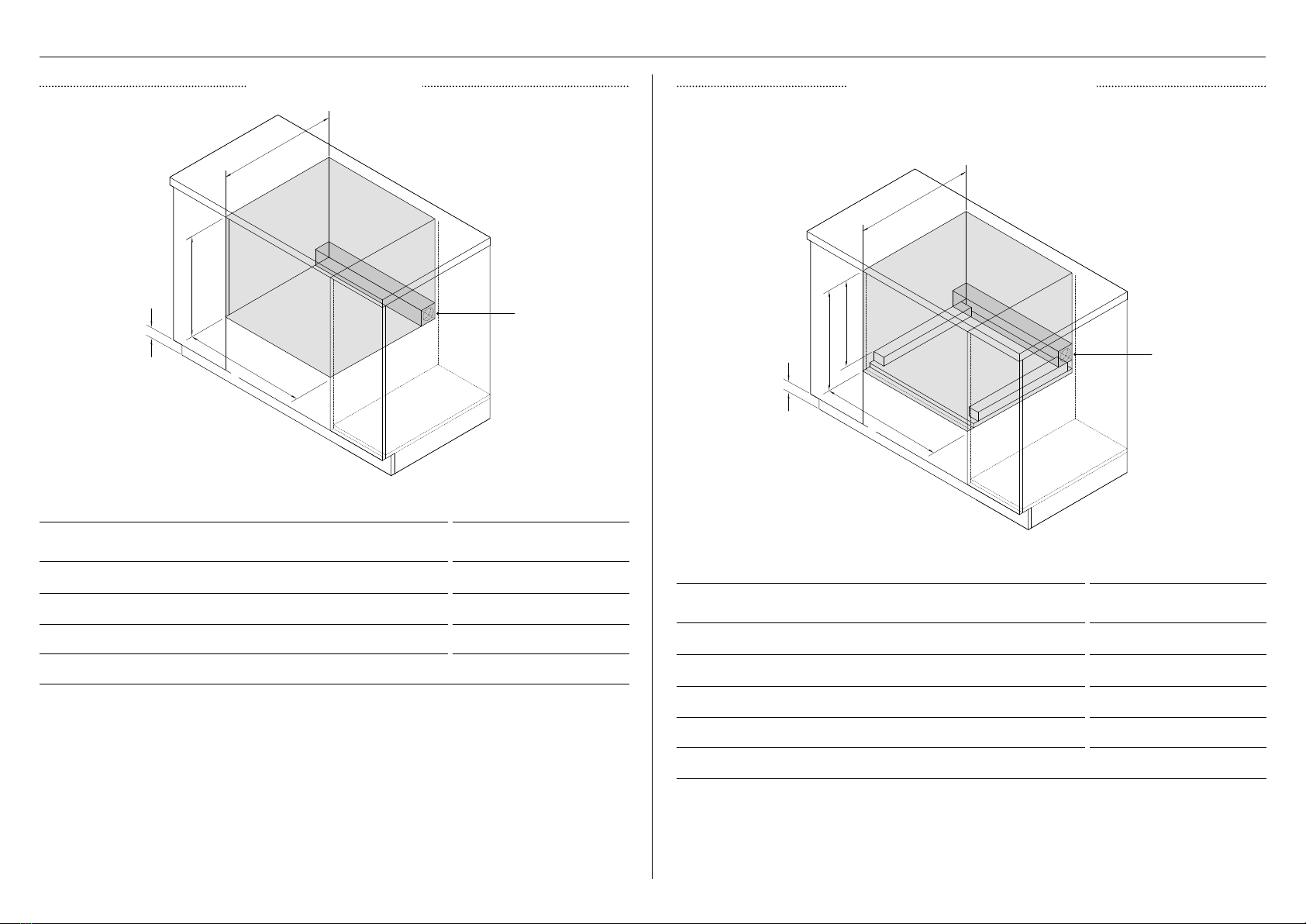

CABINETRY
CABINETRY DIMENSIONS MM
A Minimum inside height 456
B Inside width 600
C Minimum inside depth* 578
D Minimum toe kick height** 100
*including 18mm door panels on adjacent cabinetry
**when venting through the same or adjacent cabinet. Refer to ‘External venting preparation’ for more information.
***for more information on service requirements, refer to ‘Plumbing & electrical considerations’ and ‘Cabinetry preparation’.
CABINETRY DIMENSIONS MM
A Minimum inside height* 511
B Minimum inside height from top of spacer blocks 456
C Inside width 600
D Minimum inside depth** 578
E Minimum toe kick height*** 100
*including an 18mm high spacer and two 55mm high spacer blocks
**including 18mm door panels on adjacent cabinetry
***when venting through the same or adjacent cabinet. Refer to ‘External venting preparation’ for more information.
****for more information on service requirements, refer to ‘Plumbing & electrical considerations’ and ‘Cabinetry preparation’.
STANDARD INSTALL ASSISTED OPENING INSTALL
ISOMETRIC
ISOMETRIC
A
A
C
D
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher*** Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher****
B
C
D
E
The assisted opening unit should be installed at the centre front of the cavity. For more
information on assisted opening installations, refer to fisherpaykel.com
Assisted opening units can be purchased separately.
B

8
CABINETRY CLEARANCES MM
A Minimum clearance to adjacent cabinetry 2
B Minimum clearance to corner cabinetry 13
B A
PLAN
CLEARANCES

9

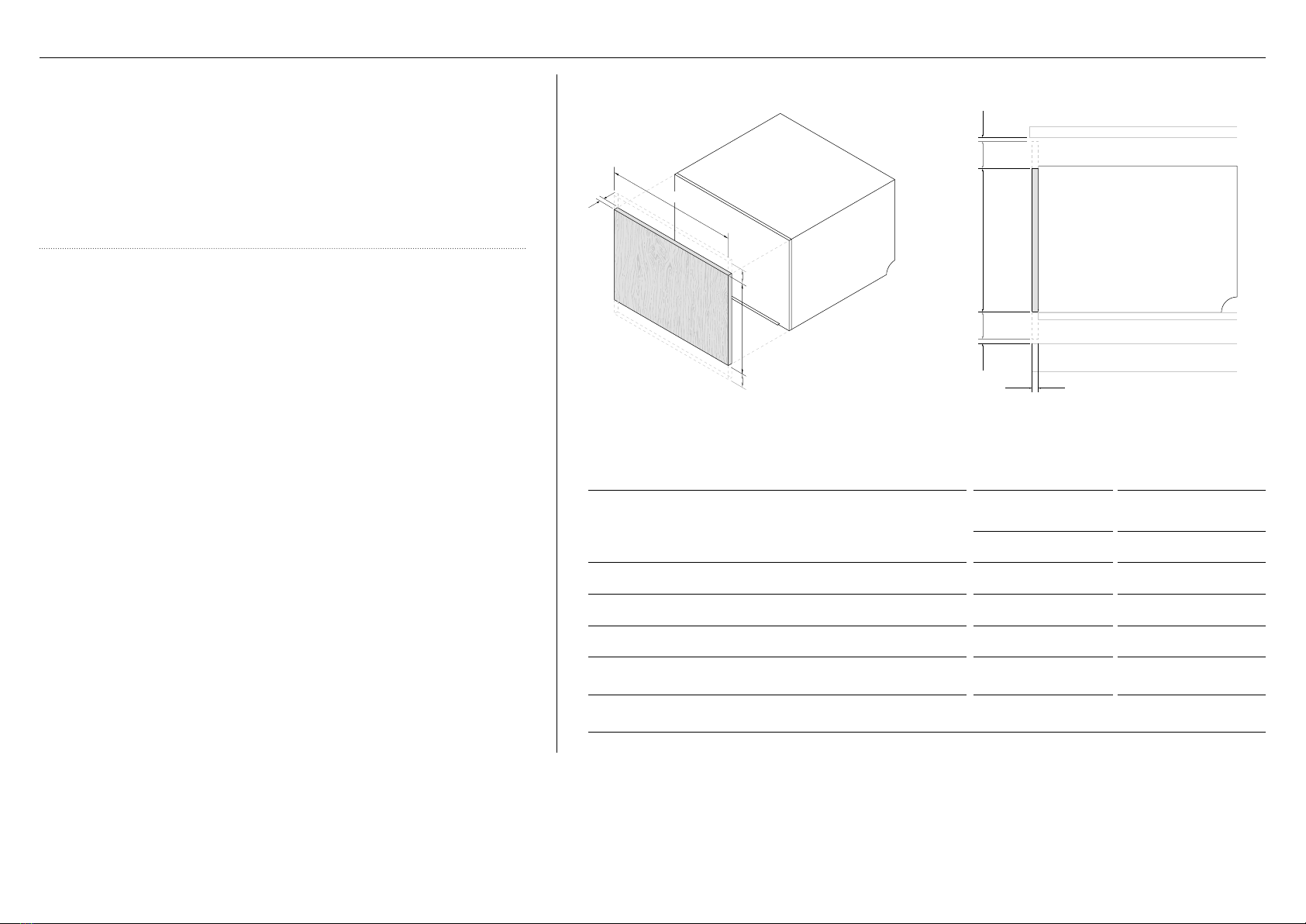

CUSTOM PANEL DIMENSIONS
CABINETRY DIMENSIONS
STANDARD
INSTALL
ASSISTED OPENING
INSTALL**
MM MM
A Minimum panel height* 452 498
B Minimum panel width 596 596
C Panel depth 16 - 20 16 - 20
D Minimum clearance between base of door panel and
cabinetry 2 2
E Minimum clearance between top of door panel and
countertop 2 2
*Core panel dimension. Panel can be extended or lowered to suit installation
**for more information on panel placement refer to fisherpaykel.com
ISO PROFILE
Material specifications
zMaximum weight of panel must not exceed 9kg (including handle)
zThe panel should be adequately sealed to withstand moisture (50°C @
80% RH). The back and sides of the panel should be completely sealed
with a waterproof vapour barrier, such as polyurethane, to prevent damage.
zThe back of the panel should be completely flush so that the seal between
the panel and the rubber trim is maintained.
zInstallation outside these specifications may result in condensation on
cabinetry surfaces.
A
A
D
e
C
B
C
Standard installation illustrated

10
PLUMBING & ELECTRICAL CONSIDERATIONS
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
MM MM
A Length of drain hoses 2000 1800
B Length of power cord** 2000 2000
C Length of inlet hose 1650 1250
D Distance from floor to top of hose support 750 - 883 750 - 883
E Minimum distance from floor to end of drain hoses*** 500 500
F Minimum distance from floor to inlet hose connection 200 200
G Maximum distance from cabinetry centre of electrical outlet 450 450
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for all plumbing installs.
Hose and cord lengths
zYour services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to ‘Cabinetry preparation’
for service access requirements.
zIf the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
zRecommended water temperature: Cold (maximum 60°C)
z3/4” BSP (GB20) to suit flat washer
zEnsure water connection complies with local plumbing regulations.
Water pressure
zWater softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
zNon-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z220-240VAC min 4.8A
Assisted Opening electrical requirements
zA double power socket is required
a a b cbc
d d
e e
f f

11
CABINETRY PREPARATION
Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris.
1
2Carefully apply the tape to the surface.
SERVICE ACCESS MOISTURE PROTECTION
REAR
WALL
SHELF*
PROFILE

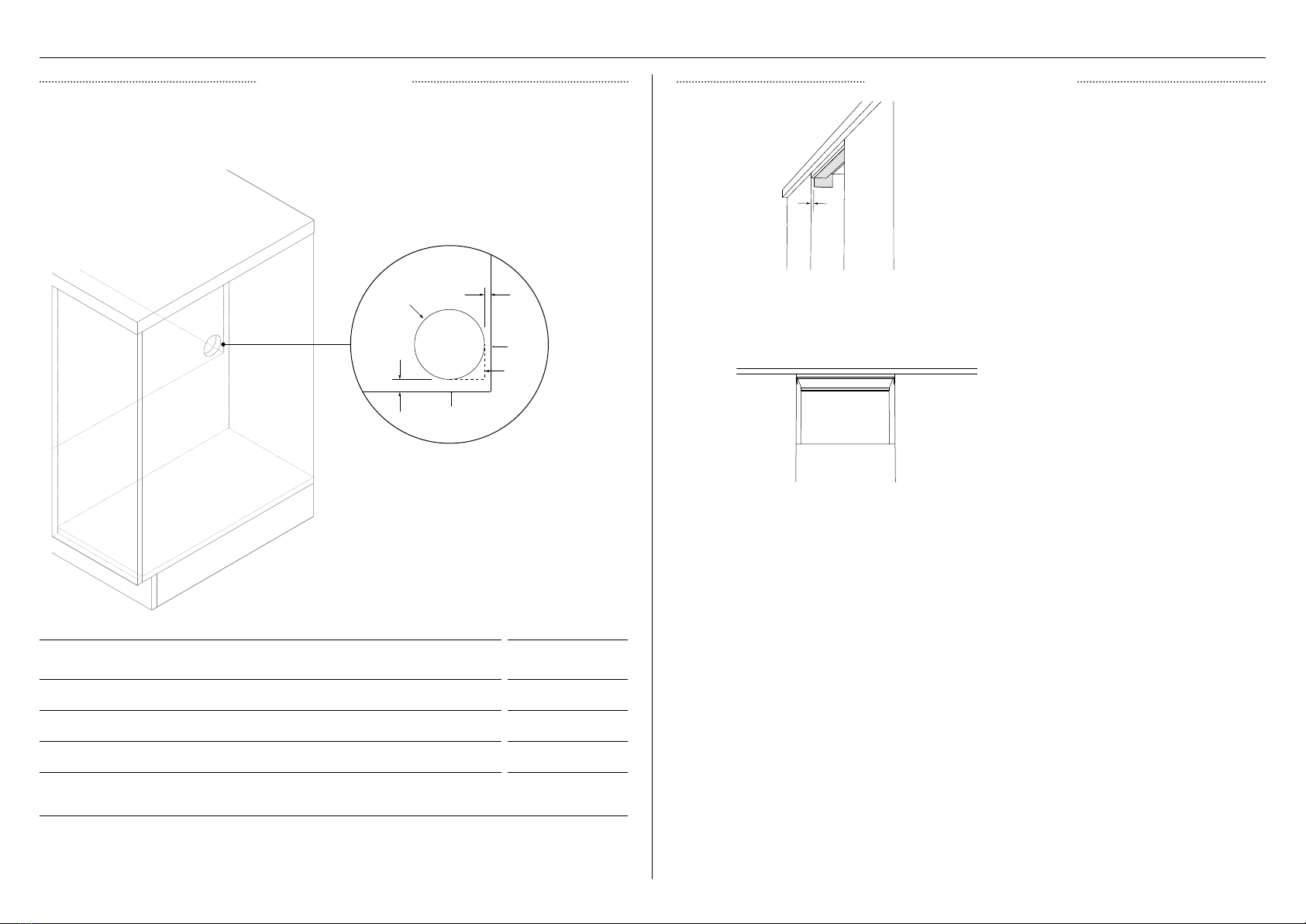

SERVICE HOLE DIMENSIONS MM
A Maximum distance between rear of cavity and service hole 5
B Maximum distance between shelf* and service hole 10
C Minimum diameter of service hole 57
D If venting through the adjacent cabinetry, the rear edge of the service hole should be
enlarged by cutting out the bottom corner
A
B
C
D
zService holes can be created on either side of the DishDrawer™ Dishwasher cavity as shown
below.
zIf the hole is created through wood, ensure the edges are smooth and rounded
zIf the hole is created through metal, ensure the supplied edge protector is fitted.
10mm
*For assisted opening installations, maximum distance should be referenced from the top of the spacer blocks

12

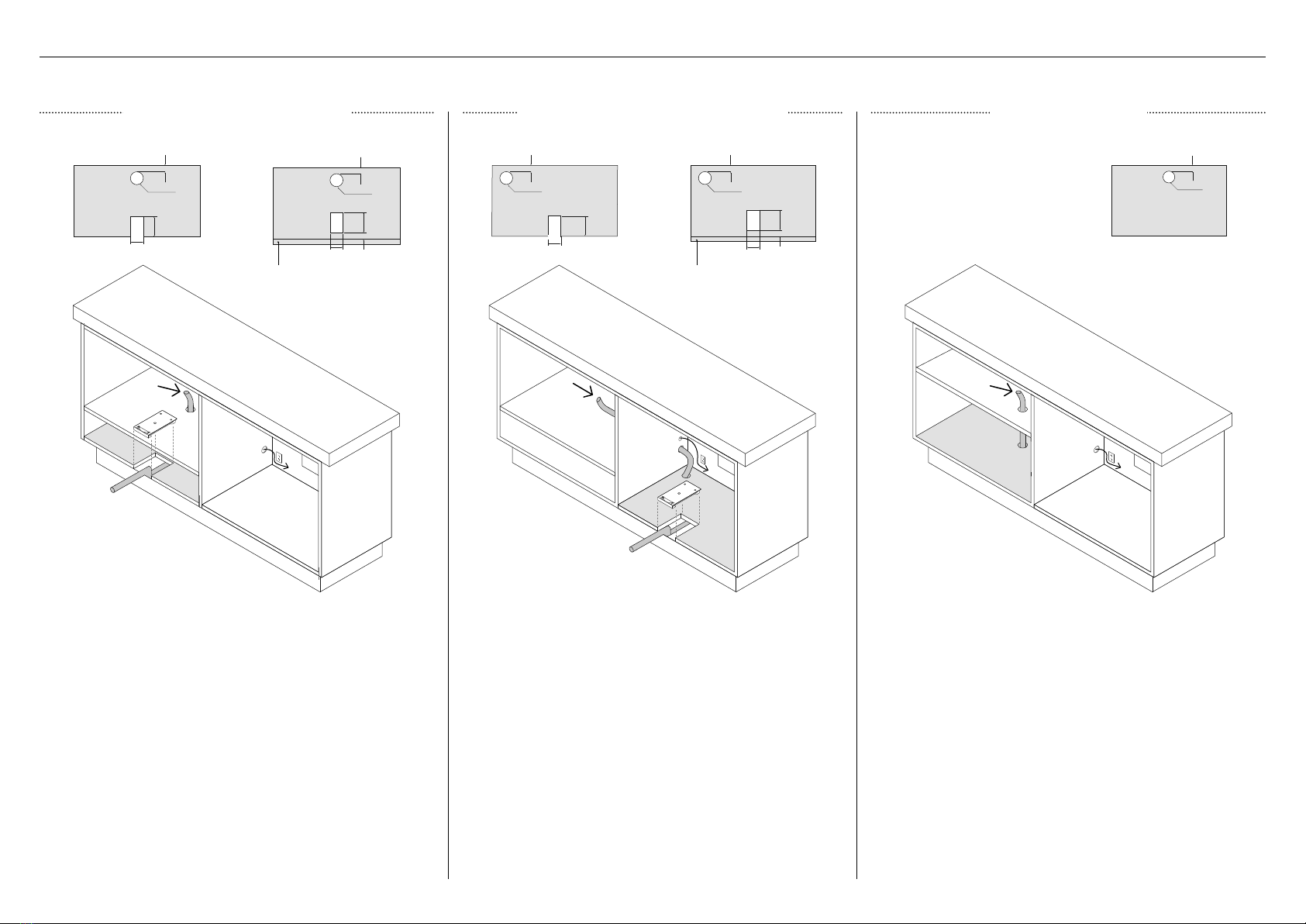

EXTERNAL VENTING PREPARATION
To prevent the build up of condensation produced by your DishDrawer™ Dishwasher, the external venting kit must be installed via one of the following options:
THROUGH SAME CABINET THROUGH ADJACENT CABINET THROUGH FLOOR
zThere is no minimum toe kick height for venting the
DishDrawer™ Dishwasher through the floor below
the cabinetry, the space below the floor however,
must be a sub-area of the house and have adequate
airflow.
zA Ø57mm service hole should be created through
the side wall following the guidance under ‘Cabinetry
preparation’. In addition to this, a Ø57mm service
hole must be also be created through the shelf, the
base of the cavity and the floor to route the venting
hose through.
zThe duct is not required for this venting method.
zEnsure all cutout edges are smooth and rounded and
the supplied edge protector is fitted if required.
zA toe kick height of at least 100mm is required.
zA Ø57mm service hole should be created through
the side wall following the guidance under ‘Cabinetry
preparation’. In addition to this, a second Ø57mm
service hole must be also be created through the
shelf and the base of the cavity to route the venting
hose through.
zFrameless cabinetry: A 100mm x 200mm cutout
must be created at the front of the cabinetry base to
secure the duct to.
zFramed cabinetry: A toe kick depth of at least 60mm
is required. In addition, a 100mm x 200mm cutout
must be created within the adjacent cabinetry base
to secure the duct to. This cutout should be set back
a minimum of 25mm from the frame edge for optimal
venting.
zA toe kick height of at least 100mm is required.
zA notched-out Ø57mm service hole should be
created through the side wall following the guidance
under ‘Cabinetry preparation’.
zFrameless cabinetry: A 100mm x 200mm cutout
must be created in the base of the adjacent cabinetry
to secure the duct to.
zFramed cabinetry: A toe kick depth of at least 60mm
is required. In addition, a 100mm x 200mm cutout
must be created within the adjacent cabinetry base
to secure the duct to. This cutout should be set back
a minimum of 25mm from the frame edge for optimal
venting.
FRAMED FRAMED FRAMED & FRAMELESSFRAMELESS
ISO* ISO* ISO
FRAMELESS
25 25
200 200 200
200
100 100 100
100
Ø57
Ø57 Ø57 Ø57 Ø57
5 5 5 5
5
custom framed edge custom framed edge
*Frameless install illustrated *Frameless install illustrated

13
FIT THE TRIM BRACKET PREPARE EXTERNAL VENTING
2Check the trim seal is facing forward
and sitting flat under the bracket.
1
Align the bracket to the chassis ensuring
the arrow is facing forward and firmly
slot the tabs into place to secure.
Ensure the ends of the tabs are not
pushed into the chassis.
Rotate the elbow at the rear of the
product to either the left or right
depending on your venting location.
Push the vent hose onto the elbow
firmly to secure.
We recommend fitting the trim bracket when installing your DishDrawer™ Dishwasher into a
480mm cavity to conceal any visible gap left between the countertop and chassis. FIT THE VENTING HOSE TO THE DISHDRAWER™ DISHWASHER
TRIM THE DUCT
On a protected surface, carefully cut
and remove the clips from the vent as
shown. Refit the top cover.
Unscrew the top cover from the vent
and set aside.
2
2
1
1
Framed cabinetry only

14

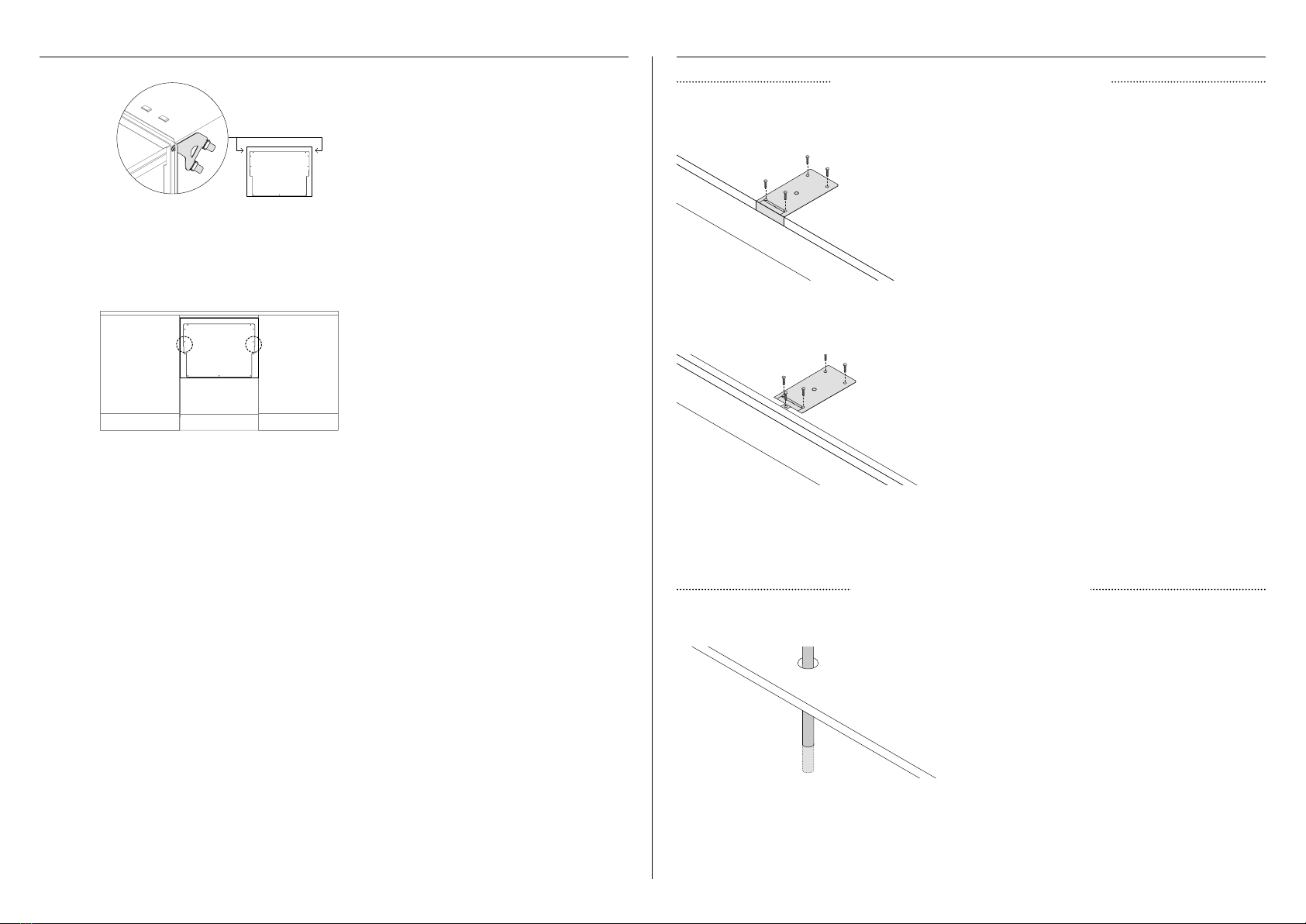

If securing via bracket method:
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
Route the venting hose through
the floor. Ensure any excess hose is
removed.
Unframed cabinetry
Route the venting hose to the cutout
and push onto the duct firmly to secure.
Push the duct onto the cabinetry and
secure using the four provided screws.
Framed cabinetry
Route the venting hose to the cutout
and push onto the duct firmly to secure.
Place duct into cutout and insert the
bracket into vent slot. Secure using the
five provided screws.
1
2
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them.
Push the product in the positions
illustrated to avoid denting the door.
PUSH THE PRODUCT INTO THE CAVITY SECURE THE VENTING HOSE TO CABINETRY
VENTING THROUGH FLOOR
VENTING THROUGH CABINETRY

15
FIT THE CUSTOM PANEL
26
3 7
48
Carefully pull the bracket out from
DishDrawer™ Dishwasher and unplug the
Knock-to-Pause module and earth wire.
Remove the Knock-to-Pause module
from the back of the bracket.
Reconnect the Knock-to-Pause model
and earth wire to the DishDrawer™
Dishwasher.
Attach the Knock-to-Pause module to
the panel as shown.
Ensure the Knock-to-Pause module is
oriented correctly and is not in contact
with the bracket before securing.
On the back of the panel, mark the
centre and align the base of the bracket
with the base of the panel.
Re-insert both side pins to secure the
panel in place.
Secure the bracket to the panel using a
minimum of 3 screws on either side.
Insert a screwdriver into the hole above
the side pin and rotate to adjust the
panel alignment. There is a maximum
travel distance of ± 2mm.
Repeat on the other side if required.
Ensure the minimum clearance gap of
2mm is maintained.
15
Remove both side pins from the drawer.

16

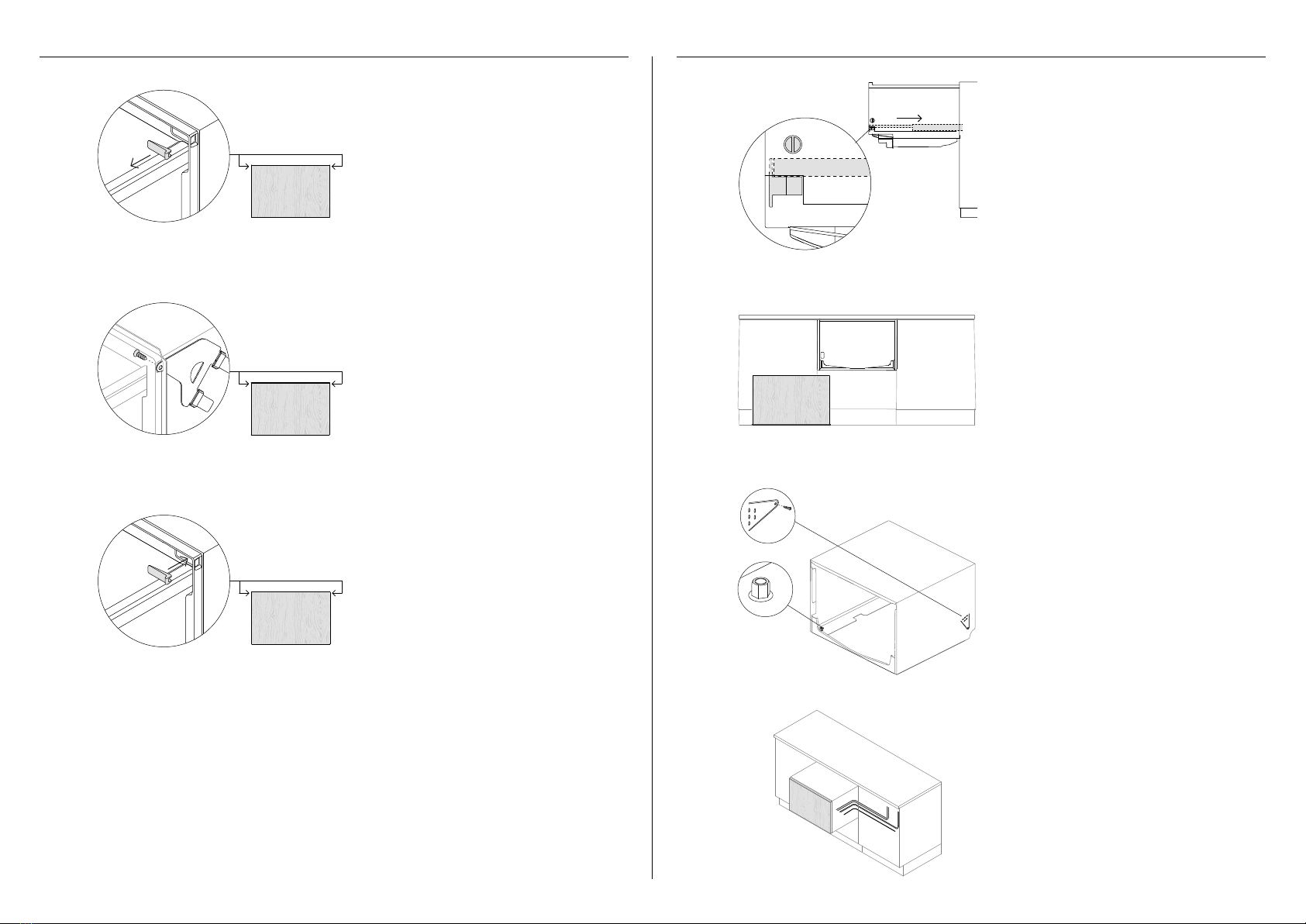

SECURE TO CABINETRY VIA BRACKETS (METHOD A)
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
2
3Replace the trim cover and repeat for
the remaining brackets.
SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
Secure to cabinetry via all three fixing
locations in the tub.
Ensure sound insulation is replaced
correctly.
3
1
2
4
Open the drawer and press both locking
tabs back to release.
Lift the drawer off the runners and
set aside on a protected surface. Push
runners back in.
Take care not to pull drawer out too far
to prevent any strain on the hoses.
Before refitting the drawer, ensure the
hoses are not twisted and the latches at
the rear of the drawer are both facing
forward.
Refit the drawer to the runners and clip
into place via both locking tabs.
Partially open the drawer and remove
the first screw cover from the trim
moulding.
1

17

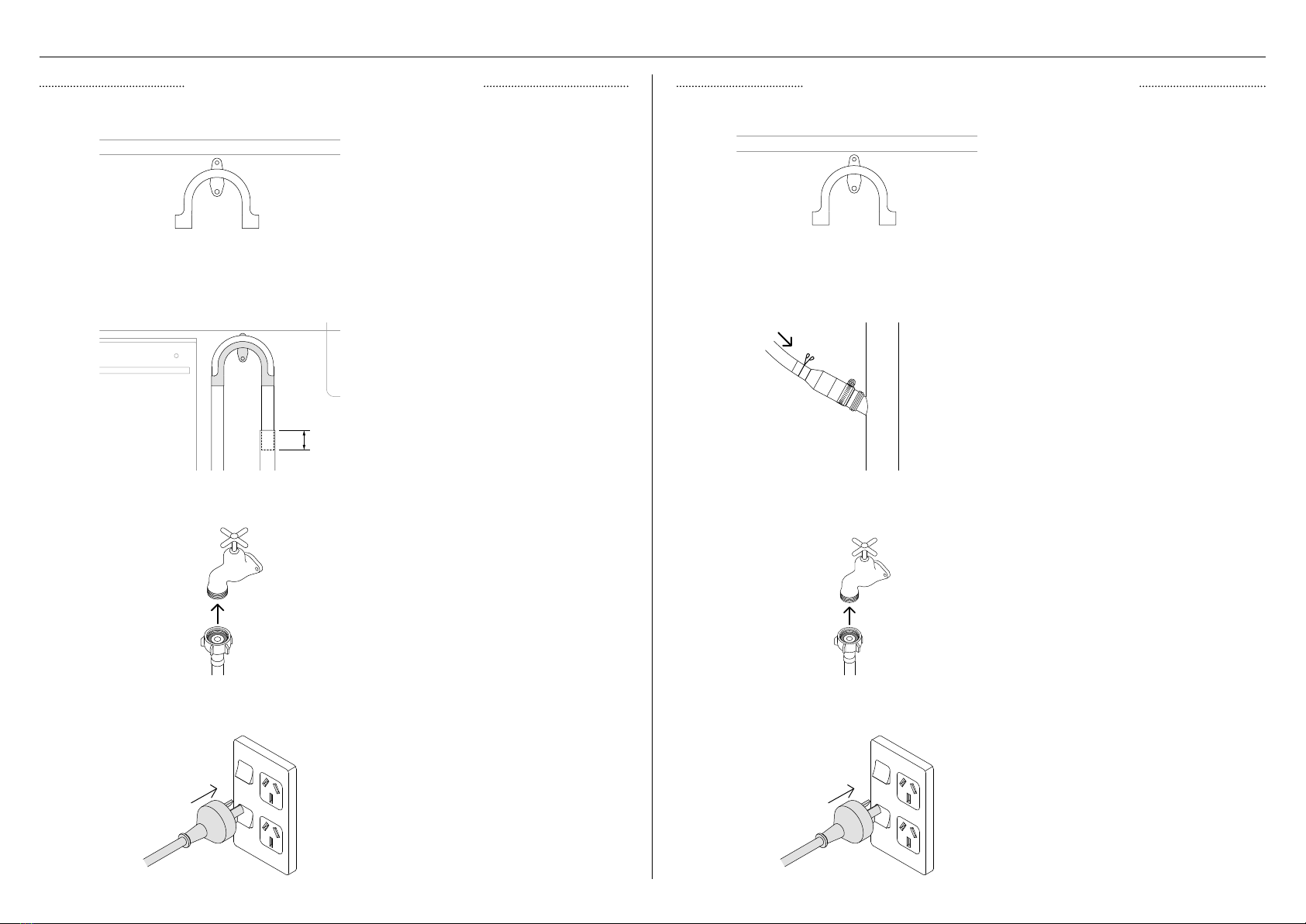

PLUMBING & ELECTRICAL CONNECTION
Install the drain hose support to the
back wall, as close to the underside
of the benchtop as possible. Refer to
‘Plumbing and electrical considerations’
for minimum install heights.
Install the drain hose support to the
back wall, as close to the underside
of the benchtop as possible. Refer to
‘Plumbing and electrical considerations’
for minimum install heights.
Pull both hoses through the support
guide and rest in standpipe.
Ensure the hoses do not extend any
further than 120mm into the standpipe
to prevent waste water from siphoning
back into the tub.
Pull both hoses through the support
guide and fit supplied hose joiner.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorted the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
Plug product in. Plug product in.
Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
1 1
2 2
3 3
4 4
Ensure the supplied rubber washer is
fitted to the coupling before connecting
the inlet hose to tap.
Tighten using a spanner or pliers,
avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be pow-
ered on for the flood protection feature
to be enabled.
Ensure the supplied rubber washer is
fitted to the coupling before connecting
the inlet hose to tap.
Tighten using a spanner or pliers,
avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be pow-
ered on for the flood protection feature
to be enabled.
120mm

18
TO BE COMPLETED BY THE INSTALLER
Check all parts are installed correctly and are secure.
Ensure DishDrawer™ Dishwasher is secure and drawer opens and closes freely with no
resistance.
Ensure panel is fitted correctly to the DishDrawer™ Dishwasher
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotate freely.
Ensure knock-to-pause module is fitted securely and operating correctly.
Ensure all electrical tests have been conducted in accordance with local regulations.
Electrical
Installation
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum 150mm
higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to be
enabled.
Plumbing
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Test operation
INSTALLER CHECKLIST

19
TROUBLESHOOTING
A3 fault: excess water remaining above the filter plate after the rinse cycle
zEnsure hose support is correctly installed and drain hoses are routed correctly, refer to
‘Plumbing & electrical considerations’ and ‘plumbing & electrical connection’for details.
zCheck for twisted or kinked drain hoses
zCheck for a blocked waste connection.
zEnsure spray arms are mounted correctly and rotate freely.
A1 fault: no water supply
zCheck water is connected and turned on.
The DishDrawer™ Dishwasher is beeping continuously
zRefer to the ‘Fault codes’ section of your User guide
No program indicator lights up when the drawer is opened
zEnsure power is connected and is switched on.
zAUTO POWER-ON may need to be activated. Refer to your User guide for details.
Drawer doesn’t close properly
zEnsure nothing is obstructing the drawer from closing such as hoses or drawer latches.
Water appears around water supply and drain connections
zCheck hoses, connections and existing plumbing for leaks.
zCheck rubber washer and hose clamp are correctly fitted.
Product is tipping
zEnsure the product is secured to the cabinetry.
Front panels are misaligned to surrounding cabinetry
zCheck cabinetry is square.
zIf a problem occurs that is not listed, refer to your user guide for additional troubleshooting
If after checking these points,you still need assistance, please refer to the Service &
Warranty book for warranty details or contact us through our website fisherpaykel.com

59264A 02.21
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
FISHERPAYKEL.COM
